Kenmore 66517032403 dishwasher Parts

Yes. We still carry replacement parts for Kenmore dishwashers, including model 66517032403, and many common repairs use widely available components such as a heating element, drain pump, door seal, or water inlet valve. Using the exact model number is the fastest way to match the correct part.

How to make sure you order the right part

• Match the full model number on the rating label to 66517032403.
• Use the exploded views and part lists in the 66517032403 owner's manual to confirm the part location and name.
• Compare your original part’s markings (if readable) to the replacement listing.
• If the symptom is unclear, start with the most common failure points (drain, heat, leaks, no power).
• Replace any one-time-use clamps or seals you disturb during the repair.

Common Kenmore dishwasher parts customers replace

Here are examples of parts available for this model:

Symptom	Part to check first	Example part for 66517032403

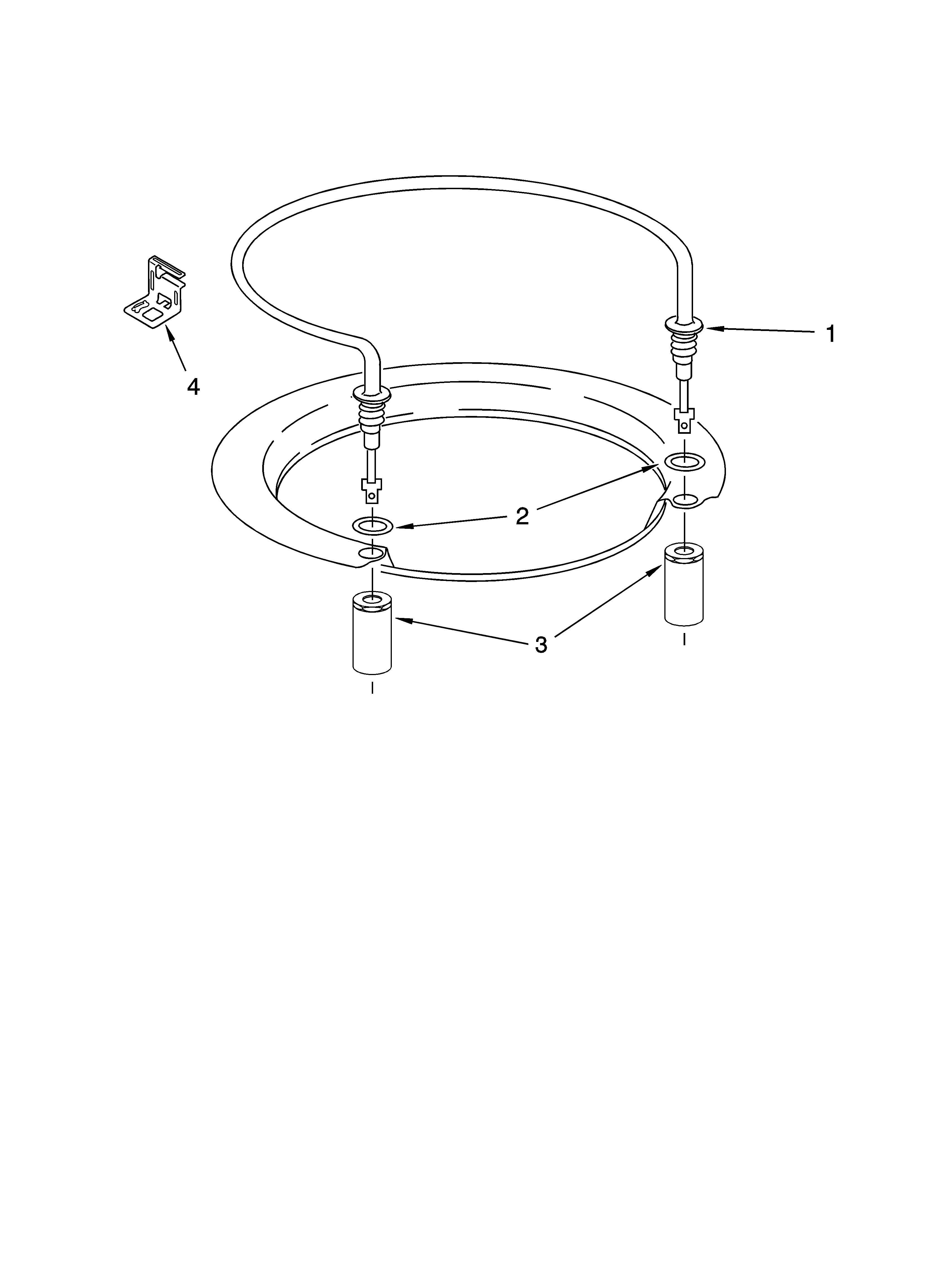

Dishes not drying, water not heating	Heating circuit	Dishwasher heating element W10518394

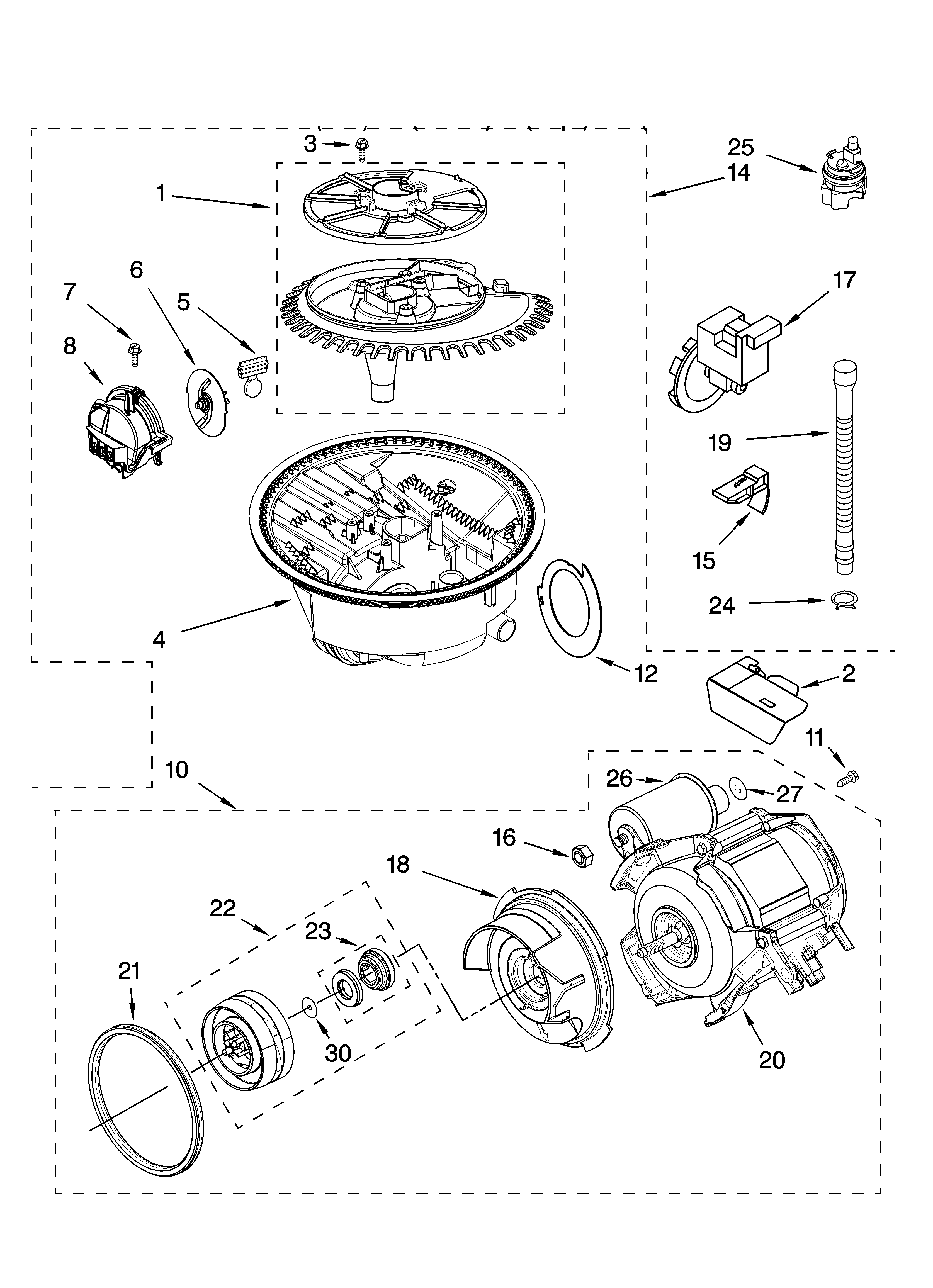

Won’t drain, standing water	Drain system	Dishwasher drain pump WPW10348269

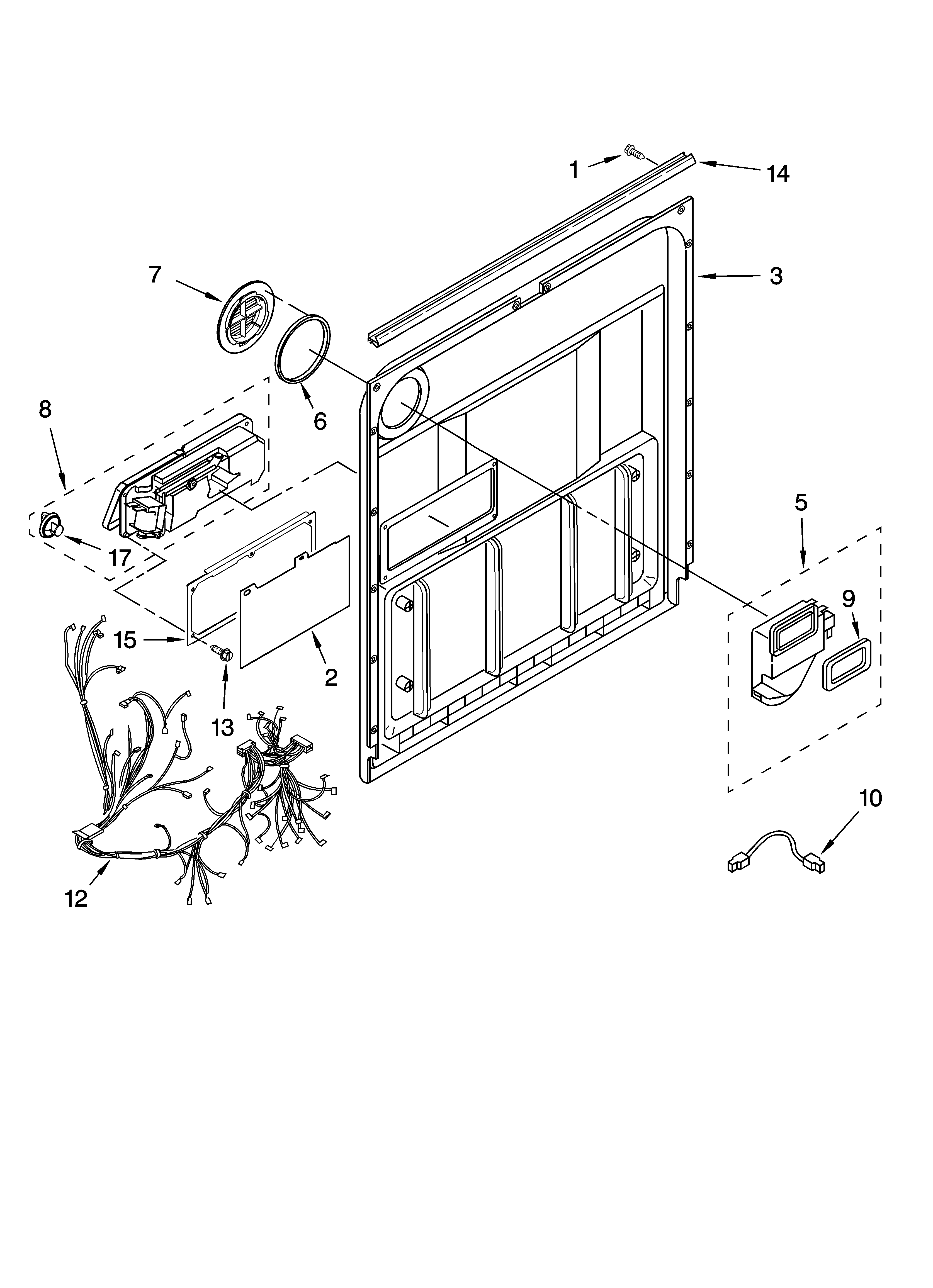

Leaks at the door	Door sealing surfaces	Dishwasher door seal W10542314

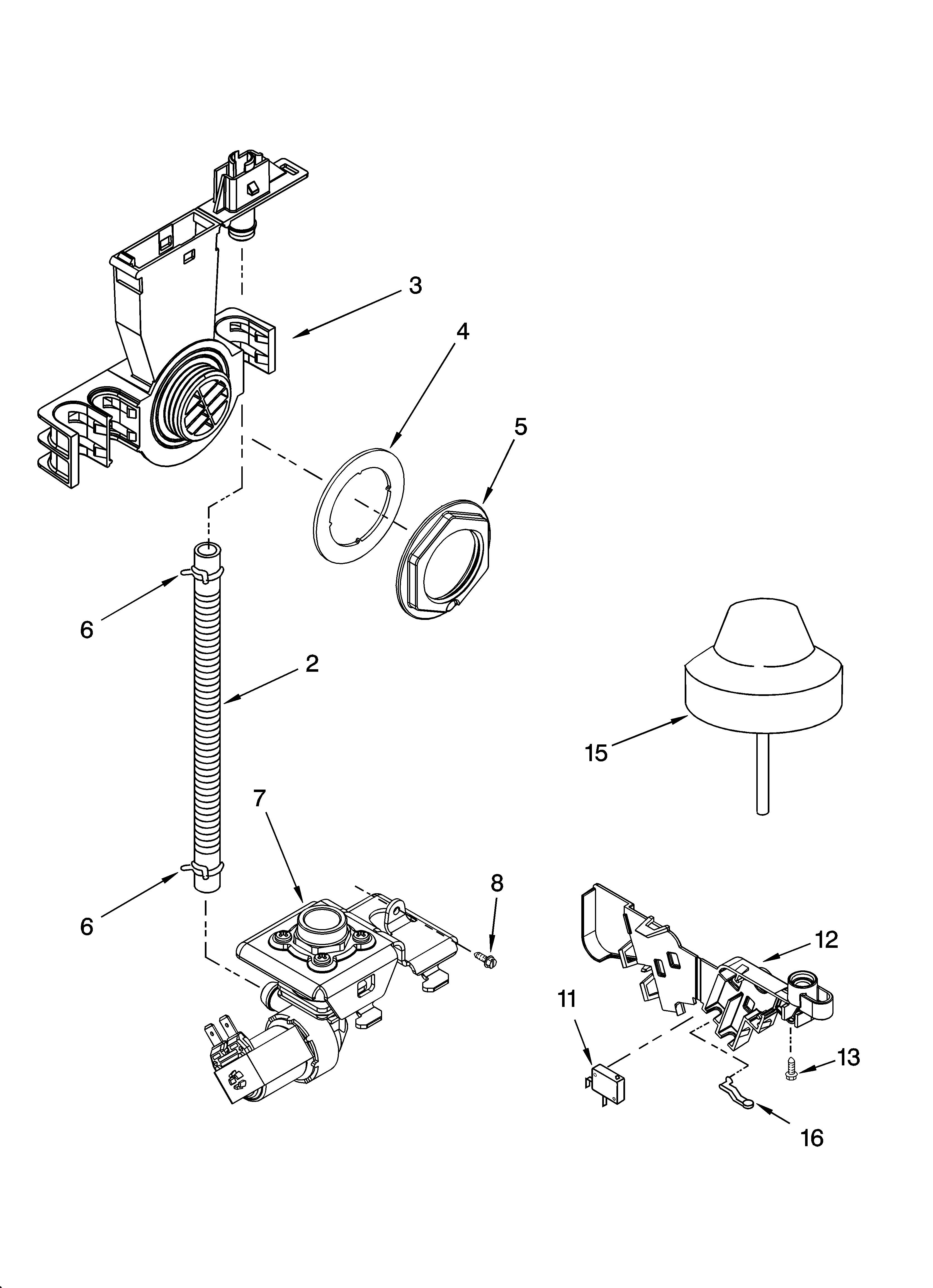

Won’t fill or fills slowly	Water supply into tub	Dishwasher water inlet valve WPW10158389
Dead/no lights	Power protection	Fuse W10258275

Why it matters

Kenmore dishwashers are built for years of dependable operation, but normal wear items (seals, pumps, heating components) eventually need service. Using the correct model number and the manual’s parts and features section helps prevent wrong-part returns and repeat repairs.

Helpful next step if you’re troubleshooting

If your dishwasher is showing a fault or blinking pattern, use Kenmore 665 model dishwasher error codes to narrow the failure to a specific system (drain, heat, fill, control).

Last updated: February 2026

To tell which Kenmore dishwasher you have, we look for the model and serial number on the rating label. On Kenmore model 66517032403, the rating label is typically on the inside edge of the door or the tub opening, where it is easy to read when the door is open (see the 66517032403 owner's manual).

Where to find the model number label

Check these common spots first:

• Inside the door along the left or right edge
• On the tub frame just inside the door opening
• Along the top edge of the inner door panel
• Near the hinge area (visible with the door open)

What to write down (and why)

Record both numbers exactly as shown:

• Model number: identifies the exact dishwasher design (parts and features)
• Serial number: identifies the production run (helps confirm correct revisions)
• Brand: Kenmore (helps narrow down manuals and diagrams)

Quick ID checklist

• Open the door fully and use a flashlight.
• Wipe the label gently if it is greasy or dusty.
• Copy the model number character-for-character (numbers matter).
• Take a clear photo for reference when ordering parts.

How the model number helps with parts and troubleshooting

Once we have the model number, we can match the correct parts and repair steps for your exact dishwasher.

What you need	Where it’s used	Example for this page
Model number	Parts lookup, diagrams, manuals	66517032403
Serial number	Confirms production details	From the rating label

Why it matters

Kenmore dishwashers can look similar across multiple series, but parts like the electronic control, drain pump, or door seal can vary by model. Using the rating label prevents ordering the wrong replacement part and speeds up troubleshooting.

Last updated: February 2026

To clean the filter on your Kenmore dishwasher model 66517032403, we remove the lower rack, lift off the lower spray arm, then remove and rinse the filter basket and screen so water can circulate and drain properly. Use the steps in the 66517032403 owner’s manual for your exact filter layout.

Quick steps to clean the filter

• Turn off power at the breaker (safer when working around the sump area).
• Pull out the lower rack.

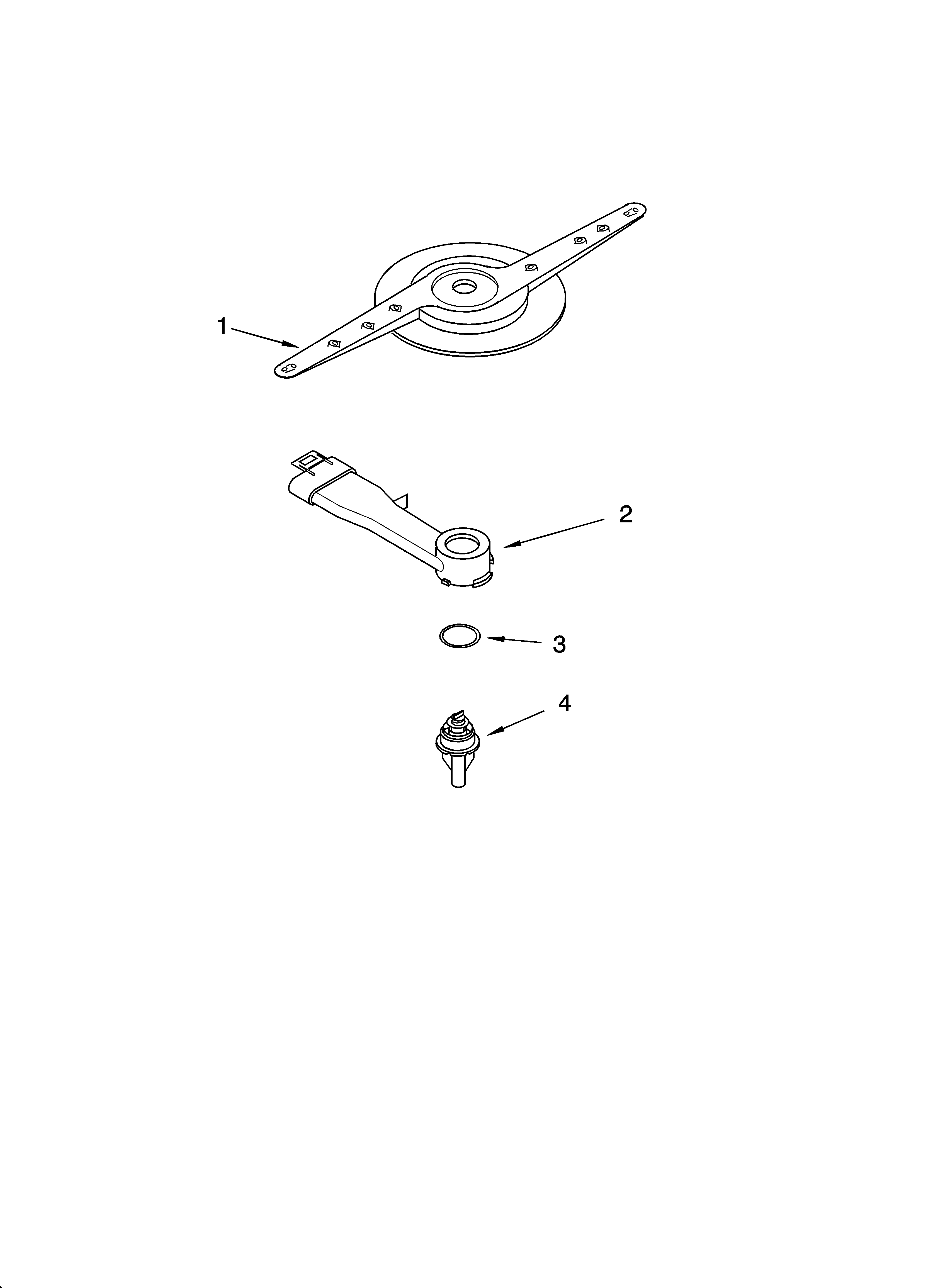

• Lift the lower spray arm straight up to remove it.
• Rotate the spray arm mount about 90° (if equipped) and lift it out.
• Lift out the filter basket and any screen underneath.
• Rinse parts under hot water; use a soft brush for stuck-on debris.

Cleaning tips that prevent wash and drain problems

• Do not use harsh cleansers inside the tub; use dishwasher detergent on a damp sponge for interior film if needed.
• If you see white film from hard water, clean the interior and then run a normal cycle with detergent afterward.
• For occasional spotting or film, run a vinegar rinse (2 cups white vinegar in a cup on the bottom rack; no detergent; complete cycle with air-dry).
• Check the sink or countertop drain air gap (if your setup has one) when the dishwasher is not draining well.

What “clean” looks like

Part	What to check	What to do
Filter basket/screen	Food bits, grease, paper labels	Rinse and brush until openings are clear

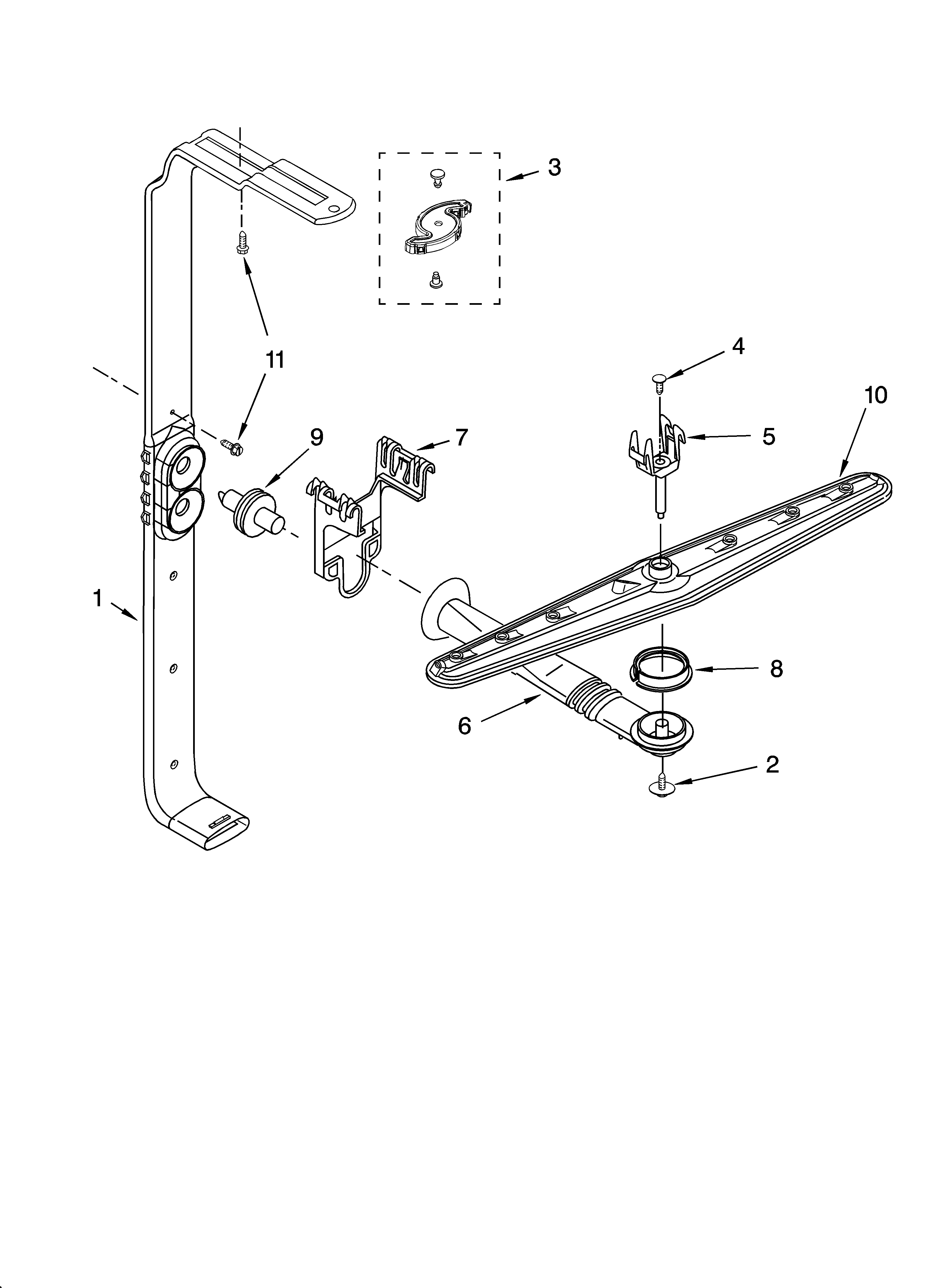

Spray arm	Clogged jet holes	Rinse; clear holes with a toothpick if needed
Sump area	Broken glass, seeds	Remove debris carefully (wear gloves)

Why it matters

A clogged filter restricts water flow and can leave grit on dishes, reduce drying performance, and contribute to poor draining. Keeping the filter and spray arm clear helps the wash pump move water efficiently through the cycle.

Last updated: February 2026

To manually drain your Kenmore dishwasher model 66517032403, press CANCEL/DRAIN with the door fully closed; the dishwasher runs a 2-minute drain (if needed) and then the Cancel/Drain light turns off. This is the correct way to force a drain without starting a full wash cycle.

Quick steps to force a drain

• Close the door completely (the dishwasher will not drain with the door open).
• Press CANCEL/DRAIN once.
• Wait about 2 minutes for the drain to finish.
• If you need to stop draining, press CANCEL/DRAIN again.
• Drain the dishwasher before starting a new cycle.

What to do next (after it drains)

If you were draining to reset the cycle or restart:

• Open the door and check the detergent dispenser (refill if you are starting over).
• Select a new cycle and any options.
• Close the door until it latches.
• Press START/RESUME.

If it still will not drain

A forced drain helps confirm whether you have a drain problem. Check these common causes:

• Drain hose kinked, pinched, or clogged (inspect the dishwasher drain hose 8269144A).
• Sink/disposer connection blocked (especially right after a disposer install).
• Drain air gap (if your setup has one) clogged.
• Drain pump not running or jammed (possible issue with the dishwasher drain pump WPW10348269).

Symptom	Most likely area to check first
Hums but no water leaves	Drain pump, hose blockage
Drains slowly	Hose routing, air gap, partial clog
Stops mid-cycle with water left	Drain path restriction, pump issue

Why it matters

Standing water can cause odors, poor wash results, and repeated cycle cancellations. Using CANCEL/DRAIN is the fastest way to clear the tub so you can troubleshoot drainage safely and restart the dishwasher correctly.

For control locations and cycle behavior details, use the 66517032403 owner's manual.

Last updated: February 2026

Common problems in Kenmore dishwashers like model 66517032403 include not starting or stopping mid-cycle (often door latch or power related), not draining, poor cleaning, and poor drying. Many “no run” complaints trace back to the door not latching, a tripped breaker, or a blown house fuse (see the 66517032403 owner's manual).

Most common symptoms and what they usually mean

• Won’t start or stops during a cycle: door not closed and latched, cycle not selected correctly, power interruption, or motor overload reset.
• START/RESUME light flashing: door opened during the cycle or power was interrupted.
• Not draining: clogged drain path, kinked hose, or a failing drain pump.
• Not drying well: heater circuit issue, venting issue, or rinse aid problem.
• Spots, film, or stains on dishes: water chemistry, detergent amount, loading, or rinse aid settings.

Quick checks we recommend first (fast, no parts)

1. Confirm the door closes tightly and latches.
2. Verify the cycle is selected correctly, then press START/RESUME.
3. Check the home breaker or fuse; reset/replace if needed.
4. Make sure the water shut-off valve is on.
5. If it stopped, wait a few minutes; some motors reset after an overload.

Common part-related causes (when checks don’t fix it)

Symptom	Likely system	Example part for this model
No heat, poor drying	Heating circuit	Dishwasher heating element W10518394
Won’t drain	Drain system	Dishwasher drain pump WPW10348269

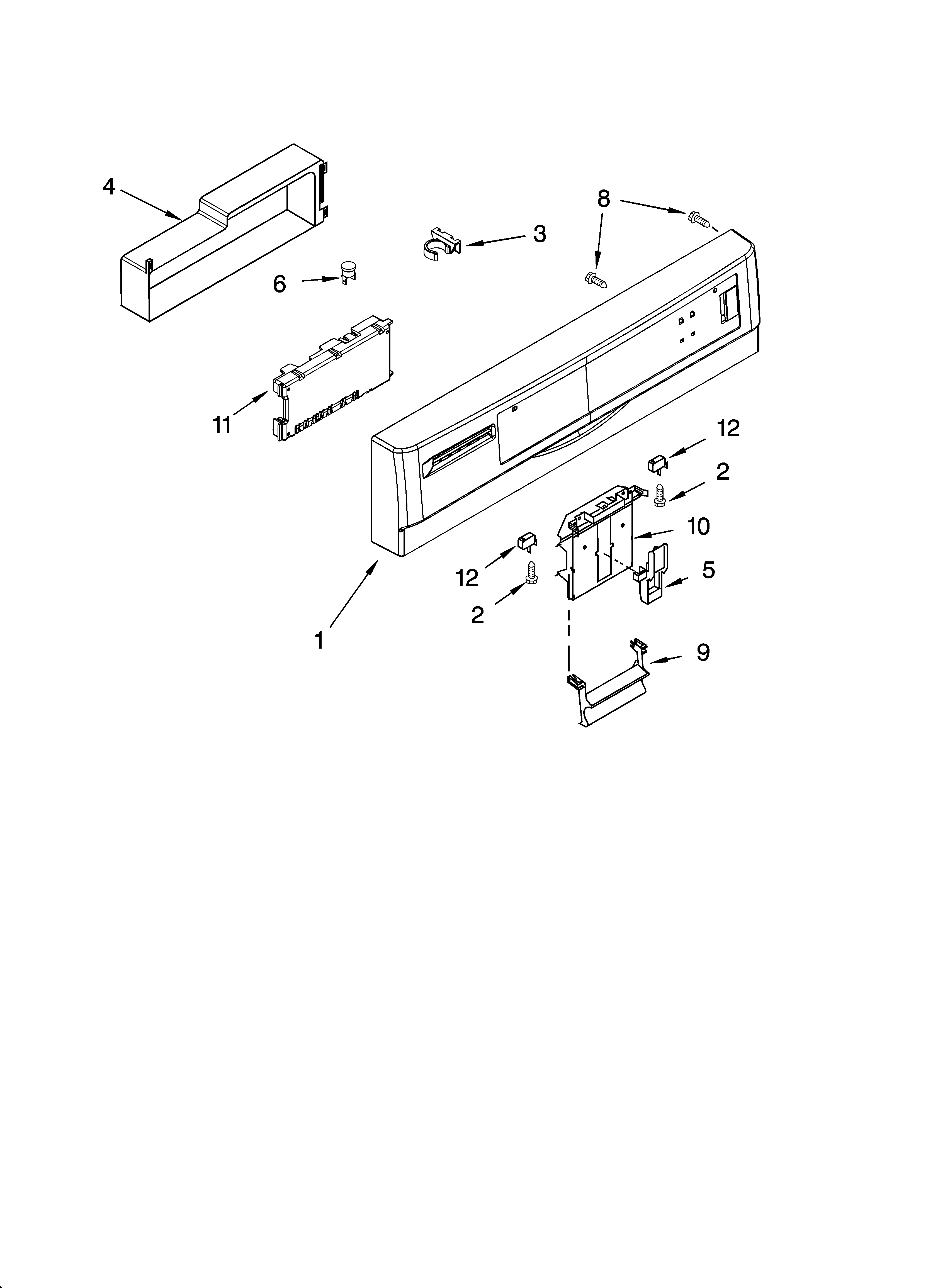

Dead or erratic controls	Controls/power	Dishwasher electronic control WPW10084141
Won’t fill or fills slowly	Water supply	Dishwasher water inlet valve WPW10158389

Why it matters

Catching the root cause early prevents repeat wash failures, standing water odors, and overheating or leak risks. For example, a simple door-latch issue can look like a control failure, and a drain restriction can mimic a bad pump.

For code-based troubleshooting, we use the Kenmore 665 model dishwasher error codes reference alongside the manual.

Last updated: February 2026
