Kenmore
Gas Wall Oven

Model #2783138896 Kenmore gas self-cleaning wall oven with extended delayed ignition

Here are the diagrams and repair parts for Kenmore 2783138896 gas self-cleaning wall oven with extended delayed ignition, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

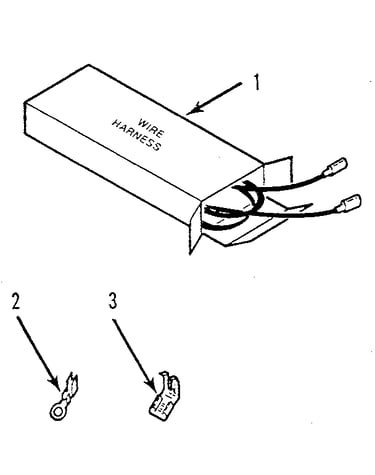

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileError Codes

Showing 10 of 159 parts

Body

#45

Body section Diagram

Body

Part #337022
$19.99

In Stock

Stiffener

#20

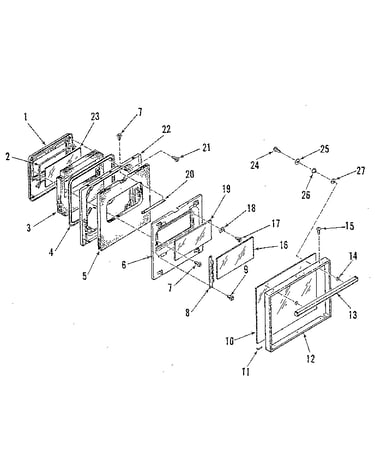

Oven door section Diagram

Stiffener

Part #338104
This item is not returnable
$2.29

In Stock

Insulation

#1

Body section Diagram

Insulation

Part #337749
This item is not returnable
$3.49

In Stock

Oven Owner's Manual

#NI

All parts Diagram

Oven owner's manual

Part #337810
This item is not returnable
$3.49

In Stock

Retainer Insert

#11

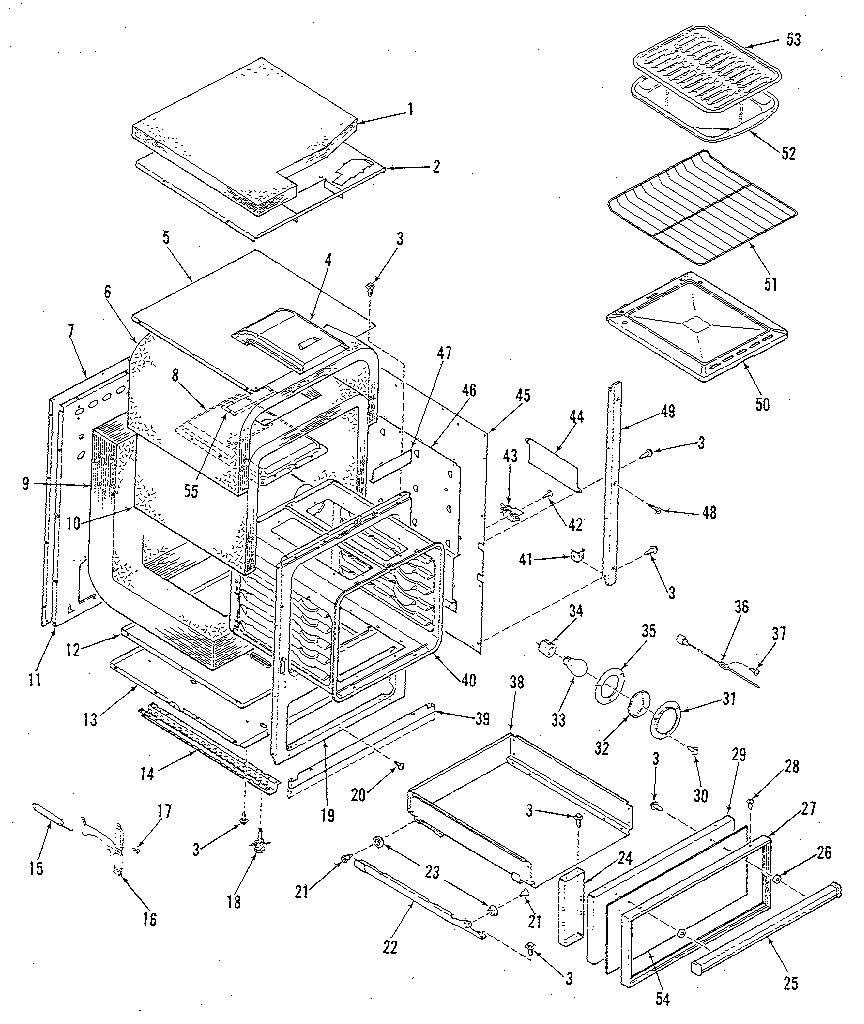

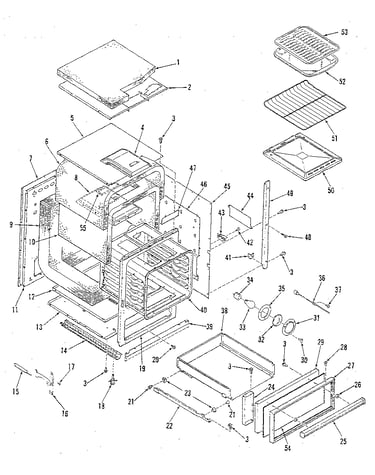

Body section Diagram

Retainer insert

Part #337882
$19.49

In Stock

Regulator

#18

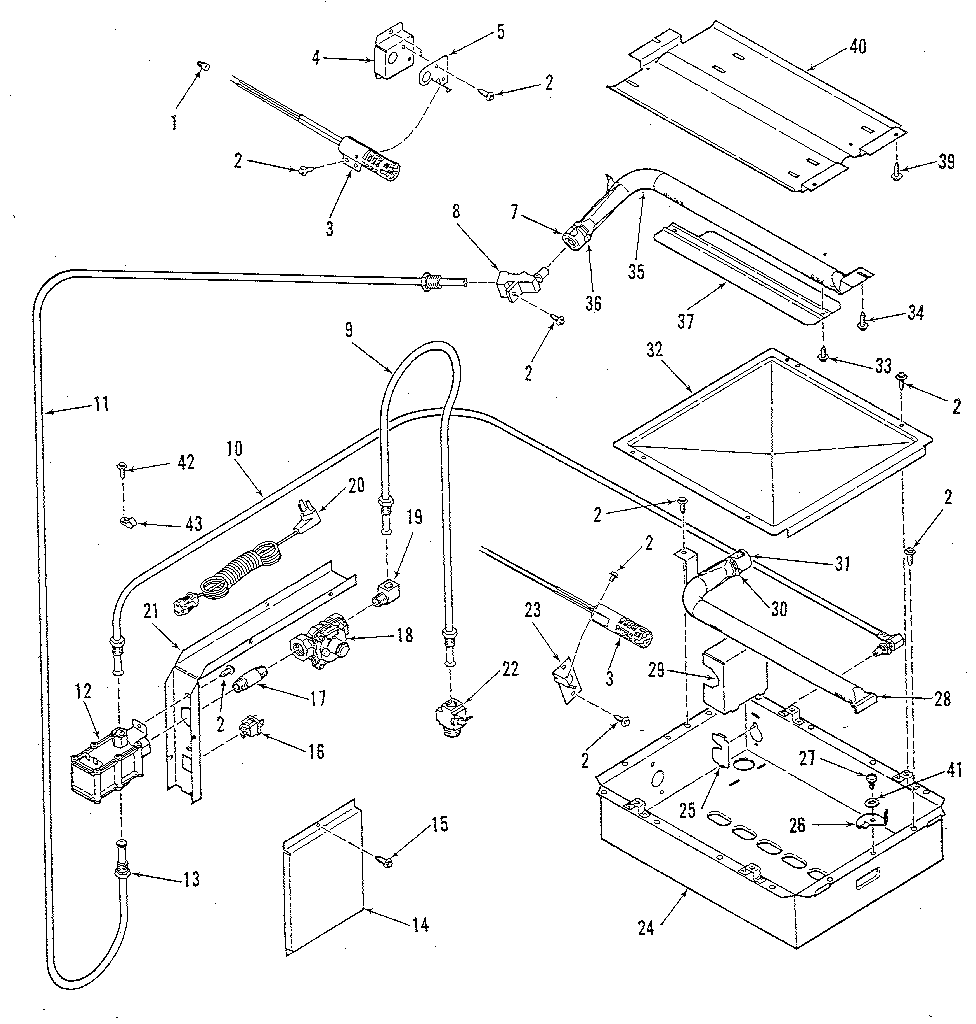

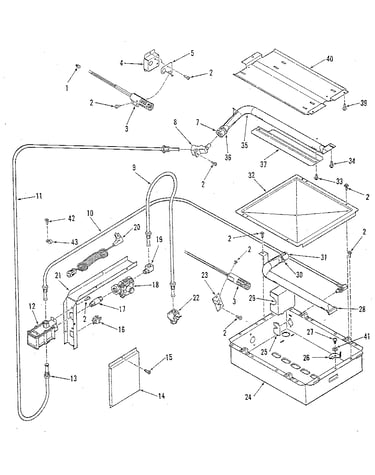

Burner section Diagram

Regulator

Part #337950
$18.49

In Stock

Housing

#3

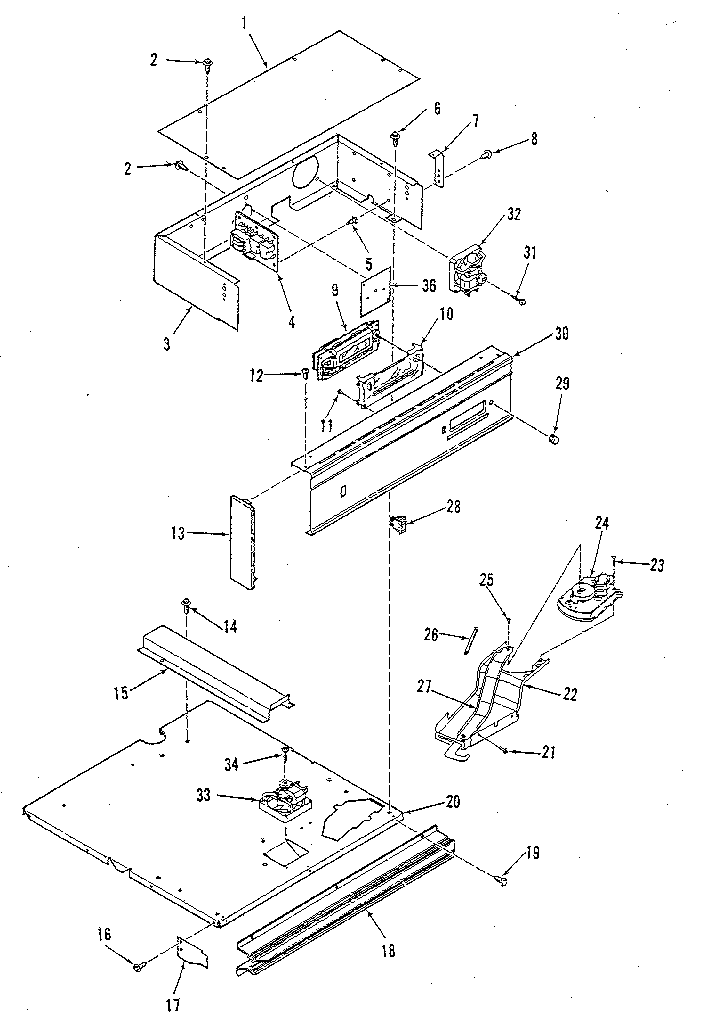

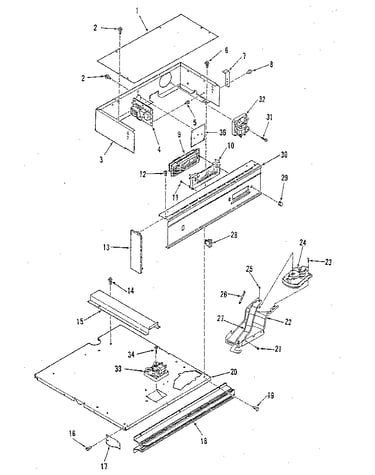

Control panel Diagram

Housing

Part #339476
$9.49

In Stock

Low Panel Frame

#27

Body section Diagram

Low panel frame

Part #342555
$29.49

In Stock

Lock Barrier

#47

Body section Diagram

Lock barrier

Part #338156
This item is not returnable
$2.49

In Stock

Screw

#37

Body section Diagram

Screw

Part #120855
This item is not returnable
$3.25

In Stock
