Maytag MED8230HC0 dryer Parts

A Maytag MED8230HC0 dryer typically lasts 10 to 15 years with normal household use. We see the longest life when airflow stays strong (clean lint screen and venting), the drum support system stays quiet and smooth, and overheating is prevented by regular maintenance in the owner's manual.

Typical lifespan and what affects it

Most electric dryers like the Maytag MED8230HC0 land in the 10 to 15 year range; the biggest difference is maintenance and venting.

• Venting quality: long runs and too many elbows increase heat and run time
• Lint control: a blocked lint screen or vent raises temperatures and wear
• Load habits: frequent overloading strains the belt, rollers, and idler pulley
• Environment: damp areas or temperatures below about 45°F can cause longer cycles
• Wear parts: rollers, idler pulley, and belt eventually wear and can be replaced

Quick “is it wearing out?” checklist

These symptoms usually point to normal wear items, not the whole dryer failing.

• Squealing, thumping, or rumbling while the drum turns
• Dryer runs but takes much longer to dry
• Burning smell or repeated overheating shutdowns
• Drum not turning (motor runs, but no tumble)
• Lint buildup around the lint screen housing

Parts that commonly extend dryer life

If your MED8230HC0 is noisy or not tumbling smoothly, these model-matched parts are common fixes.

Symptom	Common cause	Example part for MED8230HC0

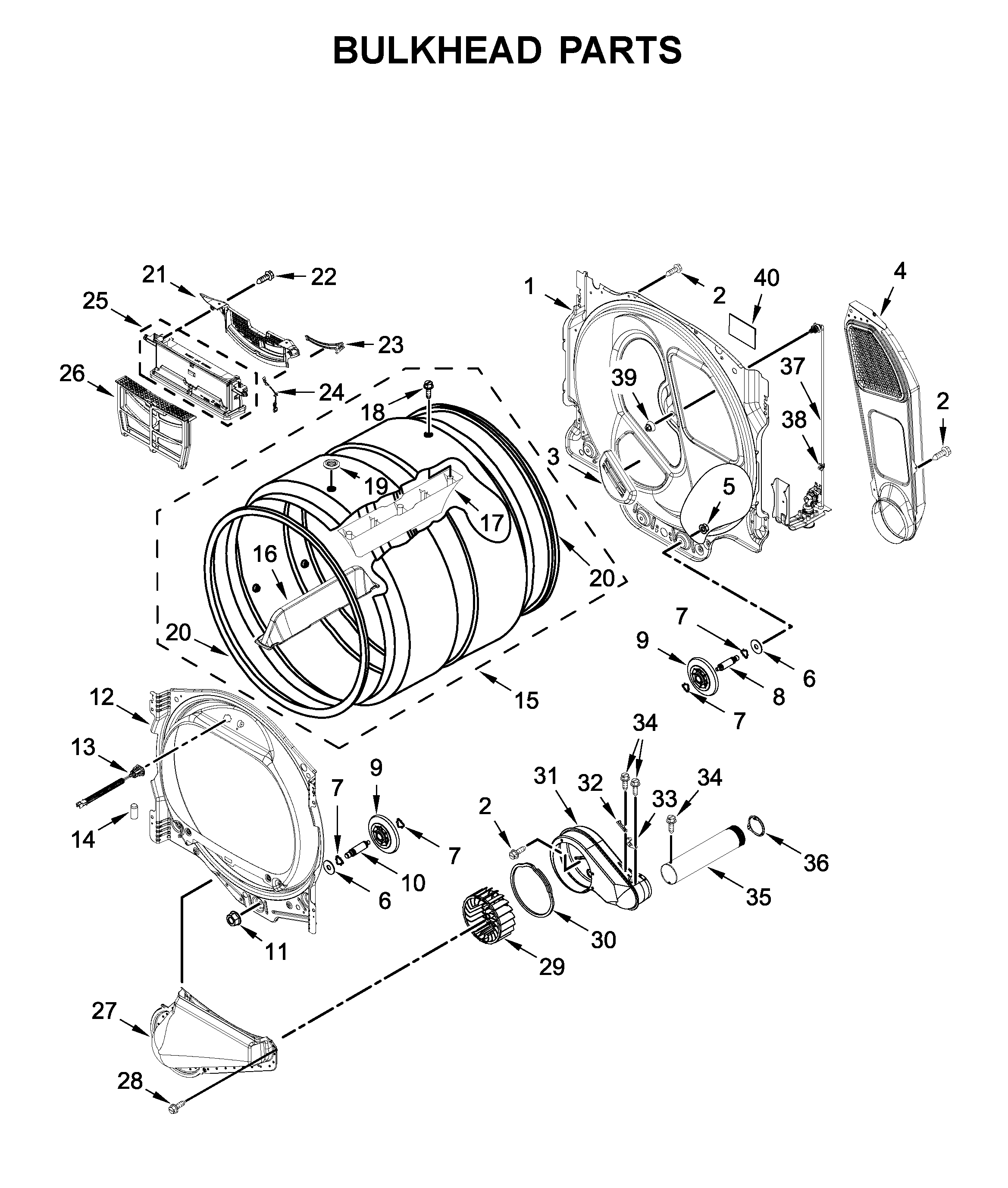

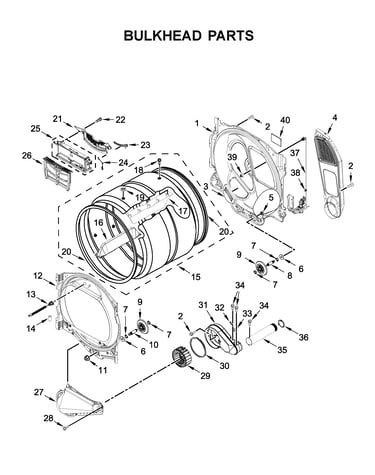

Thumping/rumbling	Worn drum rollers	Dryer drum support roller WPW10314173
Squealing	Worn idler pulley	Dryer idler pulley W10837240
Drum not turning	Worn/broken belt	Belt-4 rib, W10849499
No heat or weak heat	Failed heater circuit component	Element, heater 5400w WP3387747

Why it matters

A dryer that is forced to run hot or run long (usually from restricted airflow) wears out faster and can damage key components like the heater, thermostats, and drum support system. Keeping venting within the recommended limits and removing lint on schedule protects performance and lifespan.

Last updated: February 2026

If your Maytag MED8230HC0 dryer runs but clothes stay damp, the most common cause is restricted airflow (a “Check Vent” message, crushed vent, or lint buildup). A clogged lint screen (including residue film) or a heating problem can also extend dry times. See the MED8230HC0 owner's manual for the model’s airflow and troubleshooting checks.

Quick checks that fix most “not drying” problems

• Clean the lint screen before every load; make sure it is seated firmly.
• If lint falls off the screen while it is still in place, wash the screen to remove detergent or softener residue (nylon brush, hot water, a little liquid detergent), then dry it completely.
• Check the vent path behind the dryer for kinks, crushing, or a loose connection.
• Confirm you are using a heated cycle (Timed Dry with heat, not Air Only).
• Reduce load size; overloading blocks airflow through the drum.

Airflow and venting: what “Check Vent” usually means

Your dryer needs strong airflow to dry efficiently. Blocked or crushed vents reduce performance and can trigger a “Check Vent” message.

What you notice	Likely cause	What to do first
Long dry times, “Check Vent”	Vent restriction	Inspect and clear the full vent run and outside hood
Dryer stops early, clothes still damp	Lint screen residue film	Wash and dry the lint screen; clean the lint screen housing
Dryer runs, little heat	Heating circuit issue	Verify power supply, then test heater and thermostats

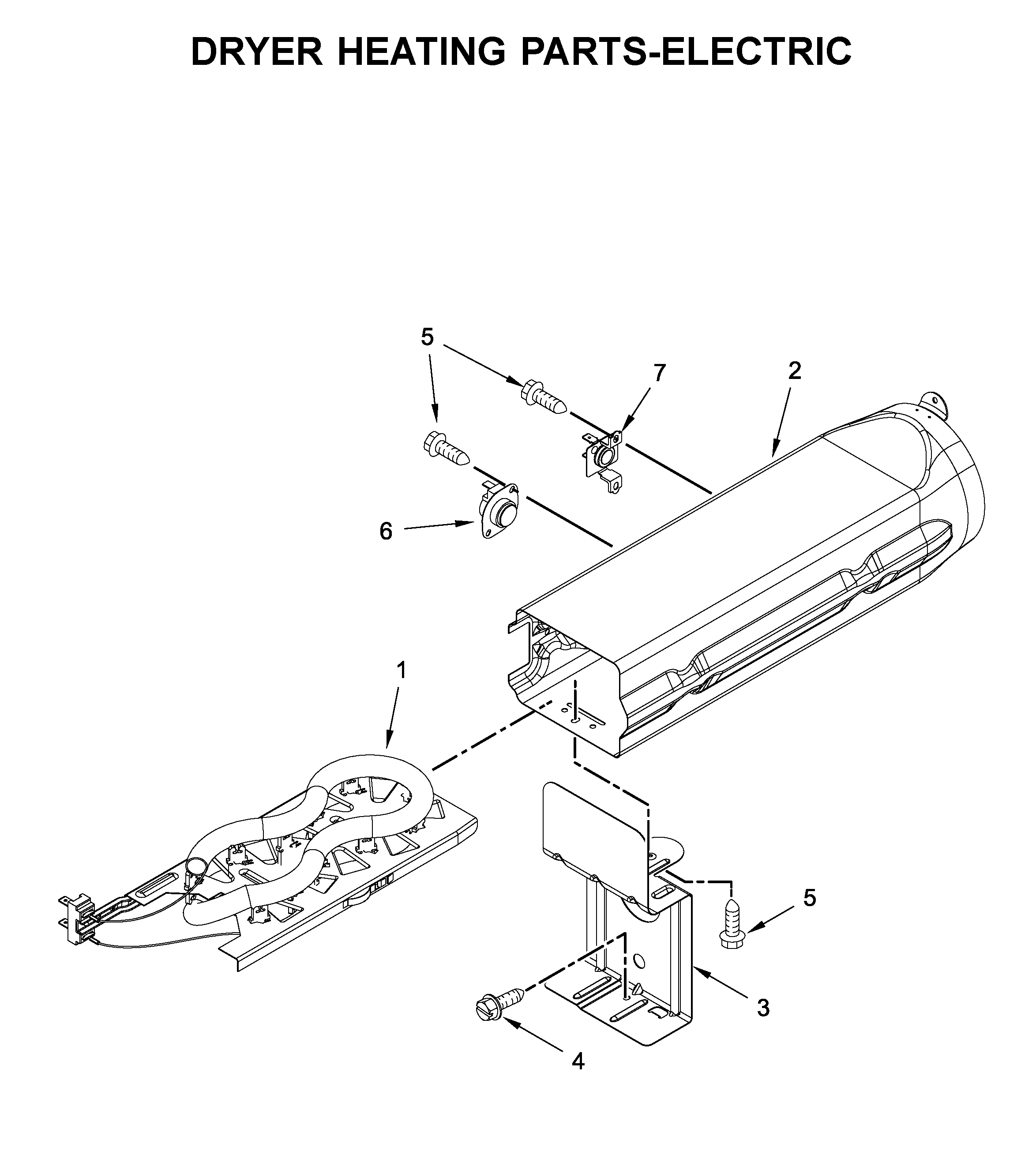

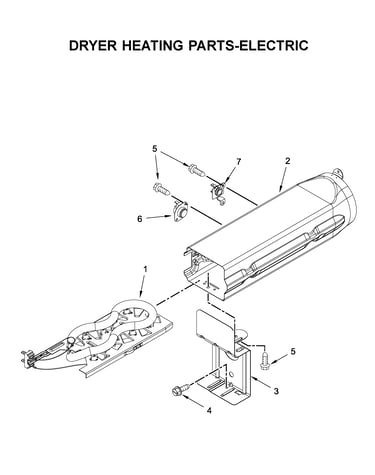

When to suspect a heating problem (parts that commonly affect drying)

If airflow is good but drying is still poor, we focus on the heating system and temperature sensing.

Common parts to check for MED8230HC0 include:

• Element, heater 5400w WP3387747 (no heat or weak heat)
• Dryer thermistor WP8577274 (incorrect temperature sensing)
• Dryer high-limit thermostat WP8557403 (overheat protection opening too soon)
• Thermal fuse W10909685 (heater shuts down after overheating)

Why it matters

Drying performance depends on two things working together: heat and airflow. Even a strong heater cannot dry well if the vent is restricted; the dryer will run longer, waste energy, and may shut down early to protect itself.

Last updated: February 2026

If your dryer displays MED8230HC0, that is the model number for a Maytag dryer, not an error code. Use it to match the correct Maytag MED8230HC0 parts, wiring, and troubleshooting steps in the MED8230HC0 owner's manual.

What you should do next

• Confirm the model number is on the dryer’s model tag (usually inside the door opening or on the cabinet frame).
• Use MED8230HC0 when ordering replacement parts so you get the correct fit.
• If the dryer is also showing a separate code (such as L2 or “Check Vent”), troubleshoot that message separately.
• If the dryer will not start, verify the door is fully closed and the Start button is pressed firmly.
• Check the home power supply: a tripped breaker or blown fuse can prevent starting or heating.

Common messages people confuse with a model number

What you see on the dryer	What it usually means	What to check first
MED8230HC0	Model number (identifies the dryer)	Use the manual and correct parts list
L2	Power supply issue affecting heating	240V supply, breaker, cord, outlet
Check Vent	Restricted airflow	Lint screen, vent hose, outside vent hood

Why it matters

Using the correct model number keeps repairs accurate. Maytag dryers can look similar across model families, but parts like the heater, thermistor, belt, and thermal fuse can vary by model.

Parts that commonly match symptoms (when you have a real problem)

If your Maytag MED8230HC0 is not heating, overheating, or taking too long to dry, these are common wear items to check and replace as needed:

• Element, heater 5400w WP3387747
• Dryer thermistor WP8577274
• Thermal fuse W10909685
• Whirlpool dryer thermal cut-off fuse kit (352-degree f) 280148

Last updated: February 2026
