Model #7MWTW5622BW0 Whirlpool washer

Here are the diagrams and repair parts for Whirlpool 7MWTW5622BW0 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 130 parts

    Affresh Washer Cleaner, 3-pack

    #NI

    Optional parts (not included) Diagram

    $18.99

    In Stock

    Washer Fill Hose Seal and Screen

    #NI

    Optional parts (not included) Diagram

    Washer fill hose seal and screen

    Part #285452A
    This item is not returnable
    $7.09

    In Stock

    Washer Drain Hose Extension Kit

    #NI

    Optional parts (not included) Diagram

    $30.99

    In Stock

    Washer Fill Hose, 2-pack

    #NI

    Optional parts (not included) Diagram

    Washer fill hose, 2-pack

    Part #8212638RP
    $28.99 |
    17% OFF MSRP:$35.00

    In Stock

    Washer Fill Hose Set

    #NI

    Optional parts (not included) Diagram

    Washer fill hose set

    Part #8212546RP
    $13.99

    In Stock

    Sound Absr

    #16

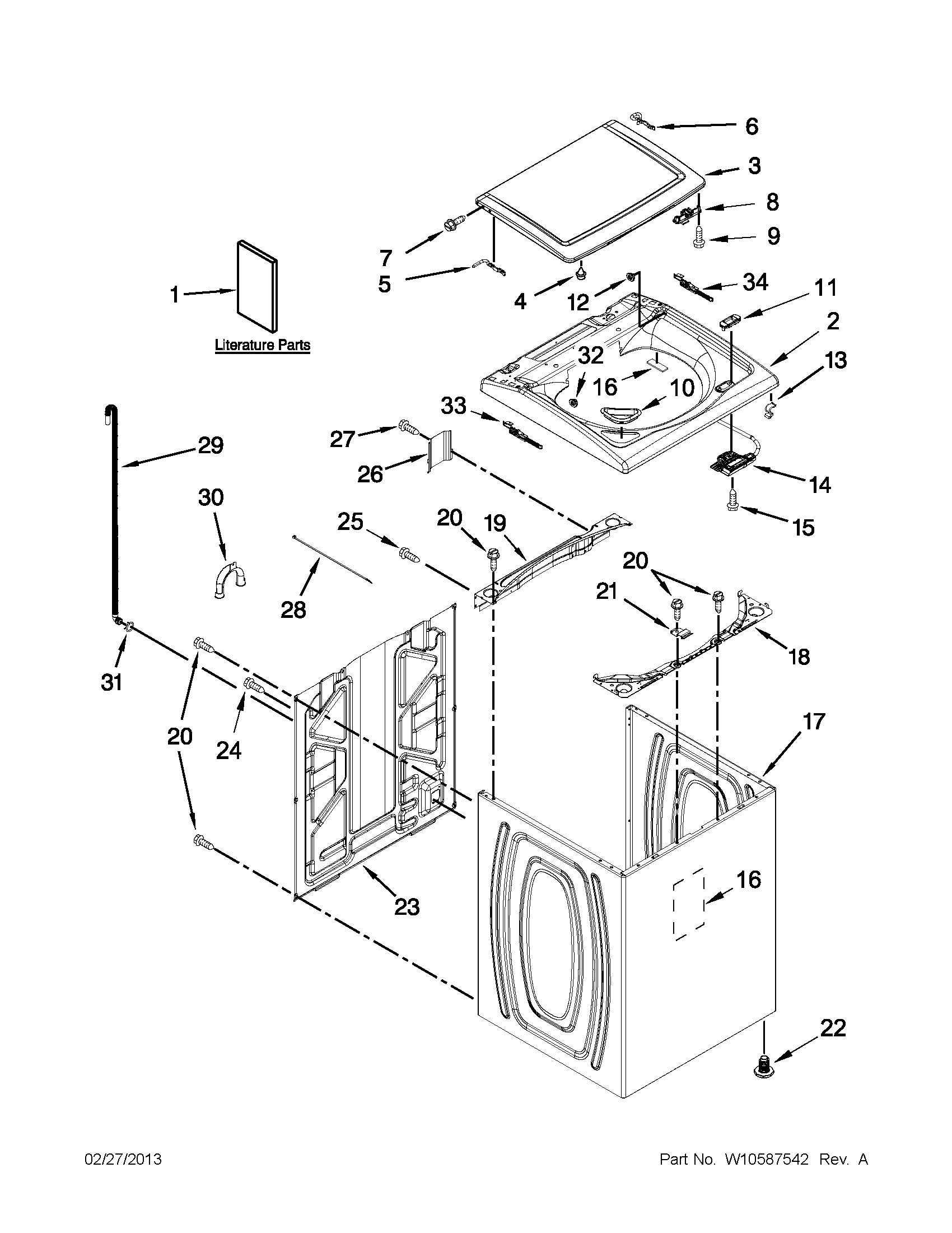

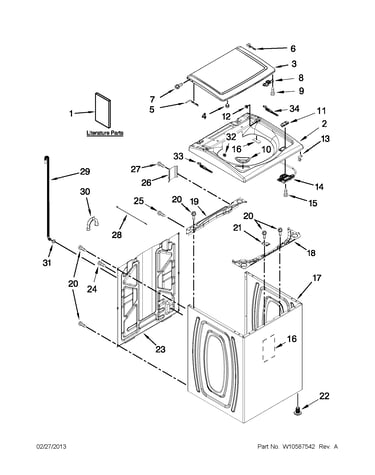

    Top and cabinet parts Diagram

    Sound absr

    Part #W10414221
    $13.68

    In Stock

    Clamp

    #21

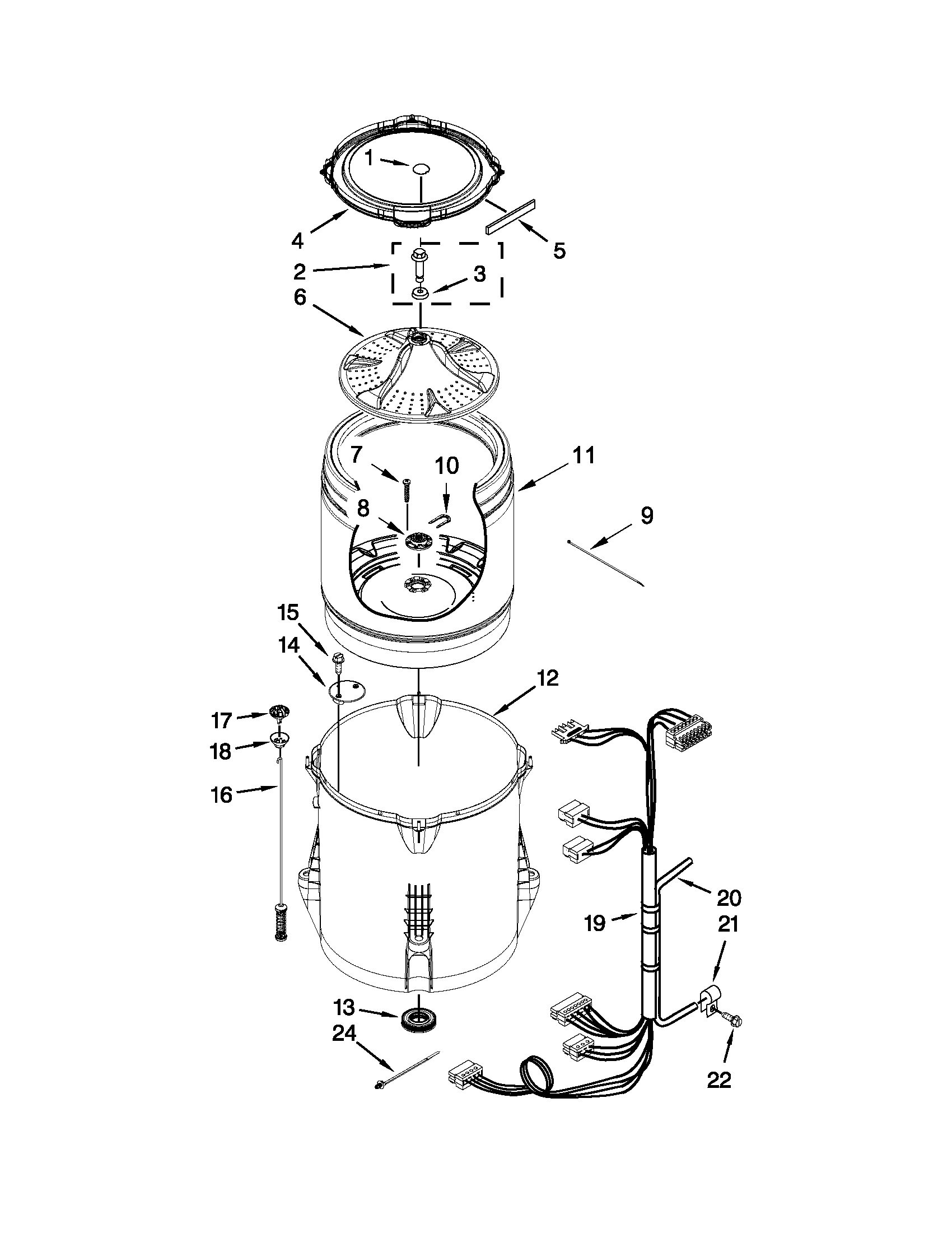

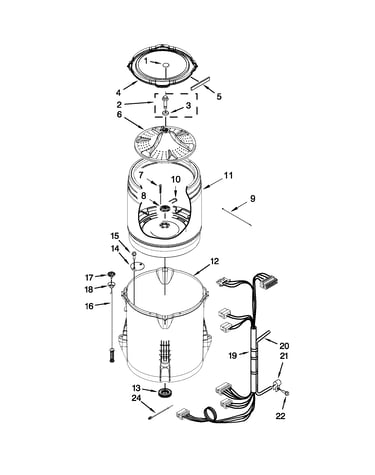

    Basket and tub parts Diagram

    Clamp

    Part #W10005430
    This item is not returnable
    $6.67 |
    10% OFF MSRP:$7.39

    In Stock

    Hinge Washer

    #34

    Top and cabinet parts Diagram

    Hinge washer

    Part #W10270399
    $47.19

    In Stock

    SCREW, 6-32 X 1.00

    #17

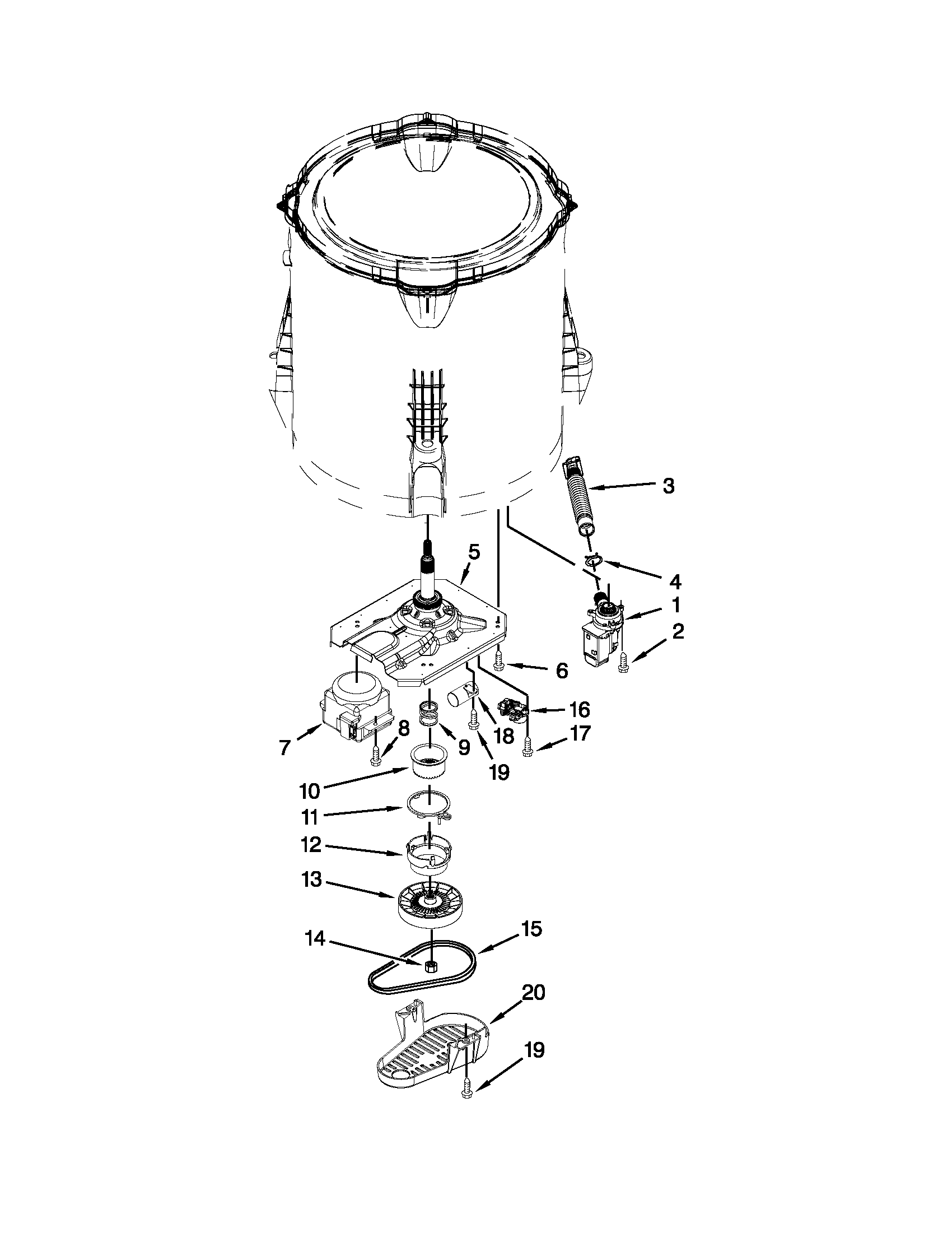

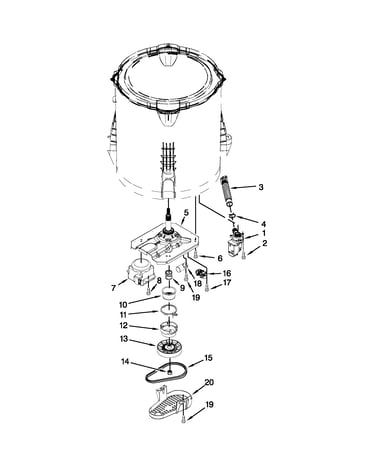

    Gearcase, motor and pump parts Diagram

    Screw, 6-32 x 1.00

    Part #9741052
    $10.31

    In Stock

    Laundry Appliance Electronic Control Board Grommet

    #25

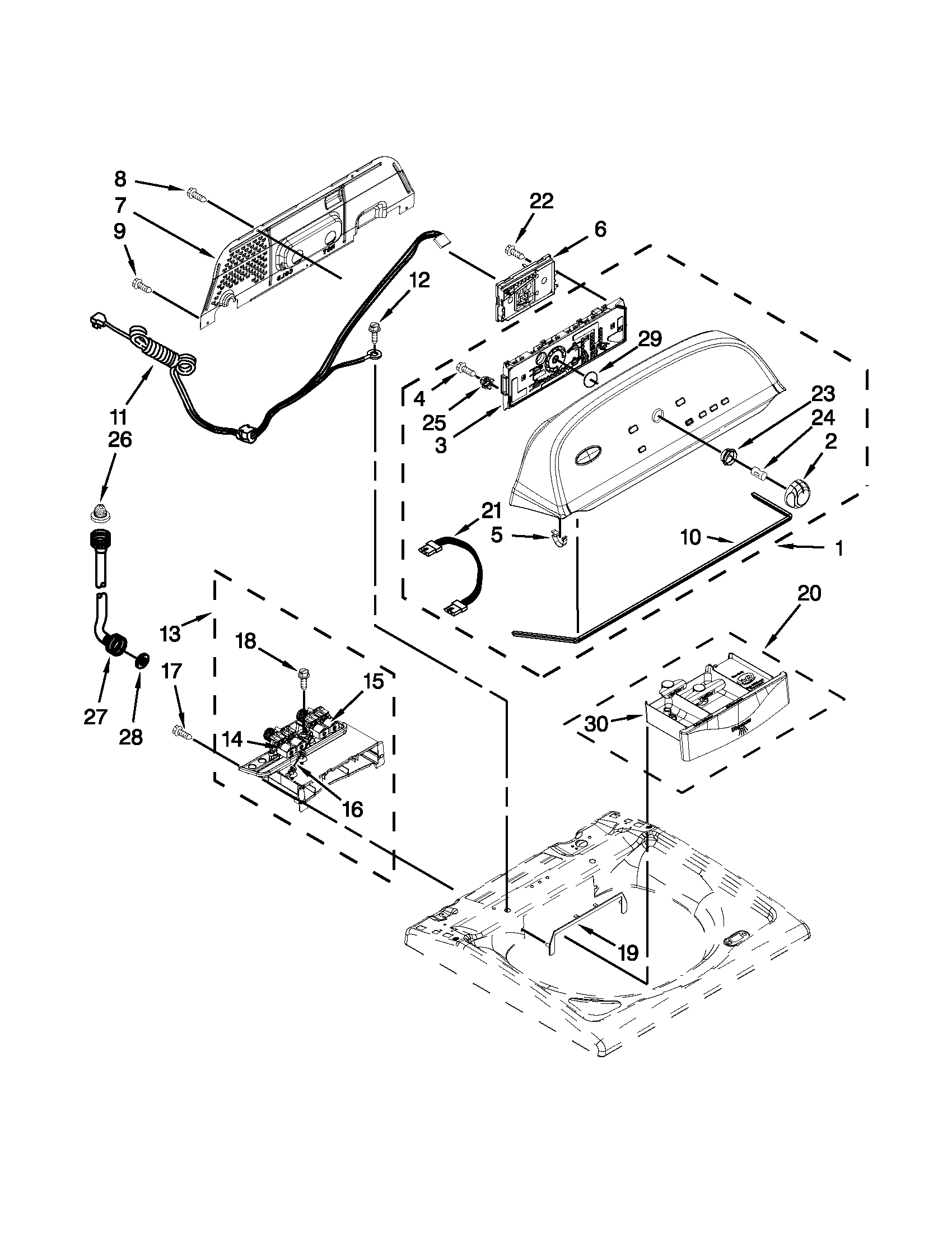

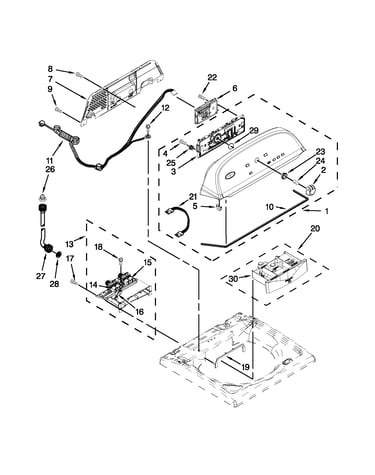

    Console and dispenser parts Diagram

    $10.81

    In Stock
