Model #ARS9167AB-PARS9167AB0 Amana side-by-side refrigerator with ice & water dispenser
Here are the diagrams and repair parts for Amana ARS9167AB-PARS9167AB0 side-by-side refrigerator with ice & water dispenser, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 336 parts
#32

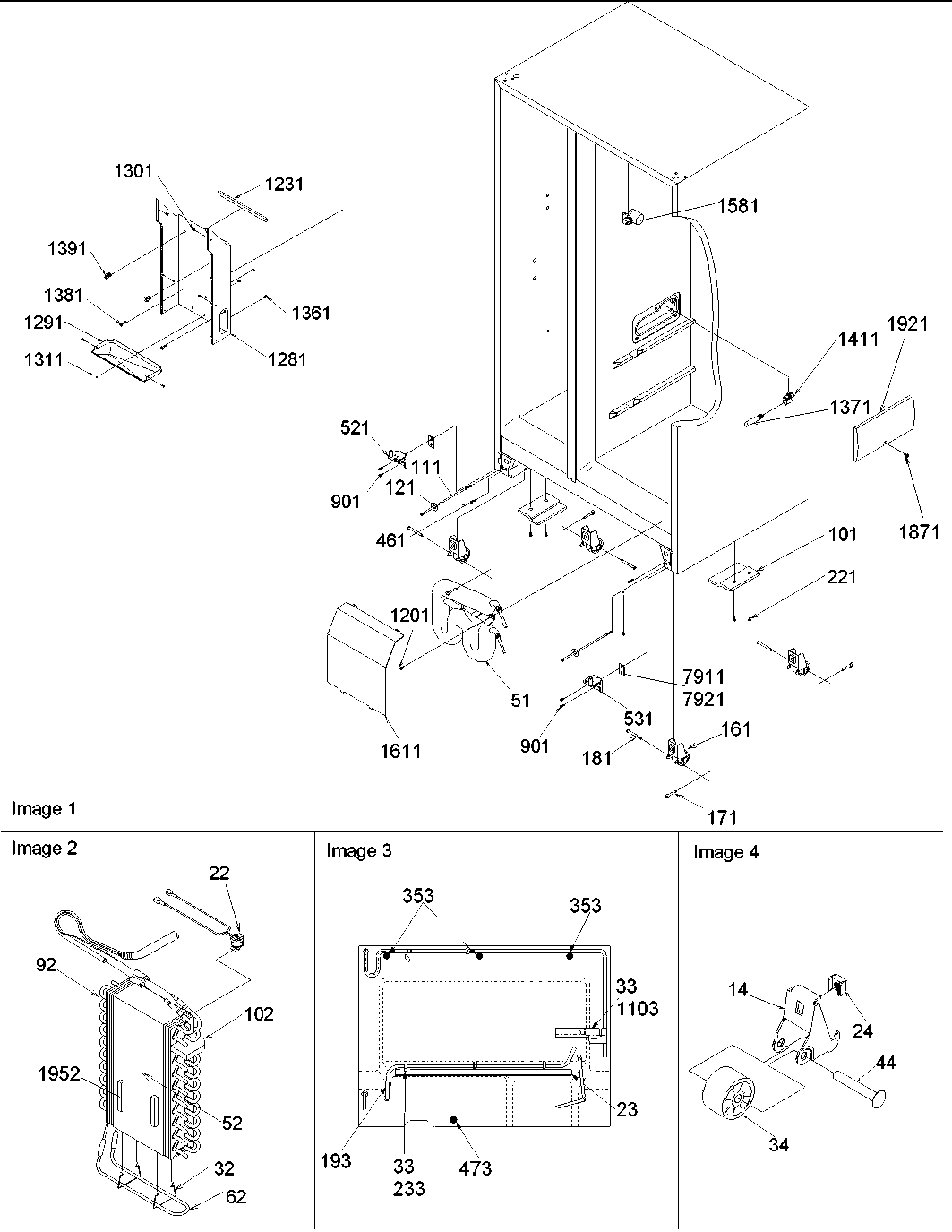

Drain, rollers & evap assy Diagram
In Stock
#481

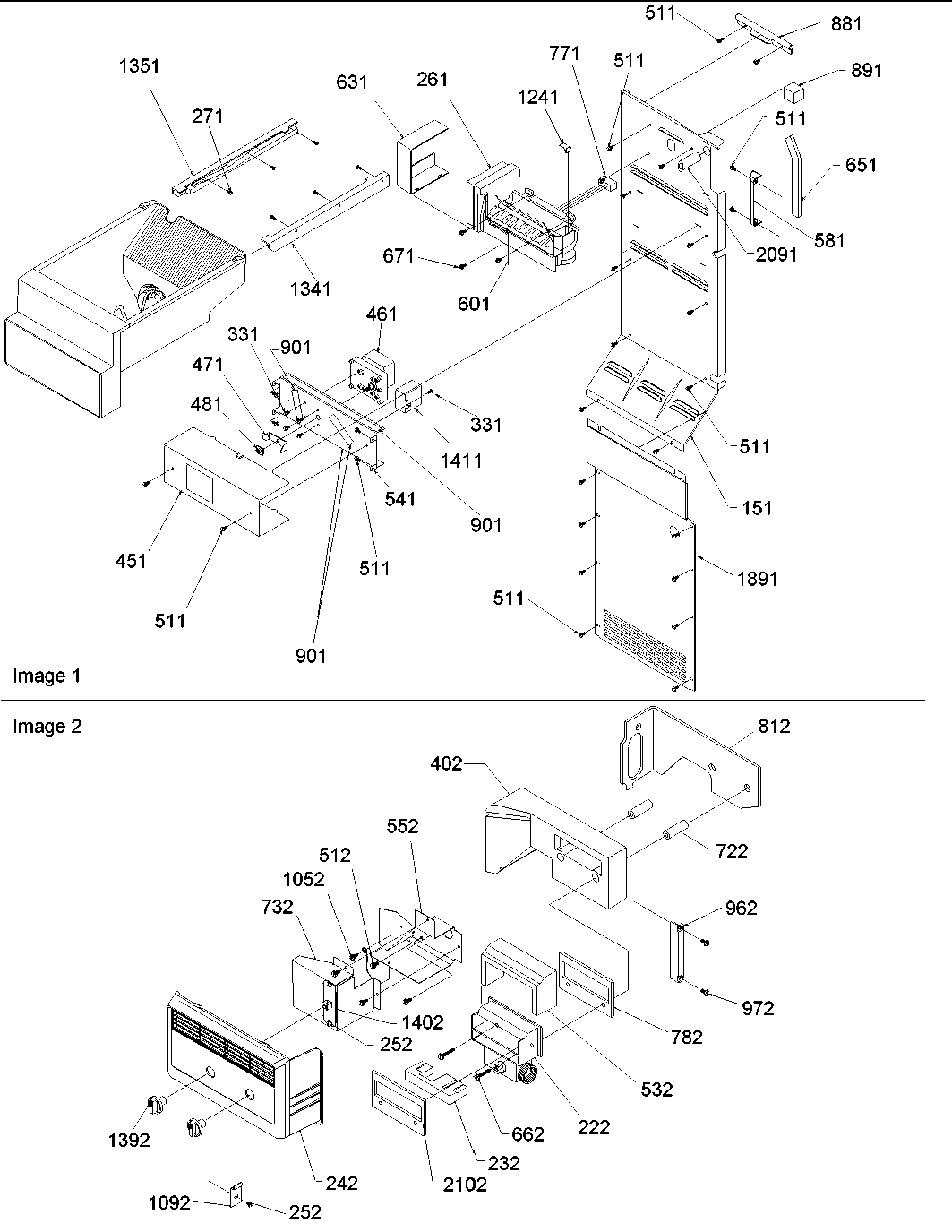

Ice maker/control assy Diagram
Refrigerator nut
In Stock
#402

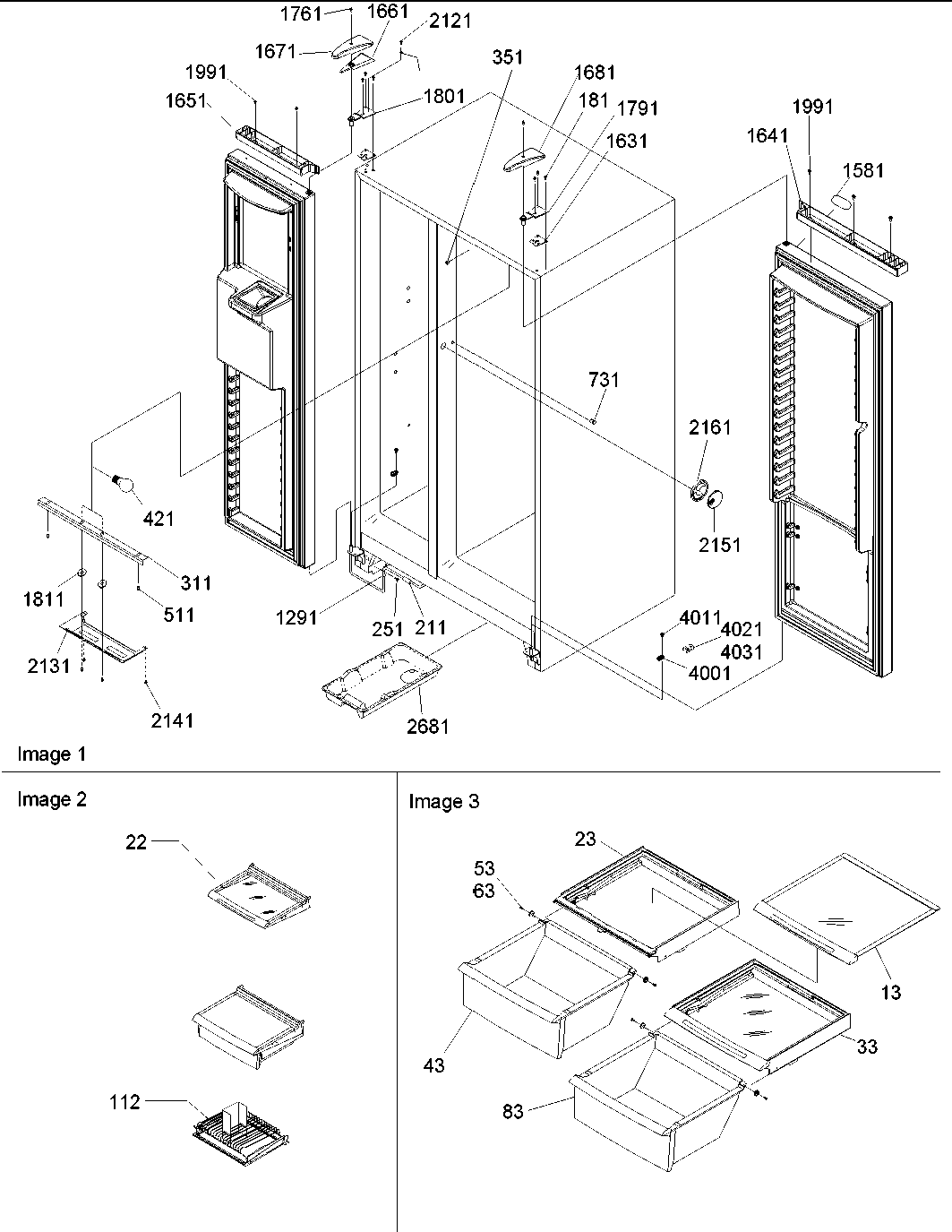

Refrigerator/freezer lights & hinges Diagram
Refrigerator door hinge shim
In Stock
#158
Refrigerator/freezer lights & hinges Diagram
Nameplate (a
In Stock
#302

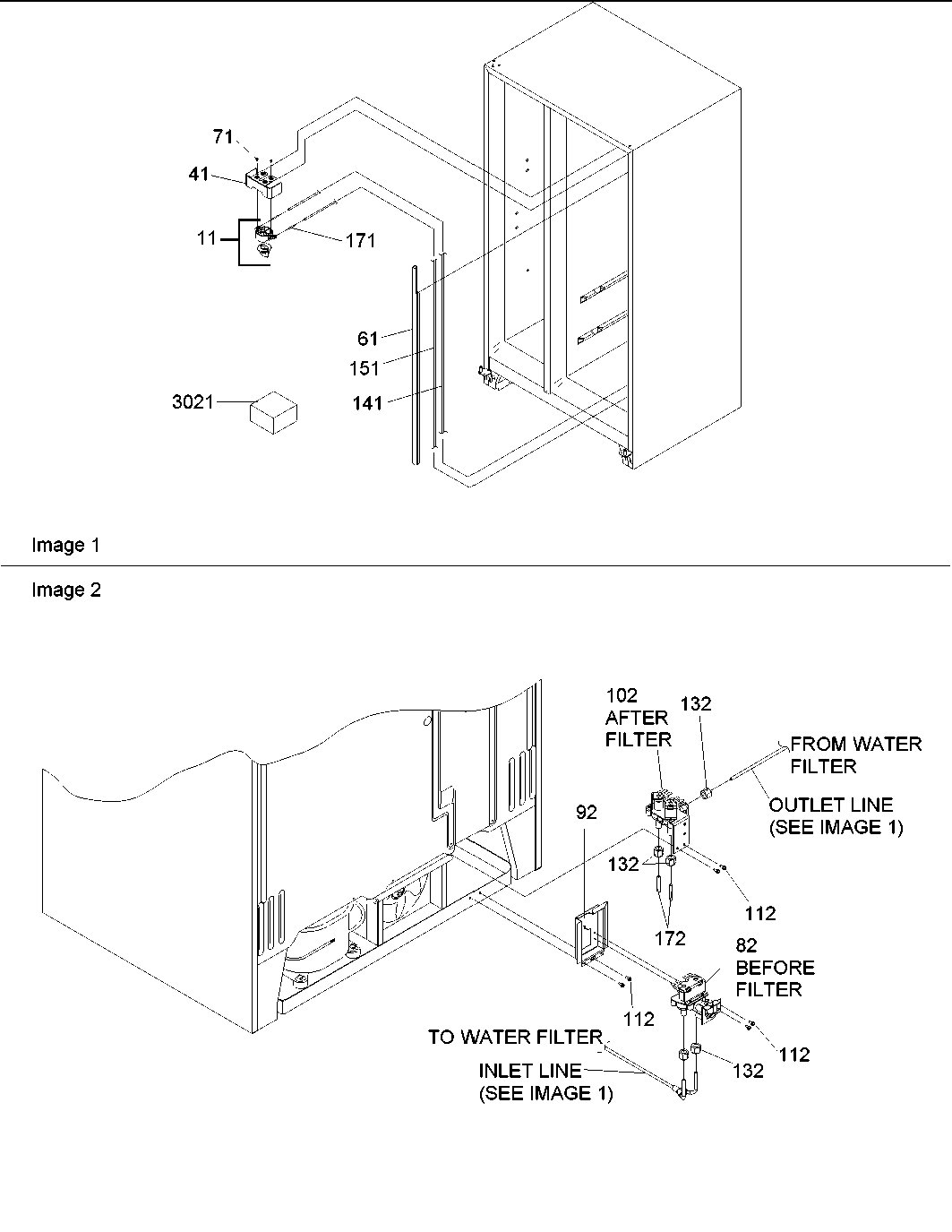

Water filter assy Diagram
Genuine kenmore refrigerator water filter
Get free shipping with Automatic Reorder
In Stock
#324

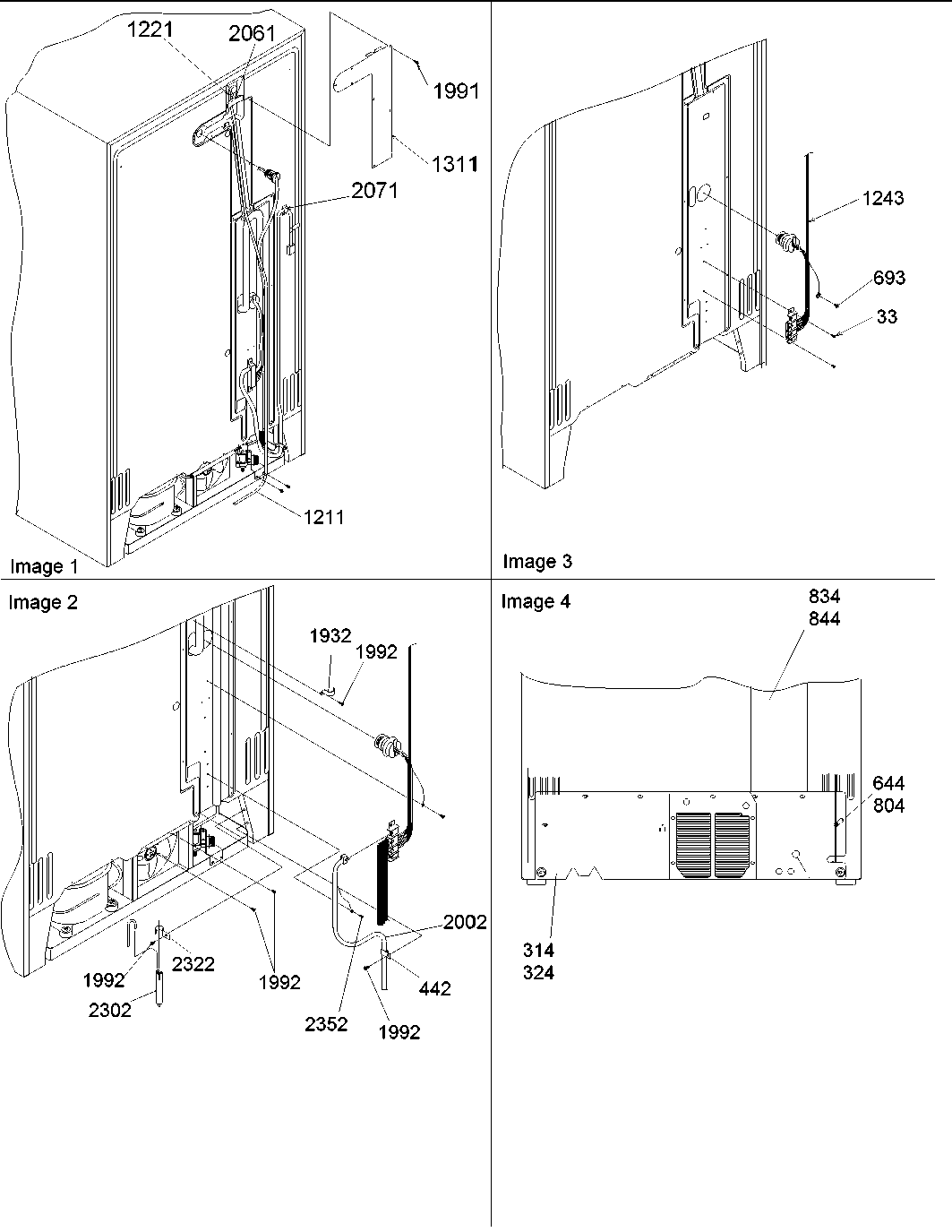

Cabinet back Diagram
Refrigerator screw
In Stock
#111

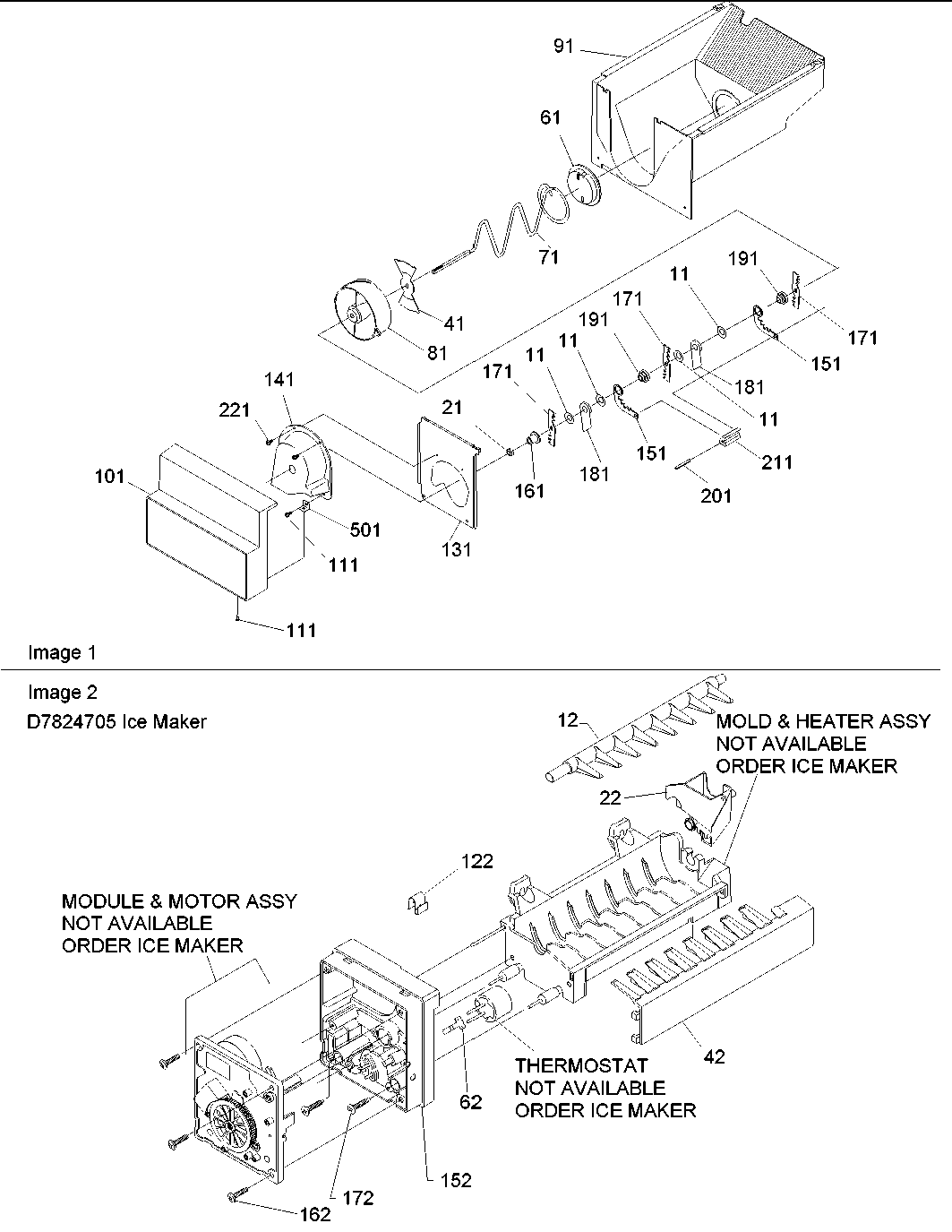

Ice bucket auger & ice maker parts Diagram
Refrigerator screw
In Stock
#31

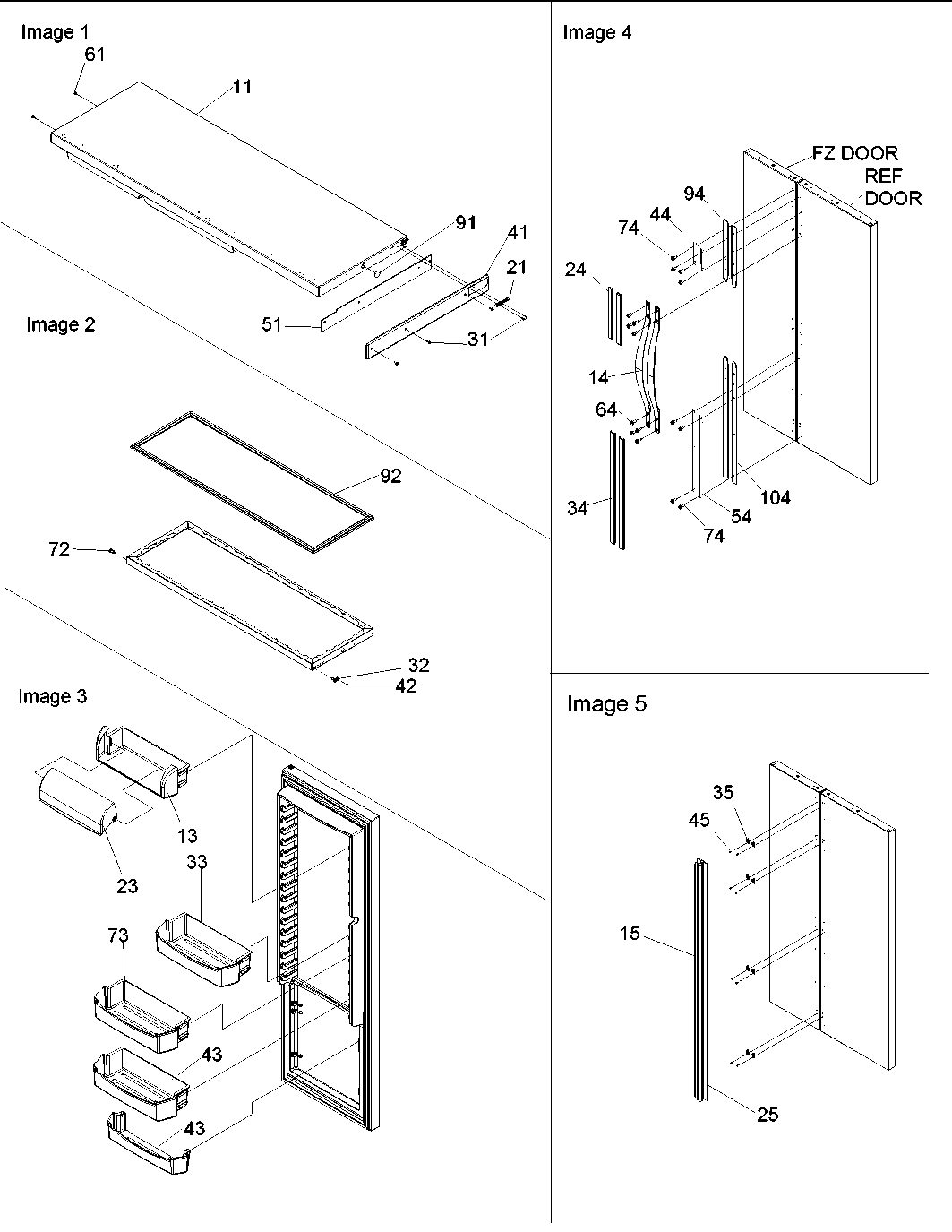

Refrigerator door, trim and handles Diagram
Screw
In Stock
#135
Ice maker/control assy Diagram
Refrigerator freezer glide
In Stock
#804
Cabinet back Diagram
Refrigerator screw
In Stock
