White-Westinghouse
Dryer

Model #SGR341AS0 Official White-Westinghouse dryer

Here are the diagrams and repair parts for White-Westinghouse SGR341AS0 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 117 parts

    Dryer Drum Belt#25

    Motor,blower Diagram

    Belt

    Part #5303283471
    Replaced by #134503600
    ?
    Manufacturer substitution
    This part replaces 5303283471. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $12.35 |
    31% OFF
    MSRP: $18.00
    Dryer Door Catch#25

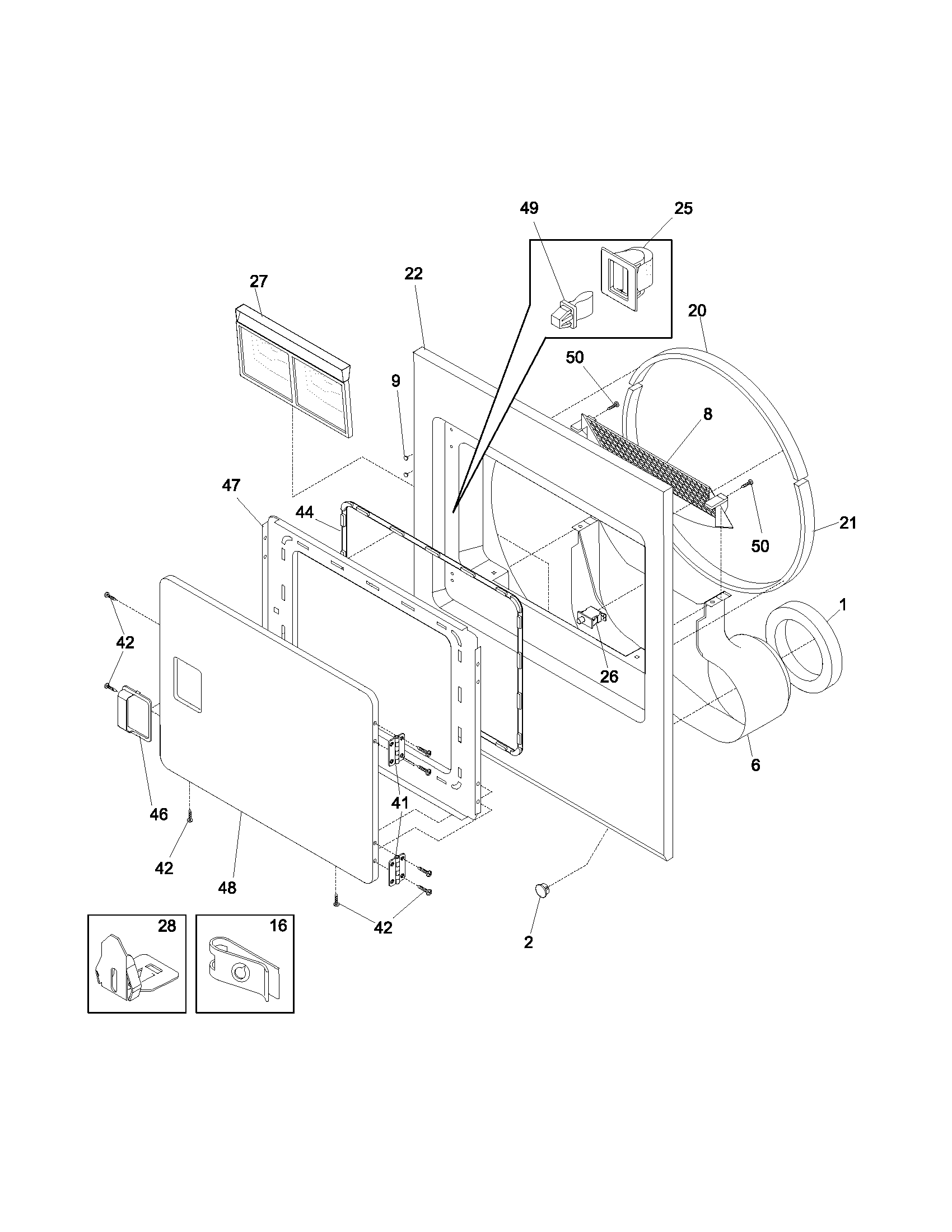

    Frnt pnl,door Diagram

    Dryer door catch

    Part #131658800
    BEST SELLER
    In Stock
    $58.30 |
    5% OFF
    Phone Price: $61.60
    Dryer Drum Bearing#12

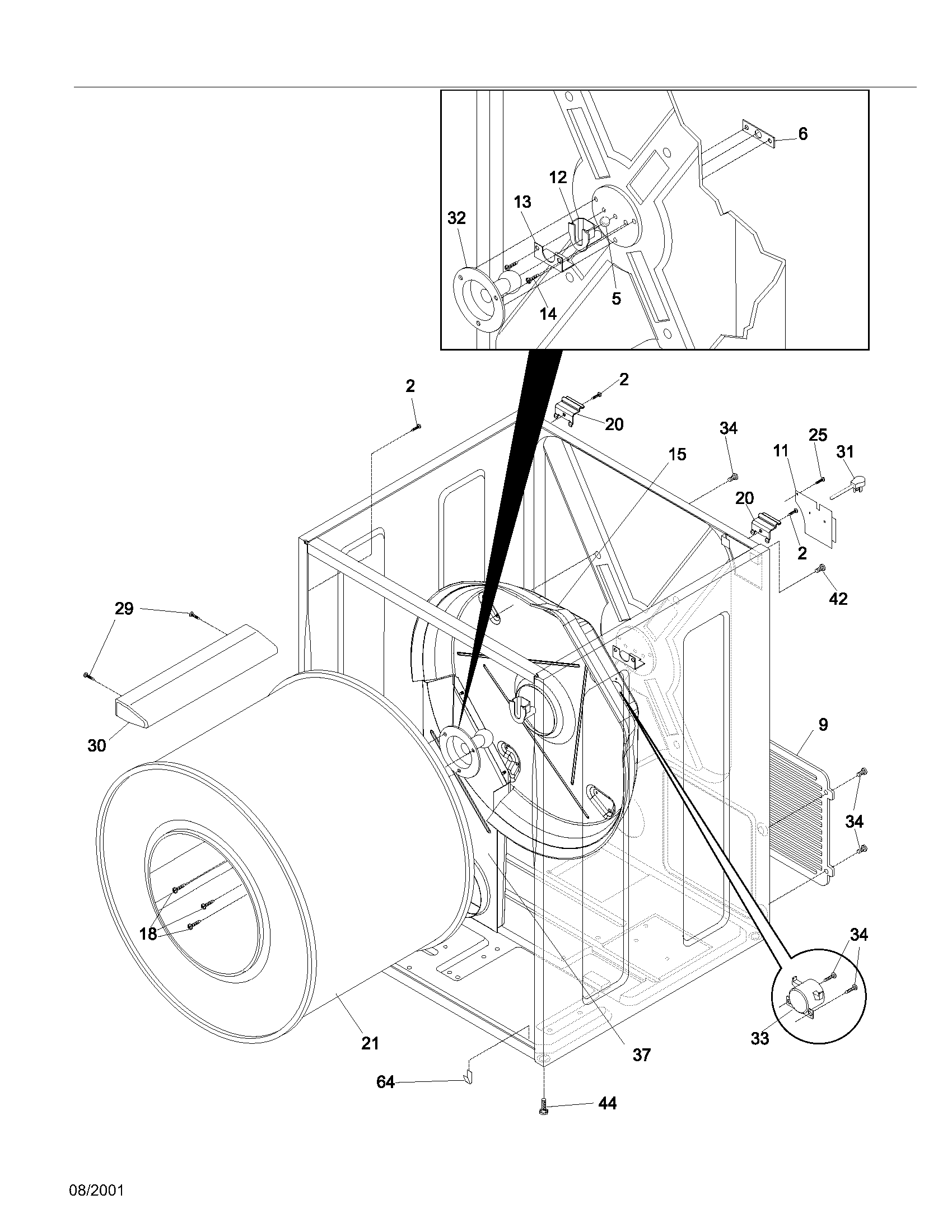

    Dry cab,heater Diagram

    Dryer drum bearing

    Part #131825900
    BEST SELLER
    This item is not returnable
    In Stock
    $5.59 |
    15% OFF
    Phone Price: $6.59
    Dryer Drive Motor#28

    Motor,blower Diagram

    Dryer drive motor

    Part #131560100
    BEST SELLER
    In Stock
    $141.52 |
    21% OFF
    MSRP: $180.00
    Dryer Drum Felt Seal, Lower#21

    Frnt pnl,door Diagram

    Dryer drum felt seal, lower

    Part #5303283286
    BEST SELLER
    In Stock
    $37.08 |
    10% OFF
    Phone Price: $41.00
    Dryer Drum Bearing Bracket#13

    Dry cab,heater Diagram

    Dryer drum bearing bracket

    Part #131724300
    Replaced by #131724301
    ?
    Manufacturer substitution
    This part replaces 131724300. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $13.29 |
    13% OFF
    Phone Price: $15.29
    Laundry Center Dryer Door Seal#44

    Frnt pnl,door Diagram

    Dryer door seal

    Part #131129900
    Replaced by #137551901
    ?
    Manufacturer substitution
    This part replaces 131129900. Substitute parts can look different from the original.
    In Stock
    $30.71 |
    14% OFF
    Phone Price: $35.71
    Dryer Grounding Ball#5

    Dry cab,heater Diagram

    Dryer grounding ball

    Part #5303281019
    In Stock
    $19.49 |
    9% OFF
    Phone Price: $21.49
    Appliance High-Temperature Adhesive#NI

    Frnt pnl,door Diagram

    In Stock
    $48.99 |
    9% OFF
    Phone Price: $53.99
    Washer Door Strike#49

    Frnt pnl,door Diagram

    Strike

    Part #5303211430
    Replaced by #5303207102
    ?
    Manufacturer substitution
    This part replaces 5303211430. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $16.49 |
    25% OFF
    MSRP: $22.00

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
