Model # DBXR463EG0WW Official GE electric dryer

Here are the diagrams and repair parts for Official GE DBXR463EG0WW electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

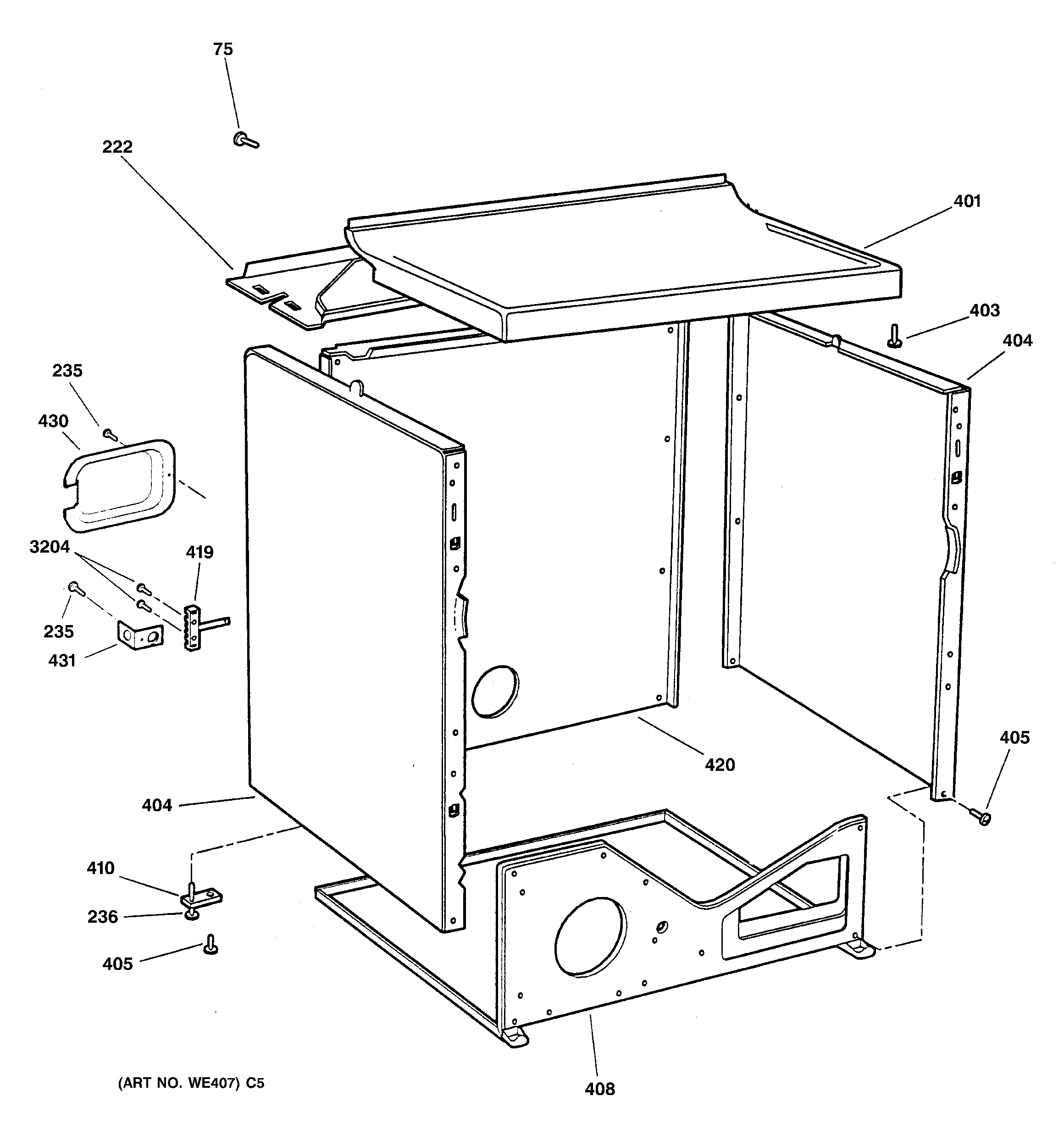

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Dryer Drum Glide Bearing WE1M333
#316

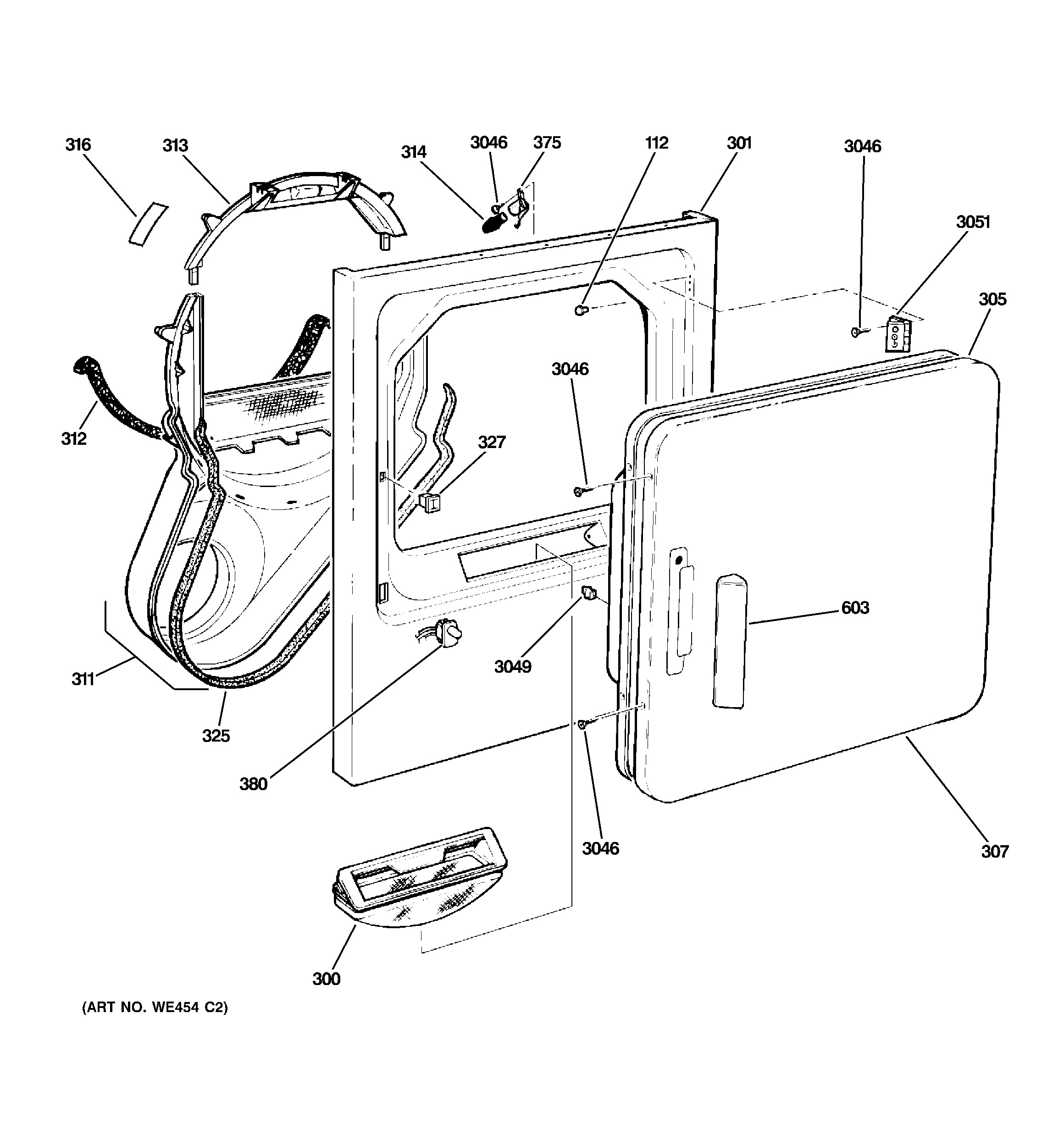

Front panel & door diagram

Dryer drum glide bearing

Part #WE1M333

Replaced by #WE1M504

?
Manufacturer substitution
This part replaces WE1M333. Substitute parts can look different from the original.
BEST SELLER
$18.21 |
10% OFF Phone Price : $20.21
In Stock
Slide Drum WE1M481
#316

Front panel & door diagram

Slide drum

Part #WE1M481

Replaced by #WE1M1067

?
Manufacturer substitution
This part replaces WE1M481. Substitute parts can look different from the original.
BEST SELLER
$13.98 |
13% OFF Phone Price : $15.98
In Stock
Dryer Drum Bearing, Front (replaces We03m0026, We3m20) WE3M26
#313

Front panel & door diagram

Dryer drum bearing, front (replaces we03m0026, we3m20)

Part #WE3M26

BEST SELLER
$32.06 |
16% OFF Phone Price : $38.06
In Stock
Felt WE9M15
#312

Front panel & door diagram

Felt

Part #WE9M15

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M15. Substitute parts can look different from the original.
BEST SELLER
$7.77 |
11% OFF Phone Price : $8.77
In Stock
Kenmore Dryer Rear Bearing WE1M462
#3106

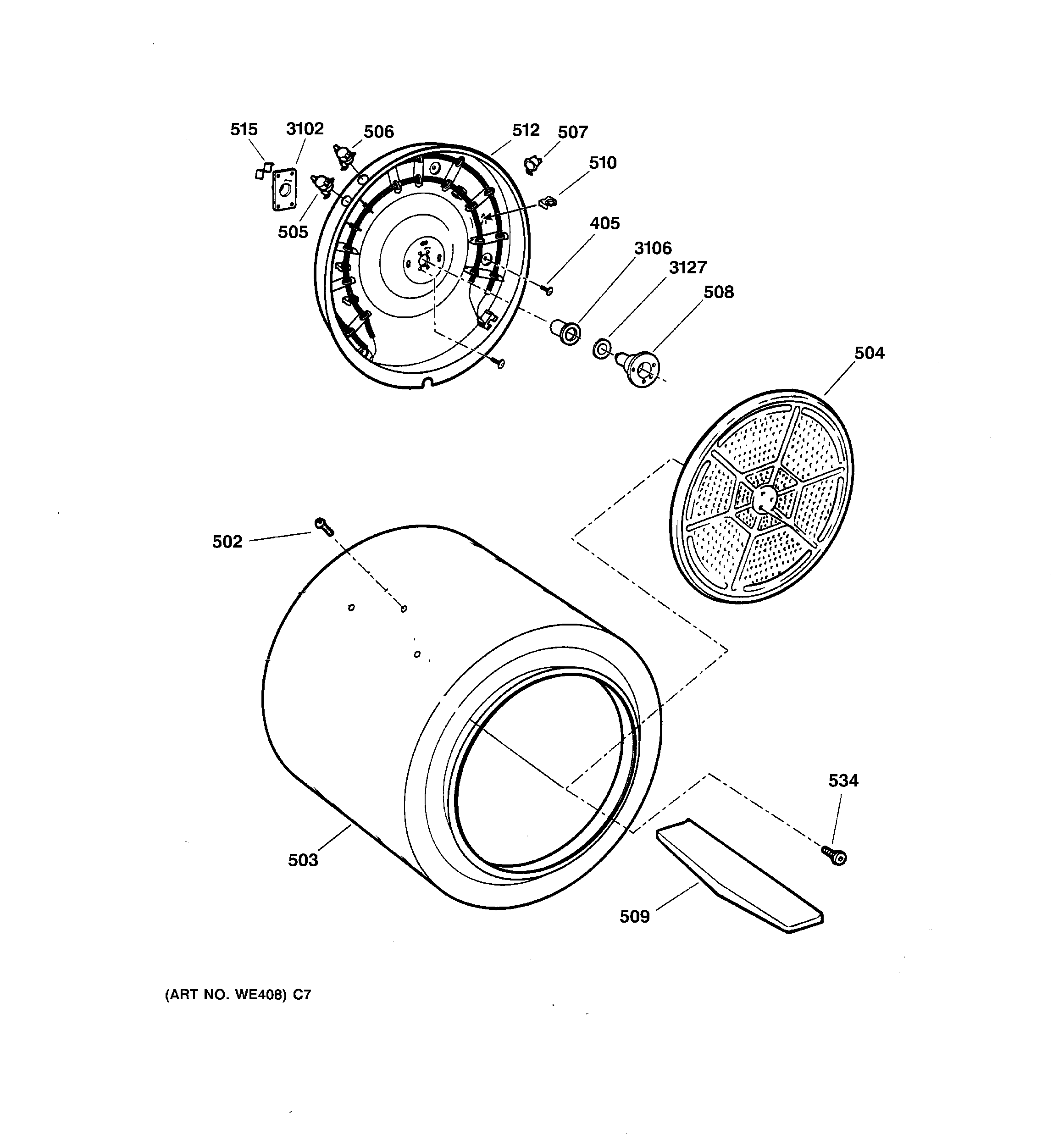

Drum diagram

Kenmore dryer rear bearing

Part #WE1M462

BEST SELLER
$25.54 |
19% OFF Phone Price : $31.54
In Stock
Dryer High-limit Thermostat (replaces We03m0026, We3m20, We4m457) WE4M137
#507

Drum diagram

Dryer high-limit thermostat (replaces we03m0026, we3m20, we4m457)

Part #WE4M137

BEST SELLER
$78.01 |
7% OFF Phone Price : $84.01
In Stock
Idler Pulley WE12M8
#216

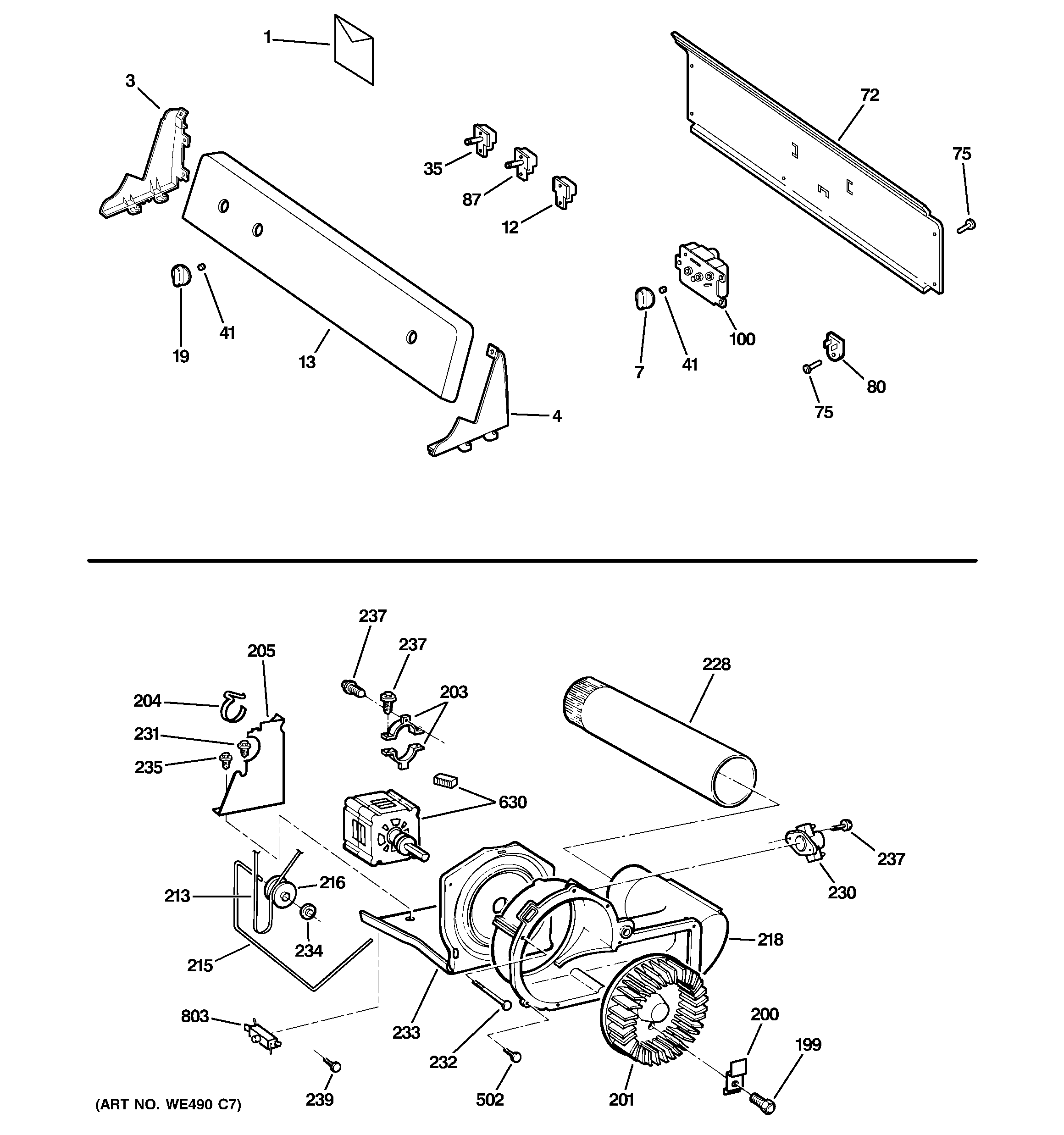

Backsplash, blower & motor assembly diagram

Idler pulley

Part #WE12M8

Replaced by #WE12X83

?
Manufacturer substitution
This part replaces WE12M8. Substitute parts can look different from the original.
BEST SELLER
$27.51 |
18% OFF Phone Price : $33.51
In Stock
Air Duct Assembly WE14M92
#311

Front panel & door diagram

Air duct assembly

Part #WE14M92

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M92. Substitute parts can look different from the original.
BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Kenmore Dryer Rear Bearing O-ring WE1M461
#3127

Drum diagram

Kenmore dryer rear bearing o-ring

Part #WE1M461

BEST SELLER
$7.63 |
12% OFF Phone Price : $8.63
In Stock
Start Switch WE4M326
#35

Backsplash, blower & motor assembly diagram

Start switch

Part #WE4M326

Replaced by #WE4M519

?
Manufacturer substitution
This part replaces WE4M326. Substitute parts can look different from the original.
BEST SELLER
$17.31 |
10% OFF Phone Price : $19.31
In Stock
