Kenmore
Dehumidifier

Model # 25155530510 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 25155530510 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Dehumidifier Air Filter J1313100240
#6

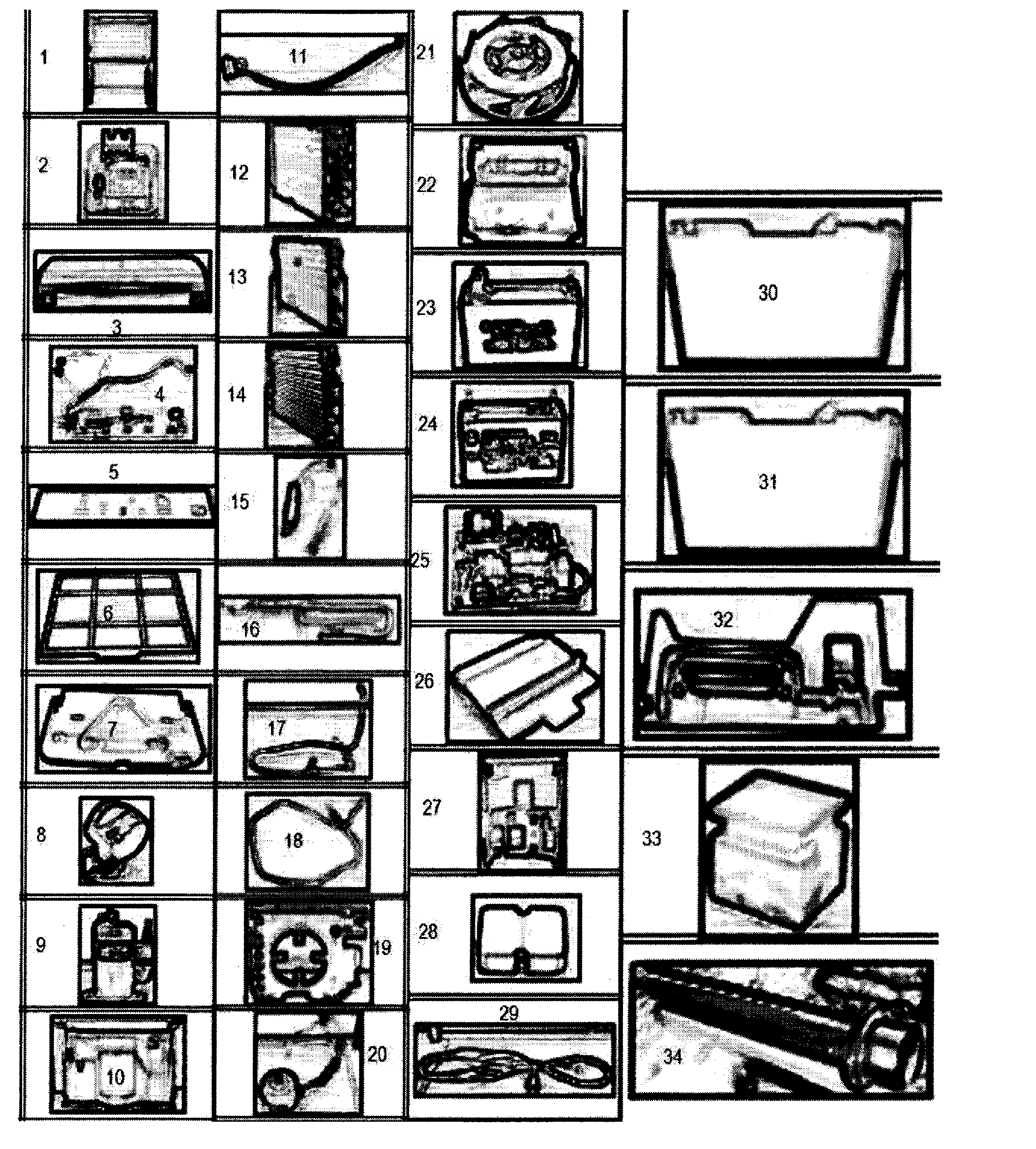

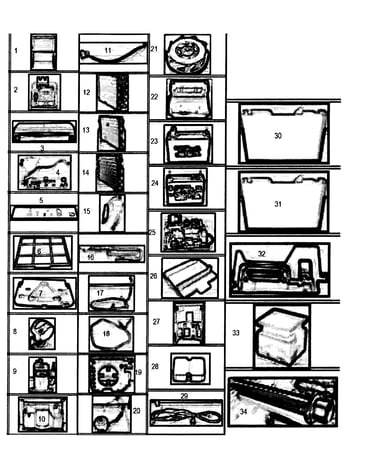

Main assy diagram

Dehumidifier air filter

Part #J1313100240

The manufacturer no longer makes this part, and there's no substitute part

Part J5500020250
#19

Main assy diagram

Part

Part #J5500020250

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Water Bucket Cover J5500020290
#32

Main assy diagram

Dehumidifier water bucket cover

Part #J5500020290

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Caster J9500000160
#8

Main assy diagram

Dehumidifier caster

Part #J9500000160

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Fan Motor J3140003020
#20

Main assy diagram

Dehumidifier fan motor

Part #J3140003020

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual J8000004380
#NI

Main assy diagram

Owner's manual

Part #J8000004380

The manufacturer no longer makes this part, and there's no substitute part

Cover J5100020460
#27

Main assy diagram

Cover

Part #J5100020460

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Drain Hose Connector J1313100260
#34

Main assy diagram

Dehumidifier drain hose connector

Part #J1313100260

The manufacturer no longer makes this part, and there's no substitute part

Compressor J3200001660
#9

Main assy diagram

Compressor

Part #J3200001660

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Run Capacitor J3150004030
#24

Main assy diagram

Dehumidifier run capacitor

Part #J3150004030

The manufacturer no longer makes this part, and there's no substitute part
