The Craftsman lawn tractor model 917287011 takes 48 oz (1.5 qt) of engine oil when changing oil without replacing an oil filter. For the correct oil viscosity (SAE 30 or SAE 5W-30), follow the temperature guidance in the 917287011 owner's manual.

Use these specs when servicing your tractor’s engine:

• Oil capacity (without filter): 48 oz (1.5 qt)
• Oil type above 32°F: SAE 30
• Oil type below 32°F: SAE 5W-30
• Gasoline capacity/type (related spec): 1.25 gallons, unleaded regular

Even with a stated capacity, we always fill carefully and verify on the dipstick.

• Park on a level surface and let the engine cool
• Add oil in small amounts as you approach full
• Wait 30 to 60 seconds, then recheck the dipstick
• Do not overfill; overfilling can cause smoking and poor running
• Recheck after the first short run for leaks and final level

Using the correct oil amount and viscosity helps your 917287011 start easier in cold weather, maintain proper lubrication at operating temperature, and reduce engine wear during mowing season.

Last updated: February 2026

On Craftsman lawn tractors like model 917287011, the serial number format varies by manufacturing era and the label style. The most reliable way is to match the serial number to the identification label details and the date-code guidance shown in the 917287011 owner's manual.

We recommend copying the full ID information exactly as printed on the tractor before decoding anything:

• Serial number (all digits and letters)
• Model number (for this tractor: 917287011)
• Product number (if listed separately)
• Engine model and type (often on the engine shroud)
• Any date code printed near the serial number or on the same label

Many Craftsman riding mower labels use a 6-digit date code where:

• First 2 digits = month
• Next 2 digits = day
• Last 2 digits = year

If your serial number includes letters, extra digits, or separators, treat the 6-digit group as the date code (when present) and keep the remaining characters as the unique serial sequence.

• Month must be 01 to 12; if it is 13 or higher, you are not looking at MM.
• Day must be 01 to 31; if it is higher, it is not DD.
• If multiple number groups appear, use the group printed closest to “DATE” or “DOM” (date of manufacture).

Getting the build date and full serial number right helps us match the correct Craftsman parts diagrams for your tractor, especially for wear items like belts, deck components, and electrical starting parts.

Last updated: February 2026

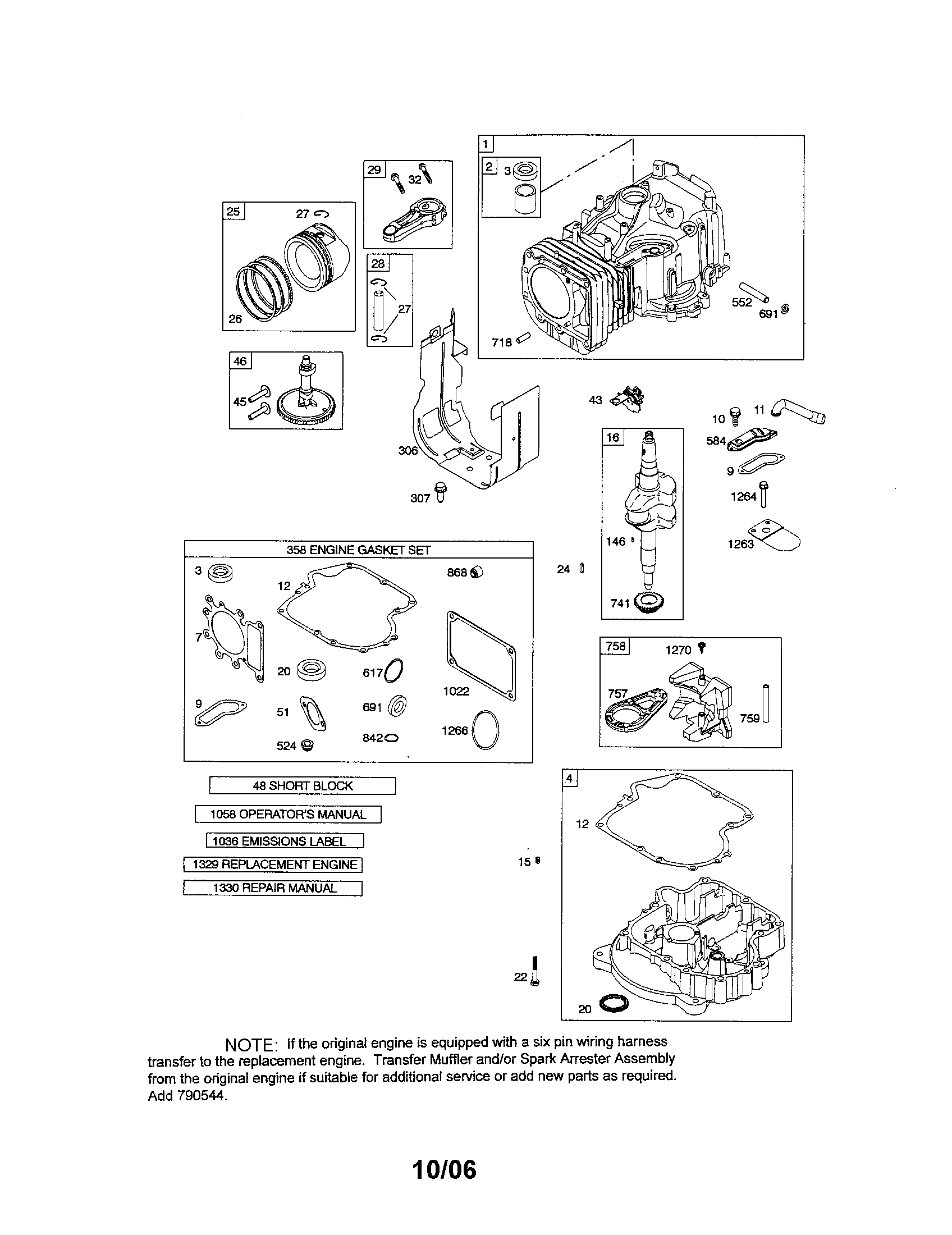

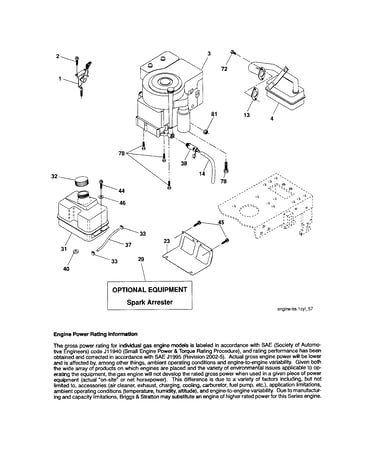

On the Craftsman 917287011 front-engine lawn tractor, the engine is made up of core internal parts (like the cylinder, piston, crankshaft, valves, and bearings) plus supporting systems for fuel, ignition, lubrication, cooling, and starting. For model-specific service and safety details, use the 917287011 owner's manual.

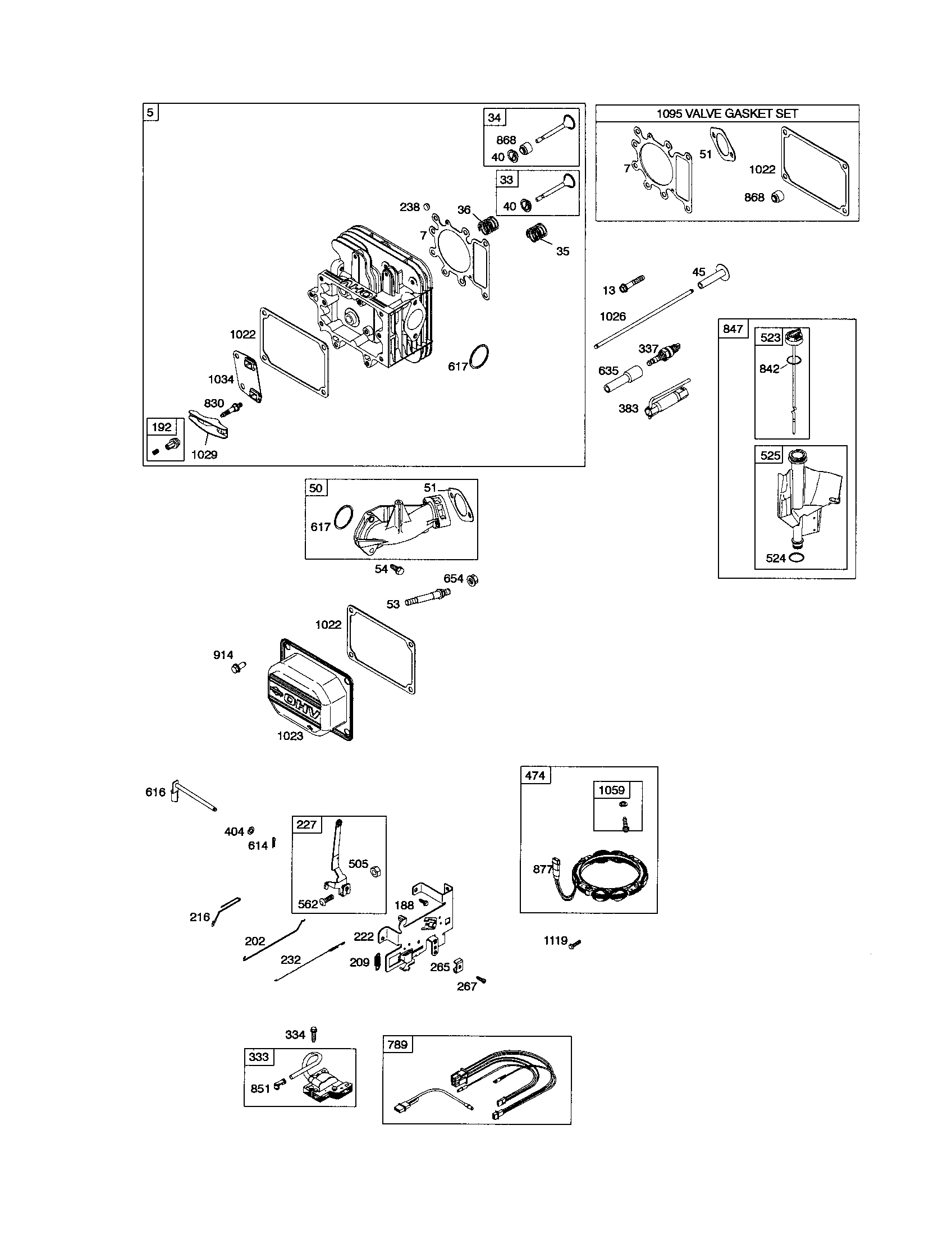

• Cylinder and cylinder head: form the combustion chamber where power is made
• Piston, piston rings, and connecting rod: convert combustion pressure into motion
• Crankshaft and bearings: turn piston motion into rotating power for the drivetrain and deck
• Camshaft, valves, and valve guides: control air-fuel intake and exhaust flow
• Gaskets and seals: keep compression, oil, and fuel where they belong

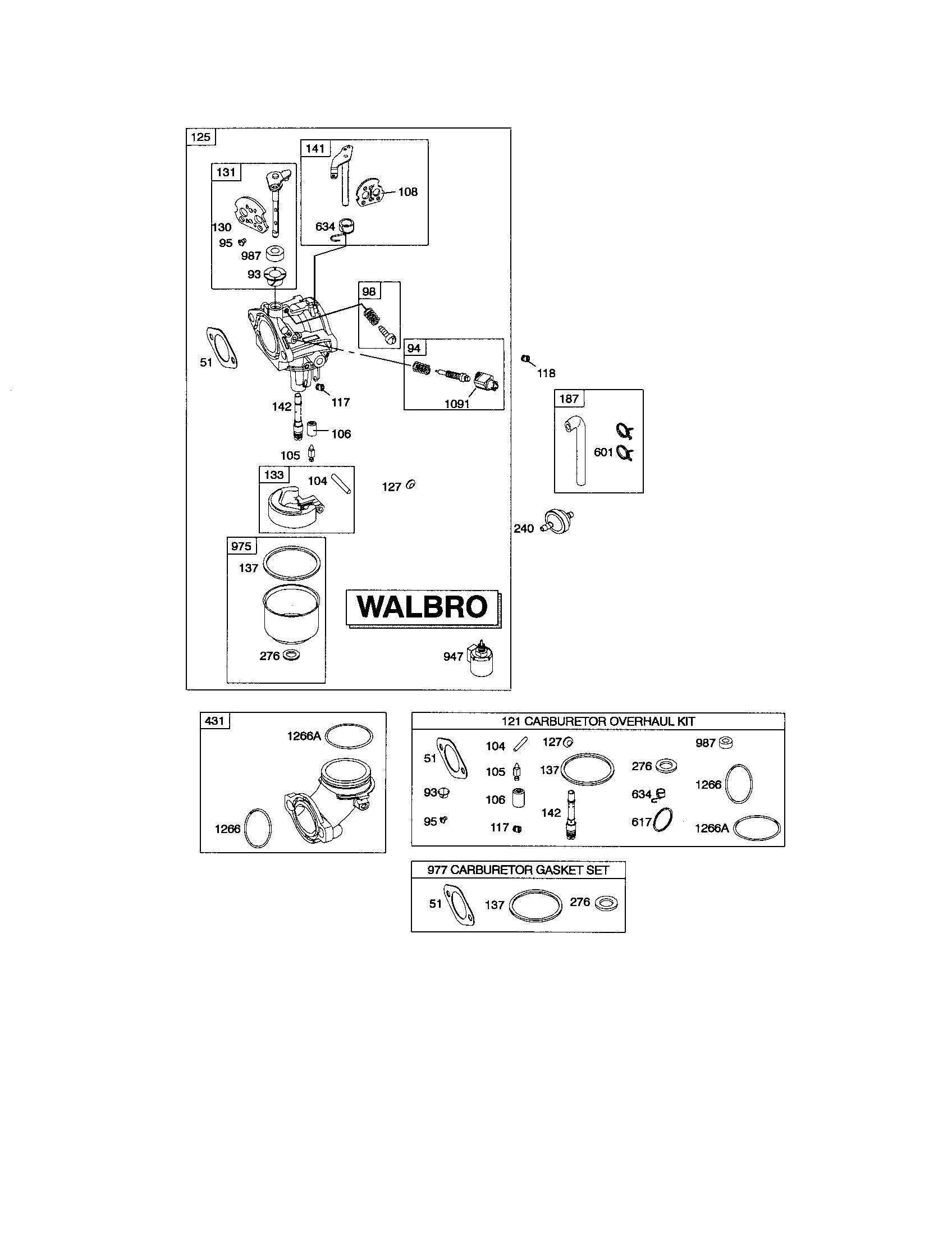

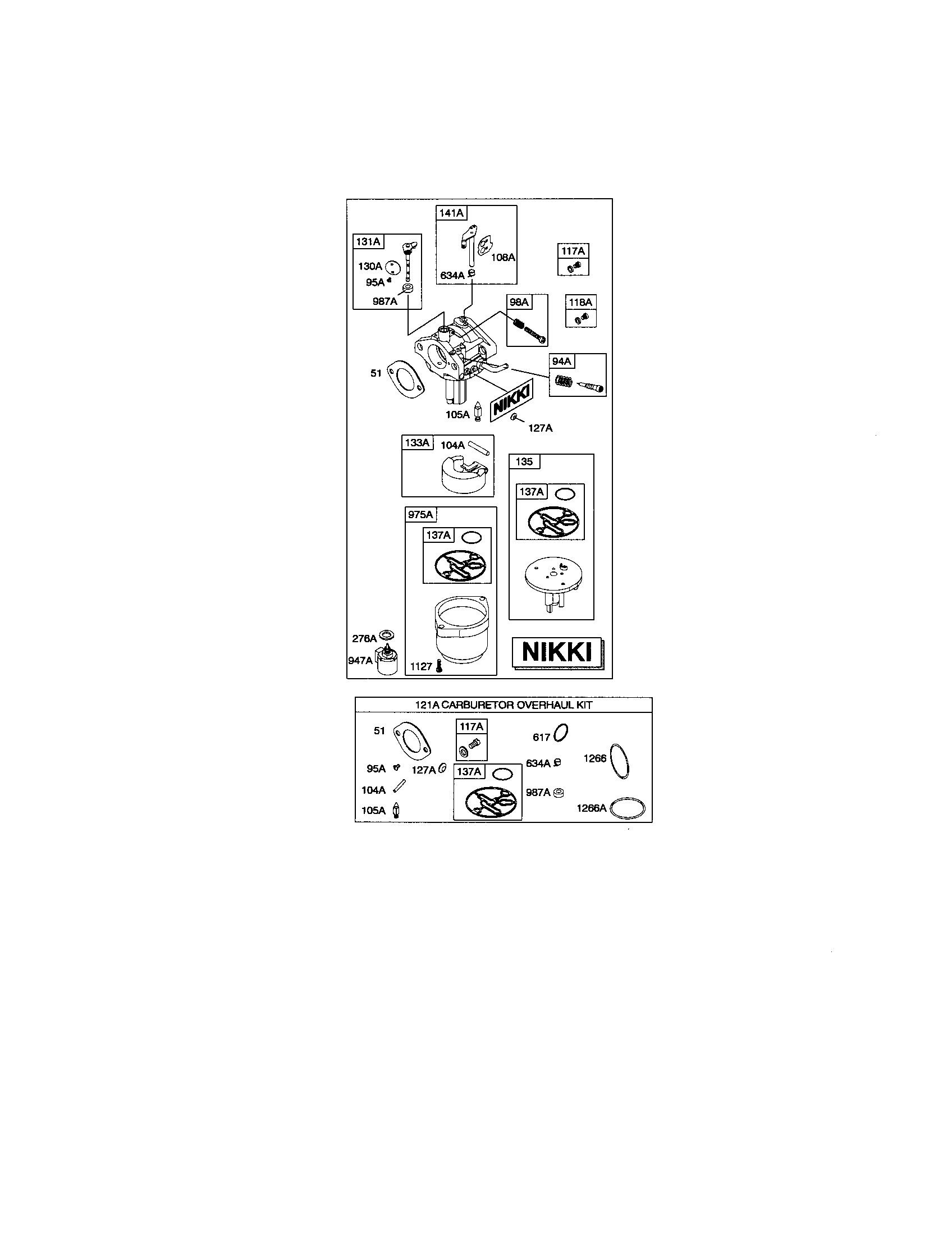

• Fuel system: tank, fuel line, fuel filter, carburetor

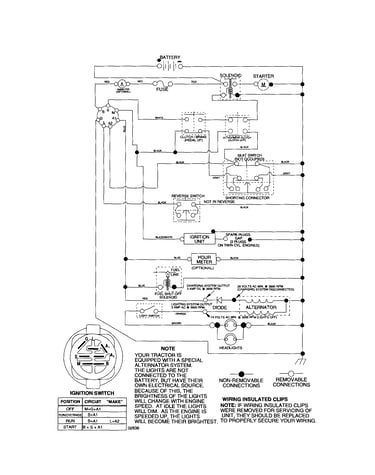

• Ignition and safety: ignition switch, wiring, operator presence and interlock circuits
• Lubrication: oil fill, oil drain, internal oil pump (engine-dependent)
• Starting/charging: battery, starter motor, starter solenoid
• Air intake: air filter and intake housing

Some problems that feel like “engine trouble” are actually starting or drive components. These are common service areas:

• Battery and cable connections (clean and tight)
• Fuel filter direction and leaks (arrow points toward carburetor)
• Belts and belt routing around pulleys and keepers
• Safety interlock switches and wiring connections
• Starter circuit components such as the lawn tractor starter solenoid 582042802

Knowing whether the issue is internal engine wear or a supporting system (fuel delivery, starting circuit, belt routing, or safety interlocks) helps you choose the right repair path and prevents replacing the wrong parts.

Last updated: February 2026

For Craftsman lawn tractor model 917287011, the operator manual identifies it as a low-emission gasoline engine and lists the tractor as a 15.5 HP unit. For the exact engine make and model (such as Briggs & Stratton or Kohler), we use the engine identification label and the specifications section in the 917287011 owner's manual.

Use these quick checks to match the correct engine parts and tune-up specs:

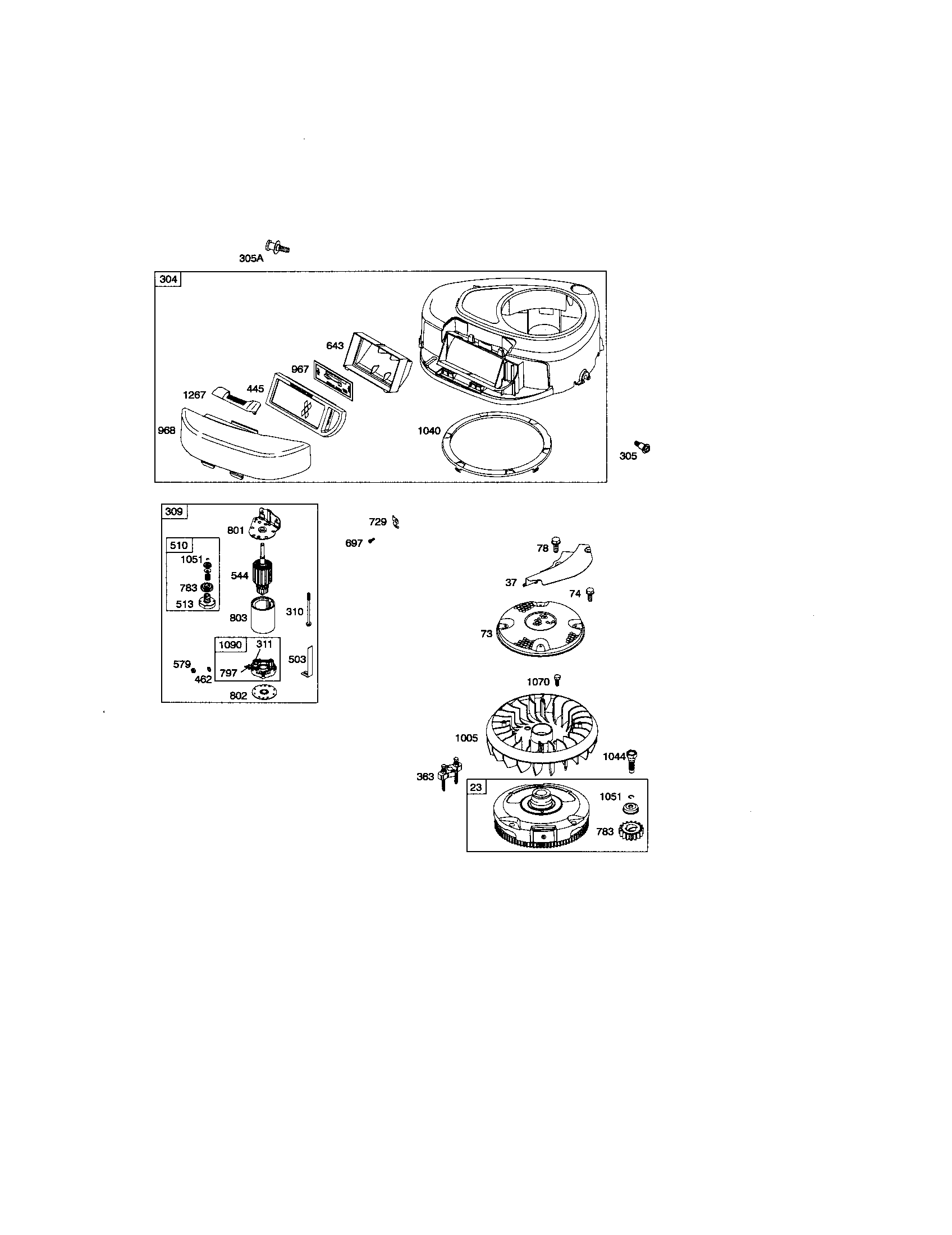

• Look for the engine model/type/code label on the blower housing, valve cover, or near the starter
• Record the full engine ID exactly as shown (letters and numbers)
• Compare the ID to the specifications section in the manual
• Use the engine ID when ordering ignition, fuel, and air-intake parts
• If the tractor cranks but will not start, test the starting circuit before replacing parts

The manual for this Craftsman tractor family (917.28701) calls out these core engine-related details.

Engine brand and exact engine model determine the correct spark plug, air filter, fuel filter, and carburetor settings. Using the engine ID also prevents ordering the wrong starting components when troubleshooting a no-start.

If you hear a click but the engine will not turn over, the manual points to common causes such as battery condition, terminal corrosion, wiring issues, or a failed solenoid. When replacement is needed, the correct match for this model is the lawn tractor starter solenoid 582042802.

Last updated: February 2026

For the Craftsman lawn tractor model 917287011, we use 4-cycle engine oil; the correct viscosity depends on outdoor temperature. The tractor ships with summer-weight oil, and for cold-weather starting you switch to the viscosity shown in the oil chart in the 917287011 owner's manual.

Use a quality 4-stroke (4-cycle) detergent engine oil that matches the season:

• Warm weather mowing: most lawn tractor engines run best on SAE 30
• Cool to cold weather: 5W-30 is commonly used for easier starting
• Do not use 2-cycle oil (this is a 4-cycle engine)
• Do not mix oil with gasoline (use straight, fresh regular unleaded fuel)
• Check oil on level ground before every mow

The manual’s process is straightforward; we recommend following it exactly:

• Park the tractor on level ground
• Remove the oil fill cap/dipstick, wipe it clean
• Reinsert and tighten, wait a few seconds, then remove and read the level
• Add oil until the dipstick reaches the FULL mark (do not overfill)
• Reinstall the cap/dipstick securely before starting

Use the oil viscosity chart in your manual for exact guidance; this table reflects common lawn tractor practice:

Using the right viscosity helps your Craftsman engine lubricate quickly at startup and stay protected under load. The wrong oil weight can cause hard starting, excess wear, or overheating during long mowing sessions.

Last updated: February 2026

Craftsman model 917287011 corresponds to the operator’s manual model format 917.28701; this tractor is from the mid-to-late 2000s era (commonly identified as 2007 for this model family). Use the serial number tag to confirm the exact build date for your specific unit.

Use the tractor’s identification labels and match them to the documentation.

• Find the model and serial number tag (commonly under the seat, on the frame rail, or near the rear fender pan)
• Record the serial number exactly as printed
• Check the engine label for model/type and any date or code information
• Compare your controls and specs to the 917287011 owner’s manual

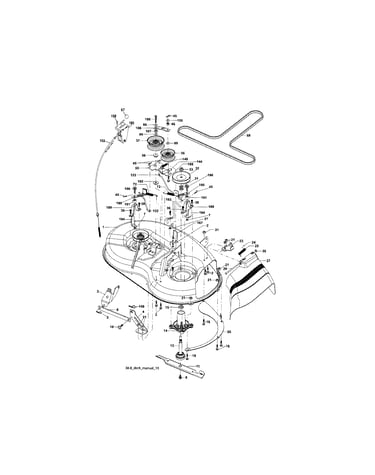

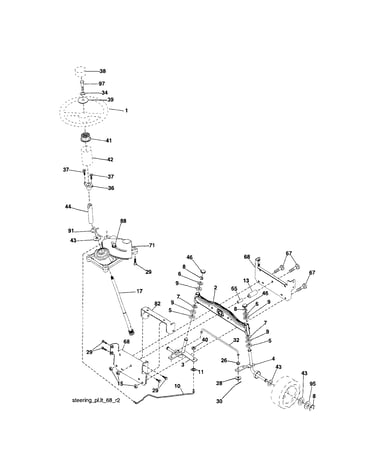

• Use parts diagrams to verify major assemblies (mower deck, transaxle, steering) match your tractor

The manual cover lists Model No. 917.28701 and describes a 15.5 HP, 38-inch mower, electric start, 6-speed transaxle tractor. Manuals often cover a model family and do not always print a single “model year,” so the serial tag is the best way to lock in the exact production date.

The correct year range affects parts fitment for common repairs like deck belts, steering parts, and starting components. If you are diagnosing a no-crank issue, matching the correct starting circuit parts, such as the lawn tractor starter solenoid 582042802, prevents repeat failures.
