Kenmore 79569299902 refrigerator Parts

A top-mount refrigerator (also called a top freezer refrigerator) is a classic design where the freezer compartment is on top and the fresh-food refrigerator section is below. Your Kenmore 79569299902 is this style, with airflow circulating between both sections for cooling.

How a top-mount (top freezer) layout works

In this configuration, cold air is produced in the freezer area and then shared with the refrigerator section through internal vents.

Key points we see on this Kenmore top freezer design:

• Cool air enters through the bottom of the freezer section and moves upward.
• Most air recirculates within the freezer; some flows into the refrigerator section through a top vent.
• Blocking vents with food packages interrupts airflow and can cause temperature and moisture problems.
• Odors can transfer between sections because air circulates between compartments.

What you get with a top-mount refrigerator

Top-mount refrigerators are popular because they are straightforward to use and maintain.

Typical benefits:

• Easy access to frozen foods at eye level
• Simple temperature control and airflow design
• Usually fewer complex dispenser components than some other styles
• Good overall storage efficiency for the cabinet size

Top-mount vs. other common refrigerator styles

Style	Freezer location	Common “best for”
Top-mount (top freezer)	Top	Everyday simplicity and easy freezer access
Bottom freezer	Bottom	Frequent fresh-food access at eye level
Side-by-side	Left/right	Narrow door swing, balanced freezer/fridge access
French door	Bottom drawer	Wide fresh-food shelves and flexible storage

Why it matters

Knowing you have a top-mount design helps with troubleshooting cooling issues: airflow between the freezer and refrigerator is shared, so a blocked vent, frost buildup, or a fan problem can affect both sections.

For model-specific features, control settings, and airflow diagrams, use the owner's manual.

Last updated: February 2026

On the Kenmore 79569299902 top-mount refrigerator, the top compartment is the freezer. It’s the section designed to keep foods frozen and, on some models, it can also house an ice maker and ice bin (as shown in the owner's manual).

What you’ll typically find in the top (freezer) section

Depending on the exact configuration, the freezer area can include:

• Freezer shelf
• Freezer door racks
• Ice bin and ice maker (on some models)
• Air vents that circulate cold air to the refrigerator section
• Freezer temperature control (or airflow control)

Why the freezer matters for cooling the whole refrigerator

In a top-mount design, the freezer does more than freeze food. Cold air originates in the freezer and then moves into the fresh-food (refrigerator) section through vents. If vents are blocked by food packages, airflow drops and you can get warm temperatures or moisture issues.

Quick airflow checklist

• Keep packages away from freezer vents
• Avoid overpacking the freezer shelf area
• Make sure door racks are not preventing the door from sealing
• Confirm the refrigerator is running at least a few hours after setup before loading food

Freezer vs. refrigerator section: what each does

Compartment	Main job	Common items inside
Freezer (top)	Freezes and stores frozen foods	Shelf, door racks, ice bin (some models)
Refrigerator (bottom)	Keeps fresh foods cold (not frozen)	Shelves, crispers, snack/deli drawer

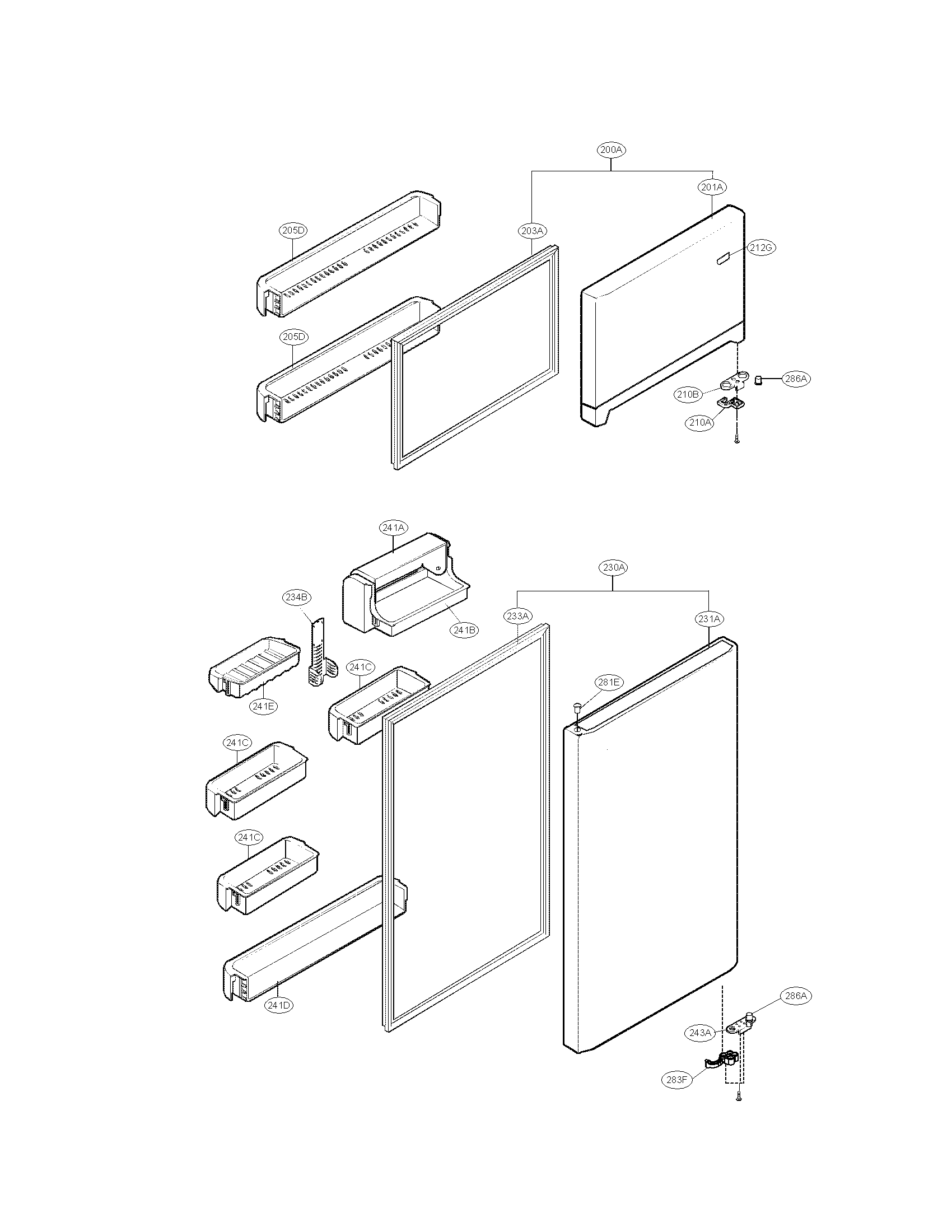

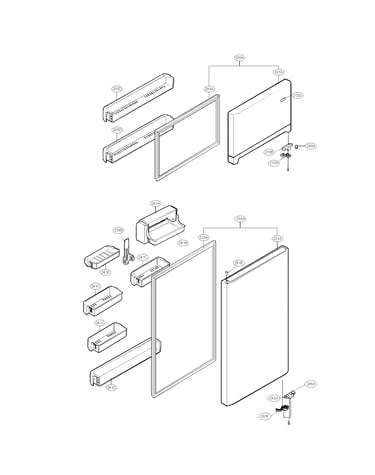

Related parts that affect the top section (door closing and sealing)

If the freezer door does not close smoothly or sits slightly open, temperatures can drift. These model-matched parts are commonly involved in door alignment and closing:

• Refrigerator door hinge bushing 4984JJ3003A
• Refrigerator door stopper 4620JJ2009A
• Refrigerator freezer door gasket ADX52752653

Why it matters: A properly closing freezer door helps maintain steady freezer temperatures and supports consistent cooling in the refrigerator section.

Last updated: February 2026

For Kenmore model 79569299902, the model number alone usually does not directly state the exact cubic-foot capacity. The most reliable way is to look up the capacity in the specifications section of the owner's manual, or calculate it from the interior compartment measurements.

Fast ways to find the cubic feet

1) Check the manual specs (best option)

The owner's manual for this Kenmore top-freezer platform covers multiple 795-series models and includes the product information you need, including where to find the ID label and how the refrigerator is configured.

2) Use the model and serial label location

On this 795-series top-freezer design, the identification label is located inside the refrigerator compartment on the right-hand side. Use that model number (79569299902) when matching specs in the owner's manual.

3) Calculate cubic feet from interior measurements

If you cannot find the capacity listed, you can estimate it by measuring the usable interior space.

• Measure width, height, and depth (in inches) of the fresh-food compartment
• Do the same for the freezer compartment
• Multiply each compartment: W x H x D to get cubic inches
• Add the two compartments together
• Convert to cubic feet: total cubic inches ÷ 1728

Measuring tips (so the estimate is realistic)

• Measure usable space, not the outside cabinet size
• Subtract areas taken up by the evaporator cover, light housing, and air ducts
• Measure depth to the point where shelves and drawers actually allow storage
• If shelves are adjustable, measure with them in a typical position
• Round to the nearest tenth; published capacities are typically rounded

Quick reference table

What you measure	Unit	What it tells you
Interior width x height x depth	inches	Cubic inches per compartment
Total cubic inches ÷ 1728	cubic feet	Estimated refrigerator capacity

Why it matters

Cubic-foot capacity helps you choose correctly sized replacement accessories and plan storage, but it is also useful when comparing refrigerators in the same Kenmore 795 family. For repair and parts matching, the exact model number (79569299902) is still the key identifier.

Last updated: February 2026

For Kenmore model 79569299902, the correct water filter is the one that matches your refrigerator’s filter housing and the part number printed on your current filter (or listed for your model). We recommend confirming the exact filter style and replacement steps in the 79569299902 owner's manual before ordering.

How to identify the right filter for your refrigerator

Use these quick checks to match the correct replacement water filter:

• Look for the filter part number printed on the old filter cartridge.
• Check the filter location (inside the fresh food compartment, in the base grille, or inline on the water line).
• Match the cartridge shape and end-cap style (twist-in, push-in, or quarter-turn).
• Confirm whether your refrigerator is plumbed to a water line (ice maker and water dispenser models).
• If you use reverse osmosis, verify your system can maintain adequate pressure for filtered models.

Water pressure requirements (important for filter performance)

Your refrigerator’s water system needs enough pressure to flow through the filter and still supply the ice maker and dispenser.

Setup	Typical required water pressure	What you may notice if pressure is low
Model with a water filter	40 to 120 PSI	Slow fill, hollow ice, weak dispenser flow
Model without a water filter	20 to 120 PSI	Slow fill, small ice cubes

If you have a reverse osmosis system, the manual notes the RO supply pressure should be 40 to 60 PSI to the RO system; low RO pressure commonly causes slow dispensing and ice maker fill issues.

Why it matters

Using the wrong filter can cause leaks, poor water flow, bad taste, or ice maker problems. Matching the correct cartridge for Kenmore 79569299902 keeps the water valve, tubing, and ice maker fill system working as designed.

Related help

• For step-by-step filter replacement guidance and common Kenmore filter types, use How to replace the water filter in a Kenmore refrigerator.

Last updated: February 2026
