Craftsman 917298132 3-hp tiller Parts
Here are the diagrams and repair parts for Craftsman 917298132 3-hp tiller, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 917298132 Tillers

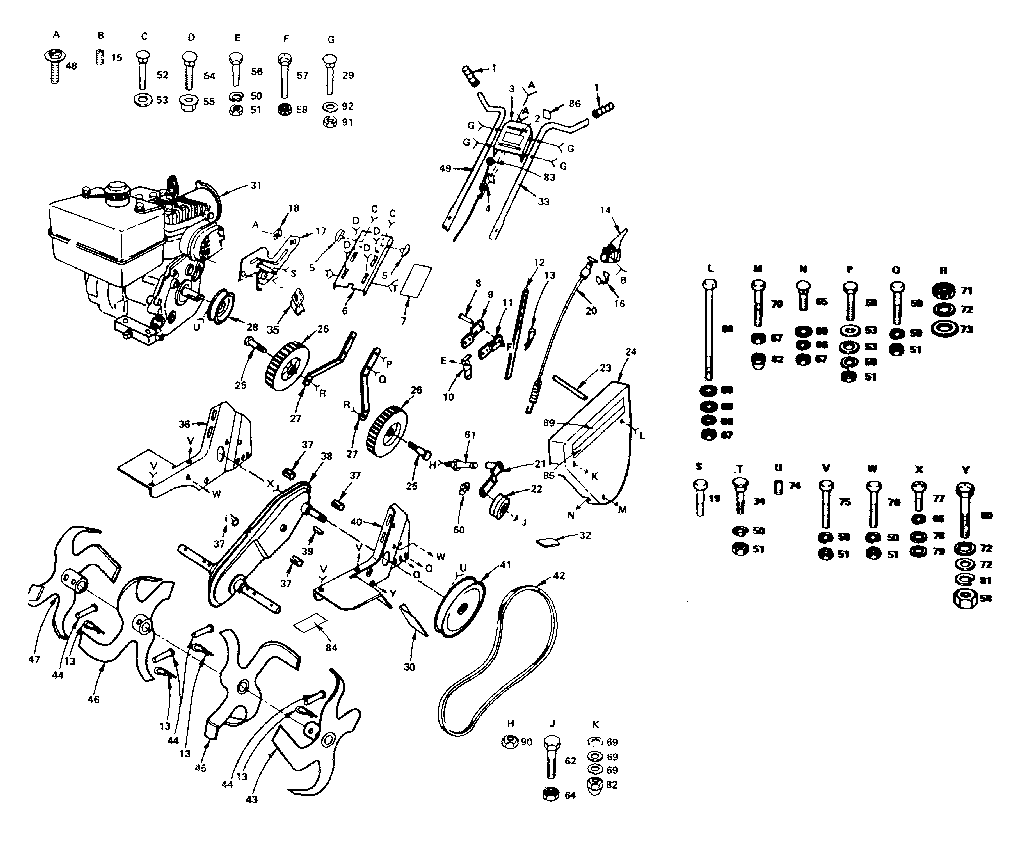

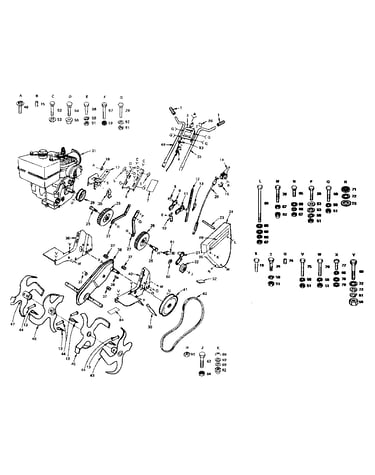

Replacement parts diagram
Gripco Nut
Part #7810HReplaced by #596322601
Manufacturer substitutionThis part replaces 7810H. Substitute parts can look different from the original.This item is not returnableIn Stock$5.8715% OFF Phone Price : $6.87
Qty
Replacement parts diagram
Washer
Part #19121414Replaced by #596134901
Manufacturer substitutionThis part replaces 19121414. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8617% OFF Phone Price : $5.86QtyReplacement parts diagram
Shldr Bolt
Part #4898HReplaced by #596434402
Manufacturer substitutionThis part replaces 4898H. Substitute parts can look different from the original.This item is not returnableIn Stock$6.3214% OFF Phone Price : $7.32QtyReplacement parts diagram
Washer
Part #19171616Replaced by #596040101
Manufacturer substitutionThis part replaces 19171616. Substitute parts can look different from the original.This item is not returnableIn Stock$6.4713% OFF Phone Price : $7.47QtyReplacement parts diagram
Idler Pad
Part #109227XReplaced by #532109227
Manufacturer substitutionThis part replaces 109227X. Substitute parts can look different from the original.In Stock$8.6310% OFF Phone Price : $9.63QtyReplacement parts diagram
Nut
Part #98000129Replaced by #585802801
Manufacturer substitutionThis part replaces 98000129. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyReplacement parts diagram
Washer
Part #19131311Replaced by #582732401
Manufacturer substitutionThis part replaces 19131311. Substitute parts can look different from the original.In Stock$12.97QtyReplacement parts diagram
Tiller Cap Nut
Part #104213XReplaced by #583644101
Manufacturer substitutionThis part replaces 104213X. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyReplacement parts diagram
Cbl/cltch T
Part #3066JReplaced by #583731701
Manufacturer substitutionThis part replaces 3066J. Substitute parts can look different from the original.In Stock$20.6023% OFF Phone Price : $26.60QtyReplacement parts diagram
Washer
Part #STD551025Replaced by #STD551025
Manufacturer substitutionThis part replaces STD551025. Substitute parts can look different from the original.In Stock$36.61Qty
