Bosch SHE3AR56UC/17 dishwasher Parts

Yes, most built-in Bosch dishwashers, including the Bosch SHE3AR56UC, are designed to fit a standard 24-inch cabinet opening. For this installation platform, the opening should be at least 34 inches high and about 23 5/8 inches wide, which matches typical U.S. built-in dishwasher sizing (check your cutout before ordering). See the SHE3AR56UC installation guide for the exact opening and hose routing requirements.

Standard size vs. what you should measure

Even when a dishwasher is considered “standard,” the cabinet cutout and utility hookups determine whether it fits and installs correctly.

Measure these before you buy or reinstall:

• Opening height: at least 34 inches
• Opening width: about 23 5/8 inches (typical 24-inch class)
• Depth: enough to fully enclose the unit under the counter
• Drain hose routing: includes a high loop (minimum 20 inches above the floor)
• Distance to sink plumbing: drain hose length should not exceed 92 inches without an approved extension approach

Quick sizing guide (common dishwasher classes)

Dishwasher class	Typical cabinet opening width	Common use
Standard built-in	~24 inches	Most U.S. kitchens
Compact built-in	~18 inches	Small kitchens, apartments

Installation details that matter on this model

For the Bosch SHE3AR56UC installation platform, we focus on fit plus proper drain and electrical setup:

• Keep a portion of the drain hose at least 20 inches off the floor (high loop) to help prevent draining problems.
• Plan the drain hose run so the included hose length works; if extending, follow the approved method in the installation instructions.
• Use a dedicated 120V, 60 Hz grounded circuit with a 15-amp breaker or fuse (no extension cords).

Why it matters

A dishwasher can be “standard size” and still install poorly if the opening is short, the drain hose is routed too low, or the electrical supply is not dedicated. Correct sizing and routing helps prevent leaks, no-drain symptoms, and performance issues.

Last updated: February 2026

Yes. You can buy replacement parts for your Bosch SHE3AR56UC dishwasher to fix common problems (leaks, poor cleaning, not draining) and to replace wear items like rack wheels, seals, and filters. Use the SHE3AR56UC installation guide to confirm fit and installation requirements before ordering.

Common dishwasher parts you can replace

These are some of the most frequently replaced items for Bosch dishwashers like model SHE3AR56UC:

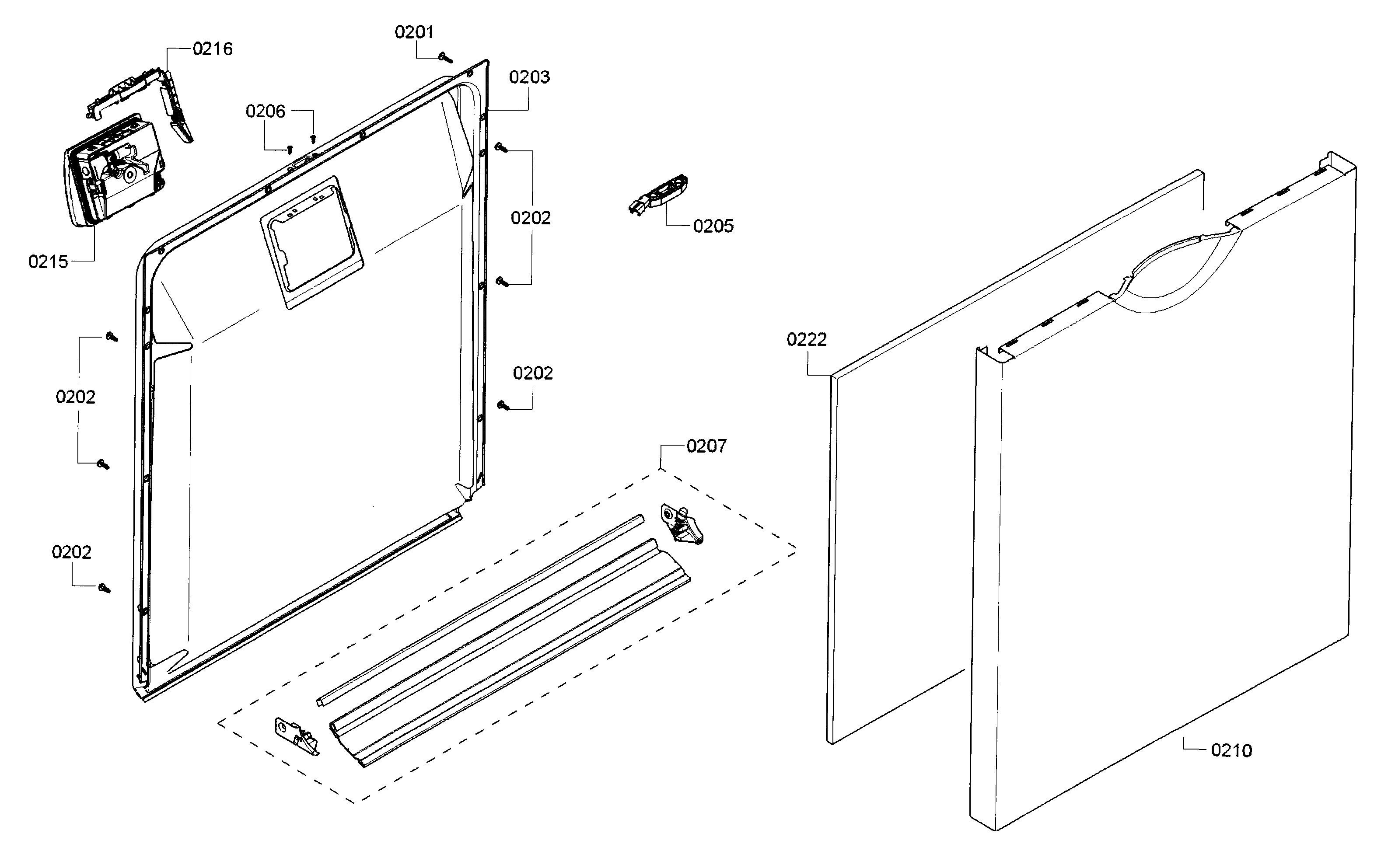

• Door sealing parts (to help stop leaks)

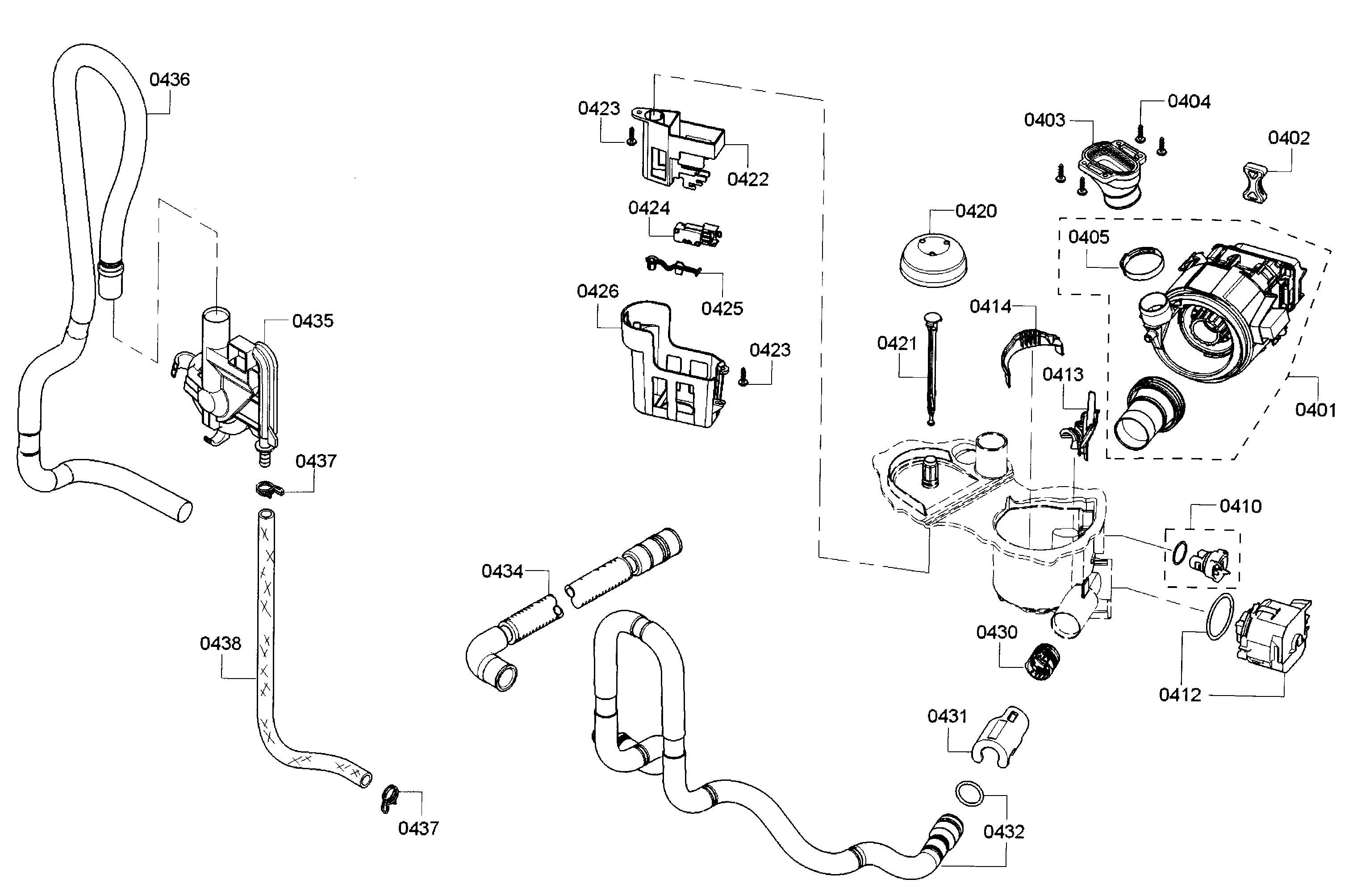

• Drain and fill components (to fix draining or filling issues)
• Wash system parts (to improve cleaning performance)

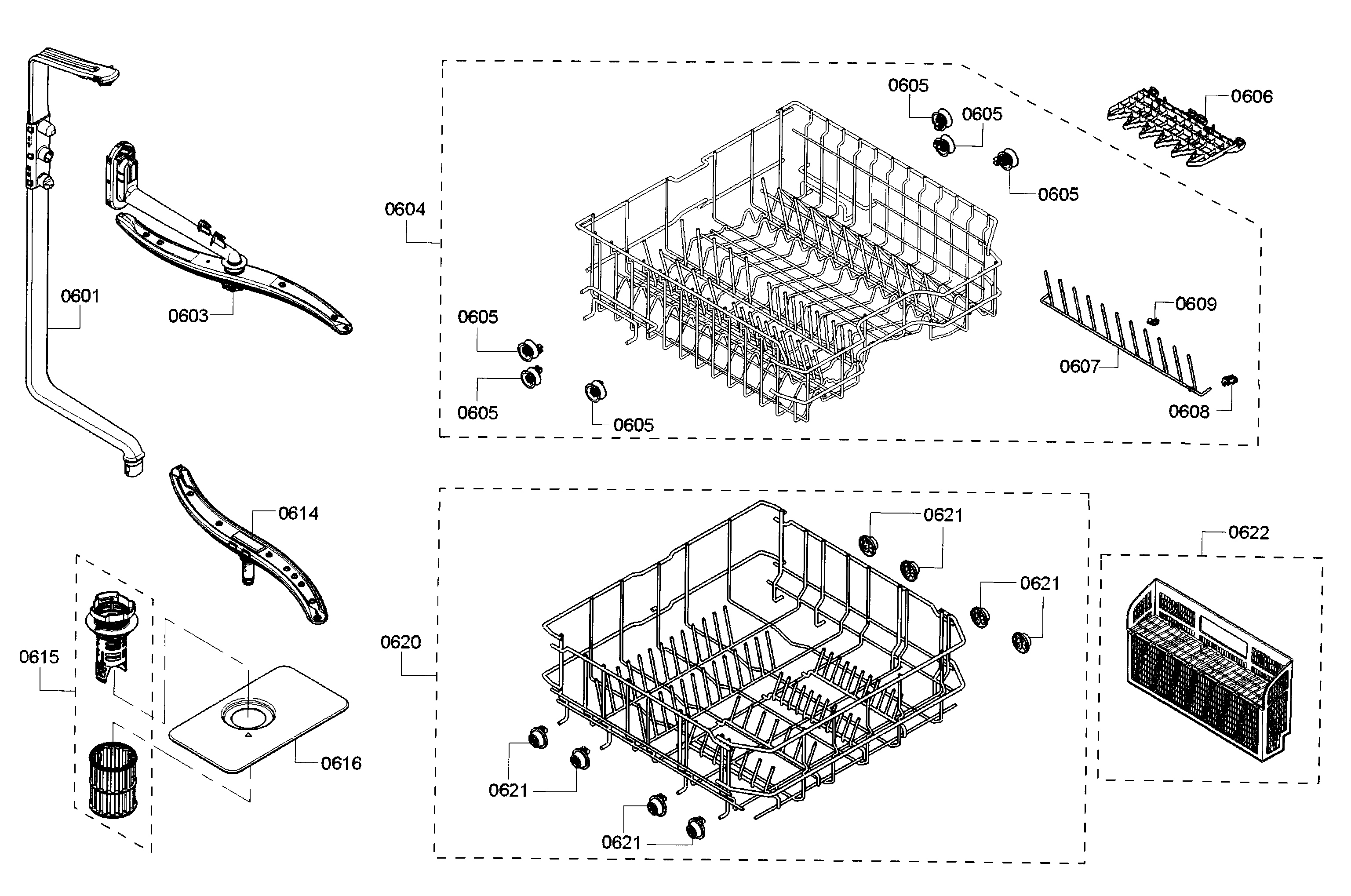

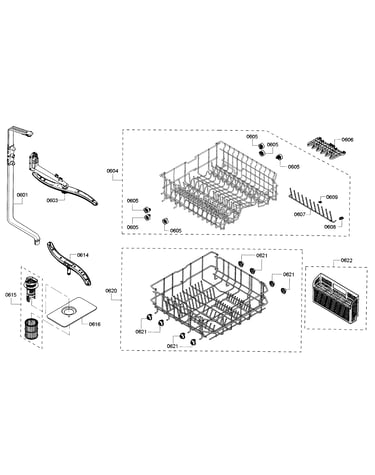

• Rack hardware (to restore smooth rack movement)
• Sensors and switches (to address error codes or cycle issues)

Popular replacement parts for this model

Here are examples of parts available for Bosch SHE3AR56UC that customers often replace:

Symptom	Part to check	Example part for this model
Water leaking at the door	Lower door seal	Door seal, lower 00669221
Lower rack won’t roll smoothly	Lower rack roller	Dishrack roller, lower 00611475
Not cleaning well	Upper spray arm, filters	Spray arm, upper 00668385 or circulation pump micro filter 00645038
Not filling	Water inlet valve	Water inlet valve 00622058
Not draining	Drain pump, check valve	Drain pump 00611332 or check valve 00611320

How we recommend choosing the right part

We focus on matching the part to the symptom first, then confirming fit for your exact dishwasher.

• Confirm the full model number on the label (Bosch model tags are typically on the door edge)
• Identify the symptom (leak, no drain, no fill, poor wash, won’t start)
• Check for installation constraints (for example, drain hose routing and height)
• Replace any one-time-use clamps or seals during reassembly when applicable
• After repair, run a short cycle and check for leaks

Why it matters

Using model-matched parts helps your Bosch dishwasher run safely and correctly. For example, Bosch installation guidance calls for the drain hose to be routed so a portion is raised at least 20 inches above the floor to help prevent draining problems.

Last updated: February 2026

An E17 error on your Bosch SHE3AR56UC dishwasher points to a water fill problem (the dishwasher is not getting the right amount of incoming water). We fix it by confirming the water supply is fully on, the inlet hose is clear and not kinked, and the fill components are clean and working.

Quick checks that solve most E17 errors

• Turn the dishwasher off, then restore power to reset the control.
• Verify the shutoff valve under the sink is fully open.
• Run the hot water at the sink until it is fully hot, then start a cycle (helps stabilize fill temperature and flow).
• Inspect the inlet hose for kinks, crushing, or leaks.
• Make sure the hose routing under the unit is not rubbing moving parts (per the SHE3AR56UC installation guide).
• If the home hot water has not been used for weeks, run water at a nearby faucet first to clear any trapped gas in the plumbing.

Parts to check if the error returns

If the supply and hose look good, the issue is usually in the fill system or sensing.

What to check	What it affects	Common symptom
Dishwasher water inlet valve 00622058	Lets water into the tub	No fill or weak fill
Dishwasher turbidity sensor 00611323	Helps the control “read” water conditions	Odd fill behavior, poor wash results
Float and float switch	Prevents overfilling	Stops filling too soon

Step-by-step troubleshooting order (fastest to slowest)

1. Confirm strong water flow at the sink faucet.
2. Confirm the dishwasher shutoff valve is fully open.
3. Check inlet hose condition and routing.
4. Check the tub float for sticking (debris, detergent buildup).
5. If E17 persists, test/replace the inlet valve; then evaluate sensors and control.

Why it matters

E17 is a protection alert. If the dishwasher cannot fill correctly, it can stop mid-cycle, clean poorly, or trigger additional Bosch dishwasher error codes. Using the Bosch dishwasher error codes guide helps you match the code to the right system (fill, drain, heat, or sensing) so you replace fewer parts.

Last updated: February 2026

Yes, repairing a Bosch dishwasher like model SHE3AR56UC is usually worth it because these machines are built to last and many common failures are inexpensive to fix compared with replacing the entire dishwasher. We typically recommend repair when the unit is under about 10 years old and the fix is not a major electronic or pump failure.

Quick way to decide (cost, age, and what failed)

Use these checkpoints to make a confident call:

• Dishwasher age: Under 6 to 10 years usually favors repair.
• Repair cost rule: If the repair is under ~50% of the cost of a comparable new dishwasher, repair is the better value.
• Failure type: Mechanical wear items (seals, valves, rollers, filters) are usually worth fixing.
• Multiple symptoms: If you have several unrelated problems at once, replacement can make more sense.
• Water damage risk: Active leaking should be addressed immediately to avoid cabinet and floor damage.

Common repairs that are often “worth it”

These are frequent, straightforward fixes on many Bosch dishwashers:

Symptom	Often caused by	Example part for SHE3AR56UC
Not draining	Clog, check valve issue, drain pump problem	Dishwasher drain pump 00611332
Leaking at the door	Worn lower door seal	Dishwasher door seal, lower 00669221
Poor cleaning	Clogged filter, spray issue, sensing issue	Dishwasher circulation pump micro filter 00645038 or dishwasher spray arm, upper 00668385
Not filling	Water supply issue, inlet valve	Dishwasher water inlet valve 00622058

When replacement is the better choice

Replacement is usually the smarter investment when:

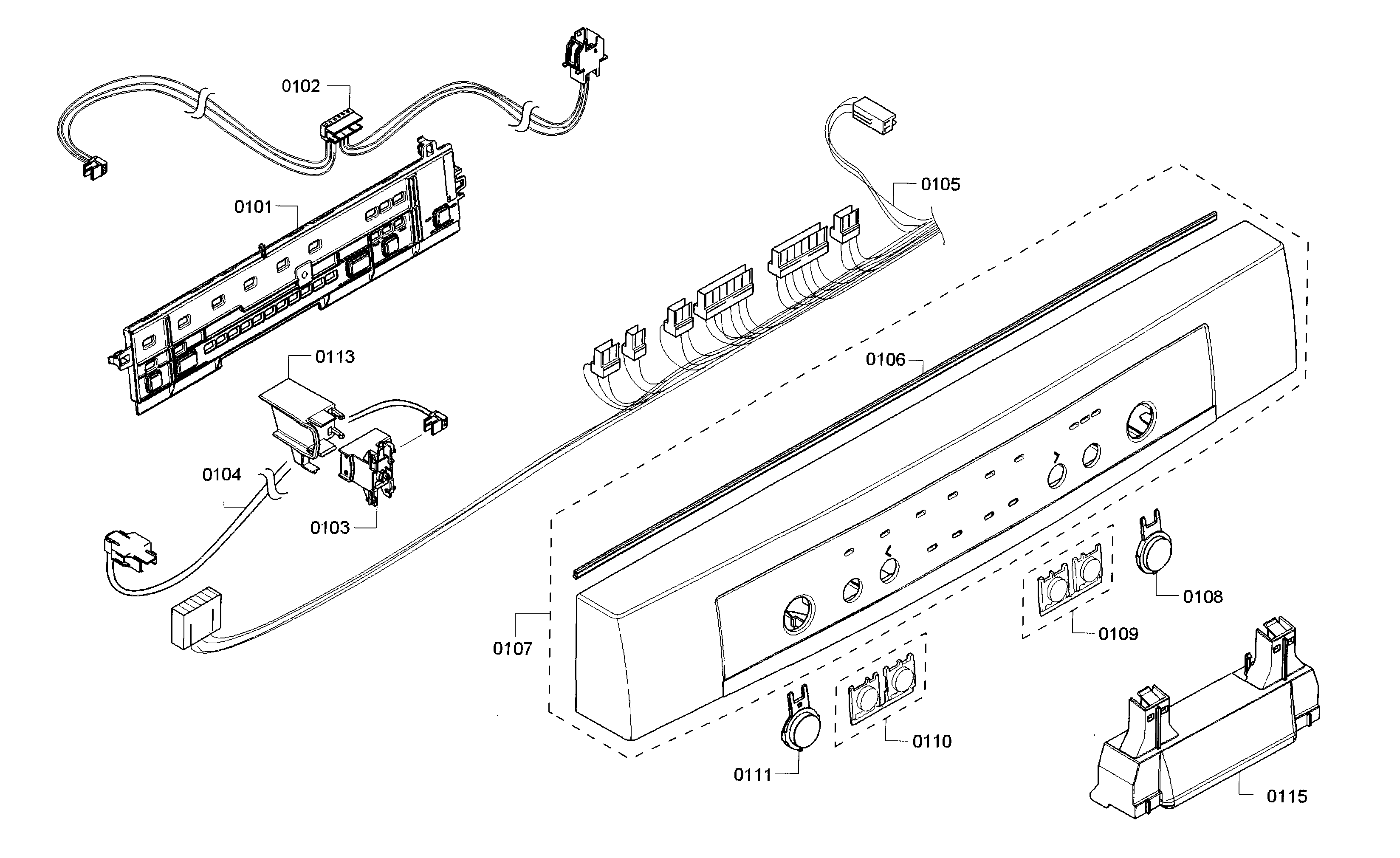

• A control board failure is confirmed and total repair cost is high (for example, dishwasher electronic control board 00705047).
• The dishwasher has repeated breakdowns and downtime.
• The tub is damaged or heavily corroded.
• You are already planning a kitchen remodel and want a different size or feature set.

Why it matters

A dishwasher repair decision is mostly about total cost of ownership. Fixing a single failed part can restore full performance for years, while replacing the unit resets the clock but costs much more upfront.

Helpful references for this model

• Use the SHE3AR56UC user manual for care, maintenance, and self-help checks.
• If you’re seeing an error code, start with Bosch dishwasher error codes to narrow down the likely failed component.

Last updated: February 2026

A Bosch dishwasher typically lasts 10 to 15 years with normal household use. For your Bosch SHE3AR56UC, consistent maintenance (especially cleaning filters and keeping spray arms clear) and correct installation practices have the biggest impact on reaching the high end of that range.

Typical lifespan and what affects it

Most Bosch dishwashers land in this range, but real-world life depends on a few controllable factors:

• Water quality (hard water speeds up mineral buildup)
• How often you run it (daily use wears pumps and seals faster)
• Maintenance habits (filter cleaning prevents circulation strain)
• Detergent and rinse aid use (helps cleaning and reduces residue)
• Installation quality (proper drain loop and secure mounting reduce leaks and vibration)

For model-specific care and maintenance intervals, follow the SHE3AR56UC owner’s manual.

Maintenance checklist to help it reach 10 to 15 years

Use this routine to reduce common wear issues (drain problems, poor cleaning, leaks):

• Clean the filter area regularly; a clogged filter makes the circulation system work harder
• Inspect and clear spray arm holes; replace a damaged arm if it no longer spins freely
• Run hot water at the sink before starting a cycle if your hot water line is cold
• Keep the door seals clean and free of debris
• Use a dishwasher cleaner periodically to reduce grease and mineral buildup

If you’re troubleshooting performance issues, our how to clean and maintain your dishwasher guide pairs well with the manual.

Quick reference: what usually fails first

Symptom	Common wear area	What to check first
Not cleaning well	Spray system, filtration	Filter and spray arms for clogs
Not draining	Drain path, pump	Drain hose loop, drain pump area
Leaking at door	Door sealing surfaces	Lower seal and door alignment
No heat or poor drying	Heating/circulation system	Cycle selection, heater function

Why it matters

A dishwasher that is maintained and installed correctly runs with less strain on the circulation pump, drain pump, and seals. That reduces breakdowns and helps your Bosch SHE3AR56UC deliver reliable wash performance for its full expected service life.

Last updated: February 2026

The most common Bosch dishwasher problem is draining trouble: water left in the tub because the filter area or drain path is restricted. On the Bosch SHE3AR56UC, routine filter cleaning and checking the drain hose routing (no kinks or clogs) prevents most “won’t drain” complaints.

Quick checks we recommend first

• Cancel the cycle and let the unit attempt a drain; listen for the drain pump running.
• Remove and clean the filter area; rinse off grease and debris.
• Check the sink drain/disposer connection for a blockage (especially after a new disposer install).
• Inspect the drain hose for kinks, crushing, or a low loop that can cause backflow.
• If you see standing water and the pump sounds strained, check the pump cover/lid area for debris.

Common Bosch dishwasher issues and what they usually point to

Symptom	Most common cause	What to do next
Water won’t drain	Clogged filter or drain path	Clean filter area; inspect hose routing
Not filling	Water supply off or inlet restriction	Verify shutoff valve is fully open
Poor cleaning	Spray arm holes blocked, filter dirty	Clean spray arm and filters
Not drying	Cycle selection, rinse aid, heater system issue	Use rinse aid; confirm heated dry options

Parts that often solve the “won’t drain” type complaint

If cleaning and hose checks do not fix it, these model-matched parts are common next steps:

• Dishwasher drain pump 00611332 (pump not running or weak drain)
• Dishwasher check valve 00611320 (backflow or intermittent draining)
• Dishwasher drain pump lid 00611322 (debris intrusion or poor sealing at the pump cover)

Why it matters

Drain restrictions can trigger longer cycle times, odors, and repeat error conditions. Keeping the filter and drain path clear is the simplest way to protect the pump and keep wash performance consistent.

For model-specific self-help steps and error guidance, use the SHE3AR56UC owner’s manual and our Bosch dishwasher error codes reference.

Last updated: February 2026
