To hard reset your Kenmore dishwasher model 66512413N414, we recommend canceling the current cycle and draining the unit by pressing and holding START/RESUME for 3 seconds, then closing the door so the drain runs. This clears the active cycle and lets you restart cleanly (see the 66512413N414 owner's manual).

• Cancel and drain (most effective reset): Press and hold START/RESUME for 3 seconds, then close the door to begin draining.
• Restart the cycle: After cancel/drain completes, select a new cycle and press START/RESUME.
• If controls seem unresponsive: Check whether Control Lock is on; locked controls prevent starting.
• If you only need to silence beeps: Press and hold HIGH TEMP for 3 seconds to toggle sound on/off.

1. Open the door slightly and wait for spraying to stop.
2. Press and hold START/RESUME for 3 seconds.
3. Close the door within a few seconds so the dishwasher can drain.
4. Let the drain finish completely (the cancel/drain indicator typically turns off after a short drain period).
5. Select your wash cycle and options, then press START/RESUME.

• Make sure the door is fully latched; a loose latch can stop the cycle.
• Turn Control Lock off by pressing and holding SANI RINSE for 3 seconds.

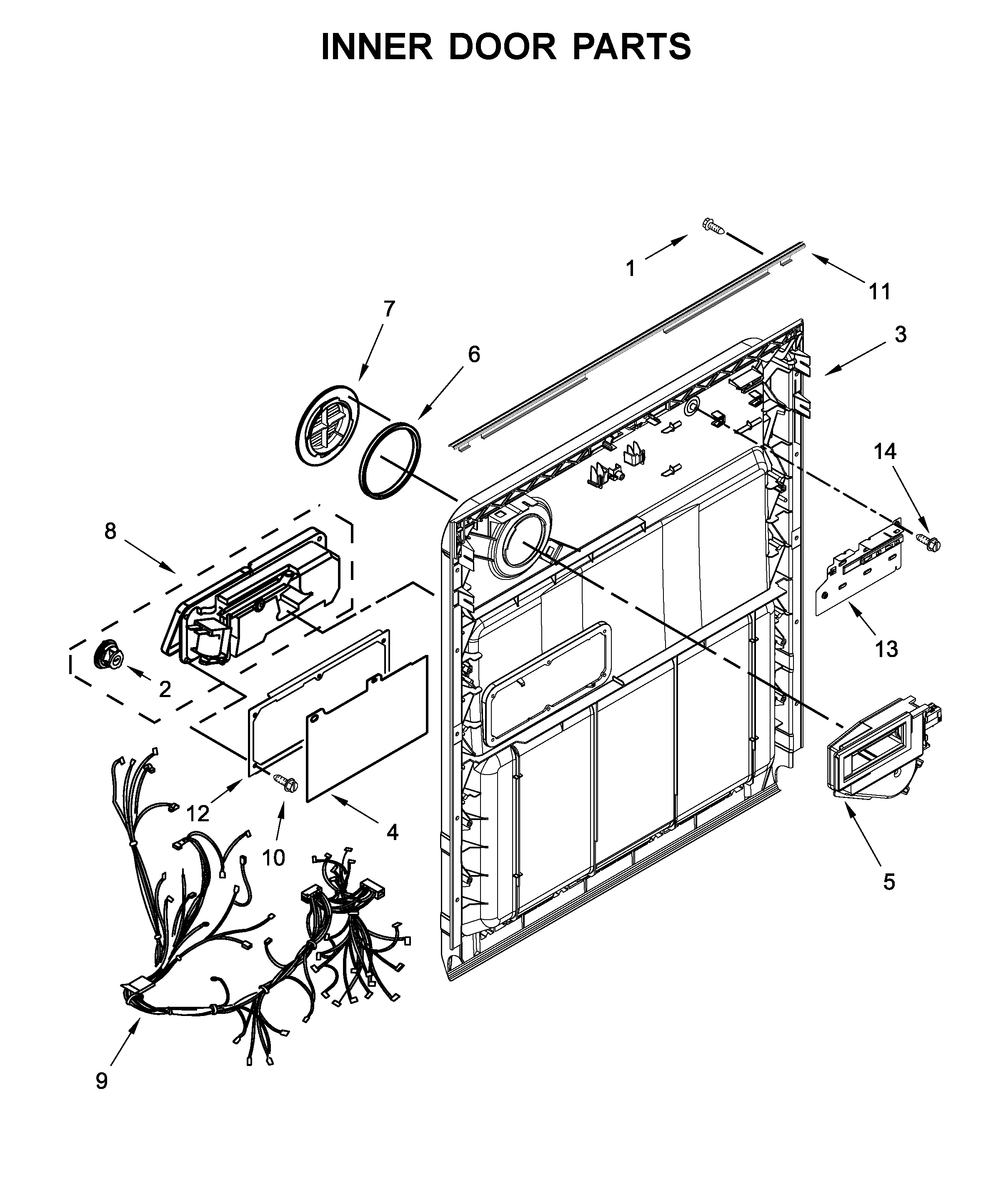

• Confirm the detergent dispenser is closed before restarting a new cycle.
• If the dishwasher is showing an error, use the Kenmore 665 model dishwasher error codes reference to match the code to the next repair step.

Canceling and draining protects the pump and prevents restarting a wash with leftover dirty water. It also helps you avoid repeated start attempts that can look like a control problem when the dishwasher is simply locked or mid-cycle.

Last updated: January 2026

On Kenmore dishwasher model 66512413N414, we manually drain the tub by canceling the current cycle: open the door slightly to stop spraying, then press and hold START/RESUME for 3 seconds, close the door, and let the drain run for about 2 minutes (it will not drain until the door is closed). See the 66512413N414 owner's manual for the exact button sequence on your control panel.

• Open the door slightly and wait for spraying to stop.
• Press and hold START/RESUME for 3 seconds to cancel selections and drain.
• Close the door within 3 seconds.
• Let the dishwasher drain completely (typically about 2 minutes).
• When the Cancel/Drain indicator turns off, the drain portion is finished.

These checks solve most “water remains in tub” complaints:

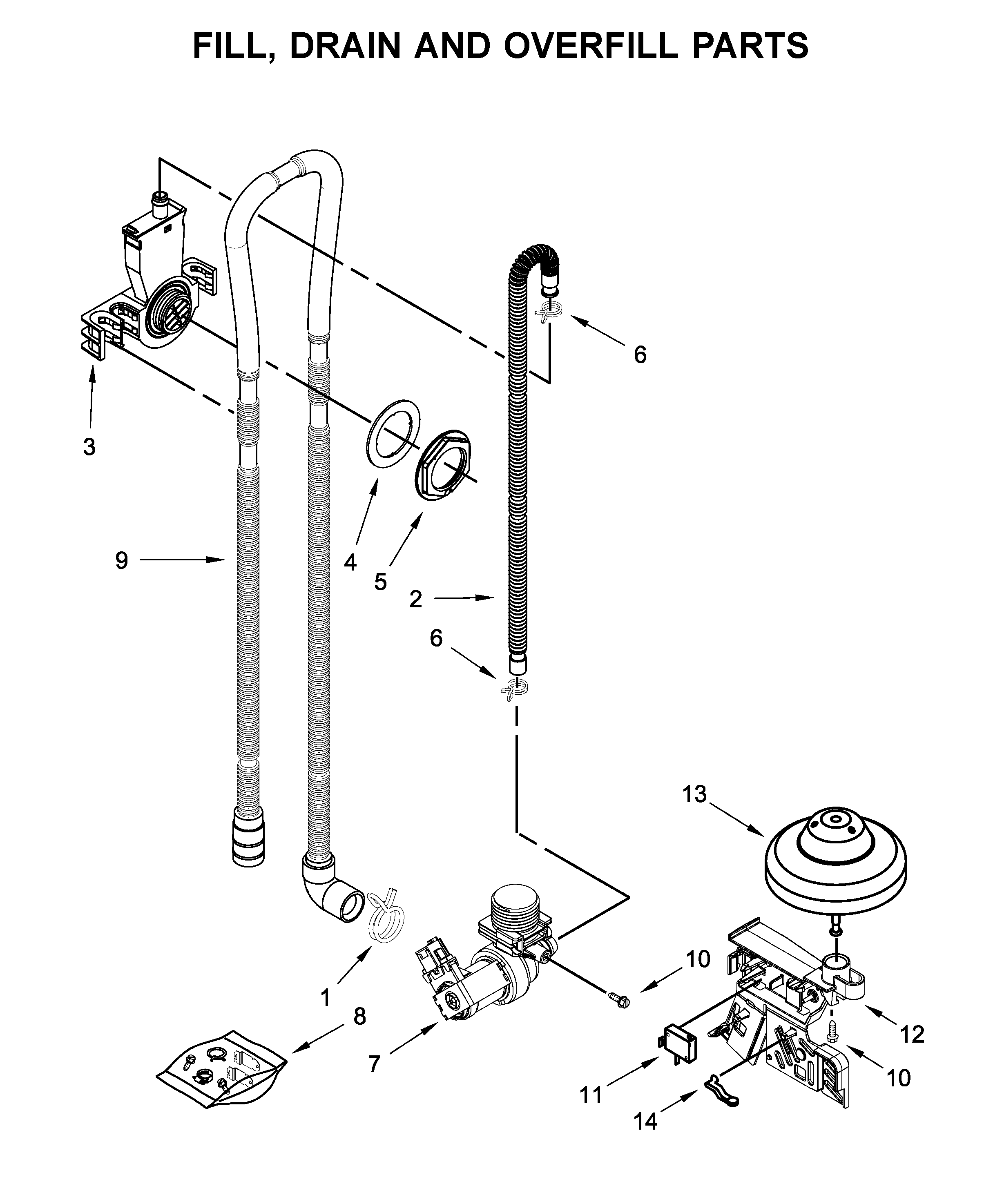

• Check the drain hose routing under the sink; it should not be kinked or crushed.
• Confirm the drain connection at the sink drain or garbage disposer is clear.
• Clean the filter area so food soil is not restricting flow (a clogged filter can mimic a drain problem).
• Listen for the drain pump during the drain portion; a loud hum with no water movement points to a blockage.

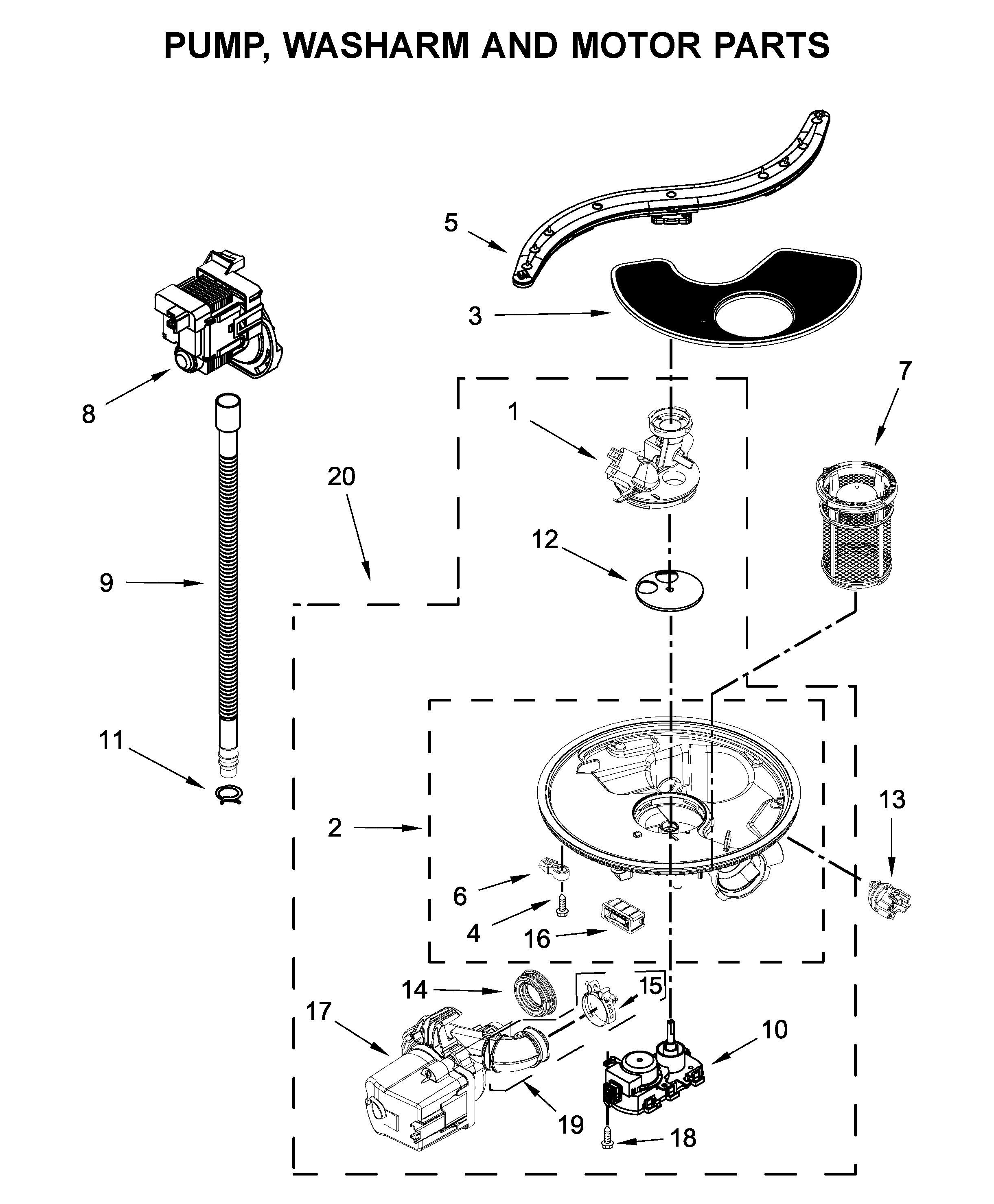

• If the drain pump is not running or is noisy and not moving water, replacing the dishwasher drain pump W10876537 is a common repair.

Standing water can cause odors, redeposit food soil on dishes, and strain the drain pump and sump system. Draining correctly also helps you diagnose whether the issue is a simple cancel/drain step, a drain hose restriction, or a failing pump.

Last updated: January 2026

Yes. Kenmore dishwashers are generally considered quiet, and the Kenmore 66512413N414 is built with features that support low-noise operation while still delivering strong wash performance (spray arms, filtration, and a variable-speed motor). For the exact sound rating for your unit, check the 66512413N414 owner's manual.

Dishwasher noise is typically measured in dBA (decibels). Lower numbers are quieter.

• 55+ dBA: noticeable in the room
• 50 to 54 dBA: moderate, usually acceptable in most kitchens
• 45 to 49 dBA: quiet, conversation-friendly
• 44 dBA and below: very quiet, often hard to notice

From the manual features list for this Kenmore dishwasher, several components support quieter operation and smoother washing:

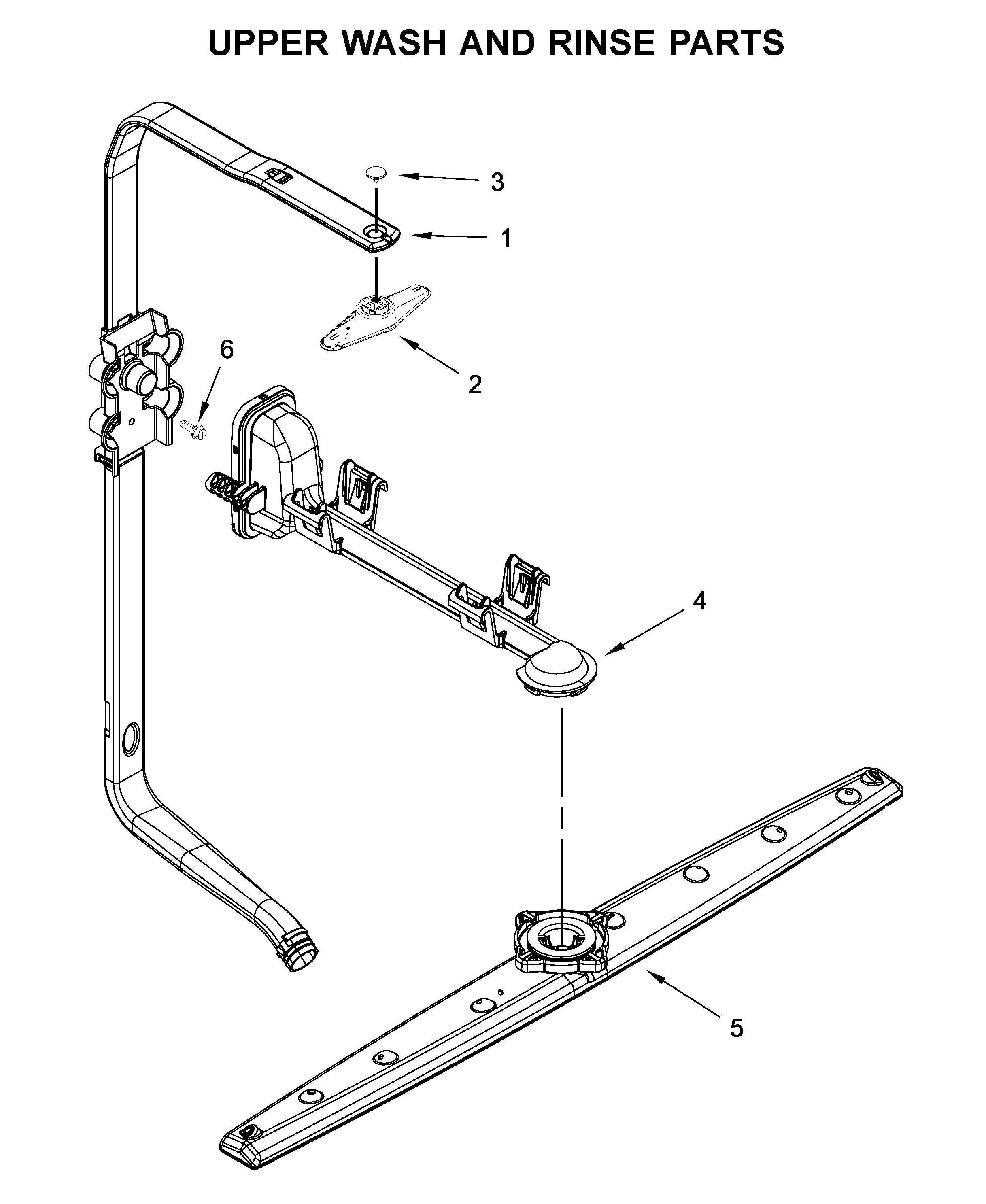

• Variable-speed motor with pressurized spray nozzles (reduces harsh surging sounds)
• Ultra Wash HE filter that removes soil from wash water (helps prevent grinding noises)
• Active vents that manage moisture and airflow during drying
• Overfill protection float that helps prevent abnormal fill conditions

If your Kenmore 66512413N414 has gotten noisier over time, these are the most common causes we see:

• Food debris in the filter area or sump
• Spray arm hitting tall dishes or a utensil sticking through the rack
• Loose items (cups, lids) rattling during wash
• A drain issue causing the pump to cavitate or growl
• A worn wash or drain component

A “quiet” dishwasher is not just comfort. New or increasing noise often signals a loading issue, a clog, or a pump/heater problem that can reduce cleaning performance and shorten part life.

Last updated: January 2026

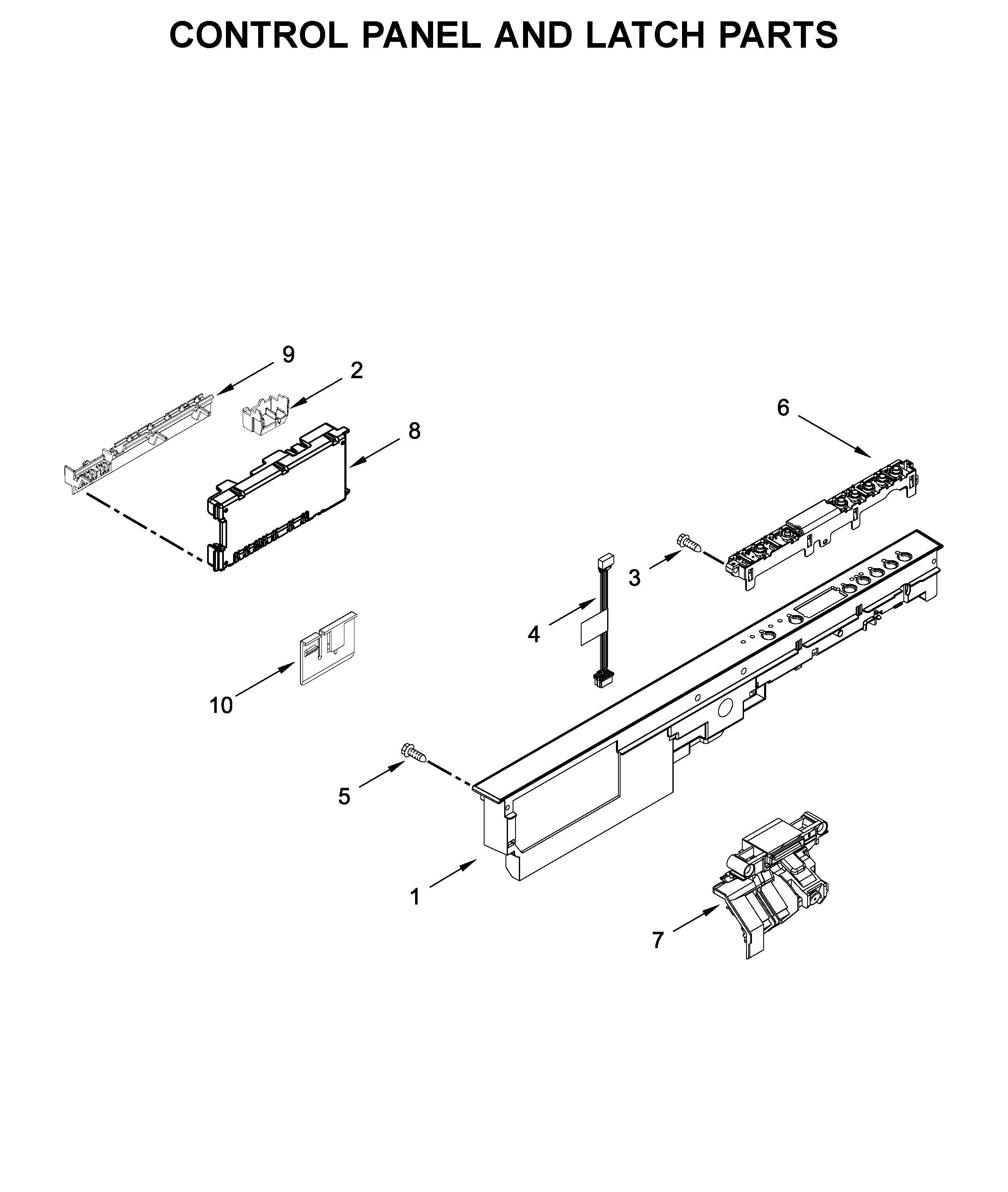

On Kenmore dishwasher model 66512413N414, a red lock or padlock light means the Control Lock option is turned on. When the Lock indicator is lit, the buttons are disabled and the dishwasher will not start until you turn Control Lock off (the door still opens and closes normally).

The control lock procedure for this model uses the SANI RINSE key.

• Press and hold SANI RINSE for 3 seconds to turn Lock off
• If you press any button while locked, the Lock light flashes (typically 3 times)
• The dishwasher cannot start while the control is locked
• Opening the door does not clear Control Lock

For the full control panel details and indicator light descriptions, use the 66512413N414 owner's manual.

If the red lock light is off and the dishwasher still will not run, these are the most common next steps.

• Close the door firmly until it latches
• Select a cycle, then press START/RESUME
• If START/RESUME is blinking, close the door and press START/RESUME (or press it and close the door within a few seconds)
• Remove anything blocking the door (large cutting boards, sheet pans)
• Check the house breaker or fuse for the dishwasher circuit

Control Lock prevents accidental button presses between cycles. When it is on, the dishwasher looks “dead” even though power is present, so unlocking the controls is the fastest first fix.
