Whirlpool DU1055XTVB0 dishwasher Parts

Most Whirlpool built-in dishwashers, including model DU1055XTVB0, are designed to fit a standard 24-inch-wide opening; typical overall dimensions are about 24 inches wide, 24 to 25 inches deep (varies by door and control panel), and 33 7/8 to 34 1/2 inches high with adjustable leveling legs. For the exact cutout and depth details for your specific installation, use the installation guide.

Typical size you can plan around

These are the common planning dimensions for a 24-inch Whirlpool built-in dishwasher like DU1055XTVB0:

• Width: about 23 7/8 to 24 inches
• Overall height: about 33 7/8 to 34 1/2 inches (adjustable)
• Overall depth: about 24 to 25 inches (depends on door and control panel)
• Toe-kick depth clearance: often around 21 inches (varies by design)

How to measure your dishwasher correctly

To avoid ordering the wrong panel or planning the wrong cabinet opening, we measure these points:

• Measure width across the tub opening or outer frame (not the door handle).
• Measure height from the floor to the top of the tub frame; then check how much the leveling legs can adjust.
• Measure depth in two ways: to the control panel and to the front of the door.
• Confirm the cabinet cutout size, not just the dishwasher body size.

Quick reference table

Measurement	What it affects	Typical range
Width	Cabinet opening fit	23 7/8 to 24 in.
Height	Leveling, countertop clearance	33 7/8 to 34 1/2 in.
Depth (panel/door)	Door clearance, aisle space	24 to 25 in.

Why it matters

Dishwasher dimensions affect cabinet cutout fit, door swing clearance, and whether the unit can be leveled correctly. Getting the depth right is especially important if your DU1055XTVB0 sits flush with surrounding cabinets.

Last updated: February 2026

A Whirlpool dishwasher typically lasts 9 to 12 years. For your Whirlpool DU1055XTVB0, lifespan depends most on water quality, how often you run cycles, and routine care like keeping seals clean and using rinse aid for better drying and reduced mineral buildup (per the DU1055XTVB0 owner's manual).

What affects dishwasher lifespan most

• Hard water and mineral scale: buildup can reduce heating and wash performance over time.
• Drying system workload: using rinse aid helps drying and reduces deposits.
• Drain health: frequent clogs or slow draining strains the drain pump.
• Door sealing: leaks can damage surrounding components and wiring.
• Cycle length and usage: more loads per week generally means faster wear.

Quick maintenance that helps it reach (or beat) the average

• Run hot water at the sink before starting a cycle so the dishwasher fills with hotter water.
• Clean the tub and wipe the door edge and gasket area regularly.
• Use rinse aid consistently for drying and to limit hard-water spotting.
• Check for slow draining and clear debris before it becomes a pump issue.
• Fix small leaks early (a worn seal is a common cause).

Common wear items and what they impact

Symptom	Likely system involved	Example part for DU1055XTVB0

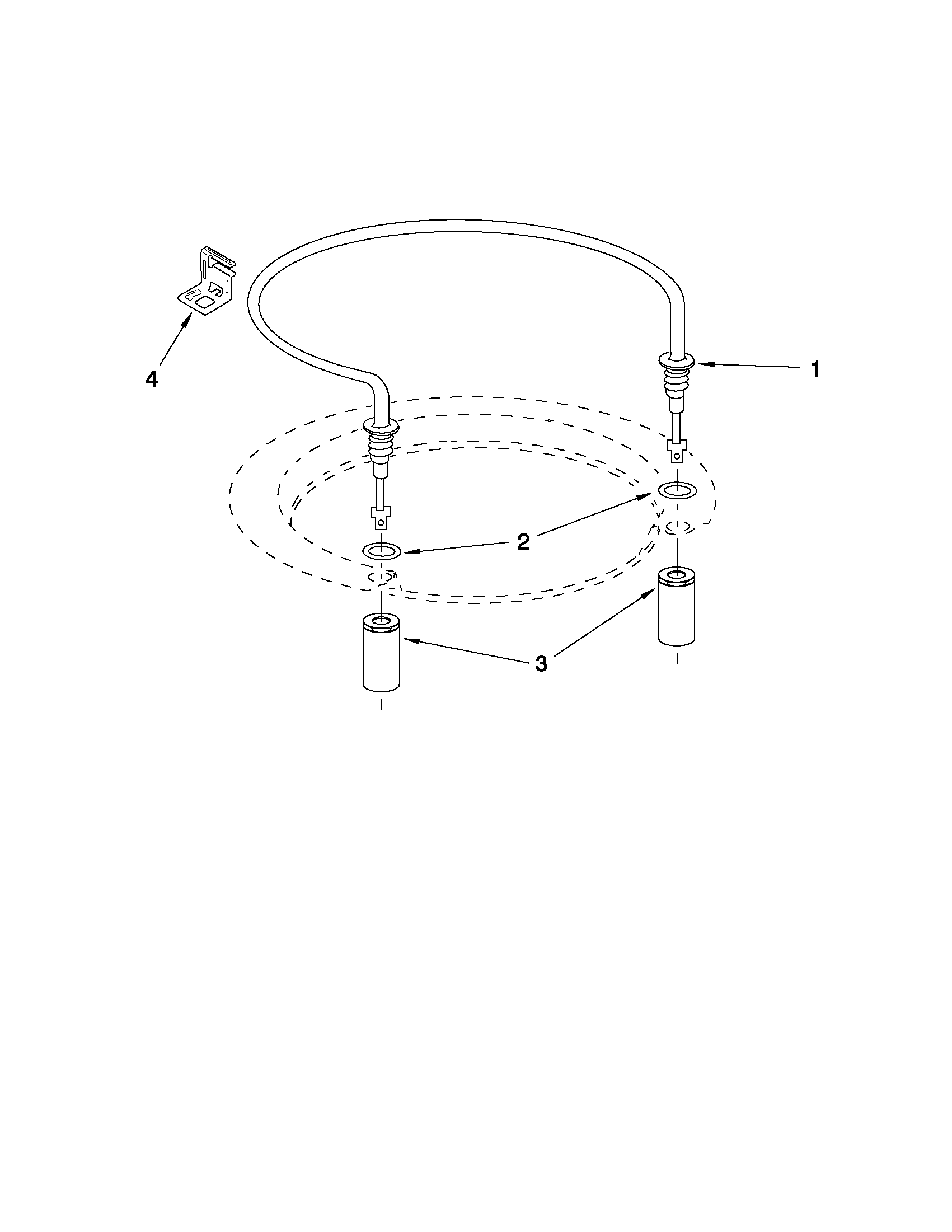

Dishes not drying well	Heating and temperature control	Dishwasher heating element W10518394, dishwasher thermostat WP661566
Water left in bottom	Drain path and pump	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A
Drips or moisture at door	Door sealing	Dishwasher door seal W10542314

Why it matters

Knowing the typical 9 to 12 year lifespan helps you decide whether a repair is worth it. If your DU1055XTVB0 is near or past that range, focusing on high-impact fixes (draining, heating, sealing) usually gives the best return.

Last updated: February 2026

The most common Whirlpool dishwasher problems are poor cleaning and draining issues caused by clogs (filters, sump area, spray arms, or drain path) and normal wear on key components. On Whirlpool model DU1055XTVB0, the troubleshooting steps in the owner's manual focus first on power, door latch, and drain or fill basics.

Most common symptoms and what usually causes them

• Not draining: food debris in the sump, a blocked drain hose, or a failing drain pump
• Not cleaning well: clogged spray arms, restricted filtration, or low water fill
• Not drying: heater circuit issue, thermostat problem, or rinse-aid problems
• Leaking: worn door seal or a loose/aged hose connection
• Won’t start or stops mid-cycle: door not latched, power issue, or control problem

Quick checks we recommend first (fast, no parts)

1. Confirm the door is fully closed and latched (a loose latch can stop a cycle).
2. Verify power: check the breaker and any household fuse (the manual calls this out as a first step).
3. Make sure the water shutoff valve is open.
4. If it pauses briefly during wash, that can be normal on some cycles.
5. If you have hard water, use the right detergent amount and consider rinse aid to reduce filming.

Common fixes and the parts that match the symptom

Symptom	What to inspect	Part that often solves it (if failed)

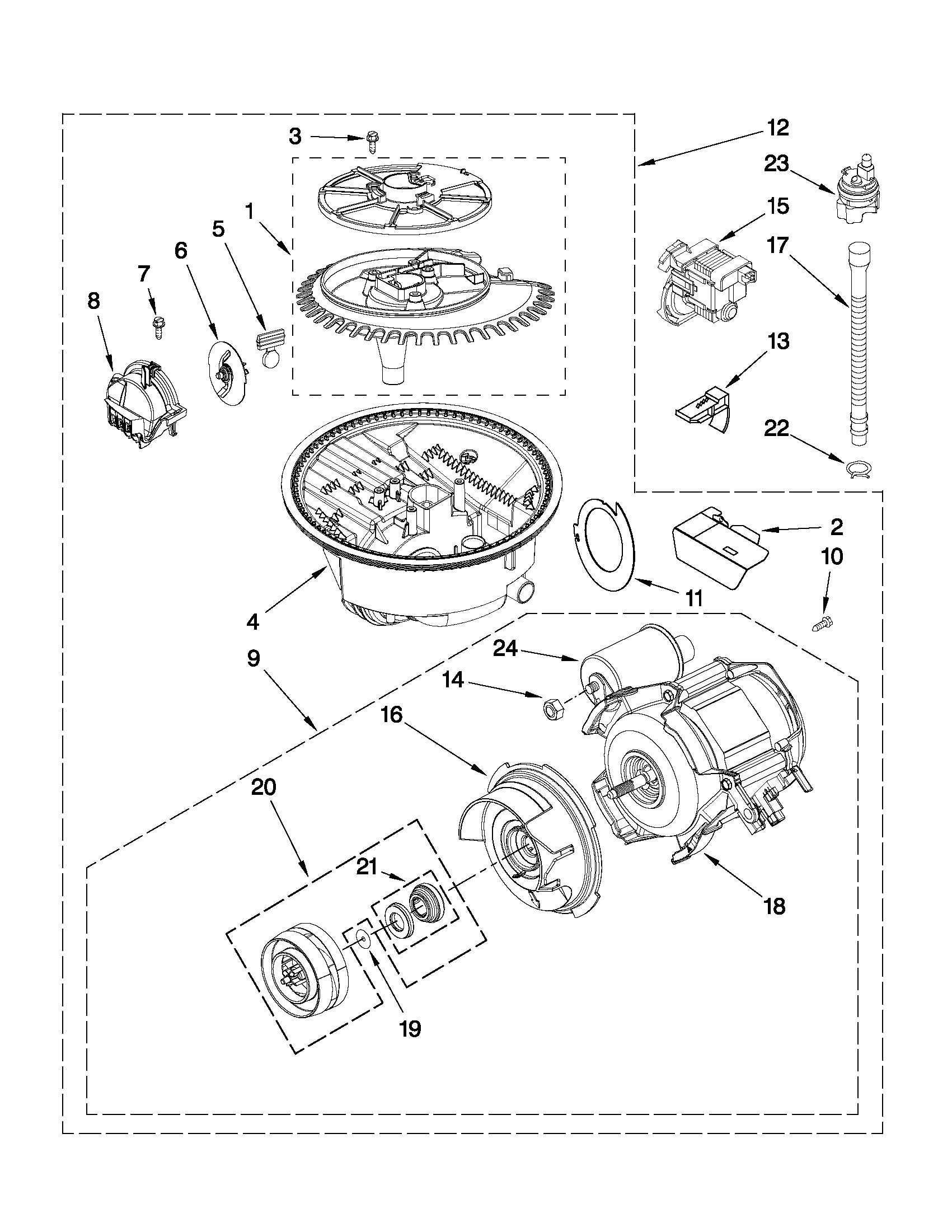

Standing water	Drain path, hose routing, pump	Dishwasher drain pump WPW10348269
Wet dishes	Heater circuit, drying heat	Dishwasher heating element W10518394
Water on floor	Door sealing surfaces, gasket	Dishwasher door seal W10542314
Dead/no response	Power supply, thermal protection	Fuse W10258275

Why it matters

Most “common problems” are really restricted water flow or restricted draining. Fixing clogs early helps prevent odor, poor wash results, and pump strain that can shorten the life of the drain pump and motor.

For model-specific operating checks and troubleshooting flow, follow the steps in the owner's manual.

Last updated: February 2026

On a Whirlpool DU1055XTVB0 dishwasher, an E4 error is most often tied to a drain or water handling problem. We fix it by resetting the control, checking for a drain restriction (filters, hose, air gap/disposal), and then testing the drain pump and inlet components if the issue returns.

Step-by-step checks (start with the easy wins)

• Reset the dishwasher using the keypad sequence in the owner's manual.
• Cancel the cycle and listen for draining; a strong drain sound usually means the pump is running.
• Check the sink connection: make sure the garbage disposal knockout plug was removed (new disposal installs commonly cause “won’t drain” symptoms).
• Inspect the drain hose routing under the sink; remove kinks and make sure it is looped high to prevent backflow.
• Clean the bottom filters and sump area; remove glass, labels, and food debris.
• If the unit hums during drain but water stays in the tub, suspect a weak or jammed drain pump.

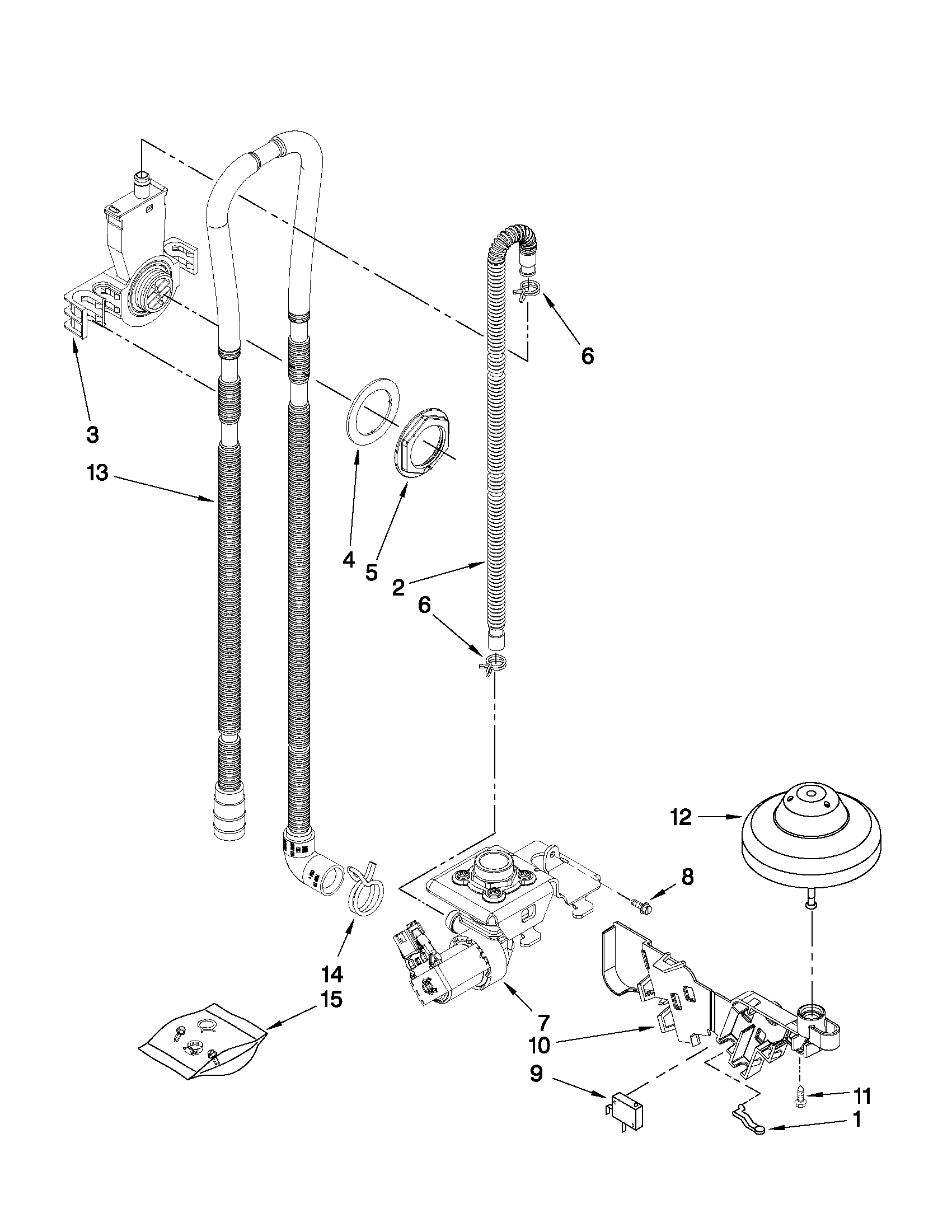

Parts that commonly solve an E4-style drain/fill fault

If your checks point to a component problem, these model-matched parts are common fixes:

Symptom you see	Most likely area	Model-matched part to consider
Water remains in tub after cancel/drain	Drain system	Dishwasher drain pump WPW10348269
Slow drain, leaks, or poor hose fit	Drain hose/connection	Dishwasher drain hose 8269144A
Dishwasher will not fill or fills slowly	Water supply	Dishwasher water inlet valve W10648041

Why it matters

When DU1055XTVB0 cannot drain or fill correctly, the control can stop the cycle to prevent overflow, overheating, or poor wash results. Clearing restrictions first prevents unnecessary part replacement.

Helpful DIY guidance

• Use our how to reset a Whirlpool dishwasher steps to clear a stuck cycle or control glitch.
• If you suspect a drain restriction, follow the checks in dishwasher not draining video before replacing parts.
