Craftsman 917250560 lawn tractor Parts

For a Craftsman riding mower like model 917250560, we look up the model number by finding it on the tractor’s model plate, which is typically located under the seat. Use that exact number when searching parts, manuals, and diagrams so you get the correct matches.

Check these common locations first:

• On the model plate under the seat (primary location for the tractor)
• Under the seat pan or on the frame directly below the seat
• On a label near the rear fender area (varies by build)

For this tractor, the 917250560 owner’s manual confirms the tractor model number is found on the model plate located under the seat.

This matters because the tractor and engine can have different model identifiers.

• Write the model number exactly as shown (including dots or dashes if present)
• Take a clear photo of the model plate before it gets dirty or faded
• Use the tractor model number first when looking up mower deck parts, drive belts, and steering parts

The model number is the fastest way to match the right parts and diagrams for your Craftsman lawn tractor. Even small differences between similar tractors can change belt lengths, pulleys, and deck components.

Last updated: February 2026

You can identify the year of your Craftsman lawn tractor model 917250560 by locating the tractor’s model plate (under the seat) and reading the manufacturing date code or serial information shown there; then confirm the format using the 917250560 owner's manual.

The tractor model number is on a model plate located under the seat. This is the first place we check when dating a Craftsman riding mower.

• Park on a level surface, set the parking brake, and remove the key
• Tilt or raise the seat to access the area underneath
• Look for a metal or durable label with model and serial information
• Write down the full model number and every digit of the serial/date code
• If the label is dirty, wipe it gently so all characters are readable

Many Craftsman tractors use a date code where parts of the code represent the month/day and the year. A common format is:

If your label follows that pattern, a code like 071294 reads as July 12, 1994.

Use these cross-checks so the date you decode makes sense for the tractor:

• The model plate should match 917250560 exactly
• The engine has its own model number on the blower housing (engine date can differ)
• Parts diagrams and part numbers should align with your deck size and configuration
• If the tractor has been repowered, the engine date will not match the tractor date

Knowing the build year helps us match the correct parts and diagrams for your Craftsman 917250560, especially for items like belts, steering components, and mower deck hardware where small design changes can affect fit.

Last updated: February 2026

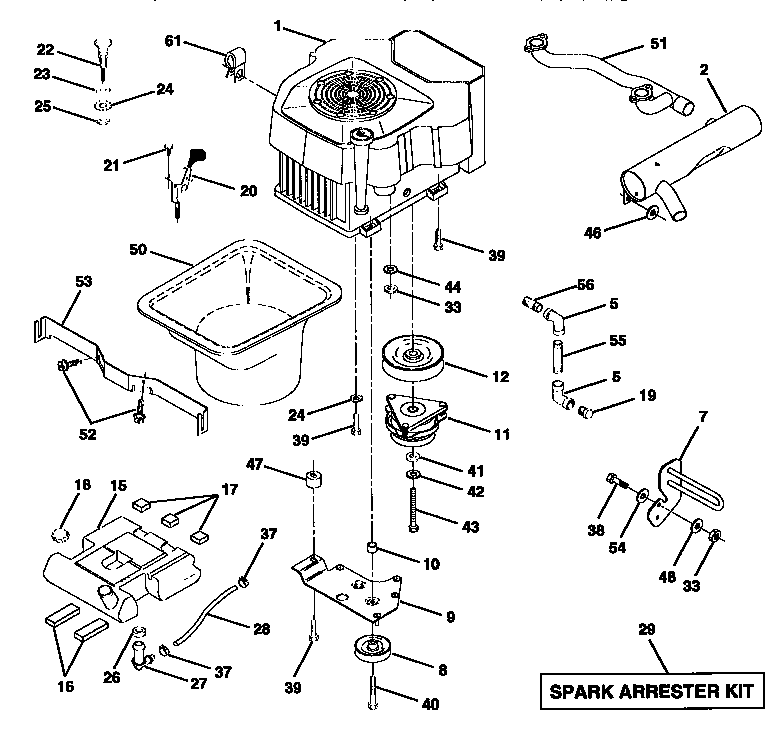

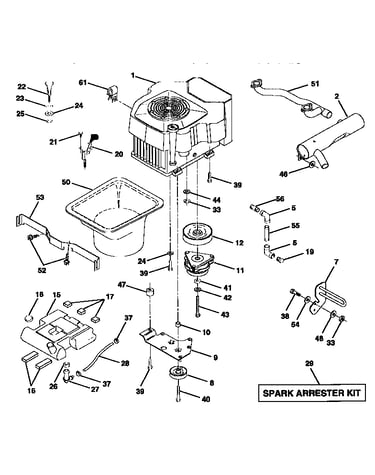

Craftsman riding mowers use different engines depending on the exact model and production run. For Craftsman lawn tractor model 917250560, the correct way to identify the engine is to match the engine’s model/type code and code date from the engine label, then confirm it against the engine parts breakdown in the 917250560 owner's manual.

Use these checks so you get the right tune-up and fuel-system parts:

• Find the engine identification label (typically on the blower housing, valve cover, or near the starter)
• Write down the engine model, type, and code/date (common on Briggs & Stratton engines)
• Compare those numbers to the engine illustrated parts list section in the manual
• Verify your starting controls (choke and throttle layout) match the manual’s operation section
• If the label is missing, use the manual’s engine diagrams to match major components (carburetor, muffler, air cleaner)

Many Craftsman tractors in the 917-series commonly use Briggs & Stratton single-cylinder or V-twin engines; the label is the deciding factor.

Engine identification prevents ordering the wrong air filter, spark plug, fuel line, or carburetor parts. It also speeds up troubleshooting when the engine cranks, clicks, or spins but will not start.

Last updated: February 2026

For a Craftsman lawn tractor model 917250560, a full engine replacement typically costs about $800 to $3,000+ installed, depending on the engine price, any added parts (belts, pulleys, wiring), and local labor rates. Most shops bill 4 to 8 labor hours for a riding mower engine swap.

• Engine cost: new, rebuilt, or used engine (biggest variable)
• Labor time: removal, transfer of parts, alignment, test run
• Extra parts: worn drive components discovered during teardown
• Fuel system cleanup: common if old fuel caused varnish or debris
• Pickup and delivery: some shops charge transport fees

Even when the engine is the main issue, we often see related wear items that affect performance and safety:

• Ground drive belt: lawn tractor ground drive belt, 1/2 x 84-1/2-in 532140218
• Blade drive belt: husqvarna lawn tractor drive belt, 1/2 x 83-3/4 in 532139573
• Blade idler pulley: lawn tractor idler pulley 532139245
• Fuel tank components if contaminated: fuel tank assembly 532151346

A riding mower engine replacement is a high-labor repair, so small add-on parts can be cost-effective to replace at the same time. Your 917250560 owner’s manual also outlines maintenance items (fuel, oil, filters, belts) that help prevent repeat failures and hard-start problems.
