Troybilt TUFFY SERIAL #XD0100 & UP roto tiller power composter Parts

Here are the diagrams and repair parts for Troybilt TUFFY SERIAL #XD0100 & UP roto tiller power composter, as well as links to manuals and error code tables, if available.

Troybilt TUFFY SERIAL #XD0100 & UP roto tiller power composter
By Schematic
By Part

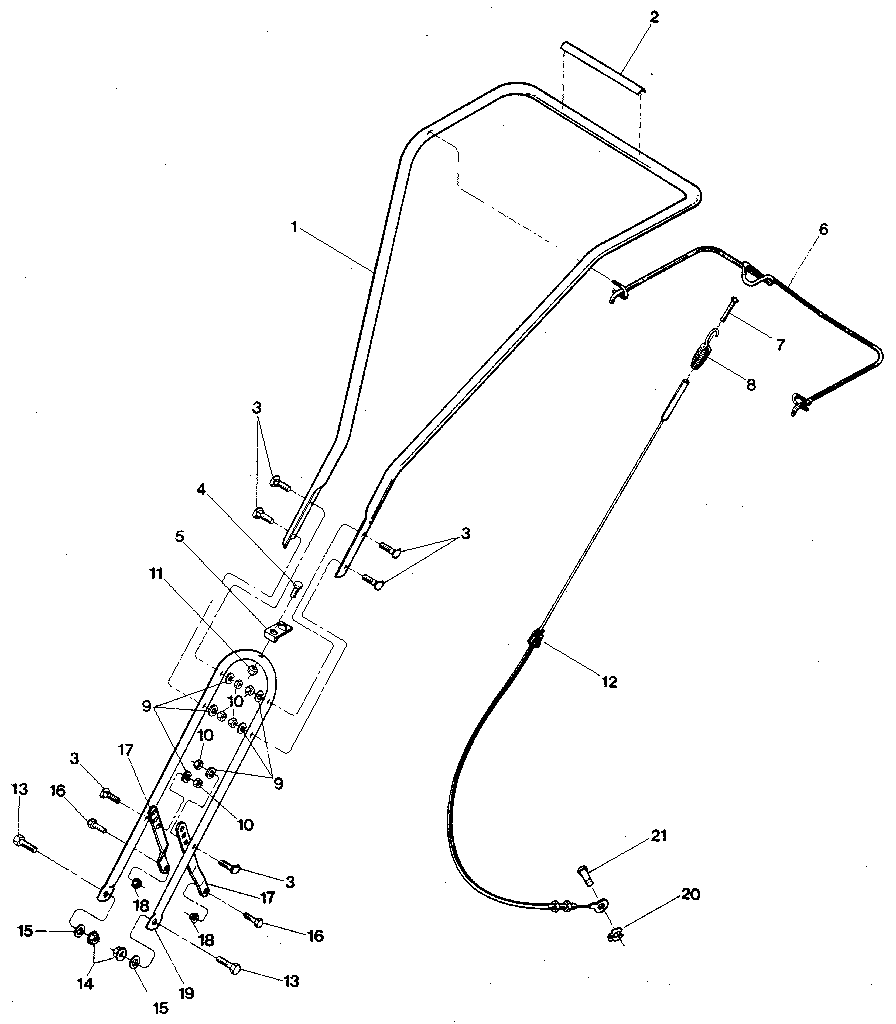

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forTUFFY SERIAL #XD0100 & UP Tillers

  • Bar;dpth for Troybilt TUFFY SERIAL #XD0100 & UP - Part 786-04292A-0638

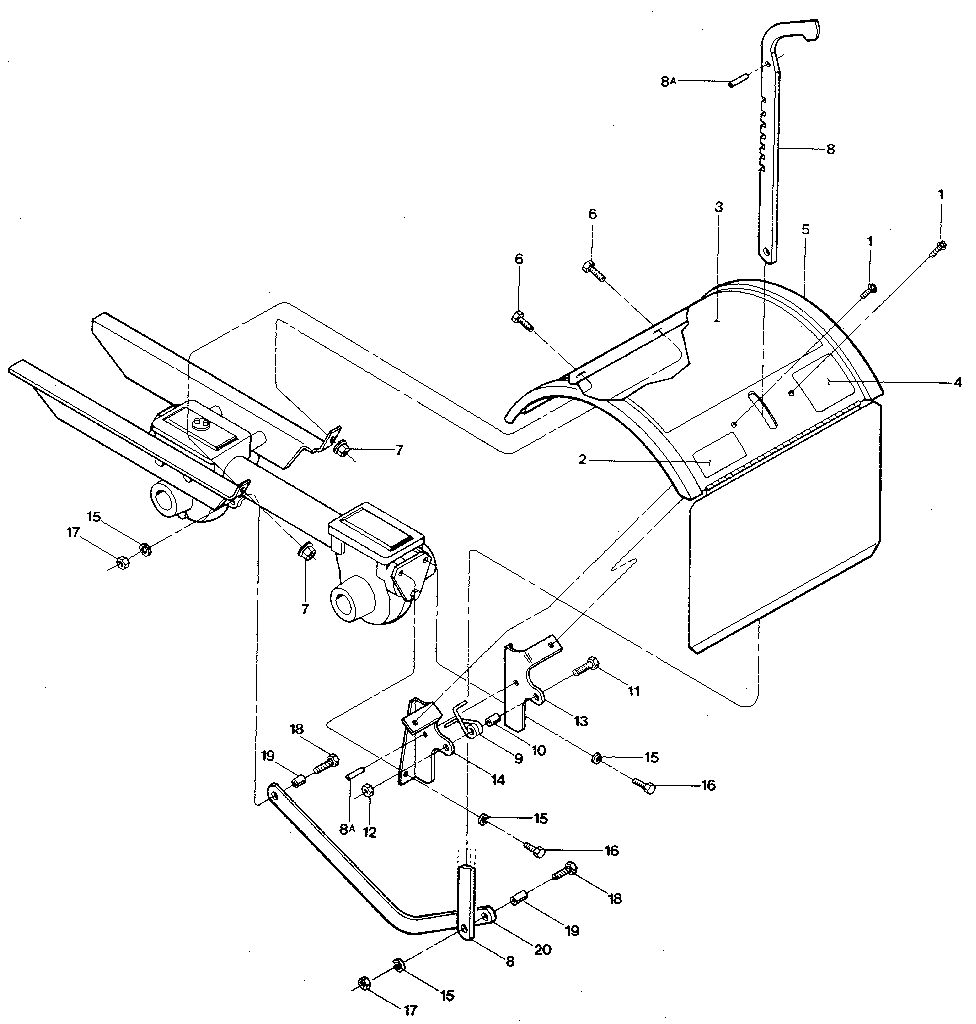

    Tine hood, depth regulator, and drag bar diagram

    Troy-bilt Depth Regulator

    Part #55074

    Replaced by #786-04292A-0638

    Info Icon
    Manufacturer substitution
    This part replaces 55074. Substitute parts can look different from the original.
    In Stock
    $130.58
    Minus Item
    Qty
    Plus Item
  • Guard Carburetor for Troybilt TUFFY SERIAL #XD0100 & UP - Part 1904539001

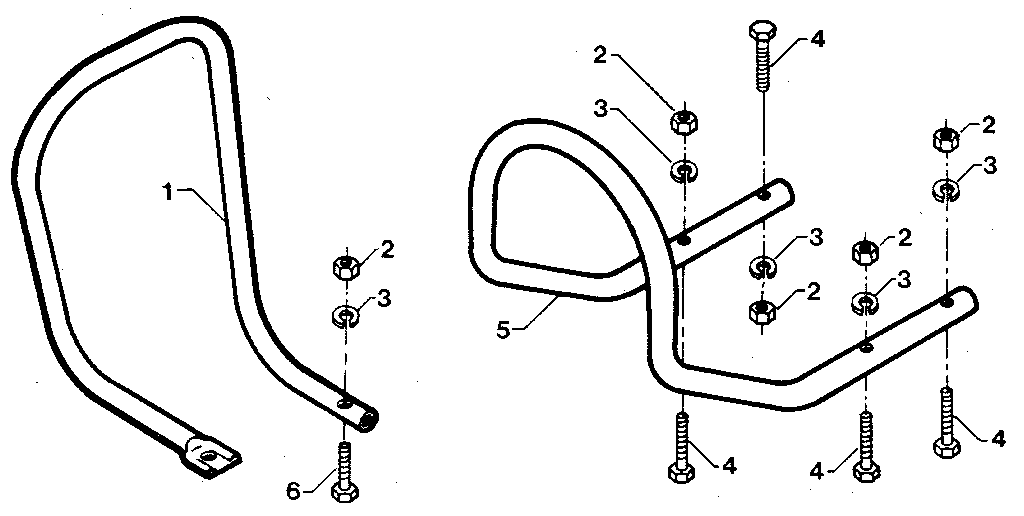

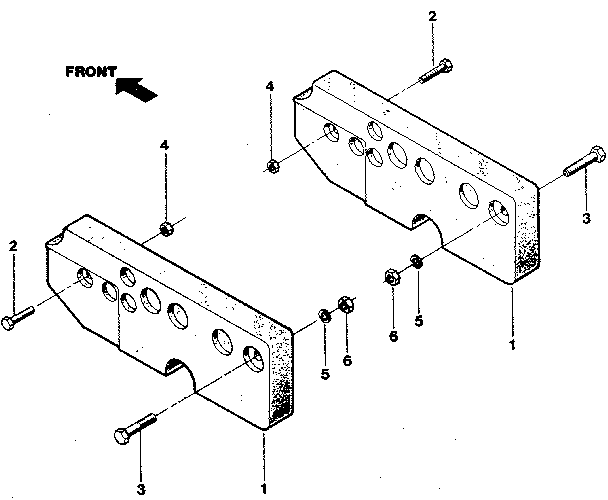

    Bumper & carburetor guard attachment (part no. 11045) diagram

    Troy-bilt Guard Carburetor

    Part #50195

    Replaced by #1904539001

    Info Icon
    Manufacturer substitution
    This part replaces 50195. Substitute parts can look different from the original.
    In Stock
    $132.98
    Minus Item
    Qty
    Plus Item
  • Tiller Drive Belt for Troybilt TUFFY SERIAL #XD0100 & UP - Part 954-04089

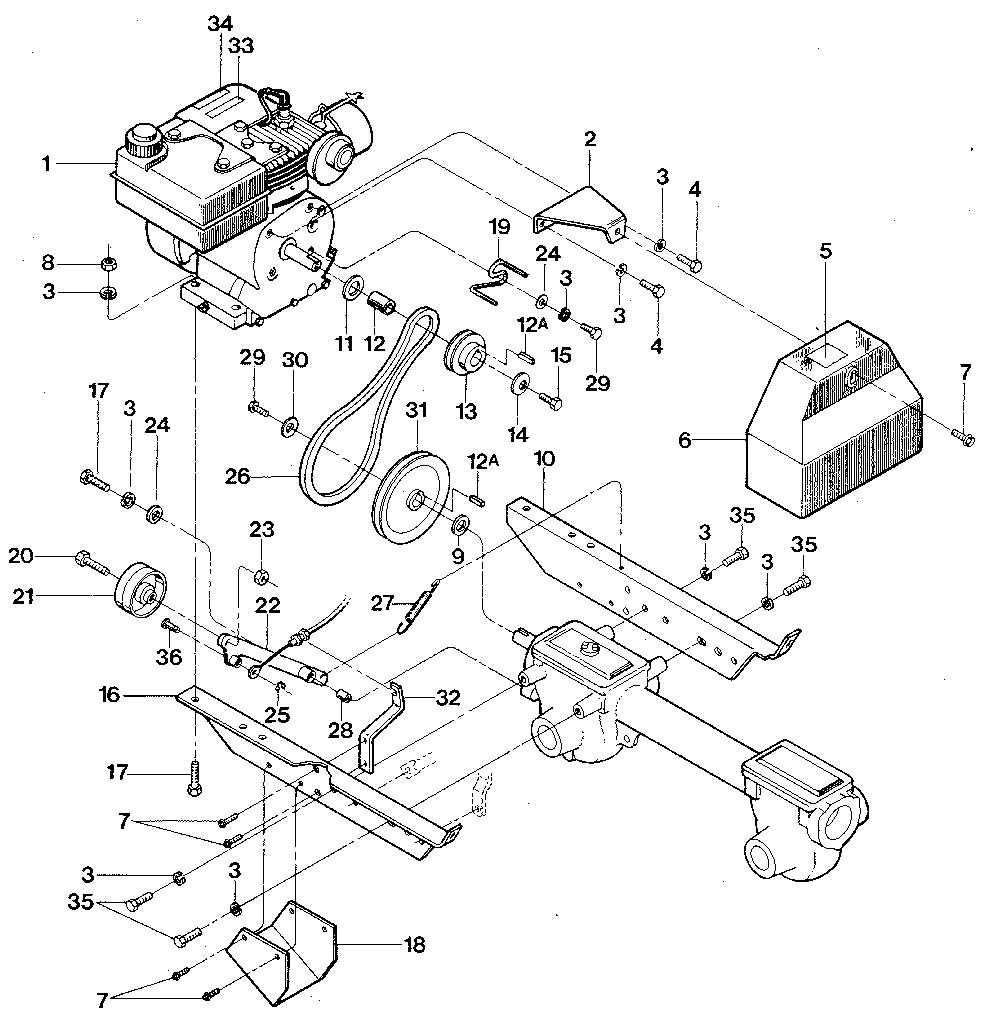

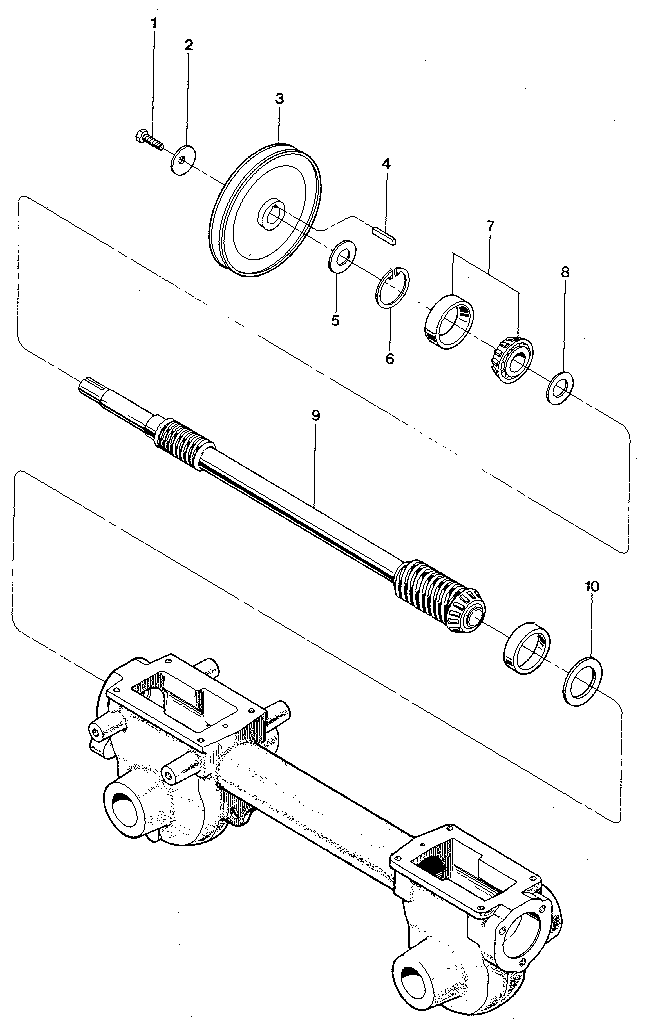

    Engine, engine brackets, and forward drive mechanism diagram

    Troy-bilt V-belt

    Part #55037

    Replaced by #954-04089

    Info Icon
    Manufacturer substitution
    This part replaces 55037. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $31.12
    16% OFF Phone Price : $37.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer for Troybilt TUFFY SERIAL #XD0100 & UP - Part GW-50027

    Troy-bilt Washer

    Part #50027

    Replaced by #GW-50027

    Info Icon
    Manufacturer substitution
    This part replaces 50027. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $34.32
    Minus Item
    Qty
    Plus Item
  • Ace Tiller Retainer Ring for Troybilt TUFFY SERIAL #XD0100 & UP - Part 716-04104

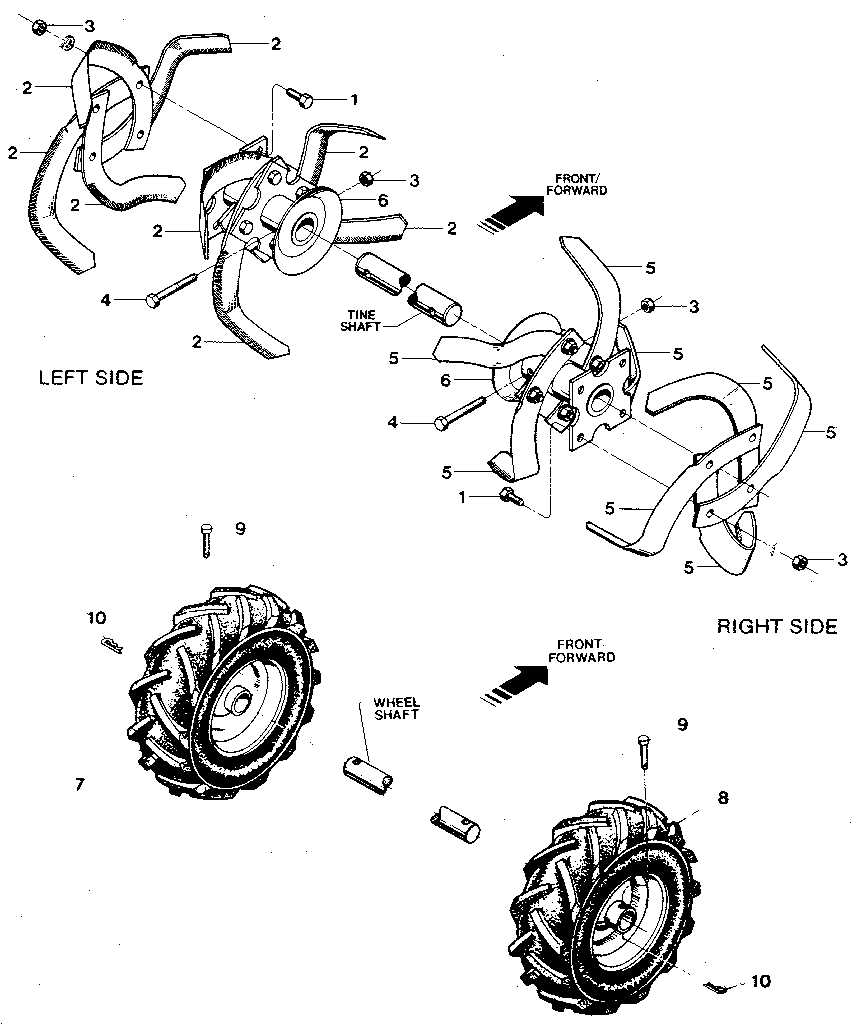

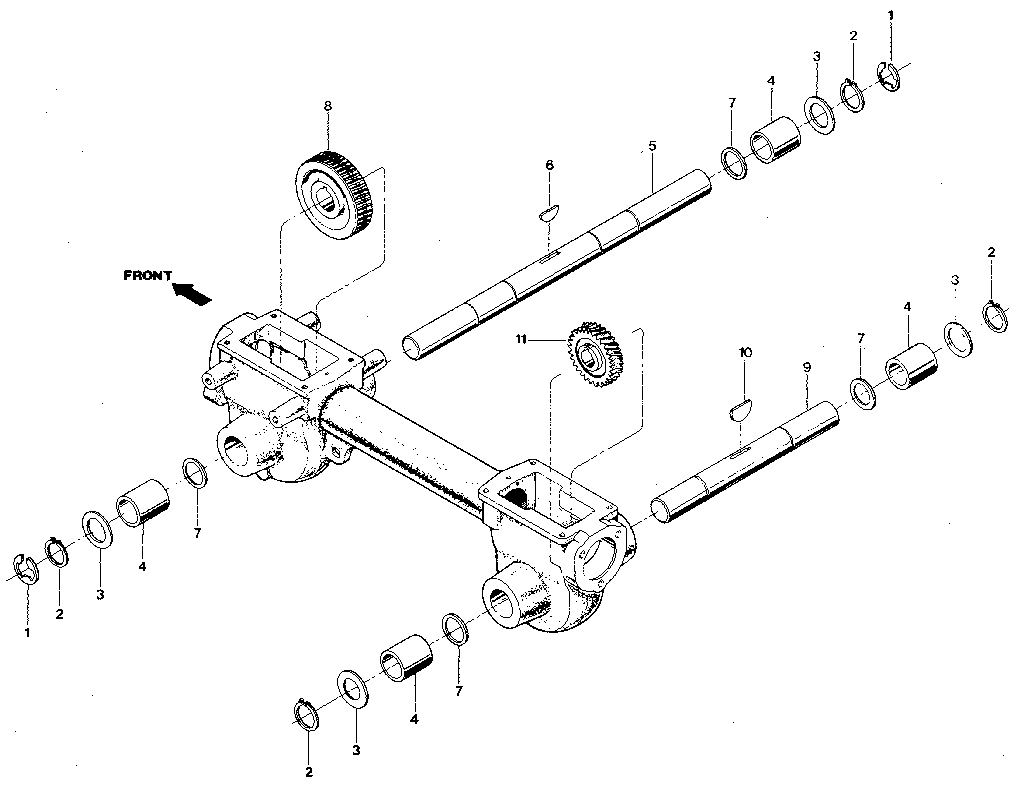

    Wheel shaft & tiller shaft assemblies diagram

    Troy-bilt Retainer, Snap Ring

    Part #9511

    Replaced by #716-04104

    Info Icon
    Manufacturer substitution
    This part replaces 9511. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $29.64
    Minus Item
    Qty
    Plus Item
  • High Pro Key for Troybilt TUFFY SERIAL #XD0100 & UP - Part 714-04059

    Wheel shaft & tiller shaft assemblies diagram

    Troy-bilt Key

    Part #9305

    Replaced by #714-04059

    Info Icon
    Manufacturer substitution
    This part replaces 9305. Substitute parts can look different from the original.
    In Stock
    $34.32
    Minus Item
    Qty
    Plus Item
  • Cover Bearing for Troybilt TUFFY SERIAL #XD0100 & UP - Part 918-04435

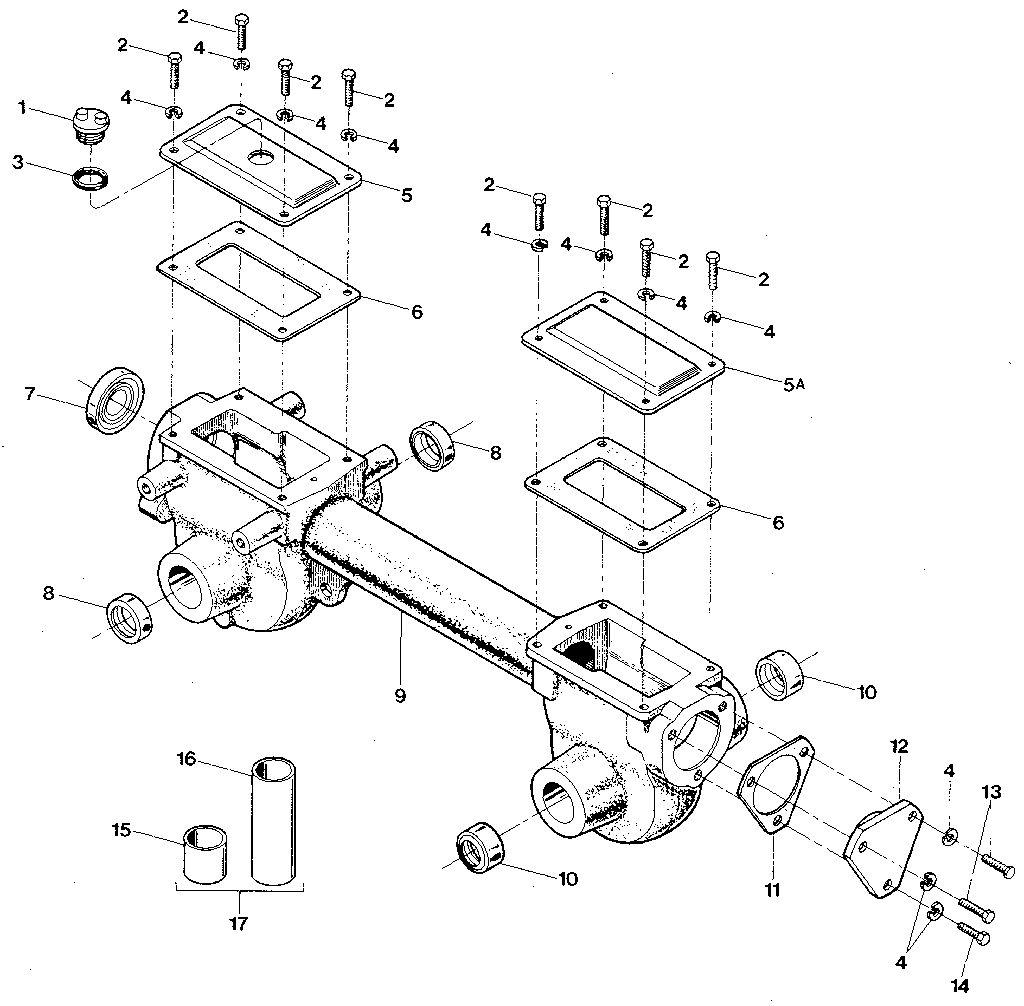

    Transmission housing, covers, seals, gaskets, and plug diagram

    Troy-bilt Cap

    Part #55010

    Replaced by #918-04435

    Info Icon
    Manufacturer substitution
    This part replaces 55010. Substitute parts can look different from the original.
    In Stock
    $57.50
    Minus Item
    Qty
    Plus Item
  • Tiller Gear Case Cover Gasket for Troybilt TUFFY SERIAL #XD0100 & UP - Part 921-04229

    Transmission housing, covers, seals, gaskets, and plug diagram

    Troy-bilt Gasket

    Part #50032

    Replaced by #921-04229

    Info Icon
    Manufacturer substitution
    This part replaces 50032. Substitute parts can look different from the original.
    In Stock
    $12.49
    14% OFF Phone Price : $14.49Info Icon
    Minus Item
    Qty
    Plus Item
  • Ryobi Lawn Tractor Screw for Troybilt TUFFY SERIAL #XD0100 & UP - Part 710-0376

    Troy-bilt Bolt

    Part #9704

    Replaced by #710-0376

    Info Icon
    Manufacturer substitution
    This part replaces 9704. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.05
    14% OFF Phone Price : $7.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Tiller Tine Shaft Oil Seal for Troybilt TUFFY SERIAL #XD0100 & UP - Part 921-04036

    Transmission housing, covers, seals, gaskets, and plug diagram

    Troy-bilt Oil Seal

    Part #9613

    Replaced by #921-04036

    Info Icon
    Manufacturer substitution
    This part replaces 9613. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.63
    19% OFF Phone Price : $31.63Info Icon
    Minus Item
    Qty
    Plus Item
