Craftsman 917252681 ltv 11 varidrive lawn tractor Parts
Here are the diagrams and repair parts for Craftsman 917252681 ltv 11 varidrive lawn tractor, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 917252681 Riding Mowers & Tractors

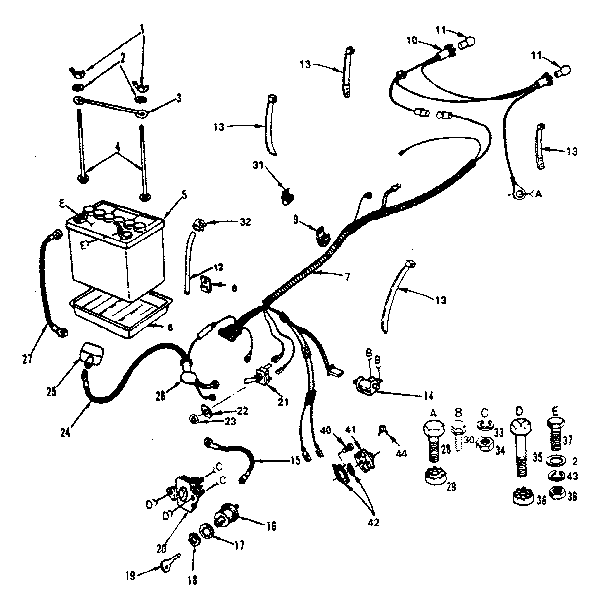

Electrical diagram
Washer
Part #19091016Replaced by #596582301
Manufacturer substitutionThis part replaces 19091016. Substitute parts can look different from the original.This item is not returnableIn Stock$6.2814% OFF Phone Price : $7.28
Qty

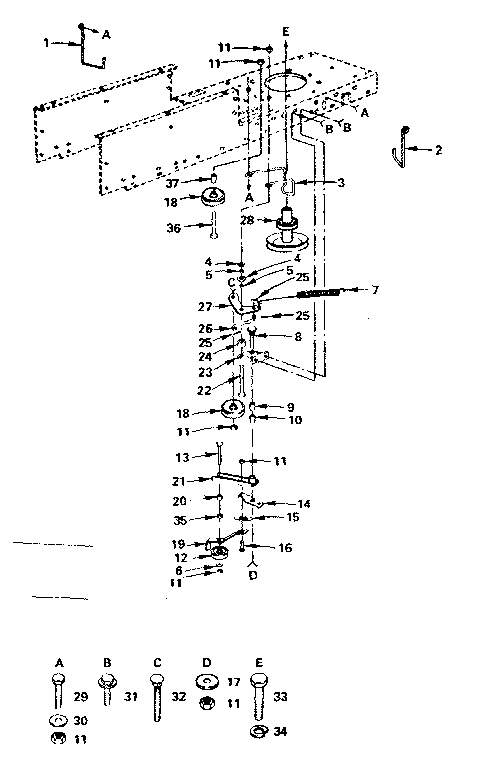

Drive group diagram
Spacer
Part #100682KReplaced by #532124965
Manufacturer substitutionThis part replaces 100682K. Substitute parts can look different from the original.This item is not returnableIn Stock$6.5213% OFF Phone Price : $7.52Qty#NI
All parts diagram
Tube
Part #4479RReplaced by #532059904

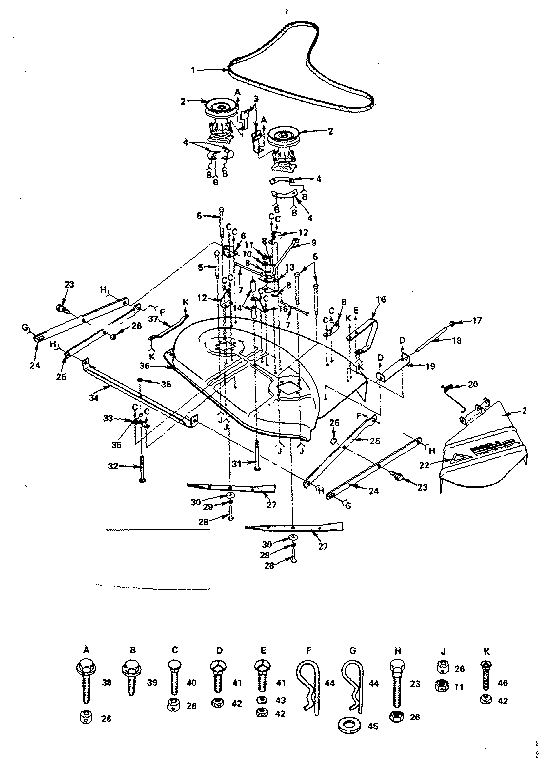

Manufacturer substitutionThis part replaces 4479R. Substitute parts can look different from the original.In Stock$18.5610% OFF Phone Price : $20.56QtyMower diagram
Tower Lawn Tractor Lock Nut
Part #73930600Replaced by #596322601

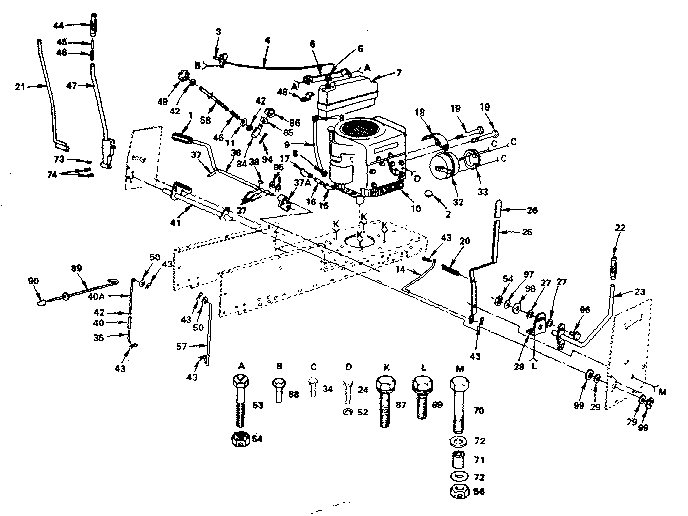

Manufacturer substitutionThis part replaces 73930600. Substitute parts can look different from the original.This item is not returnableIn Stock$5.8715% OFF Phone Price : $6.87QtyPower & mechanical controls group diagram
Plug
Part #5479JReplaced by #532005479
Manufacturer substitutionThis part replaces 5479J. Substitute parts can look different from the original.In Stock$14.83QtyPower & mechanical controls group diagram
Lawn Tractor Sleeve Cap
Part #71673Replaced by #532071673

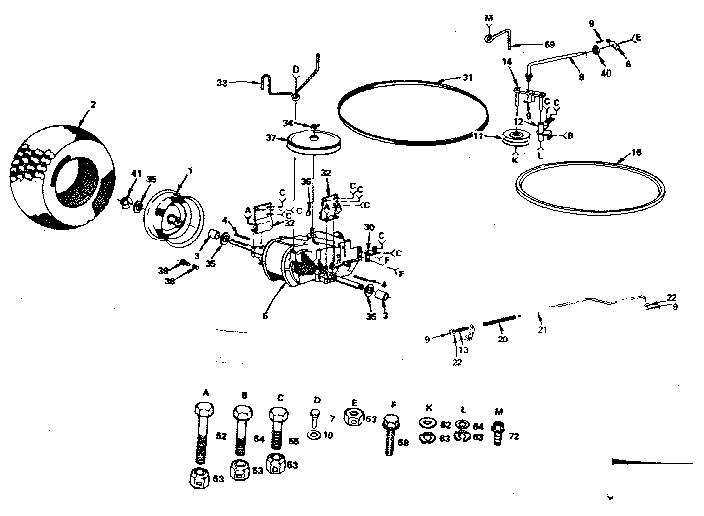

Manufacturer substitutionThis part replaces 71673. Substitute parts can look different from the original.This item is not returnableIn Stock$9.26QtyTransmission and rear wheel diagram
Secondary Belt
Part #100615NGet free shipping with Automatic ReorderReplaced by #583637301

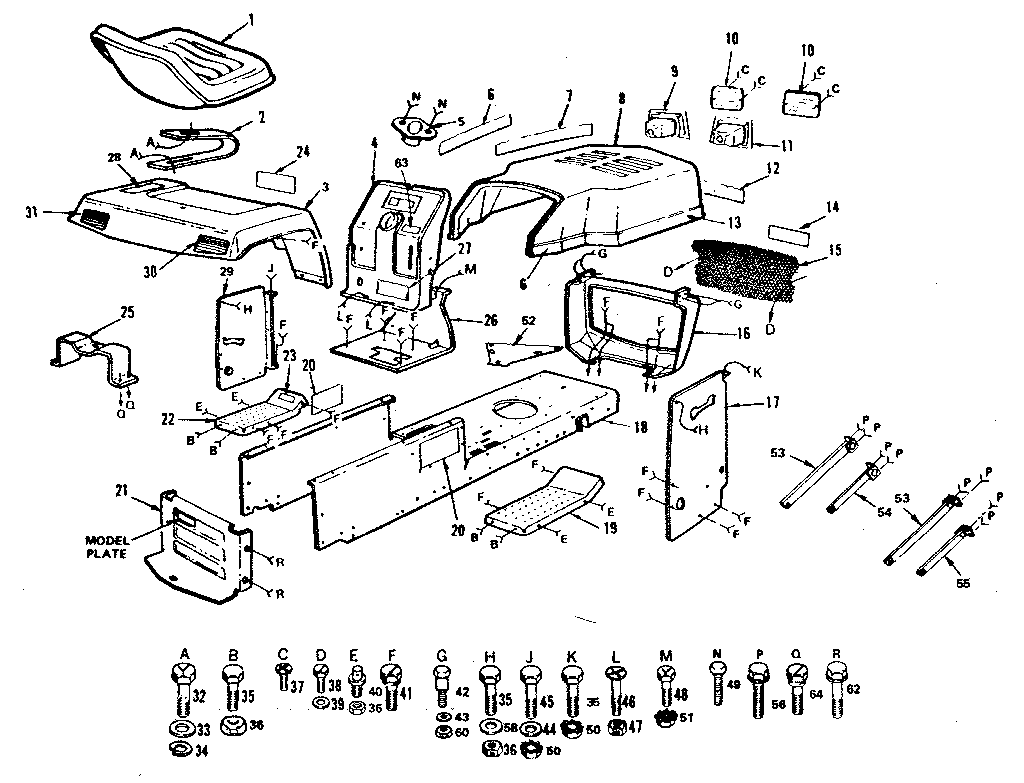

Manufacturer substitutionThis part replaces 100615N. Substitute parts can look different from the original.In Stock$101.70QtyEnclosures diagram
Screw
Part #17411310Replaced by #532189747
Manufacturer substitutionThis part replaces 17411310. Substitute parts can look different from the original.In Stock$44.36QtyPin
Part #76020412Replaced by #596029501

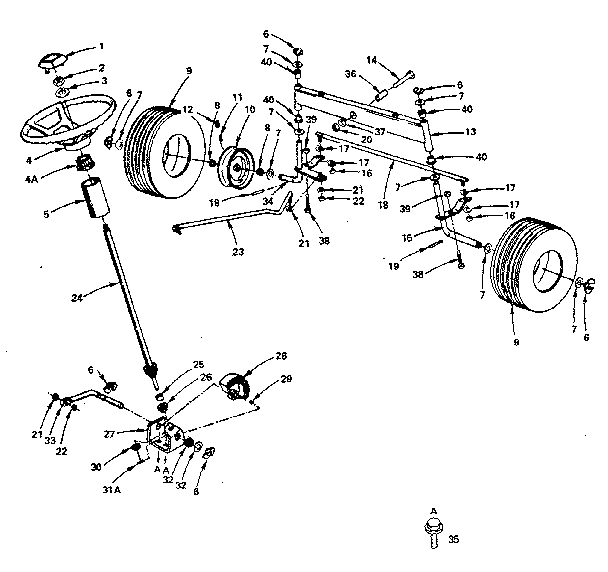

Manufacturer substitutionThis part replaces 76020412. Substitute parts can look different from the original.This item is not returnableIn Stock$5.54QtySteering, front axle and wheels diagram
Tire
Part #100692KReplaced by #532122073
Manufacturer substitutionThis part replaces 100692K. Substitute parts can look different from the original.In Stock$60.349% OFF Phone Price : $66.34Qty
