Kenmore 66513484K902 dishwasher Parts

Yes. We still support parts for many Kenmore dishwashers, including Kenmore model 66513484K902; the key is matching parts by the full model number so you get the correct fit for items like the drain pump, heating element, door seal, and control board. Use the 66513484K902 owner's manual to confirm features and maintenance items.

How to make sure you order the right part

• Use the complete model number 66513484K902 (from the rating label) when searching.
• Match by part ID and description, not just a similar-looking photo.
• Compare symptoms to the part’s job (draining, heating, filling, sealing).
• If your dishwasher shows an error, use the Kenmore 665 model dishwasher error codes reference to narrow the failure.
• For installation-related items (hoses, clamps, brackets), follow the 66513484K902 installation guide so routing and clearances are correct.

Common Kenmore 66513484K902 parts customers replace

Symptom	Likely part category	Example part for this model

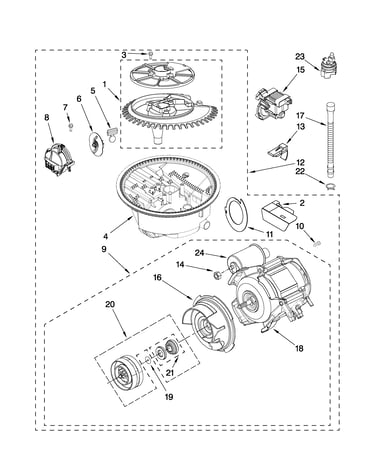

Water left in tub	Drain components	Dishwasher drain pump WPW10348269

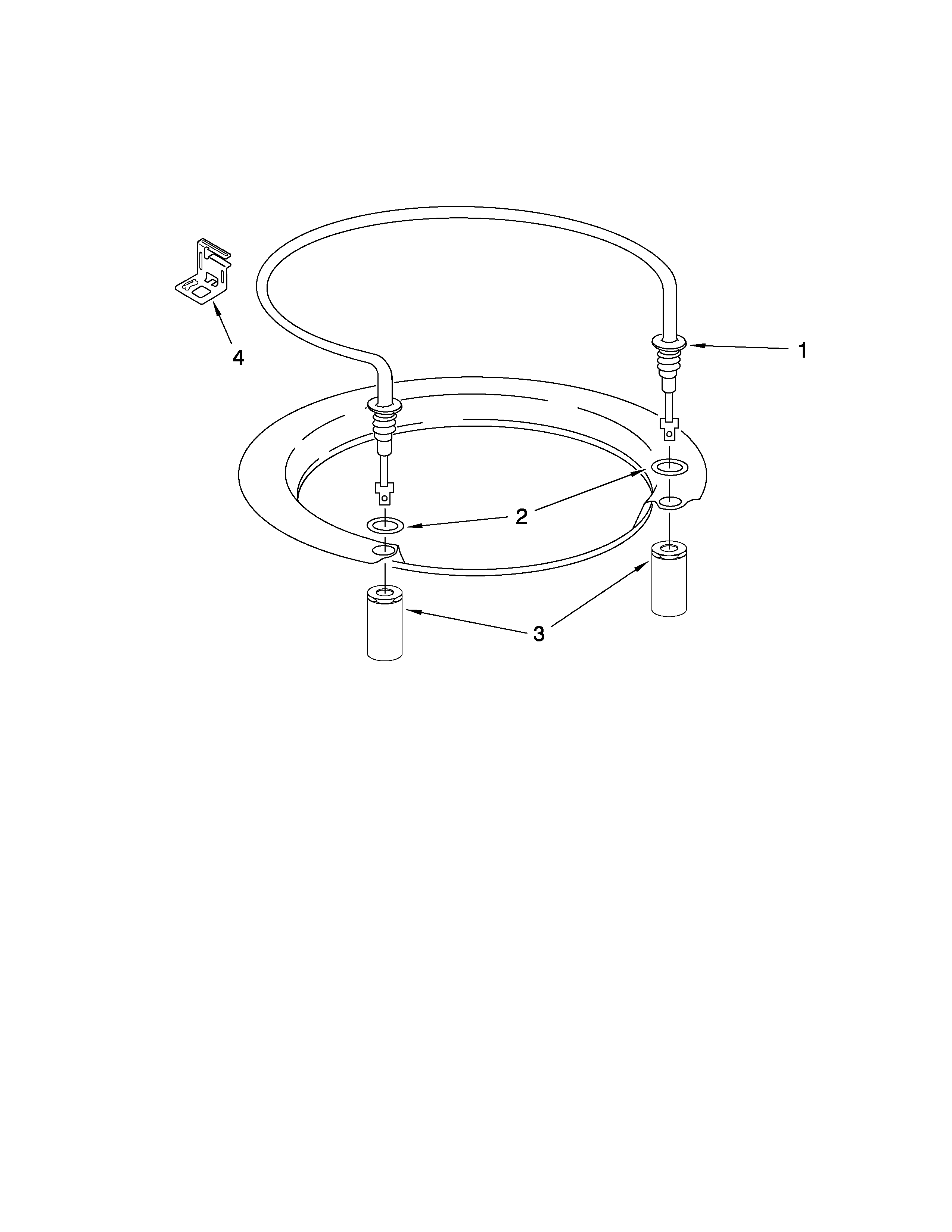

Dishes not drying, water not heating	Heating circuit	Dishwasher heating element W10518394

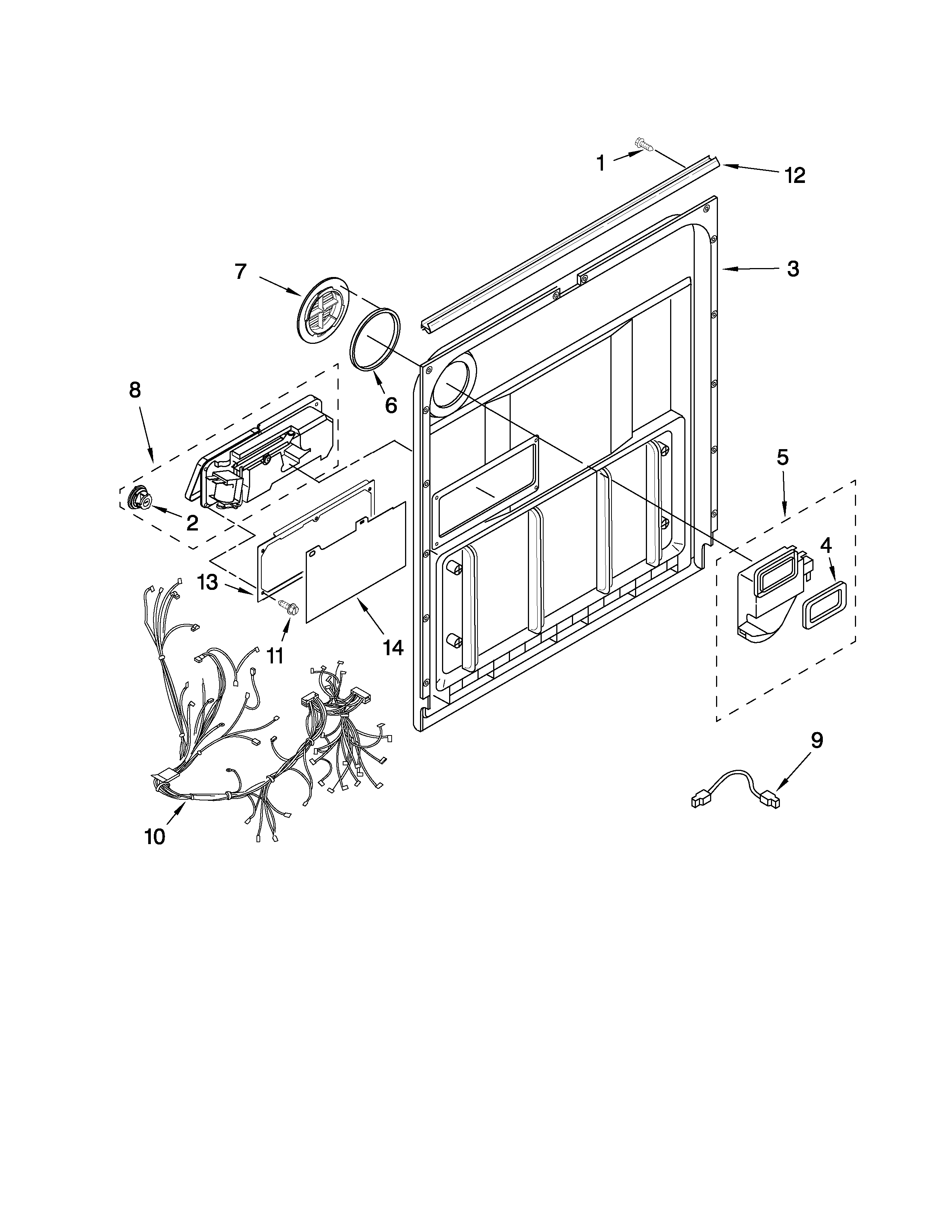

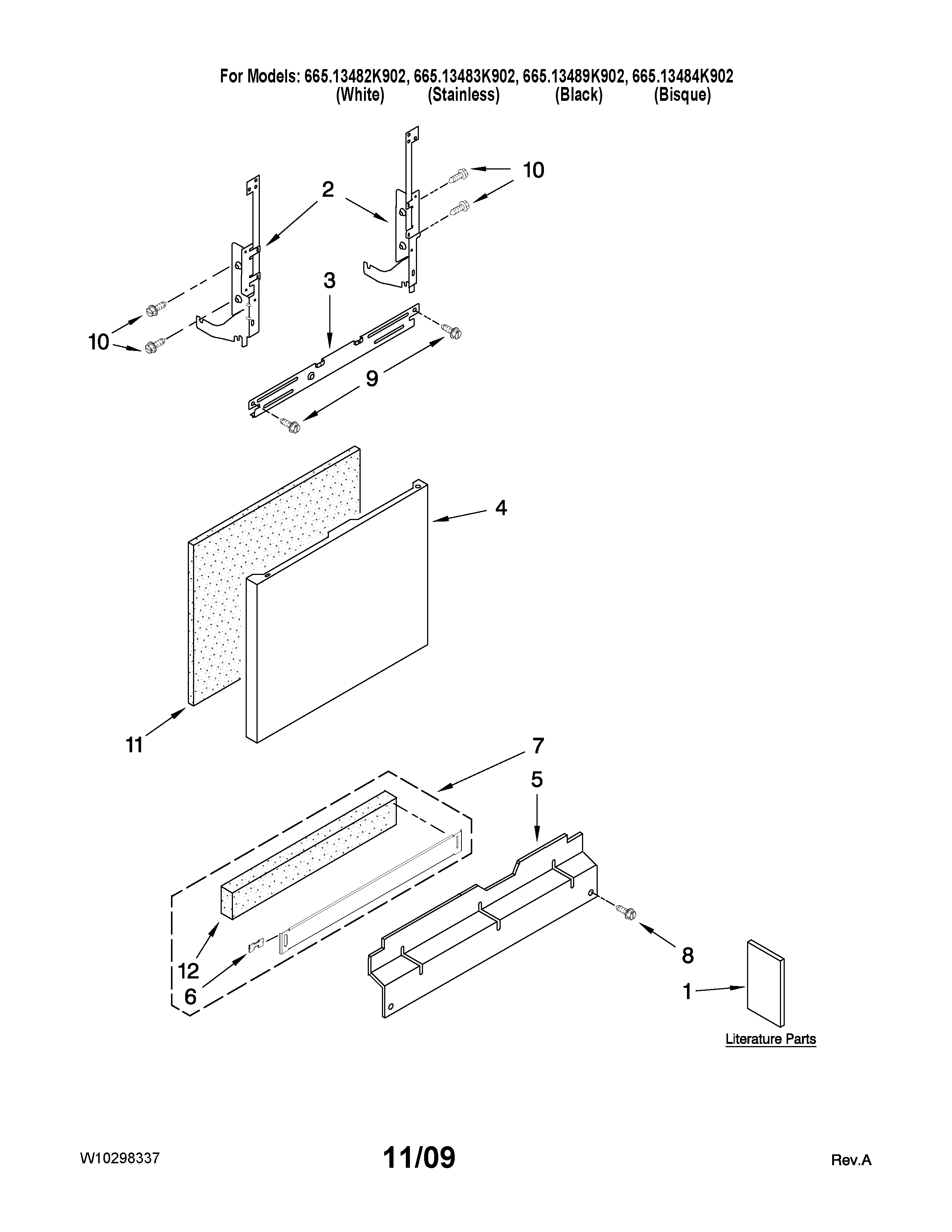

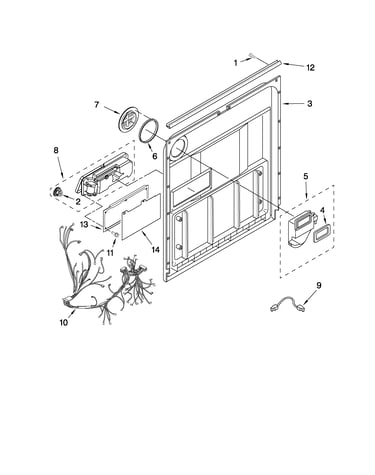

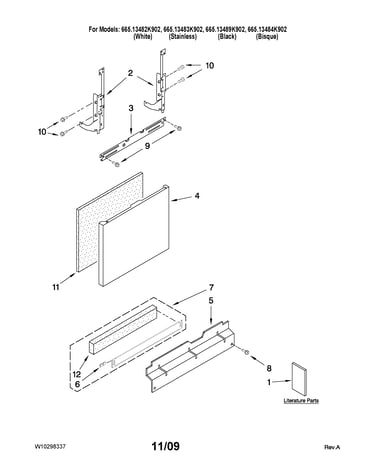

Leaks at the door	Door sealing	Dishwasher door seal W10542314

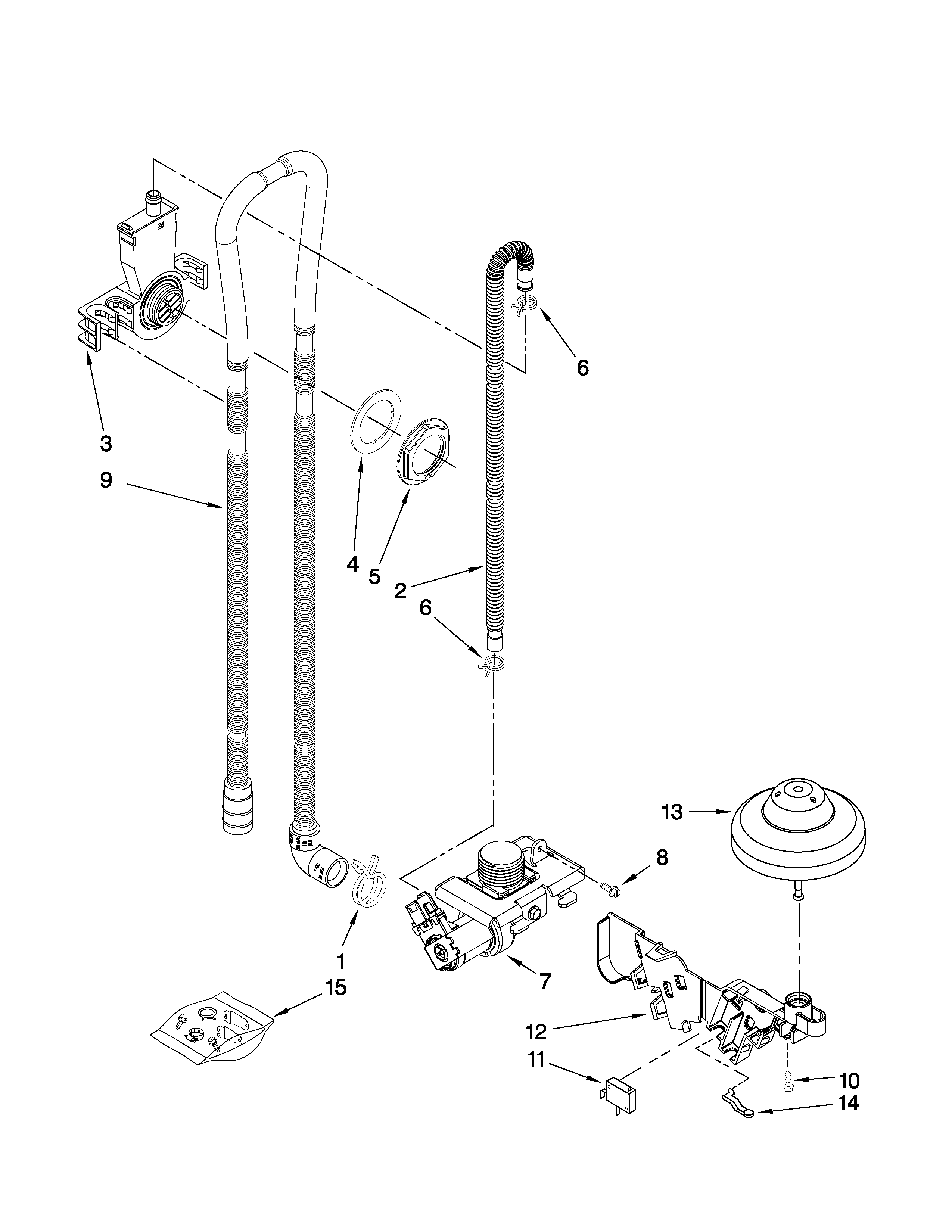

No fill or slow fill	Water inlet	Dishwasher water inlet valve W10648041

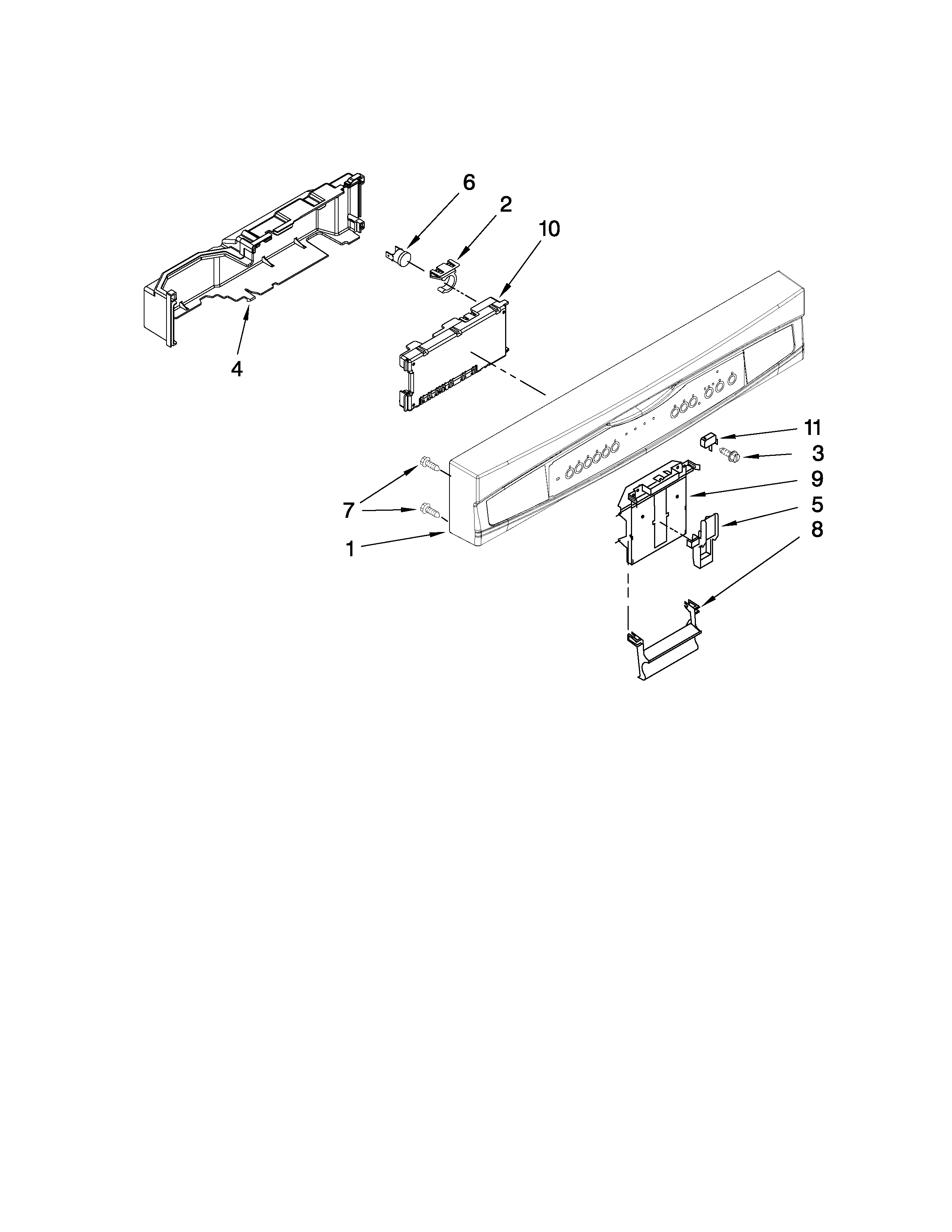

Dead or erratic operation	Controls or protection	Dishwasher electronic control board WPW10285179, fuse W10258275

Why it matters

Kenmore dishwashers are built with model-specific variations (controls, pumps, racks, seals). Ordering by 66513484K902 prevents mismatches that can cause leaks, poor cleaning, or repeat failures.

Last updated: February 2026

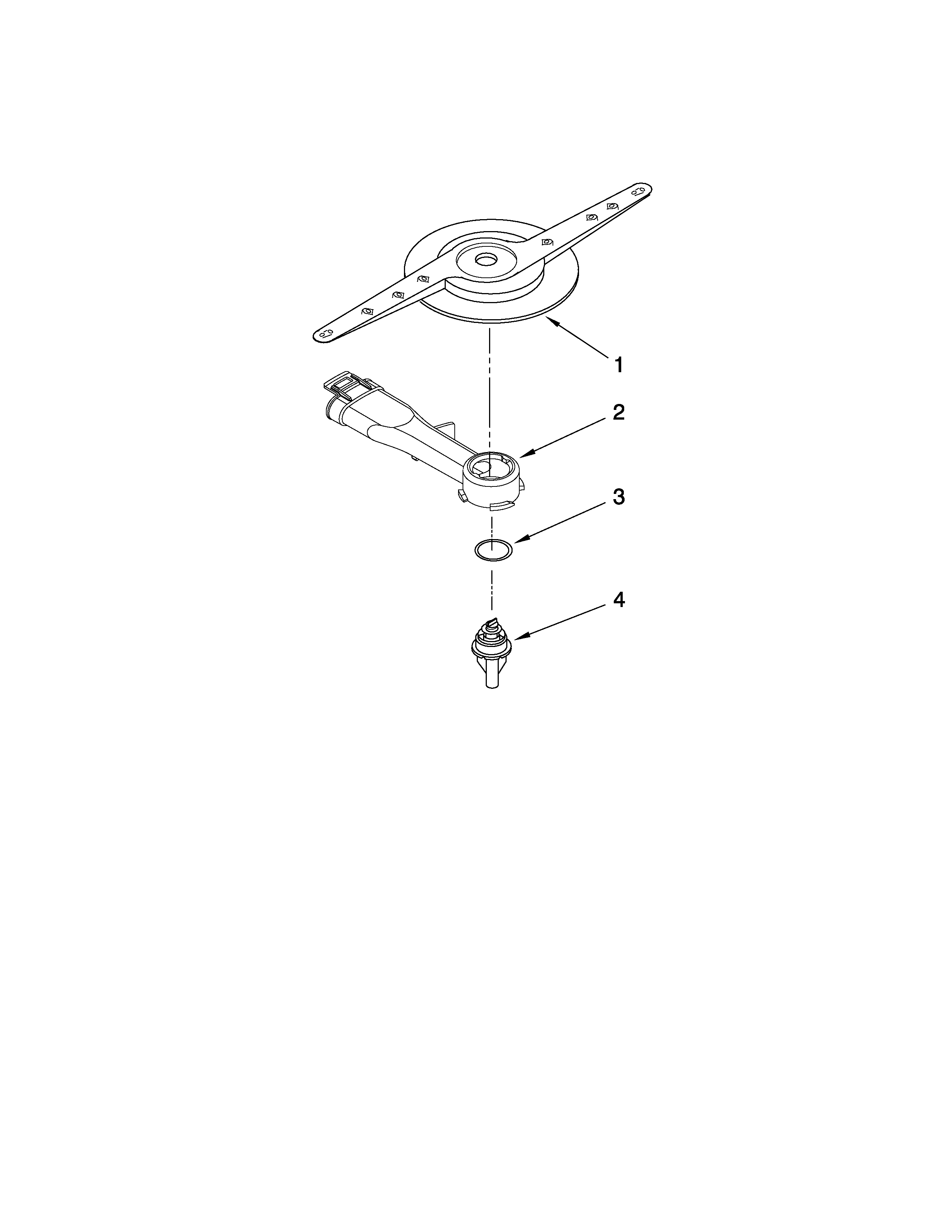

On the Kenmore 66513484K902 dishwasher, the lower spray arm installs by seating it on the hub over the pump area and locking it in place so it spins freely. After installation, confirm nothing in the lower rack blocks rotation (a common cause of poor cleaning). See the 66513484K902 installation guide for safe access steps around the pump and spray arm.

Before you start

• Turn off power at the breaker (dishwashers can start unexpectedly).

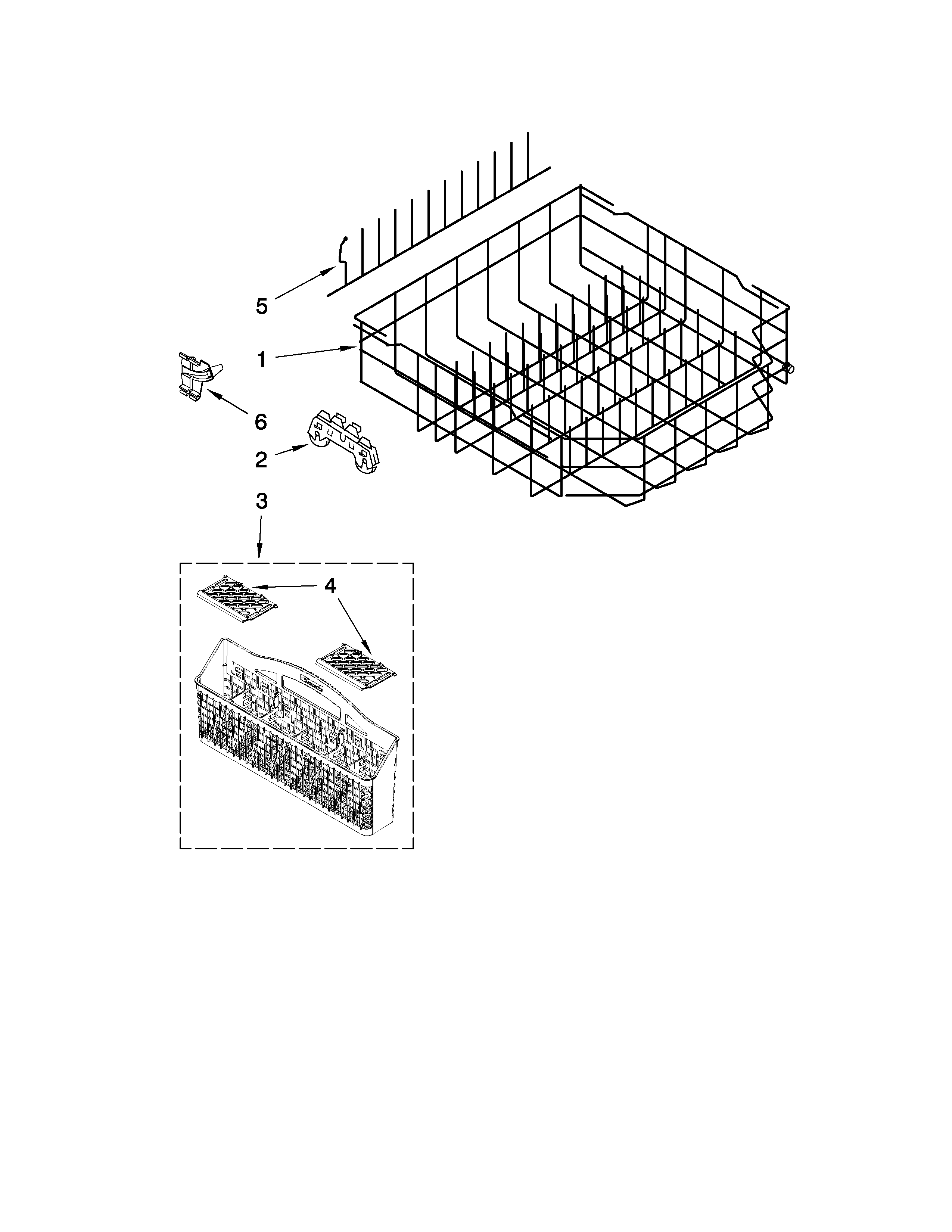

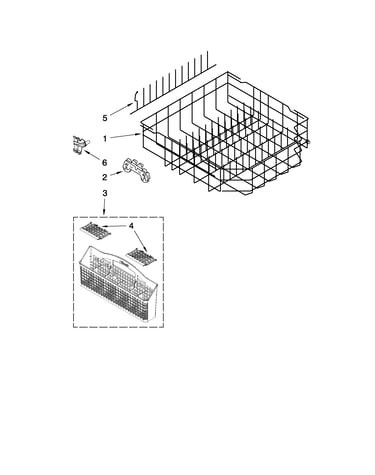

• Remove the lower dishrack for clear access.
• Place a towel over the pump area to keep small parts from dropping into the sump (a recommended practice during service access).
• Check for broken glass, labels, or food debris around the spray arm mount.

Install the lower spray arm (typical steps)

1. Pull out the lower rack.
2. Lift the lower spray arm straight up to remove it (if replacing).
3. Align the new or existing spray arm on the center mount.
4. Press down until it seats fully; reinstall the retaining nut or clip if your version uses one.
5. Spin the spray arm by hand; it must rotate freely without scraping.
6. Reinstall the lower rack and run a quick rinse to confirm strong spray and no unusual noise.

Quick checks if it will not spin or cleaning is still poor

• Make sure tall items and pot handles do not stop spray arm rotation.
• Avoid loading items between the bottom rack and the tub wall; that can block the water inlet opening.
• Clear clogged spray holes (use a toothpick and rinse under water).
• If water is not heating, wash performance drops; inspect the dishwasher heating element W10518394.

What to expect (normal vs. problem)

Check	Normal	Problem sign
Hand-spin test	Smooth, free rotation	Binds, rubs, or stops quickly
During wash	Steady swishing spray sound	Loud clicking, grinding, or silence
Results	Even cleaning	Food left on lower rack items

Why it matters

The lower spray arm is the main wash action for the bottom rack. If it is not seated correctly or is blocked by loading, water cannot reach dishes and detergent dissolves poorly, leading to residue and rewash cycles.

Last updated: February 2026

Your Kenmore dishwasher model number is printed on the model and serial number label inside the door area. On Kenmore model 66513484K902, that label is typically on the inner door frame or along the tub opening where you can read it when the door is open; confirm the full number before ordering parts.

Where to look first (fastest checks)

• Open the dishwasher door and look along the inner door frame.
• Check the top edge of the door (visible with the door open).
• Look on the tub wall near the door opening.
• Wipe the label with a damp cloth if it is greasy or cloudy.
• Write down the entire model number exactly as shown (letters and numbers).

What the label looks like and what to copy

The label usually lists both a model number and a serial number. For parts lookup and troubleshooting, the model number is the key item.

Item on label	What it’s used for	Example for this page
Model number	Matching parts and diagrams	66513484K902
Serial number	Production details and service history	Varies by unit

If you still cannot find it

If the label is missing or unreadable, use these practical options:

• Check your paperwork and compare to the 66513484K902 owner’s manual.
• If the dishwasher was recently installed, review the installation guide for model identification and installation notes.
• Look for a second label on the side of the door or just inside the tub opening.

Why it matters

Kenmore dishwashers can look similar across multiple series, but parts like the heating element, drain pump, and electronic control board can vary by model. Using the exact model number helps us match the correct replacement parts and avoid returns.

Last updated: February 2026

Water standing in the bottom of your Kenmore dishwasher model 66513484K902 usually means the unit is not draining fully at the end of the cycle. We focus first on simple causes like an incomplete cycle, a blocked drain path (filter, hose, air gap), or a drain pump problem.

Quick checks that fix most “standing water” complaints

• Confirm the cycle is actually complete; canceling mid-cycle leaves water behind.
• Check the sink drain for slow draining; a clogged house drain can back water up.
• If you have a drain air gap (small fitting by the sink), clean it.
• Look for a kinked, pinched, or clogged drain hose under the sink.
• If the dishwasher hums but does not drain, the drain pump may be jammed or failing.

Model-specific items to inspect on 66513484K902

Your Use and Care information calls out these common drain-related causes:

• Drain air gap: If your dishwasher is not draining well, the manual recommends checking and cleaning the drain air gap (when installed). See the cleaning steps in the 66513484K902 owner's manual.
• Disposer knockout plug: If the dishwasher was recently installed or moved, confirm the garbage disposer inlet knockout plug was removed; if it is still in place, the dishwasher cannot drain.

Parts that commonly solve the problem

If cleaning and hose checks do not restore draining, these parts are the most common fixes for this model:

Symptom	Most likely area	Example part for 66513484K902
Water remains, pump is silent	Power/control issue	Fuse, control checks per manual

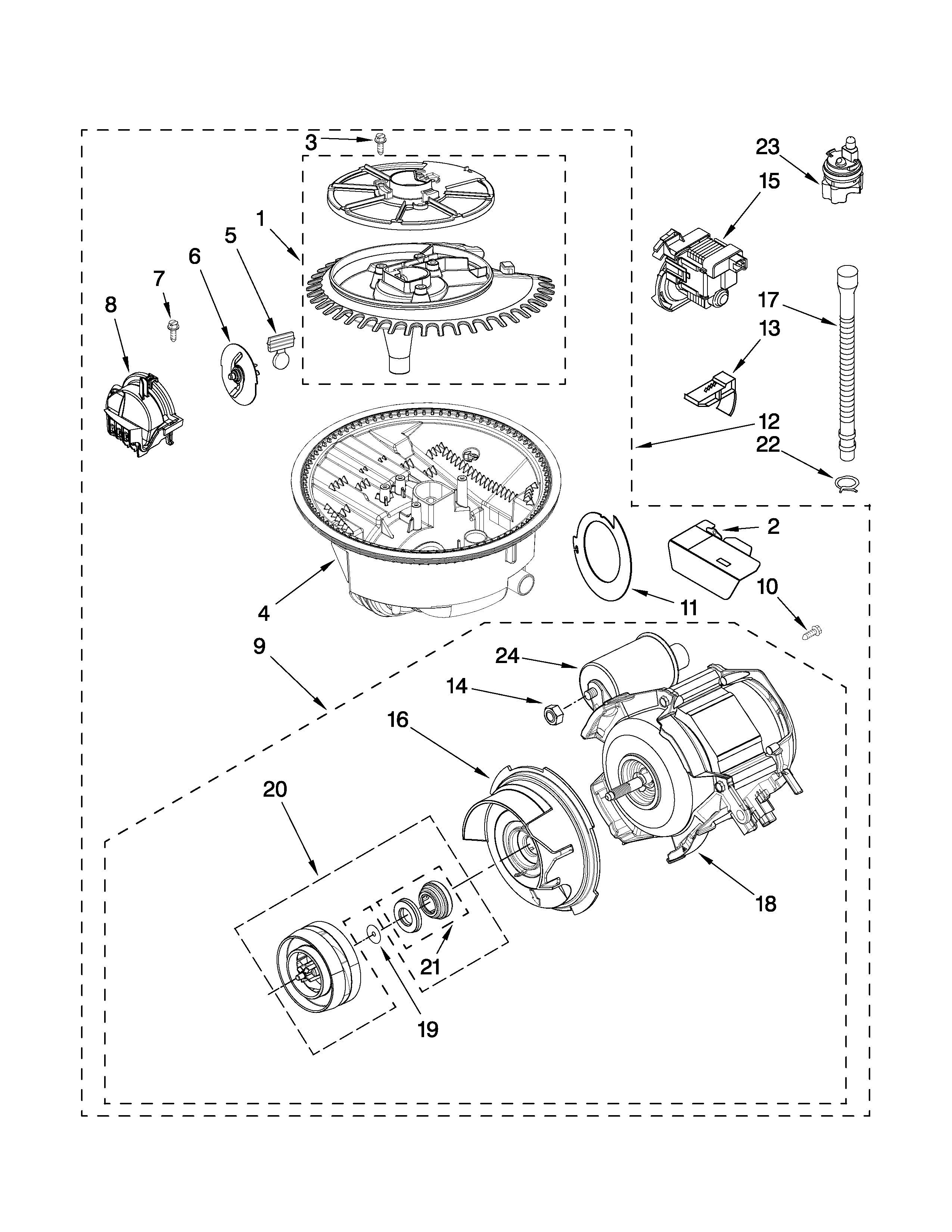

Water remains, pump hums	Pump jam or failure	Dishwasher drain pump WPW10348269
Slow drain, occasional backups	Drain path restriction	Drain hose routing, air gap, disposer inlet

Why it matters

Standing water can cause odors, redeposit food soil, and lead to poor cleaning results. Restoring proper drainage also protects the pump and helps cycles finish normally.

Last updated: February 2026
