Maytag PYE3300AGW washer/dryer Parts
Here are the diagrams and repair parts for Maytag PYE3300AGW washer/dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for PYE3300AGW Washer/Dryer

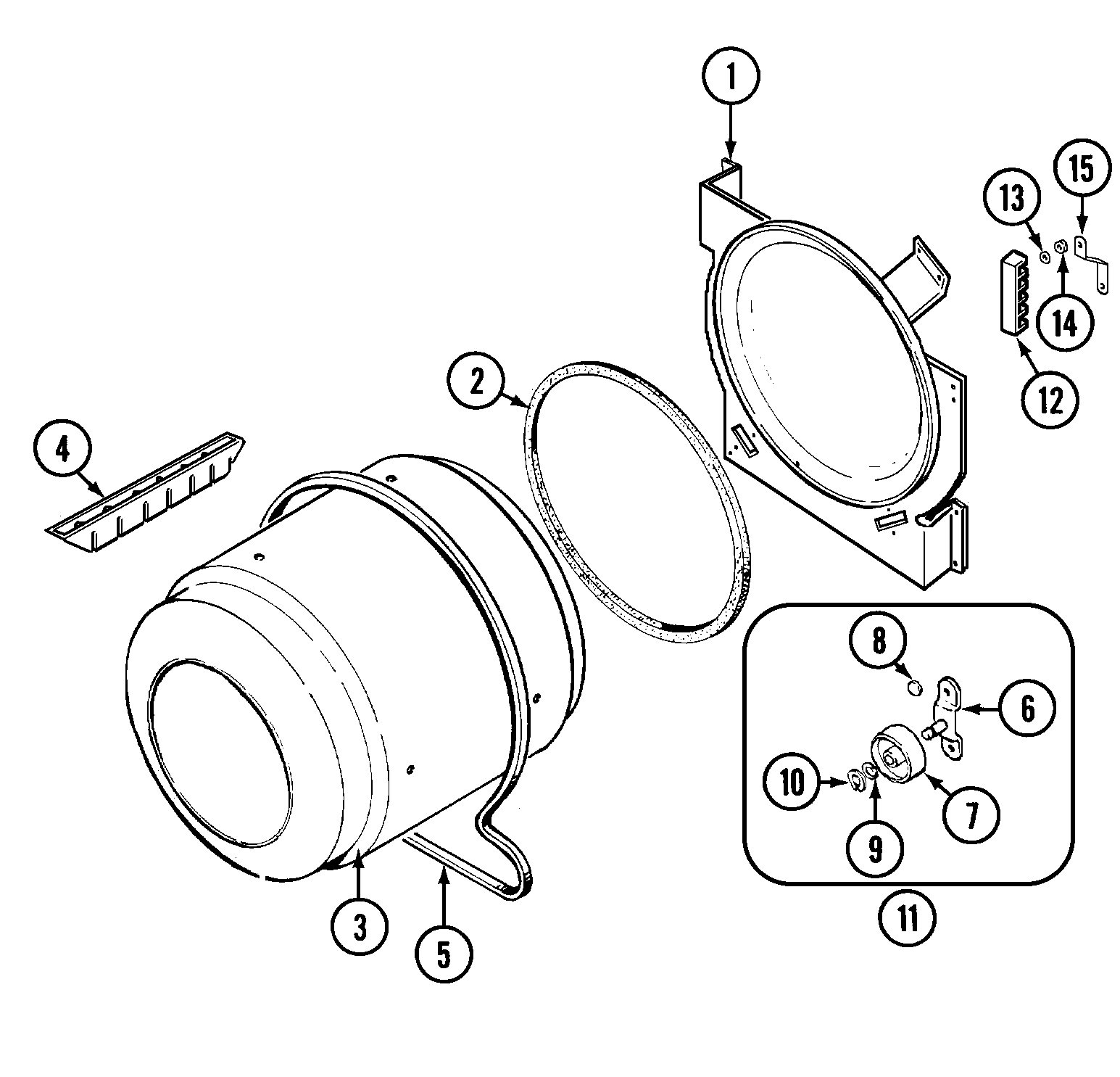

Tumbler diagram
Nut (#10-24)
Part #25-7808Replaced by #WPW10131078
Manufacturer substitutionThis part replaces 25-7808. Substitute parts can look different from the original.This item is not returnableIn Stock$6.0314% OFF Phone Price : $7.03
Qty

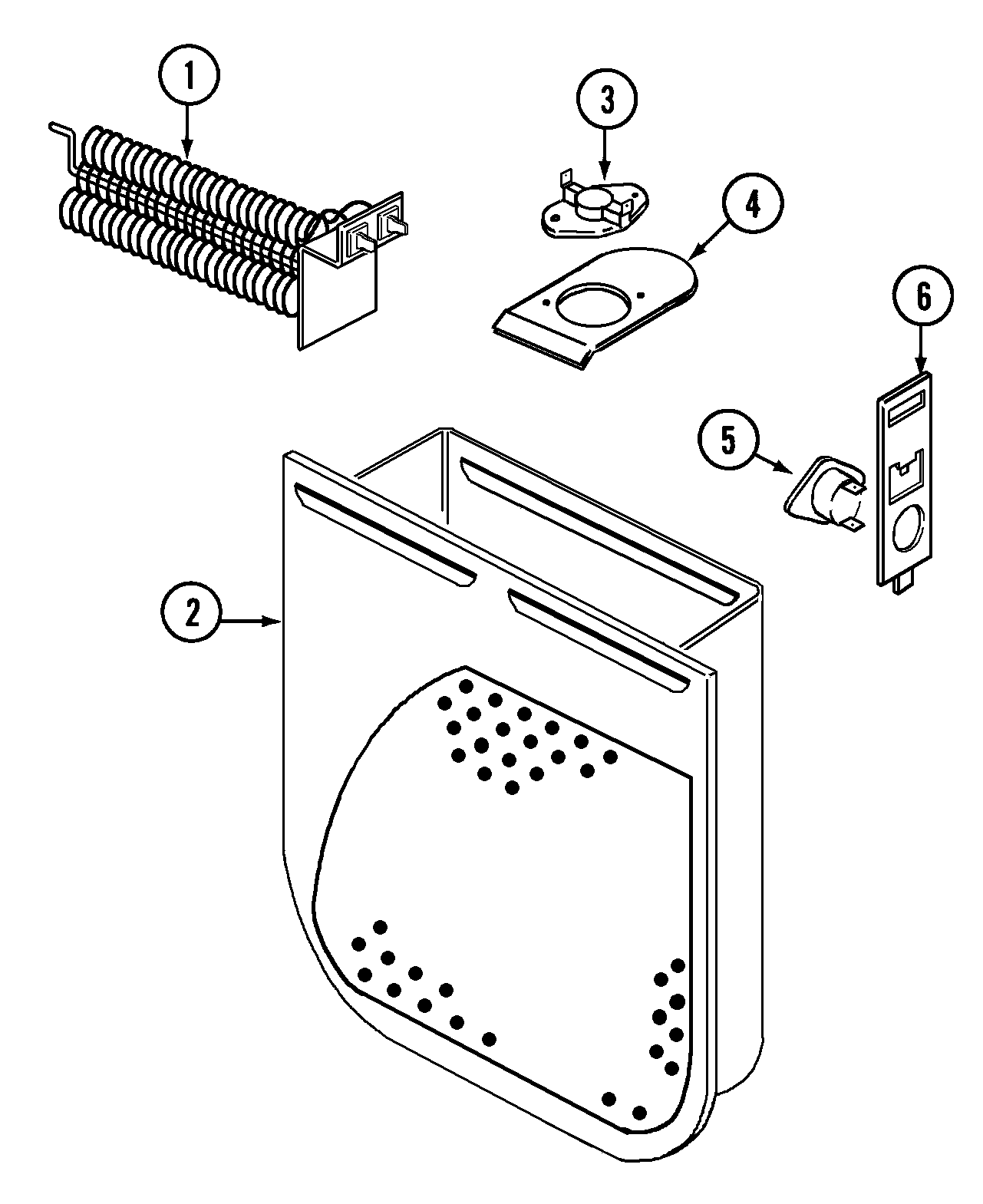

Heater diagram
Element, Hea
Part #31001499Replaced by #LA-1044
Manufacturer substitutionThis part replaces 31001499. Substitute parts can look different from the original.In Stock$108.36QtyHeater diagram
Screw
Part #25-3083Replaced by #212951

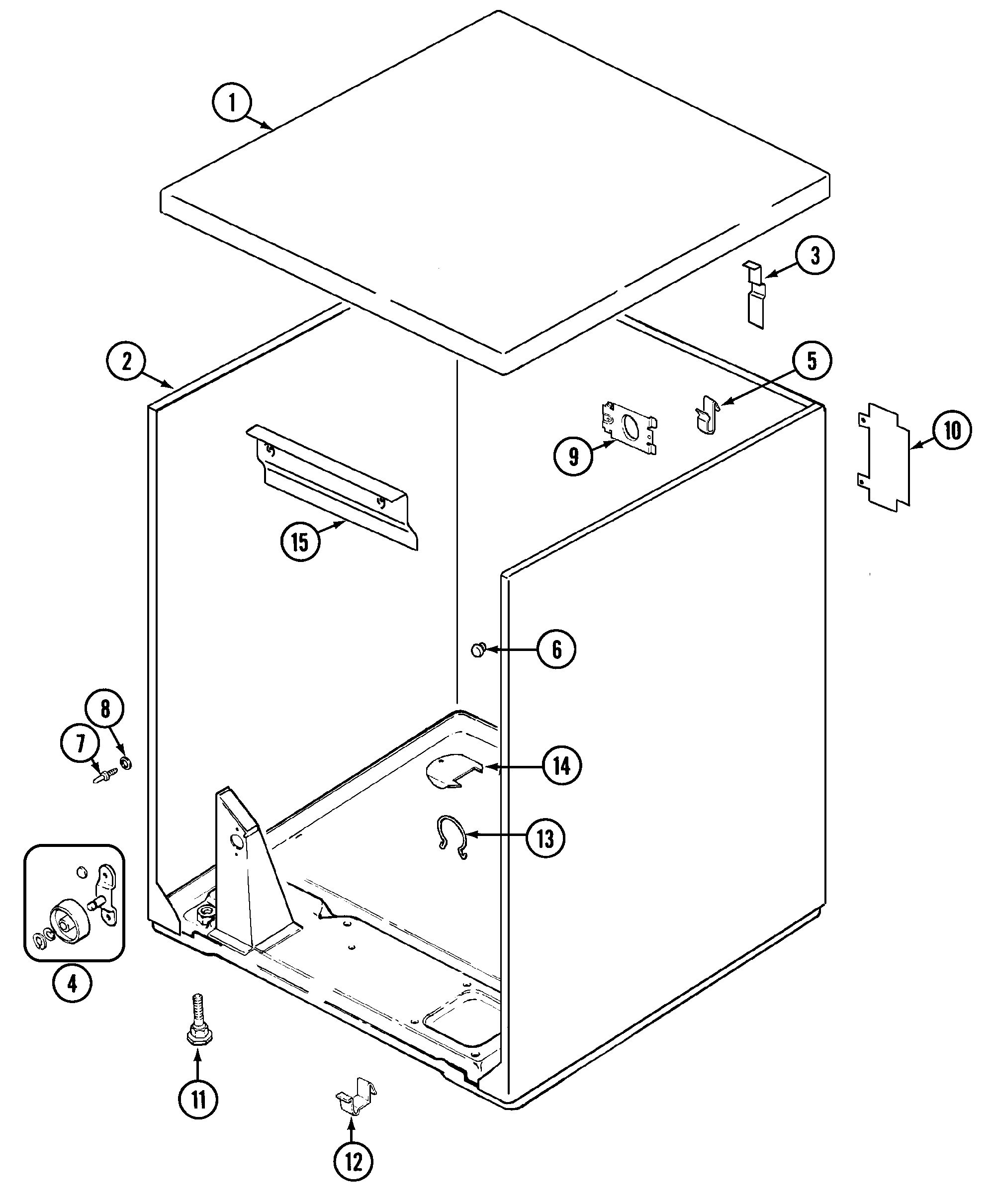

Manufacturer substitutionThis part replaces 25-3083. Substitute parts can look different from the original.In Stock$27.79QtyCabinet diagram
Wiring Clip
Part #25-7027
The manufacturer no longer makes this part, and there's no substitute part
Screw
Part #25-7741Replaced by #WP90767

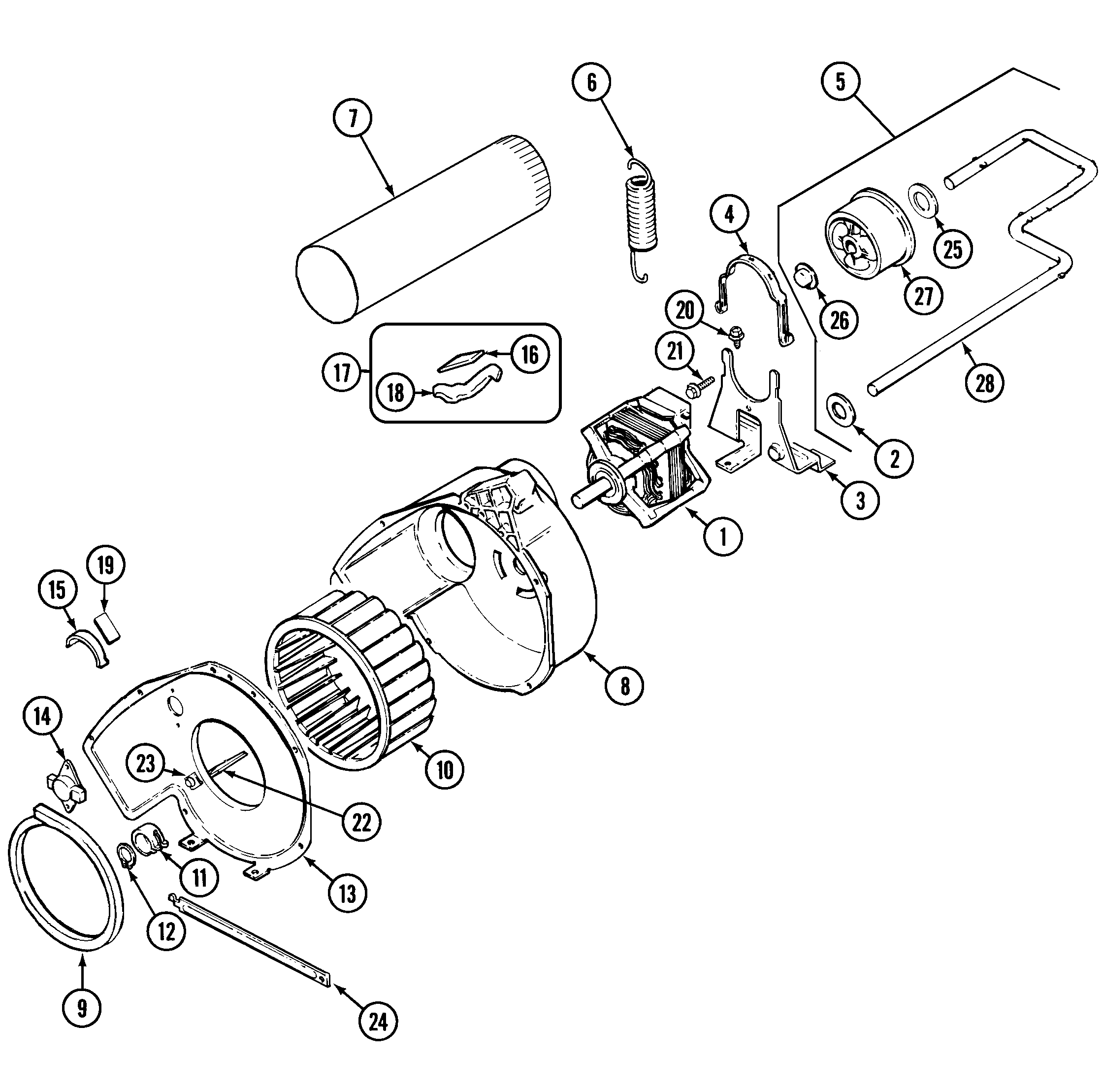

Manufacturer substitutionThis part replaces 25-7741. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyMotor & drive diagram
Dryer Blower Wheel
Part #31001317Replaced by #W11497304
Manufacturer substitutionThis part replaces 31001317. Substitute parts can look different from the original.In Stock$49.2811% OFF Phone Price : $55.28QtyCabinet diagram
Front Roller
Part #LA-1007Replaced by #12002126
Manufacturer substitutionThis part replaces LA-1007. Substitute parts can look different from the original.In Stock$72.728% OFF Phone Price : $78.72QtyCabinet diagram
Screw, Suppo
Part #25-7828Replaced by #WP489483
Manufacturer substitutionThis part replaces 25-7828. Substitute parts can look different from the original.This item is not returnableIn Stock$9.769% OFF Phone Price : $10.76QtySwitch Screw
Part #25-3092Replaced by #WP90767
Manufacturer substitutionThis part replaces 25-3092. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyCabinet diagram
Leveling Leg
Part #63-5519Replaced by #W11117769
Manufacturer substitutionThis part replaces 63-5519. Substitute parts can look different from the original.In Stock$14.4712% OFF Phone Price : $16.47Qty
