Whirlpool WFG525S0JV1 gas range Parts

For a Whirlpool gas range like model WFG525S0JV1, we identify the correct model by finding the appliance’s model/serial tag and reading the model number (letters and numbers). Using the exact model number ensures you get compatible parts and diagrams, especially for items like the range oven door hinge WPW10299224.

Where to look for the model number tag

On most Whirlpool ranges, the model/serial tag is in one of these common spots:

• On the oven frame behind the oven door (open the door and check the front frame)

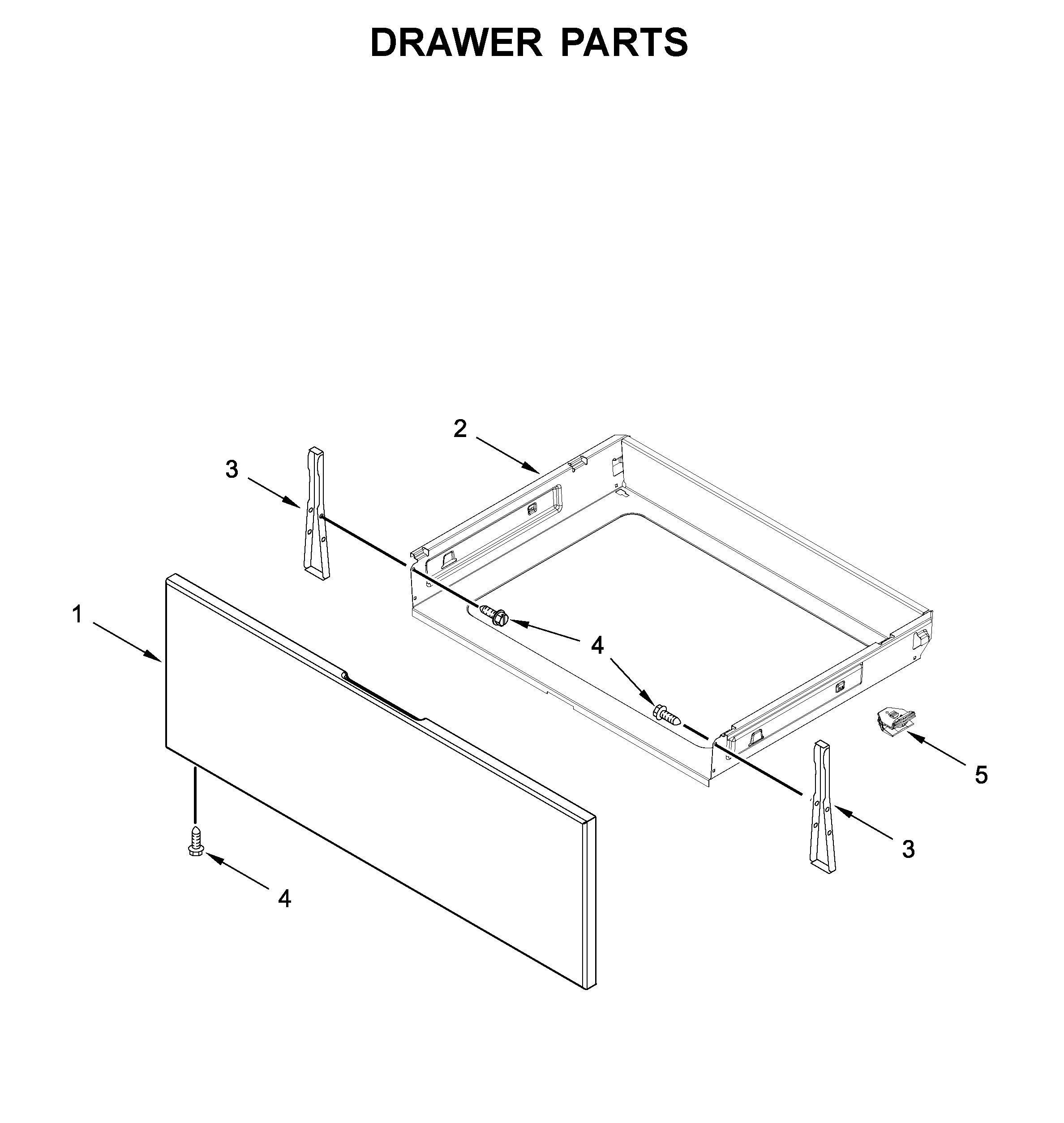

• Inside the storage drawer area (pull the drawer out and look along the frame)
• On the back panel of the range
• Under the cooktop edge (less common, but possible)

What the model number looks like (and what to avoid)

The model number is usually a mix of letters and numbers (example: WFG525S0JV1). Make sure you copy it exactly.

• Use the model number for parts lookup
• Keep the serial number for warranty and manufacturing date reference
• Write down the full model number, including the last digit/letter

Quick check table

Item on tag	Example	What we use it for
Model number	WFG525S0JV1	Matching correct Whirlpool gas range parts
Serial number	(varies)	Production tracking, service history

Why it matters

Whirlpool often uses similar-looking ranges with different burner systems, oven ignition parts, and door hardware. The exact model number helps prevent ordering the wrong igniter, control, or hinge and saves time on returns.

Helpful tip for ordering parts

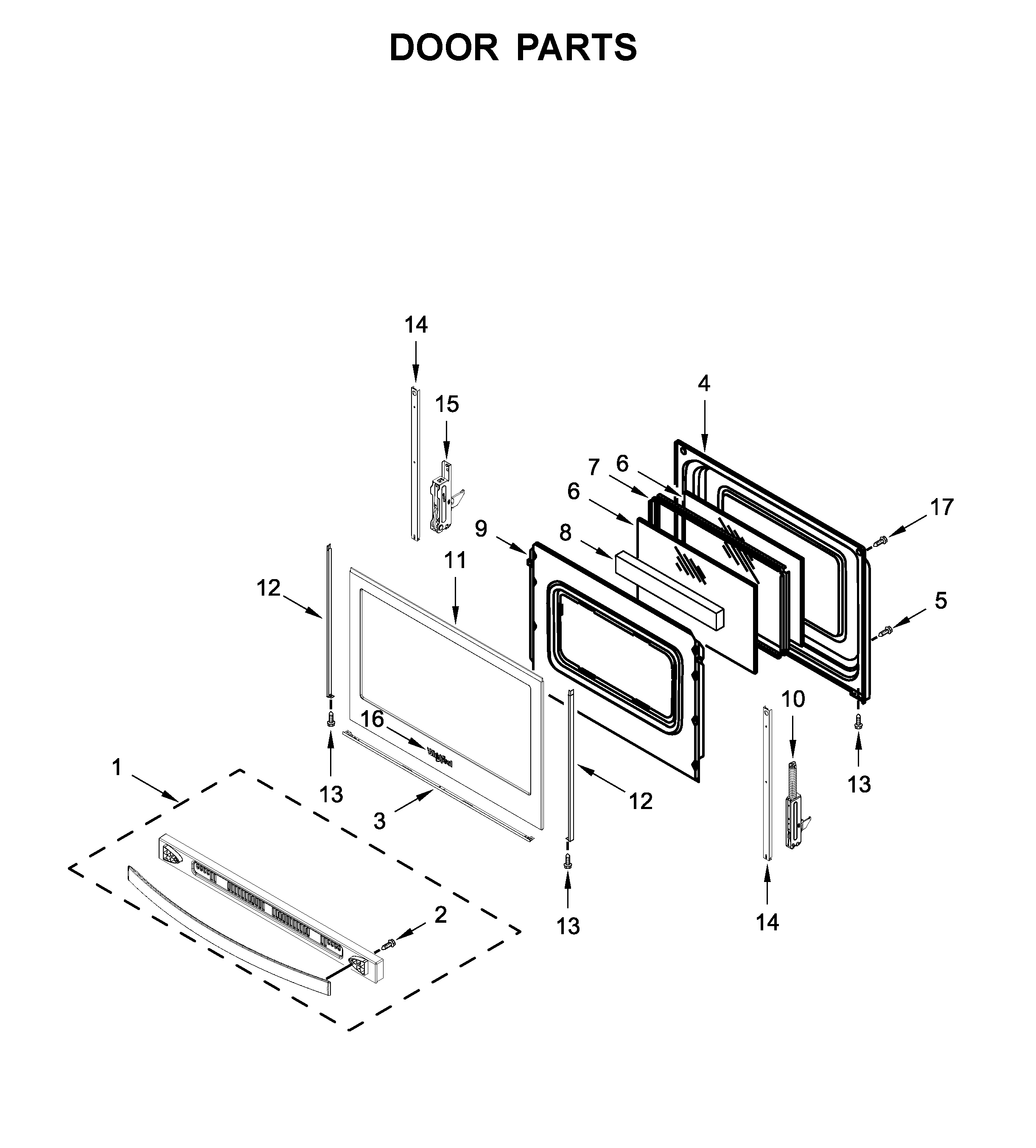

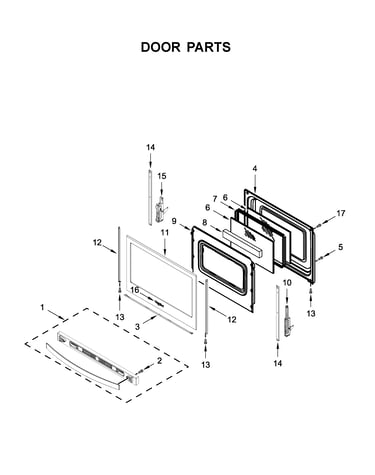

If you’re replacing a door-related part, compare your tag’s model number first, then match the part by description and ID, such as the range oven door hinge WPW10299224 or range oven door hinge WPW10299227.

Last updated: February 2026

If the cooktop igniter on your Whirlpool WFG525S0JV1 gas range is not working, the most common causes are a dirty or misaligned burner cap, moisture around the igniter, or a failed spark system (switch, wiring, or spark module). Start with cleaning and correct burner assembly before replacing parts.

Quick checks that fix most “no spark” problems

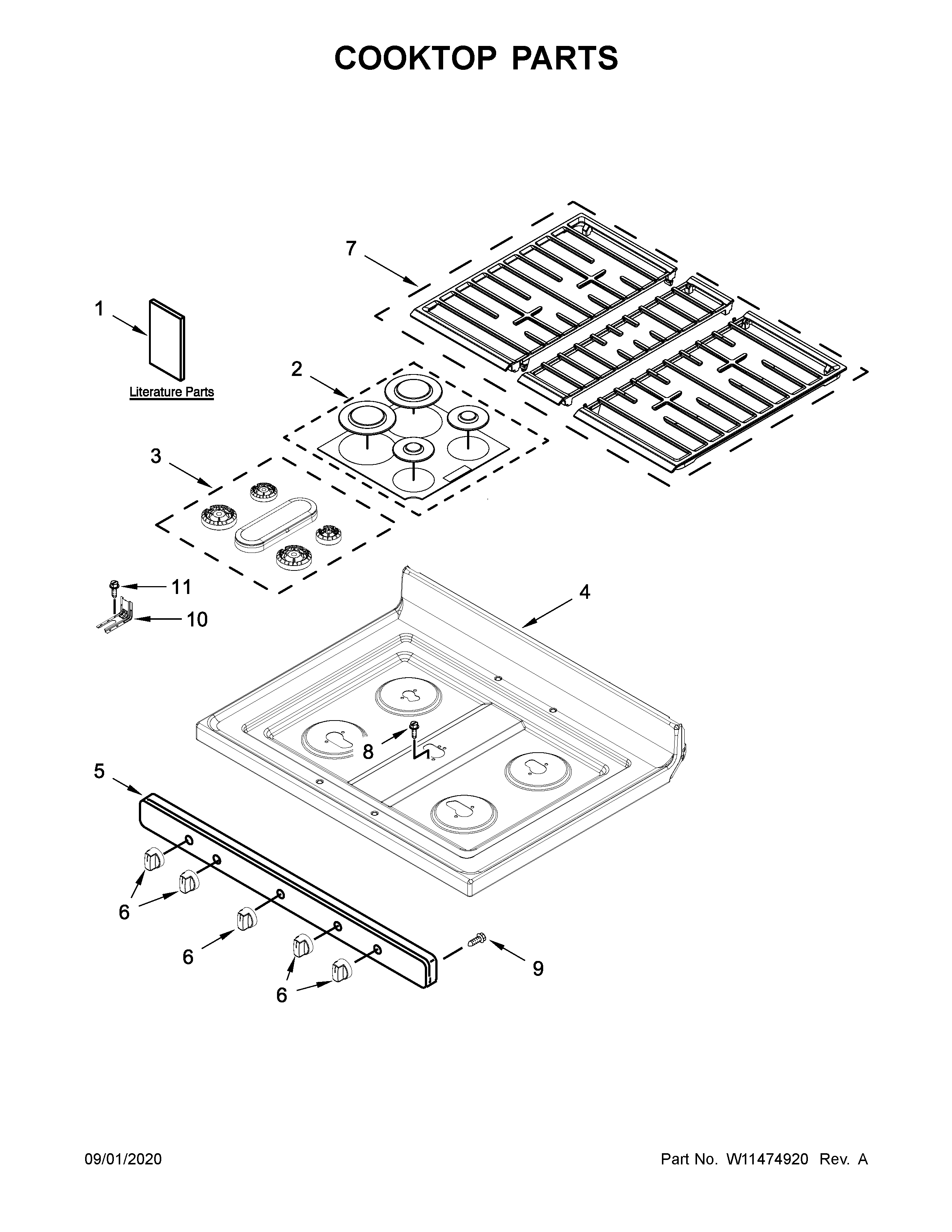

• Make sure the burner cap is seated flat and centered on the burner base.
• Dry the burner area completely (after boil-overs or cleaning, ignition can stop until dry).
• Clean the igniter tip and burner ports with a soft brush; avoid soaking the igniter.
• Confirm the burner head and grate are installed correctly and not rocking.
• Try a different burner knob position; if none click, suspect the spark module or power.

What the symptoms usually mean

Symptom	Most likely cause	What to do next
No burners click at all	No power to range, failed spark module, or wiring issue	Check outlet and breaker; then test/inspect spark module and harness
One burner will not click	Dirty igniter, misaligned cap, bad switch for that valve	Clean and reseat; test the switch and wiring
Clicking happens but no flame	Gas not reaching burner, clogged ports, cap misaligned	Clean ports; verify cap placement
Constant clicking	Moisture, dirty igniter, stuck switch	Dry thoroughly; clean; check switch operation

Parts that commonly solve ignition failures

If cleaning and drying do not restore ignition, these model-matched parts are common fixes:

• Module-spark W11162730 (controls spark output to the surface igniters)
• Spark module (red) WPW10475149 (alternate spark module option used on some builds)

Why it matters

A weak or missing spark can delay ignition, which increases the chance of gas odor and uneven burner performance. Restoring reliable ignition helps the burner light quickly and consistently.

Last updated: February 2026

A Whirlpool gas range like model WFG525S0JV1 typically lasts 15 years with normal household use and basic maintenance. Keeping burners clean, ensuring proper ignition, and replacing wear items as needed helps you reach that expected service life.

Typical lifespan and what affects it

Most gas ranges reach their full lifespan when heat, gas flow, and door sealing stay consistent.

• Cooking frequency (daily use shortens life compared to occasional use)
• Cleaning habits (spills and grease can damage igniters and controls)

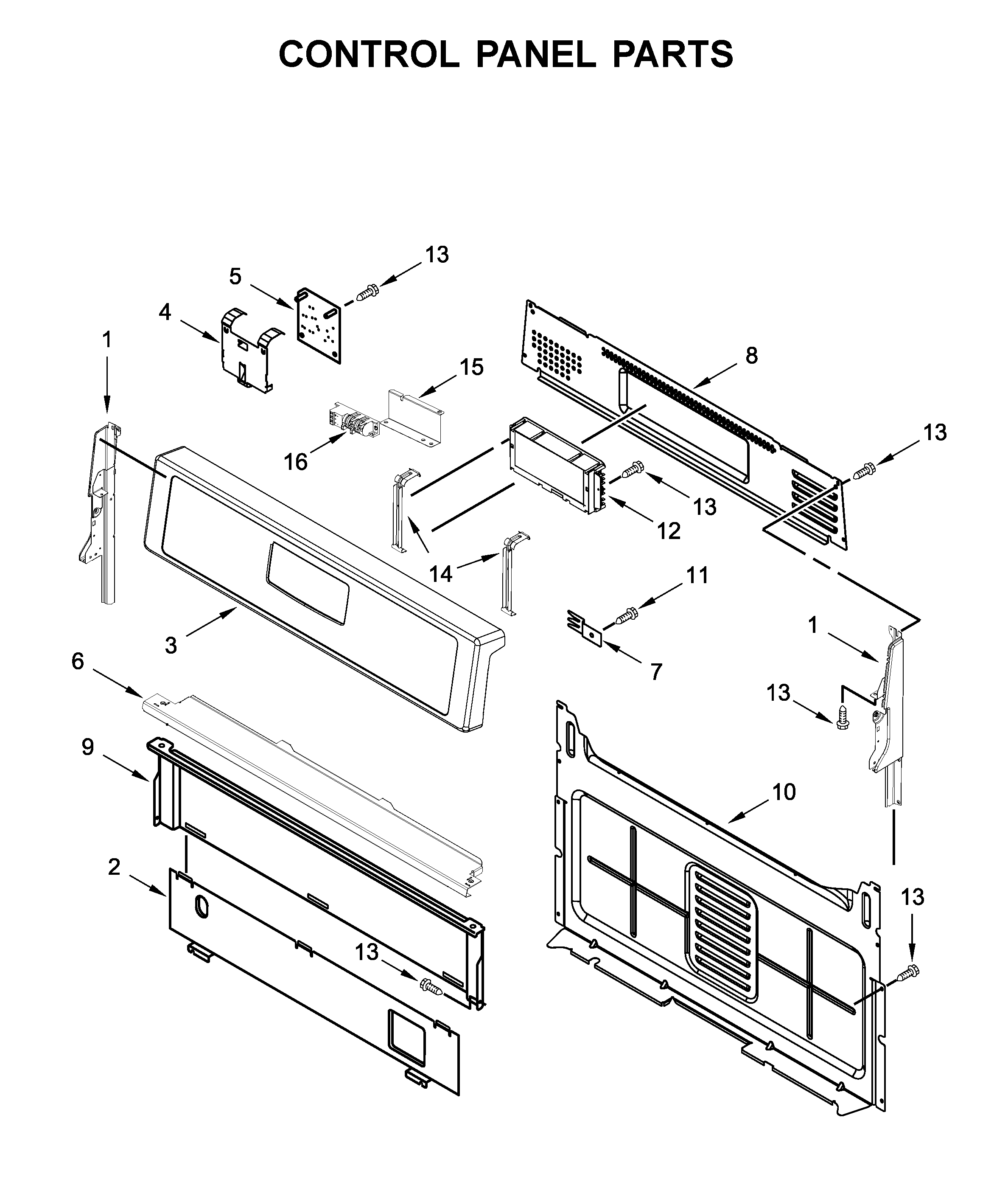

• Power quality (surges can affect the control assy)
• Ventilation and heat exposure around the control panel
• Timely replacement of common wear parts (igniter, door seal, hinges)

Common parts that impact longevity on WFG525S0JV1

If performance drops, these model-matched parts are often involved:

• Range oven burner igniter WPW10333842 (weak ignition, delayed bake lighting)
• Door seal W11542153 (heat loss, uneven baking, hot exterior surfaces)
• Range oven door hinge WPW10299224 (door not closing evenly)

Quick “age vs. repair” guide

If your range is…	Usually worth doing	Consider replacing when…
Under 8 years	Repair most issues	Cabinet or frame damage is severe
8 to 15 years	Repair if it is a single part failure	Multiple major systems fail close together
Over 15 years	Repair only if low-cost and safety checks pass	Repeated ignition or control problems continue

Why it matters

Knowing the expected 15-year lifespan helps you decide whether to troubleshoot a bake or ignition problem, replace a specific Whirlpool part, or plan for a full range replacement based on total cost and reliability.

Last updated: March 2026
