Bosch WTV76100US/02 dryer

Bosch WTV76100US/02 dryer Parts

Here are the diagrams and repair parts for Bosch WTV76100US/02 dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

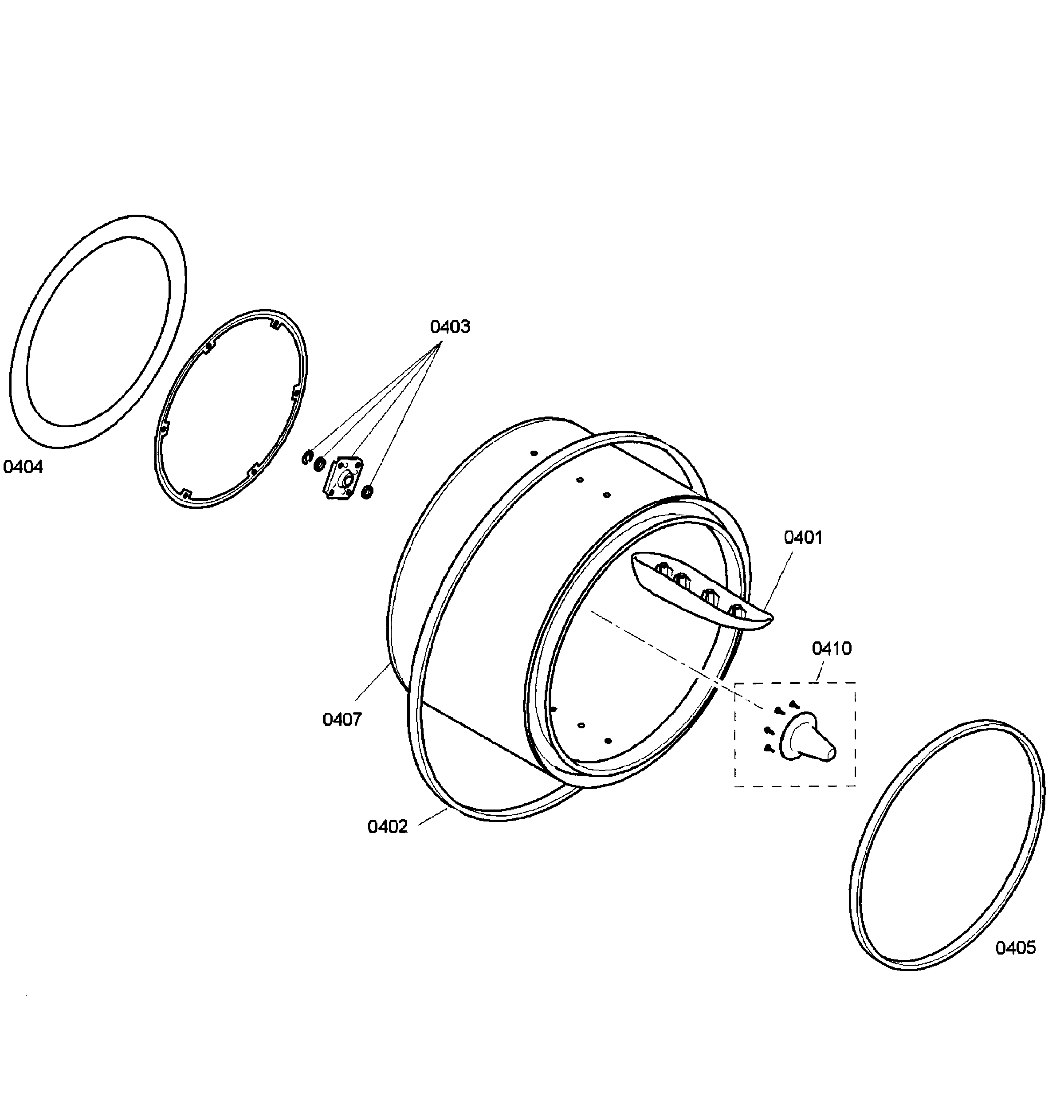

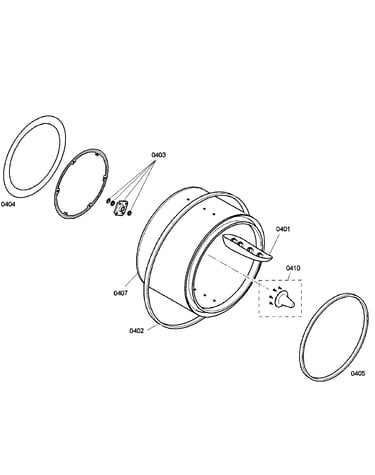

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for WTV76100US/02 Dryer

  • Dryer Blower Wheel for Bosch WTV76100US/02 - Part 00647541

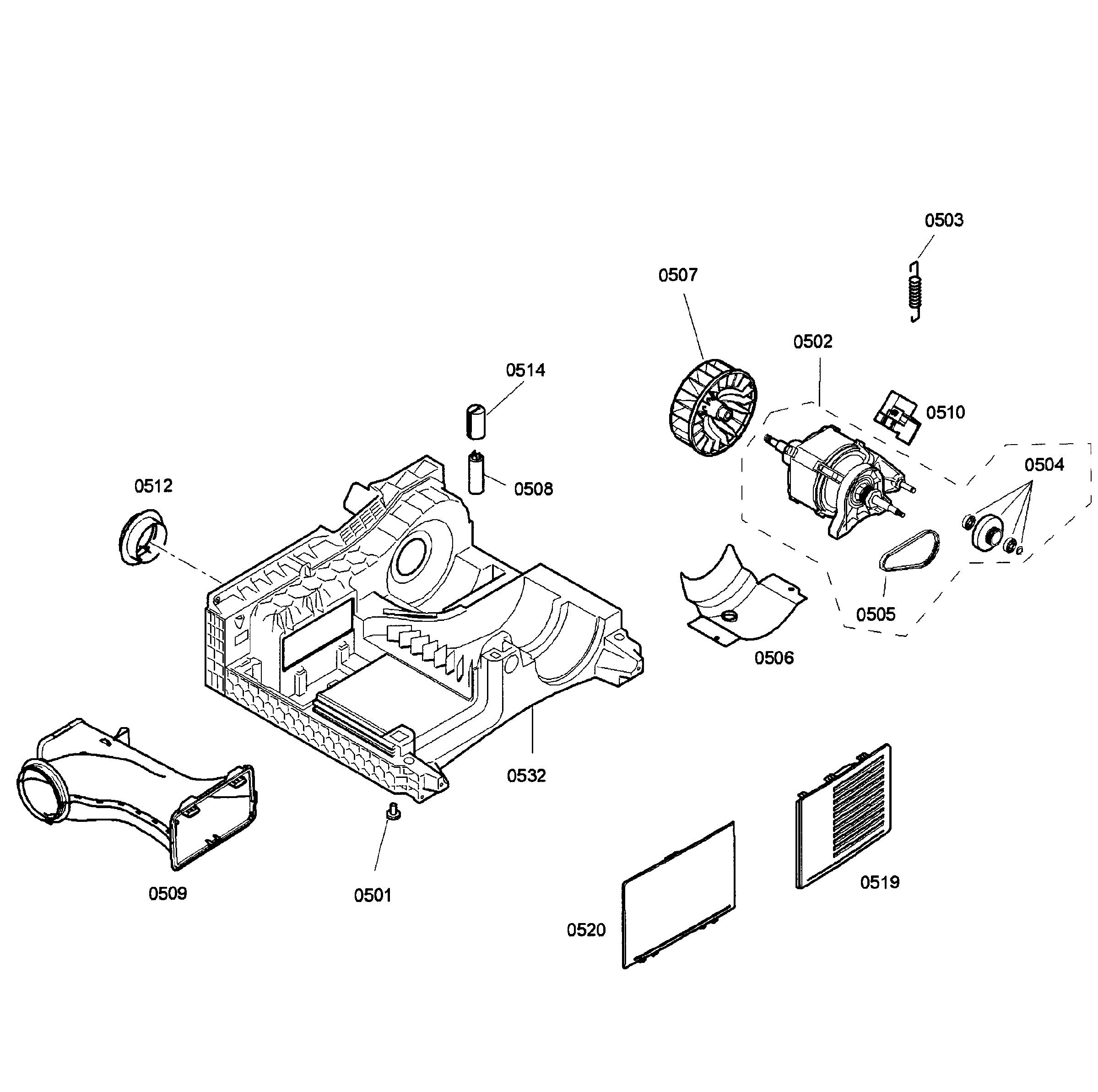

    Motor assy diagram

    Fan Drum

    Part #640455

    Replaced by #00647541

    Info Icon
    Manufacturer substitution
    This part replaces 640455. Substitute parts can look different from the original.
    In Stock
    $93.97
    Minus Item
    Qty
    Plus Item
  • Dryer Motor Assembly for Bosch WTV76100US/02 - Part 00145534

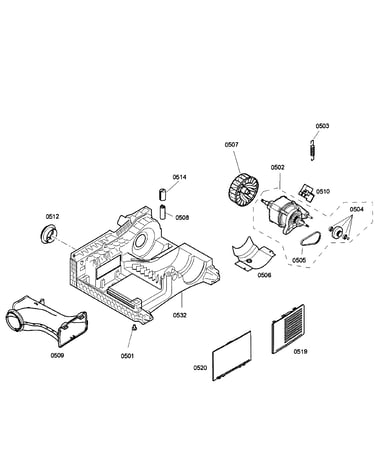

    Motor assy diagram

    Motor

    Part #144596

    Replaced by #00145534

    Info Icon
    Manufacturer substitution
    This part replaces 144596. Substitute parts can look different from the original.
    In Stock
    $485.90
    Minus Item
    Qty
    Plus Item
  • Motor Capacitor 6,5 Uf for Bosch WTV76100US/02 - Part 00637045

    Motor assy diagram

    Capacitor

    Part #604867

    Replaced by #00637045

    Info Icon
    Manufacturer substitution
    This part replaces 604867. Substitute parts can look different from the original.
    In Stock
    $57.24
    Minus Item
    Qty
    Plus Item
  • Dryer Door Inner Frame for Bosch WTV76100US/02 - Part 00667793

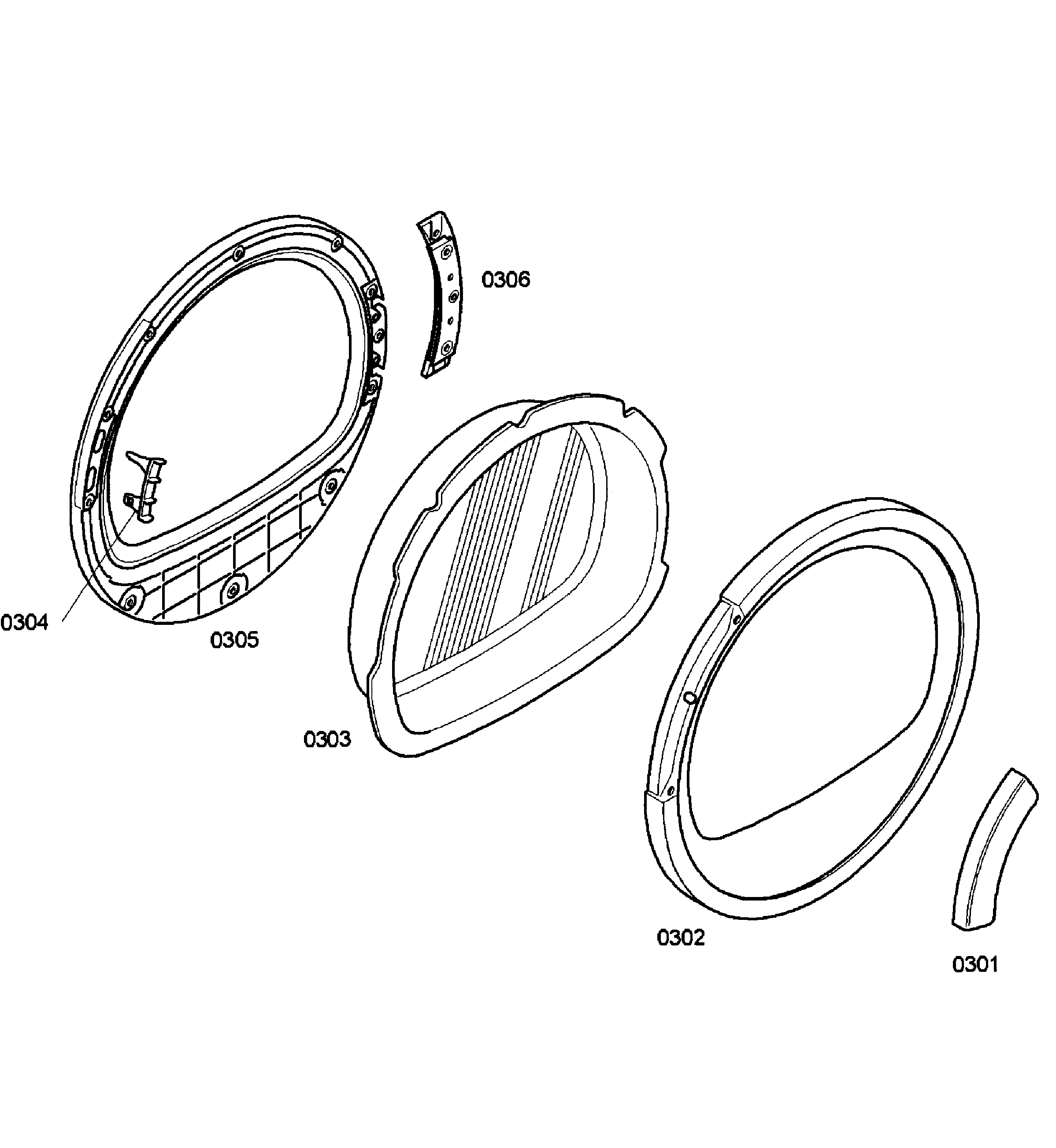

    Door diagram

    Frame

    Part #448751

    Replaced by #00667793

    Info Icon
    Manufacturer substitution
    This part replaces 448751. Substitute parts can look different from the original.
    In Stock
    $118.47
    9% OFF Phone Price : $130.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Door Lock Strike for Bosch WTV76100US/02 - Part 00614390

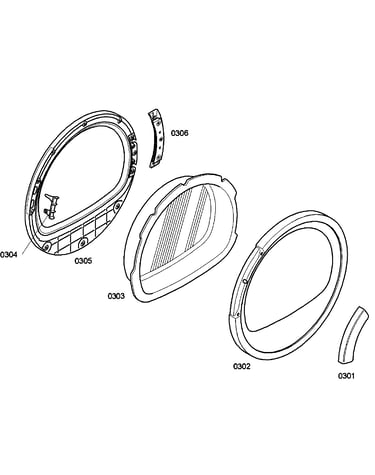

    Door diagram

    Hook

    Part #600346

    Replaced by #00614390

    Info Icon
    Manufacturer substitution
    This part replaces 600346. Substitute parts can look different from the original.
    In Stock
    $50.48
    Minus Item
    Qty
    Plus Item
  • Dryer Door Latch for Bosch WTV76100US/02 - Part 00622324

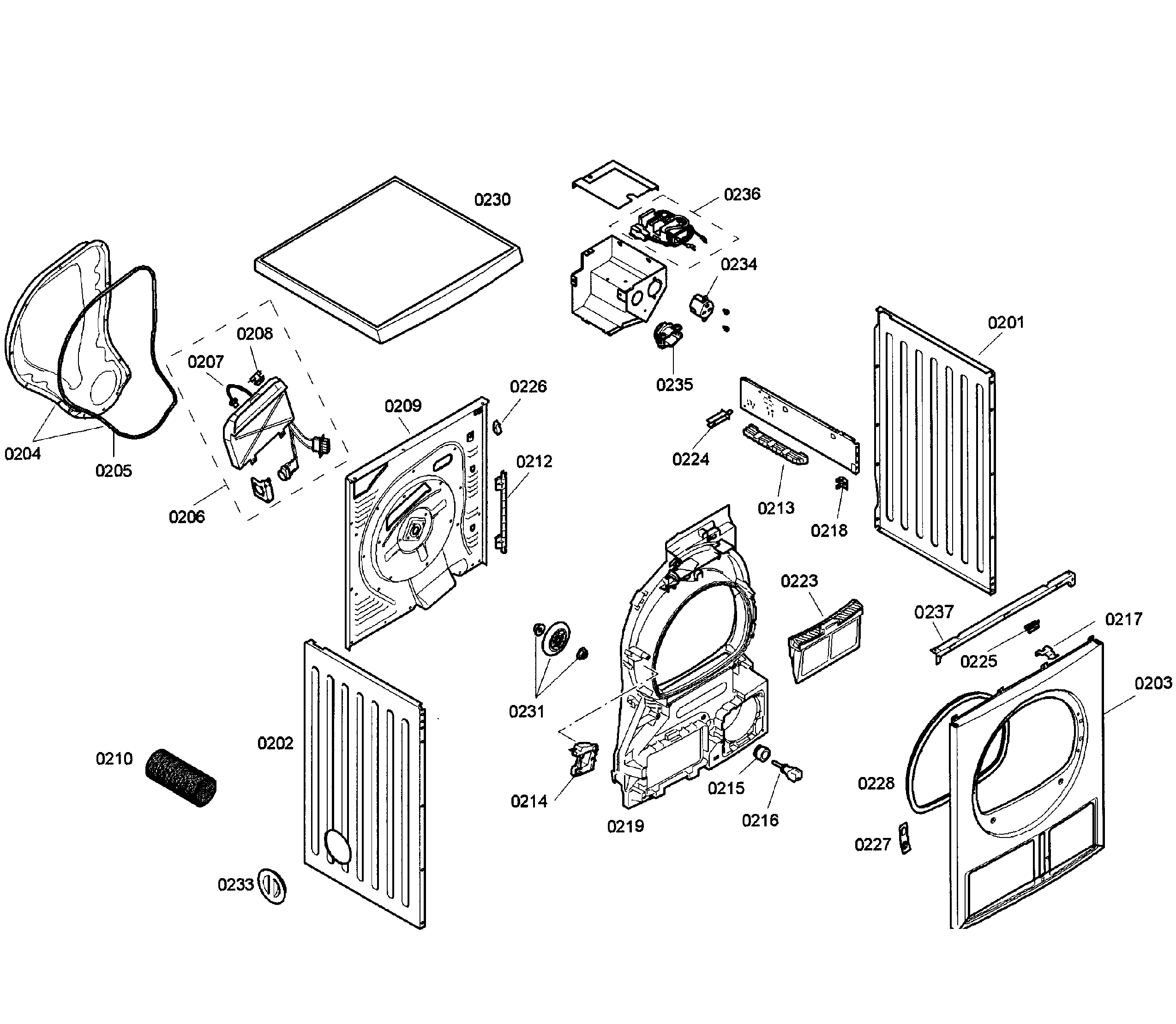

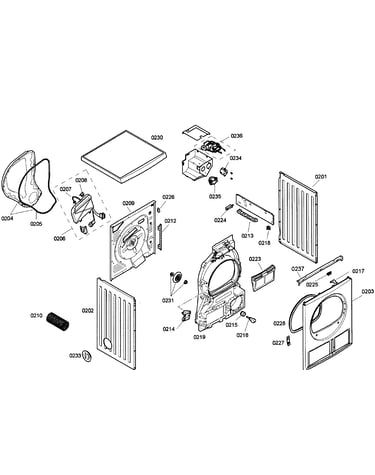

    Cabinet diagram

    Latch

    Part #600154

    Replaced by #00622324

    Info Icon
    Manufacturer substitution
    This part replaces 600154. Substitute parts can look different from the original.
    In Stock
    $314.57
    $12.00 OFF Phone Price : $326.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Limiter for Bosch WTV76100US/02 - Part 600157

    Cabinet diagram

    Limiter

    Part #600157

    The manufacturer no longer makes this part, and there's no substitute part

  • Dryer Door Glass for Bosch WTV76100US/02 - Part 00445420

    Door diagram

    Dryer Window

    Part #445420

    Replaced by #00445420

    Info Icon
    Manufacturer substitution
    This part replaces 445420. Substitute parts can look different from the original.
    In Stock
    $122.71
    9% OFF Phone Price : $134.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Power Cord for Bosch WTV76100US/02 - Part 00643560

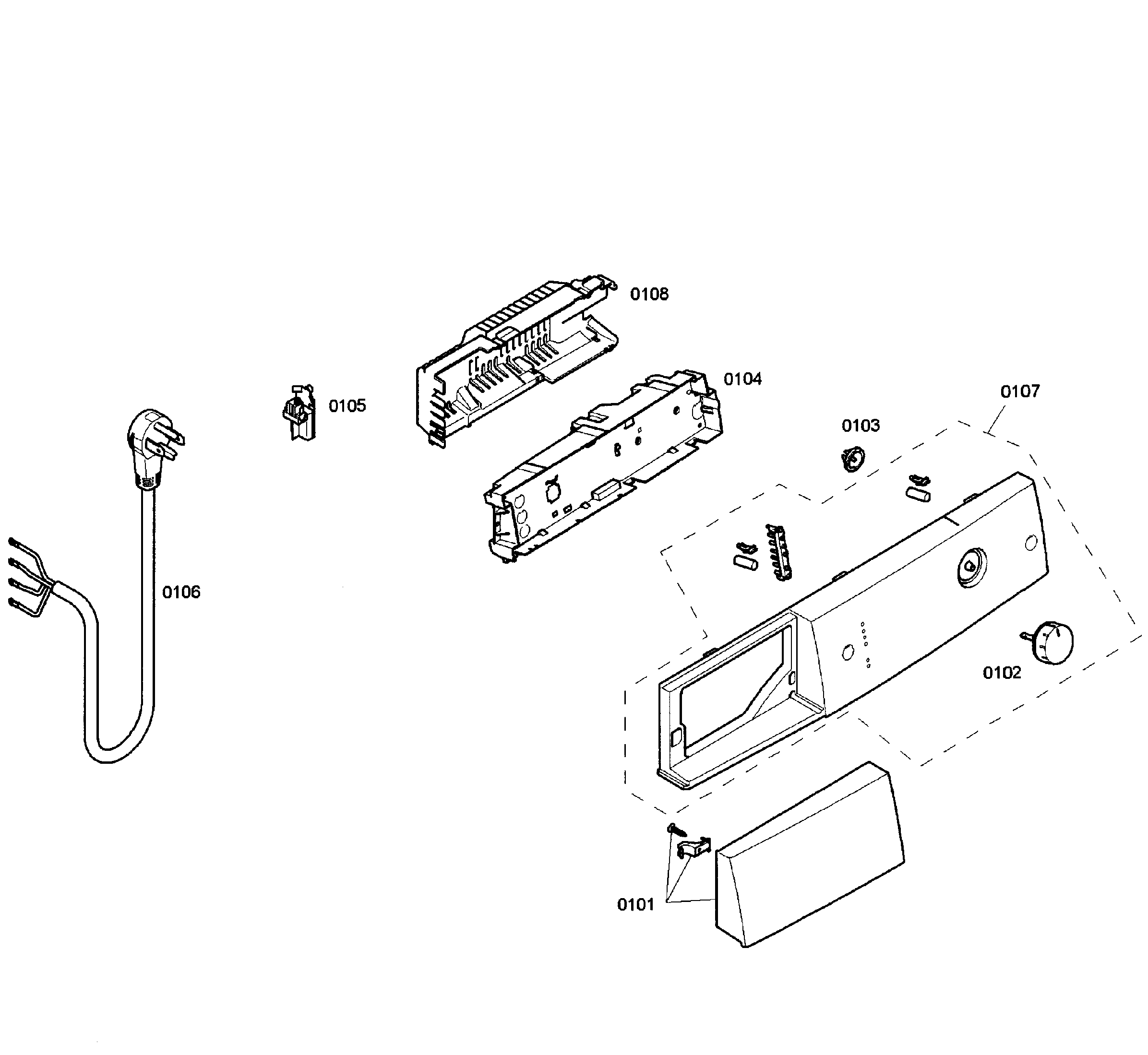

    Control panel diagram

    Ac Power Cord

    Part #643560

    Replaced by #00643560

    Info Icon
    Manufacturer substitution
    This part replaces 643560. Substitute parts can look different from the original.
    In Stock
    $216.45
    Minus Item
    Qty
    Plus Item
  • Control Cover for Bosch WTV76100US/02 - Part 00640671

    Control panel diagram

    Cover

    Part #640671

    Replaced by #00640671

    Info Icon
    Manufacturer substitution
    This part replaces 640671. Substitute parts can look different from the original.
    In Stock
    $189.68
    Minus Item
    Qty
    Plus Item
