Black & Decker
Food Processor

Model # FP1000 TYPE 1 Official Black & Decker food processor

Here are the diagrams and repair parts for Official Black & Decker FP1000-TYPE-1 food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

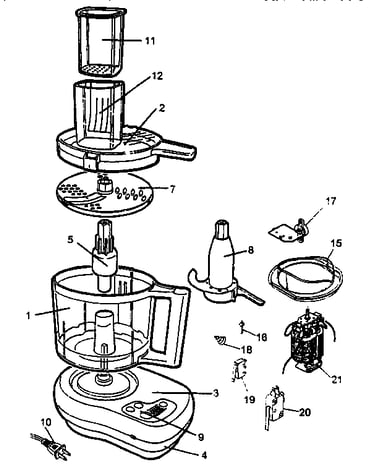

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Ac Cord 284338-00
#10

Replacement parts diagram

Ac cord

Part #284338-00

The manufacturer no longer makes this part, and there's no substitute part

Keypad 173095-00
#9

Replacement parts diagram

Keypad

Part #173095-00

The manufacturer no longer makes this part, and there's no substitute part

Adapter Post 284326-00
#5

Replacement parts diagram

Adapter post

Part #284326-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 284327-00
#15

Replacement parts diagram

Sleeve

Part #284327-00

The manufacturer no longer makes this part, and there's no substitute part

Food Fingr 169668-00
#12

Replacement parts diagram

Food fingr

Part #169668-00

The manufacturer no longer makes this part, and there's no substitute part

Pusher 169664-00
#11

Replacement parts diagram

Pusher

Part #169664-00

The manufacturer no longer makes this part, and there's no substitute part

Housing 284323-00
#3

Replacement parts diagram

Housing

Part #284323-00

The manufacturer no longer makes this part, and there's no substitute part

Bowl 284320-00
#1

Replacement parts diagram

Bowl

Part #284320-00

The manufacturer no longer makes this part, and there's no substitute part

Diagram 173094-00

#NI

All parts diagram

Diagram

Part #173094-00

The manufacturer no longer makes this part, and there's no substitute part

Motor 284337-00
#21

Replacement parts diagram

Motor

Part #284337-00

The manufacturer no longer makes this part, and there's no substitute part
