Model # CFEF2405LWB Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire CFEF2405LWB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

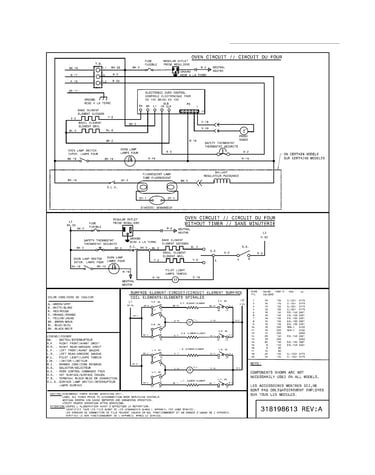

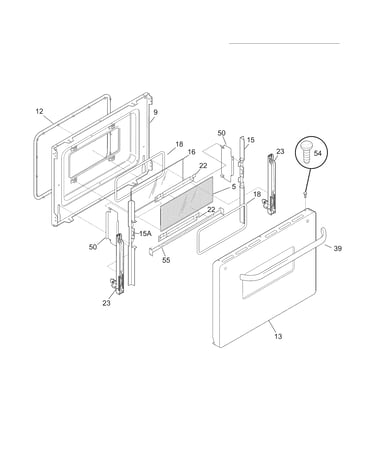

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Appliance Light Bulb, 40-watt 316538901
#15

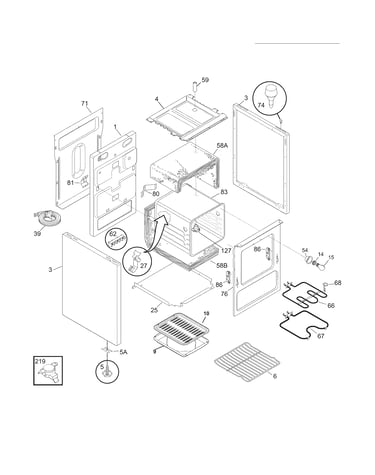

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Support 318366400
#93

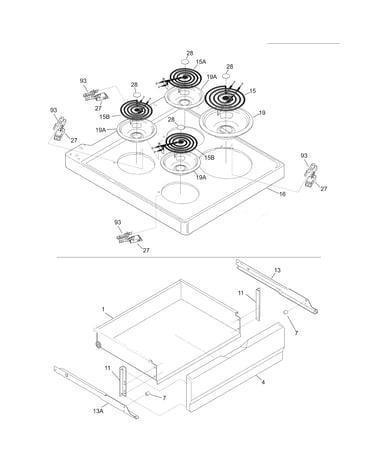

Top/drawer diagram

Support

Part #318366400

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 318366400. Substitute parts can look different from the original.
BEST SELLER
$7.83 |
35% OFF Was : $12.00
In Stock
Range Drip Pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495) 316048413
#19

Top/drawer diagram

Range drip pan, 8-in (chrome) (replaces 318067010, 5303013588, 5303935054, 5304432495)

Part #316048413

BEST SELLER
$7.53 |
69% OFF Was : $24.00
In Stock
Range Drip Pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, A316221301) 316048414
#19A

Top/drawer diagram

Range drip pan, 6-in (chrome) (replaces 5303280336, 5303305658, 5304432494, a316221301)

Part #316048414

BEST SELLER
This item is not returnable
$5.97 |
57% OFF Was : $14.00
In Stock
Range Coil Surface Element, 6-in 316439801
#15A

Top/drawer diagram

Range coil surface element, 6-in

Part #316439801

Replaced by #318372211

?
Manufacturer substitution
This part replaces 316439801. Substitute parts can look different from the original.
BEST SELLER
$39.72 |
13% OFF Phone Price : $45.72
In Stock
Range Broil Element (replaces 318255600) 318255605
#66

Body diagram

Range broil element (replaces 318255600)

Part #318255605

BEST SELLER
$115.83 |
9% OFF Phone Price : $127.83
In Stock

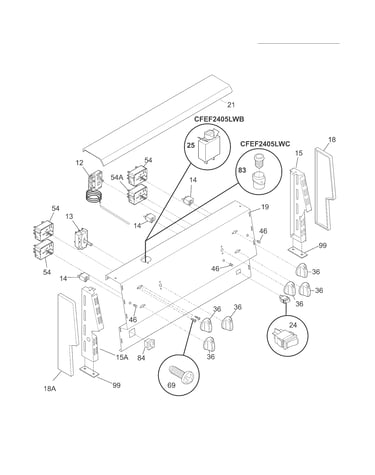

Range Screw 5303323134
#69

Backguard diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Range Broil Pan 316081900
#9

Body diagram

Range broil pan

Part #316081900

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316081900. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Broil Pan Insert 316082000
#10

Body diagram

Range broil pan insert

Part #316082000

Replaced by #5304494997

?
Manufacturer substitution
This part replaces 316082000. Substitute parts can look different from the original.
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$59.18 |
9% OFF Phone Price : $65.18
In Stock
