Kenmore 11028532700 washer Parts

The Kenmore washer model 11028532700 is typically a 3.2 cu. ft. top-load washer. For the exact capacity listed for your specific configuration, we recommend confirming it in the 11028532700 owner's manual.

How to confirm capacity for your exact washer

Capacity is sometimes listed in the specifications section or product information pages of the manual.

• Check the specifications or features section in the manual
• Look for wording like “capacity,” “tub volume,” or “cu. ft.”
• If your washer has multiple versions, match the model and serial from the label under the lid
• Keep your manual handy for service; it also tracks maintenance items like inlet hose replacement

Typical capacity range for Kenmore 110-series top-load washers

If you are comparing washers or planning load sizes, most Kenmore 110-series top-load units fall into a narrow range.

Washer type	Typical capacity (cu. ft.)	What it means for loads
Standard top-load (agitator)	3.0 to 3.5	Good for everyday mixed loads
Large-capacity top-load	3.6 to 4.5+	Better for bulky items

Why it matters

Knowing the cubic feet helps us choose the right load size, reduce overloading, and improve cleaning and spin performance. Overloading can also increase vibration and wear on drive components.

Related parts that affect wash action (not capacity)

If the question is coming up because clothes are not moving well during the wash, these common wear parts can affect agitation and turnover:

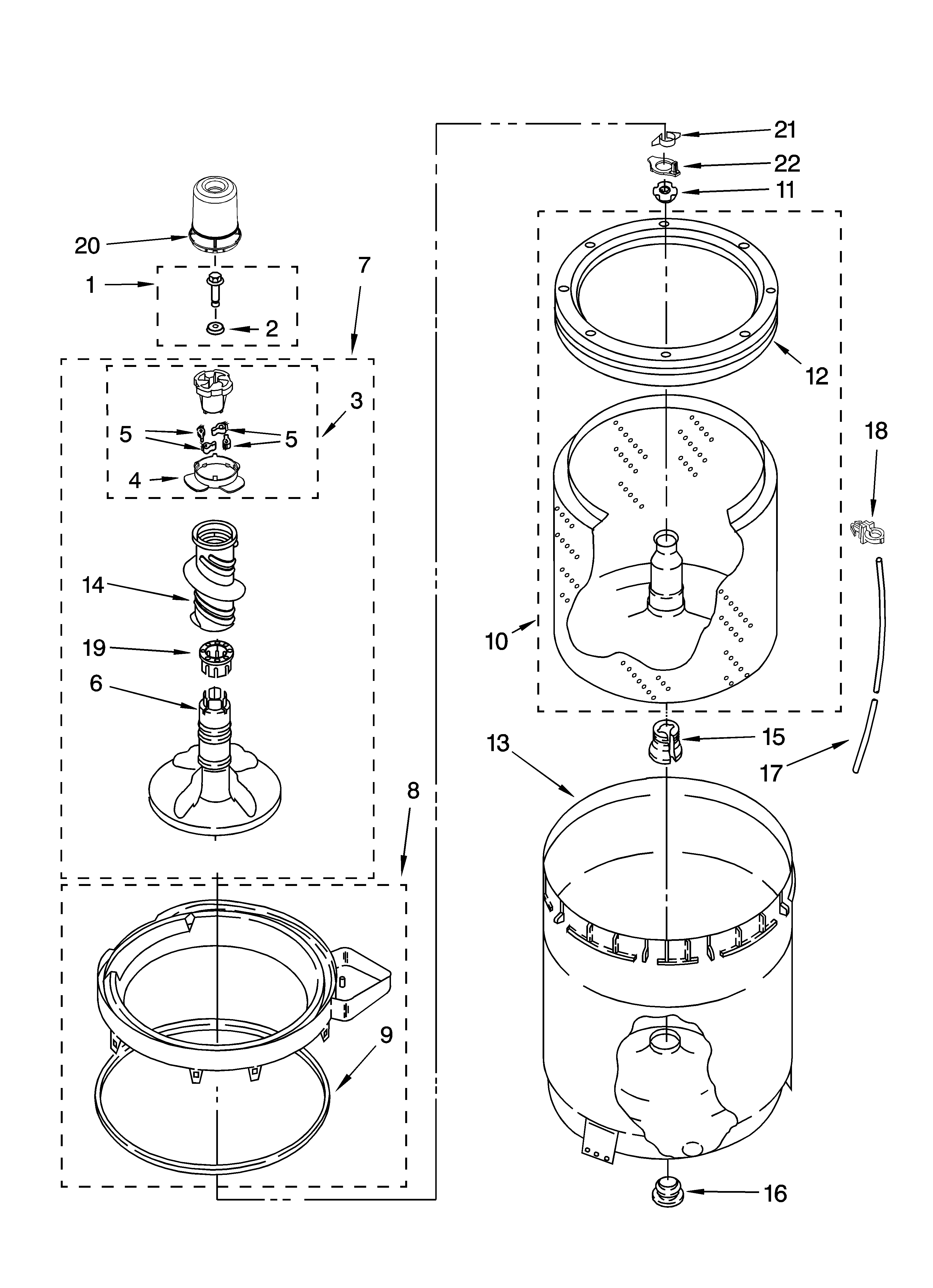

• Agitator dog 80040 (helps the agitator “ratchet” and move clothes)
• Agitator cam 285748 (works with the agitator mechanism)
• Washer drive block WP389140 (helps transfer drive motion to the basket)

Last updated: February 2026

For Kenmore washer model 11028532700, the model and serial number label is located under the washer lid. Use that full model number when ordering parts, looking up diagrams, or matching a repair guide so you get the correct Kenmore washer parts.

Where to look on the washer

Check these common label locations (start with the first one):

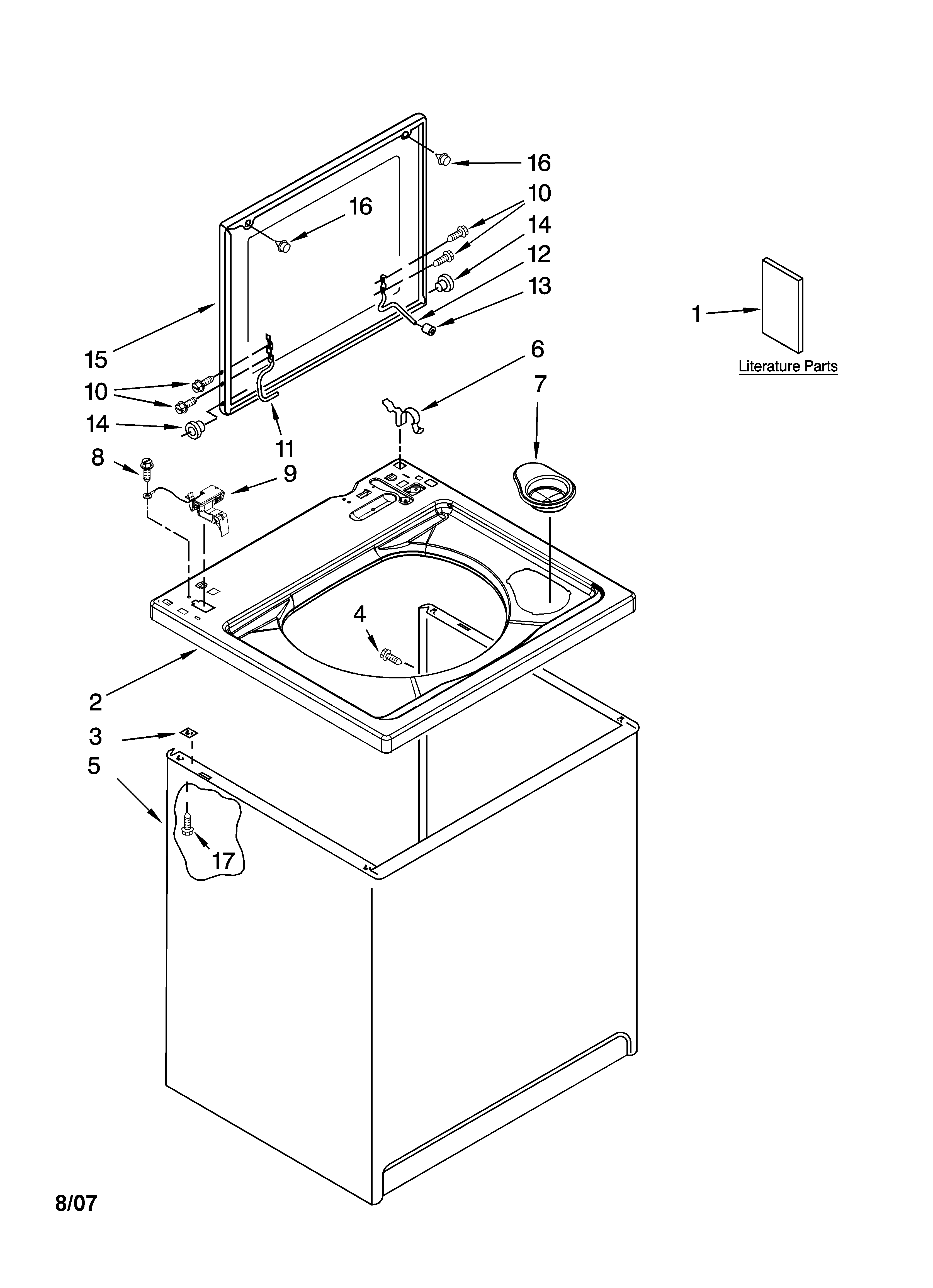

• Under the lid on the top-load cabinet opening (most common for this style)

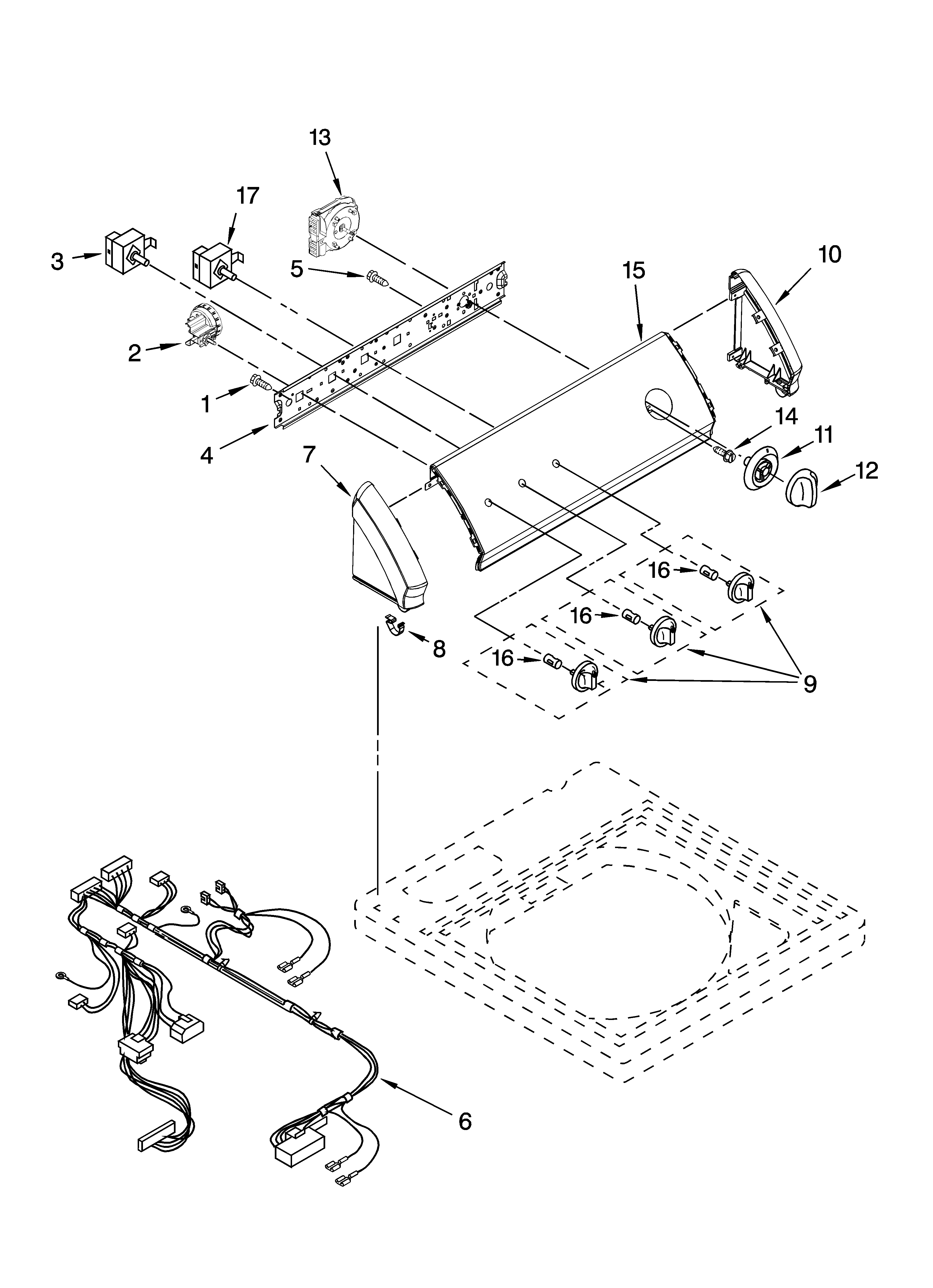

• On the back of the control console
• On the side of the main cabinet near the bottom edge
• For front-load washers, inside the door opening or on the door jamb

What to write down (and why)

Record the key details exactly as shown on the label:

• Model number (example: 11028532700)
• Serial number
• Purchase date (helpful for service history)
• Inlet hose replacement date (the manual recommends replacing inlet hoses after 5 years)

Quick checklist

Item	What it’s used for
Model number	Matching the correct parts list and diagrams
Serial number	Identifying production version changes
Purchase date	Tracking maintenance and ownership records

Why it matters

Kenmore model numbers can look similar, but internal components like the lid switch assembly, drain pump, timer, and water inlet valve can vary by model. Using the exact model number prevents ordering the wrong part and helps troubleshooting steps match your washer.

For the official location and product record section, use the 11028532700 owner’s manual.

Last updated: February 2026

Yes, repairing a Kenmore washer is worth it when the fix restores reliable washing and spinning for far less than replacing the machine. For Kenmore model 11028532700, common wear items (pump, lid switch, coupling, clutch) are straightforward repairs that often extend service life for years.

Quick rule to decide

• Repair it when the problem is isolated (won’t drain, won’t spin, won’t agitate) and the tub and cabinet are in good shape.
• Replace it when multiple major systems are failing at once (leaks plus no spin plus loud bearing noise) or the repair cost approaches replacement cost.

What usually makes repair a good value on model 11028532700

These are frequent, high-impact fixes that typically cost much less than a new washer:

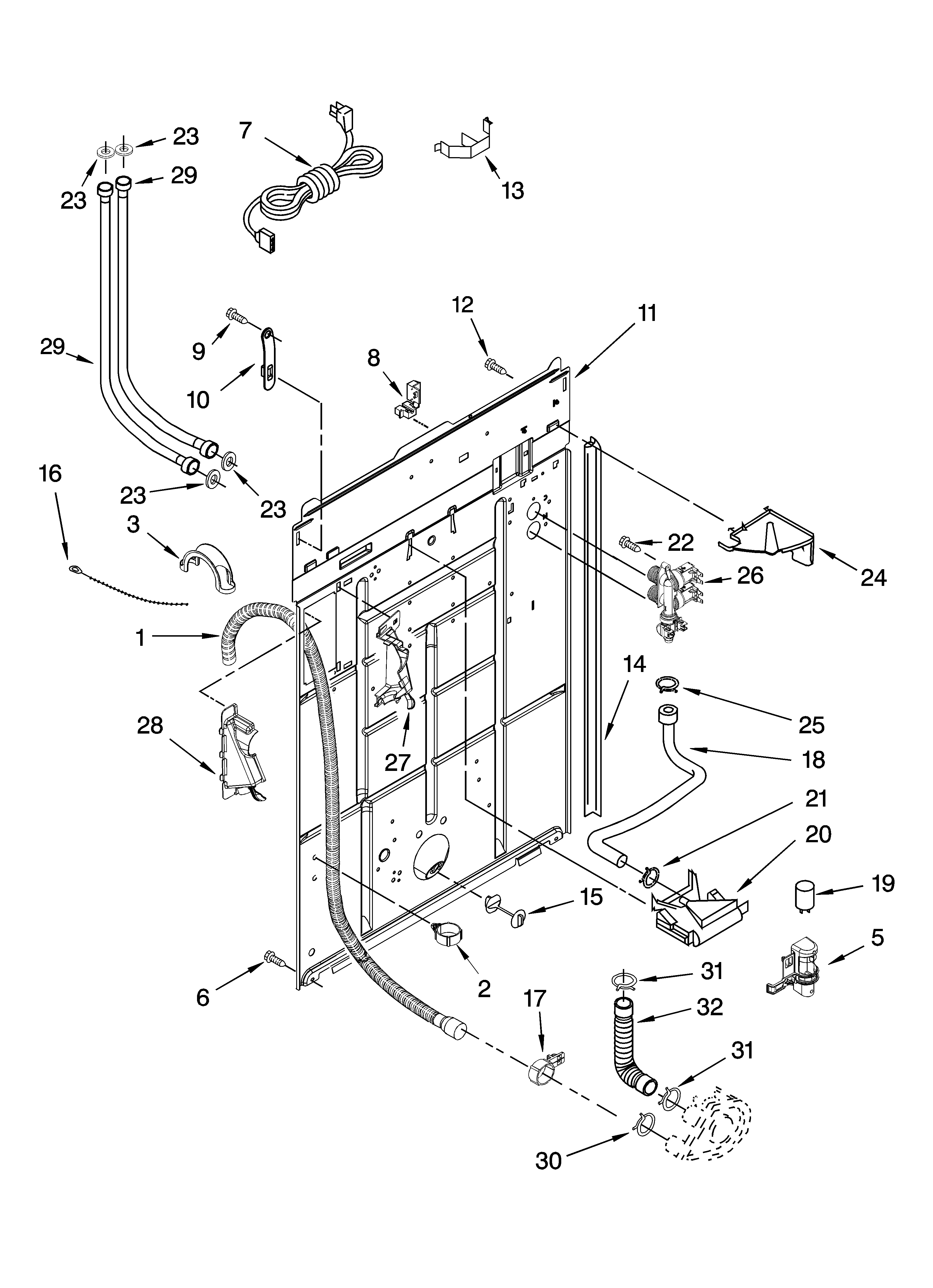

• No drain or slow drain: replace the washer drain pump WP3363394
• Won’t start or won’t spin with lid closed: replace the washer lid switch assembly WP8318084

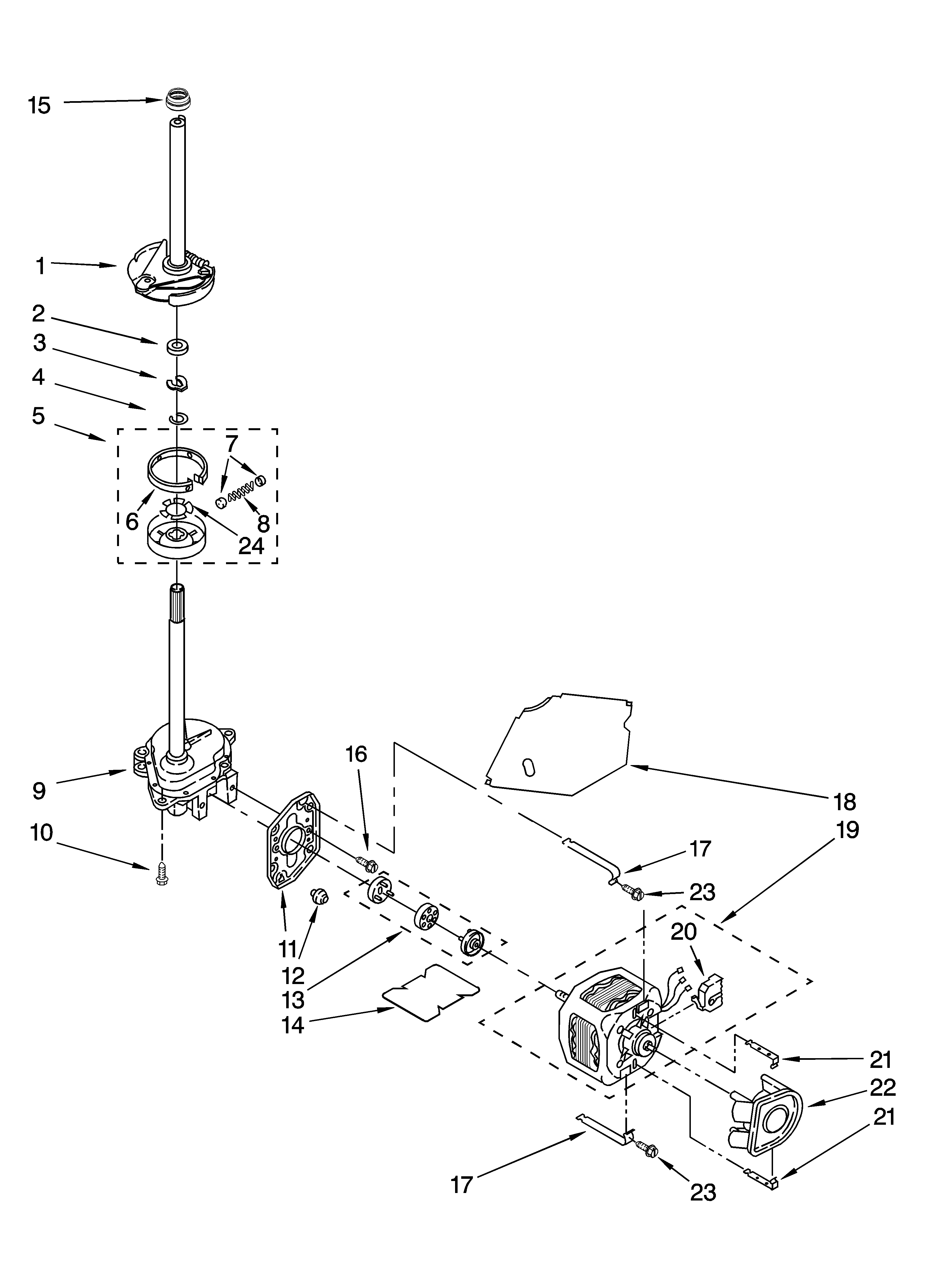

• Motor runs but washer won’t agitate/spin: replace the coupling 285753A

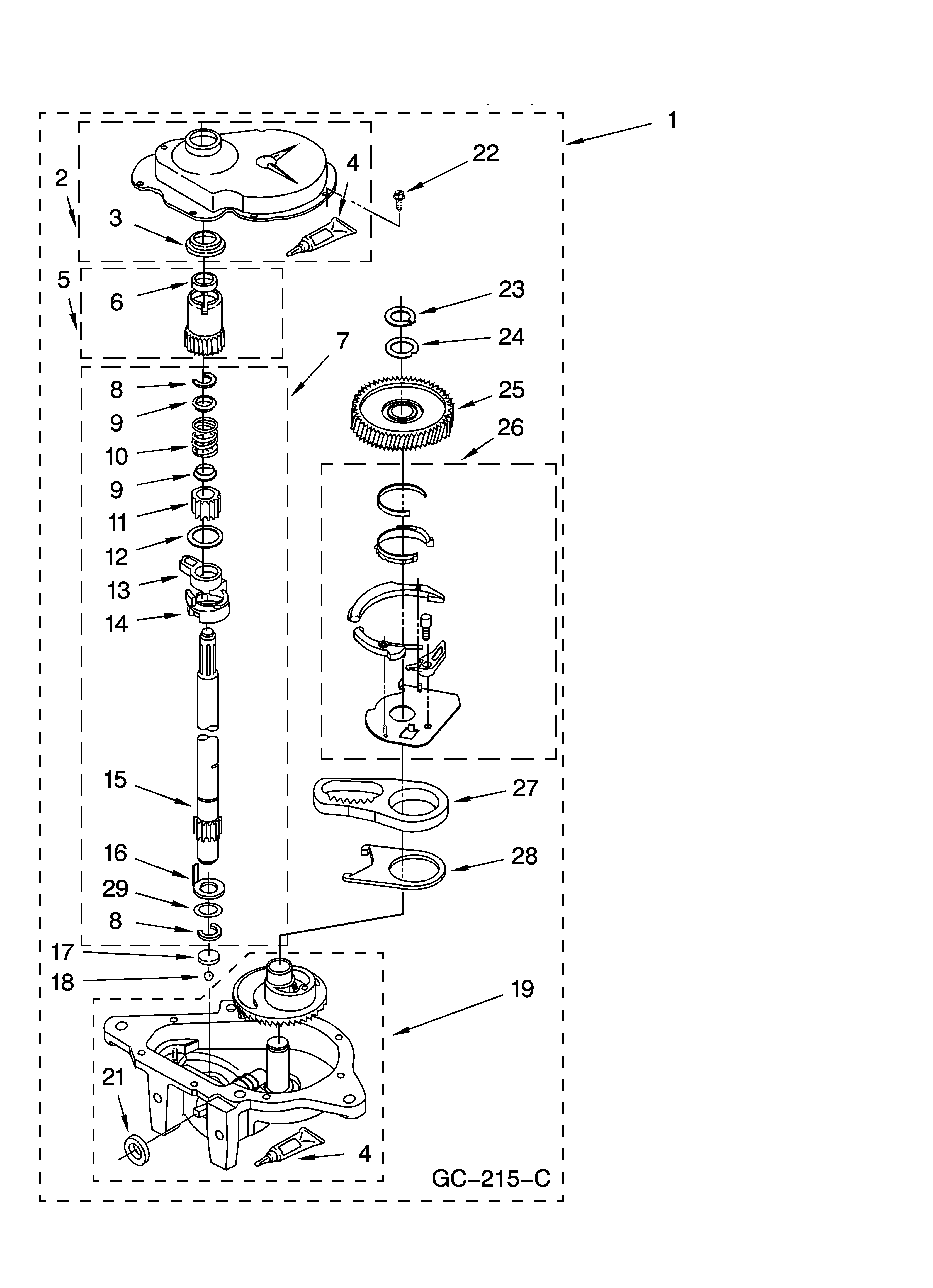

• Weak spin or burning smell during spin: inspect/replace the clutch 285785
• Agitator not moving clothes well: service the agitator dogs (see 11028532700 owner's manual for access steps and safety guidance)

Cost and outcome comparison

Situation	Typical outcome	Best choice
Single failed part (pump, lid switch, coupling)	Restores normal operation	Repair

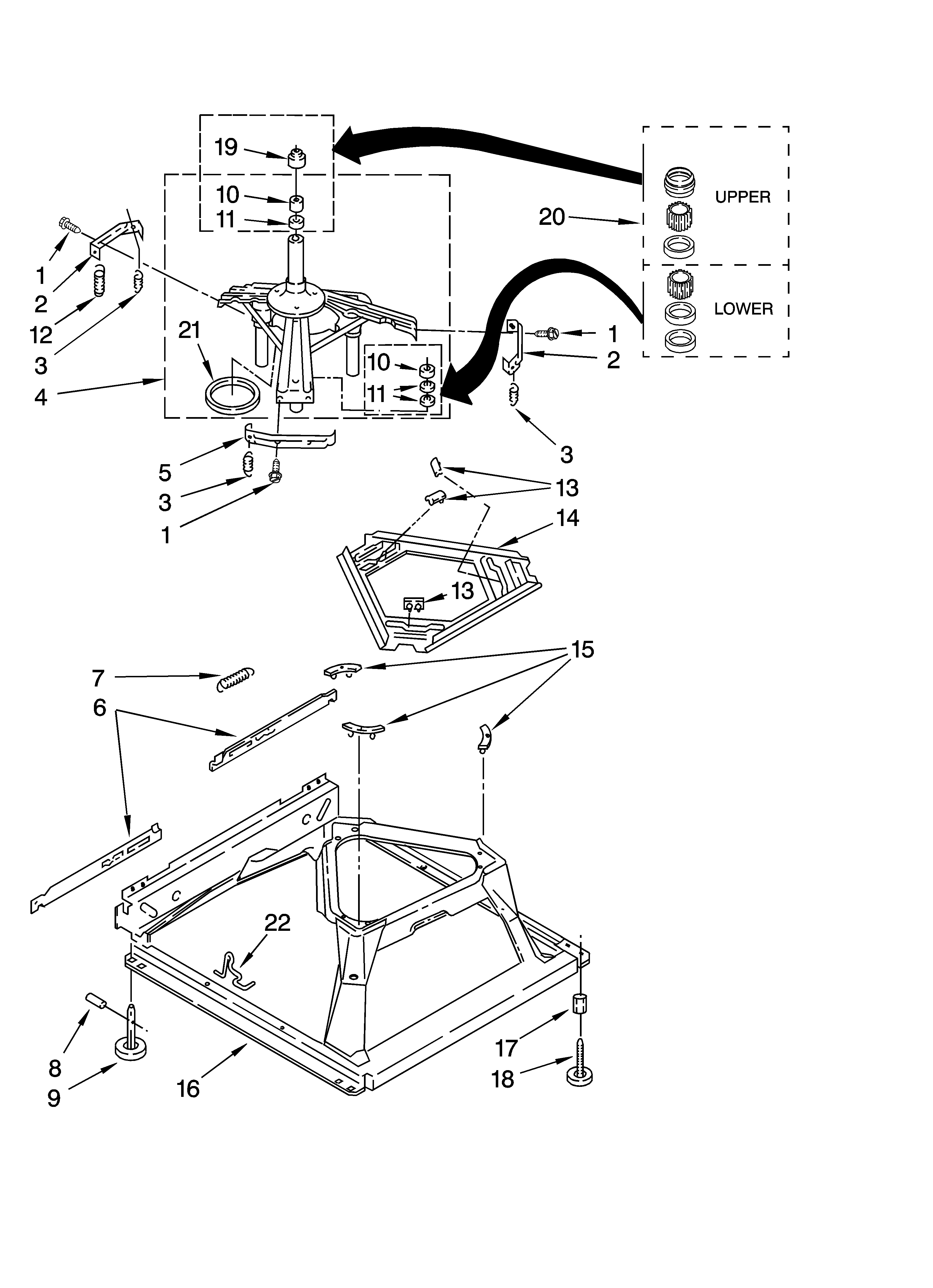

Repeated out-of-balance, banging, tub movement	May need suspension parts and leveling	Repair if cabinet/tub are solid
Loud roaring in spin, water under tub, multiple symptoms	Often points to major drive/tub work	Replace if total cost is high

Why it matters

A targeted repair prevents secondary damage. For example, continuing to run a washer that will not drain can strain the motor and drive system; fixing the drain issue early protects higher-cost components.

Safety and planning notes

• Unplug the washer before servicing; do not reach into the tub if it is moving.
• If the washer has been unused for 2 weeks or more, run hot water at a faucet for several minutes before washing (the manual notes hydrogen gas can accumulate in hot water systems).
• Use the 11028532700 installation guide to confirm proper leveling and drain standpipe setup; poor installation can mimic “bad parts.”

Last updated: February 2026

A Kenmore washer typically lasts 10 to 15 years with normal household use. For your Kenmore 11028532700 washer, consistent care (proper loading, correct installation, and avoiding freezing conditions) is what most directly determines whether you land closer to 10 years or closer to 15.

What affects lifespan the most

• Load size and balance: loads should move freely and not be overloaded.
• Installation quality: a level, sturdy floor reduces vibration and wear.
• Water conditions: correct water pressure helps the fill system work normally.
• Temperature exposure: operating at or below 32°F (0°C) can leave water inside that can damage components.
• Wear items: some parts are designed to wear over time (for example, couplers, pumps, switches).

Quick care checklist for longer life

Use these habits to reduce strain on the drive system, tub, and suspension:

• Keep loads balanced; mix items to prevent one-sided spinning.
• Avoid chronic overloading; it accelerates clutch and drive wear.
• Use the right amount of detergent and add bleach correctly (never directly onto fabrics).
• Confirm your setup meets the requirements in the 11028532700 installation guide.
• Follow cleaning and winterizing guidance in the 11028532700 owner's manual.

Common “wear-out” parts and what they impact

Symptom	Often involved system	Example part for this model
Won’t drain or drains slowly	Drain system	Washer drain pump (WP3363394)
Won’t start or won’t spin with lid closed	Lid safety circuit	Washer lid switch assembly (WP8318084)
Agitation issues, weak wash action	Agitator drive	Agitator dog (80040)

Why it matters

Knowing the 10 to 15 year lifespan range helps you decide whether to invest in a repair (like a drain pump or lid switch) versus planning for replacement, especially if multiple symptoms show up at once.

Last updated: February 2026
