Model # 79073432314 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 79073432314 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |

Range Oven Igniter 316489408
#19

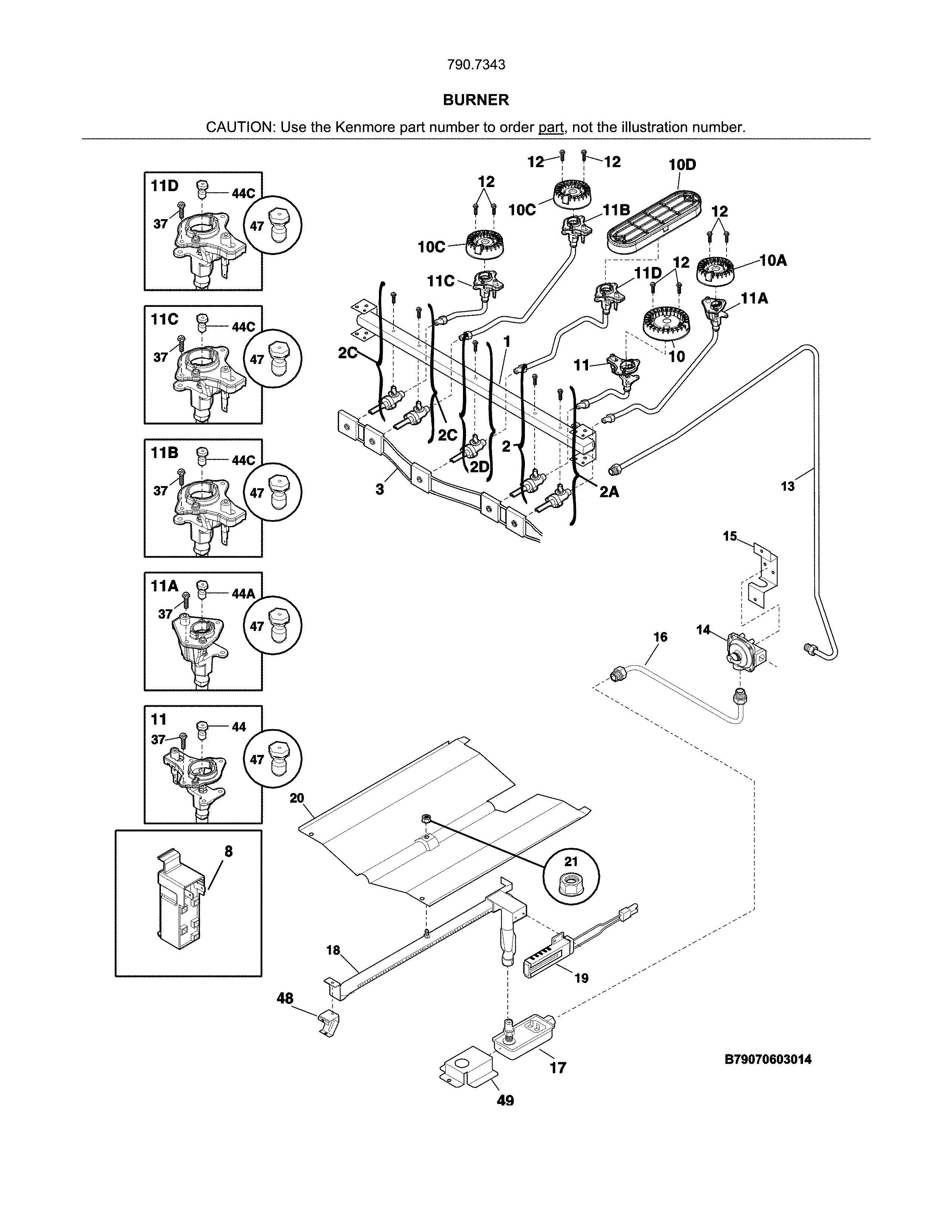

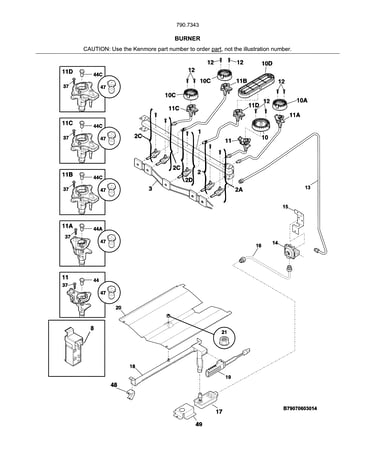

Burner diagram

Range oven igniter

Part #316489408

Replaced by #5304509706

?
Manufacturer substitution
This part replaces 316489408. Substitute parts can look different from the original.
BEST SELLER
$126.16
10% OFF MSRP : $140.00
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

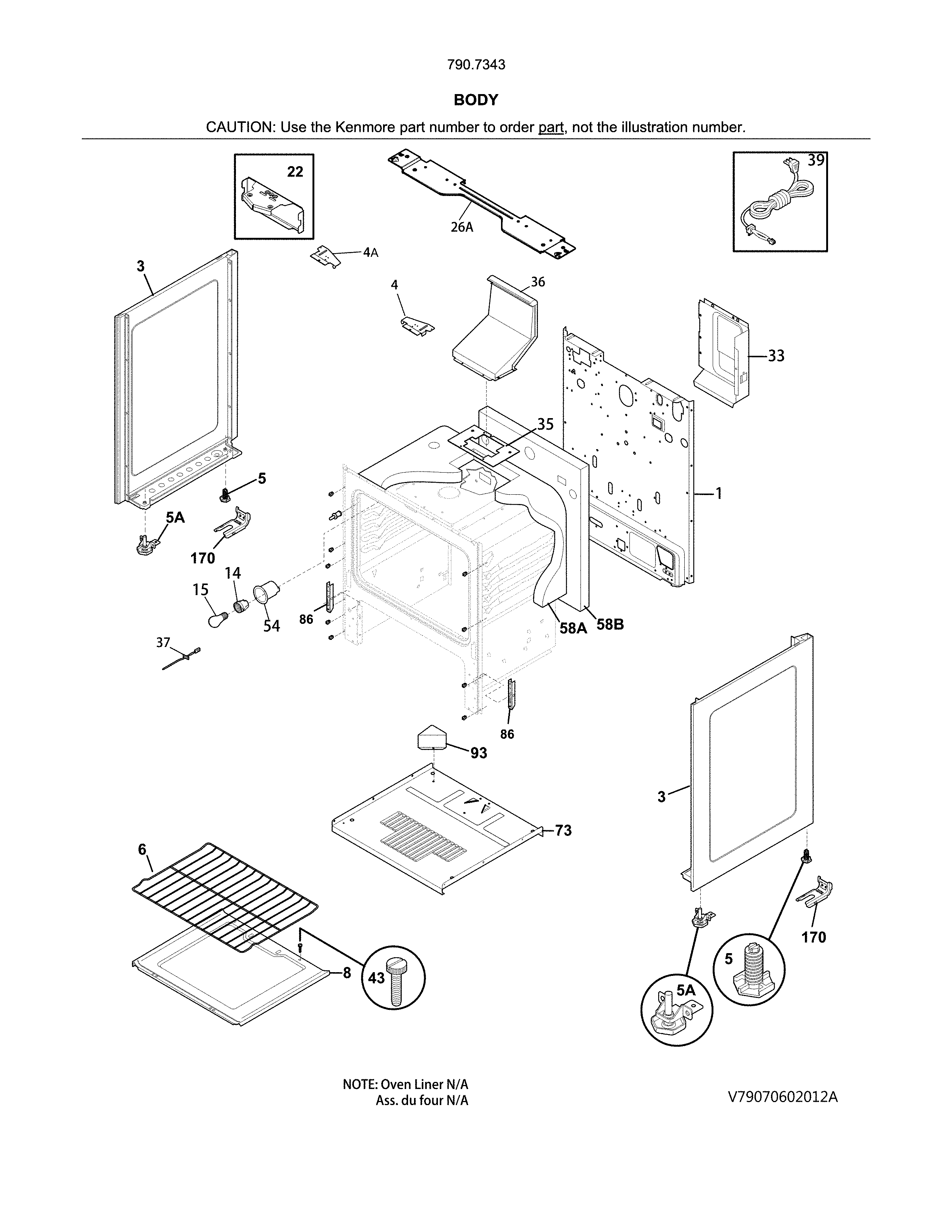

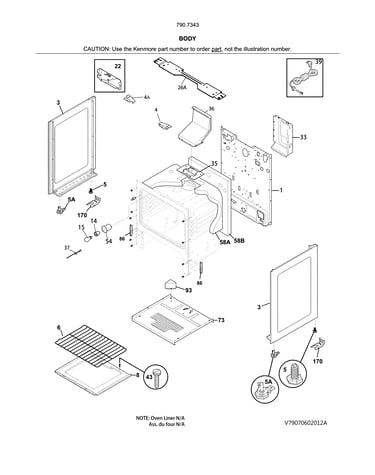

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$16.73
11% OFF Phone Price : $18.73
In Stock
Range Oven Temperature Sensor 316233903
#37

Body diagram

Range oven temperature sensor

Part #316233903

Replaced by #316217008

?
Manufacturer substitution
This part replaces 316233903. Substitute parts can look different from the original.
BEST SELLER
$27.47
15% OFF Phone Price : $32.47
In Stock
Range Oven Door Inner Glass (replaces 316117502, 316117503) 5304503232
#8

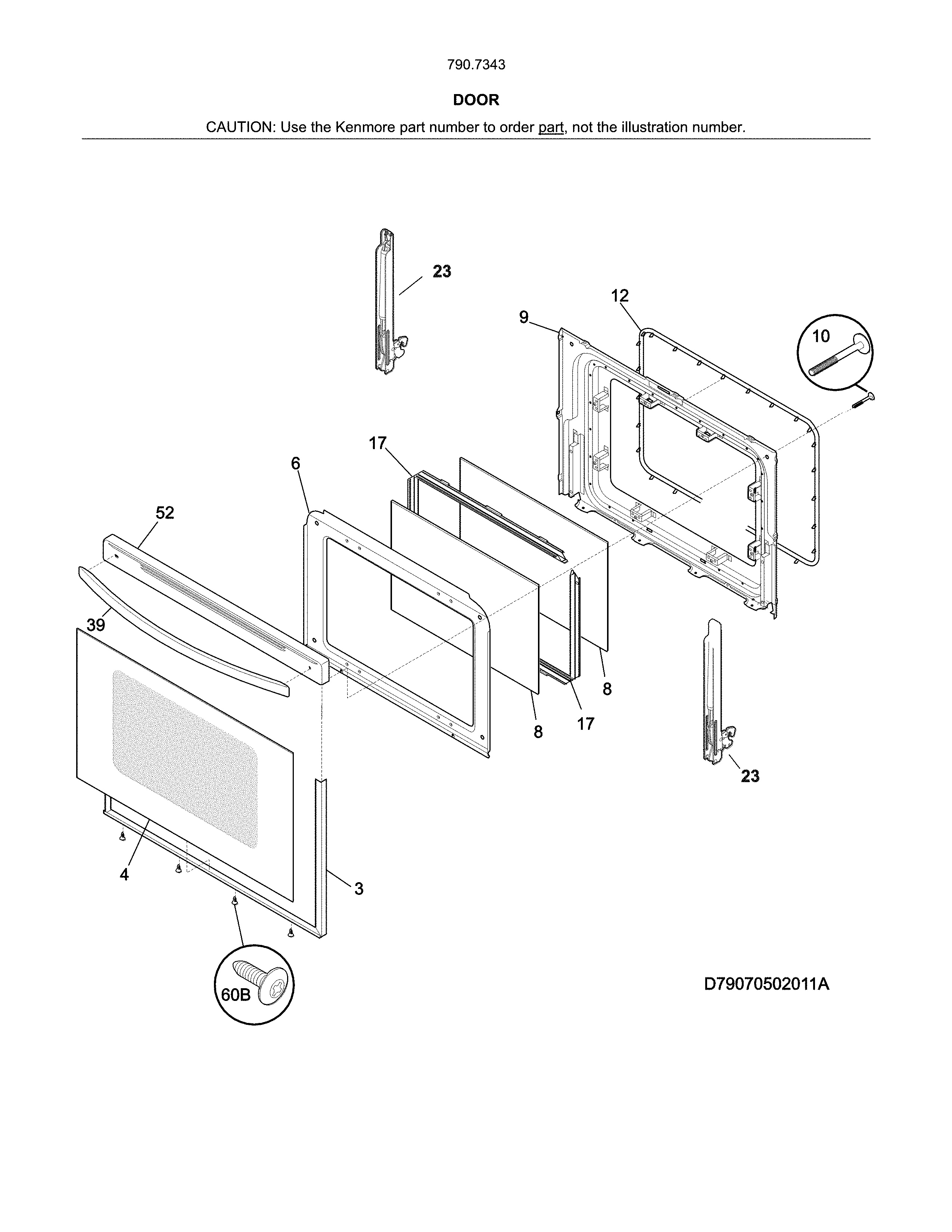

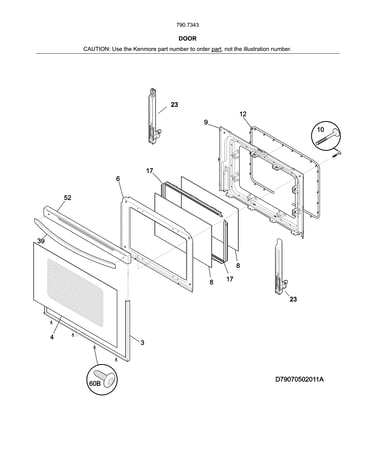

Door diagram

Range oven door inner glass (replaces 316117502, 316117503)

Part #5304503232

BEST SELLER
$79.79
6% OFF Phone Price : $84.79
In Stock
Range Oven Control Board 316455430
#20

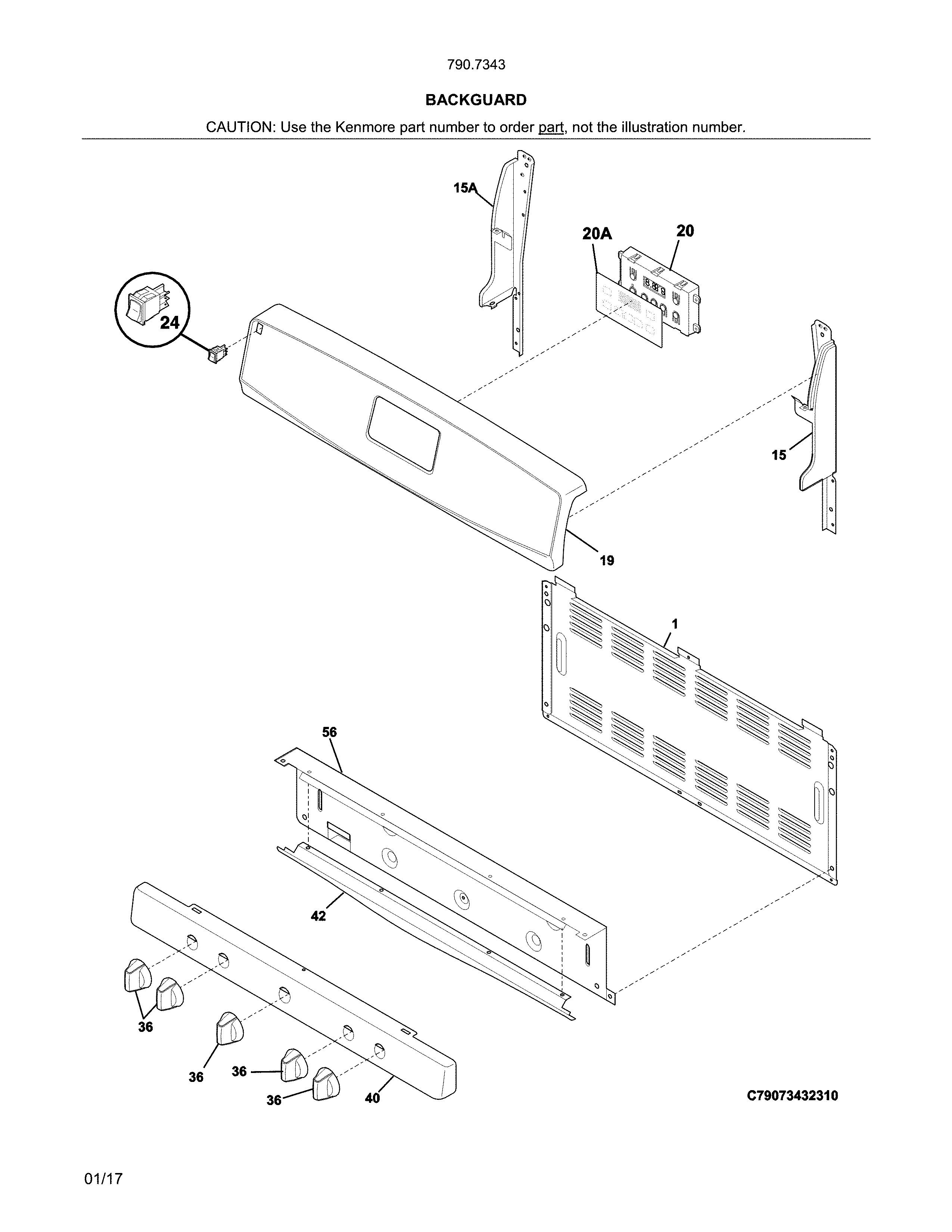

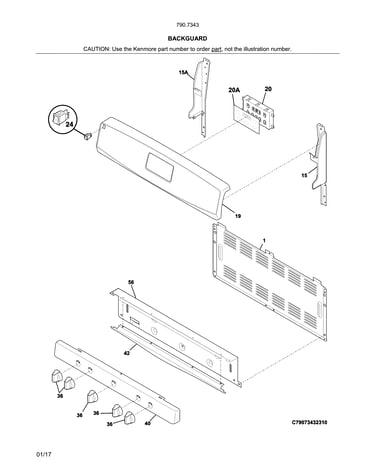

Backguard diagram

Range oven control board

Part #316455430

BEST SELLER
$207.41
5% OFF Phone Price : $217.41
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10C

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$38.74
11% OFF Phone Price : $43.74
In Stock
Range Oven Control Overlay 316354402
#20A

Backguard diagram

Range oven control overlay

Part #316354402

BEST SELLER
$32.40
13% OFF Phone Price : $37.40
In Stock
Range Surface Burner Cap, 5,000-btu (matte Black) 316261704
#22A

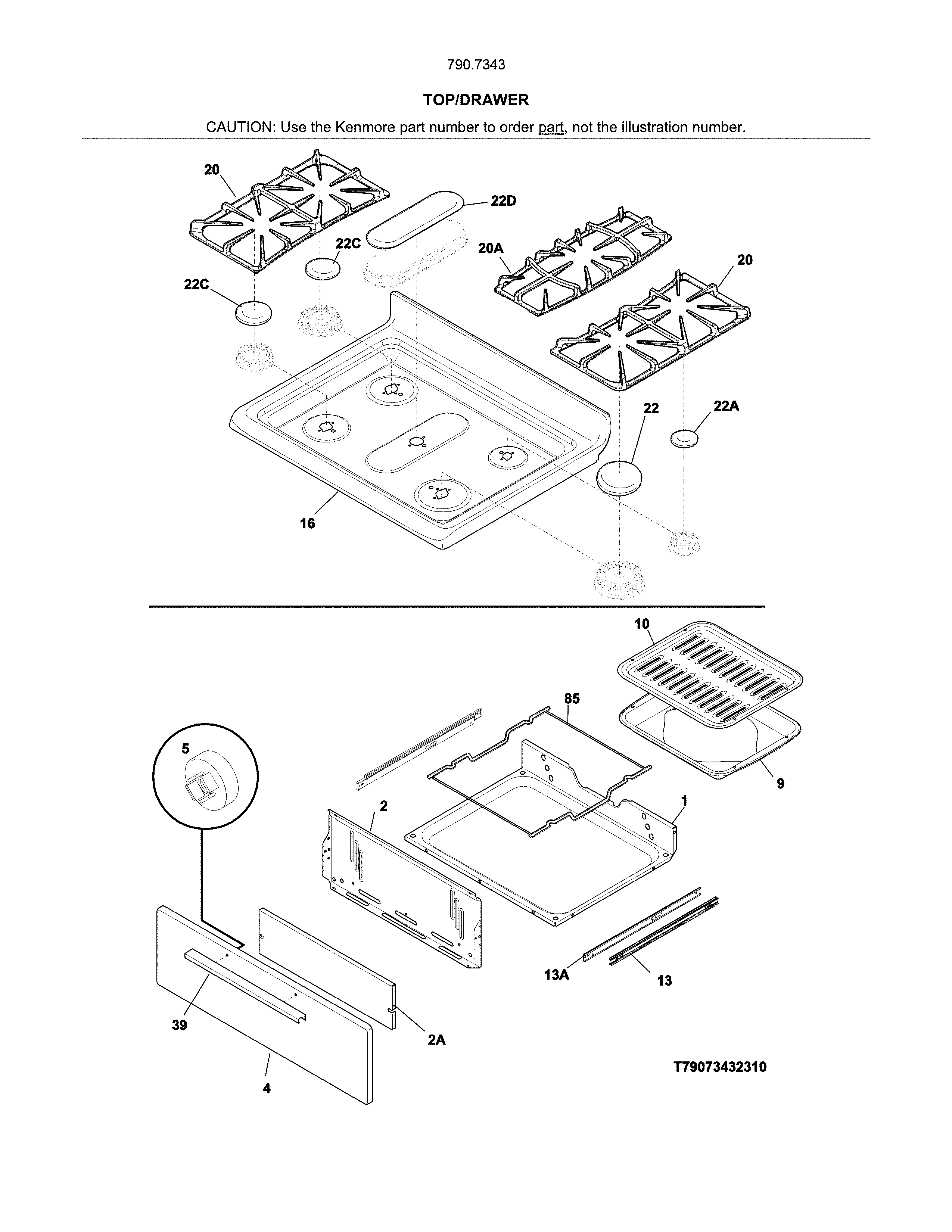

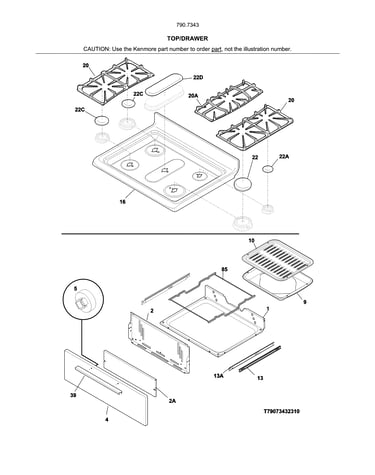

Top/drawer diagram

Range surface burner cap, 5,000-btu (matte black)

Part #316261704

Replaced by #5304508441

?
Manufacturer substitution
This part replaces 316261704. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.43
16% OFF Phone Price : $30.43
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 316449500) 316536610
#11A

Burner diagram

Range surface burner igniter and orifice holder (replaces 316449500)

Part #316536610

BEST SELLER
$56.52
28% OFF MSRP : $79.00
In Stock
Range Spark Module (replaces 318079001) 808608804
#8

Burner diagram

Range spark module (replaces 318079001)

Part #808608804

BEST SELLER
$64.77
7% OFF Phone Price : $69.77
In Stock
