On the GE GYE22HSKLSS bottom-mount refrigerator, the bottom grille (base grille or toe grille) typically pulls off after you release a few retaining screws or clips. Once it is free, pull straight out from the cabinet to avoid cracking the grille tabs.

Quick steps to remove the bottom grille

• Unplug the refrigerator (or switch off power at the breaker) for safety.
• Open both fresh food doors for better access.
• Look along the top edge of the grille for screws (often Phillips) or visible clip points.
• Remove any screws, then pull the grille straight toward you with both hands.
• If it feels stuck, pull from one end, then the other; do not twist hard.
• Set the grille aside where it will not flex or get stepped on.

What you should see and what it means

What you find	What to do	Why it matters
Phillips screws along the grille	Remove screws first, then pull grille forward	Prevents breaking mounting tabs
No screws, only snap-in tabs	Pull firmly but evenly from both ends	Tabs can crack if you pry one spot too hard
Grille won’t budge	Check for hidden screws near the ends or behind end caps	Avoids bending the grille or scratching the finish

Reinstall tips (so it stays secure)

• Line up the grille tabs with the slots in the cabinet.
• Press evenly until it seats flush.
• Reinstall screws snug (do not overtighten).

Why it matters

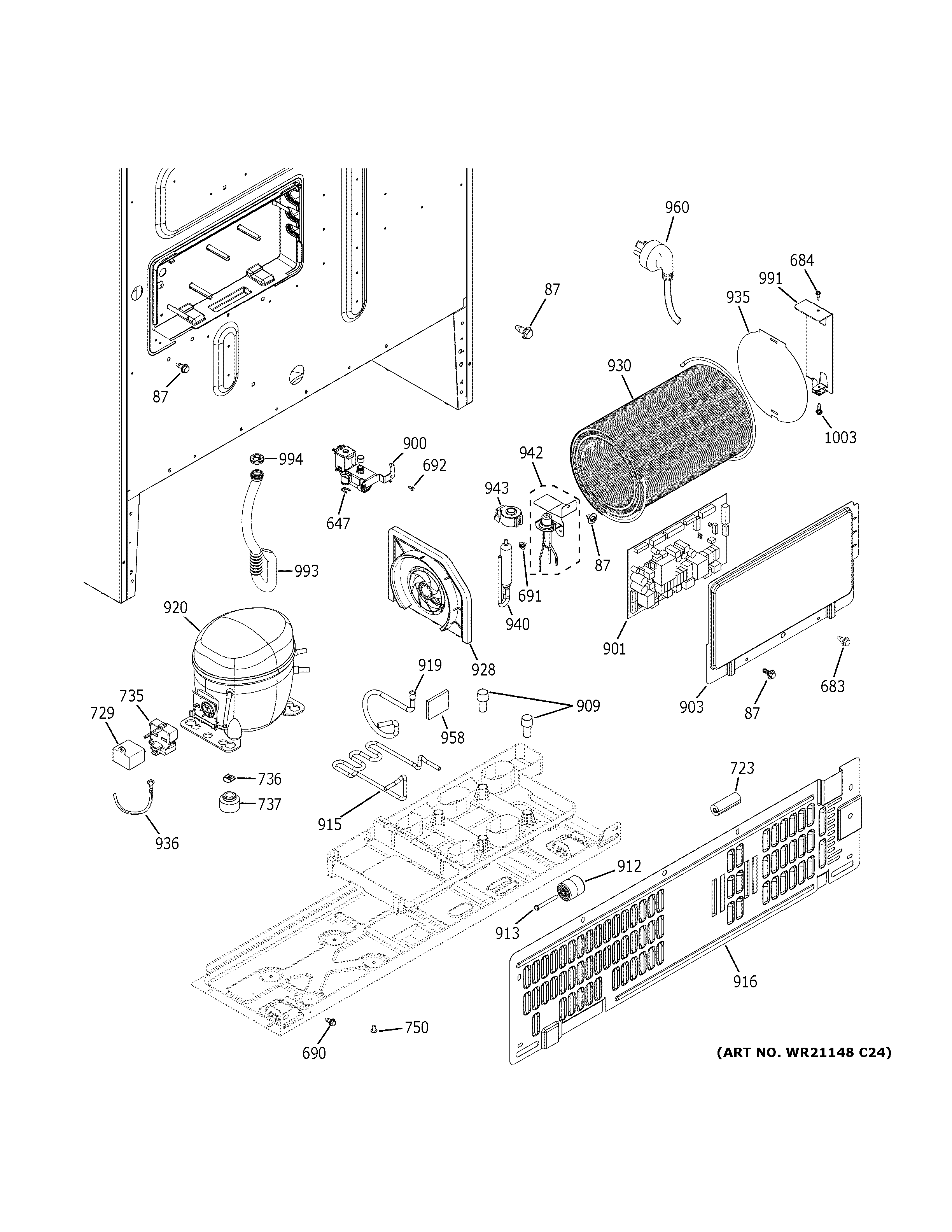

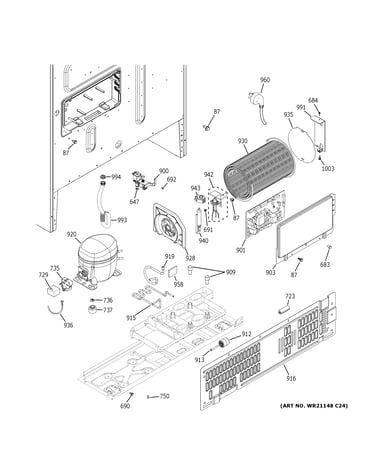

We remove the bottom grille to access cleaning areas and service points near the floor (like the condenser area on many refrigerators). Removing it the right way prevents broken tabs, air leaks, and rattles.

For more GE refrigerator DIY help, use our GE refrigerator error codes guide when the display shows a fault or the unit is not cooling normally.

Last updated: February 2026

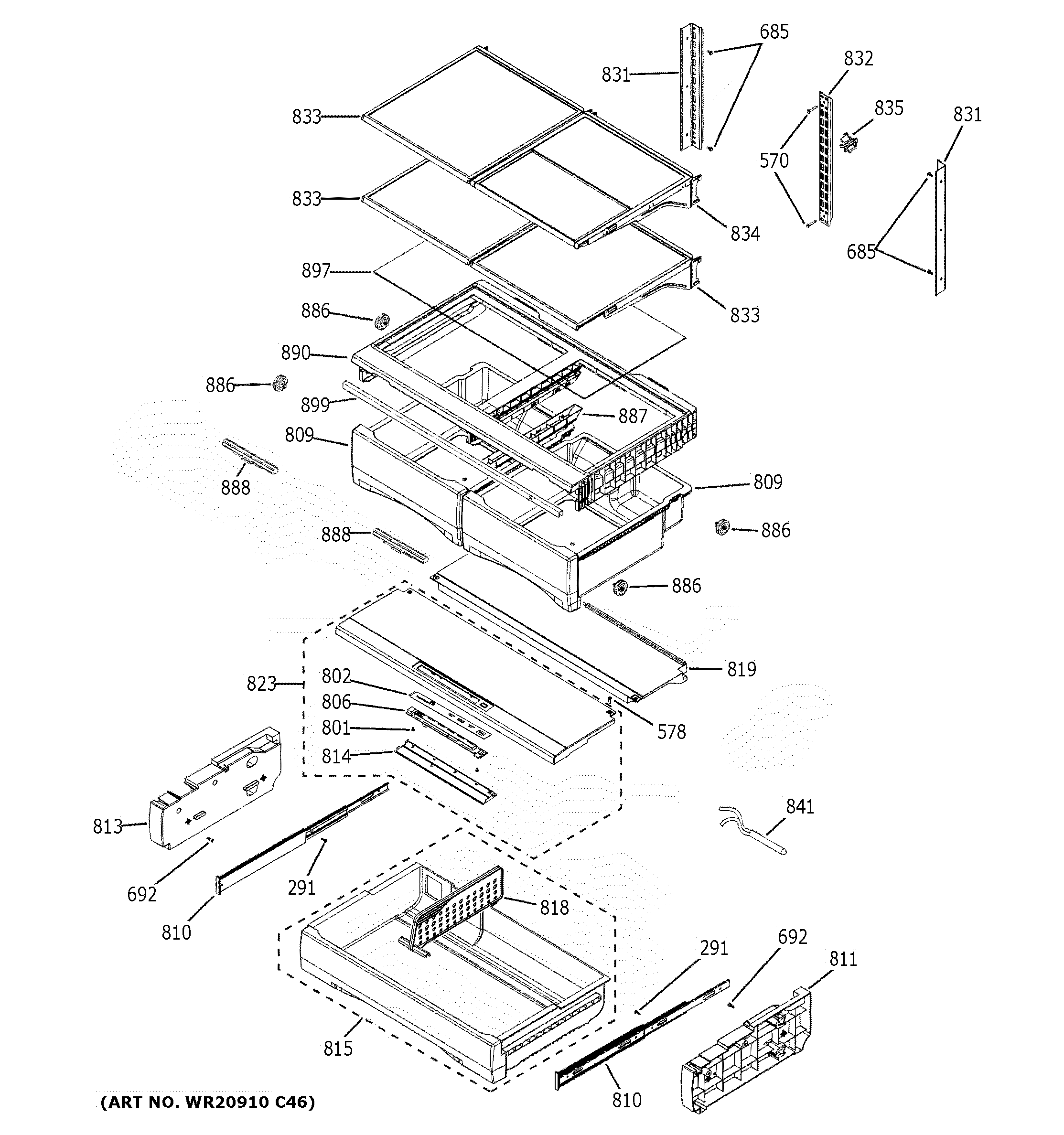

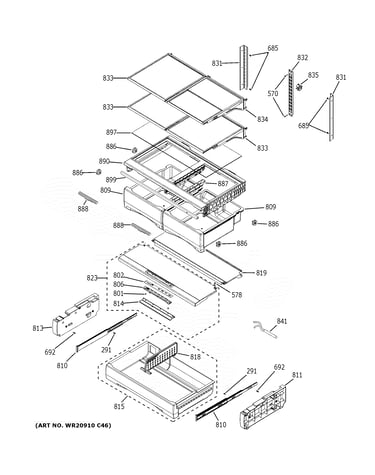

On a GE GYE22HSKLSS bottom-mount refrigerator, the bottom shelf typically lifts slightly to clear the rear supports, then slides out. Remove food first and handle the glass carefully because it can shift and become slippery.

Steps to remove the bottom shelf (common GE setup)

• Unplug the refrigerator or turn off cooling if you will be working with wet hands.
• Remove all items from the shelf and the shelf area below it.
• If the shelf has a front trim or retainer, lift the front edge slightly to free it.
• Lift the shelf up at the front to clear the support tabs.
• Slide the shelf straight out; keep it level so the glass does not pop out of the frame.
• Set it on a towel on a flat surface before cleaning.

If the shelf is a glass insert in a frame

Many GE shelves use a glass panel that sits in a plastic frame.

What you see	What to do	Why
Glass panel seems “locked” in	Look for a small gap at an edge; lift the glass up slightly, then angle it out	The glass often sits in a lip that must be cleared
Shelf binds when sliding	Lift the front higher, then pull straight out	Rear hooks can catch on the liner
Glass shifts in the frame	Keep the shelf level and use two hands	Prevents chipping the glass edge

Cleaning and reinstall tips

• Wash glass with mild dish soap and warm water; dry fully before reinstalling.
• Reinstall by sliding the shelf in on the rails, then lowering the front onto the supports.
• Confirm the shelf is seated evenly left-to-right so it does not rock.

Why it matters

A shelf that is not lifted to clear the rear supports can crack the glass or damage the shelf rails. Removing it the right way also makes it easier to clean spills and prevent odors.

Related help: how to remove a GE french door refrigerator flipper mullion

Last updated: February 2026

The most common issue we see on GE refrigerators like model GYE22HSKLSS is cooling trouble (fresh food or freezer not staying cold). Right behind that are ice maker and dispenser problems, unusual noises, water leaks, and doors not sealing or closing correctly.

Most common GE refrigerator problems (and what they usually point to)

• Not cooling or weak cooling: dirty condenser coils, evaporator fan issue, defrost problem, airflow blocked by frost or overpacked shelves

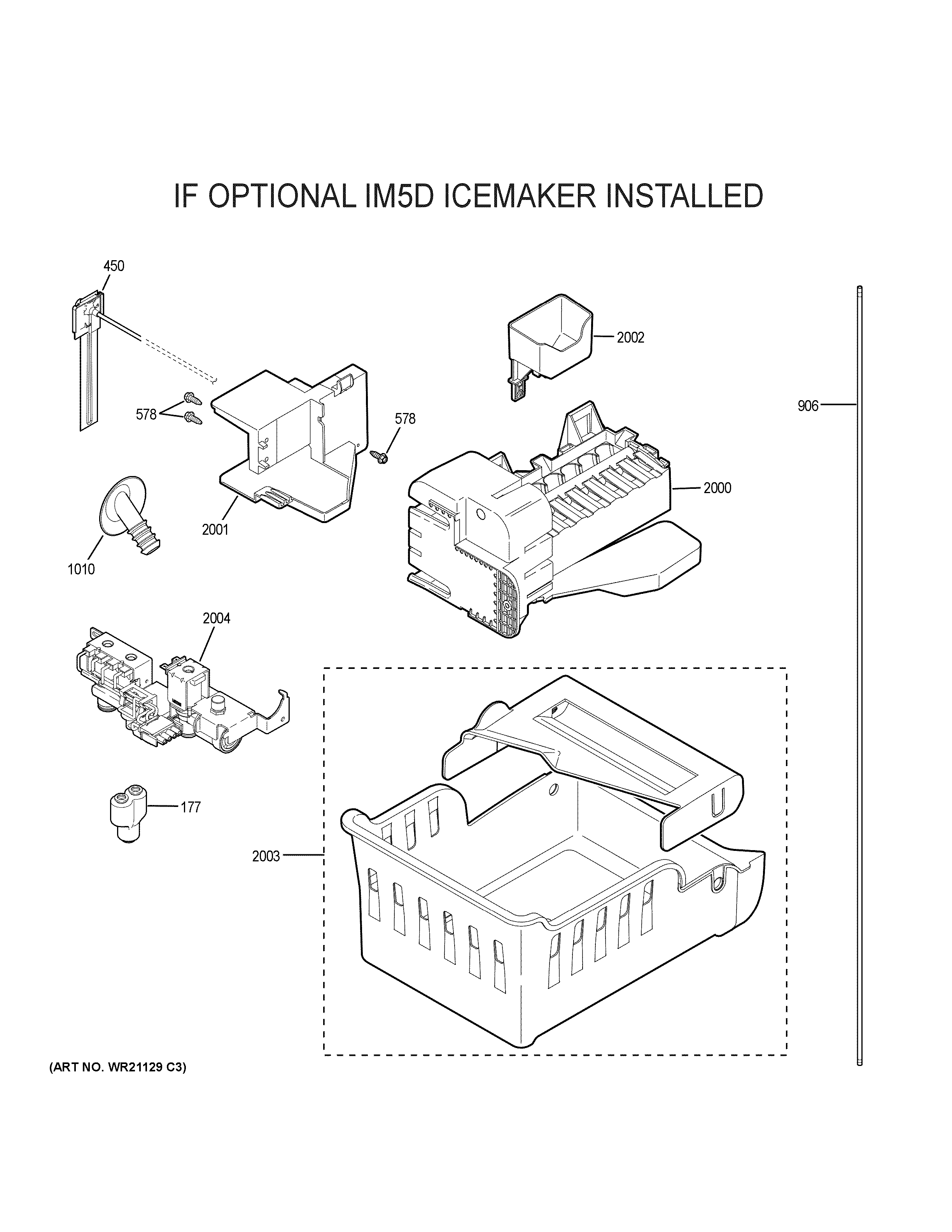

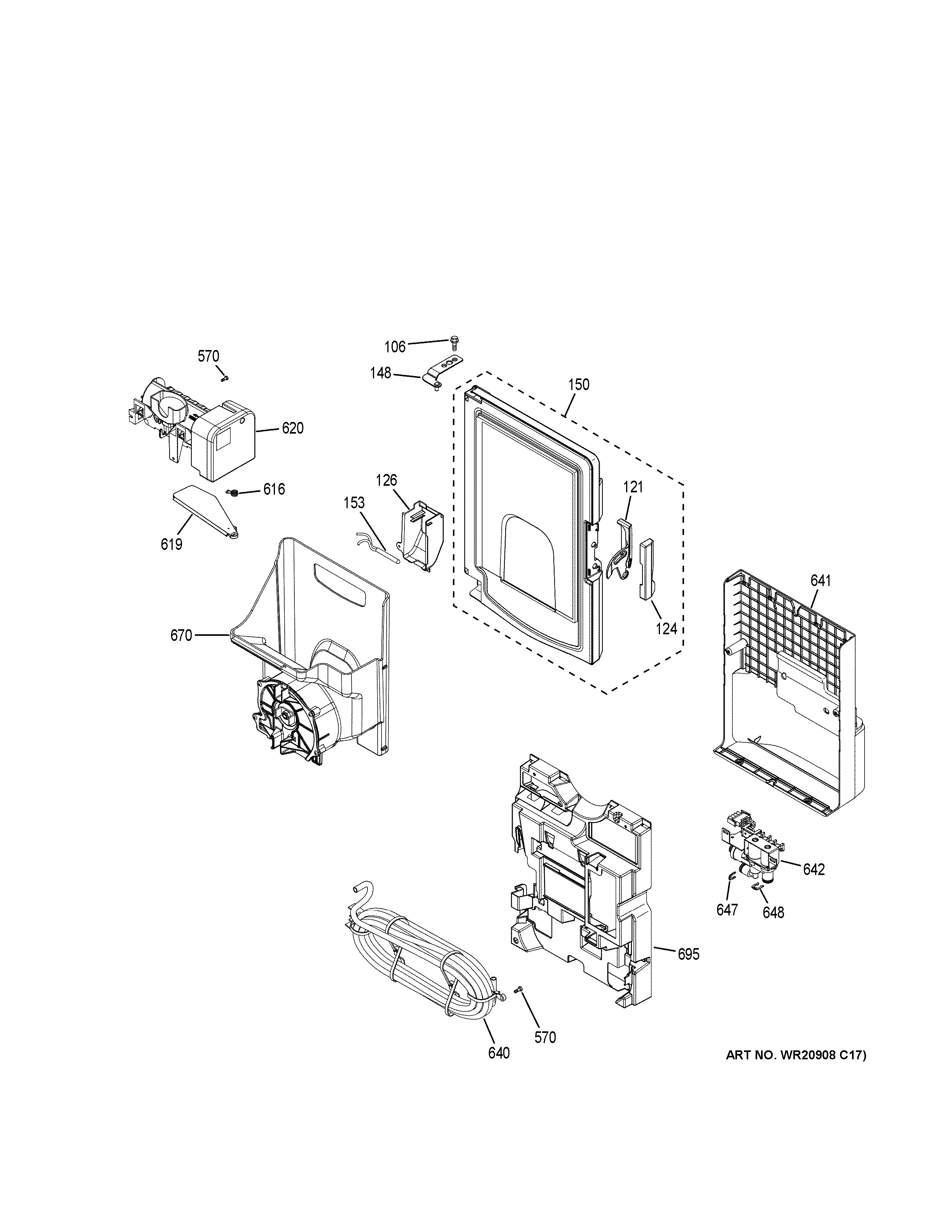

• Ice maker not making ice: water supply turned off, clogged filter, frozen fill tube, inlet valve issue

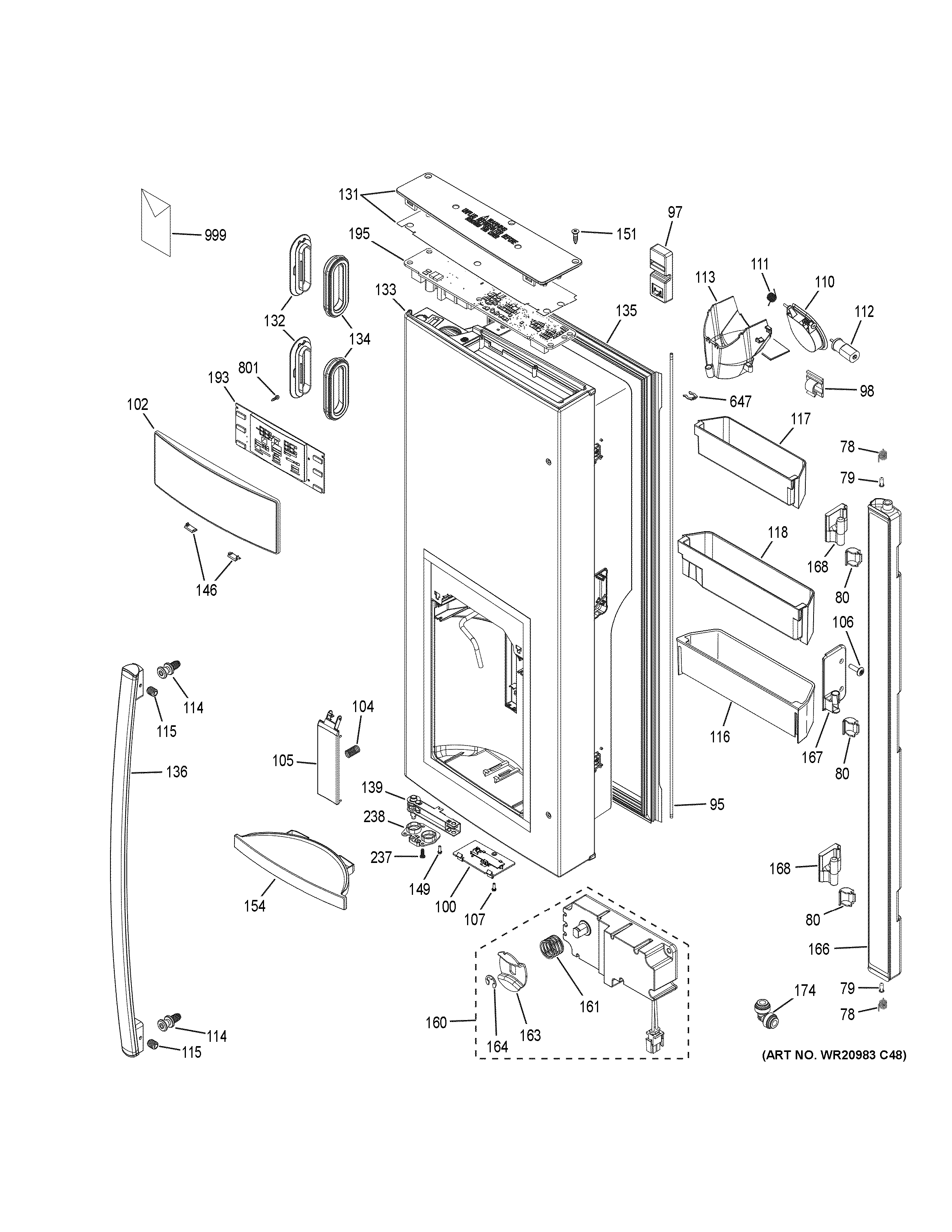

• Dispenser not working: control lock on, door switch problem, frozen water line, dispenser mechanism issue
• Strange noises: evaporator fan hitting ice, condenser fan noise, normal compressor cycling sounds
• Leaking water: clogged defrost drain, cracked water line, loose filter housing, ice maker fill leak

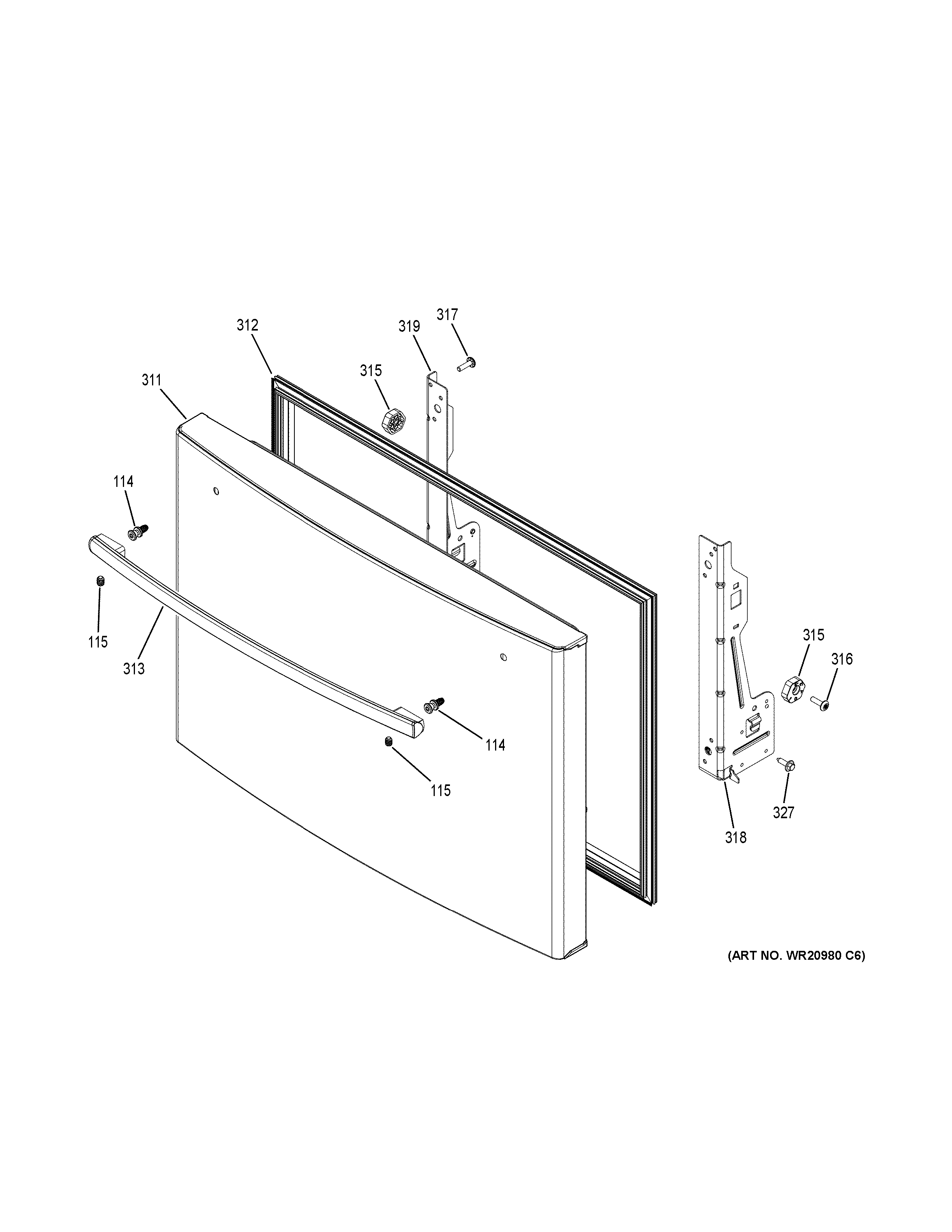

• Door not closing/sealing: gasket not sealing, door alignment, bins/shelves preventing closure

Quick checks we recommend first (fast, no tools)

1. Confirm the temperature settings are reasonable (typical targets: 37°F fresh food, 0°F freezer).
2. Make sure vents inside the refrigerator are not blocked by food packages.
3. Listen for the evaporator fan (usually a steady fan sound when the compressor is running).
4. If you have a water dispenser, replace the water filter on schedule and purge air after changes.

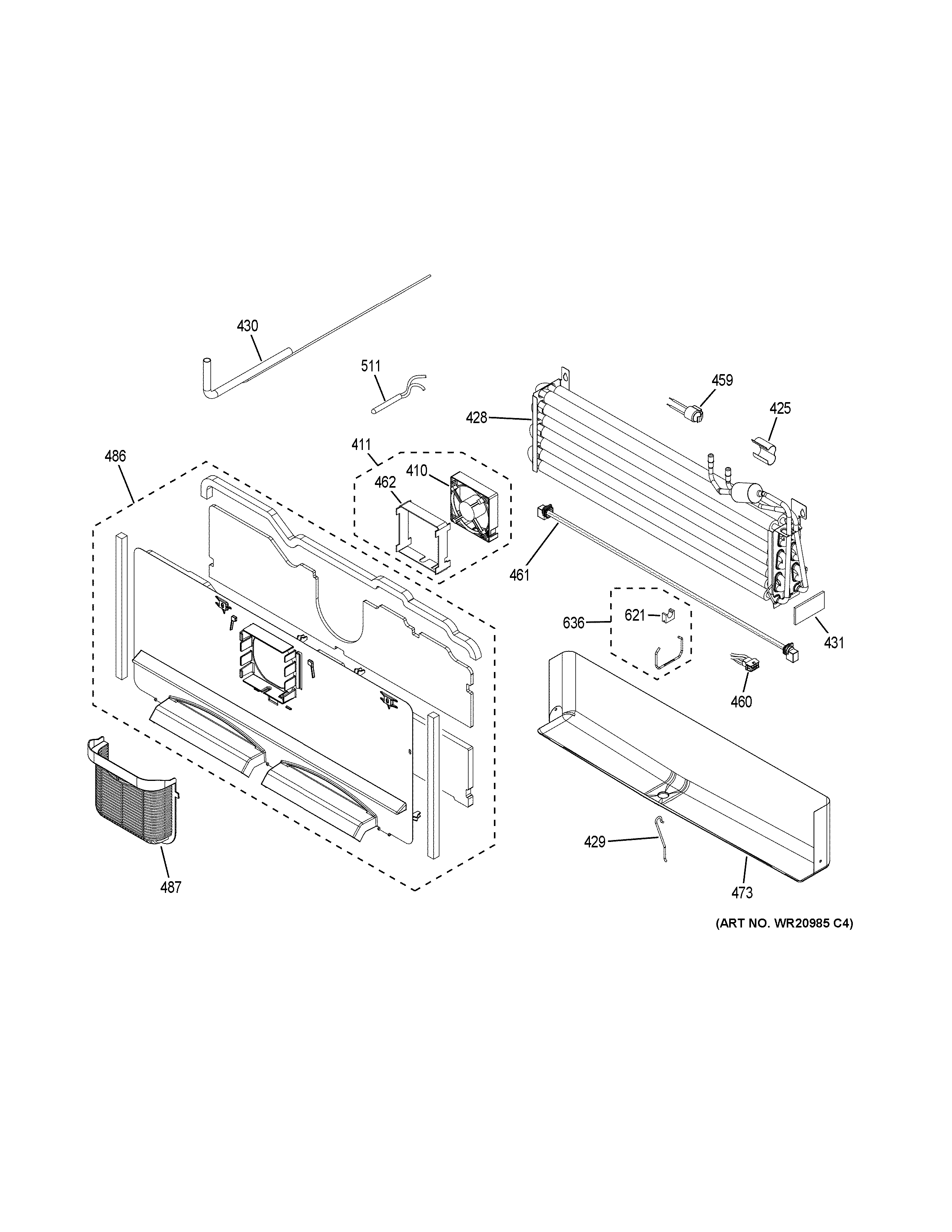

5. Check for ice buildup on the back wall inside the freezer (often tied to defrost or airflow issues).

Symptom-to-likely-cause guide

Symptom	Most likely area to check	What you can do now

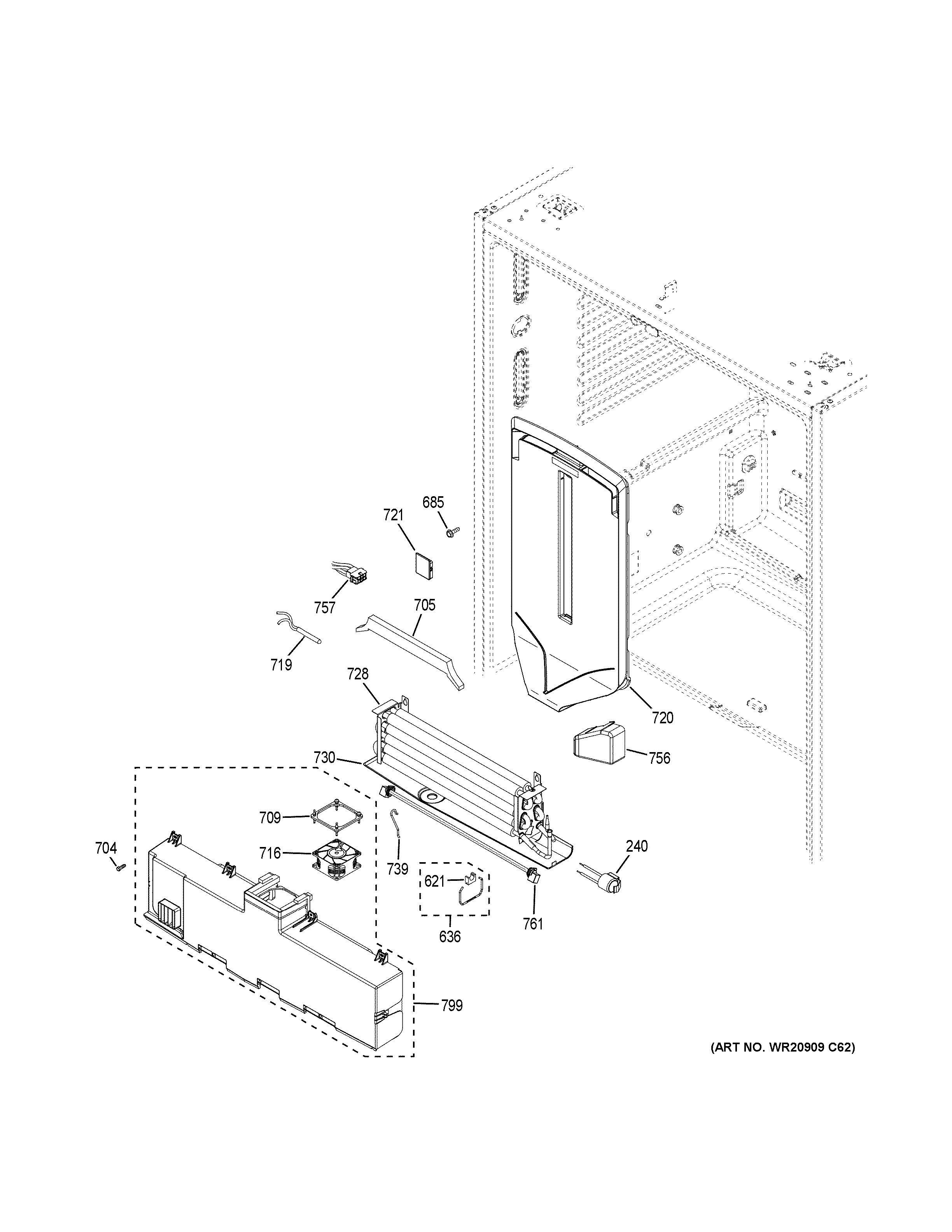

Warm fridge, freezer OK	Airflow from freezer to fridge	Clear vents; check for frost buildup
Warm freezer and fridge	Sealed system, compressor, condenser airflow	Clean coils; ensure fans run
No ice, water works	Ice maker or fill tube	Check for frozen fill tube; verify freezer temp
Water under crisper	Defrost drain	Clear drain path; look for ice in drain trough

Why it matters

Cooling and airflow problems can quickly lead to food spoilage, and water leaks can damage flooring. Catching the early signs (weak cooling, frost buildup, slow ice production) helps you narrow the repair to the right system before replacing parts.
