KitchenAid
Bottom-Mount Refrigerator

Model #KFIS29BBMS00 Official KitchenAid refrigerator

Here are the diagrams and repair parts for KitchenAid KFIS29BBMS00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes
Model Diagram and Schematics
Search within this model
?

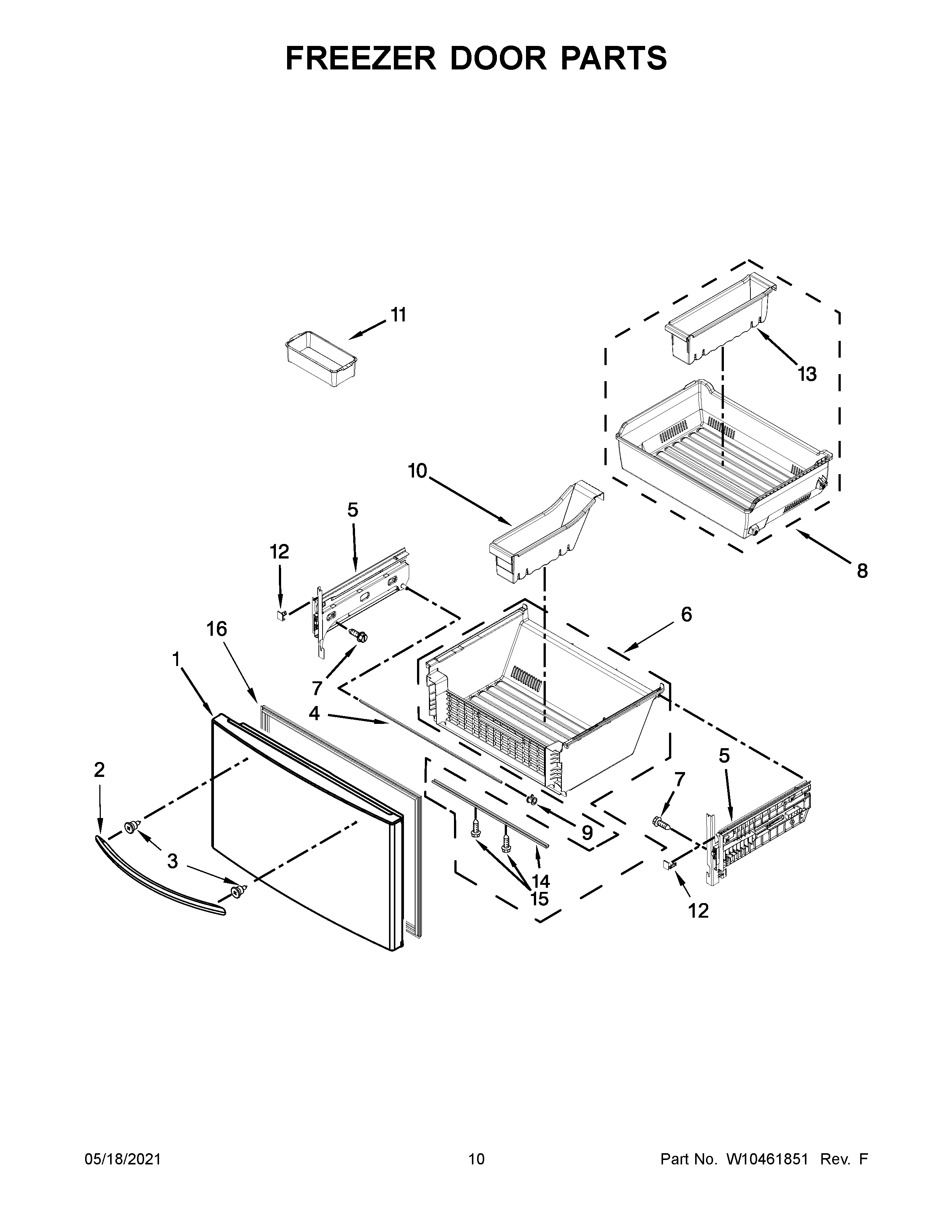

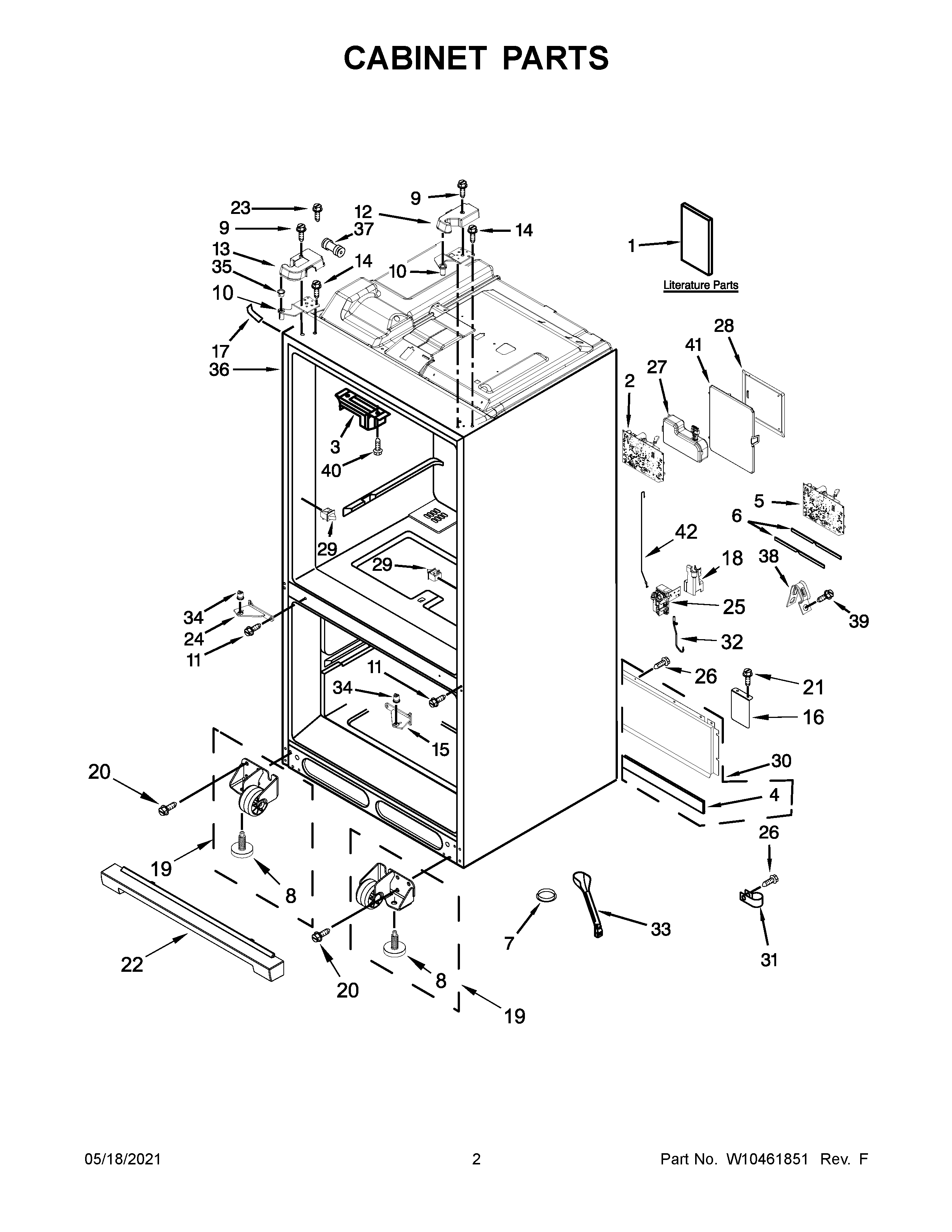

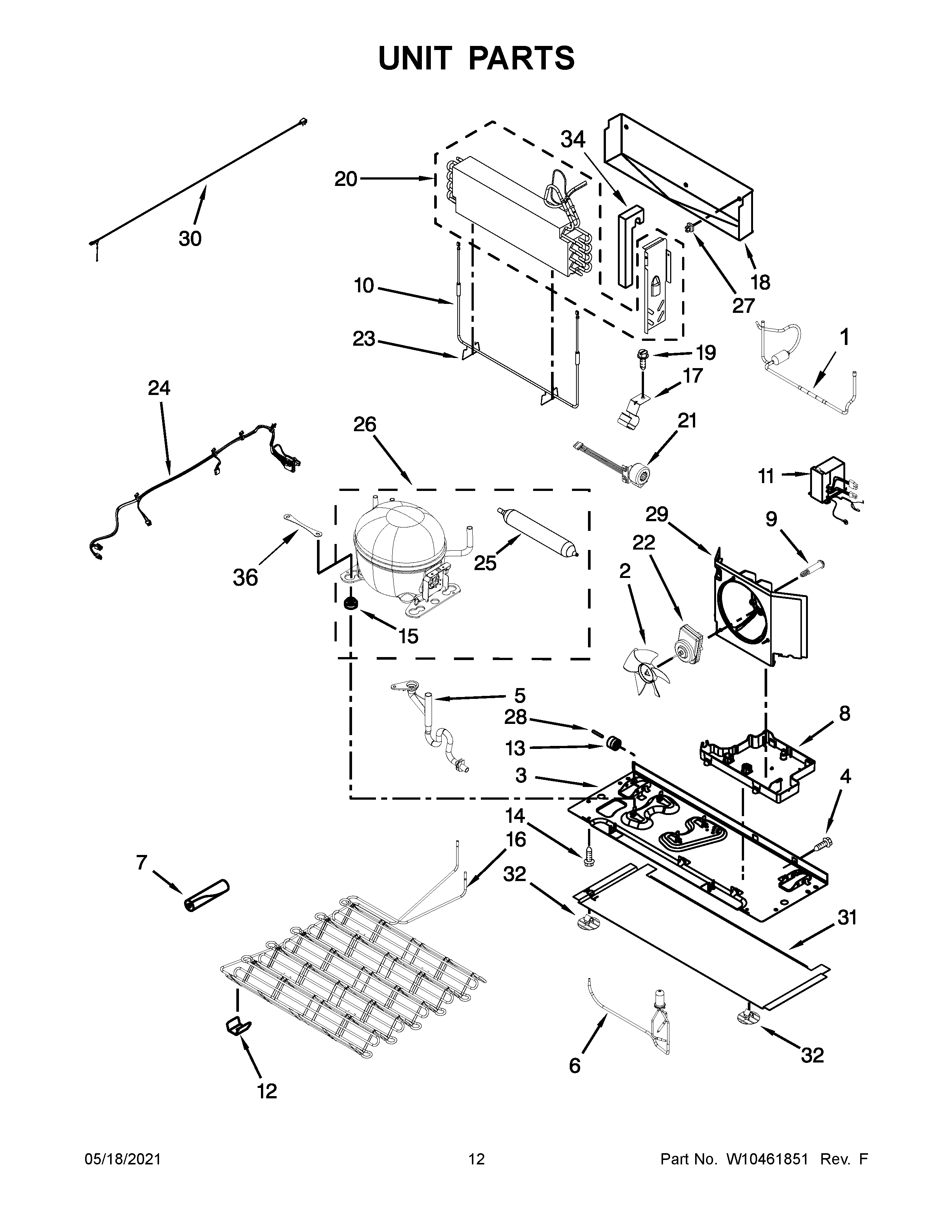

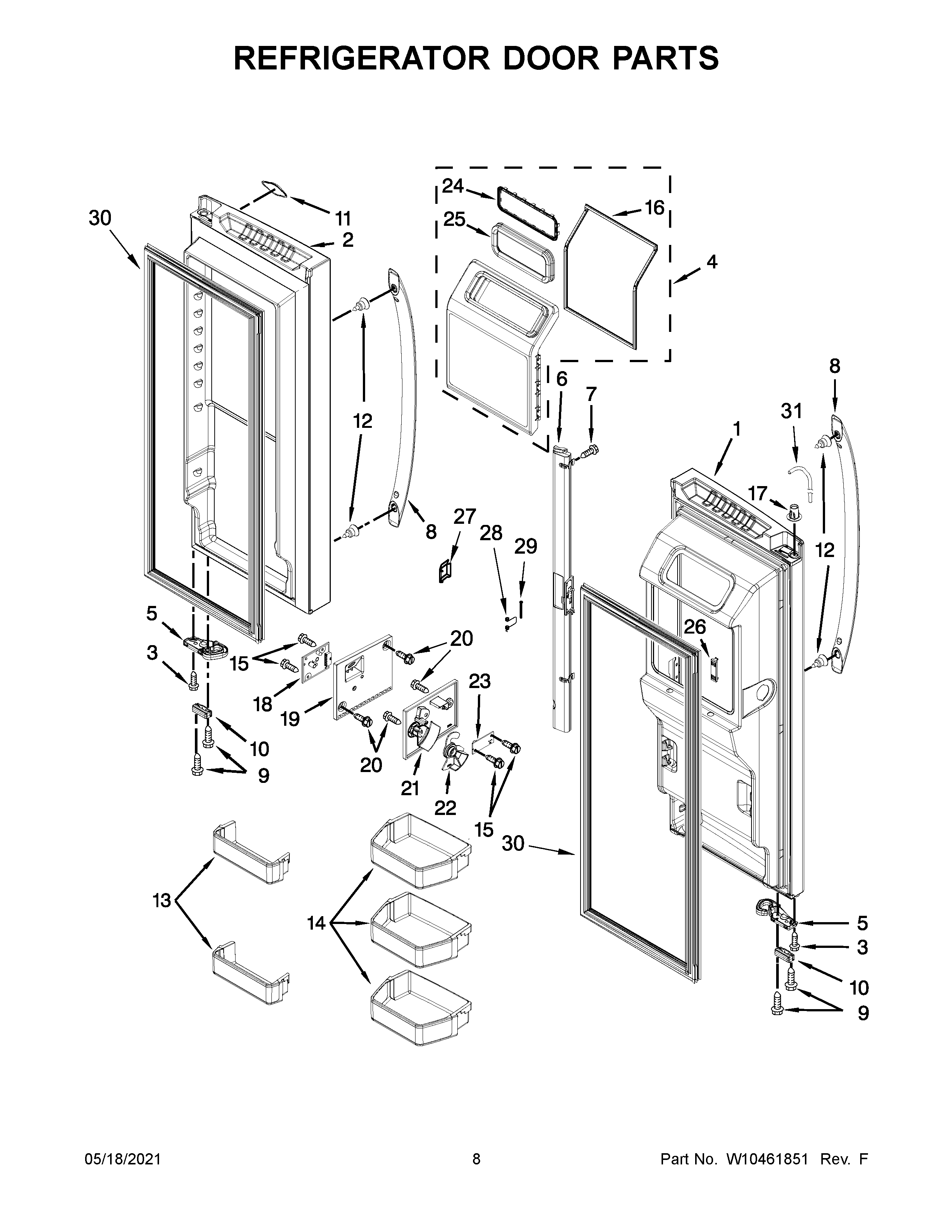

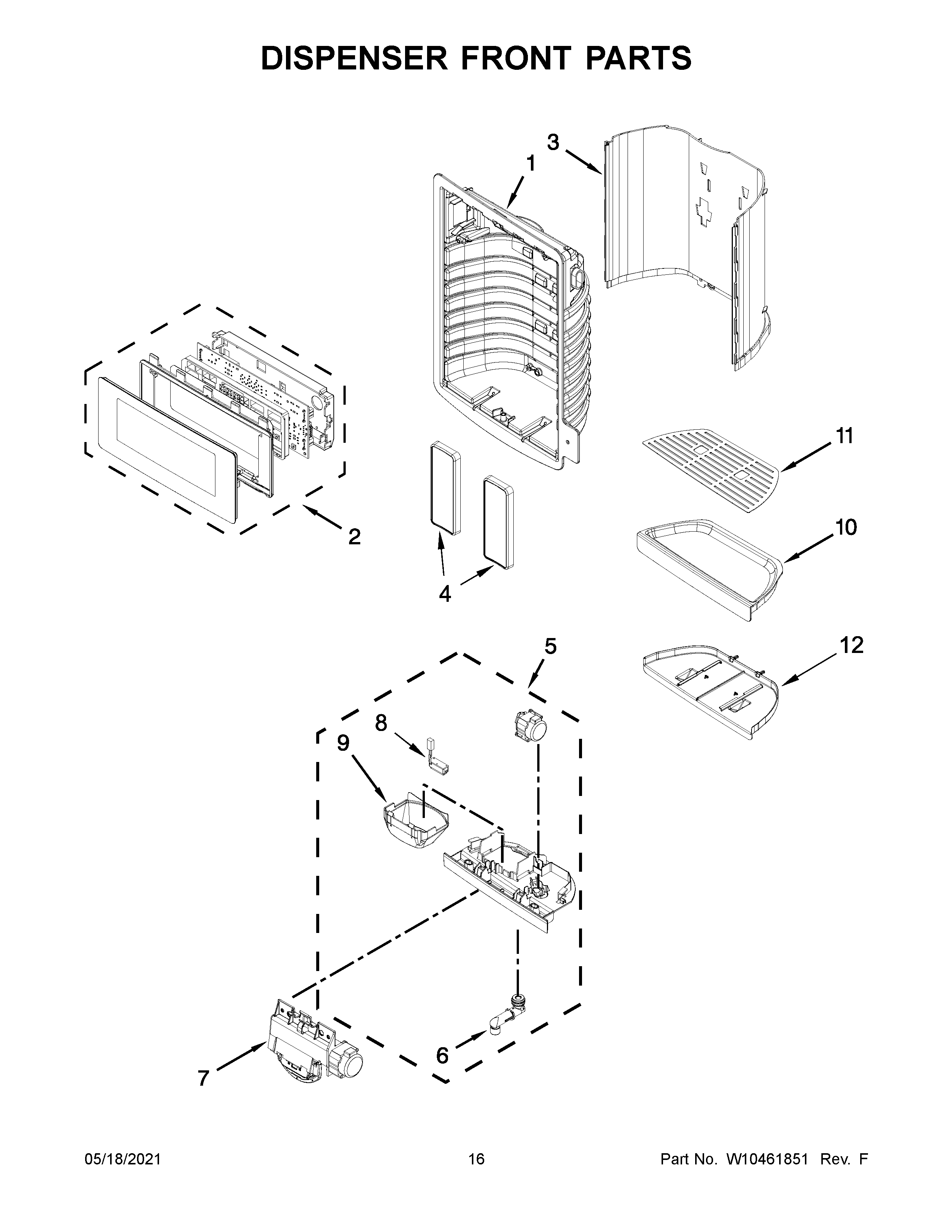

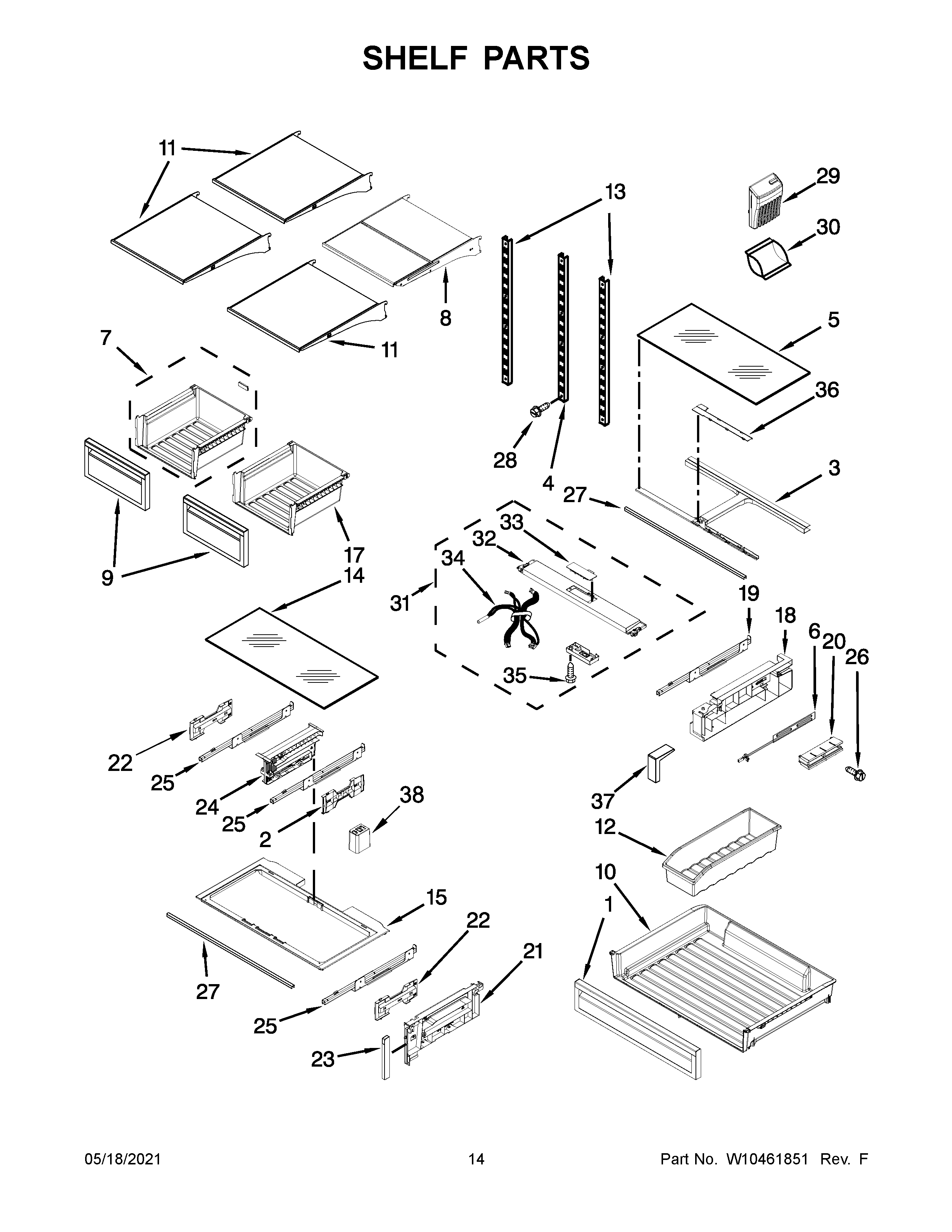

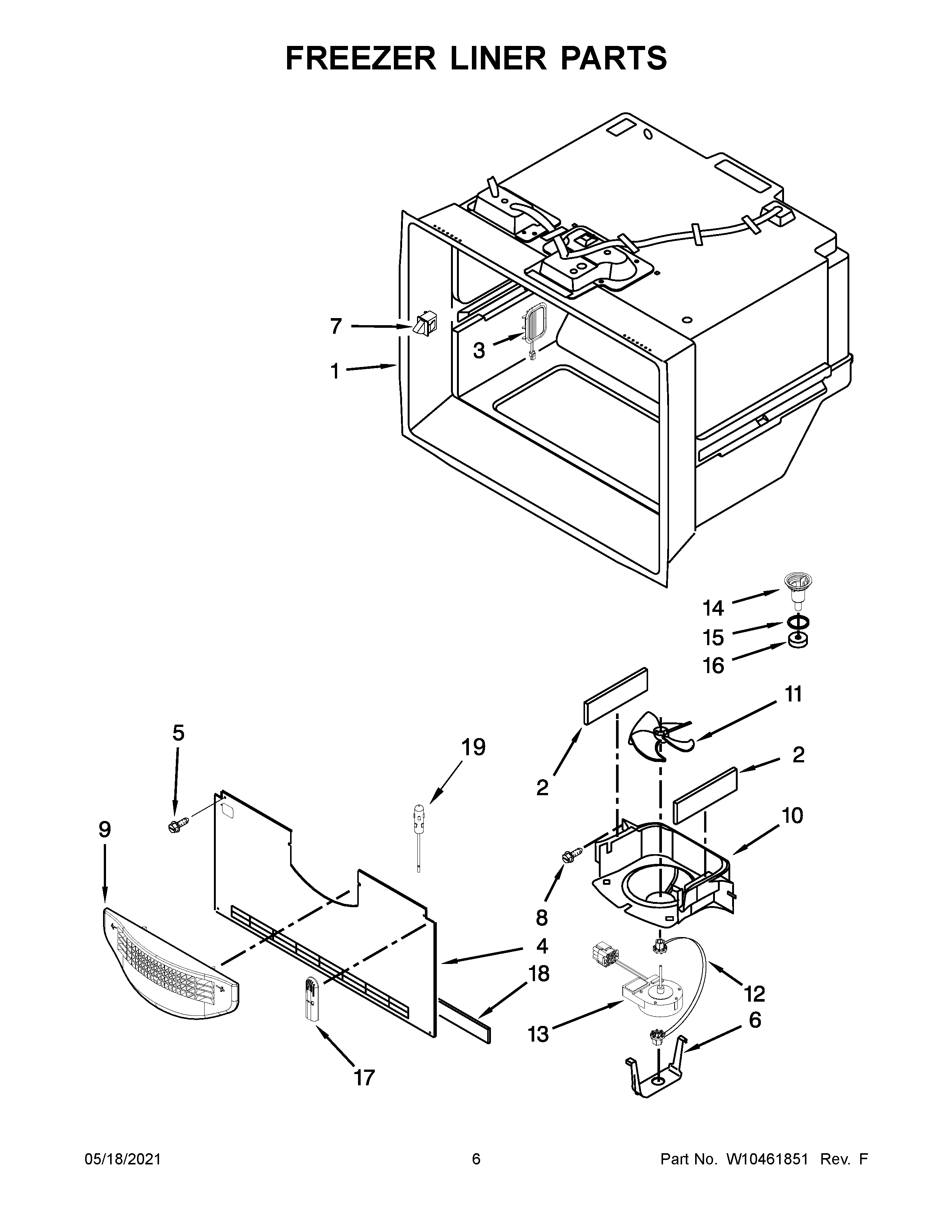

This is the number corresponding to the part on the diagram / schematic
Parts List

Showing 10 of 316 parts

Refrigerator Carbon Air Filter (replaces 2319308, W10315189, W10335147)#12

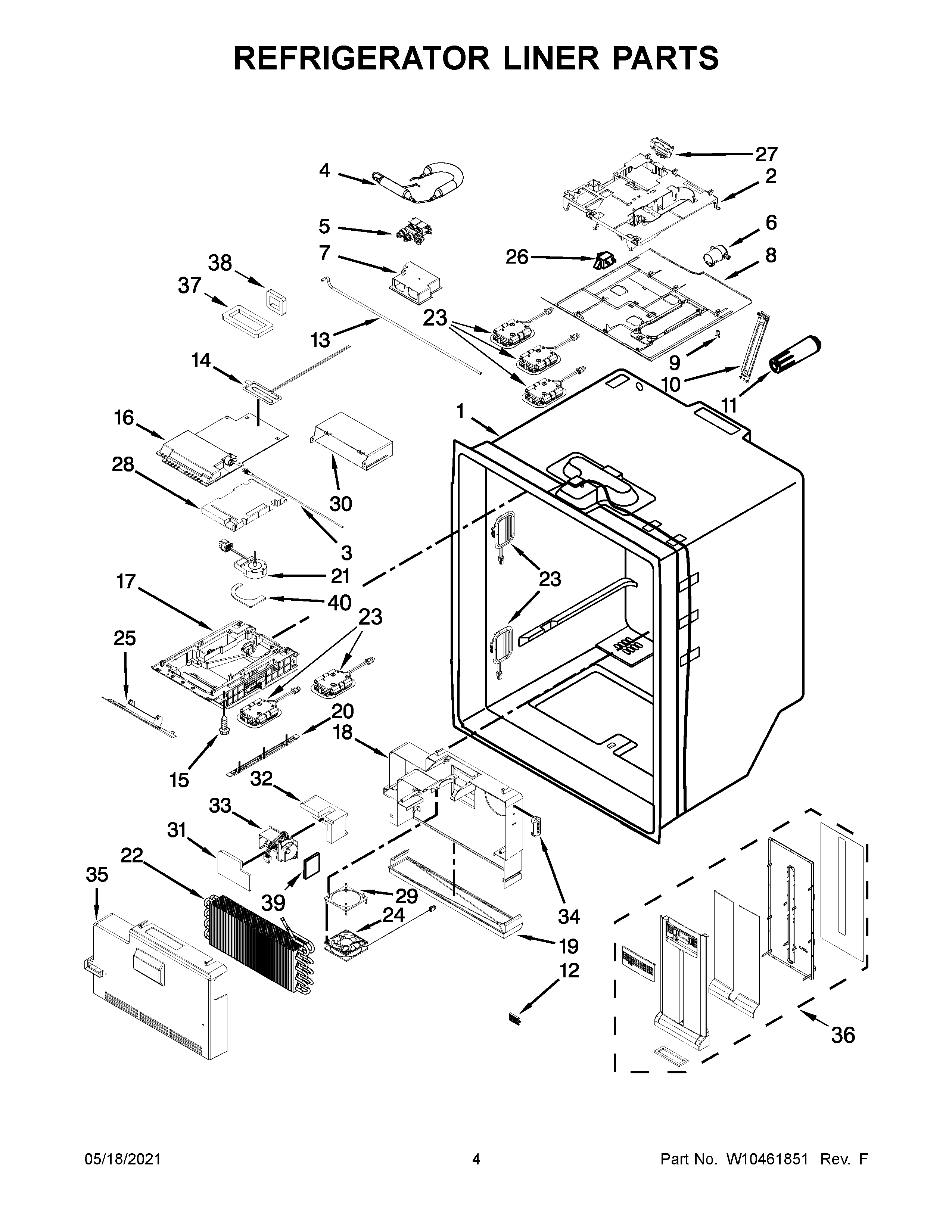

Refrigerator liner parts Diagram

Refrigerator air filter

Part #W10315189
Replaced by #W10311524
?
Manufacturer substitution
This part replaces W10315189. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
$18.59
Refrigerator Door Switch (replaces W11234536, W11428639, WP1118894, WPC3680310)

See All Related Diagrams

Refrigerator switch

Part #C3680310V
Replaced by #W11384469
?
Manufacturer substitution
This part replaces C3680310V. Substitute parts can look different from the original.
BEST SELLER
In Stock
$24.34 |
17% OFF
Phone Price: $29.34
Refrigerator LED Light Assembly (replaces W10758333, W10876279, WPW10637153)

See All Related Diagrams

Single point

Part #W10637153
Replaced by #W11130208
?
Manufacturer substitution
This part replaces W10637153. Substitute parts can look different from the original.
BEST SELLER
In Stock
$59.21 |
28% OFF
MSRP: $82.00
Refrigerator Door Handle Mounting Screw (replaces W10661886)

See All Related Diagrams

Screw

Part #W10460893
Replaced by #WPW10661886
?
Manufacturer substitution
This part replaces W10460893. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.65 |
12% OFF
Phone Price: $8.65
Appliance Touch-Up Paint, 0.6-oz (White) (replaces 21020, 72017R, 8006, W10813125, Y058028)#NI

Optional parts Diagram

Appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017
BEST SELLER
In Stock
$8.29 |
11% OFF
Phone Price: $9.29
Appliance Spray Paint (White) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930)#NI

Optional parts Diagram

Spray paint (white)

Part #350930
Replaced by #350930
?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
$15.69 |
11% OFF
Phone Price: $17.69
Refrigerator Ice Maker Assembly (replaces W10764668, W11563197)#1

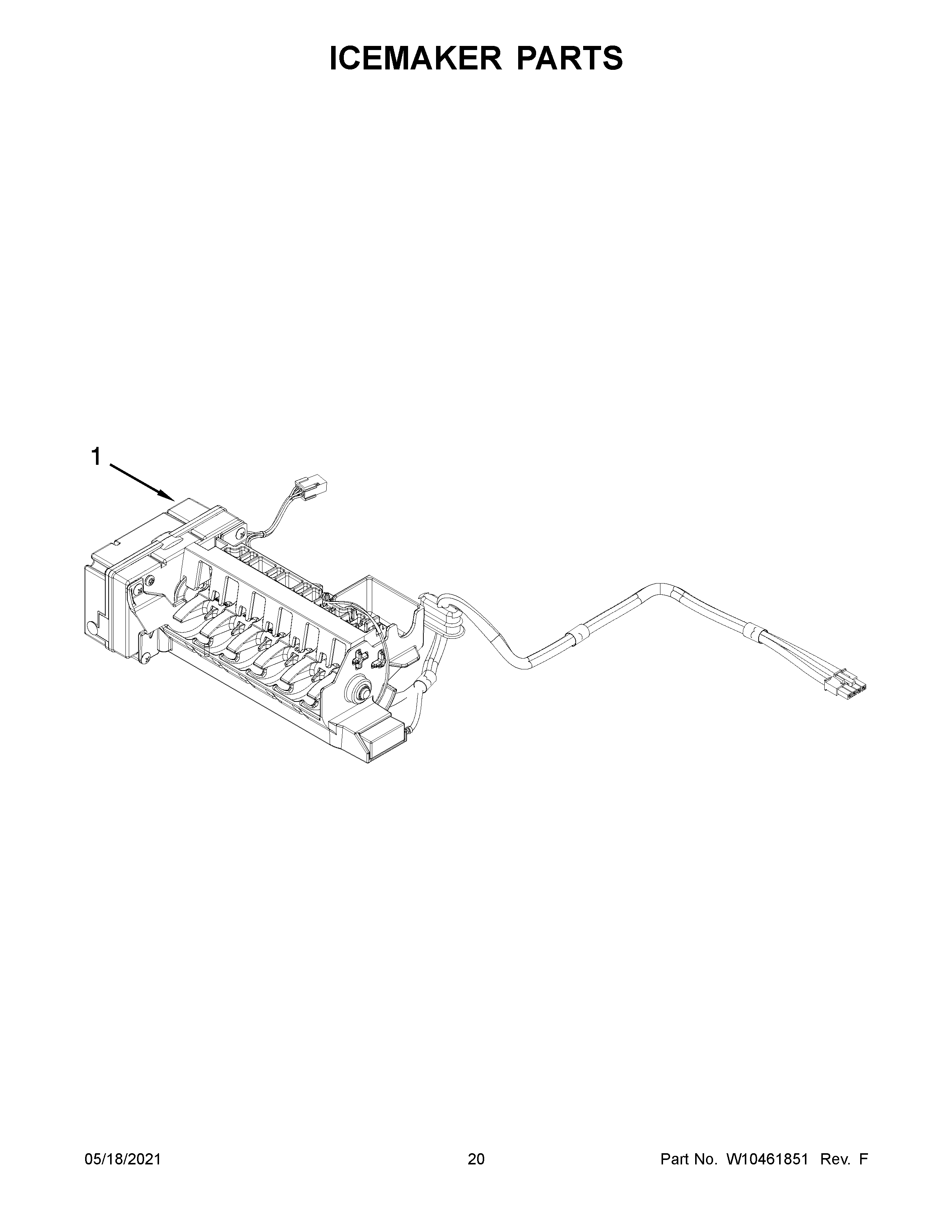

Icemaker parts Diagram

Refrigerator ice maker assembly

Part #W10498261
Replaced by #W11577195
?
Manufacturer substitution
This part replaces W10498261. Substitute parts can look different from the original.
BEST SELLER
In Stock
$96.31 |
12% OFF
MSRP: $110.00
Appliance Touch-Up Paint, 0.6-oz (Black) (replaces 20001009, 72032P, 72032R, W10831982)#NI

Optional parts Diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032
BEST SELLER
This item is not returnable
In Stock
$5.37 |
42% OFF
MSRP: $9.30
Refrigerator Ice Dispenser Driveshaft Seal (replaces 2198628)#3

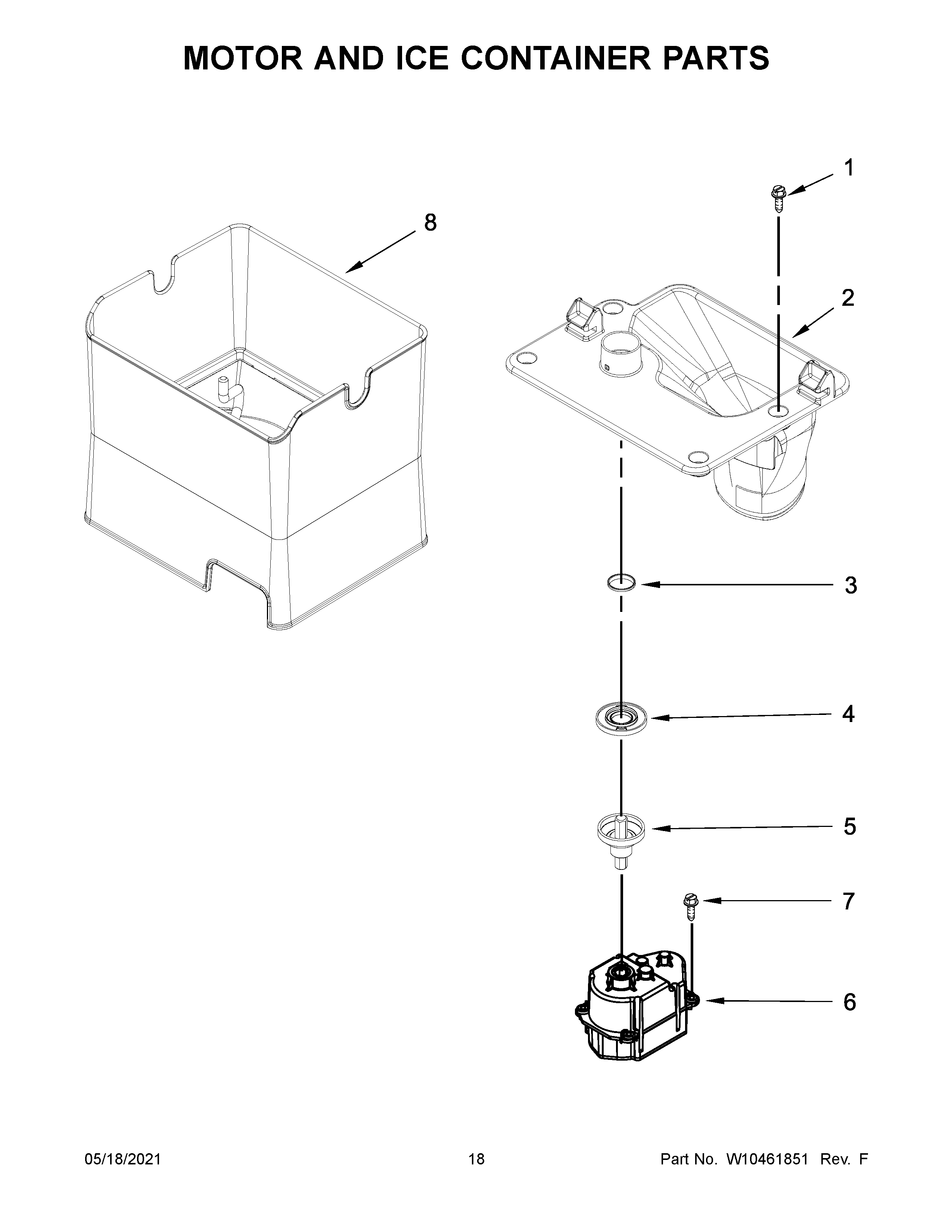

Motor and ice container parts Diagram
