Kenmore 10652212100 side-by-side refrigerator Parts

For Kenmore model 10652212100 (a side-by-side refrigerator), the most important part of the model number is the 3-digit prefix. The prefix identifies the manufacturer family (for example, 106 is a Whirlpool-built Kenmore), and the remaining digits identify the specific design and feature variations; we use the full number to match the correct parts and manuals.

Where to find the model number on this refrigerator

On Kenmore 10652212100, the model and serial label is typically located inside the fresh food (refrigerator) compartment on an inside wall.

• Open the refrigerator door and look along the side walls
• Check near the crisper area and lower side walls
• Write down the full model number and serial number
• Keep the purchase date with your records

For the exact label location and how it is referenced in service information, use the 10652212100 owner's manual.

How Kenmore model numbers are structured

Kenmore model numbers are usually read in sections.

Section	Example (10652212100)	What it tells you
Prefix (first 3 digits)	106	Manufacturer family (Whirlpool-built Kenmore)
Middle digits	52212	Platform and configuration details used for parts matching
Last digits	100	Version, feature, or production variation

Why the prefix matters when buying parts

The prefix helps ensure you are looking at the right style of components (ice maker, thermostat, door hardware) for your refrigerator’s design.

• Prevents ordering parts that look similar but mount differently
• Helps match electrical parts to the correct wiring and controls
• Improves fit for door parts like cams and hinge bushings
• Narrows down the correct ice maker and dispenser components

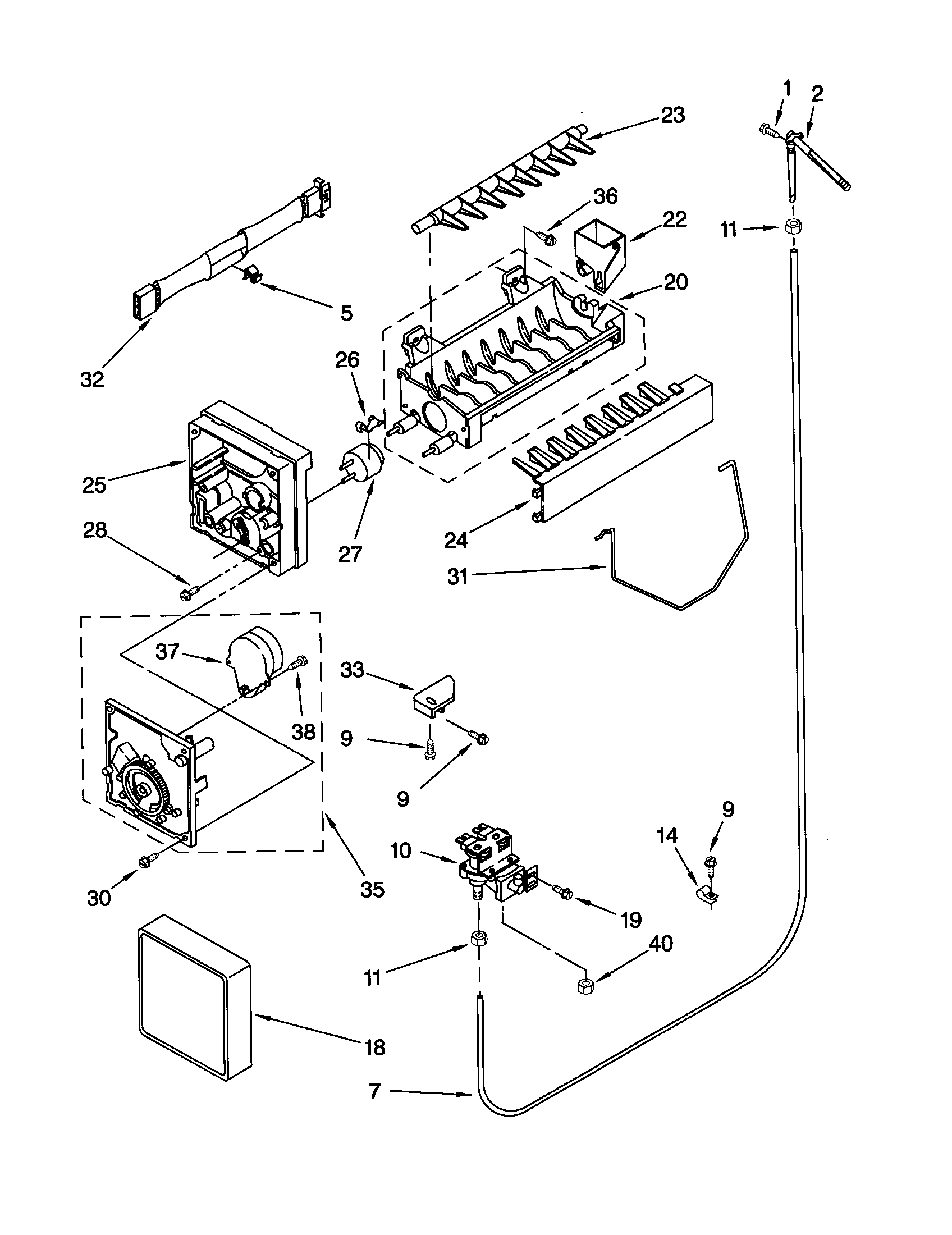

Example: If you are troubleshooting ice production on this model family, the ice maker assembly 4317943 is a common matched component for Kenmore 10652212100.

Why it matters

A single digit difference in a Kenmore model number can change the correct replacement part. Using the complete model number (not just “106”) protects you from returns and delays, especially for electrical parts and water system components.

Last updated: February 2026

If your Kenmore 10652212100 side-by-side refrigerator is warm, runs for long periods, and you hear unusual compressor noises, the compressor or sealed system may be failing. Keep in mind this model can normally run longer and sound different because it uses a high-efficiency compressor.

Quick checks before blaming the compressor

• Confirm the refrigerator and freezer controls are set correctly (see the 10652212100 owner's manual).
• Listen for normal sounds: a pulsating or high-pitched compressor sound can be normal on this model.
• Check for airflow issues: blocked vents, overpacked shelves, or a door not closing fully.
• Clean condenser area (dust buildup can cause long run times and poor cooling).
• Verify the evaporator fan is running; no airflow often points to a fan/defrost issue, not the compressor.

Signs that point more strongly to a compressor or sealed system problem

These symptoms usually show up together:

What you notice	What it often means	What to do next
Fridge and freezer both warm, unit runs almost nonstop	Cooling system not pumping heat effectively	Check condenser fan operation and condenser cleanliness; then schedule service if unchanged
Clicking every few minutes, then silence, then tries again	Start device overload tripping or compressor struggling to start	Unplug for 5 minutes, restart; if it repeats, service is needed
Compressor shell extremely hot and cooling is poor	Compressor under heavy load or failing internally	Stop repeated restarts; schedule service
Breaker trips when compressor tries to start	Electrical short, locked rotor, or wiring issue	Leave unplugged and have a technician diagnose

Why “always running” is not always a bad compressor

Your 10652212100 is designed to run more efficiently; the high-efficiency compressor and fans can run longer than older refrigerators, and you may hear pulsating or high-pitched sounds as the system adjusts. That is normal behavior when temperatures are being maintained.

Parts and service notes

A compressor diagnosis typically requires electrical testing (start components, windings, amperage) and sealed-system evaluation. If you are already seeing poor cooling plus hard-start symptoms, the compressor is a common suspect, but we also see similar symptoms from airflow/defrost problems.

If you need the compressor for this model, use the exact match listed for Kenmore 10652212100: refrigerator compressor W10309990.

Last updated: February 2026

Most Kenmore side-by-side refrigerators are about 32 to 36 inches wide; for your specific Kenmore model 10652212100, the exact cabinet width and required clearances are listed in the 10652212100 owner's manual.

Typical width ranges (what you can expect)

Kenmore side-by-side models commonly fall into these width bands:

• 32 to 33 inches: space-saving side-by-side models
• 35 to 36 inches: full-size side-by-side models (most common)
• 36 inches plus: some larger-capacity designs

Refrigerator type	Typical width	Best for
Compact side-by-side	32 to 33 in.	tighter kitchens, smaller cutouts
Standard side-by-side	35 to 36 in.	most existing 36-in. openings
Oversize side-by-side	36 in. plus	maximum storage, wider openings

Don’t forget installation clearance

Width is only part of fit. Your refrigerator also needs side clearance for airflow and door swing. The manual guidance for this style of Kenmore refrigerator calls for:

• 1/2 inch space on each side and at the top for ventilation
• At least 2 inches next to a fixed wall (varies by model) so doors can swing open
• Extra space behind the unit if you have an ice maker water line

For the most accurate “will it fit” check, compare:

• Cabinet width (refrigerator body)
• Door and handle projection
• Clearance needed to fully open doors and remove bins

Why it matters

A refrigerator that is even 1 inch too wide (or too tight to a wall) can cause poor airflow, doors that do not open fully, and harder access to shelves, the ice bin, and the dispenser area.

Last updated: February 2026

Common Kenmore Elite refrigerator problems include not cooling, ice maker not making ice, dispenser leaks, lights not working, and the unit running too much; on Kenmore model 10652212100, these symptoms often trace back to power/control settings, water supply or filter issues, defrost-related icing, or a failed component.

Most common symptoms and what they usually mean

• Not cooling or warm temperatures: controls set incorrectly, unit in a defrost cycle, airflow blocked, or a cooling-system component issue.
• Ice maker not making ice: water supply off, kinked water line, clogged or misinstalled filter, or ice jam at the ejector.
• Water or ice leaking at the dispenser: glass not held under chute long enough, ice cube holding the trap door open, or air in water lines after filter changes.
• Lights do not work: loose or burned-out bulb, or power supply issue.
• Motor runs too much: hot room temperature, frequent door openings, dirty condenser area, or door not sealing well.

Quick checks we recommend first (in order)

1. Confirm the cord is fully plugged into a grounded 3-prong outlet; reset the breaker if needed.
2. Verify refrigerator and freezer controls are not set to OFF; then allow 30 minutes if the unit is in an automatic defrost cycle.
3. For digital controls, turn the unit OFF then ON to reset.
4. If ice or water issues are present, confirm the shutoff valve is open and the home water line is not kinked.
5. If a filter is installed, reseat it and flush water to clear air; replace it if flow is weak.

Parts that commonly fix these problems

Symptom	Common suspect part	Example for this model
Ice maker not making ice	Ice maker assembly	Ice maker assembly - refrigerator ice maker by whirlpool 4317943
Temperature swings or warm fridge	Cold control/thermostat	Refrigerator thermostat WP2198202
Frost buildup, warm fridge/freezer	Defrost safety/bi-metal	Refrigerator defrost bi-metal WPW10225581

Why it matters

Catching the root cause early helps prevent food spoilage, reduces compressor run time, and avoids repeat ice maker and dispenser problems caused by low water flow or air in the lines.

For model-specific control settings, cleaning, light bulb replacement, and troubleshooting steps, use the 10652212100 owner's manual.

Last updated: February 2026

A Kenmore side-by-side refrigerator model 10652212100 usually stops cooling because power is interrupted, the temperature controls are set incorrectly or need a reset, airflow is blocked at the vents, or the unit is in a normal defrost cycle. Use the checks in the 10652212100 owner's manual first.

Quick checks we recommend first

• Confirm the power cord is fully plugged into a grounded 3-prong outlet.
• Check the home breaker or fuse; reset or replace if tripped.
• Make sure the refrigerator and freezer controls are not set to OFF.
• Look for blocked air vents in either compartment; move food packages away from vent openings.
• If the unit has digital controls, turn it OFF then ON to reset.
• Wait 30 minutes and recheck; the refrigerator may be in an automatic defrost cycle.

What “not cooling” usually means (symptom guide)

What you notice	Most common cause	What to do next
No lights, no fan sound	Power issue	Outlet, cord, breaker/fuse checks
Freezer cold, fresh food warm	Airflow blocked or control setting	Clear vents, verify control settings
Both sections warm but unit runs	Defrost cycle, control issue	Wait 30 minutes; reset controls
Unit runs a lot but temps creep up	Doors opened often, warm food load	Reduce door openings; allow several hours

Why it matters

Cooling in a side-by-side depends on steady power, correct thermostat settings, and clear air circulation from the freezer to the refrigerator. A single blocked vent or an OFF setting can mimic a major failure and is faster to fix than replacing parts.

When a part is a likely suspect

If power and settings are correct and airflow is clear, a failed temperature control or cooling fan system can prevent proper cooling. For this model, common related parts include the refrigerator thermostat WP2198202 and the evaporator fan components (fan blade and motor).

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 10652212100 has a total capacity of about 21.9 cubic feet. This is the combined storage space of the fresh food and freezer compartments; exact usable space varies slightly with shelves, bins, and the ice bucket installed.

How to confirm capacity for your exact configuration

We recommend checking the model’s documentation because capacity is sometimes listed alongside features and storage components.

• Look for “capacity,” “total volume,” or “specifications” in the 10652212100 owner's manual
• If your unit has an ice maker and bucket installed, usable freezer space is reduced
• Door bins, meat pan, and crisper setup can change how much space you can practically use
• If you need exterior dimensions (for a cabinet opening), use the 10652212100 installation guide

What “21.9 cu. ft.” means in real use

Capacity is measured as internal volume, not how much food you can comfortably fit. Items like the ice storage bin, shelving layout, and air channels take up space.

Measurement	What it represents	What can change it
Total capacity (cu. ft.)	Fresh food + freezer volume	Ice bucket, shelf positions, bins
Usable space	Practical storage room	Food packaging, drawer layout, airflow clearance

Why it matters

Knowing the cubic feet helps when you are comparing replacement refrigerators, choosing storage organizers, or deciding whether an ice maker setup fits your needs. It also helps set expectations if the freezer feels “small” once the ice system is installed.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life; a well-maintained Kenmore 10652212100 side-by-side refrigerator often reaches the upper end of that range when airflow, door sealing, and temperatures are kept in check using the care steps in the 10652212100 owner's manual.

Typical lifespan ranges (what we see most often)

Refrigerator type	Typical lifespan	What usually ends life first
Side-by-side (like Kenmore 10652212100)	10 to 15 years	Cooling system wear, fan or defrost failures
Top freezer	12 to 18 years	Door seal leaks, thermostat or defrost issues
French door	10 to 15 years	Ice maker and dispenser system wear

Maintenance that adds years (high impact)

• Vacuum and brush the condenser area regularly so the compressor runs cooler.
• Keep door gaskets clean so doors seal without sticking or leaking air.
• Confirm the freezer stays near 0°F and the fresh food section near 37°F.
• Replace failed cooling-air parts promptly (fans, defrost controls) to prevent icing and warm temps.
• Keep the ice maker and water system clean; slow fills and clogs strain components.

Quick signs your refrigerator is nearing end-of-life

• Temperatures drift even after cleaning and proper settings.
• Frost builds up repeatedly on the freezer back wall (defrost system trouble).
• Loud, frequent running or clicking from the compressor area.
• Water leaks or recurring ice maker jams.

Why it matters

A refrigerator that is running hot, leaking air at the doors, or struggling to defrost uses more energy and puts extra load on the sealed system. Routine care from the 10652212100 owner's manual helps stabilize temperatures and reduces wear on major components.

Last updated: February 2026

On Kenmore model 10652212100 side-by-side refrigerators, the model number is printed on the model and serial number label located on the inside wall of the refrigerator (fresh food) compartment. Use the label to record the model number, serial number, and purchase date for service and parts matching.

How to find the label quickly

• Open the refrigerator (not the freezer) door
• Look along the inside side walls near the front edge
• Check around the crisper area and the meat pan area
• Use a flashlight; the label can be easy to miss in low light
• Write down both the model number and serial number exactly as shown

What you should copy from the label

The label typically includes these fields; copying all of them helps us match Kenmore parts correctly.

Label item	What it’s used for
Model number	Ensures parts fit your exact refrigerator
Serial number	Identifies production details for service
Purchase date (you record it)	Helpful for maintenance and service history

Why it matters

Kenmore model numbers can look similar, but small differences change which ice maker, thermostat, door parts, or water system components fit. Using the exact model number from the label prevents ordering the wrong replacement part.

Helpful reference

For diagrams and additional identification details, use the 10652212100 owner's manual.

Last updated: February 2026
