Whirlpool
Washer

Model # LSR6132BW0 Official Whirlpool direct-drive washer

Here are the diagrams and repair parts for Official Whirlpool LSR6132BW0 direct-drive washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

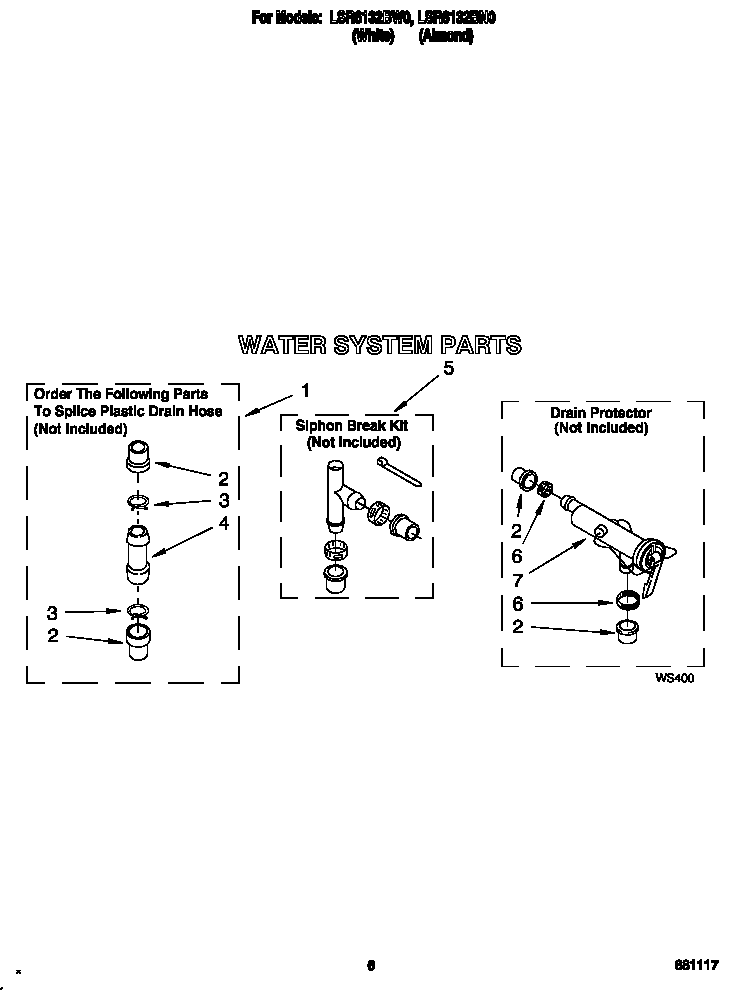

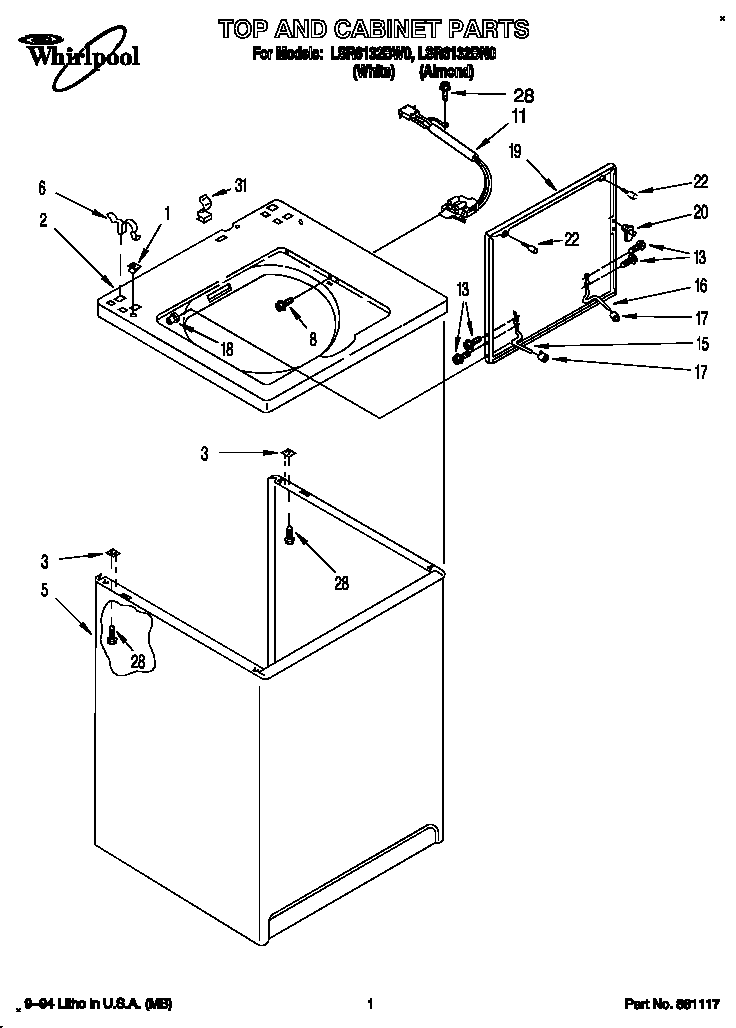

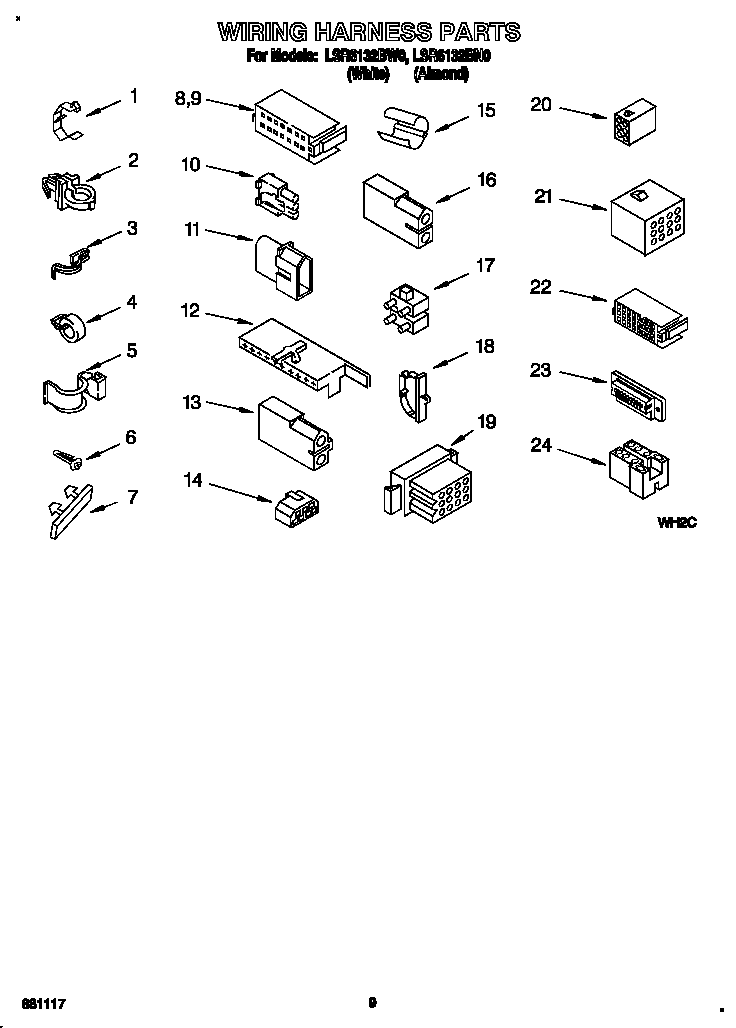

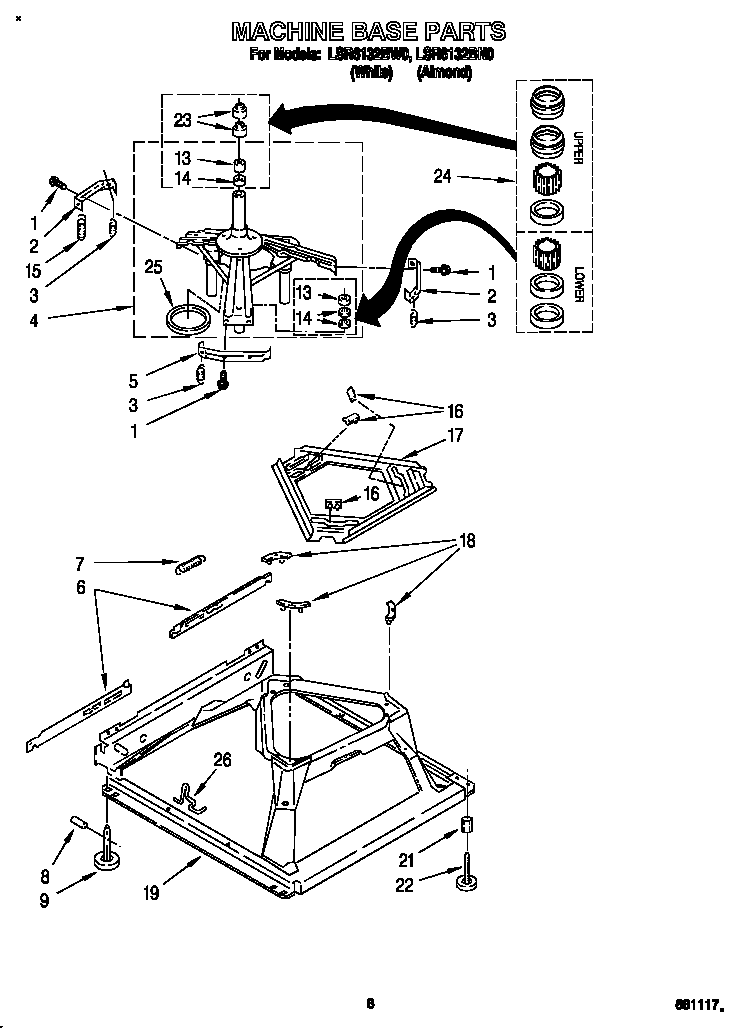

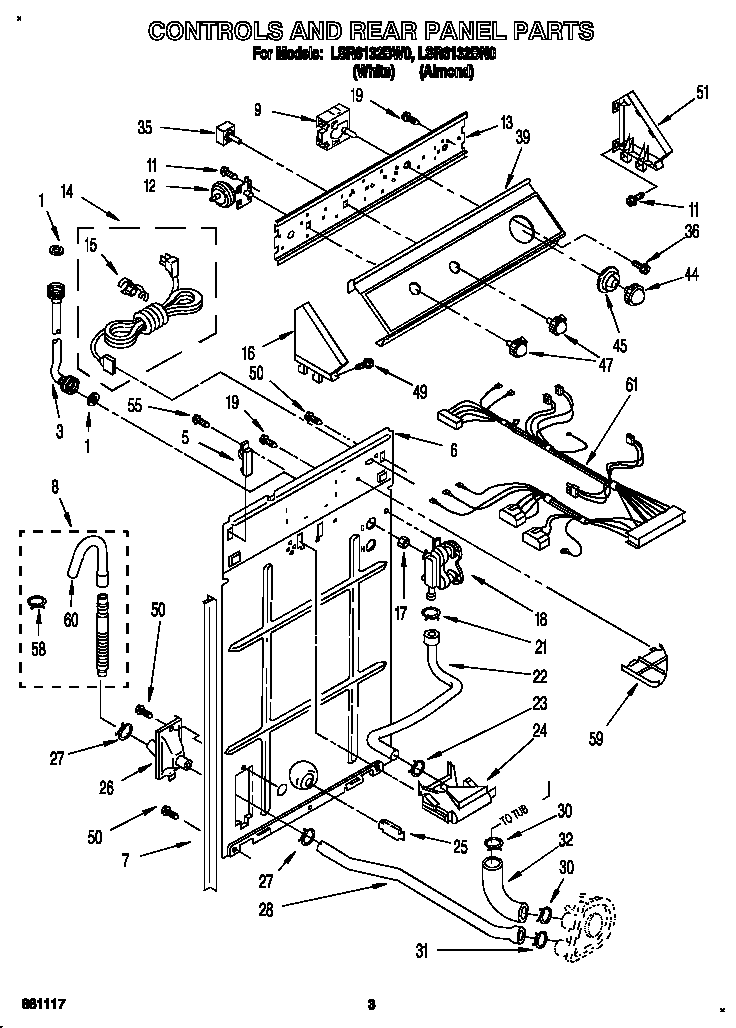

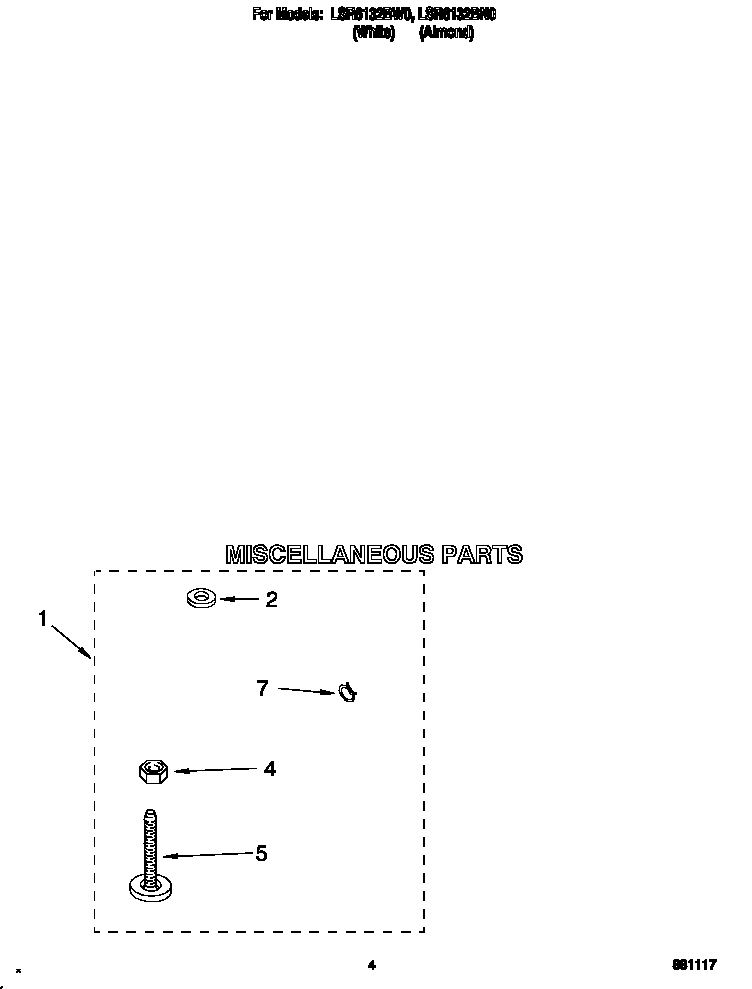

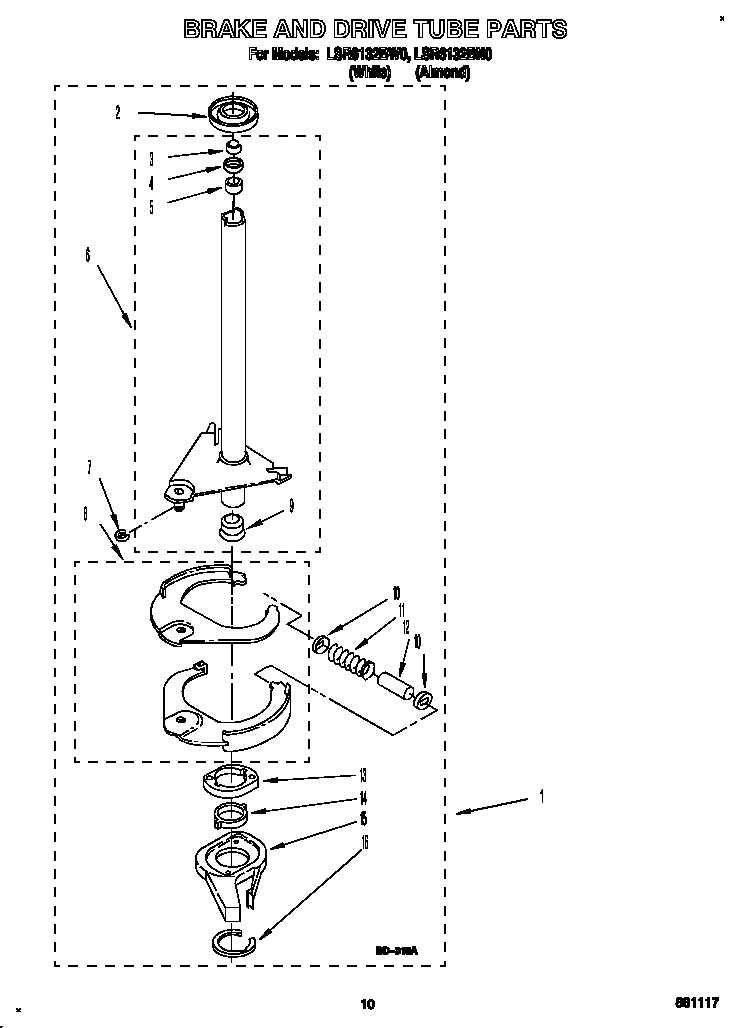

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 229 parts  |

Agitator Dog 387091
#8

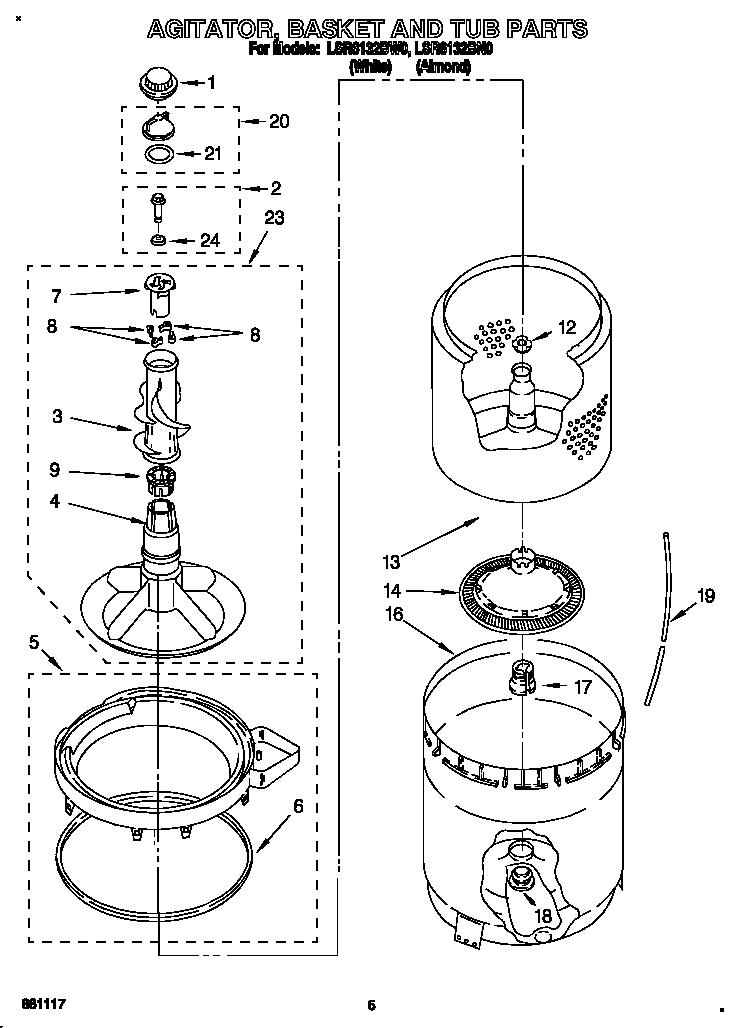

Agitator, basket and tub diagram

Agitator dog

Part #387091

Replaced by #80040

?
Manufacturer substitution
This part replaces 387091. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.35
16% OFF Phone Price : $6.35
In Stock
Coupling 3363664
#13

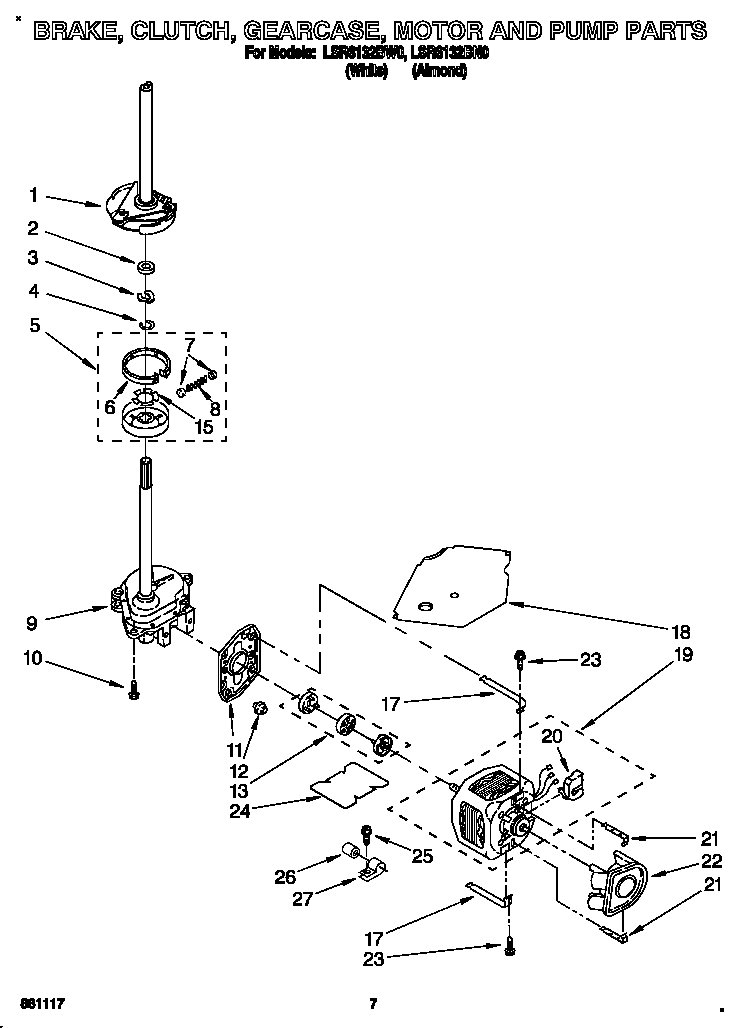

Brake, clutch, gearcase, motor and pump diagram

Coupling

Part #3363664

Replaced by #285753A

?
Manufacturer substitution
This part replaces 3363664. Substitute parts can look different from the original.
BEST SELLER
$24.96
17% OFF Phone Price : $29.96
In Stock
Gear 62570
#25

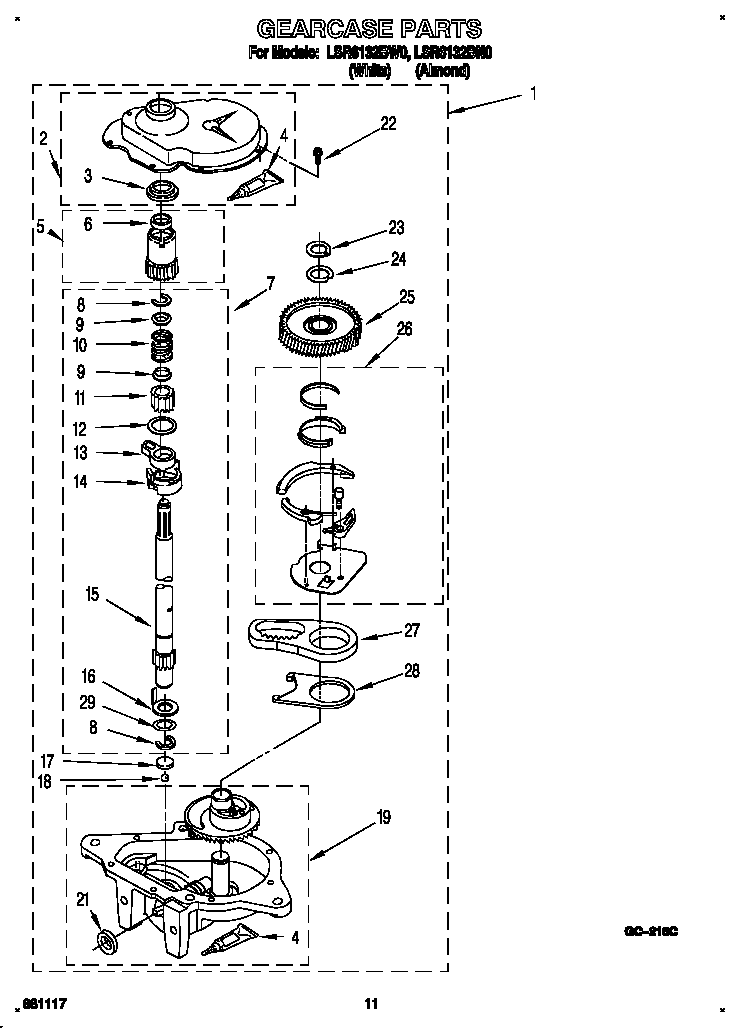

Gearcase diagram

Gear

Part #62570

Replaced by #3360629

?
Manufacturer substitution
This part replaces 62570. Substitute parts can look different from the original.
BEST SELLER
$255.31
$10.00 OFF Phone Price : $265.31
In Stock
Gear Case 3360630
Gear case

Part #3360630

Replaced by #3360629

?
Manufacturer substitution
This part replaces 3360630. Substitute parts can look different from the original.
BEST SELLER
$255.31
$10.00 OFF Phone Price : $265.31
In Stock
Clutch 3350115
#5

Brake, clutch, gearcase, motor and pump diagram

Clutch

Part #3350115

Replaced by #285785

?
Manufacturer substitution
This part replaces 3350115. Substitute parts can look different from the original.
BEST SELLER
$29.44
15% OFF Phone Price : $34.44
In Stock
Water Pump 3352492
#22

Brake, clutch, gearcase, motor and pump diagram

Water pump

Part #3352492

Replaced by #WP3363394

?
Manufacturer substitution
This part replaces 3352492. Substitute parts can look different from the original.
BEST SELLER
$32.85
29% OFF MSRP : $46.50
In Stock
Drive Basket 388952
Drive basket

Part #388952

Replaced by #W10820043

?
Manufacturer substitution
This part replaces 388952. Substitute parts can look different from the original.
BEST SELLER
$121.74
8% OFF Phone Price : $131.74
In Stock
Washer Drive Block 389140
#17

Agitator, basket and tub diagram

Washer drive block

Part #389140

Replaced by #WP389140

?
Manufacturer substitution
This part replaces 389140. Substitute parts can look different from the original.
BEST SELLER
$25.22
17% OFF Phone Price : $30.22
In Stock
Washer Spanner Nut 21366
#12

Agitator, basket and tub diagram

Washer spanner nut

Part #21366

Replaced by #WP21366

?
Manufacturer substitution
This part replaces 21366. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49
62% OFF MSRP : $17.00
In Stock
Washer Agitator Bolt 358237
#2

Agitator, basket and tub diagram

Washer agitator bolt

Part #358237

Replaced by #WP358237

?
Manufacturer substitution
This part replaces 358237. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.58
60% OFF MSRP : $14.00
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
