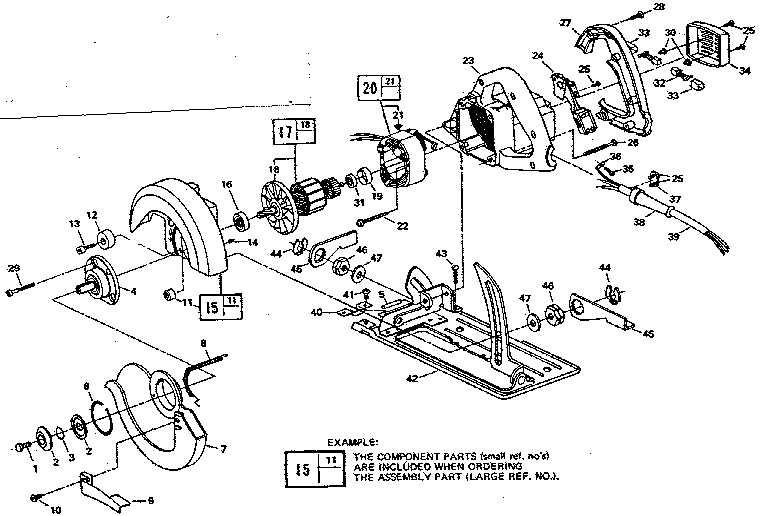

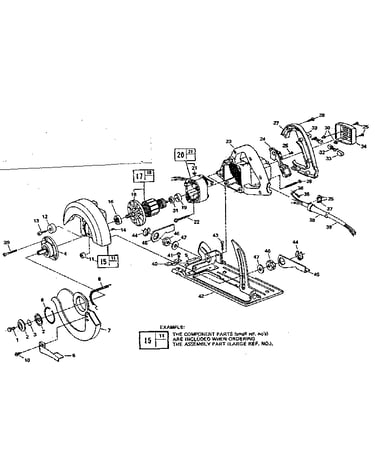

Craftsman 135275400 5-1/2" industrial circular saw Parts

If your Craftsman 135275400 circular saw motor runs but the blade does not spin, the most common causes are a worn drive system (gear or spindle), a seized blade, or a loose arbor hardware stack. If the saw will not run at all, worn motor brushes are a top suspect.

Quick checks (fast, no disassembly)

• Unplug the saw and remove the blade; confirm the blade spins freely by hand.
• Verify the blade is installed in the correct direction and seated flat on the arbor.
• Tighten the arbor bolt firmly; a loose bolt can let the blade slip.
• Check the lower blade guard; a jammed guard can bind the blade.
• Try a different outlet and inspect the cord for cuts, kinks, or heat damage.

Most likely causes and what to look for

Symptom	Likely cause	What you’ll notice
No sound, no movement	Bad cord, switch, or brushes	Dead tool, intermittent power, sparking smell
Hums or trips breaker	Seized bearings or jammed blade	Motor strains, blade hard to turn
Motor spins, blade doesn’t	Stripped gear/spindle or loose arbor parts	Whirring sound, blade stays still
Runs only when tapped/moved	Worn motor brushes	Cuts out, inconsistent start

How to check motor brushes (common on this model type)

1. Unplug the saw.
2. Locate the brush caps (often on the motor housing sides).
3. Remove and inspect each brush.
4. Replace brushes if they are very short, chipped, cracked, or burned.

Why it matters

A circular saw that is not spinning is usually a power delivery issue (cord, switch, brushes) or a mechanical drive issue (arbor, spindle, gears). Fixing the root cause prevents repeated tripping, overheating, and damage to the armature.

Getting the right replacement parts

Use the parts list for Craftsman model 135275400 to match the exact motor brush, switch, cord, or gear components for your saw. If you need to search by model number or browse related parts, use Sears PartsDirect.

Last updated: February 2026

To change the blade on your Craftsman 135275400 5-1/2" industrial circular saw, unplug the saw, lock the blade, loosen the arbor screw, remove the outer washer, swap the blade, then reinstall and tighten everything securely before testing the guard movement.

Safety first (do this every time)

• Unplug the saw (do not rely on the trigger lock).
• Wear cut-resistant gloves when handling the blade.
• Set the saw on a stable bench with the blade facing away from you.
• Keep the lower blade guard closed until you are ready to remove the blade.
• Use the correct wrench for the arbor bolt to avoid stripping it.

Blade change steps (typical Craftsman sidewinder saw)

1. Unplug the saw.
2. Press and hold the spindle lock (usually a button near the upper blade guard) and rotate the blade by hand until it locks.
3. Use the wrench to loosen the arbor screw/bolt.
4. Retract the lower blade guard and remove the outer washer/flange.
5. Slide the old blade off the arbor.
6. Install the new blade with the teeth facing the correct direction (match the arrow on the upper guard).
7. Reinstall the outer washer/flange and tighten the arbor screw firmly while holding the spindle lock.
8. Release the guard and confirm it snaps back freely.

Quick checks before you cut

• Blade sits flat on the arbor (no wobble).
• Outer washer is seated evenly.
• Guard returns smoothly and fully.
• Depth and bevel locks are tight.

Common “stuck blade” causes and fixes

What you see	Likely cause	What we do
Arbor screw will not budge	Resin buildup or overtightened	Hold spindle lock, use steady pressure (no hammering)
Blade feels wedged	Pitch on arbor/washer	Clean mating surfaces, reinstall flat
Guard won’t retract easily	Sawdust packed in guard	Blow out debris, check guard spring action

Why it matters

A correctly installed circular saw blade reduces kickback risk, improves cut quality, and prevents damage to the arbor, washers, and blade guard.

For model-specific diagrams and to look up replacement parts by model number, start with the parts list for Craftsman 135275400 or search by model on Sears PartsDirect.

Last updated: February 2026

If your Craftsman 135275400 5-1/2" industrial circular saw stops mid-cut, it is almost always caused by overload (pushing too fast or a dull blade), a power supply drop (cord, outlet, breaker), or an electrical fault in the switch, brushes, or motor that interrupts current under load.

Quick checks that fix most mid-cut shutdowns

• Let the saw do the work: reduce feed pressure, especially in thick stock or wet lumber.
• Check the blade condition: replace a dull, warped, or pitch-loaded blade; a dull blade spikes amperage and trips protection.
• Confirm blade setup: verify the blade is installed correctly and the arbor nut is tight.
• Set proper depth: blade should extend about 1/4 inch to 1/2 inch below the material.
• Clear dust buildup: packed sawdust can increase drag and heat.

Power and electrical causes to rule out

A circular saw that runs fine free-spinning but quits in the cut often has a voltage drop or a component that fails only under load.

• Extension cord too light/too long: use a heavier gauge cord and keep it as short as practical.
• Loose outlet or failing breaker: intermittent power can look like a “bad saw.”
• Worn carbon brushes (if equipped): the motor can cut out when brushes lose contact.
• Dirty or failing trigger switch: dust can cause arcing and intermittent contact.

Fast diagnosis table

What you notice	Most likely cause	What we do next
Stops only when you push hard	Overload, dull blade, depth too deep	Reduce feed, set depth, change blade
Stops randomly, restarts when you wiggle cord	Cord/outlet connection issue	Try a different outlet, inspect cord
Strong burning smell or heavy sparking	Brushes or motor issue	Stop using; inspect brushes/motor
Trigger feels inconsistent	Switch issue	Clean area; plan switch replacement

Why it matters

Mid-cut stopping is more than an annoyance; it increases kickback risk and can overheat the motor. Fixing the root cause protects the saw, improves cut quality, and keeps the tool safer to use.

Parts and diagrams

We list model-specific diagrams and replacement parts for Craftsman 135275400 on the parts list for this model; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

A Craftsman circular saw like model 135275400 is built around a motor that spins a blade, plus safety and adjustment parts that control depth, angle, and guarding. Knowing the main components helps you diagnose issues like poor cutting, binding, or a saw that will not start.

Main parts you will see on most circular saws

• Blade: The cutting disc; tooth count and blade type affect cut quality.
• Blade guard (upper and lower): Covers the blade; the lower guard retracts during a cut.
• Shoe/base plate: The flat plate that rides on the workpiece; supports straight, stable cuts.
• Depth adjustment: Sets how far the blade extends below the shoe.
• Bevel adjustment: Sets the cutting angle (commonly 0° to 45°).
• Motor and arbor: Motor drives the arbor; the arbor holds the blade with a bolt and washer.
• Handle and front grip: Control and stability during the cut.
• Trigger and trigger lock: Starts the saw; lock helps prevent accidental starts.

Quick “what it does” guide

Part	What it does	Common symptom when it fails or sticks
Lower blade guard	Protects blade when not cutting	Guard hangs up, saw feels unsafe or binds entering cut
Shoe/base plate	Keeps cut straight and stable	Cuts wander, bevel is inconsistent
Depth adjustment	Controls cut depth	Blade cuts too deep or not deep enough
Trigger/lock	Controls power safely	Saw will not start or starts intermittently

Why it matters for troubleshooting

When a circular saw will not start, cuts crooked, or binds, the cause is usually tied to one of these systems: power/trigger, guard movement, shoe alignment, or depth/bevel settings. Checking each part in order saves time and prevents unnecessary replacement.

Practical checks we recommend (unplug first)

• Confirm the blade is installed correctly and tightened on the arbor.
• Make sure the lower guard snaps back freely and is not packed with debris.
• Verify the shoe is not bent and the bevel scale locks firmly.
• Set depth so only about 1/4 inch of tooth extends below the material.
• If power is intermittent, inspect the cord and internal wiring for damage.

For help finding diagrams and ordering replacement parts by model number, use the parts list for Craftsman 135275400, or search by model on Sears PartsDirect.

Last updated: February 2026
