Craftsman 536250870 26" riding lawn mower

Craftsman 536250870 26" riding lawn mower Parts

Here are the diagrams and repair parts for Craftsman 536250870 26" riding lawn mower, as well as links to manuals and error code tables, if available.

By Schematic
By Part

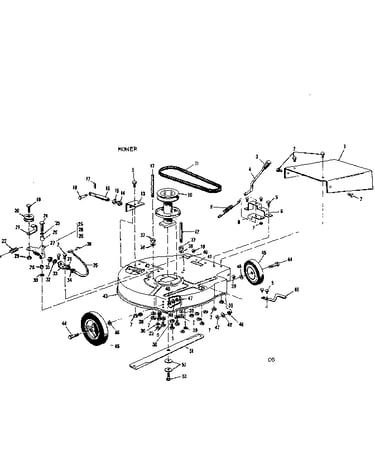

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 536250870 Riding Mowers & Tractors

  • Husqvarna Lawn Tractor Starter Solenoid for Craftsman 536250870 - Part 532146154

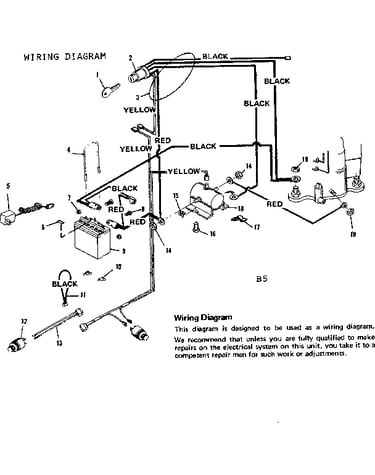

    Wiring diagram diagram

    Solenoid

    Part #44429

    Replaced by #532146154

    Info Icon
    Manufacturer substitution
    This part replaces 44429. Substitute parts can look different from the original.
    In Stock
    $38.81
    13% OFF Phone Price : $44.81Info Icon
    Minus Item
    Qty
    Plus Item
  • Nut for Craftsman 536250870 - Part 703251

    Lock Nut

    Part #9424215

    Replaced by #703251

    Info Icon
    Manufacturer substitution
    This part replaces 9424215. Substitute parts can look different from the original.
    In Stock
    $9.54
    Minus Item
    Qty
    Plus Item
  • Washer.39-1. for Craftsman 536250870 - Part 17X168ZMA

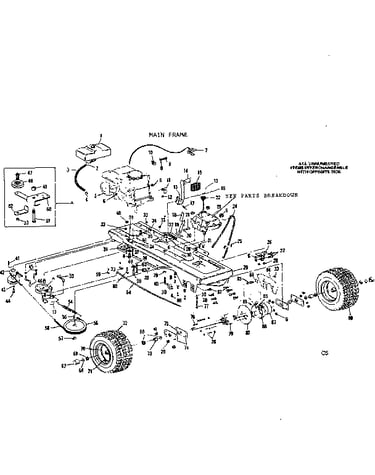

    Drive assembly diagram

    Washer

    Part #845

    Replaced by #17X168ZMA

    Info Icon
    Manufacturer substitution
    This part replaces 845. Substitute parts can look different from the original.
    In Stock
    $11.94
    Minus Item
    Qty
    Plus Item
  • Hcln 1/2f G for Craftsman 536250870 - Part 7090266YP

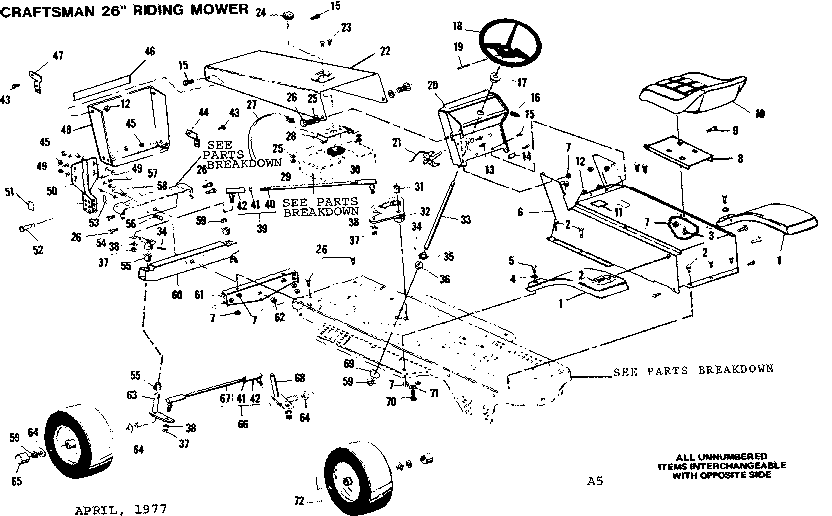

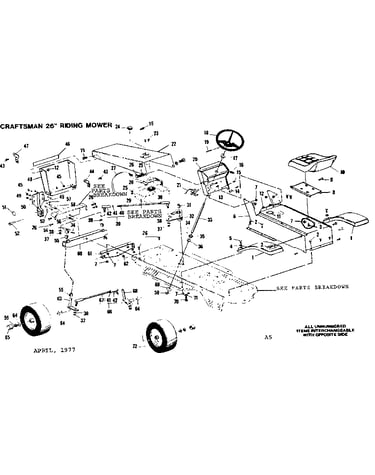

    Main frame diagram

    Lock Nut

    Part #274654

    Replaced by #7090266YP

    Info Icon
    Manufacturer substitution
    This part replaces 274654. Substitute parts can look different from the original.
    In Stock
    $30.61
    Minus Item
    Qty
    Plus Item
  • Hub Cap-sm. for Craftsman 536250870 - Part 20107MA

    Drive assembly diagram

    Hub Cap

    Part #40393

    Replaced by #20107MA

    Info Icon
    Manufacturer substitution
    This part replaces 40393. Substitute parts can look different from the original.
    In Stock
    $8.51
    Minus Item
    Qty
    Plus Item
  • Plain Washer for Craftsman 536250870 - Part 583647201

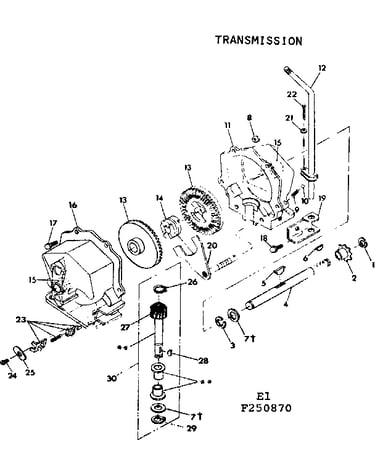

    Transmission diagram

    Washer

    Part #47177

    Replaced by #583647201

    Info Icon
    Manufacturer substitution
    This part replaces 47177. Substitute parts can look different from the original.
    In Stock
    $14.83
    Minus Item
    Qty
    Plus Item
  • Ring Retex . for Craftsman 536250870 - Part 783002MA

    Transmission diagram

    Snap Ring

    Part #462

    Replaced by #783002MA

    Info Icon
    Manufacturer substitution
    This part replaces 462. Substitute parts can look different from the original.
    In Stock
    $11.14
    Minus Item
    Qty
    Plus Item
  • Bolt 3/8-16x for Craftsman 536250870 - Part 45892MA

    Main frame diagram

    Carriage Bolt

    Part #45892

    Replaced by #45892MA

    Info Icon
    Manufacturer substitution
    This part replaces 45892. Substitute parts can look different from the original.
    In Stock
    $7.83
    Minus Item
    Qty
    Plus Item
  • Brng Fl .759 for Craftsman 536250870 - Part 50546MA

    Main frame diagram

    Bearing

    Part #44532

    Replaced by #50546MA

    Info Icon
    Manufacturer substitution
    This part replaces 44532. Substitute parts can look different from the original.
    In Stock
    $21.77
    Minus Item
    Qty
    Plus Item
  • Bolt,hex.37 for Craftsman 536250870 - Part 1X20MA

    Main frame diagram

    Screw

    Part #39573

    Replaced by #1X20MA

    Info Icon
    Manufacturer substitution
    This part replaces 39573. Substitute parts can look different from the original.
    In Stock
    $8.31
    Minus Item
    Qty
    Plus Item
