Kenmore 10653342300 refrigerator Parts

On Kenmore side-by-side refrigerator model 10653342300, the model and serial number label is located on the inside wall of the refrigerator (fresh food) compartment. We use that label to record the full model number, serial number, and purchase date for service and parts matching.

• Open the refrigerator (not freezer) door
• Look along the inside side wall of the fresh food compartment
• Check near the crisper area and lower side walls first
• Look for a model and serial number label (often a white or silver sticker)
• Write down both the model number and serial number exactly as shown

The label typically includes the key identifiers we need to match Kenmore parts and diagrams.

Kenmore refrigerators can look similar across multiple model series, but parts like a thermostat, ice maker, or water valve must match the exact model. Using the label information helps us avoid ordering the wrong replacement part.

• Confirm the model number on the label matches 10653342300 before ordering
• Use the model number to choose the correct diagrams and parts list
• Keep the information with your paperwork; the owner's manual also recommends recording it
• If you are ordering common cooling or ice/water parts, match by model first, then select the part
• For broader model searches and ordering, use Sears PartsDirect

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 10653342300 are cooling problems, ice maker or dispenser trouble, water leaks, unusual noises, and frost buildup. Many of these trace back to airflow restrictions, water supply issues, or a failed defrost or control component; your owner's manual outlines normal operation and troubleshooting steps.

• Not cooling or warm temperatures: blocked vents, dirty condenser area, failed thermostat, fan, or sealed-system issue

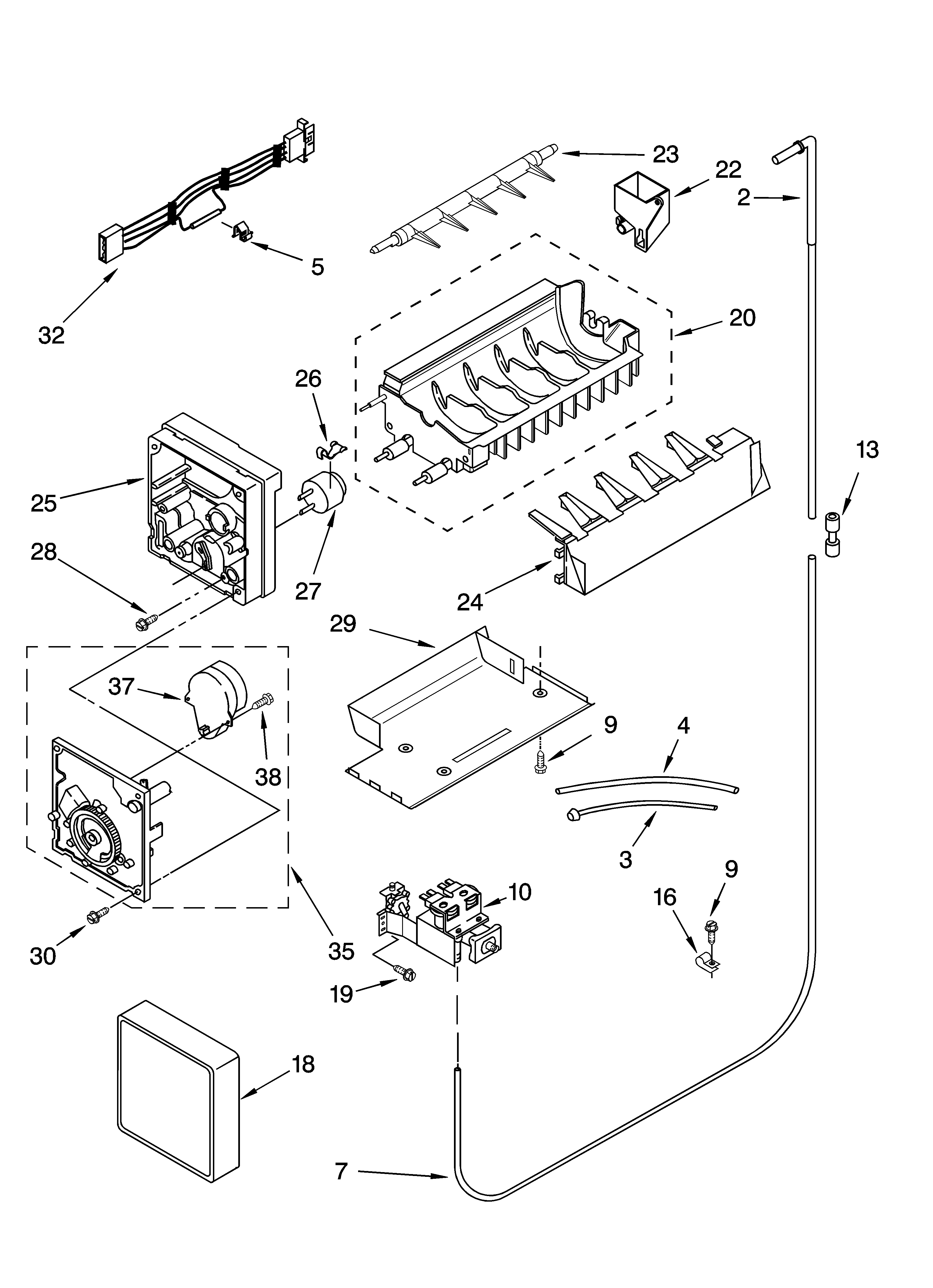

• Ice maker not making ice: water supply shutoff, frozen fill tube, bad inlet valve, or ice maker failure
• Water dispenser slow or not dispensing: clogged filter path, kinked water tube, or valve issue
• Water leaking or puddles: blocked defrost drain, loose water line connection, cracked tubing
• Noisy operation: normal compressor/fan sounds, items vibrating, or a failing fan motor/blade
• Frost buildup in freezer: door not sealing, frequent door openings, or a defrost system problem

• Confirm proper air circulation; do not block interior vents with food packages.
• Listen for normal sounds (fan airflow, gurgling, sizzling during defrost); these are expected in many cycles.
• Check doors close fully; clean sticky gaskets and make sure the unit is level.
• Verify the household water supply is on and the line is not kinked.
• After a power interruption, allow time for temperatures to stabilize before adjusting controls.

Cooling, defrost, and water systems are connected. A simple airflow problem can mimic a bad thermostat, and a restricted water supply can look like an ice maker failure. Using the model-specific guidance in the installation guide helps prevent repeat issues after a repair.

For replacement parts for Kenmore 10653342300, order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Your Kenmore side-by-side refrigerator model 10653342300 has its exact capacity (cubic feet) listed in the model specifications section of the owner's manual. The most reliable place to confirm it on the appliance itself is the model and serial label inside the refrigerator compartment.

Use these options in order; they are the quickest and most accurate for model 10653342300:

• Check the model and serial label inside the fresh food (refrigerator) compartment.
• Look up the specifications in the owner's manual.
• Measure usable interior space only if you need an estimate (see the formula below).
• If you are shopping for replacement parts by model, search by model number on Sears PartsDirect.

Capacity is the interior volume. If you measure the inside of the refrigerator and freezer sections (in inches), you can estimate cubic feet:

• Measure height x width x depth of each compartment (inside dimensions).
• Multiply to get cubic inches.
• Add refrigerator + freezer cubic inches.
• Divide by 1,728 to convert to cubic feet.

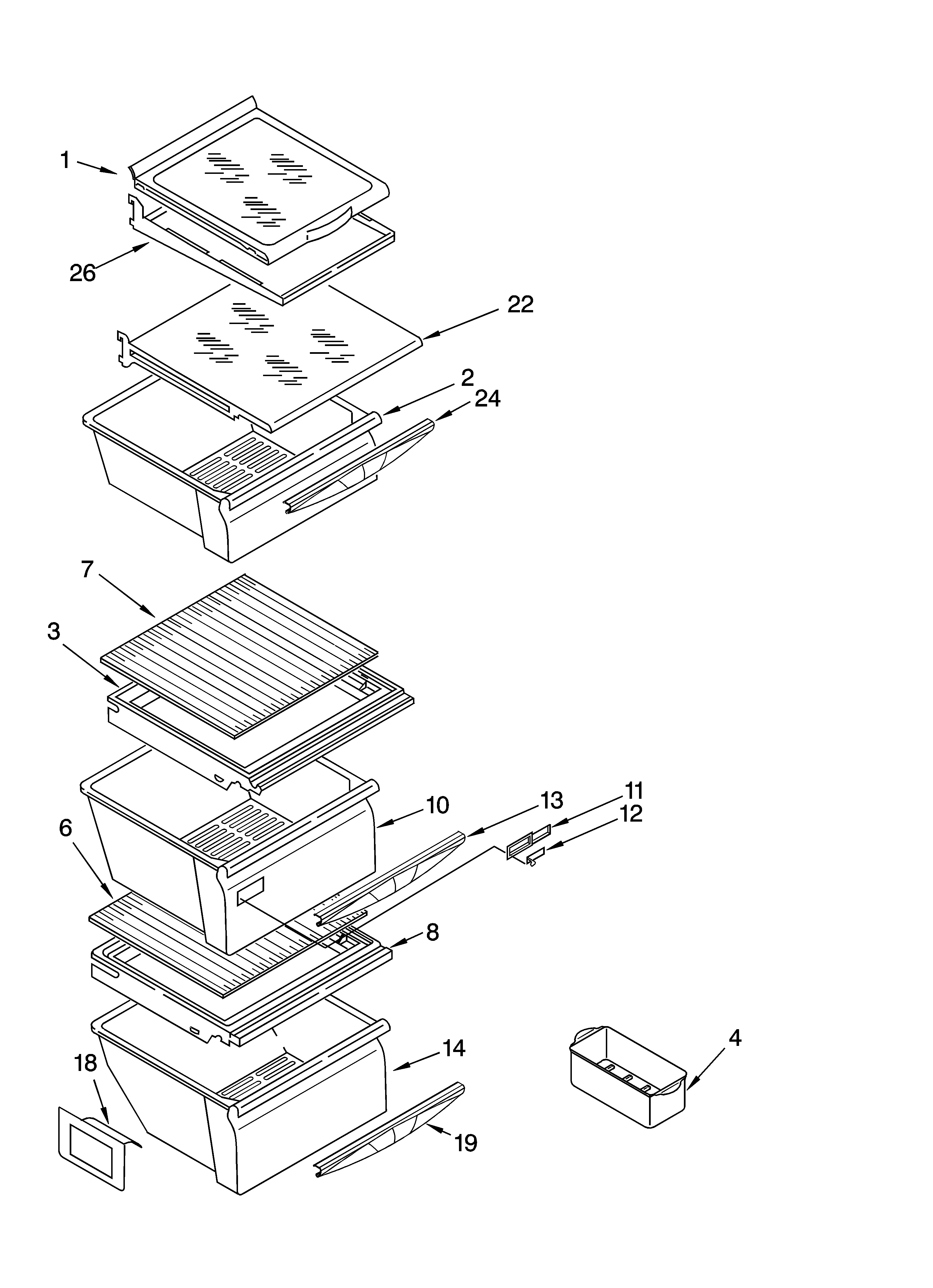

Knowing cubic feet helps us match the right refrigerator parts and accessories (like shelves, bins, and filter components) and helps you compare storage space when replacing door bins, crisper pans, or planning food storage.

Last updated: February 2026

A Kenmore 10653342300 side-by-side refrigerator usually stops cooling because the temperature controls are set incorrectly (including being set to OFF), airflow is blocked by food packages, or a cooling-system component such as the evaporator fan, defrost system, or compressor is not operating correctly. Check the basics first using the owner's manual.

• Confirm the refrigerator has power and the interior lights come on.
• Verify the refrigerator control is not set to OFF (this model will not cool in OFF).
• Set both controls back to the factory mid-settings, then wait for temperatures to stabilize.
• Make sure air vents are not blocked in either compartment.
• Close doors firmly and check that the door gaskets seal all the way around.
• Clean dusty condenser coils (dirty coils make the compressor run harder and cooling suffers).

If the settings and airflow look good, focus on the parts that actually move heat out of the cabinet.

• Refrigerator thermostat WP2198202 (temperature control issues)
• Refrigerator defrost bi-metal WPW10225581 (defrost overheating or open circuit symptoms)
• Refrigerator evaporator fan blade WP2169142 (air movement problems)
• Refrigerator compressor W10309990 (sealed system cooling)

When cooling stops, food temperatures can rise quickly. Starting with control settings, vent blockage, and coil cleaning prevents unnecessary part replacement and helps you pinpoint whether the issue is airflow, defrost, or the compressor system.

You can order replacement parts for Kenmore 10653342300 from the parts list for this model, or search by model number on Sears PartsDirect.
