What is the average lifespan of a Kenmore refrigerator?
A Kenmore refrigerator typically lasts 13 years on average. For your Kenmore 2535466940A side-by-side refrigerator, regular maintenance (cleaning coils, keeping door seals tight, and changing the water filter on schedule) helps you reach that lifespan and avoid early cooling or ice maker problems.
Most refrigerator life depends on how hard the sealed system and fans have to work.
- Maintenance: dirty condenser coils and blocked airflow shorten life
- Door seal condition: air leaks force longer run times
- Water quality and filter changes: helps protect the dispenser and ice maker
- Room temperature and ventilation: hot garages and tight cabinets add stress
- Usage habits: frequent door openings and overpacking reduce efficiency
Use these habits to keep the compressor, evaporator, and airflow system running efficiently.
- Vacuum condenser coils and the grille area regularly
- Confirm doors close fully and do not “bounce” open
- Keep vents inside the fresh food and freezer sections unblocked
- Replace the water filter on schedule; use the correct cartridge such as genuine Kenmore refrigerator water filter WF2CB
- Follow the care and operating guidance in the 2535466940A owner's manual
| Component/system | Typical impact on lifespan | What you notice first |
|---|---|---|
| Sealed refrigeration system (compressor, refrigerant loop) | Biggest driver of overall life | Warm temps, long run times |
| Evaporator fan and airflow | Strong influence on cooling consistency | Warm fridge, noisy fan |
| Door gaskets | Efficiency and frost control | Sweating, frost, temp swings |
| Ice and water system | Convenience system; can fail earlier | Slow dispense, small/odd ice |
A refrigerator that is nearing the end of its typical lifespan often shows up as temperature swings, heavier frost, louder operation, or dispenser issues. Addressing airflow and sealing problems early can prevent the compressor from running excessively.
Last updated: February 2026
What is the cubic foot of my Kenmore refrigerator model 2535466940A?
The exact cubic-foot capacity for Kenmore model 2535466940A is listed on the product specifications page in the 2535466940A owner's manual. If you do not see it there, most Kenmore 253-series side-by-side refrigerators are typically in the 22 to 26 cu. ft. range.
Check these spots in order:
- Specifications section in the 2535466940A owner's manual
- Model/serial plate inside the fresh food compartment (the manual notes this is where model and serial information is recorded)
- Any EnergyGuide label or spec sheet that came with the refrigerator paperwork
If you need an estimate for planning (bins, shelves, moving, or kitchen layout), we use this rule of thumb:
- Side-by-side refrigerators commonly measure about 32 to 36 inches wide
- Typical total capacity is often 22 to 26 cu. ft.
- Usable space is always less than “total” due to shelves, ice maker, and air channels
| What you’re comparing | What it means | Why it can differ |
|---|---|---|
| Total cubic feet | Full internal volume rating | Includes areas blocked by ducts and components |
| Usable storage | Space you can practically fill | Reduced by shelves, bins, ice bucket, and airflow needs |
Cubic feet helps you match the refrigerator to your household needs and also helps when ordering organization parts (door bins, crisper pans) or planning airflow clearance so the refrigerator cools efficiently.
Last updated: February 2026
Where is the Kenmore Coldspot model number?
On Kenmore Coldspot refrigerators like model 2535466940A, the model and serial number are printed on the serial plate inside the fresh food (refrigerator) compartment. We use that exact model number to match the correct parts, filters, and installation information.
Check these common locations in this order:
- Inside the refrigerator compartment on the side wall (most common)
- Inside the refrigerator compartment near the top front area
- Behind the lower crisper drawers on the interior wall
- On the door frame (open the refrigerator door and look along the frame)
- Behind the toe grille (kick plate) at the bottom front
For the model-specific “record your model and serial numbers” section and diagrams, use the 2535466940A owner's manual.
The serial plate typically includes:
- Model number (example format: 253.5466940A or 2535466940A)
- Serial number
- Electrical rating information
| What you see | What it means | What to do next |
|---|---|---|
| Starts with 253 | Kenmore 253-series platform | Use the full model to pick parts |
| Has both model and serial | You found the correct plate | Write it down or take a photo |
| Numbers are worn or smudged | Plate is still usable | Use a flashlight and clean gently |
Kenmore model numbers can look similar, but small differences change the correct fit for parts like a water filter, door gasket, or dispenser components. Using the exact model number helps us match the right replacement the first time.
Last updated: February 2026
Where is the defrost timer on Kenmore side by side?

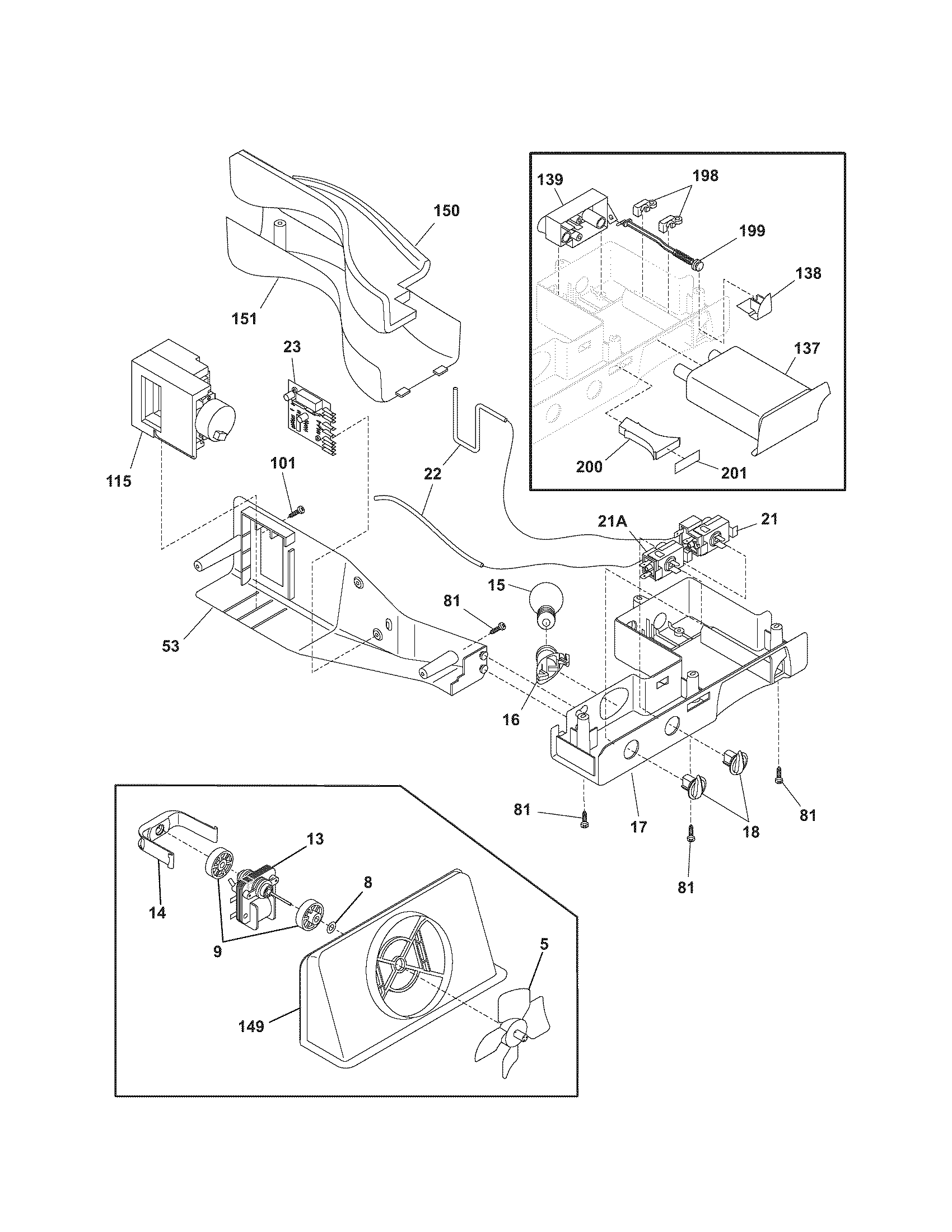

On Kenmore model 2535466940A side-by-side refrigerators, defrost is typically controlled by an automatic defrost control (not a simple, stand-alone “dial” timer). The control is commonly located in the temperature control housing inside the fresh food (refrigerator) section; use the 2535466940A owner's manual to confirm the exact access steps for your configuration.
- Look for the temperature control area inside the refrigerator compartment (often upper area).
- Listen for normal defrost-cycle sounds (hissing/sizzling, then occasional popping) during defrost.
- Check whether the unit is simply in a normal defrost cycle (many cycles last about 30 minutes).
- Verify the freezer control is not set to “0” (off).
- Make sure doors are closing fully; warm air intrusion can mimic defrost problems.
Most Kenmore side-by-side designs place defrost control components in one of these areas:
| Possible location | What you’ll see | Typical access |
|---|---|---|
| Temperature control housing (fresh food section) | Control board or control module near the cold control | Remove control cover/knobs per manual |
| Behind toe grille / lower front area | Wiring, condenser fan area (less often the defrost control itself) | Remove toe grille |
| Rear service area | Main wiring and compressor compartment (rare for a “timer”) | Pull unit out, remove rear cover |
Many Kenmore refrigerators use an automatic defrost control that initiates defrost based on run time and conditions, rather than a mechanical timer you can easily turn with a screwdriver. That changes troubleshooting: you focus on the defrost heater circuit, defrost thermostat, and sensors instead of trying to manually advance a timer.
- Check for heavy frost on the freezer back wall (a classic defrost failure sign).
- Confirm the refrigerator is cooling again after a defrost window (about 30 minutes).
- Inspect door gaskets for gaps or tears; air leaks increase frost load.
- If you’re diagnosing parts, the defrost thermostat is a common failure point; see refrigerator defrost bi-metal thermostat 5303918214.
A true defrost control issue can cause frost buildup on the evaporator, reduced airflow from the evaporator fan, warmer temperatures, and longer compressor run times. Finding the correct control location first prevents unnecessary part replacement.
Last updated: February 2026
Where is the water filter on my Kenmore side by side refrigerator?
On Kenmore model 2535466940A, the water filter is located in the fresh food (refrigerator) compartment, in the upper right front corner. On models with the “ice and water front filter,” you access it from inside the refrigerator, not from the freezer door.
- Open the refrigerator (fresh food) door.
- Look at the top-right area near the front ceiling of the compartment.
- Find the filter housing and release button next to the cartridge.
- Keep a towel handy; a small amount of water can drip during removal.
- Use the steps shown in the 2535466940A owner's manual for your exact housing style.
Most 253-series Kenmore side-by-side units with this setup use a push-button release that ejects the cartridge partway so you can pull it out.
| What you’re looking for | Typical location | What it does |
|---|---|---|
| Filter housing | Upper right, front of refrigerator section | Holds the cartridge and seals water flow |
| Release button | Right side of the cartridge | Pops the filter outward for removal |
| Cartridge | Slides in and out of the housing | Filters water to the dispenser and ice maker |
Your manual calls out Kenmore replacement cartridge 9911; the matching part we list is the genuine Kenmore refrigerator water filter WF2CB. Replace the filter about every 6 to 9 months for best taste and flow.
Knowing the correct filter location prevents broken trim, cracked housings, and leaks. It also helps you avoid removing freezer components when the filter is actually in the refrigerator section.
Last updated: February 2026
Which Kenmore refrigerators are made by Whirlpool?
Many Kenmore refrigerators were built by different manufacturers; the quickest way to identify a Whirlpool-built Kenmore is to check the model number prefix on the rating label. In general, Kenmore models that start with 106 are Whirlpool-manufactured, while 253 (including 2535466940A) is typically associated with Frigidaire/Electrolux-built designs.
Look for the rating label (model and serial tag) and match the first three digits.
- Find the model tag inside the fresh food compartment (often on a side wall) or near the crisper area
- Write down the full model number exactly as shown
- Use the first three digits as the manufacturer prefix
- Confirm parts by matching the full model number, not just the prefix
- For model-specific details, use the 2535466940A owner's manual
These prefixes are widely used across Kenmore appliances and are the most practical way to identify the original manufacturer.
| Kenmore prefix | Common manufacturer | What it means for parts |
|---|---|---|
| 106 | Whirlpool | Many core components cross-reference to Whirlpool designs |
| 253 | Frigidaire/Electrolux | Parts and layouts commonly match Frigidaire-built platforms |
| 795 | LG | Many parts align with LG-built platforms |
Manufacturer identification helps you avoid ordering the wrong water filter, door gasket, or dispenser components that look similar but mount differently.
- Filters and housings can be brand-platform specific
- Door gaskets vary by door size and liner design
- Ice and water dispenser parts differ by platform
- Electrical parts (like sensors and thermostats) use different connectors
Kenmore 2535466940A uses a Kenmore front filter system described in the manual; when replacing the water filter, match the correct cartridge type for your platform. If you need the filter used on this model, the genuine Kenmore refrigerator water filter WF2CB is a listed replacement option.
