Kenmore 41794872301 stacked laundry center Parts

For the Kenmore 41794872301 stacked laundry center, the most common problems are dryer noise or no-heat symptoms, dryer not tumbling, and washer draining or spinning issues. These typically trace to normal-wear drive parts, airflow restrictions, or a failing drain component; use the owner's manual for model-specific checks.

Most common symptoms and likely causes

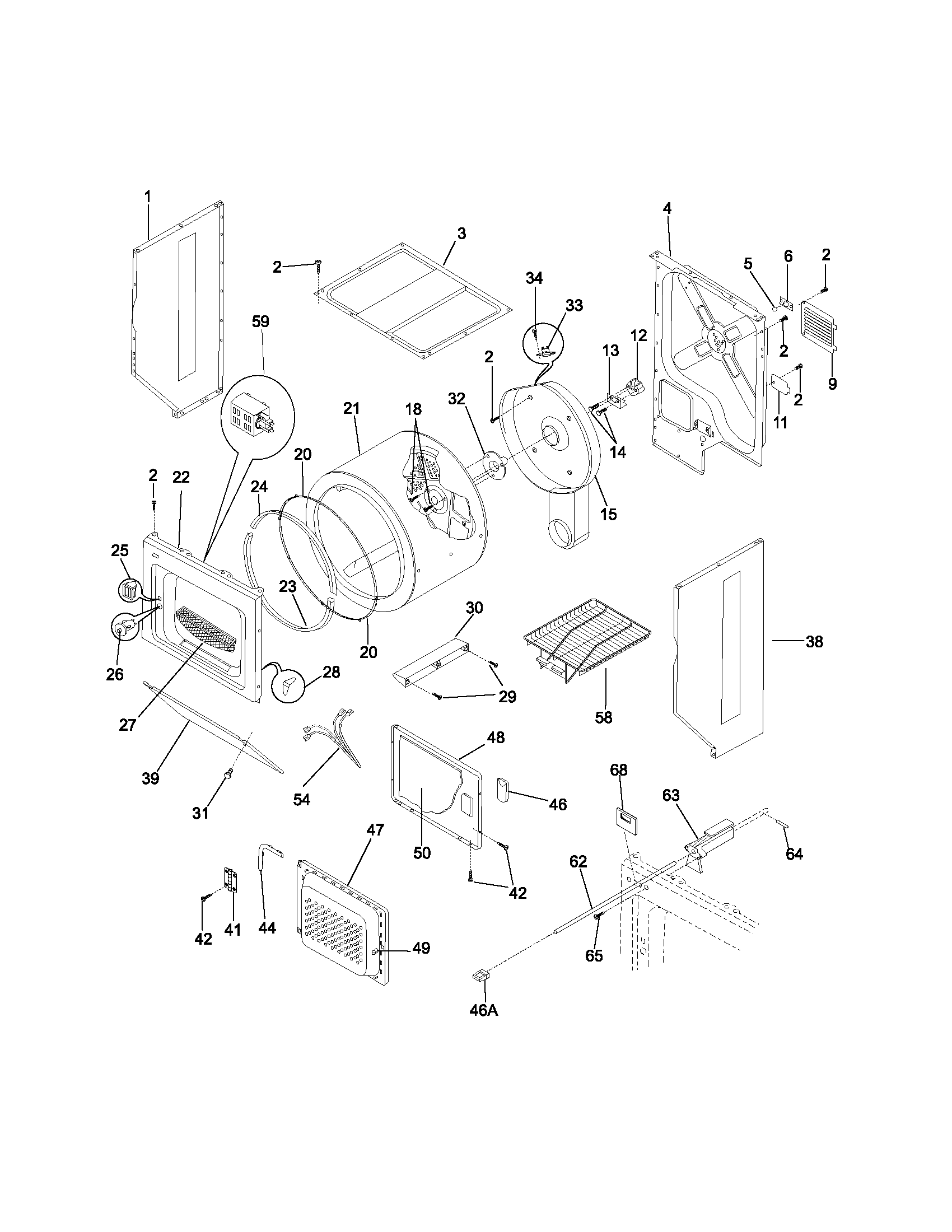

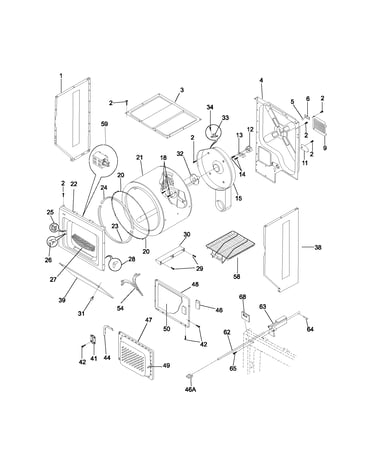

• Dryer is noisy (squeal, thump, scrape): worn drum support or bearing surfaces such as the dryer drum bearing 131825900, drum glides, or felt seals.

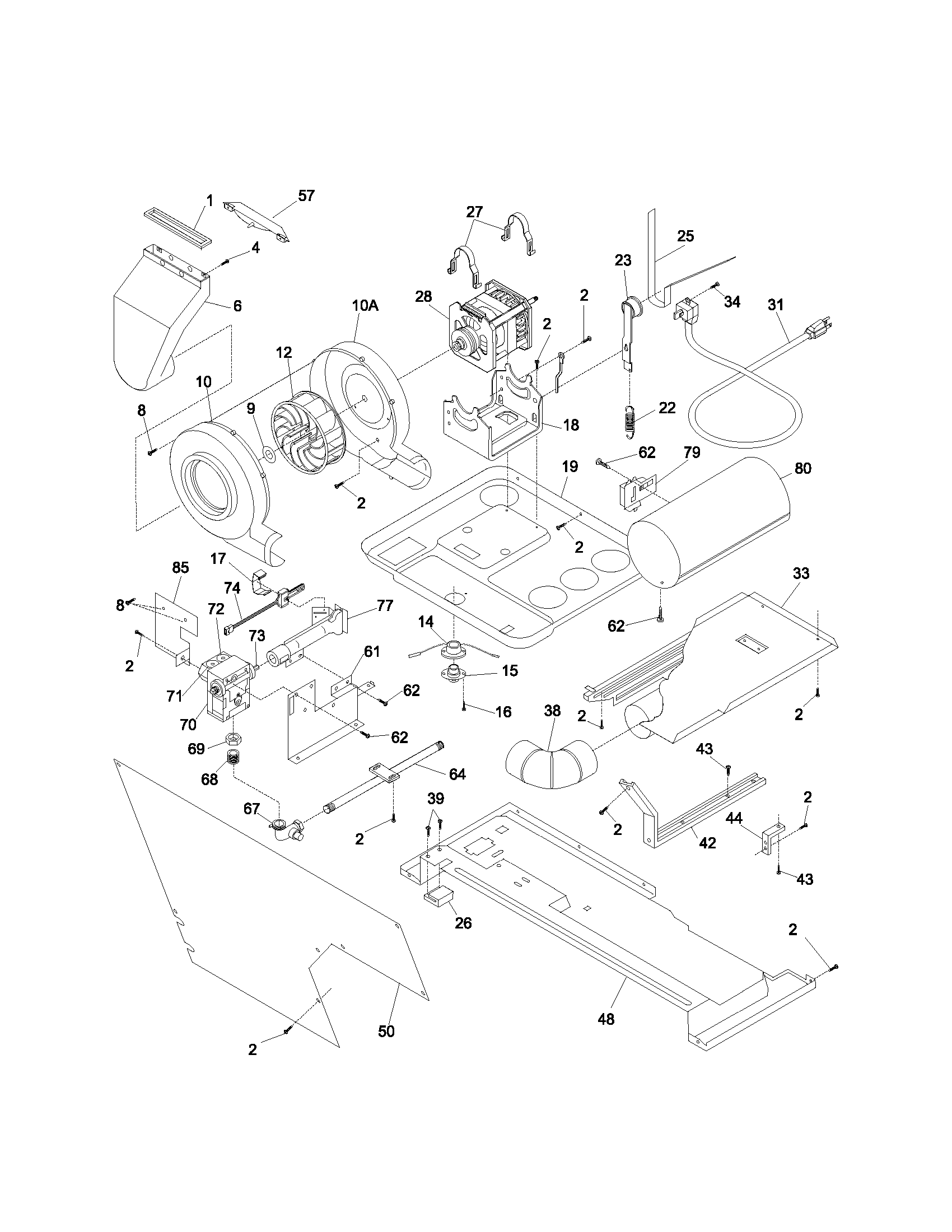

• Dryer runs but will not tumble: a broken or slipped belt 134511600 or a worn drum support shaft.
• Dryer will not start: door not latching, a failed start switch, or timer issues.
• Dryer heats poorly or not at all (gas models): restricted venting, a clogged lint screen, or weak gas valve coils.

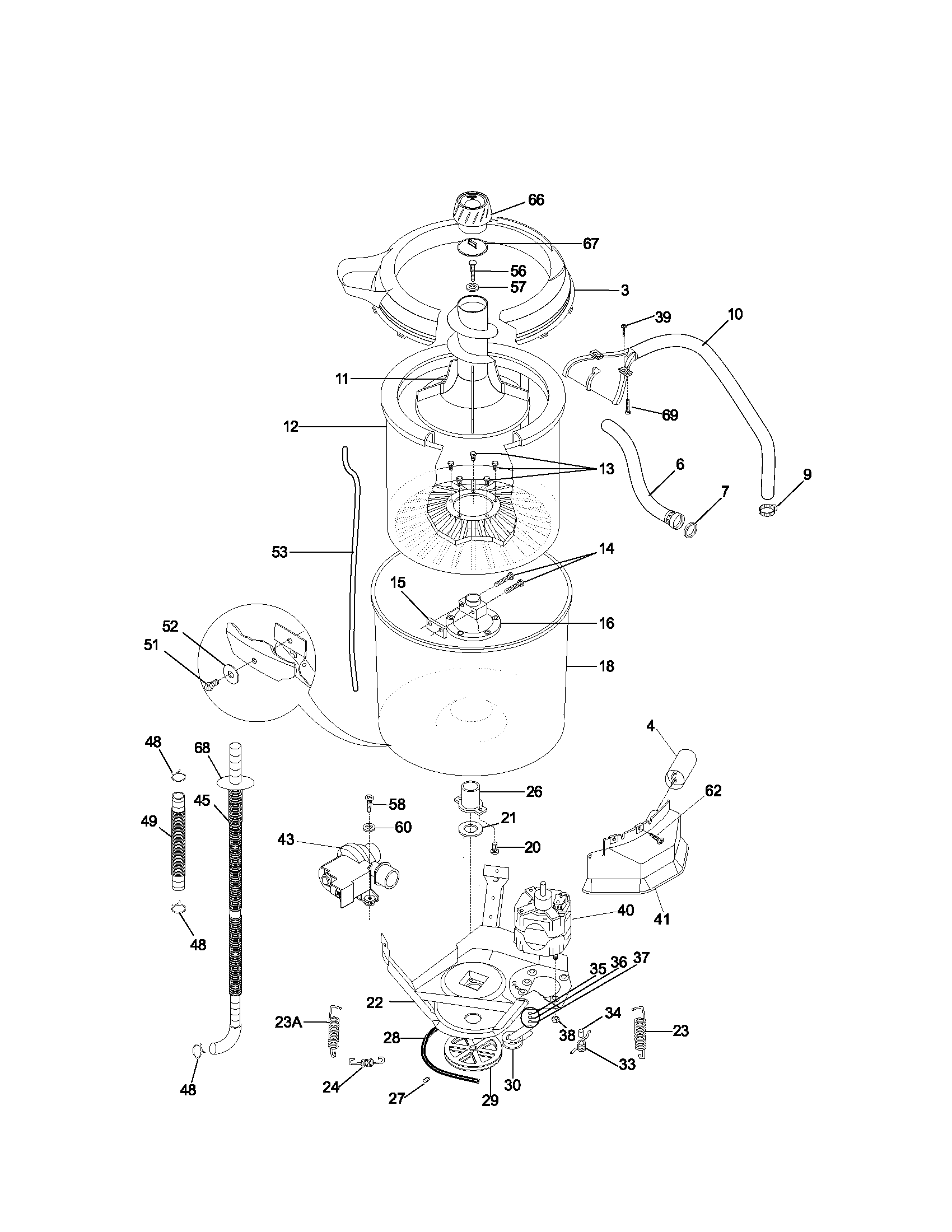

• Washer will not drain or leaves water in tub: a clogged pump, kinked hose, or a failing washer drain pump 137221600.
• Washer will not spin or is very loud in spin: load imbalance, worn drive components, or bearing wear.

Quick checks we recommend before ordering parts

1. Confirm airflow: clean the lint screen and check the vent path for blockage.
2. Listen and locate noise: front vs rear of dryer drum helps narrow glides, felt, or bearing.
3. Check for standing water: if the washer tub stays full, inspect the drain hose for kinks and the pump area for debris.
4. Verify the door closes firmly: a weak catch or strike can prevent starting.

Symptom-to-part guide (fast reference)

Symptom	Most common area	Example part on this model
Dryer squeals/grinds	Drum support/bearing	Dryer drum bearing (131825900)
Dryer won’t tumble	Drive system	Belt (134511600)
Washer won’t drain	Drain system	Washer drain pump (137221600)
Poor drying	Airflow/lint	Dryer lint filter (5304516871)

Why it matters

Catching wear items early prevents secondary damage, like a shredded belt from a seized drum bearing or water leaks from a struggling drain pump. It also helps you match the right Kenmore parts to the exact symptom.

Last updated: March 2026

The average lifespan of the Kenmore 41794872301 stacked laundry center is 13 years with normal use and routine maintenance. Keeping airflow clear for the dryer and preventing washer drain clogs are the two biggest factors that help this unit reach its full service life.

What affects lifespan the most

• Dryer venting and lint control: restricted airflow overheats components and shortens motor and timer life.
• Load size and balance: chronic overloading increases wear on bearings, belt, and motor.
• Drain performance: slow draining strains the pump and can lead to leaks.
• Moisture and corrosion: humidity and small leaks accelerate rust and electrical issues.
• Basic upkeep: cleaning the lint filter and checking hoses prevents common failures.

Maintenance checklist (high impact, low effort)

• Clean the lint screen every load; replace a damaged filter with the dryer lint filter 5304516871.
• Inspect and clean the exhaust duct regularly; keep the run as short and straight as possible.
• Check the washer drain path for coins, lint, and small socks; address slow drain early.
• Avoid consistently overfilling the washer; distribute bulky items to reduce vibration.
• Review the care and cleaning schedule in the owner's manual.

Typical lifespan by component (what usually wears first)

Component area	Common wear signs	Typical outcome
Dryer drum support and bearing	Squealing, thumping, drum play	Bearing or support replacement
Dryer drive system	Drum not turning, burning rubber smell	Belt or motor service
Washer drain system	Standing water, slow drain, pump noise	Pump or hose service

Why it matters

A 13-year service life is achievable when airflow stays open and the washer drains correctly; both reduce heat and strain on key parts like the drive motor, drum bearing, and drain pump.

Last updated: March 2026

The washer capacity (cubic feet) for Kenmore stacked laundry center model 41794872301 is listed in the product specifications section of the 41794872301 owner's manual. If you are comparing units, most compact stacked laundry center washers are commonly in the 2.0 to 3.5 cu. ft. range.

How to find the exact capacity for your model

We recommend using the manual because capacity can vary by tub design and model revision.

• Open the 41794872301 owner's manual
• Look for Specifications, Features, or Washer capacity
• If the manual lists tub volume in liters, convert to cubic feet (see table below)
• If you only see load size guidance, use it for day-to-day loading, not capacity

Quick conversion table (liters to cubic feet)

If the manual shows	That equals about
60 L	2.1 cu. ft.
70 L	2.5 cu. ft.
80 L	2.8 cu. ft.
90 L	3.2 cu. ft.
100 L	3.5 cu. ft.

Why it matters

Capacity affects how you sort loads, how well items move through wash water, and how well the washer can balance during spin. The manual also reinforces not overloading; dry items should not be loaded above the top row of holes in the wash tub for proper performance.

Related loading tips we use for best results

• Combine large and small items in the same load
• Load large items first; keep them under half the total load
• Avoid wrapping items around the agitator
• Balance single heavy items with 1 to 2 towels
• If the washer will not spin, wait for the lid lock to release before opening

Last updated: February 2026
