Model # GCG1500L0WW Official GE trash compactor

Here are the diagrams and repair parts for Official GE GCG1500L0WW trash compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Trash Compactor Frame Roller (replaces Wc17x20084) WC17X10012
#110

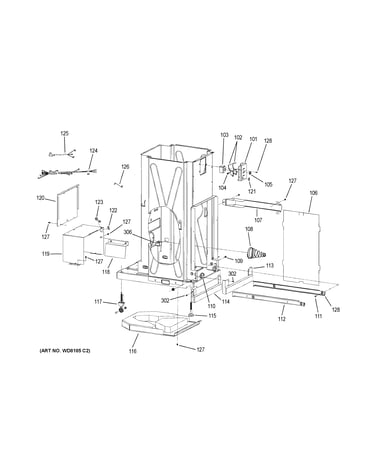

Frame parts diagram

Trash compactor frame roller (replaces wc17x20084)

Part #WC17X10012

This item is not returnable
$41.21 |
11% OFF Phone Price : $46.21
In Stock
Trash Compactor Drawer Roller WC02X10019
#209

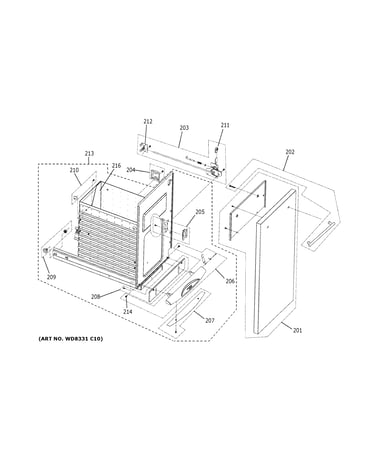

Container parts diagram

Trash compactor drawer roller

Part #WC02X10019

Replaced by #WC02X20110

?
Manufacturer substitution
This part replaces WC02X10019. Substitute parts can look different from the original.
$37.45 |
12% OFF Phone Price : $42.45
In Stock
Trash Compactor Screw WC01X10034
#214

Container parts diagram

Trash compactor screw

Part #WC01X10034

This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Trash Compactor Top Limit And Directional Switch WC21X10004
Trash compactor top limit and directional switch

Part #WC21X10004

Replaced by #WC21X20108

?
Manufacturer substitution
This part replaces WC21X10004. Substitute parts can look different from the original.
$21.23 |
19% OFF Phone Price : $26.23
In Stock
Ring Clip WC01X10018
#411

Motor & drive parts diagram

Ring clip

Part #WC01X10018

Replaced by #WC01X20107

?
Manufacturer substitution
This part replaces WC01X10018. Substitute parts can look different from the original.
This item is not returnable
$7.69 |
12% OFF Phone Price : $8.69
In Stock
Motor Cover WC17X10021
#119

Frame parts diagram

Motor cover

Part #WC17X10021

$10.29
In Stock
Rear Cover M WC17X10022
#120

Frame parts diagram

Rear cover m

Part #WC17X10022

$13.93
In Stock
Trash Compactor Drawer Assembly WC29X10004
#213

Container parts diagram

Trash compactor drawer assembly

Part #WC29X10004

$244.25
In Stock
Levelling Le WC01X10011
#115

Frame parts diagram

Levelling le

Part #WC01X10011

$31.27
In Stock
Door Assembly WC36X10065
#201

Container parts diagram

Door assembly

Part #WC36X10065

$54.07
In Stock
