Jenn-Air JDB3200AWS5 undercounter dishwasher Parts

A Jenn-Air dishwasher typically lasts 10 to 12 years with normal household use and basic maintenance. If your JDB3200AWS5 is in that age range and you are seeing draining, heating, or cleaning issues, targeted part replacement often restores reliable performance.

Typical lifespan and what affects it

Most dishwashers reach end-of-life due to wear in the wash system, drainage, or controls. The biggest factors are:

• Weekly usage (light use vs. multiple loads per day)
• Hard water and scale buildup on the heater and sump
• Filter and spray arm cleanliness
• Proper installation (drain loop, supply line, leveling)
• Door seal condition and leak history

Quick “repair vs. replace” guide

Use this as a practical rule of thumb for JDB3200AWS5:

Dishwasher age	Condition	Best next step
0 to 5 years	One symptom, otherwise solid	Repair is usually the best value
6 to 10 years	Repeated issues or poor cleaning	Repair if the tub is sound and leaks are controlled
11 to 15 years	Multiple failures, noisy, leaks	Replace unless the fix is simple and low-cost

Parts that commonly extend dishwasher life

If the unit is not draining, not filling, or not drying well, these model-matched parts are common fixes:

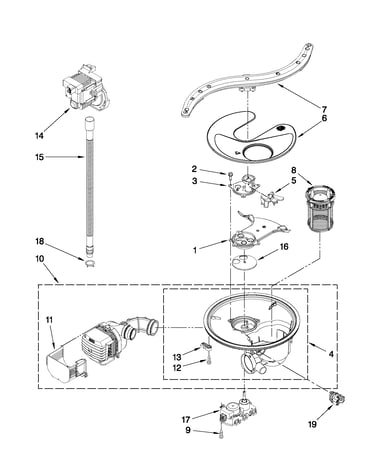

• Dishwasher drain pump WPW10348269 (drain problems, standing water)

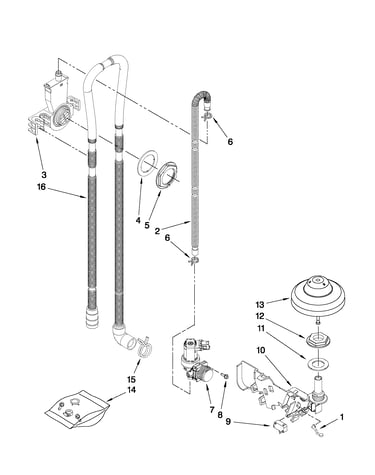

• Dishwasher water inlet valve WPW10327249 (slow fill, no fill)
• Dishwasher heater element WPW10082892 (poor drying, water not heating)
• Dishwasher filter W10872845 (poor cleaning, debris recirculation)
• Dishwasher door seal W11196317 (leaks at the door)

Why it matters

Knowing the expected lifespan helps you avoid over-investing in an aging dishwasher while still getting full value from a good tub and rack system. For JDB3200AWS5, confirming correct loading, cycle use, and maintenance steps in the JDB3200AWS5 owner’s manual often prevents repeat failures.

Last updated: February 2026

The most common dishwasher failure is a draining problem caused by food buildup in the filter area, drain hose, or drain path. On the Jenn-Air JDB3200AWS5, the next most common issues are poor cleaning from a blocked spray arm and leaks from worn door sealing surfaces; routine cleaning prevents many of these.

Most common failures (and what you usually notice)

• Not draining: standing water in the tub at the end of the cycle
• Not cleaning well: food soil left on dishes, especially on the top rack
• Not filling: little or no water in the tub shortly after starting
• Leaks: water at the bottom of the door or under the unit
• Won’t start: door not fully latched, power issue, or cycle not set correctly

Quick checks we recommend first (JDB3200AWS5)

Use the troubleshooting steps in the JDB3200AWS5 owner's manual and these fast checks:

• Confirm the door is closed tightly and latched
• Verify the water supply is turned on
• Check the circuit breaker or house fuse
• If the Clean light is flashing, press the overfill protection float down to be sure it moves freely
• If it isn’t draining well and you have one, clean the drain air gap

Common parts tied to these failures

If symptoms point to a specific failure, these model-compatible parts are common fixes:

Symptom	Common cause	Example part for JDB3200AWS5
Water left in tub	Drain restriction or weak drain pump	Dishwasher drain pump WPW10348269
Poor cleaning	Spray arm ports blocked or spray arm not turning	Dishwasher spray arm WPW10491331
Won’t fill or fills slowly	Water inlet valve issue or supply problem	Dishwasher water inlet valve WPW10327249

Why it matters

Drain and wash performance problems often cascade: leftover water and food soil can cause odors, redeposit debris on dishes, and extend cycle time. Keeping the filter area clear, using fresh detergent, and ensuring 120°F (49°C) incoming water temperature helps prevent repeat failures.

Last updated: February 2026

Yes, you can buy replacement parts for a dishwasher, and for the Jenn-Air JDB3200AWS5 we stock common repair parts like drain pumps, inlet valves, filters, spray arms, racks, and electronic controls so you can restore washing, draining, and drying performance.

What parts people replace most often

These are the most common dishwasher parts customers buy when troubleshooting poor cleaning, leaks, or no-drain symptoms:

• Drain components (pump, drain hose) for standing water
• Water fill components (water inlet valve) for no-fill or slow-fill
• Wash system parts (spray arm, filter) for poor cleaning
• Door sealing and venting parts (door seal, vent gasket) for leaks or moisture
• Electrical parts (electronic control board, wire harness) for dead unit or erratic cycles

Model-matched examples for JDB3200AWS5

Here are a few parts available for this model that match frequent symptoms:

Symptom	Likely part category	Example part for JDB3200AWS5
Won’t drain, water left in tub	Drain system	Dishwasher drain pump WPW10348269
Poor cleaning, debris recirculating	Filtration	Dishwasher filter W10872845
Not filling or fills slowly	Water supply	Dishwasher water inlet valve WPW10327249
Leaks at the door	Door sealing	Dishwasher door seal W11196317

How we recommend choosing the right part

Using the correct model number and confirming the symptom prevents wrong-part returns.

• Match your model number exactly: JDB3200AWS5
• Compare the part name and part ID to what you are replacing
• Check for related items that commonly fail together (for example, drain hose with a drain pump)
• Follow the installation and safety steps in the JDB3200AWS5 installation guide
• After installing, run a test cycle and check for leaks and proper draining

Why it matters

Dishwashers rely on a sealed door, correct water fill, strong wash circulation, and clear filtration. The manual also notes that operating without filters properly installed can damage the dishwasher, so keeping the filter system intact helps protect the wash pump and overall performance (see the JDB3200AWS5 owner’s manual).

Last updated: February 2026

In the Jenn-Air dishwasher model JDB3200AWS5, the most commonly replaced parts are the ones that handle water flow, washing action, heating, and sealing. When you see poor cleaning, leaks, or draining problems, these components are the first places we check because they wear, clog, or lose sealing strength over time.

Most common dishwasher parts that get replaced

• Filters: clogging causes poor cleaning and drainage issues; keep them properly installed and locked as shown in the JDB3200AWS5 owner’s manual.
• Spray arms: mineral buildup or cracks reduce wash pressure (example: dishwasher spray arm WPW10491331).
• Drain components: clogs or motor wear can cause standing water (example: dishwasher drain pump WPW10348269 and drain hose).
• Water inlet valve: failure can cause no-fill or slow-fill symptoms (example: dishwasher water inlet valve WPW10327249).
• Heating system parts: poor drying or cool water can point to the heater circuit (example: dishwasher heater element WPW10082892).
• Door sealing and venting parts: leaks, moisture, or odors often trace back to seals and vent gaskets.

Quick symptom-to-part guide

Symptom	Most likely parts to inspect first	What we typically find
Won’t drain, water left in tub	Drain pump, drain hose, filter	Debris blockage or weak pump
Dishes not clean	Filter, spray arm, sump area	Clogged filter, plugged spray holes
Dishes not dry	Heater element, rinse aid use	Heater issue or no rinse aid
Leaks at door	Door seal, vent gasket	Worn seal, misalignment, gasket damage
White film or excess suds	Detergent choice/amount, filter	Too much detergent or foaming

Why it matters

Replacing the right part first saves time and prevents repeat failures. For example, the manual notes the dishwasher should not be operated without filters properly installed and locked; a loose filter can lead to poor wash performance and recurring clogs.

Helpful checks before ordering parts

• Confirm the cycle fully completes (START/RESUME behavior is covered in the manual).
• Remove and clean the filter area; reinstall so it locks in place.
• Inspect spray arm holes for debris and mineral scale.
• If draining is weak, check the drain path (including any air gap, if present).
• For drying complaints, verify rinse aid use and then evaluate the heater circuit.

Last updated: February 2026
