Kenmore 66512723K311 dishwasher Parts

Your Kenmore dishwasher’s model number is usually printed on a sticker or rating plate inside the door area. For Kenmore units like model 66512723K311, we most often see it on the inner door frame or along the tub opening where the door closes.

• Open the dishwasher door fully and inspect the left and right inner door frame.
• Check the top edge of the door (the horizontal lip).
• Look along the tub opening (the rim the door seals against).
• Scan the tub wall near the front (just inside the opening).
• If the label is dirty or faded, wipe it with a damp cloth and a drop of dish soap.

Sometimes the label is partially hidden by the cabinet or has been painted over during a remodel.

• Check behind the toe-kick/access panel area.
• Look for paperwork that came with the dishwasher, or use the 66512723K311 owner’s manual.
• If the dishwasher was recently installed, the 66512723K311 installation guide can help you identify access areas (toe-kick, brackets, and leveling points) where labels are sometimes easier to spot.

Many Kenmore dishwashers use a 665 prefix. Your full model will include additional digits and letters that matter for parts matching.

We use the exact model number to match the correct version of key components like the heating circuit, wash system, and controls. Even small model differences can change fit and wiring.

Last updated: February 2026

Yes. We still support replacement parts for many Kenmore dishwashers, including model 66512723K311; the key is matching parts by your full model number so you get the correct fit for items like the drain pump, water inlet valve, filters, and heating element.

Use your model number 66512723K311 and confirm the part’s name and ID before ordering.

• Match the full model number from the rating label to the parts listing
• Compare the part name to the symptom (draining, filling, heating, leaking)
• Check for multiple similar parts (filters and pumps often have more than one style)
• Replace clamps or seals when you disturb hoses to prevent leaks
• Follow the safety steps in the 66512723K311 installation guide before servicing

These are examples of parts available for this model that cover the most common dishwasher failures.

Kenmore dishwashers are built with serviceable components, so a targeted repair (like a pump, valve, or filter) often restores normal washing and drying without replacing the whole unit. Regular filter maintenance also helps protect the pump and improves cleaning performance.

Your dishwasher uses a multi-part filtration system; we recommend inspecting and cleaning the upper and lower filters about monthly for best performance. See the steps and diagrams in the 66512723K311 owner’s manual.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher is usually worth it when the fix is a common wear item (like a drain pump, inlet valve, or heater) and the tub is in good shape. For Kenmore model 66512723K311, repairs are most cost-effective when the total repair cost stays well below the price of a comparable new dishwasher.

• If the dishwasher is under 10 years old, repairs typically make sense.
• If the tub is leaking or badly rusted, replacement is usually the better value.
• If the problem is no drain, no fill, or no heat, repair is often straightforward.
• If you need multiple major parts at once (pump motor plus control), replacement often wins.
• If you can DIY safely, you usually save the labor portion of the bill.

These are typical “high-impact” fixes for performance problems:

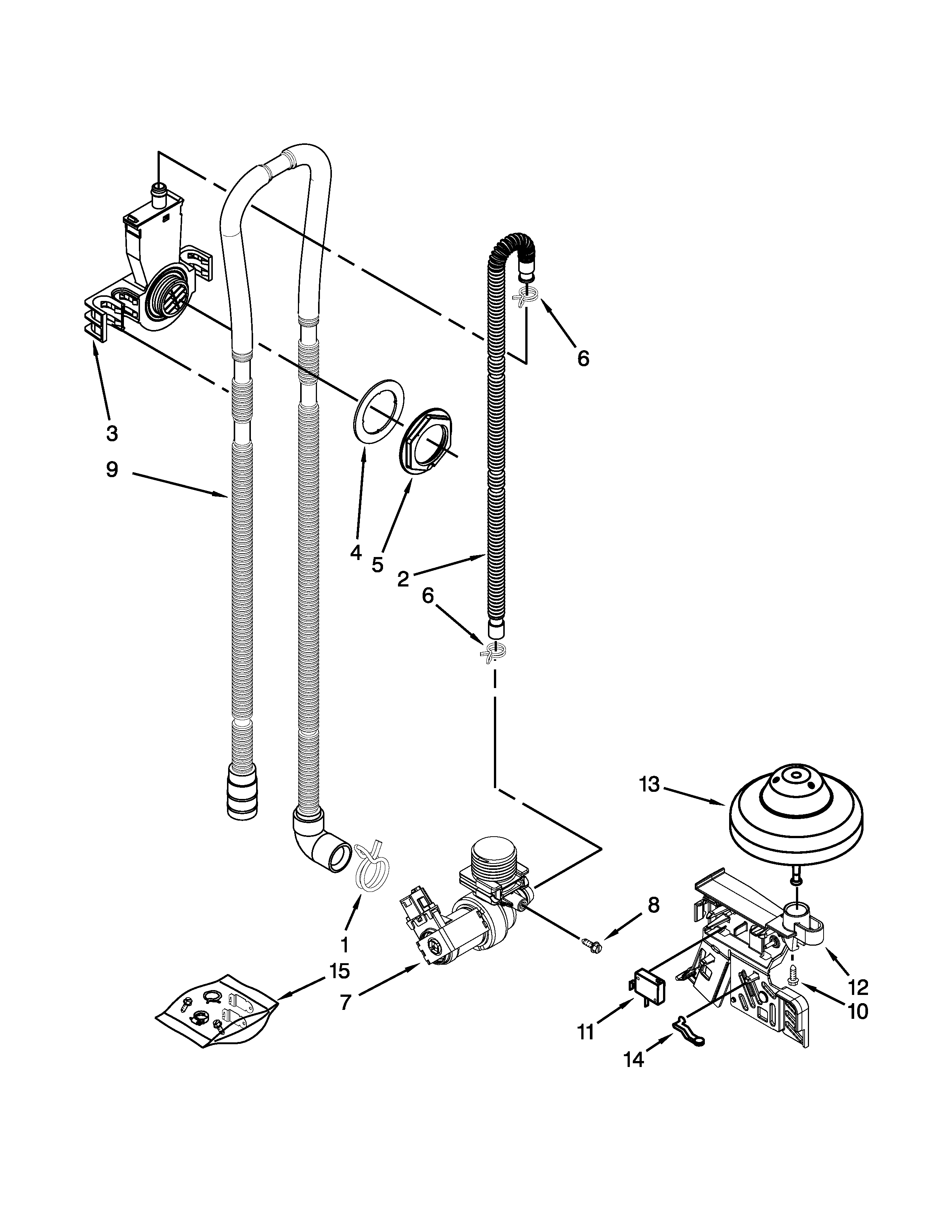

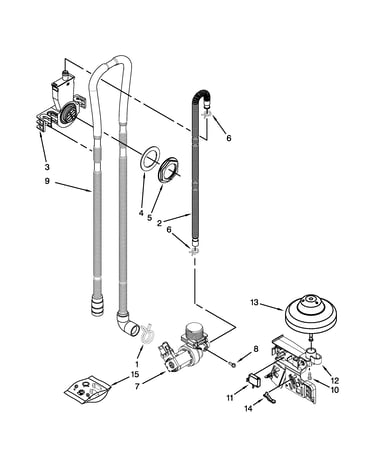

• Not draining: dishwasher drain pump WPW10348269
• Not filling or filling slowly: dishwasher water inlet valve WPW10327249

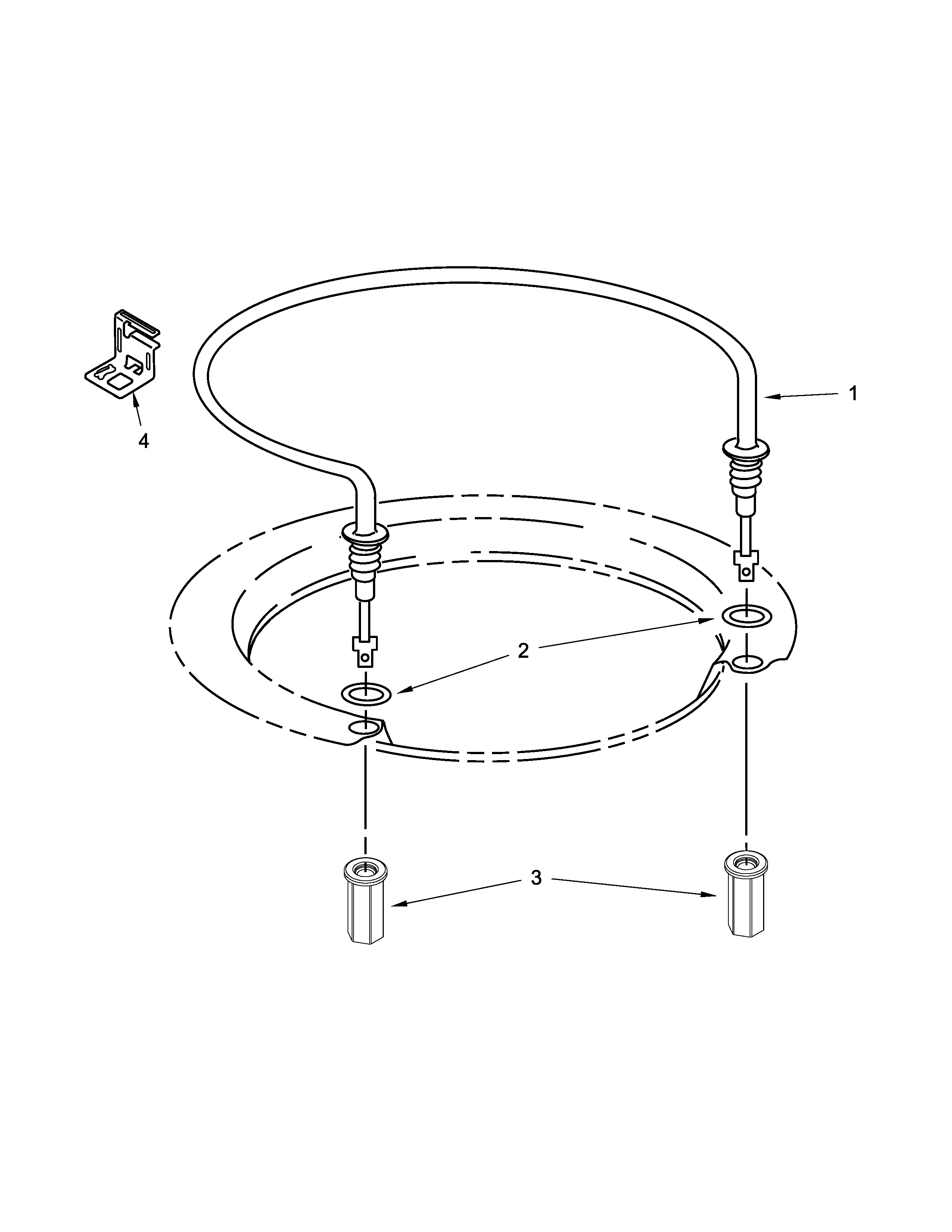

• Poor drying or water not heating: element assembly W10518394
• Cloudy dishes from soil recirculation: clean or replace the filter (see 66512723K311 owner's manual)

A dishwasher that is not draining, not heating, or not filling can often be restored with one targeted part. But once the tub or door sealing surfaces are compromised, you can end up chasing leaks and repeat failures.

• Confirm the dishwasher is on a grounded electrical supply and installed with proper clearances (see installation guide).
• Check for kinks or clogs in the drain hose and disposer connection.
• Clean the filter and run a cleaning cycle; monthly filter cleaning helps performance.
• If you see an error code, use Kenmore 665 model dishwasher error codes to narrow the failure.

Last updated: February 2026

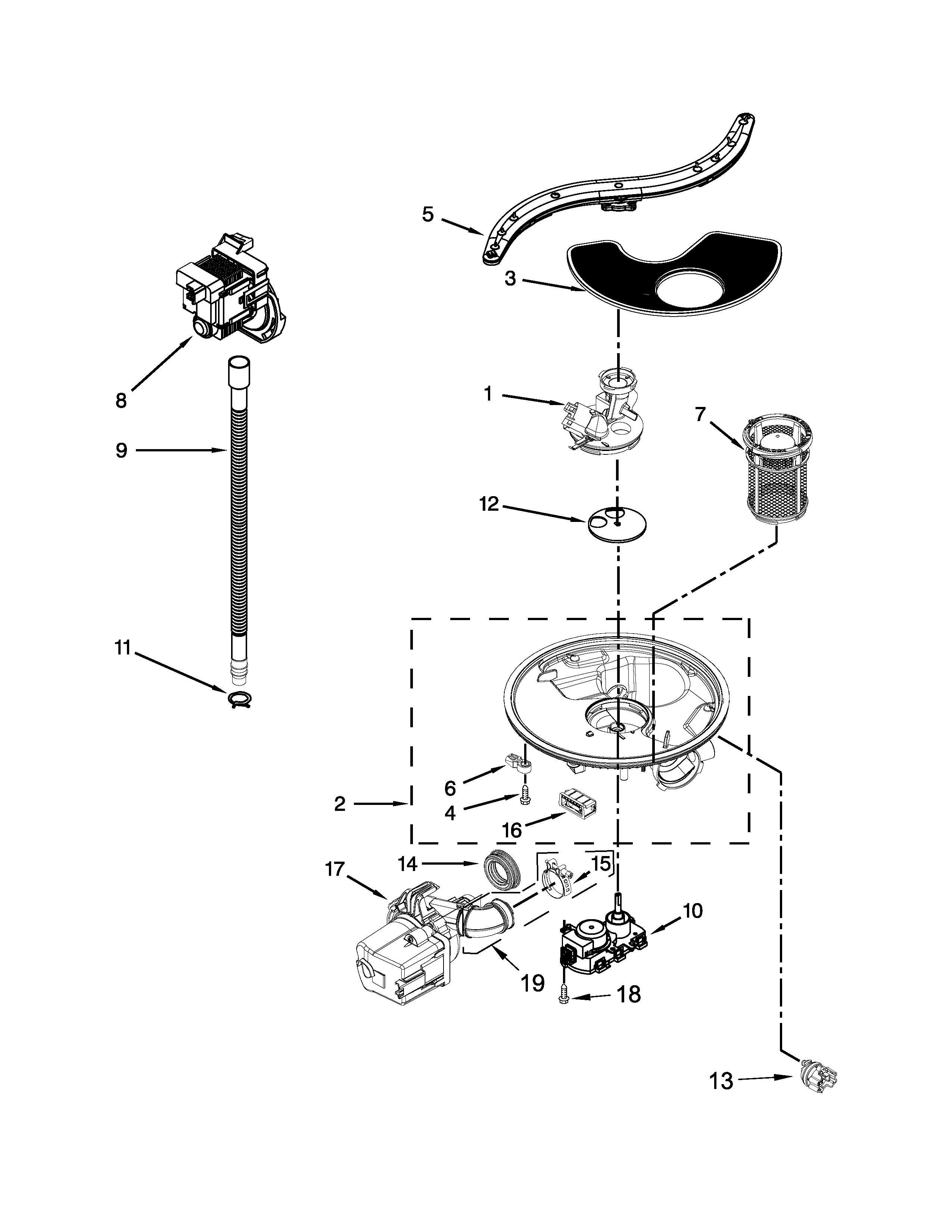

On Kenmore dishwasher model 66512723K311, impeller removal is typically done after you’ve safely accessed the pump area; the impeller is usually retained by a center fastener and lifts off the motor shaft once the fastener is removed. Use the steps in the 66512723K311 installation guide for safe access to the lower area.

• Shut off power at the breaker; do not rely on the door switch.
• Turn off the water supply valve under the sink.
• Pull the dishwasher out only as far as needed; protect the floor.
• If you need to lay the unit down, use two people and set it on its back as described in the 66512723K311 installation guide.
• Keep screws out of the pump area; cover the pump/spray arm area with a towel when working above it.

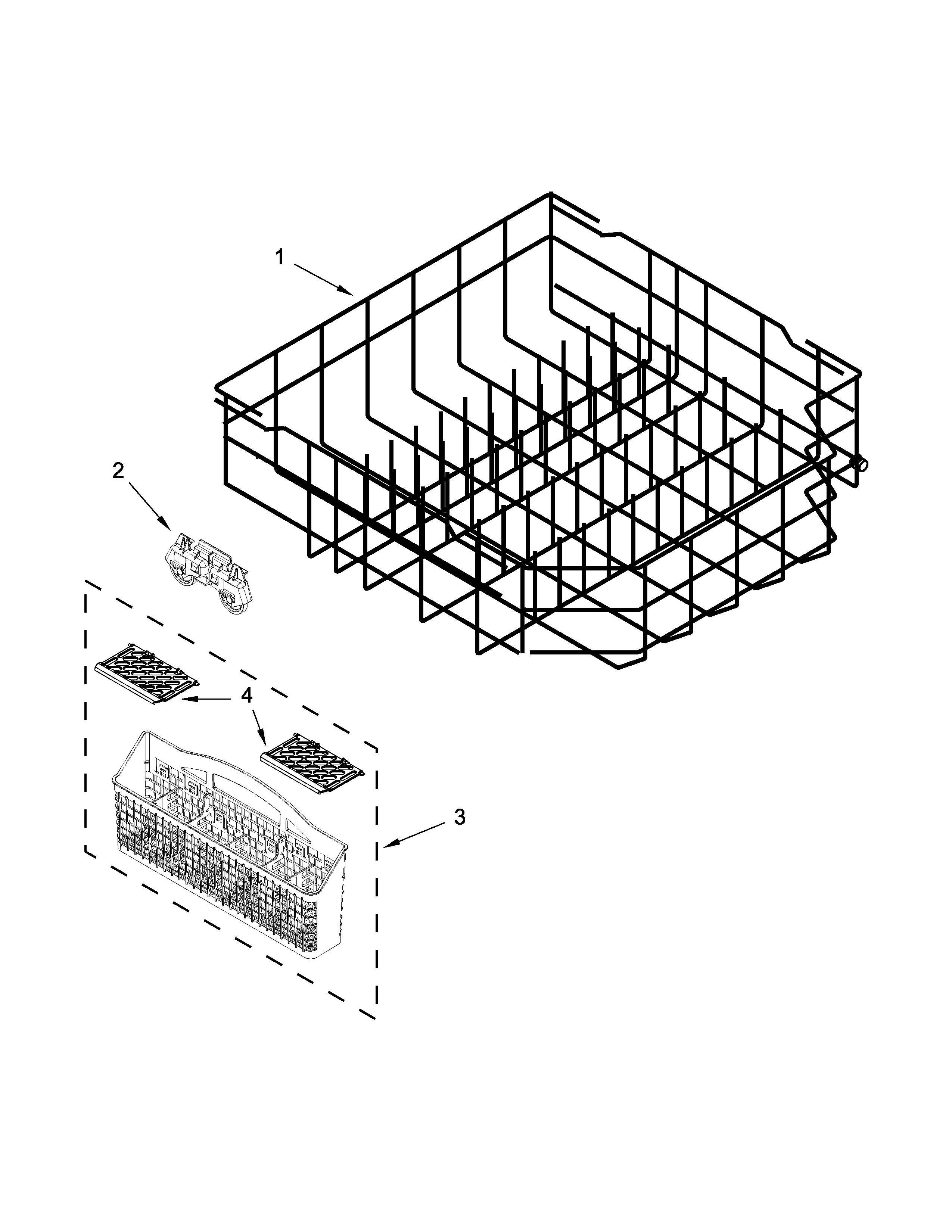

1. Remove the lower rack.
2. Remove the lower spray arm and any covers that block the sump area.
3. Remove the filters to improve access and visibility (follow the filter removal steps in the 66512723K311 owner’s manual).
4. Locate the impeller at the center of the pump housing.
5. Remove the center retaining fastener (many designs use a Phillips screw); then lift the impeller straight up off the motor shaft.
6. Inspect for broken glass, labels, or debris wrapped around the shaft; clean the sump area before reassembly.

• Drain problems: debris in the pump, kinked hose, or a weak drain pump.
• Leaks: worn seals or a loose hose connection.
• Noise: damaged impeller blades or foreign objects in the pump.

If the impeller is damaged or the pump is failing, these model-matched parts are commonly involved:

• Dishwasher drain pump WPW10348269
• Dishwasher pump motor assembly W11032770
• Dishwasher filter WPW10463906

A loose, cracked, or jammed impeller can cause no-drain symptoms, loud operation, or weak spray pressure. Cleaning the filters and keeping debris out of the sump helps protect the pump and motor.

Last updated: February 2026
