Ariens 96046000100 tractor Parts
Here are the diagrams and repair parts for Ariens 96046000100 tractor, as well as links to manuals and error code tables, if available.
Owner’s manual
View engineBy Schematic
By Part
SELECT DIAGRAM

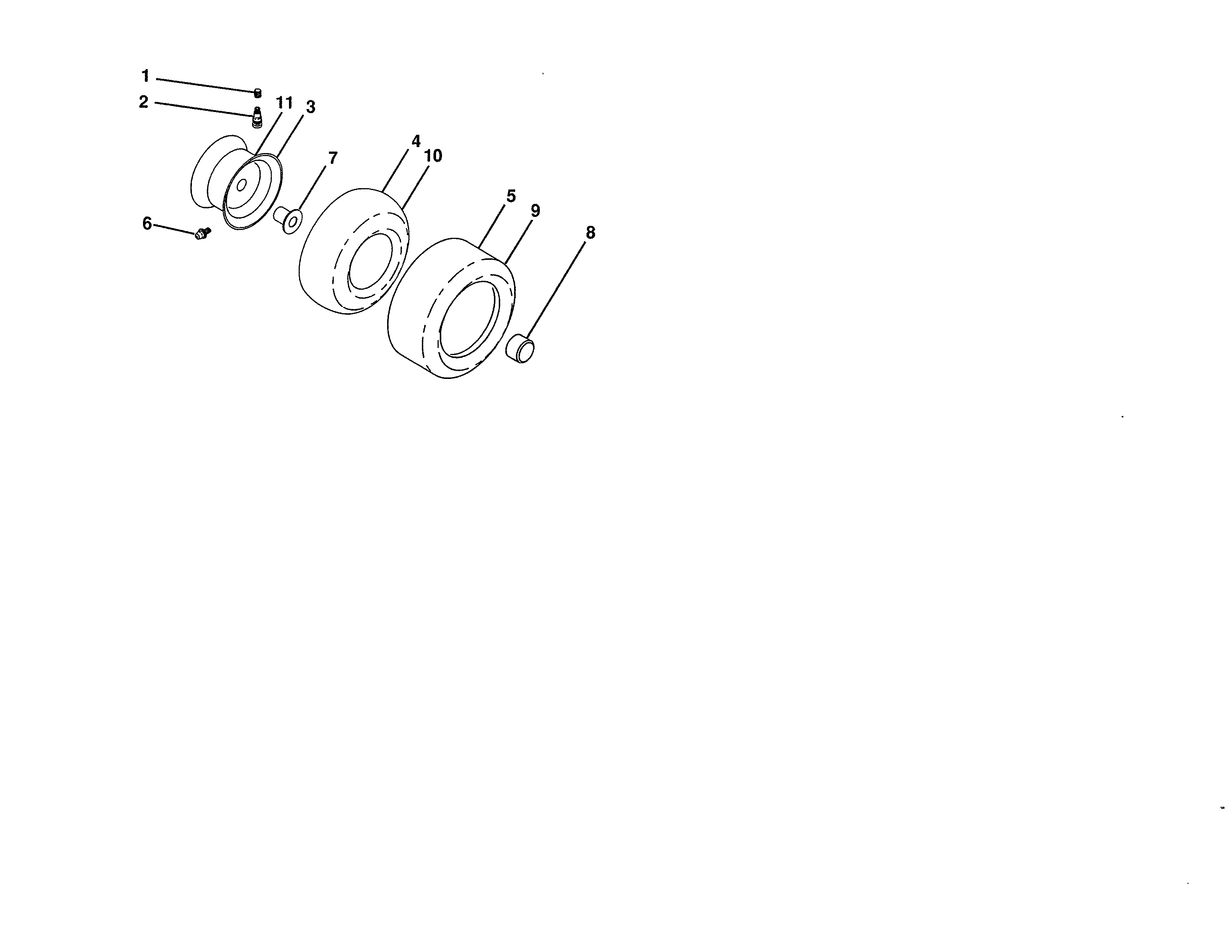

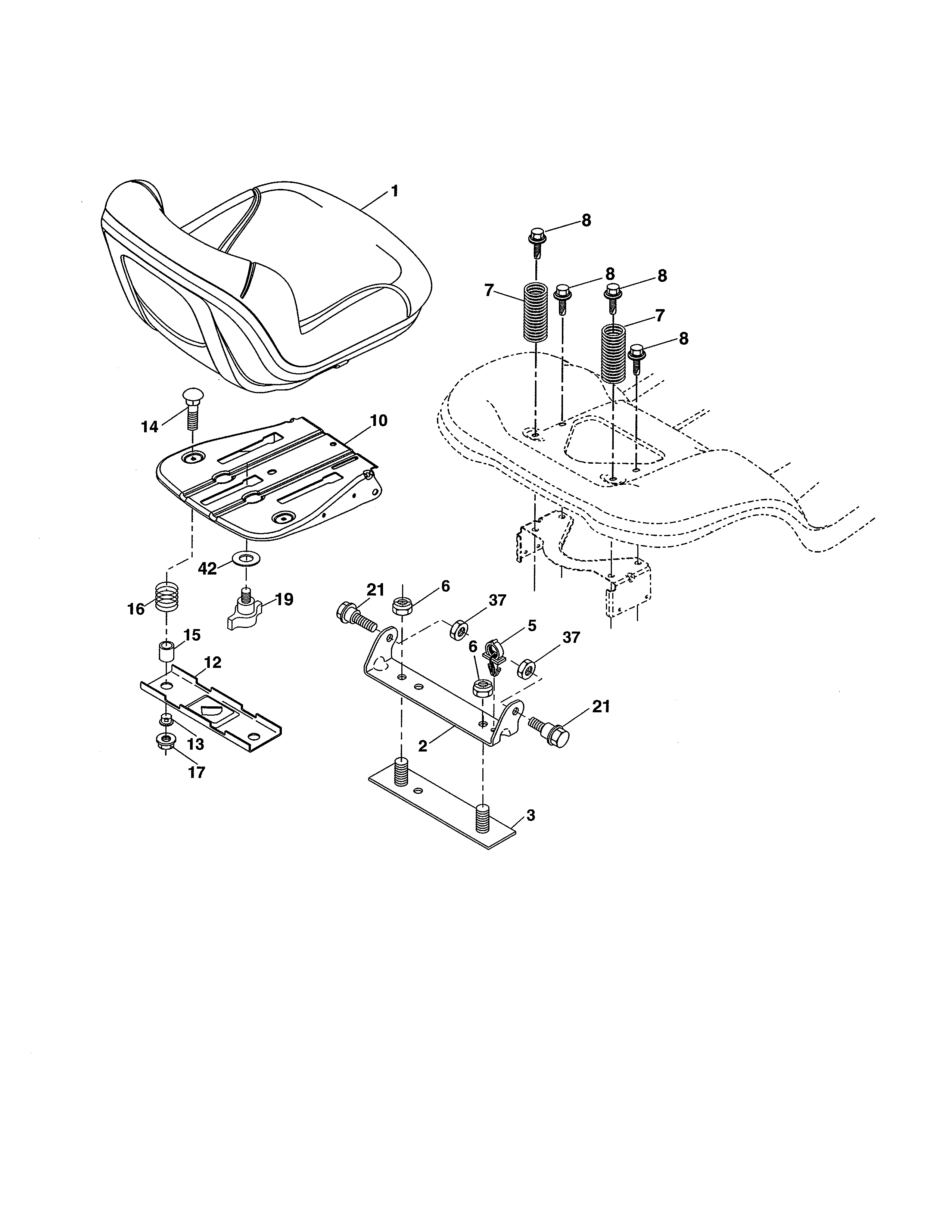

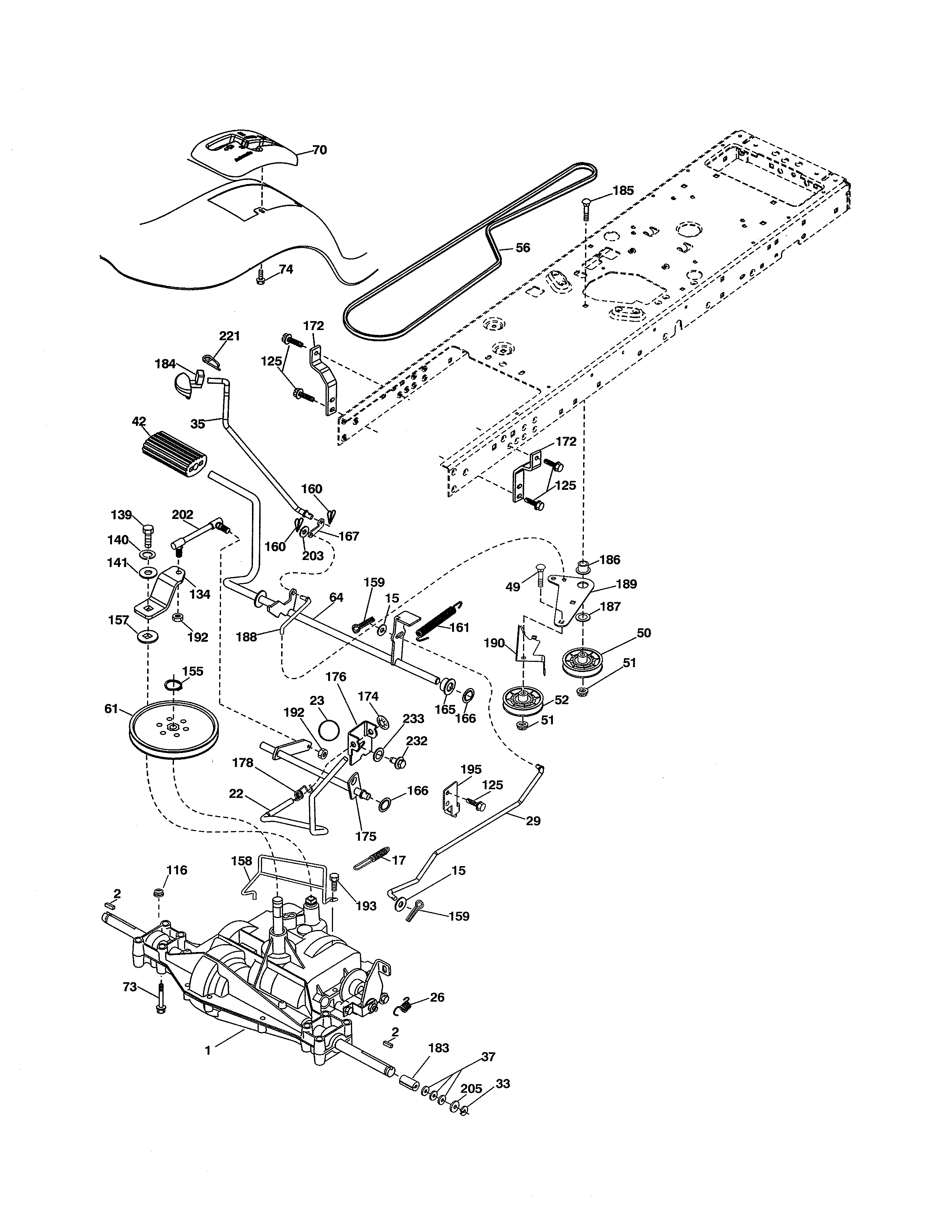

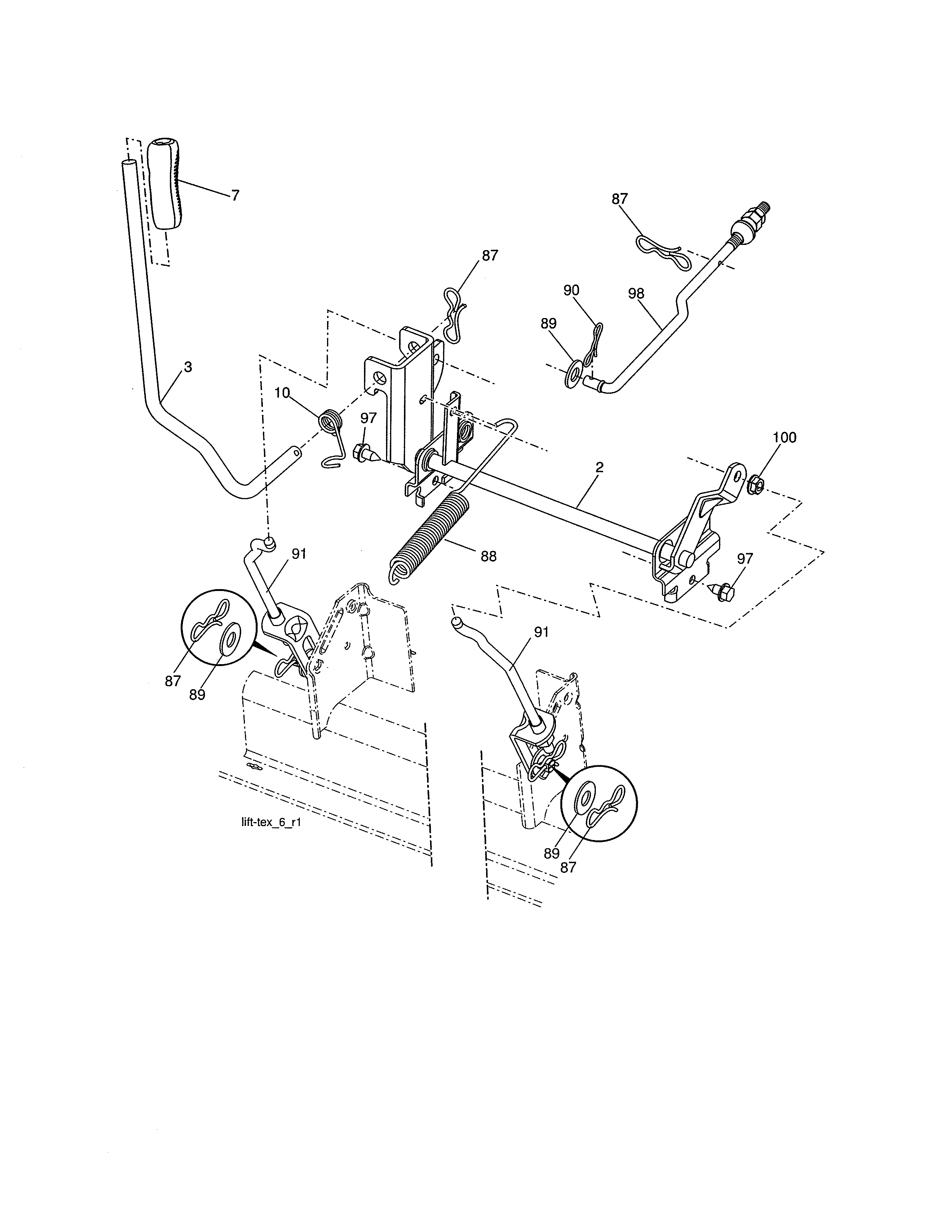

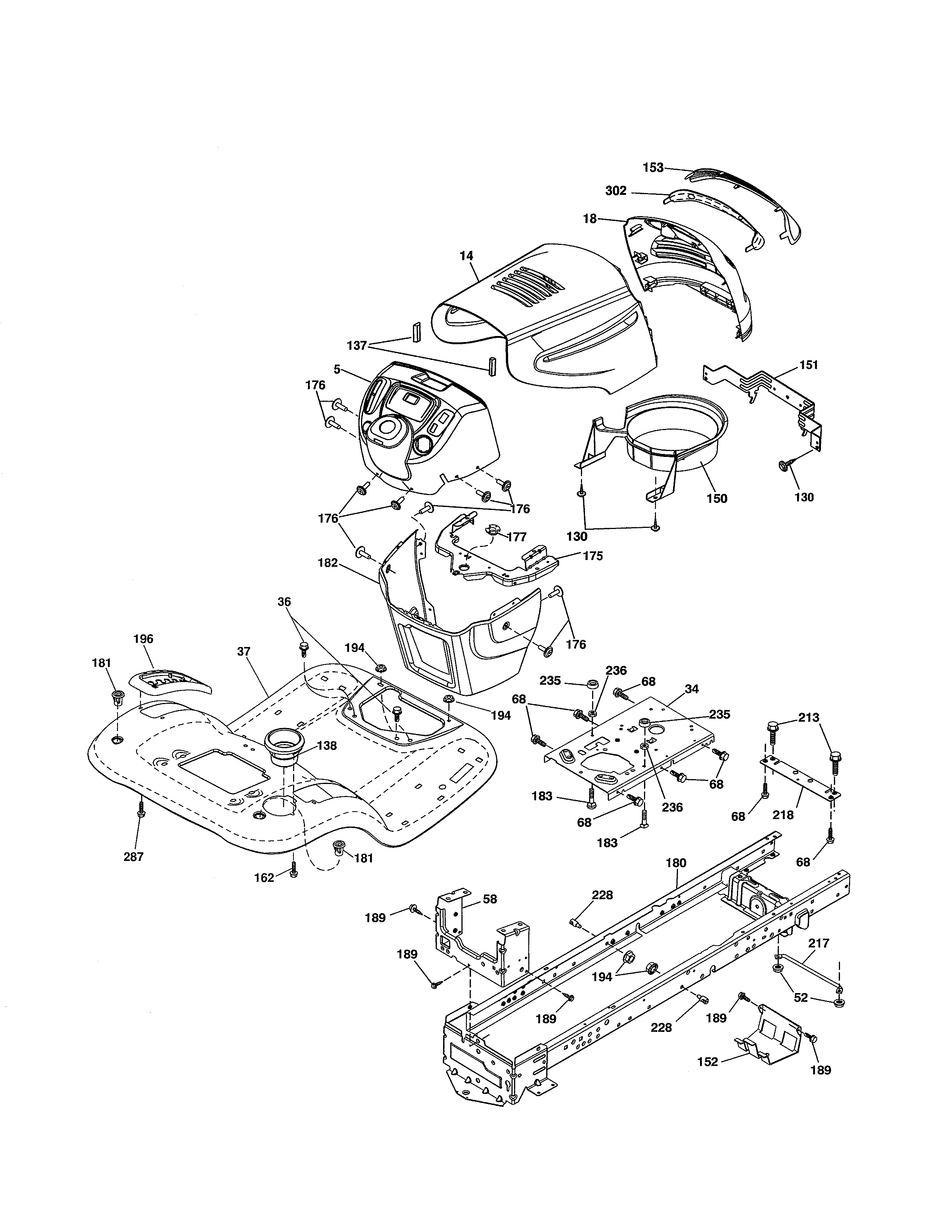

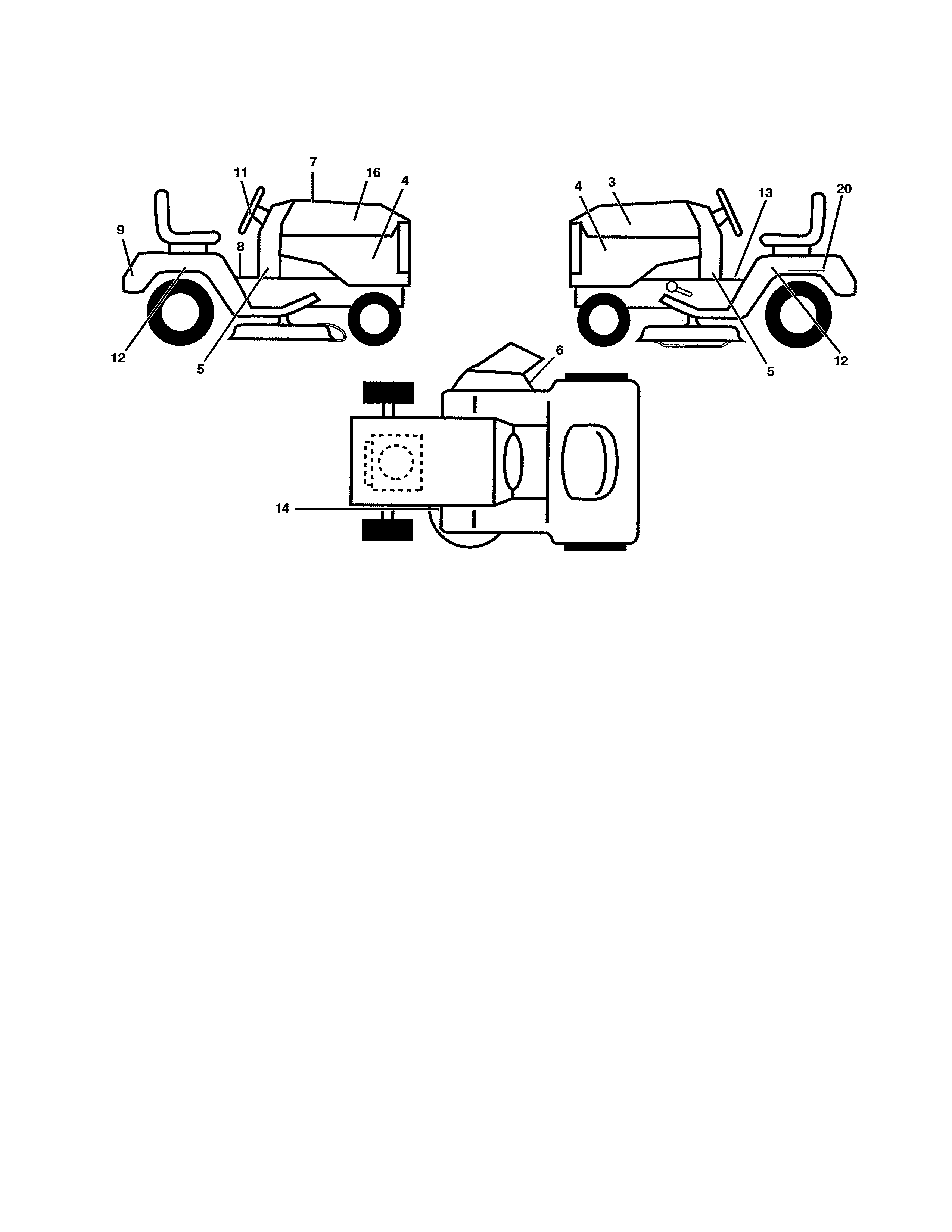

Browse Parts for 96046000100 Riding Mowers & Tractors

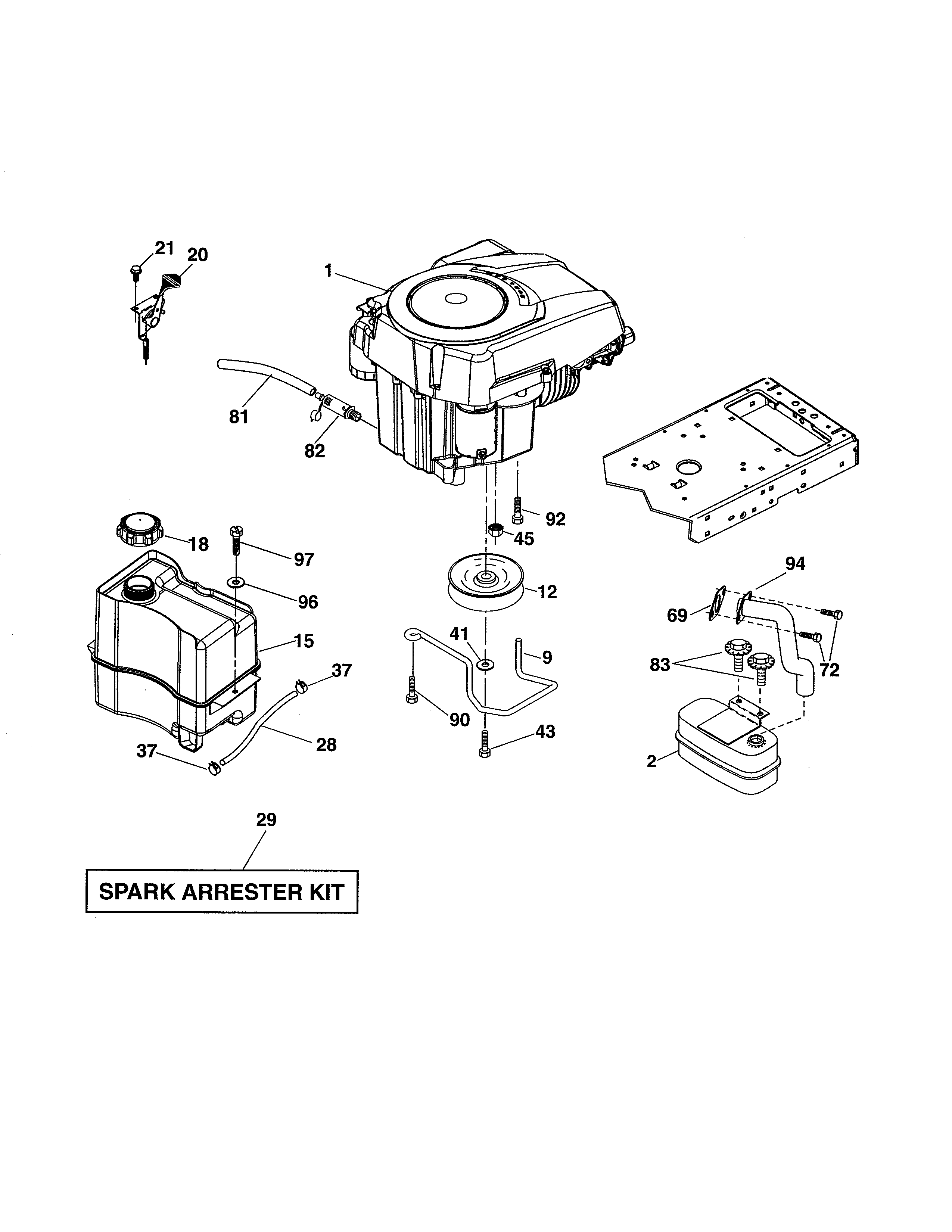

Engine diagram
Fuel Cap Assembly
Part #197725Replaced by #581075501
Manufacturer substitutionThis part replaces 197725. Substitute parts can look different from the original.In Stock$43.5912% OFF Phone Price : $49.59
Qty

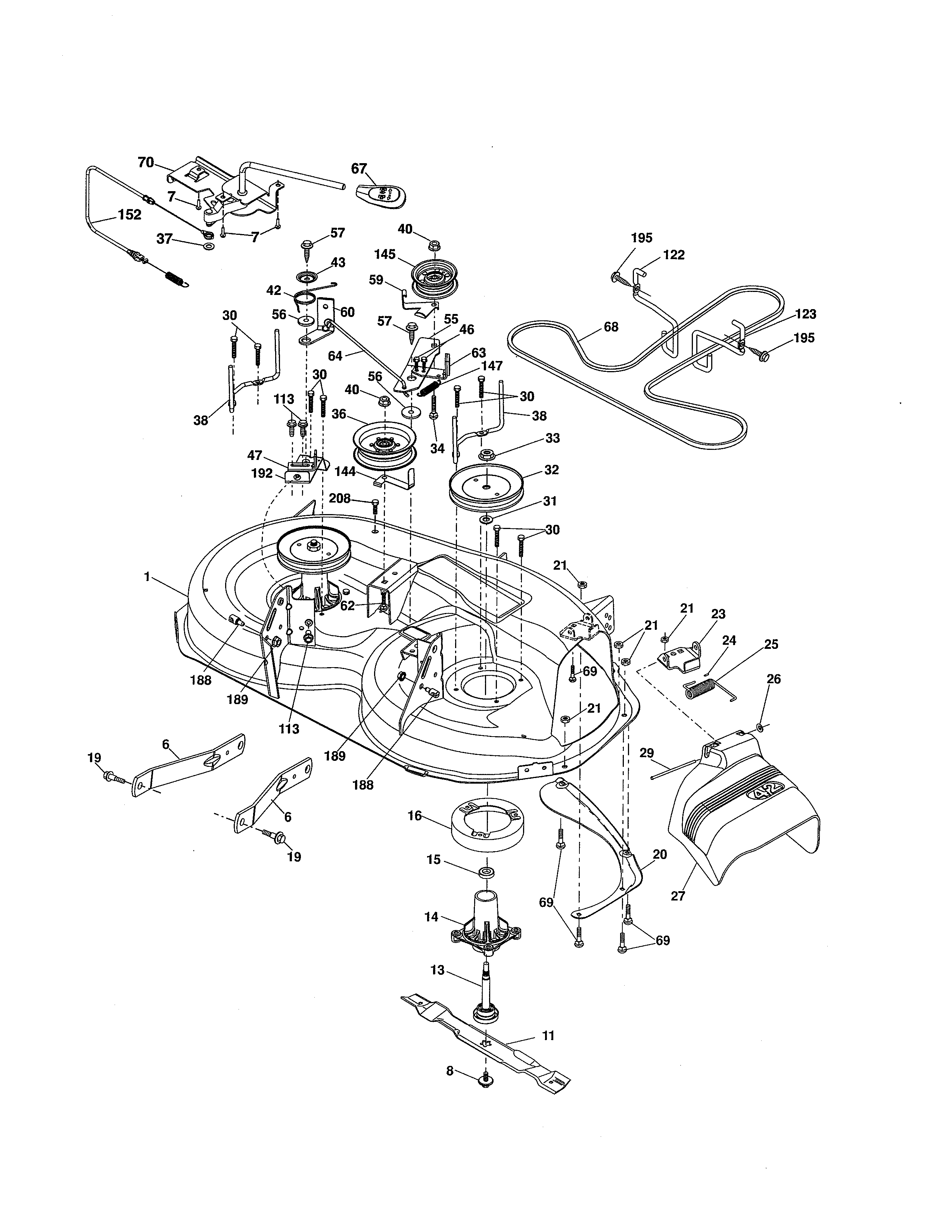

Mower deck diagram
Lawn Tractor Deck Baffle
Part #159770Replaced by #531167001
Manufacturer substitutionThis part replaces 159770. Substitute parts can look different from the original.In Stock$26.0219% OFF Phone Price : $32.02QtyMower deck diagram
Lawn Tractor Blade Brake Arm
Part #199477Replaced by #532199478
Manufacturer substitutionThis part replaces 199477. Substitute parts can look different from the original.In Stock$53.5310% OFF Phone Price : $59.53QtyMower deck diagram
Riding Lawn Mower Brake Arm
Part #197261Replaced by #597074201
Manufacturer substitutionThis part replaces 197261. Substitute parts can look different from the original.In Stock$26.1919% OFF Phone Price : $32.19QtyMower deck diagram
Lawn Tractor Blade Idler Pulley Arm
Part #197249Replaced by #531169401

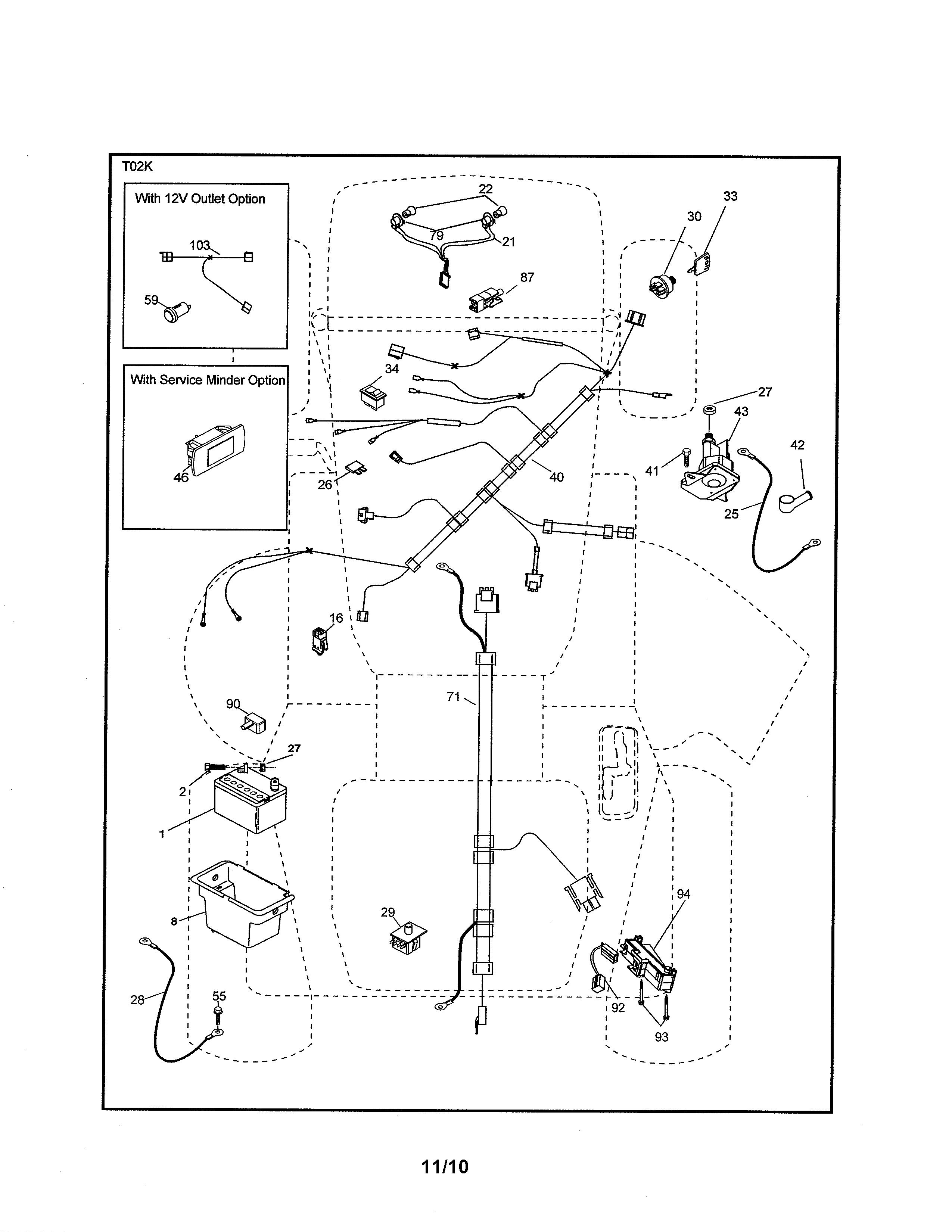

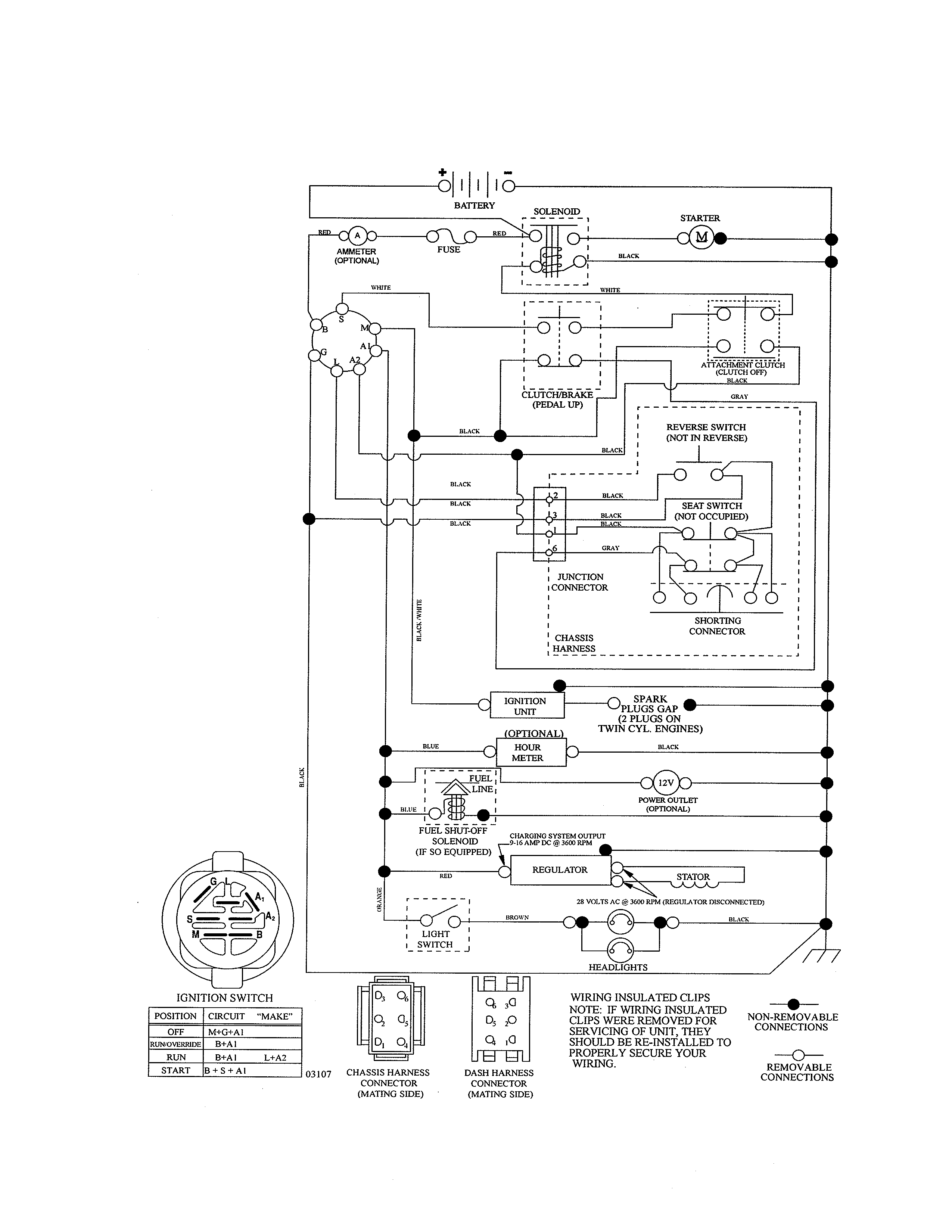

Manufacturer substitutionThis part replaces 197249. Substitute parts can look different from the original.In Stock$10.0817% OFF Phone Price : $12.08QtyElectrical diagram
Husqvarna Lawn Tractor Interlock Switch
Part #176138Replaced by #532176138
Manufacturer substitutionThis part replaces 176138. Substitute parts can look different from the original.In Stock$35.6514% OFF Phone Price : $41.65Qty#NI01
All parts diagram
Lawn Tractor Mandrel Assembly
Part #192870Replaced by #532192870
Manufacturer substitutionThis part replaces 192870. Substitute parts can look different from the original.In Stock$63.879% OFF Phone Price : $69.87QtyMower deck diagram
Lawn Tractor Mandrel Guard
Part #174493Replaced by #532174493
Manufacturer substitutionThis part replaces 174493. Substitute parts can look different from the original.In Stock$10.6916% OFF Phone Price : $12.69QtyLawn Tractor Screw
Part #17000612Replaced by #817000612
Manufacturer substitutionThis part replaces 17000612. Substitute parts can look different from the original.In Stock$6.7213% OFF Phone Price : $7.72QtyElectrical diagram
Craftsman Lawn Tractor Ignition Key
Part #411935Replaced by #532411935
Manufacturer substitutionThis part replaces 411935. Substitute parts can look different from the original.In Stock$30.6116% OFF Phone Price : $36.61Qty
Most common symptoms to help you fix your riding mowers & tractors
Choose a symptom to see related riding mower and lawn tractor repairs.
Main causes: damaged tie rods, bent or worn wheel spindle, worn front axle, damaged sector gear assembly…
Main causes: dead battery, stale fuel, bad starter solenoid, ignition system problem, bad ignition interlock switch, clo…
Main causes: worn or broken blade belt, broken belt idler pulley, blade clutch cable failure, bad PTO switch, damaged ma…
Main causes: engine overfilled with oil, leaky head gasket or sump gasket, damaged carburetor seals, cracked fuel pump, …
Main causes: punctured tire or inner tube, leaky valve stem, damaged wheel rim…
Main causes: unlevel mower deck, dull or damaged cutting blades, worn mandrel pulleys, bent mower deck, engine needs tun…
Main causes: worn or broken ground drive belt, bad seat switch, transaxle freewheel control engaged, transaxle failure, …
Main causes: faulty battery, bad alternator…
