Maytag MGD9600SQ0 dryer Parts

For the Maytag MGD9600SQ0 gas dryer, the most common issue we see is poor airflow from lint buildup or a restricted vent, which leads to overheating symptoms such as no heat, shutting off mid-cycle, or not starting (often after a safety device opens). Use the MGD9600SQ0 owner's manual to confirm cycle settings and safety guidance.

• Dryer runs but clothes take too long to dry
• Dryer heats at first, then stops heating
• Dryer shuts off before the load is dry
• Dryer is unusually hot to the touch or the laundry room feels very warm
• Burning smell or excessive lint around the dryer

1. Clean the lint screen before every load; also wash it with mild soap and water if you use dryer sheets (they can leave a film).
2. Inspect the vent path from the dryer outlet to the outside hood; remove lint, kinks, crushed flex duct, and bird nests.
3. Confirm the outside vent hood opens fully while the dryer is running.
4. If the dryer is noisy or thumping, check drum support wear; worn rollers are common on aging dryers.

Restricted airflow is the root cause behind many dryer complaints because it raises operating temperatures, increases dry times, and can trigger safety shutoffs. Keeping the lint screen and venting clean protects key components like sensors, igniter, and gas valve parts.

If your MGD9600SQ0 is not heating, we recommend following a structured diagnosis like gas dryer wont heat troubleshooting video so you can separate airflow problems from ignition or sensor failures.

Last updated: January 2026

Most Maytag dryers average 10 to 15 years of service life with normal household use and basic maintenance. For your Maytag MGD9600SQ0 gas dryer, keeping airflow strong, heat controlled, and moving parts supported is what most often determines whether you land closer to 10 years or closer to 15.

• Vent restriction (long dry times, overheating, extra wear on the drive motor)
• Lint buildup inside the cabinet or blower housing
• Worn drum support parts (thumping, squealing, drum drag)
• Heat system issues on gas models (cycling problems, weak ignition)
• Overloading (stresses the belt, idler pulley, and drum rollers)

Use these habits to reduce heat stress and mechanical wear:

• Clean the lint screen every load; replace it if damaged (see screen W10120998).
• Check airflow at the outside vent hood; strong airflow helps prevent overheating.
• Avoid consistently overfilling the drum; heavy loads shorten belt and roller life.
• If you notice squealing or thumping, address it early; worn supports can damage the drum.
• Follow cycle and temperature guidance in the MGD9600SQ0 owner’s manual.

A dryer that runs hot or struggles to move air can wear out the drive motor, belt/idler system, and gas ignition components faster. Keeping airflow and drum support parts in good shape is the most reliable way to extend the life of a Maytag gas dryer.

Last updated: January 2026

To reset an error code on your Maytag MGD9600SQ0 dryer, we recommend doing a simple power reset: turn the dryer off, unplug it for 1 to 5 minutes, then plug it back in and try a cycle again. This clears many temporary control glitches.

• Press Power/Cancel to stop the cycle.
• Unplug the dryer (or switch the breaker off).
• Wait 1 to 5 minutes.
• Restore power.
• Run a short Timed Dry cycle to test.

An error code that returns usually points to an ongoing issue (heat, airflow, sensor, or ignition on gas models). Start with the most common causes:

• Clean the lint screen and check the exhaust vent for restrictions.
• Avoid overloading; heavy loads can trigger moisture-sensing and temperature issues.
• Try a different cycle and temperature setting (High, Medium, Low).
• If the dryer runs but heat is inconsistent on a gas model, ignition components are common suspects.

Resetting clears the control’s temporary fault state, but a repeating code helps protect the dryer from unsafe temperatures or poor airflow. Fixing the root cause helps prevent long dry times, repeat shutdowns, and overheating.

For model-specific button sequences, cycle options, and any displayed code meanings, use the MGD9600SQ0 owner’s manual. You can also reference our Maytag centennial dryer error codes guide for common Maytag code patterns.

Last updated: January 2026

Maytag Neptune is a dryer series that was sold in both gas and electric versions, so “Neptune” by itself does not automatically mean gas. For your Maytag MGD9600SQ0, the MGD model prefix indicates it is a gas dryer; confirm the exact fuel and hookup details in the MGD9600SQ0 owner's manual.

Use these quick checks to identify the dryer type before ordering parts or troubleshooting heat:

• Model prefix: Maytag models starting with MGD are typically gas; MED are typically electric.
• Gas hookup: Gas dryers have a gas supply line connection at the back or bottom.

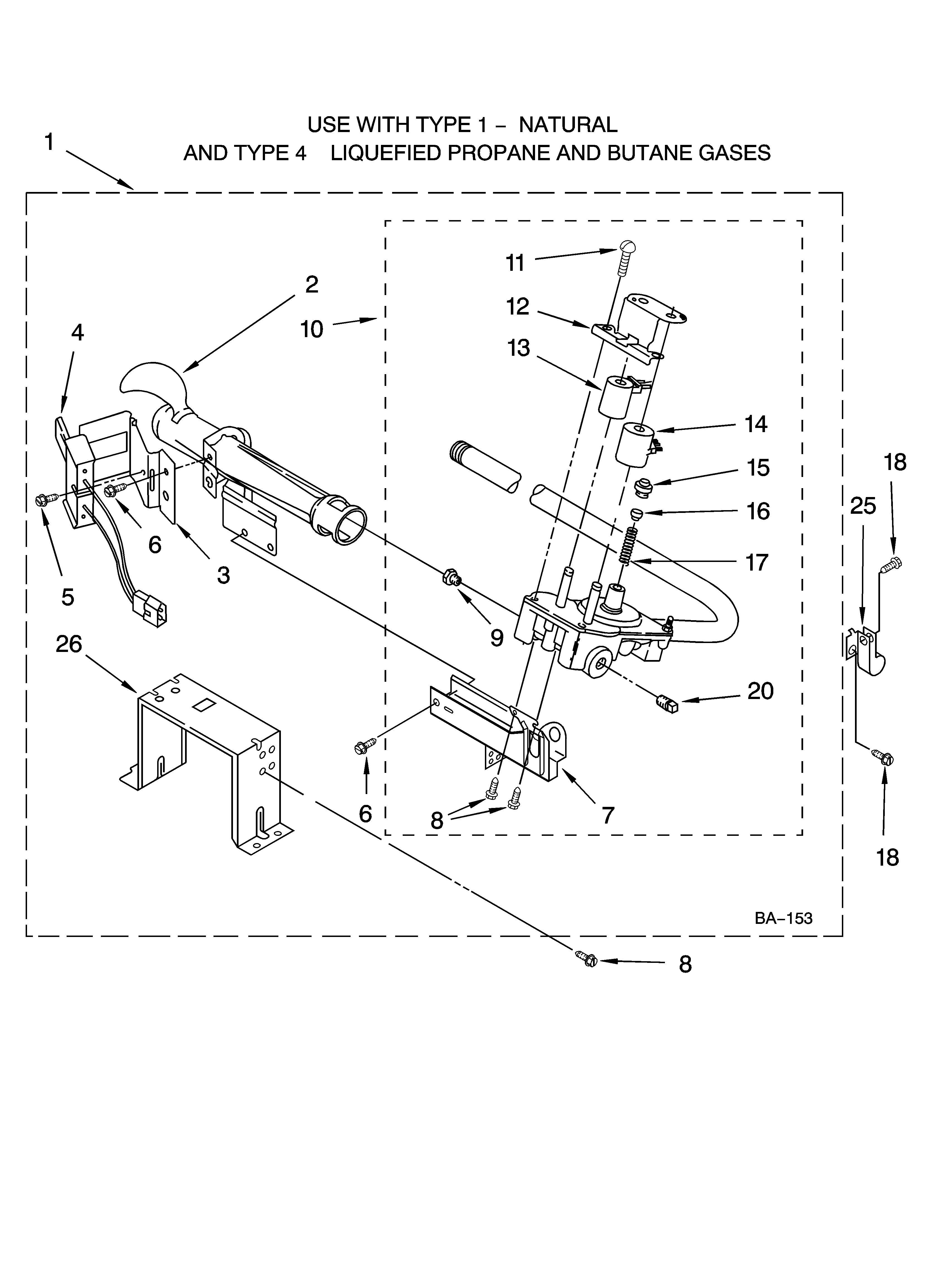

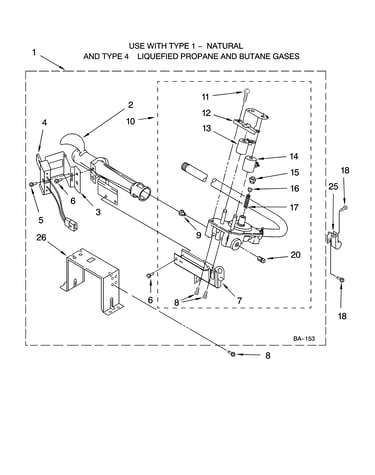

• Exhaust and burner area: Gas models have a burner/igniter assembly.
• Electrical plug: Many electric dryers use a 240V cord; gas dryers often use 120V (controls and motor).
• Parts list clues: If your model uses an igniter or gas valve coils, it is a gas dryer.

If your Neptune gas dryer tumbles but does not heat, these model-matched parts are common suspects:

Gas and electric dryers use different heating systems, wiring, and replacement parts. Confirming that MGD9600SQ0 is gas helps you choose the right troubleshooting steps and prevents ordering the wrong components.

Last updated: January 2026
