Hotpoint HTDX100GM7WW gas dryer Parts

Yes. Hotpoint is a GE appliance brand, so your Hotpoint HTDX100GM7WW gas dryer is part of the GE family of products. For repairs and maintenance, you can use GE-style replacement parts that are listed specifically for model HTDX100GM7WW.

When we look up parts by model number, we match components designed to fit your exact Hotpoint dryer configuration.

Common wear parts you can replace on HTDX100GM7WW include:

• Drum support parts that reduce squealing and thumping
• Belt tension parts that keep the drum turning smoothly
• Airflow and lint-handling parts that help drying performance
• Ignition and heat-sensing parts (gas dryer heating system)

If you are troubleshooting noise, poor drying, or heat issues, these model-matched parts are good starting points:

• Dryer drum glide bearing, upper WE03X37320
• Dryer drum glide bearing WE03X37319
• Dryer idler pulley WE03X31620
• Dryer lint screen WE18X25100
• Dryer burner igniter WE4M449
• Dryer radiant sensor WE4X448

Knowing Hotpoint is a GE brand helps because many designs, service approaches, and part families overlap. The most important step is still using the exact model number (HTDX100GM7WW) so the parts you order fit and function correctly.

Last updated: February 2026

To change the belt on your Hotpoint gas dryer model HTDX100GM7WW, we remove the front/top to access the drum, release belt tension at the idler pulley, lift the drum out, then route a new belt around the drum and motor pulley before reassembling and test-running the dryer.

• Shut off the gas supply valve.
• Unplug the dryer (or switch off the breaker).
• Let the dryer cool completely.
• Work in a well-ventilated area.
• Take photos of the belt path and wire connections as you go.

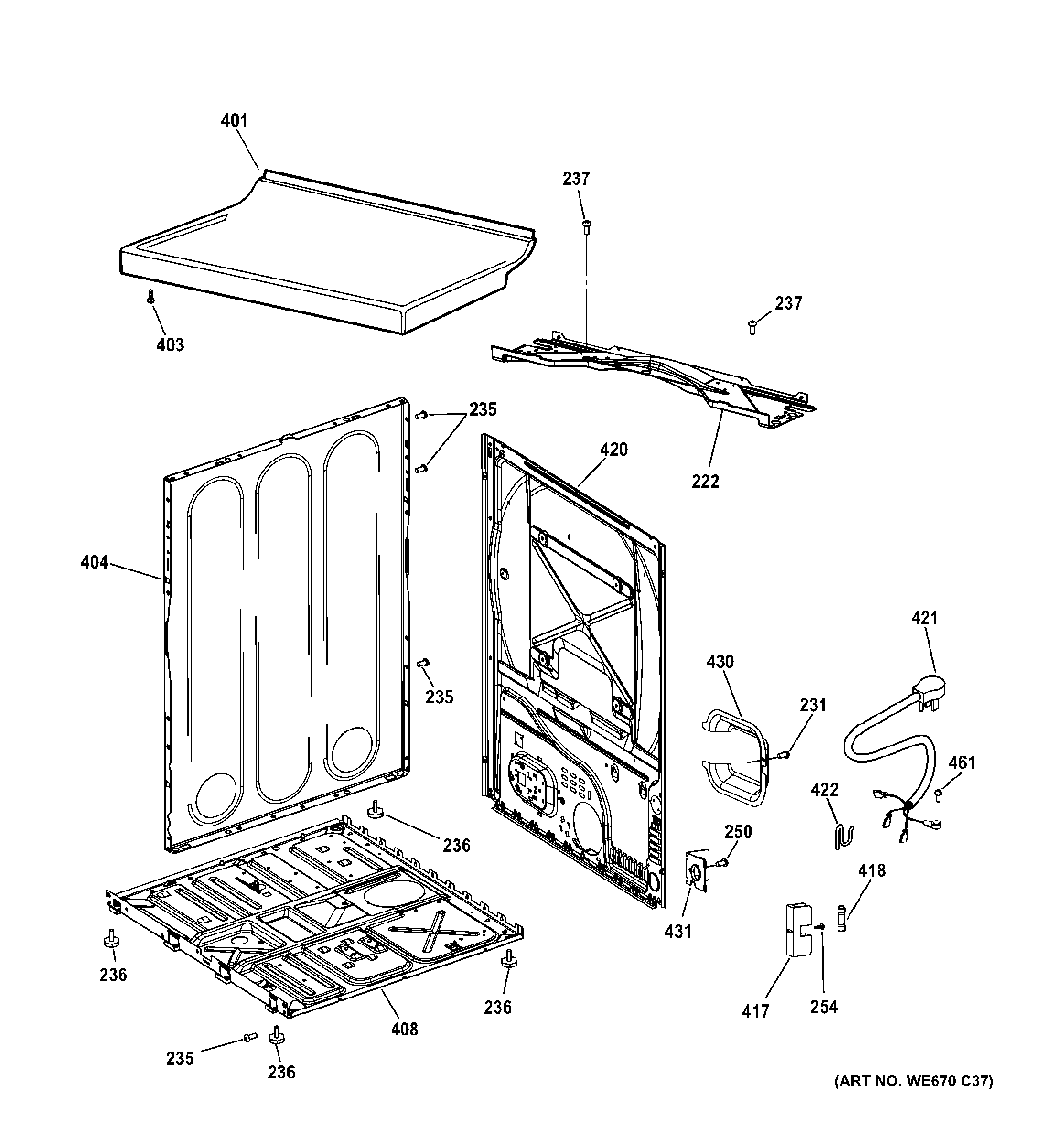

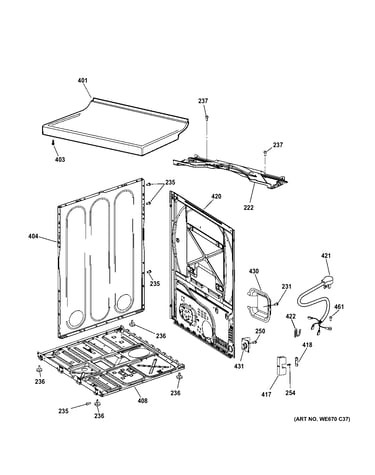

1. Remove the lint screen, then remove the top panel fasteners and lift the top.

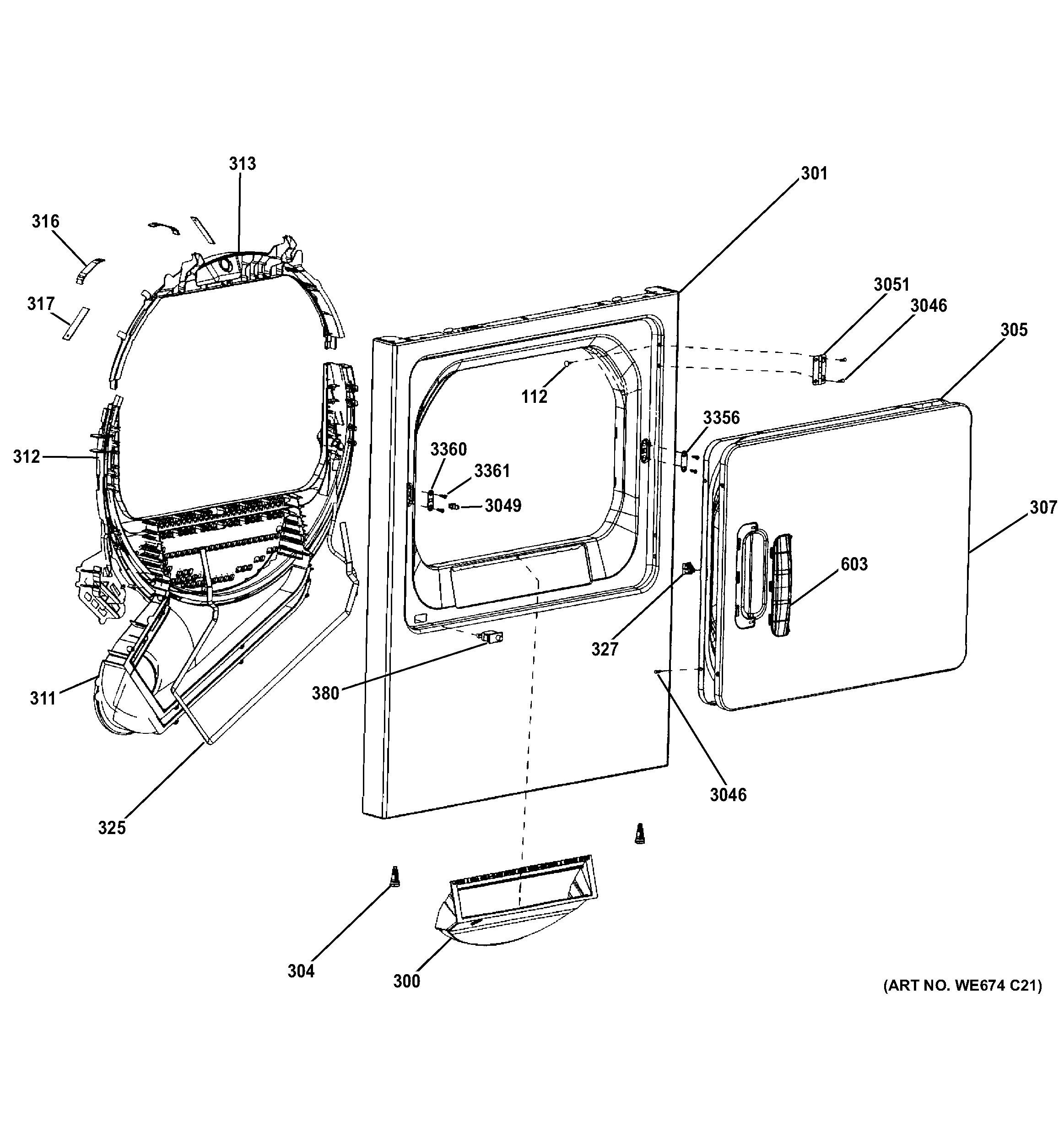

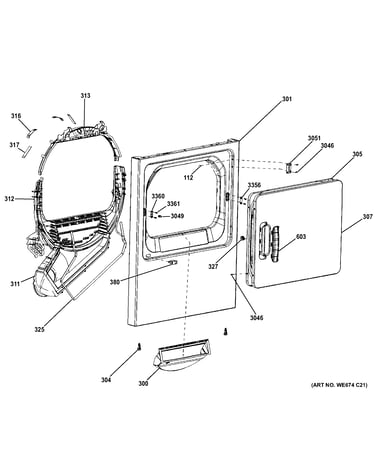

2. Remove the front panel (and disconnect the door switch harness if needed).
3. Reach under the drum and push the idler arm to relieve tension, then slip the belt off the motor pulley.

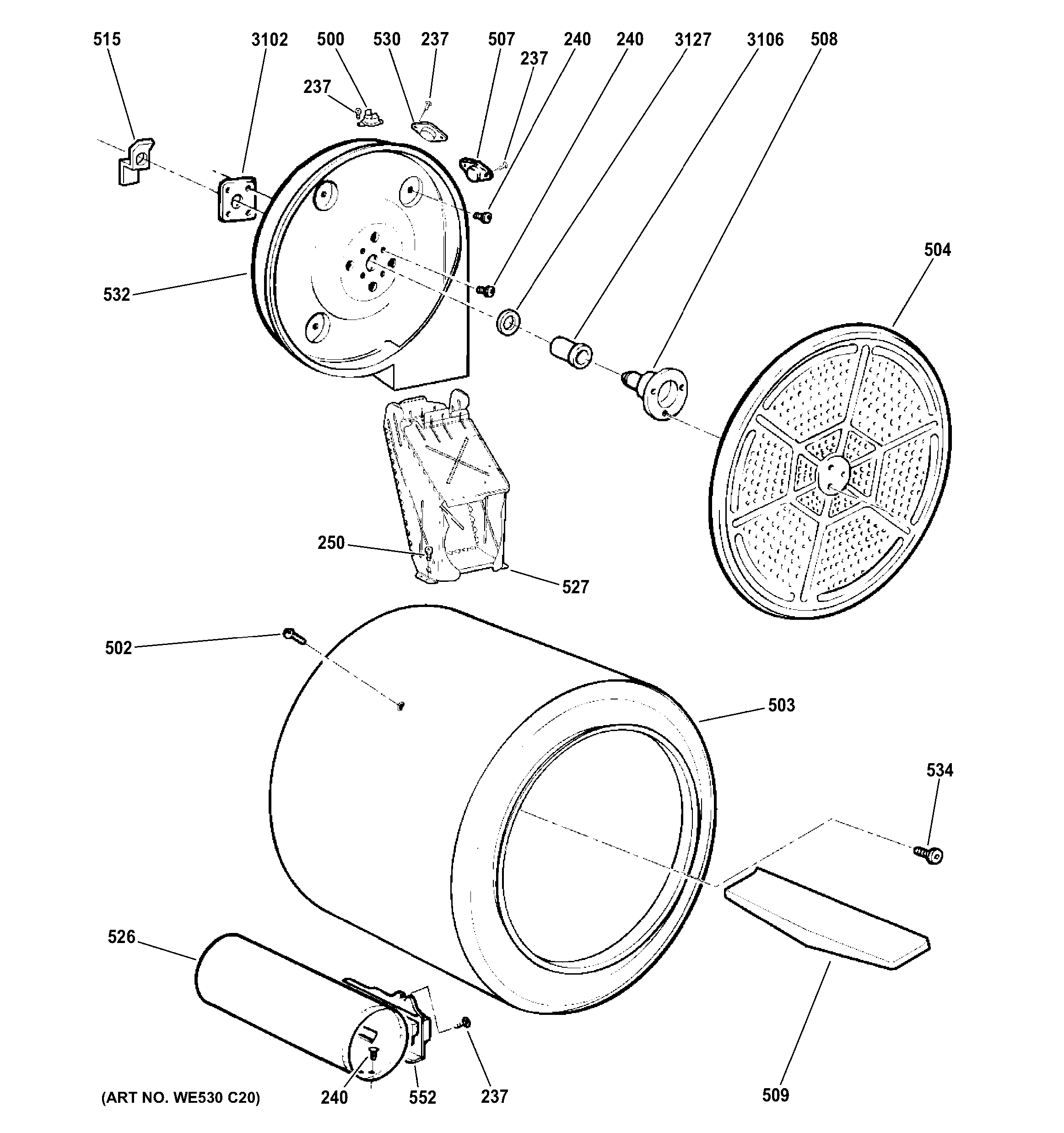

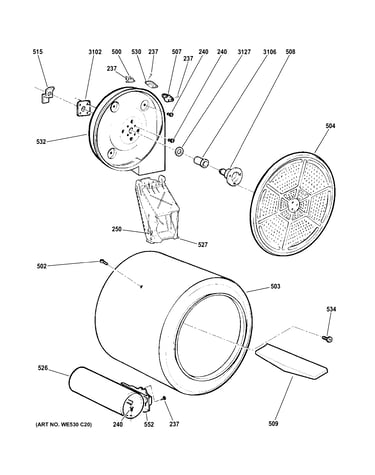

4. Use the old belt as a “handle” to lift the drum out of the cabinet.
5. Install the new belt around the drum (ribbed side against the drum).
6. Route the belt through the idler pulley and onto the motor pulley; rotate the drum by hand to confirm the belt tracks straight.
7. Reinstall the front panel and top, reconnect the door switch, then restore power and gas and run a short timed cycle.

A worn belt often shows up with squealing, thumping, or a drum that stops turning. While the drum is out, we check these common wear parts:

• Drum support glides: dryer drum glide bearing, upper WE03X37320 and dryer drum glide bearing WE03X37319
• Belt tension parts: dryer idler pulley WE03X31620 and dryer idler pulley arm WE03X20434
• Rear drum support: dryer drum bearing bracket WE1M300 (and its O-ring if equipped)

A correctly routed, properly tensioned belt keeps the drum turning at the right speed. Replacing worn glides or an idler pulley at the same time helps prevent repeat tear-downs and reduces noise and premature belt wear.

Last updated: February 2026

Common issues with our Hotpoint HTDX100GM7WW gas dryer include no heat, long dry times, unusual squealing or thumping noises, and the dryer not starting. Most problems trace back to airflow restrictions, worn drum support parts, or a failed ignition or safety component.

• Dryer runs but won’t heat: ignition system issue (igniter, sensor), gas supply issue, or a safety device opening.
• Takes too long to dry: restricted venting, clogged lint path, or weak airflow.
• Squealing, scraping, or thumping: worn drum glides, drum bearing, or idler pulley.
• Won’t start: power supply issue, blown fuse, or door not latching.
• Burning smell or very hot cabinet: lint buildup or blocked exhaust (stop using until cleaned).

If your HTDX100GM7WW is noisy or the drum feels rough, these model-matched parts are common wear items:

• Dryer drum glide bearing, upper WE03X37320
• Dryer drum glide bearing WE03X37319
• Dryer idler pulley WE03X31620
• Laundry center dryer blower wheel WE16X20393
• Dryer top drum bearing WE03X25079

1. Clean the lint screen fully; wash it with warm water if fabric softener residue is present.
2. Inspect and clear the exhaust duct; confirm strong airflow outside.
3. Listen for the type of noise:
   • High-pitched squeal often points to an idler pulley.
   • Scraping can point to drum glides or a bearing surface.
4. For “no heat,” confirm the gas shutoff valve is open and the dryer is on a heat cycle.

Airflow and drum support issues do more than cause inconvenience; they increase drying time, raise operating cost, and can lead to overheating or additional wear on the drive motor and drum components.

For step-by-step maintenance habits that prevent many of these problems, use our guide: how to clean and maintain your clothes dryer.

Last updated: February 2026

The main parts of a Hotpoint gas dryer like model HTDX100GM7WW include the drum (tumbles clothes), drive system (motor and belt), airflow system (blower and venting), heating system (gas burner components), and safety controls (fuses and sensors) that regulate temperature and operation.

• Drum and support parts: hold and tumble the load while reducing friction and noise

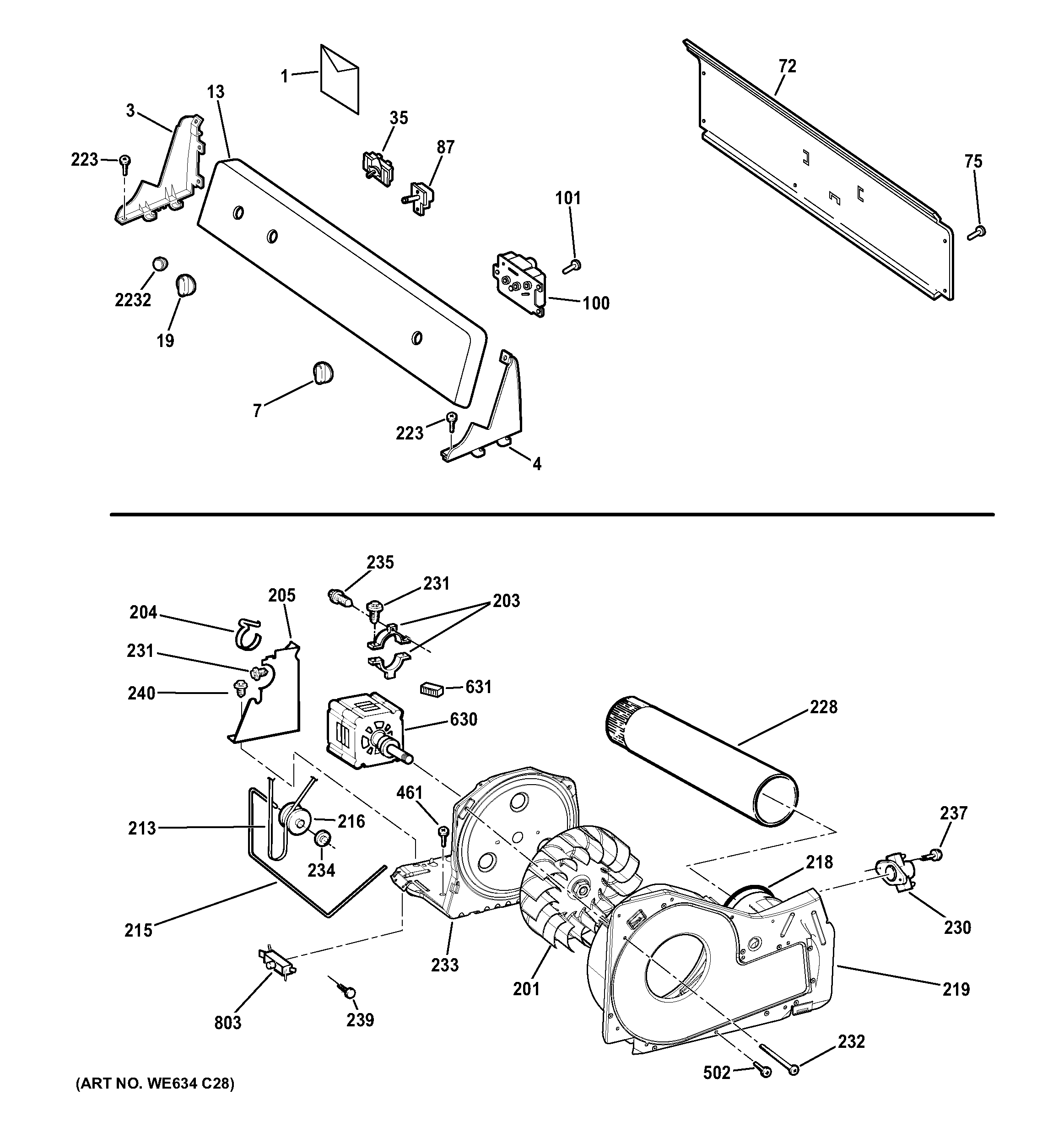

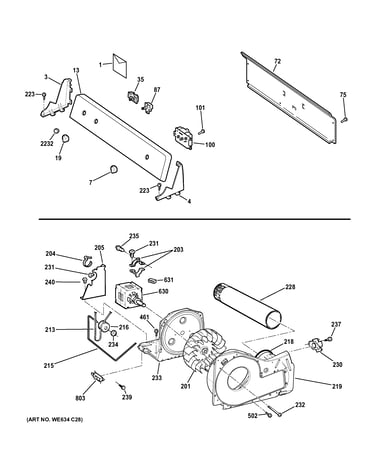

• Drive system: turns the drum using a motor, belt, and idler pulley for belt tension
• Airflow system: pulls air through the drum and pushes moist air out the exhaust

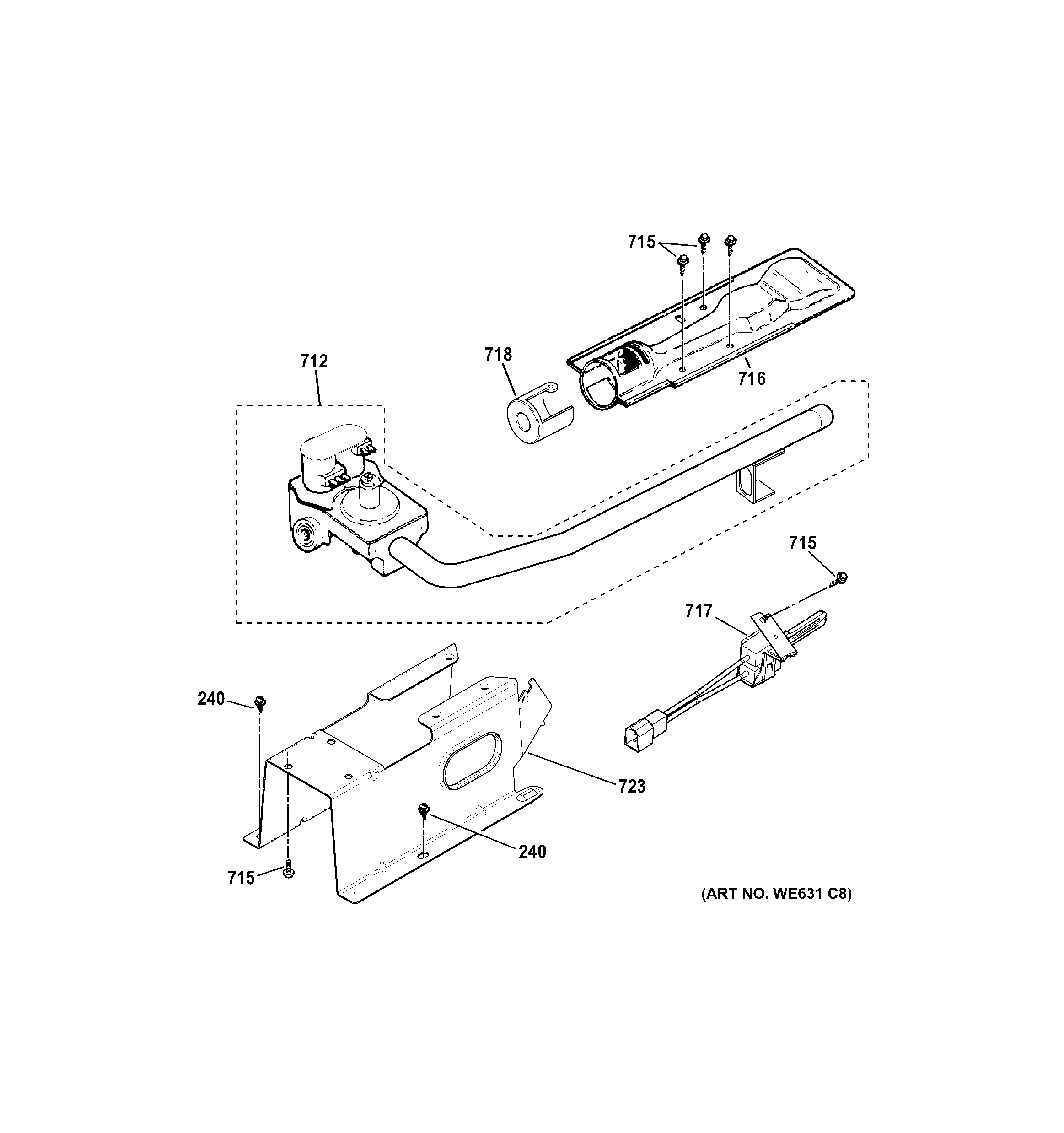

• Heating system (gas): ignites gas and transfers heat into the airflow
• Controls and safety: start/stop functions and overheat protection

These are some of the most frequently serviced components for this model:

• Drum support glides: dryer drum glide bearing, upper WE03X37320, dryer drum glide bearing WE03X37319
• Belt tension parts: dryer idler pulley WE03X31620, dryer idler pulley arm WE03X20434
• Air movement: laundry center dryer blower wheel WE16X20393
• Lint handling: dryer lint screen WE18X25100
• Heat and safety: dryer burner igniter WE4M449, dryer radiant sensor WE4X448, dryer fuse, 30-amp WE1X21975

Knowing which system is involved helps you troubleshoot faster. For example, long dry times usually point to airflow (lint screen, blower, venting), while no heat on a gas dryer often points to ignition or flame sensing components.

For deeper troubleshooting steps, use our DIY guide: gas dryer wont heat troubleshooting video.

Last updated: February 2026
