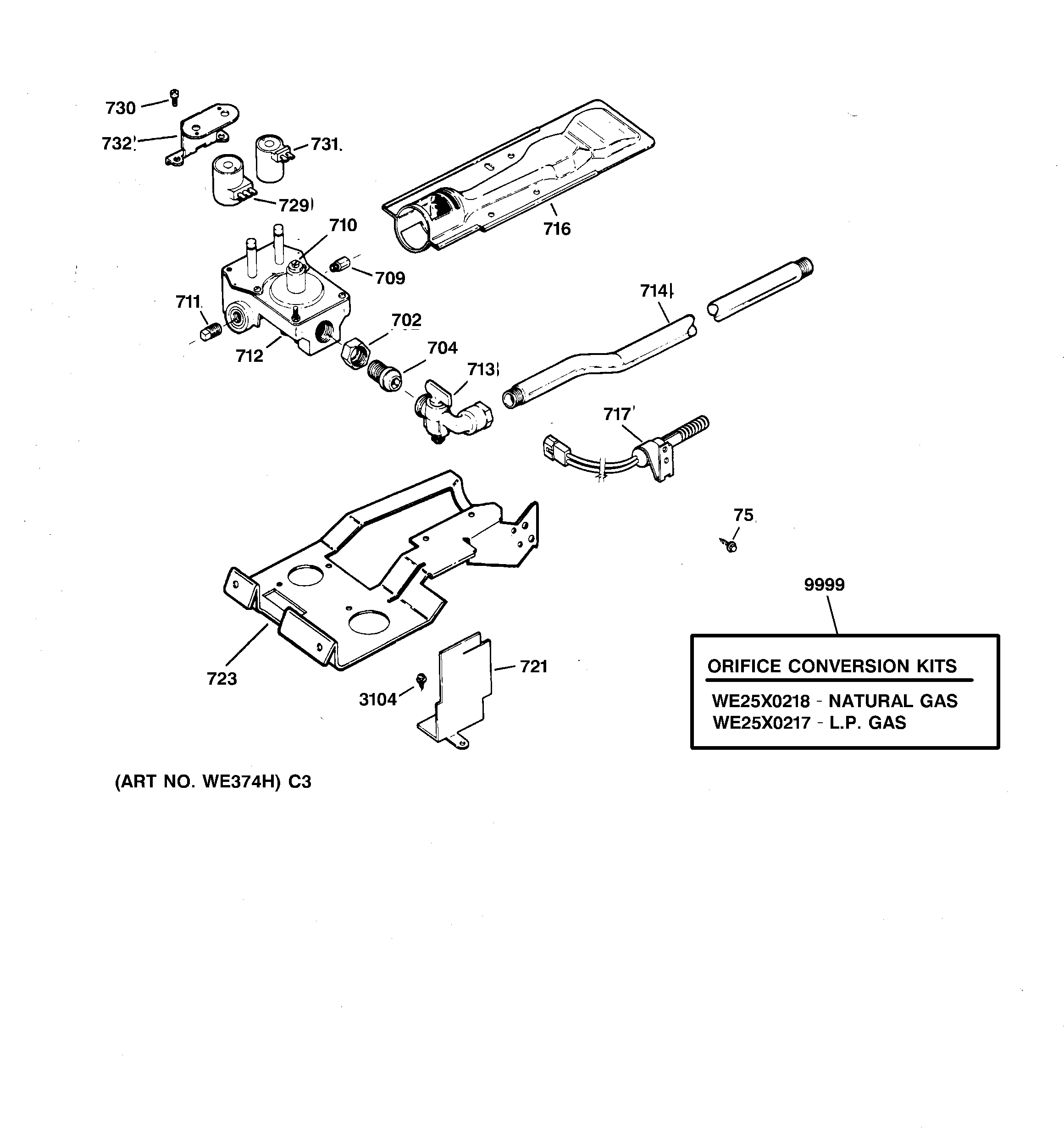

Model #NBXR453GV1WW Hotpoint gas dryer

Here are the diagrams and repair parts for Hotpoint NBXR453GV1WW gas dryer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 125 parts

Dryer Leveling Leg and Bracket

#410

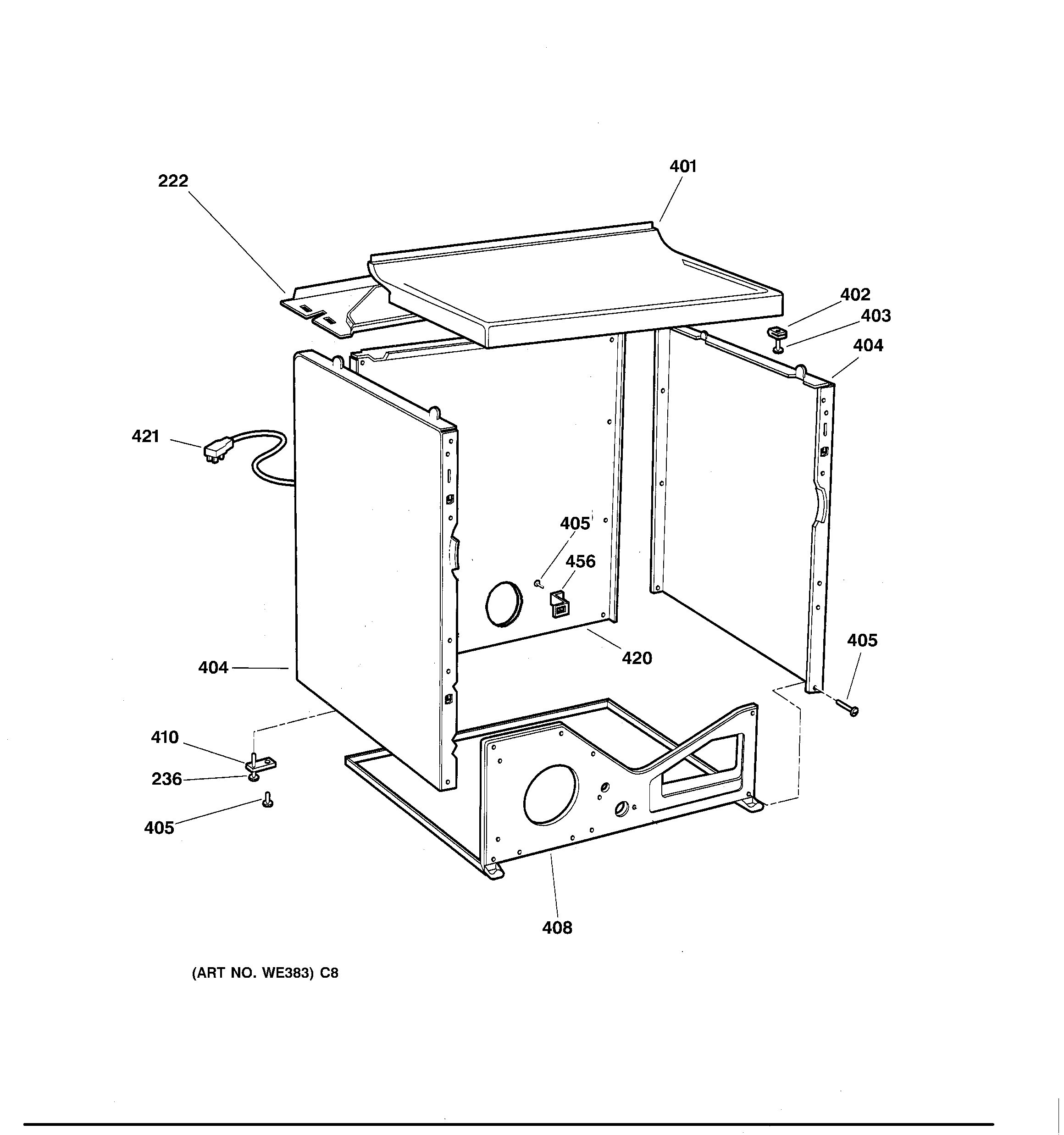

Cabinet Diagram

$12.16

In Stock

Complete Chamber

#526

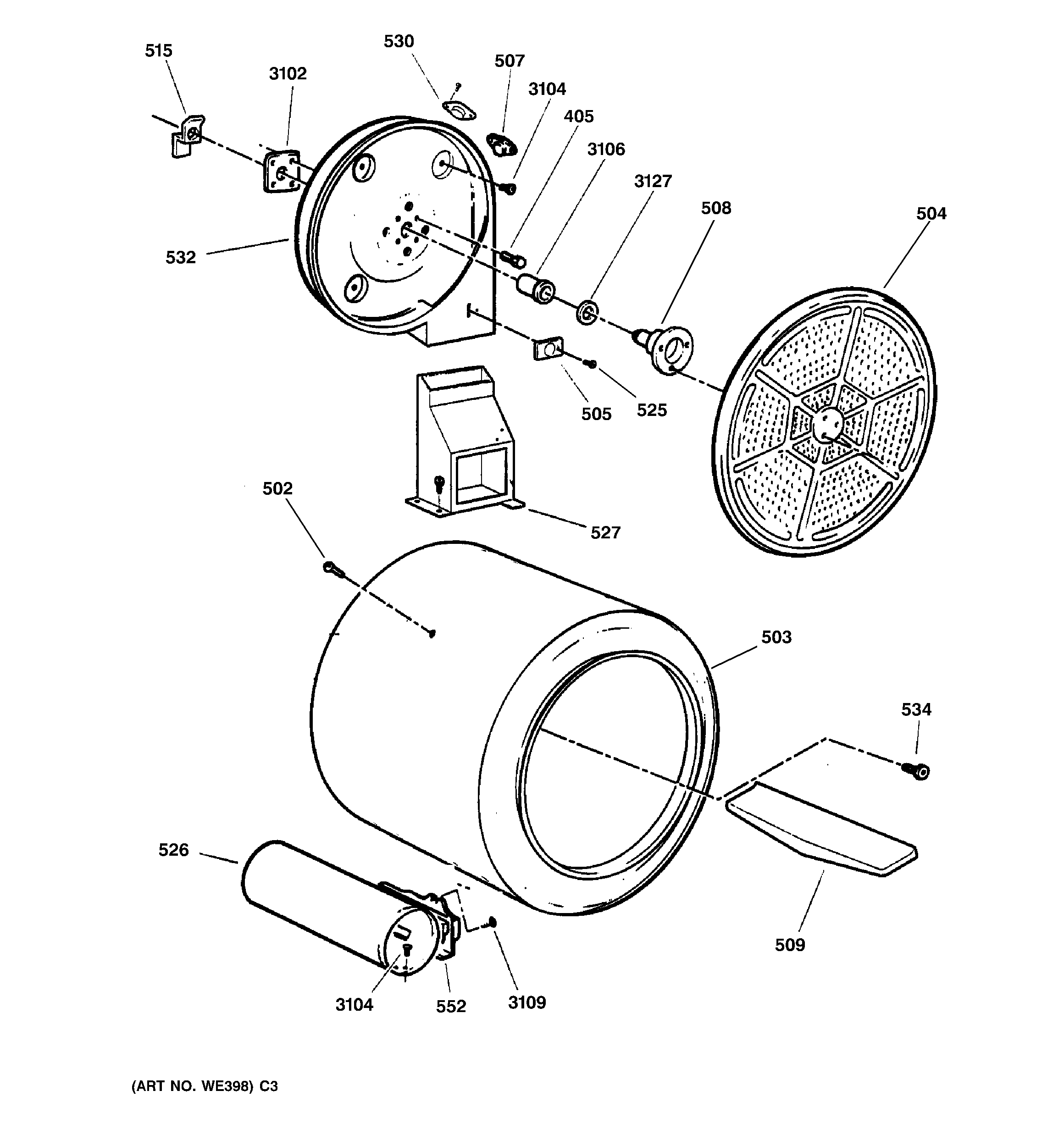

Drum Diagram

Complete chamber

Part #WE14M91
$24.64

In Stock

Use and Care Guide

#1

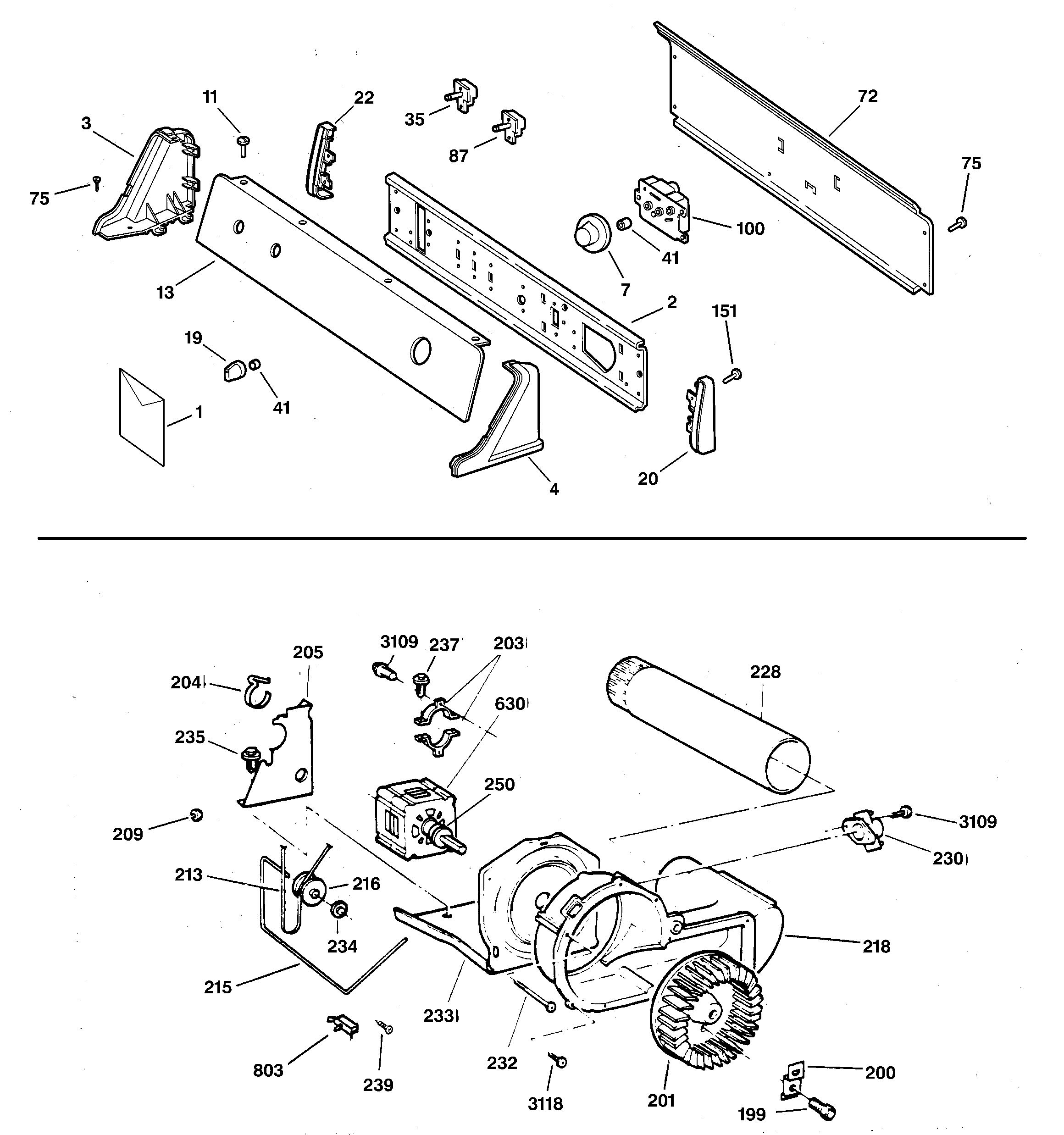

Backsplash, blower & drive assembly Diagram

Use and care guide

Part #39-9983
$8.49

In Stock

Dryer Operating Thermostat

#230

Backsplash, blower & drive assembly Diagram

$55.67

In Stock

Plug

#NI

Backsplash, blower & drive assembly Diagram

Plug

Part #WR02X8693
This item is not returnable
$2.49

In Stock

Rear Panel

#420

Cabinet Diagram

Rear panel

Part #WE20M301
$170.87

In Stock

Screw, 2-pack

#235

Backsplash, blower & drive assembly Diagram

Screw, 2-pack

Part #WH2X820D
?
Manufacturer substitution
This part replaces WE02M0155. Substitute parts can look different from the original.
This part replaces WE02M0155
$14.80

In Stock

Gr Strap A

#515

Drum Diagram

Gr strap a

Part #WE1X1172
?
Manufacturer substitution
This part replaces WE01X1172. Substitute parts can look different from the original.
This part replaces WE01X1172
$14.55

In Stock

Dryer Door Seal

#610

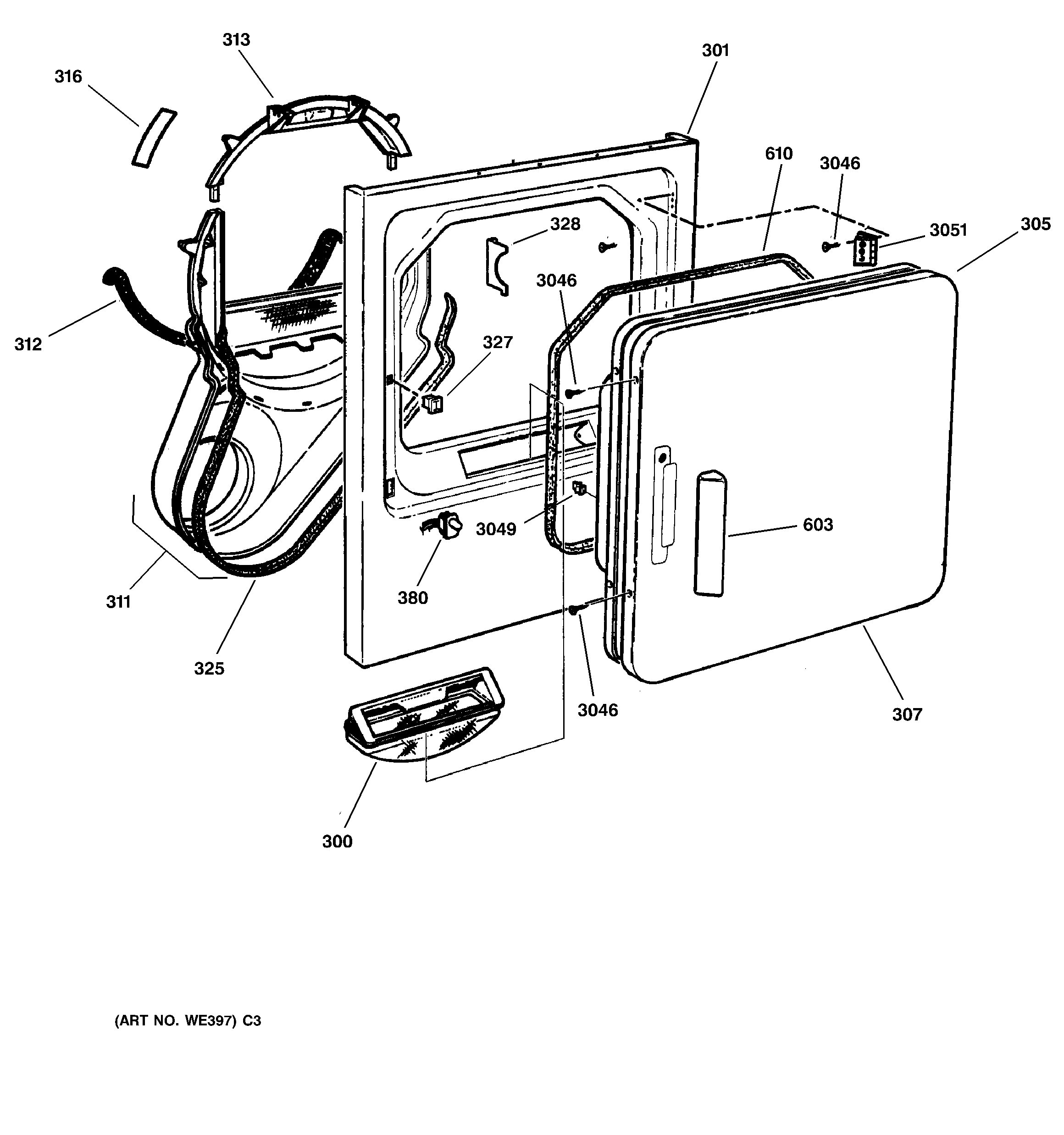

Front panel & door Diagram

Dryer door seal

Part #WE9M13
?
Manufacturer substitution
This part replaces WE09M0013. Substitute parts can look different from the original.
This part replaces WE09M0013
$50.82

In Stock

Screw, 2-pack

#199

Backsplash, blower & drive assembly Diagram

Screw, 2-pack

Part #WE2X280D
?
Manufacturer substitution
This part replaces WE02X0280. Substitute parts can look different from the original.
This part replaces WE02X0280
$22.34

In Stock

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
