Magic Chef CAV1000AWW washer/dryer Parts
Here are the diagrams and repair parts for Magic Chef CAV1000AWW washer/dryer, as well as links to manuals and error code tables, if available.

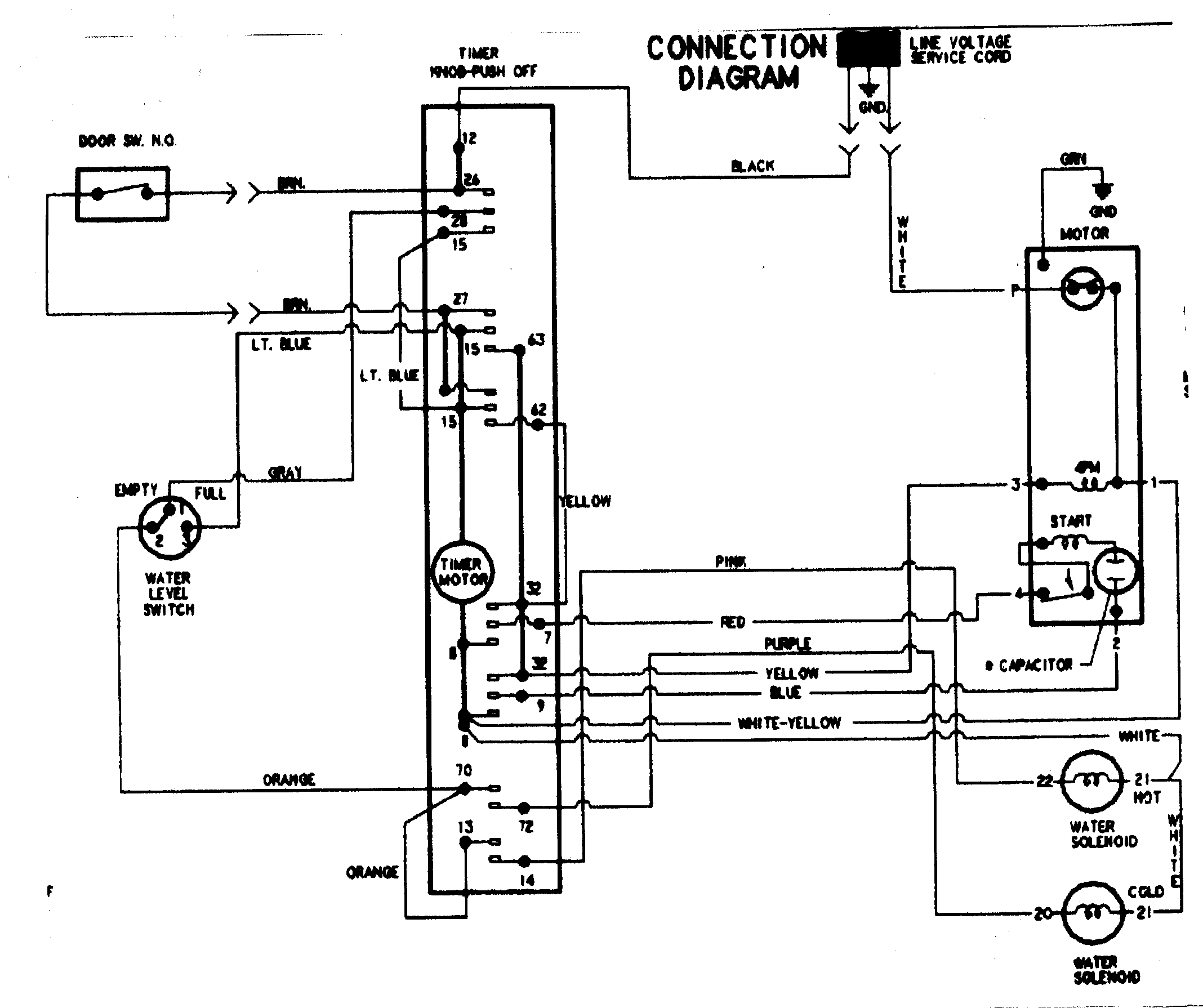

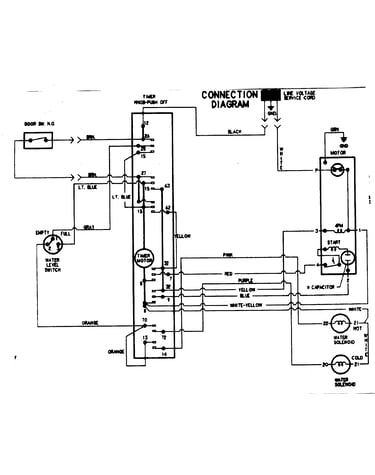

Error CodesBy Schematic
By Part
SELECT DIAGRAM

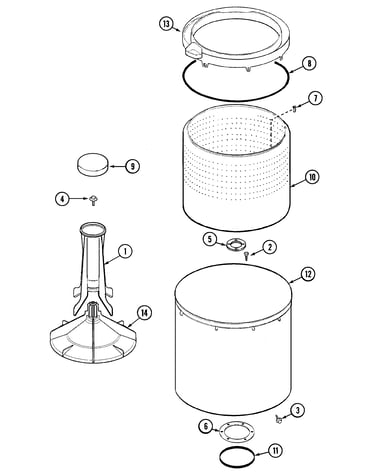

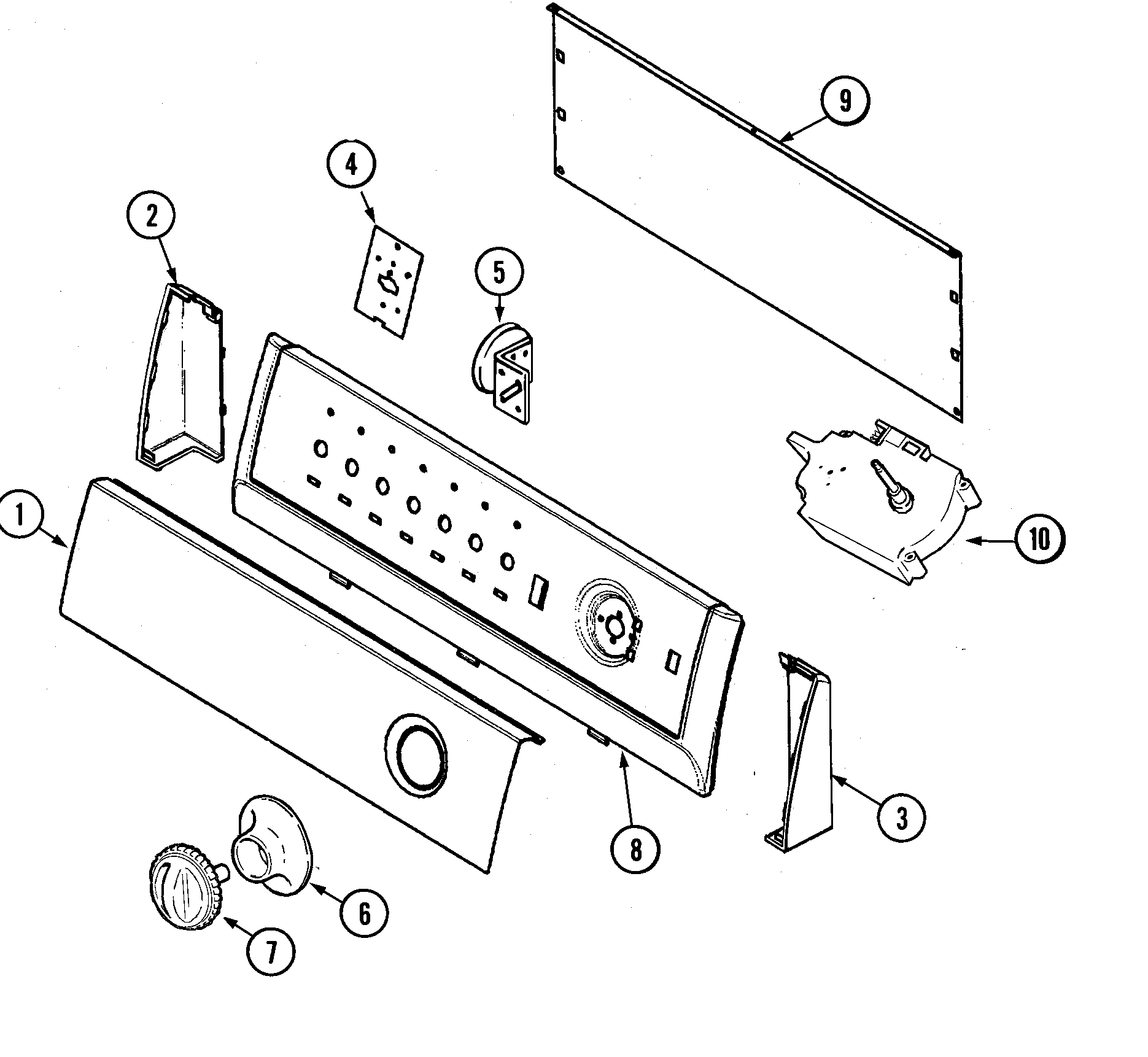

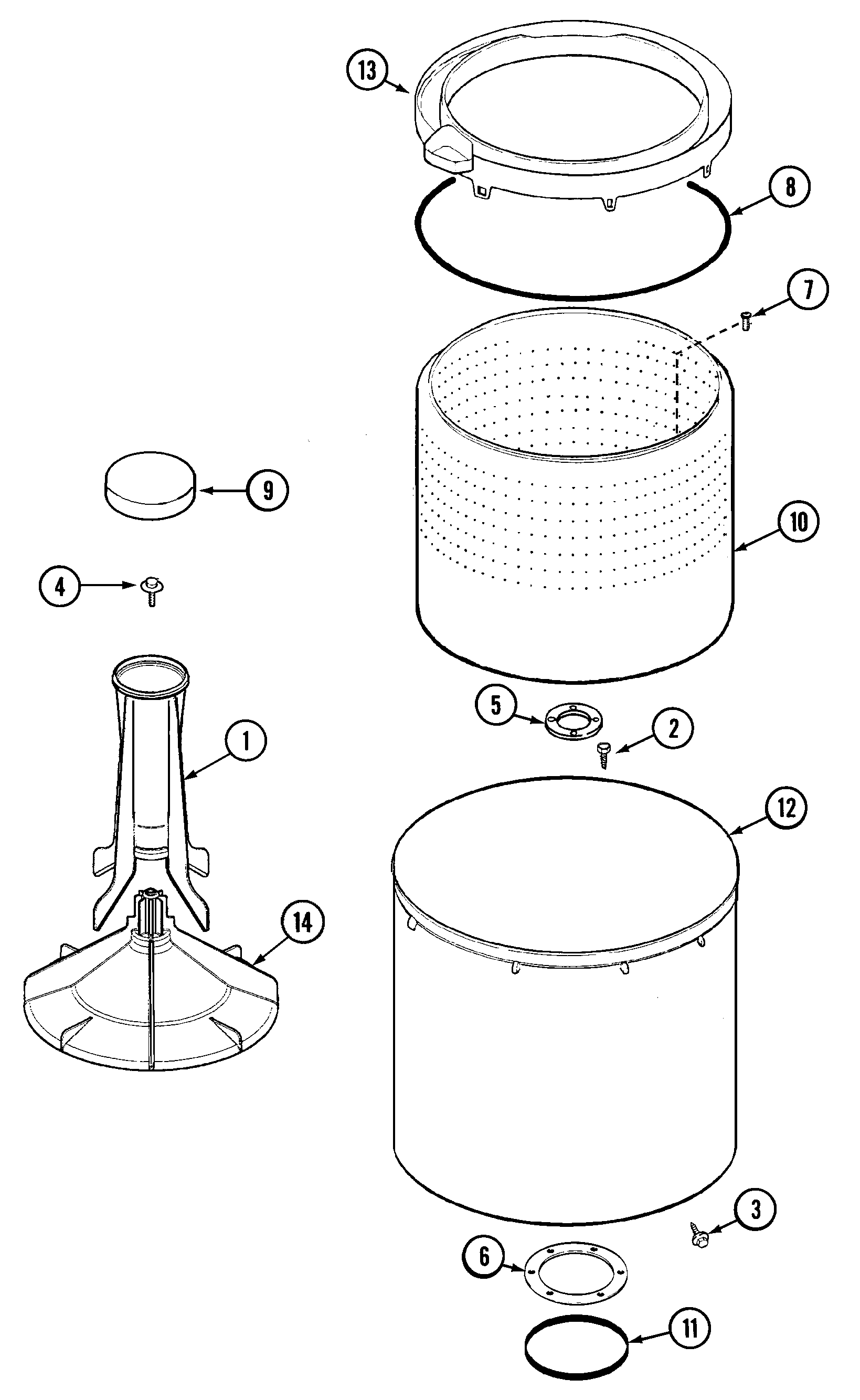

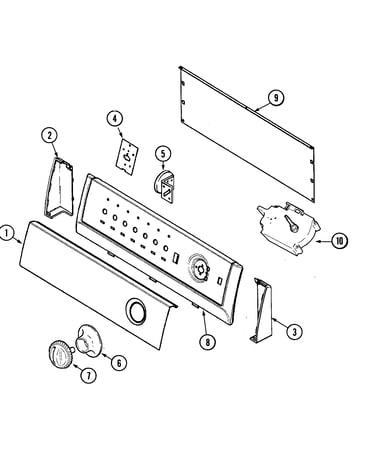

Browse Parts for CAV1000AWW Washer/Dryer

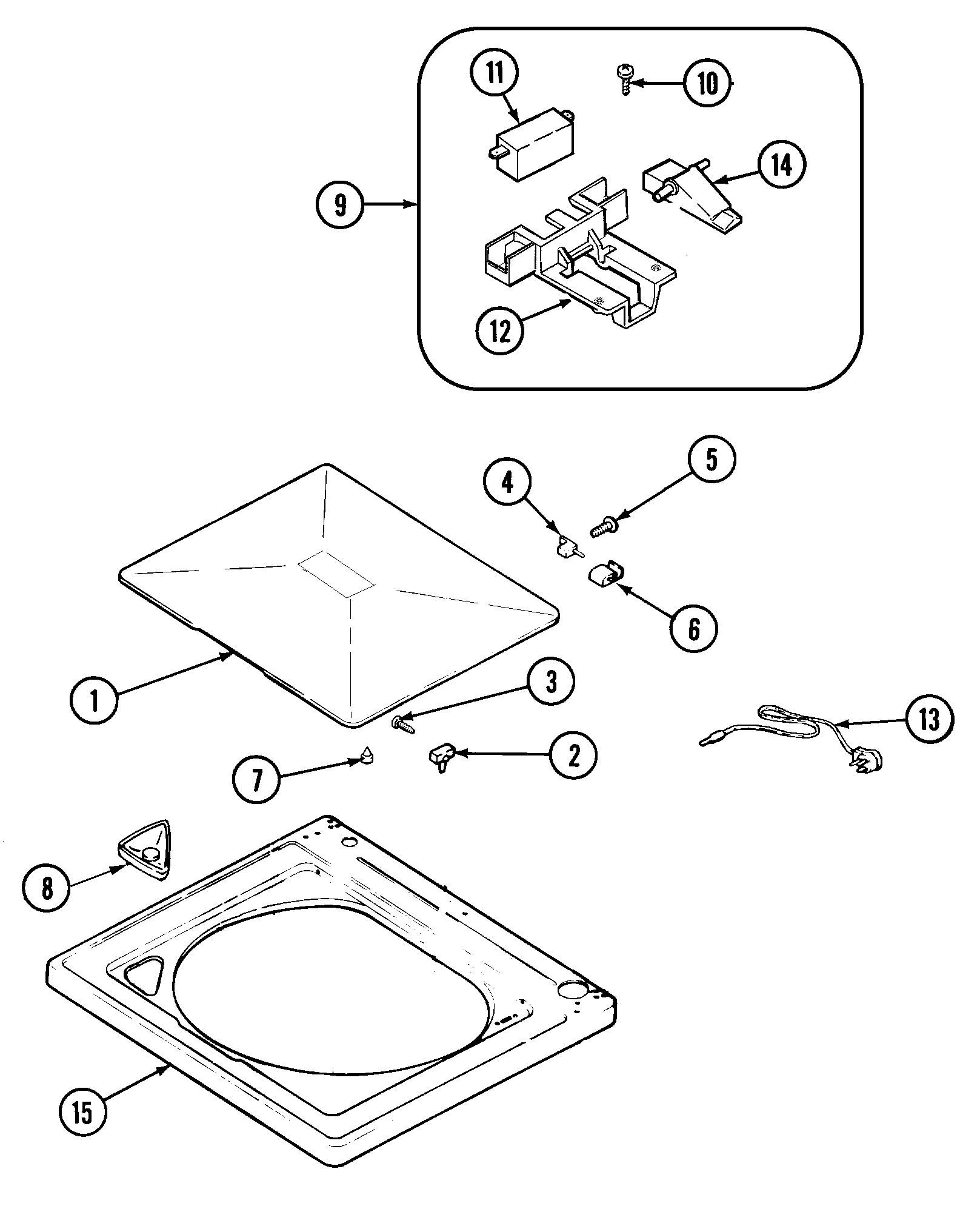

Cabinet diagram
Clamp, Pressure Switch Hose
Part #25-7796Replaced by #WP596669
Manufacturer substitutionThis part replaces 25-7796. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73
Qty
Cabinet diagram
Hose Clamp
Part #25-7867Replaced by #WP596669
Manufacturer substitutionThis part replaces 25-7867. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7317% OFF Phone Price : $5.73QtyBase diagram

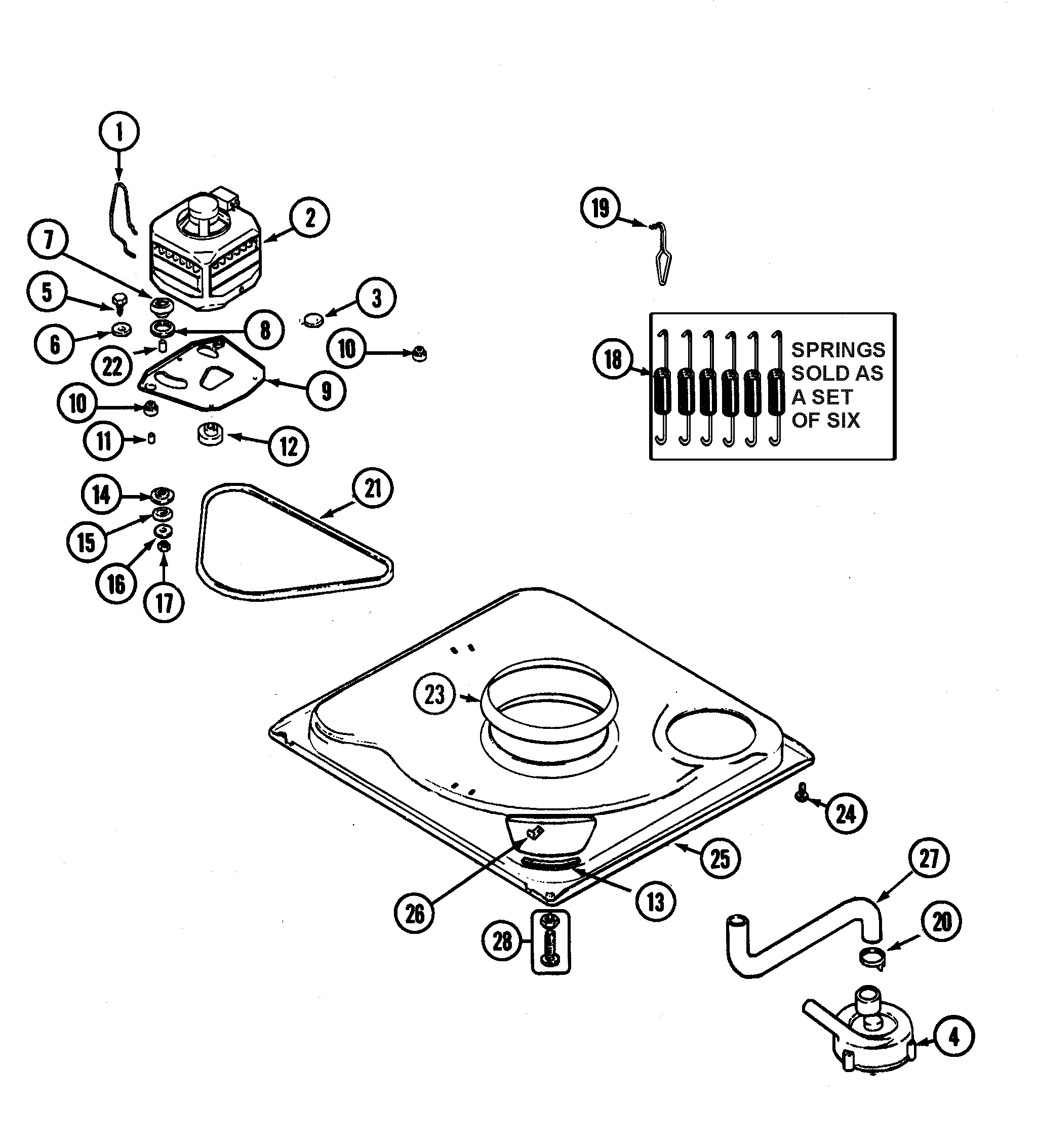

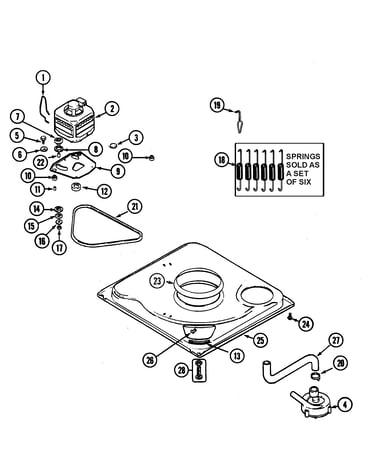

Hose Clamp
Part #25-6068Replaced by #WP285655
Manufacturer substitutionThis part replaces 25-6068. Substitute parts can look different from the original.This item is not returnableIn Stock$7.2112% OFF Phone Price : $8.21QtySwitch Screw
Part #25-3092Replaced by #WP90767
Manufacturer substitutionThis part replaces 25-3092. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyCabinet diagram
Inlet Hose
Part #33-7891Replaced by #WP89503
Manufacturer substitutionThis part replaces 33-7891. Substitute parts can look different from the original.In Stock$15.9011% OFF Phone Price : $17.90QtyTransmission (series 22) diagram
Washer Pulley And Thrust Bearing Kit
In Stock$48.9311% OFF Phone Price : $54.93QtyTransmission diagram
Pulley
Part #12001797Replaced by #12002213
Manufacturer substitutionThis part replaces 12001797. Substitute parts can look different from the original.In Stock$48.9311% OFF Phone Price : $54.93QtyTransmission diagram
Thrust Brg K
Part #12500036Replaced by #12002213
Manufacturer substitutionThis part replaces 12500036. Substitute parts can look different from the original.In Stock$48.9311% OFF Phone Price : $54.93QtyTransmission diagram
Cam Replacem
Part #LA-2007Replaced by #12002213
Manufacturer substitutionThis part replaces LA-2007. Substitute parts can look different from the original.In Stock$48.9311% OFF Phone Price : $54.93QtyBase diagram
Motor Pulley
Part #21001922Replaced by #WP21001950
Manufacturer substitutionThis part replaces 21001922. Substitute parts can look different from the original.In Stock$147.838% OFF Phone Price : $159.83Qty
