GE
Dishwasher

Model #PDT750SMF8ES Official GE dishwasher

Here are the diagrams and repair parts for GE PDT750SMF8ES dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

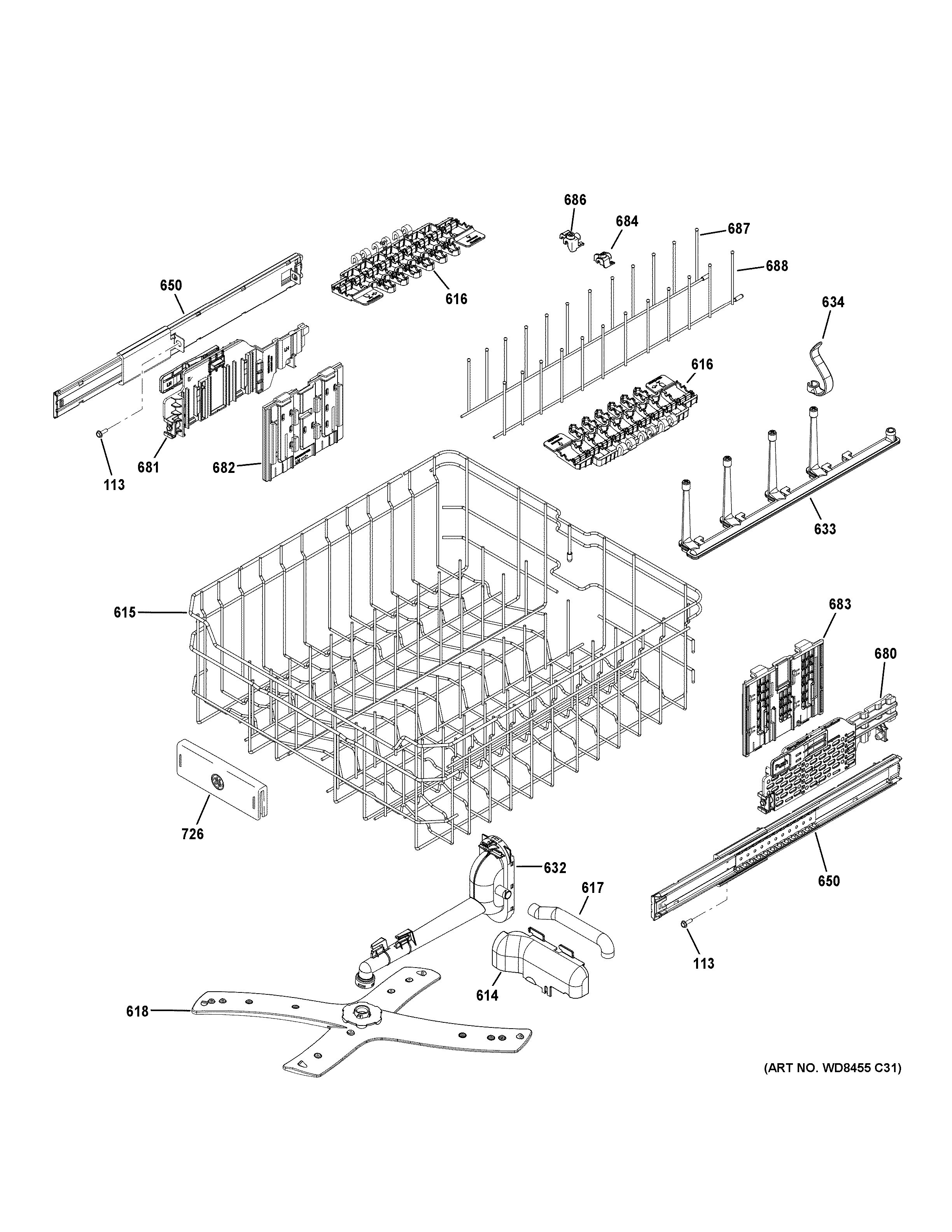

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 163 parts

Dishwasher Lower Dishrack Roller (replaces WD12X10435)#704

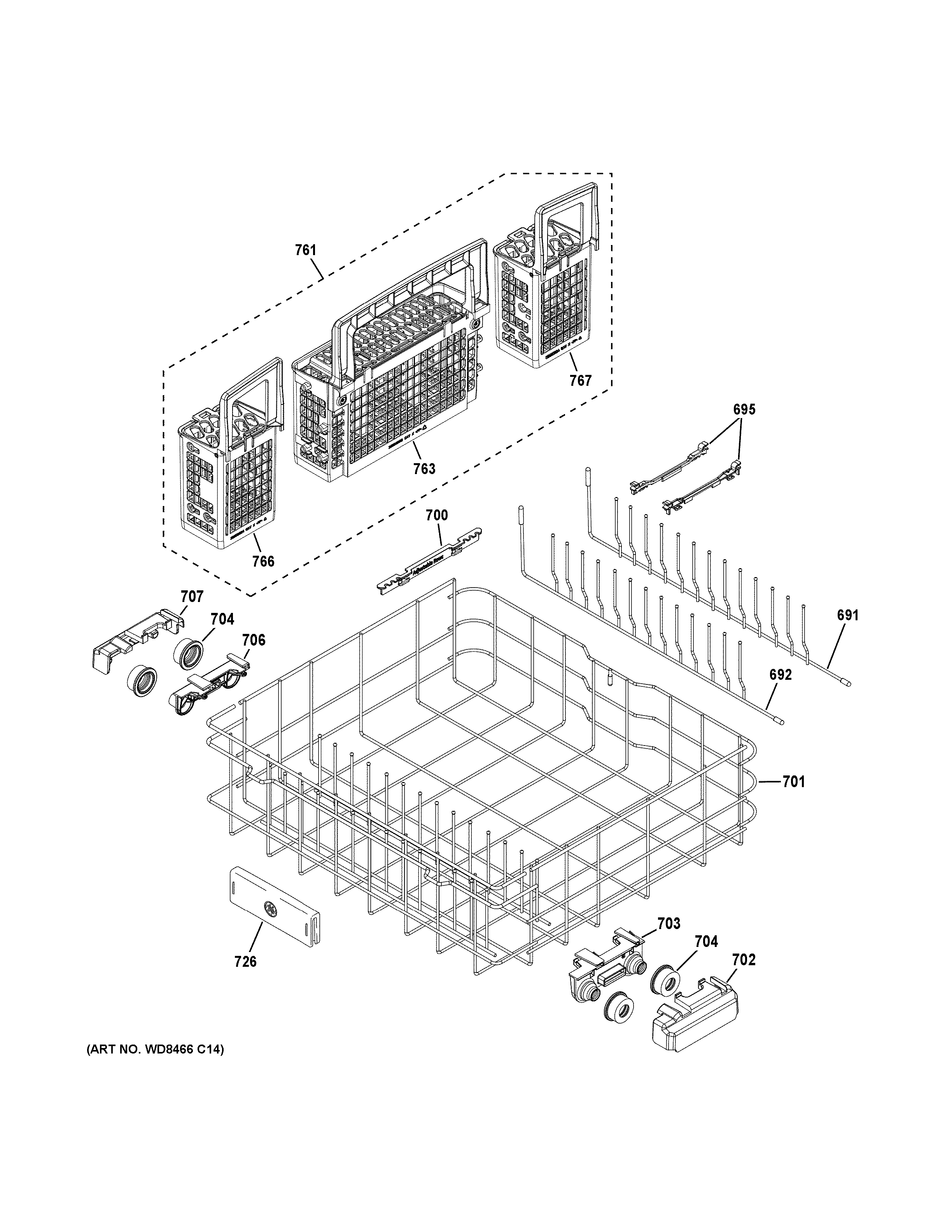

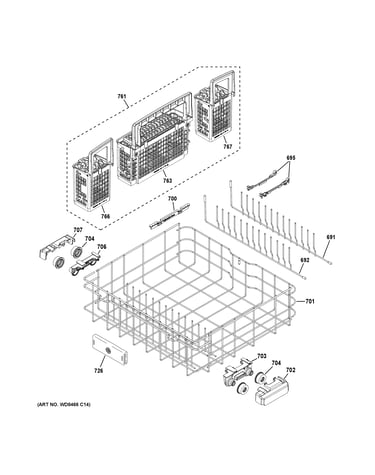

Lower rack assembly Diagram

Dishwasher lower dishrack roller

Part #WD12X10435
Replaced by #WD12X26146
?
Manufacturer substitution
This part replaces WD12X10435. Substitute parts can look different from the original.
BEST SELLER
In Stock
$7.64 |
12% OFF
Phone Price: $8.64
Dishwasher Door Latch Lock#803

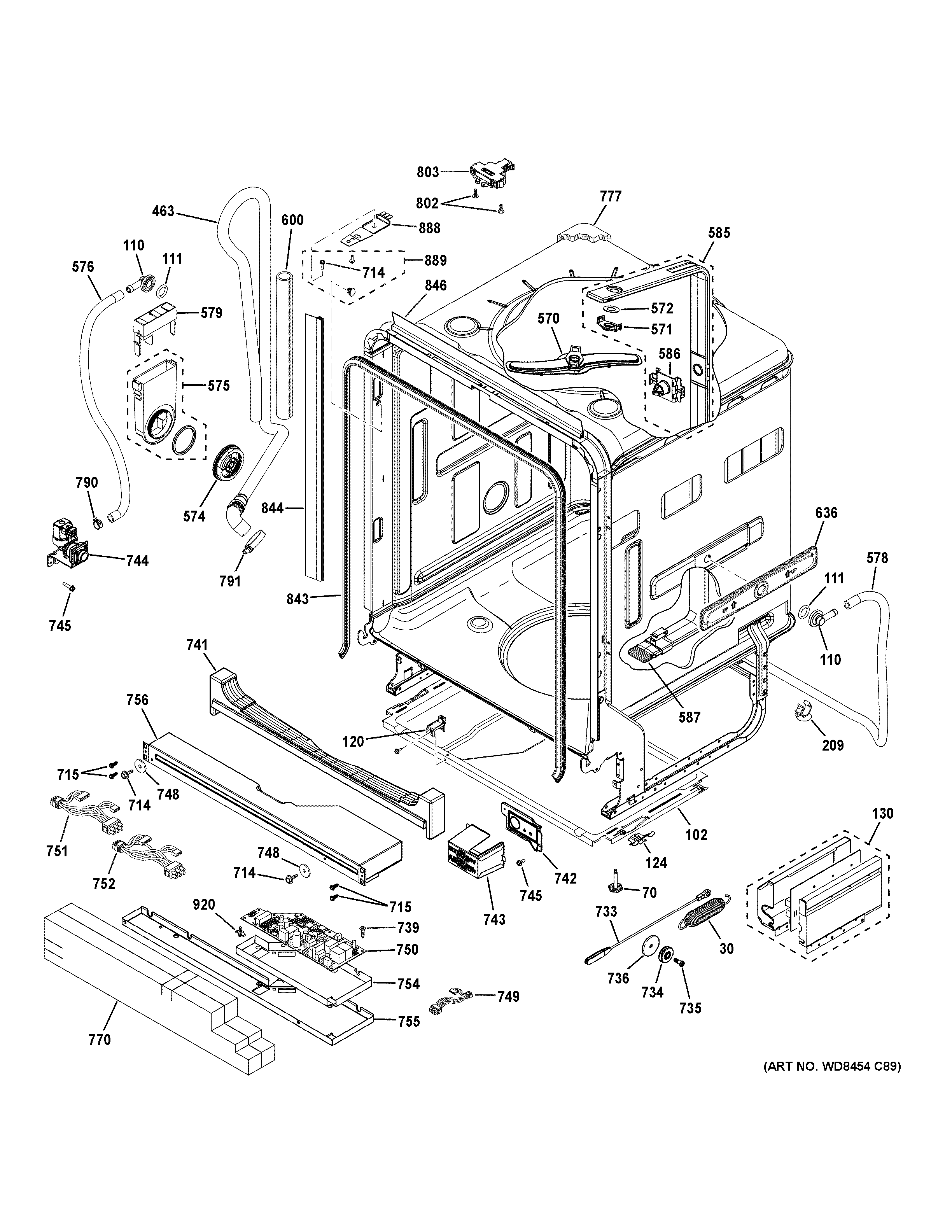

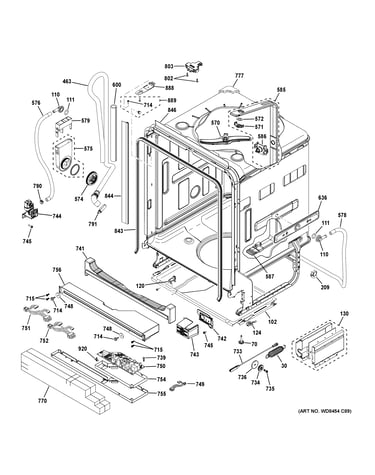

Body parts Diagram

Dishwasher door latch lock

Part #WD21X10490
BEST SELLER
In Stock
$33.95 |
13% OFF
Phone Price: $38.95
Dishwasher Terminal Block Cover#743

Body parts Diagram

Dishwasher terminal block cover

Part #WD12X10412
BEST SELLER
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Dishwasher Tine Row Clip#695

Lower rack assembly Diagram

Dishwasher tine row clip

Part #WD12X20171
BEST SELLER
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Dishwasher Screw, 10-32 x 9/16-in

See All Related Diagrams

Dishwasher screw, 10-32 x 9/16-in

Part #WD01X22514
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69

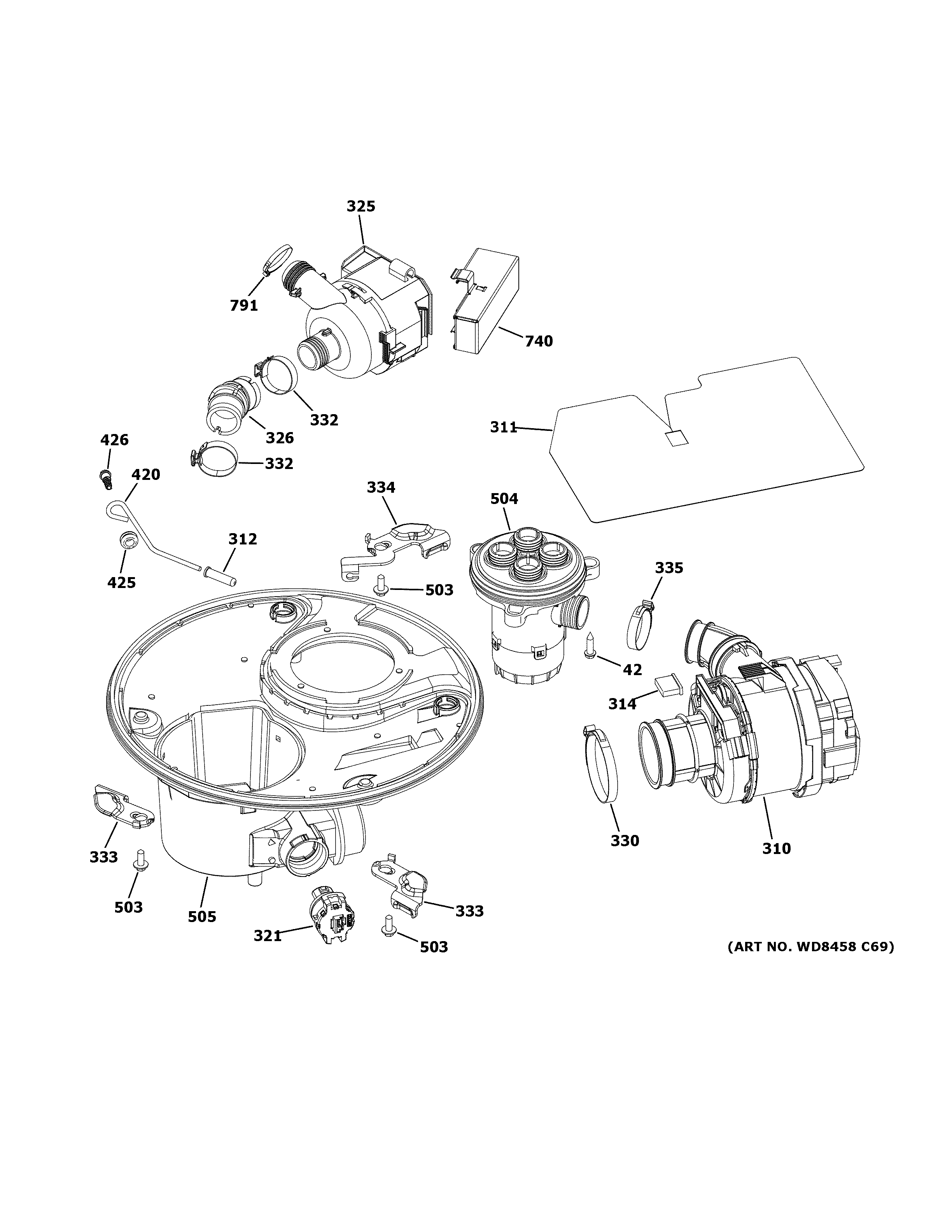

Dishwasher Sump Gasket (replaces WD08X21320)#506

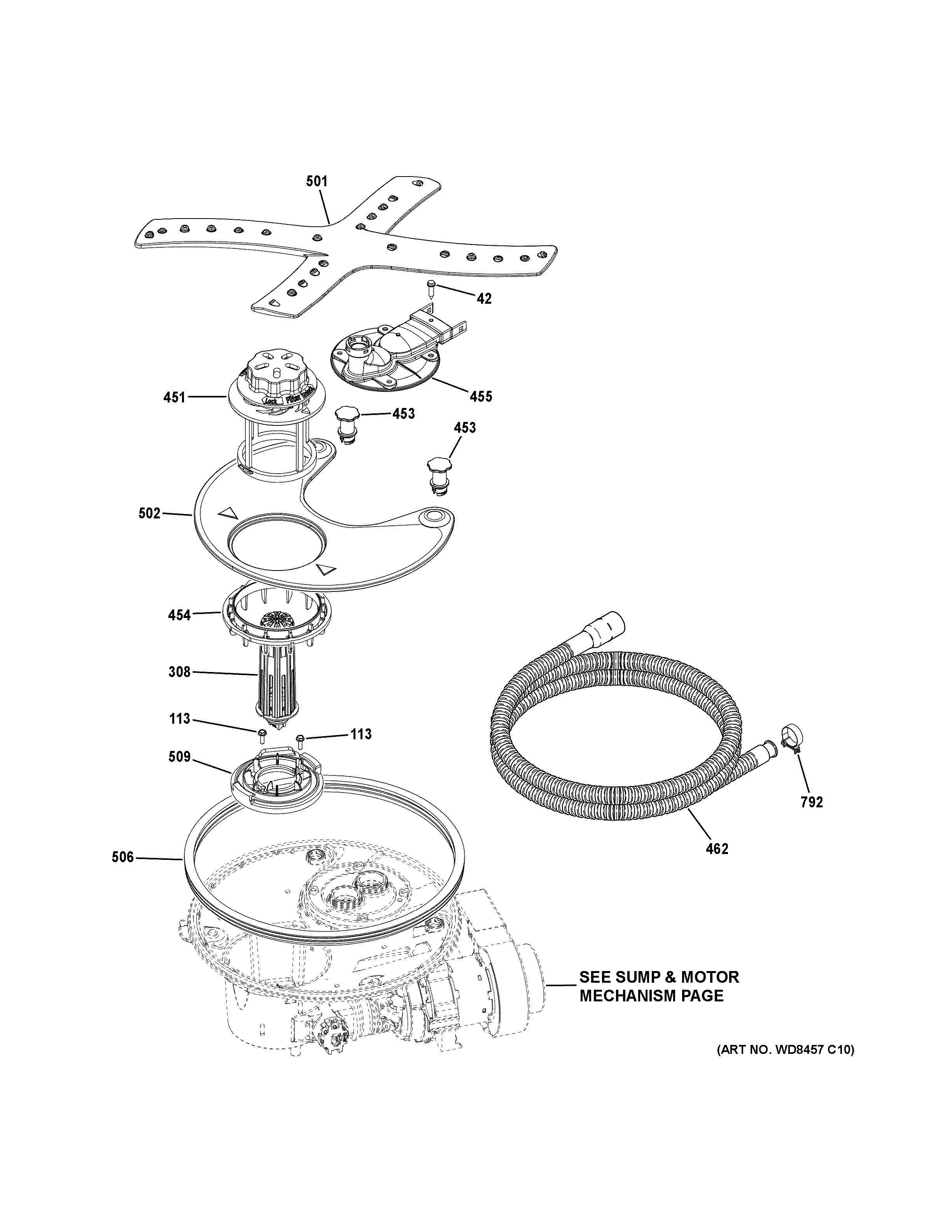

Sump & filter assembly Diagram

Sump gasket

Part #WD08X21320
Replaced by #WD08X22758
?
Manufacturer substitution
This part replaces WD08X21320. Substitute parts can look different from the original.
This item is not returnable
In Stock
$23.39 |
18% OFF
Phone Price: $28.39
Dishwasher Toe Panel (Black) (replaces WD27X10392, WD27X26218)#759

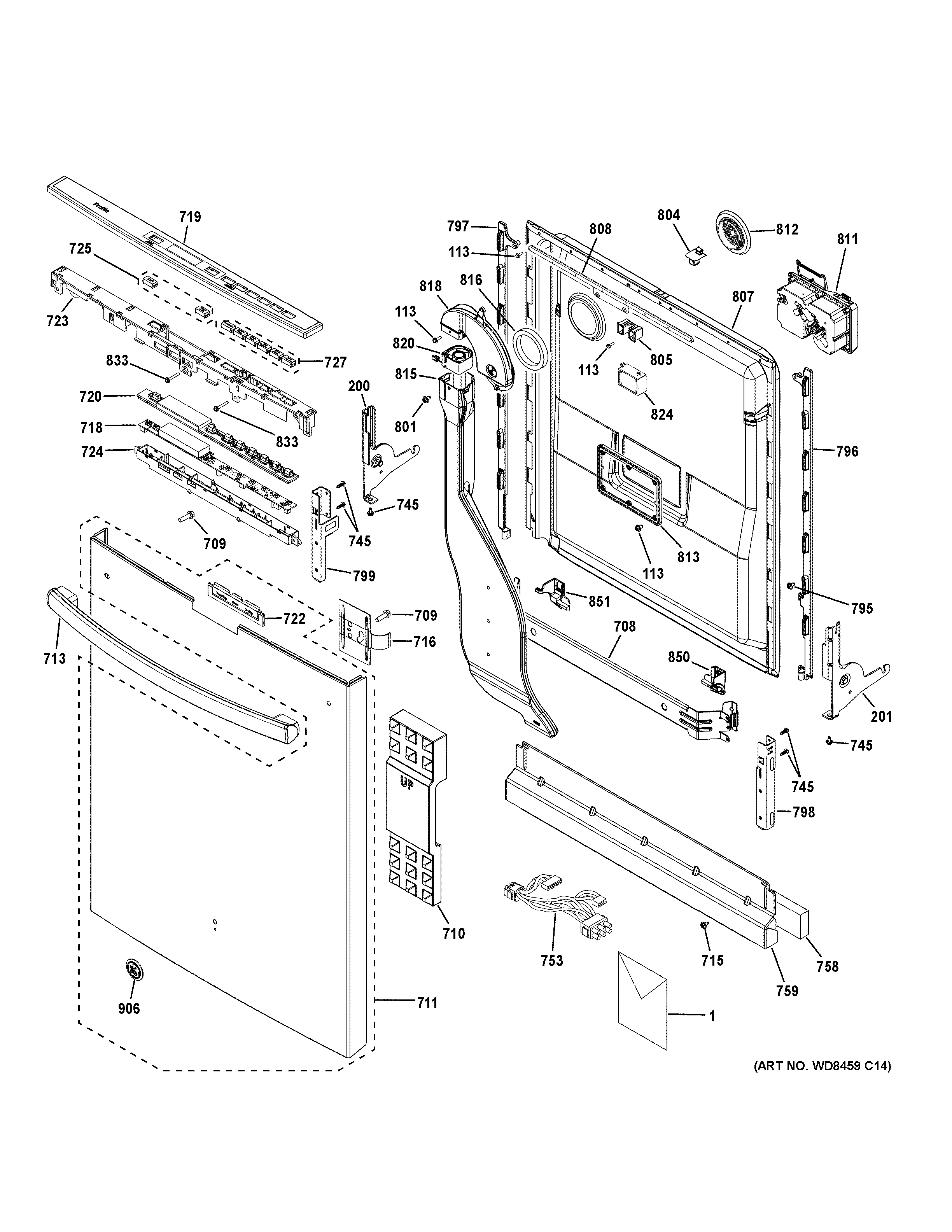

Escutcheon & door assembly Diagram

Dishwasher toe panel

Part #WD27X10392
Replaced by #WD27X26119
?
Manufacturer substitution
This part replaces WD27X10392. Substitute parts can look different from the original.
This item is not returnable
In Stock
$27.99 |
15% OFF
Phone Price: $32.99
Dishwasher Spray Arm, Lower (replaces WD22X20181, WD22X20230, WD22X20253)#501

Sump & filter assembly Diagram

Arm spray lo

Part #WD22X20230
Replaced by #WD22X22857
?
Manufacturer substitution
This part replaces WD22X20230. Substitute parts can look different from the original.
This item is not returnable
In Stock
$42.83 |
10% OFF
Was: $47.59
Dishwasher Leveling Leg (replaces WD12X10417)#70

Body parts Diagram

Dishwasher leveling leg

Part #WD12X10417
Replaced by #WD12X23057
?
Manufacturer substitution
This part replaces WD12X10417. Substitute parts can look different from the original.
This item is not returnable
In Stock
$7.69 |
12% OFF
Phone Price: $8.69
Dishwasher Door Panel Retainer Strip, Side#797

Escutcheon & door assembly Diagram

In Stock
$7.69 |
12% OFF
Phone Price: $8.69

Symptoms common to all dishwashers

Choose a symptom to see related dishwasher repairs.

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
Main cause: damaged rack height adjuster
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
Main causes: broken door spring, damaged or broken door hinge
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
