On the Kenmore Elite dishwasher model 66517053402, an F2 E2 code points to a user interface and control communication issue; the practical reset is to clear the cycle and power-cycle the control, then restart a fresh cycle using the steps in the 66517053402 owner's manual.

Reset steps (safe, no tools)

• Press CANCEL/DRAIN and let the dishwasher complete the drain (about 2 minutes).
• When the drain finishes, select a new cycle.
• Press START/RESUME.
• If the code returns, turn dishwasher power OFF at the breaker for 5 minutes, then turn it back ON.
• Start a normal cycle and watch for the code to reappear.

If the buttons do not respond

A non-responsive keypad can look like an F2 E2 problem because the control cannot read the user interface correctly.

• Make sure the door is fully closed and latched; top-control models can require re-pressing START/RESUME if the door is not closed quickly.
• Try CANCEL/DRAIN first to clear indicators, then restart.
• If the dishwasher is completely dead, check the house breaker and wiring connection method details in the 66517053402 installation guide.

Quick symptom-to-next-step table

What you see	What it usually means	What to do next
Code appears mid-cycle	Control lost UI communication	CANCEL/DRAIN, then restart cycle
START/RESUME light flashing	Door opened or power interrupted	Close door, press START/RESUME
No response to any keys	UI/control power issue	Breaker reset, then retry
Code returns quickly after reset	Persistent UI/control fault	Inspect console area for moisture; consider control panel replacement

Why it matters

F2 E2 is often triggered by a temporary interruption (power glitch, door opened, moisture at the console). Clearing the cycle and restoring stable power prevents repeated stops and helps confirm whether you have a one-time event or a part problem.

Last updated: January 2026

Noise level (decibels) is not a single fixed number for every Kenmore Elite dishwasher, and the 66517053402 owner's manual does not list a dBA rating in the available excerpts. Most Kenmore built-in dishwashers are designed to run quietly; if you need an exact dBA value, match it to the rating on the model’s product label or specification sheet.

How to find the exact dBA rating for model 66517053402

Use these quick checks to get the precise number for your dishwasher:

• Check the model and serial tag (typically on the tub frame near the door) for a noise rating or a reference to the spec sheet.
• Look for the original sales spec sheet or product listing tied to model 66517053402.
• Compare cycle options: heavier cycles and heated dry options typically sound louder than light cycles.
• Confirm the dishwasher is level and firmly mounted; vibration can make a quiet unit seem loud.
• Inspect for rattles from loose items or rack hardware; worn rack parts can add noise.

Common reasons a “quiet” dishwasher sounds loud

Even when the design is low-noise, these issues can raise perceived sound levels:

• Dishes touching or vibrating against each other
• Spray arm hitting a tall pan or utensil
• Food debris causing grinding in the chopper area
• Pump or motor bearing wear
• Drain hose tapping the cabinet during drain

What you hear	Most likely source	What to check first
Rattle/click	Loading or rack movement	Re-load, verify rack rolls smoothly
Grinding	Chopper or pump area	Clean filters, check for debris
Buzz/hum	Motor or circulation system	Listen during wash vs drain
Thump during drain	Drain hose movement	Secure hose and routing

Why it matters

Decibel ratings help you compare dishwashers, but day-to-day noise is often driven by installation, loading, and wear. Addressing vibration and debris issues can make a bigger difference than the published dBA number.

Last updated: January 2026

On the Kenmore Elite dishwasher model 66517053402, the F4E1 service code points to a wash (circulation) pump or pump motor problem, meaning the dishwasher is not moving wash water through the spray arms correctly. After correcting the cause (often a failed motor or a blockage), clear the code using the reset steps in the 66517053402 owner's manual.

What you’ll notice when F4E1 is active

• Dishes come out dirty because spray arms are not getting strong water flow
• You may hear a hum or unusual motor noise during the wash portion
• The cycle may stop, drain, or end early
• Water may fill but washing action is weak or missing

What to check first (before replacing parts)

We recommend these quick checks because a restriction can mimic a bad pump:

• Cancel/drain the cycle and restart a normal wash to see if the code returns
• Check for items blocking the spray arms and confirm arms spin freely
• Clean the filter area and sump (remove debris like glass, labels, seeds)
• Verify the dishwasher is getting proper water supply (water turned on, good fill)
• If the unit recently moved or was installed, confirm basics in the 66517053402 installation guide

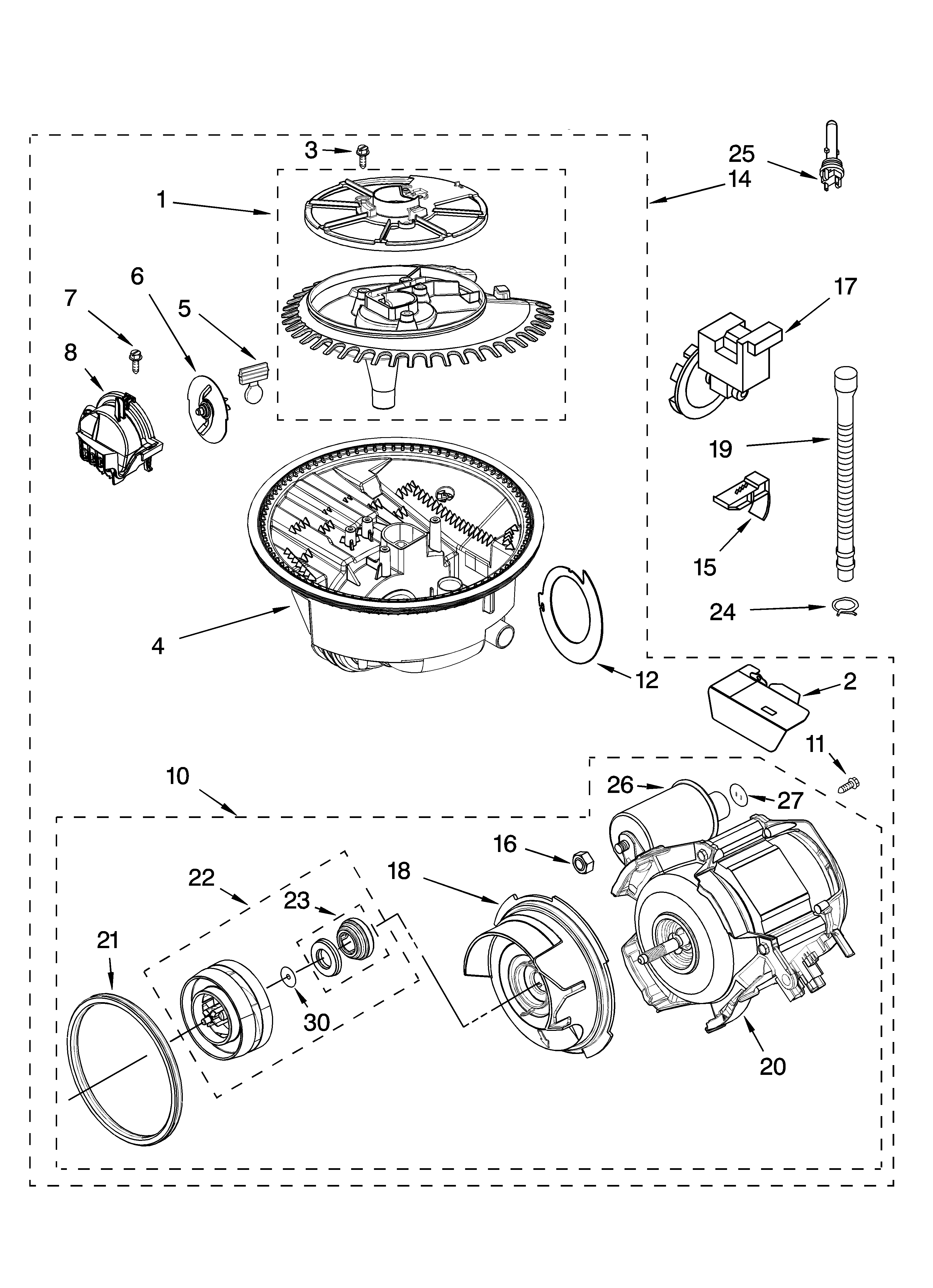

Common repairs tied to F4E1 on this model

If cleaning and restart do not help, the wash motor circuit is the next likely cause.

Likely cause	What it affects	Typical fix
Circulation pump motor failure	No/weak spray pressure	Replace the circulation pump/motor assembly
Debris in chopper/sump	Restricted wash flow	Clean sump; replace chopper if damaged
Control not powering motor	Motor never starts	Diagnose wiring/control; repair as needed

Model-related parts customers often replace during wash-flow repairs include the pump motor W10782773 and the dishwasher chopper assembly W10083957V.

Why it matters

Running with a wash-pump fault wastes water and detergent and can leave food soil in the tub. Fixing the wash circulation issue restores spray pressure so the dishwasher can clean and heat properly.
