EveryDrop water filters often cost more because they are built and tested to meet strict NSF/ANSI performance standards, use higher-grade filter media, and are priced as a branded OEM-style option for Whirlpool refrigerators like model ED25DQXDW02. The higher price also reflects certification testing and tighter quality control.

What you are paying for

• Certification and testing: NSF/ANSI claims (such as chlorine taste/odor, particulates, and some chemical contaminants) require ongoing lab testing and documentation.
• Filter media and construction: Better carbon blocks and housings typically flow more consistently and resist bypass.
• Fit and sealing reliability: Branded filters are designed to match the factory filter head tolerances to reduce leaks and unfiltered water bypass.
• Shelf-life and packaging: Sealed packaging and date coding help protect the carbon from absorbing odors before installation.

Cost vs. value: quick comparison

Option type	Typical upfront cost	Typical tradeoff	Best for
Branded certified filter	Higher	Higher ongoing cost	Maximum confidence in rated reductions
Lower-cost compatible filter	Lower	Varies by brand and certification	Budget-focused replacement
No filter or bypass plug (if applicable)	Lowest	No filtration	Non-dispensing setups or external filtration

When a “pricey” filter becomes more expensive

A cheaper filter can cost more over time if it causes any of these issues:

• Slow dispensing or frequent clogging
• Leaks at the filter head or housing
• Off-taste or odor returning quickly
• Ice maker fill problems from restricted flow

Why it matters for ED25DQXDW02

On a side-by-side like Whirlpool ED25DQXDW02, the water filter affects both drinking water and ice quality. Stable flow and a good seal help protect the dispenser system and reduce nuisance issues that can look like a water supply or ice maker failure.

Helpful next steps

• Replace on a consistent schedule (most households use about every 6 months).
• After installing a new filter, purge air and flush several gallons to clear carbon fines.
• If you are troubleshooting dispenser or ice issues, review how to prevent water dispenser and ice maker problems.

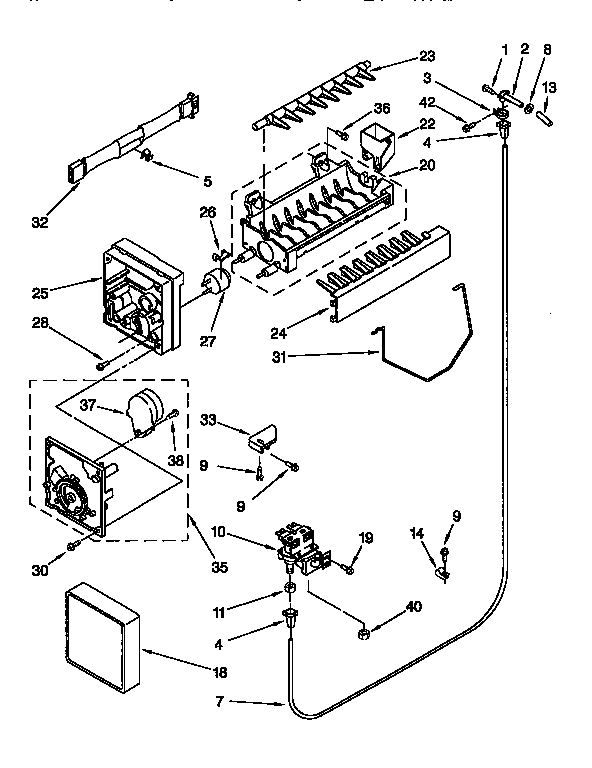

• For parts that support the ice system on this model, you can also check items like the ice maker assembly - refrigerator ice maker by Whirlpool 4317943 and the refrigerator container WPW10670845.
• To shop additional replacement parts by model number, use the parts list for ED25DQXDW02 or search on Sears PartsDirect.

Last updated: February 2026

For your Whirlpool ED25DQXDW02 side-by-side refrigerator, the most accurate way to find cubic feet is to look up the model’s published capacity by model number. If you just need a quick estimate, we can calculate it by measuring the usable interior space and converting cubic inches to cubic feet.

Fast ways to get the capacity

• Check the model/serial tag inside the fresh food compartment and confirm the model is ED25DQXDW02.
• Use the model number to search capacity information and parts for this exact unit on Sears PartsDirect.
• If you are comparing storage space after replacing bins or pans, measure the interior and calculate an estimate.

How to calculate cubic feet (good estimate)

1. Empty enough space to measure the usable interior (not the outside cabinet).
2. Measure width x height x depth in inches.
3. Multiply those numbers to get cubic inches.
4. Divide by 1,728 to convert to cubic feet.

What to measure (so the estimate is realistic)

• Measure to the inside walls and the back panel, not to the door gasket.
• Exclude areas you cannot really use (air channels, light housings, ice maker housing).
• Measure the refrigerator and freezer sections separately, then add them.

Typical capacity range (for context)

Most Whirlpool side-by-side refrigerators like the ED25 series are commonly in the mid-20 cubic foot range, but the exact number depends on the specific configuration.

Method	Accuracy	Best for
Model-based published capacity	Highest	Exact spec for ED25DQXDW02
Interior measurement calculation	Medium	Quick estimate, comparisons
Exterior cabinet measurement	Low	Not recommended

Why it matters

Cubic feet helps you compare refrigerator sizes, but it also affects real-world storage. Door bins, shelves, and pans can change how usable the space feels, even when the official capacity stays the same.

Last updated: February 2026

Most Whirlpool refrigerators last 10 to 18 years with normal household use. For your Whirlpool ED25DQXDW02 side-by-side refrigerator, lifespan depends most on airflow, clean condenser coils, and keeping the doors sealing tightly so the compressor does not run nonstop.

Typical lifespan ranges (what to expect)

Here are realistic ranges we see for Whirlpool refrigerators like the ED25DQXDW02:

• 10 to 12 years: common when coils are rarely cleaned or the unit runs hot
• 13 to 18 years: typical with steady temperatures and basic maintenance
• 18+ years: achievable when seals, airflow, and defrost performance stay in good shape

What affects lifespan most	What you can do	Parts that often help
Heat buildup under/behind the fridge	Vacuum coils and keep ventilation space	(Maintenance, no part needed)
Door seal leaks	Clean and reshape gasket; replace if torn	Whirlpool refrigerator door gasket, black 2159083
Frost buildup from defrost issues	Address heavy frost early	Refrigerator heater WP2323198
Poor temperature control	Verify steady cooling and cycling	Refrigerator thermostat WP2198202

Maintenance that adds years

Do these simple steps to reduce wear on the sealed system and compressor:

• Clean condenser coils and the area around the condenser fan regularly
• Keep the refrigerator at steady settings (avoid frequent extreme adjustments)
• Make sure doors close fully and do not pop open
• Do not block interior vents with food containers
• Fix water leaks and puddles quickly to prevent corrosion and airflow problems

Why it matters

A refrigerator usually fails early because it runs too long and too hot. Good airflow, a tight door seal, and a working defrost system reduce run time, stabilize temperatures, and extend the life of key components.

Finding the right replacement parts

When you are ready to replace a worn part for your ED25DQXDW02, order from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common problem we see with Whirlpool refrigerators like model ED25DQXDW02 is a cooling complaint (warm fridge, soft ice, or thawing freezer). In many cases, the root cause is restricted airflow or heat transfer, such as dirty condenser coils, an iced-up evaporator area, or a failing temperature control.

Most common symptoms and what they usually point to

• Refrigerator warm, freezer still cold: airflow issue between compartments, iced evaporator, or a control problem
• Freezer warm and fridge warm: condenser coils blocked, condenser fan/compressor issue, or sealed-system cooling loss
• Frost buildup on back wall of freezer: defrost system problem (heater, thermostat, or defrost control)
• Ice maker stops making ice: water supply issue, frozen fill tube, or ice maker failure
• Water under the fridge or in the crisper area: clogged/iced defrost drain or water line leak

Quick checks we recommend first (no parts needed)

1. Set temperatures correctly: freezer around 0°F; refrigerator around 37°F.
2. Clean condenser coils: dust buildup is a top cause of poor cooling and long run times.
3. Check door sealing: look for gaps, torn gasket areas, or doors not closing fully.
4. Listen for the evaporator fan: it should run when the compressor is running (door switch held closed).
5. Look for heavy frost: a solid frost sheet in the freezer points to a defrost problem.

Parts that commonly fix these problems on ED25DQXDW02

Problem area	What fails	Example part for this model
Temperature control	Thermostat not regulating temps	Refrigerator thermostat WP2198202
Defrost system	Heater not melting frost	Refrigerator heater WP2323198
Ice production	Ice maker module/assembly failure	Ice maker assembly 4317943
Door sealing	Warm air leaks causing frost and poor cooling	Whirlpool refrigerator door gasket, black 2159083

Why it matters

Cooling problems can snowball quickly: restricted airflow and frost buildup make the compressor run longer, temperatures drift, and food safety becomes a concern. Catching the early signs (long run times, frost, weak airflow) usually prevents bigger repairs.

For step-by-step troubleshooting by symptom, we use the same approach outlined in Whirlpool refrigerator error codes. For ordering, you can buy model ED25DQXDW02 parts from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

On a Whirlpool side-by-side like model ED25DQXDW02, the defrost control is usually located in the temperature control area inside the fresh food section or in the machine compartment area behind the lower front toe grille. The exact placement depends on whether your unit uses a mechanical timer or an electronic defrost control.

How to find it on ED25DQXDW02

Use these quick checks to narrow down the location before you start removing parts.

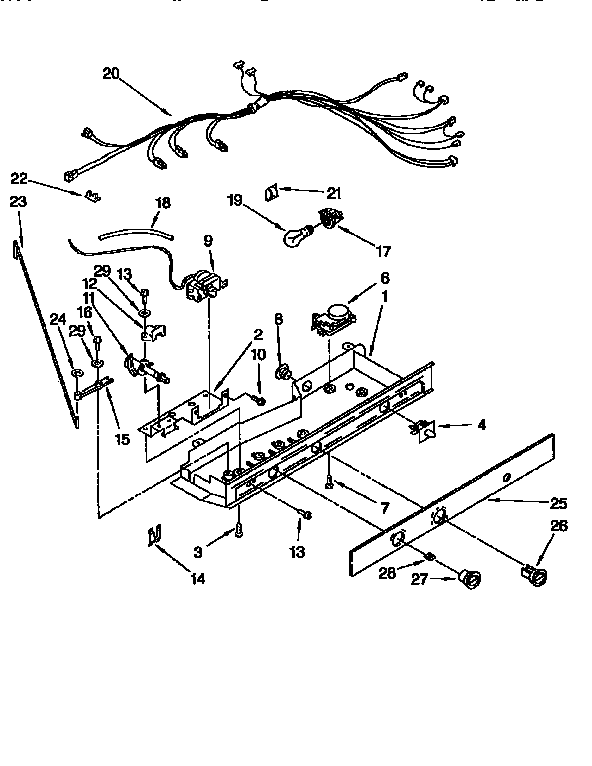

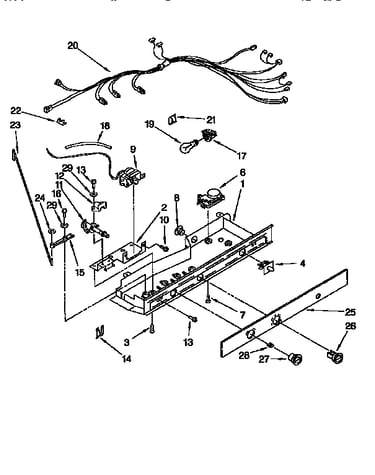

• Look in the fresh food control console (where the temperature controls and light housing are)
• Check behind the lower toe grille or kickplate at the front bottom
• If you do not see a timer-style module, look in the rear machine compartment for an electronic control box
• Identify the control type: mechanical timers often have an advance shaft; electronic controls do not
• Unplug the refrigerator before removing covers or disconnecting wiring

What you are looking for (mechanical vs. electronic)

Defrost control type	What it looks like	Common access area
Mechanical defrost timer	Small box, often with an advance shaft you can turn	Fresh food control console or behind toe grille
Electronic defrost control (ADC)	Small circuit board or enclosed control module	Control console or rear machine compartment

If you are chasing a “no defrost” symptom

A defrost control problem often shows up as heavy frost on the freezer evaporator, weak airflow, and warming temperatures. These checks help you avoid replacing the wrong part.

• Inspect for frost buildup on the freezer back panel
• Listen for the evaporator fan running (air movement matters as much as cooling)
• If you confirm a defrost failure, also consider the defrost heater circuit
• For a known defrost-system component on this model, see the refrigerator heater WP2323198

Why it matters

The defrost control location determines how you test and replace it safely. Finding the correct control also helps you confirm whether the issue is the timer/control, heater, or airflow related.

For additional parts and model-based lookup beyond the list for ED25DQXDW02, use Sears PartsDirect.
