Magic Chef RND22EA-3A/5M78B refrigerator Parts
Here are the diagrams and repair parts for Magic Chef RND22EA-3A/5M78B refrigerator, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

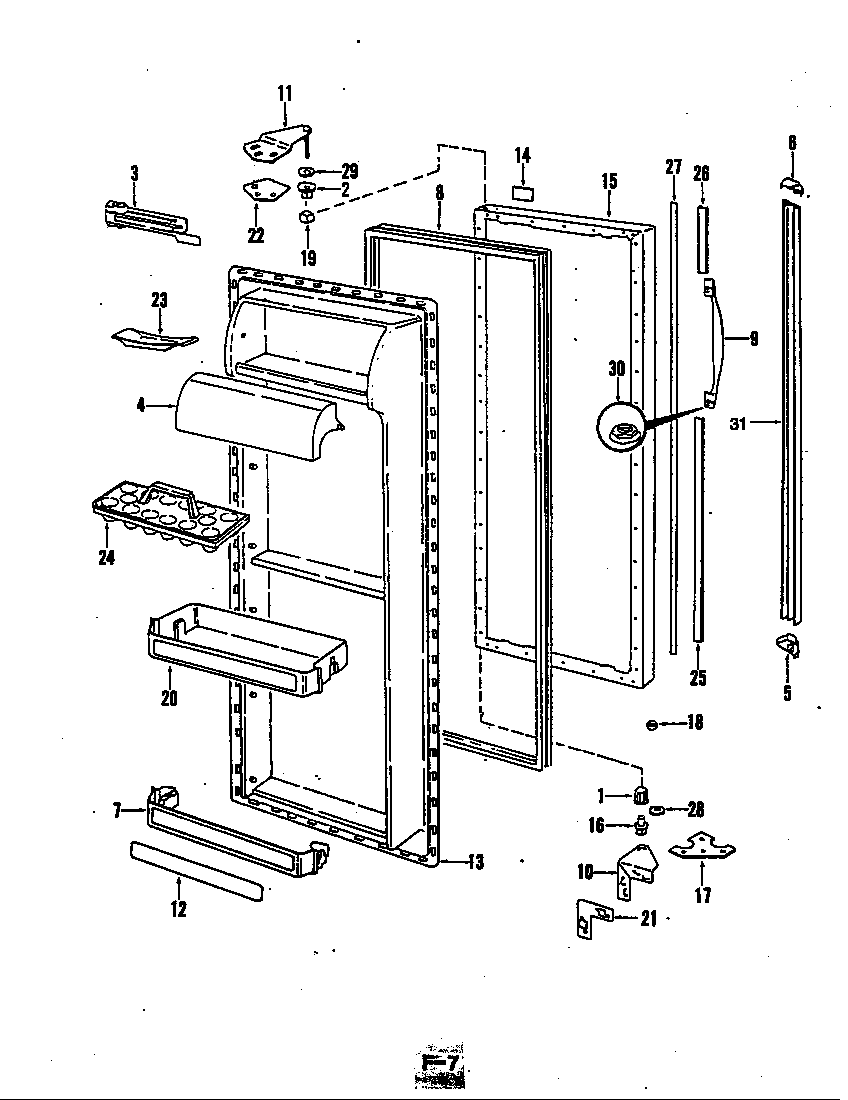

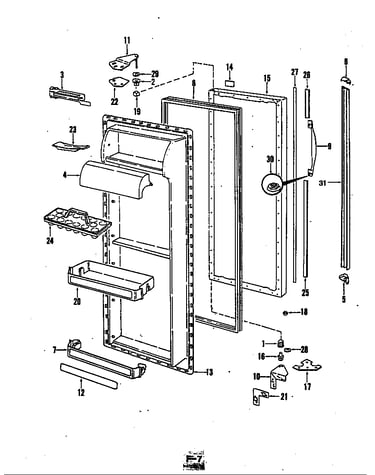

Browse Parts for RND22EA-3A/5M78B Refrigerator

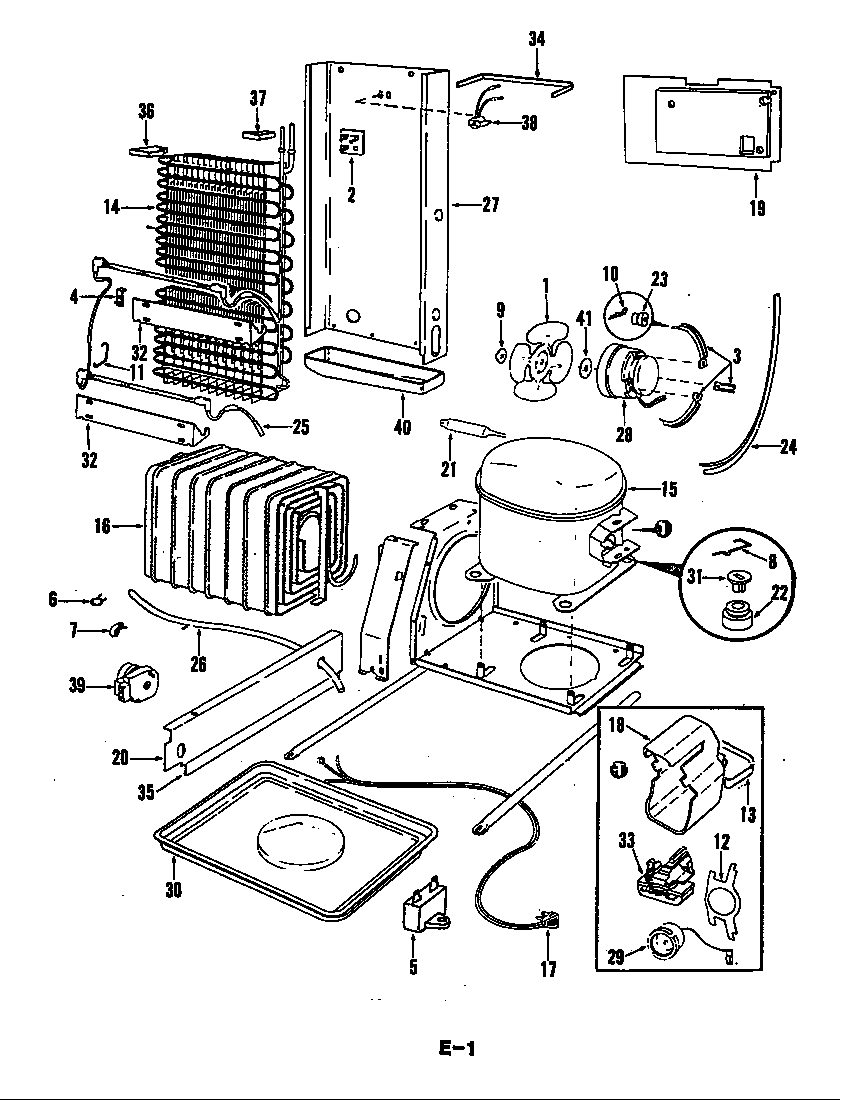

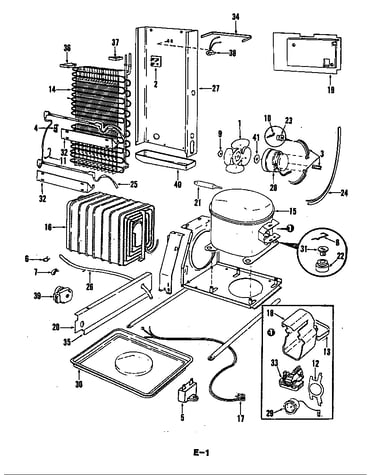

Unit compartment & system diagram
Drier
Part #13900Replaced by #WPW10143759
Manufacturer substitutionThis part replaces 13900. Substitute parts can look different from the original.In Stock$22.8521% OFF Phone Price : $28.85
Qty
Unit compartment & system diagram
Refrigerator Fan Motor
Part #28056-9Replaced by #833697
Manufacturer substitutionThis part replaces 28056-9. Substitute parts can look different from the original.In Stock$64.838% OFF Phone Price : $70.83QtyUnit compartment & system diagram
Screw
Part #9986-45Replaced by #WP488729
Manufacturer substitutionThis part replaces 9986-45. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9317% OFF Phone Price : $5.93QtyUnit compartment & system diagram
Refrigerator Run Capacitor
Part #66121-1Replaced by #WP65889-4

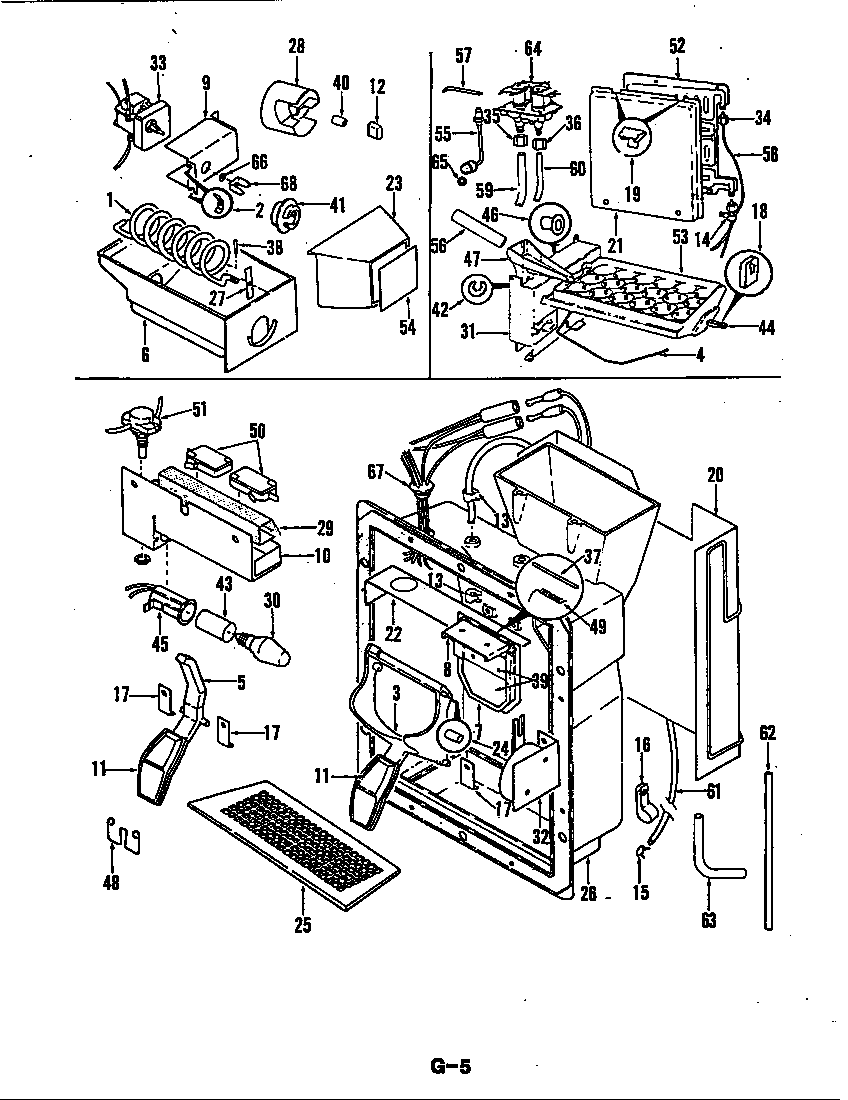

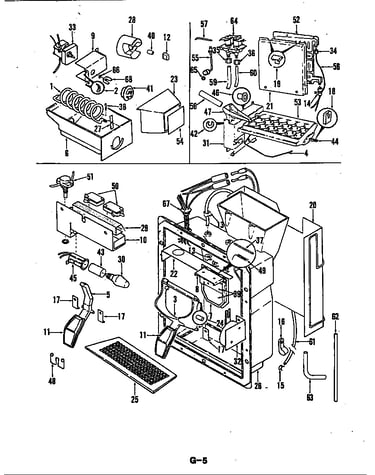

Manufacturer substitutionThis part replaces 66121-1. Substitute parts can look different from the original.In Stock$62.529% OFF Phone Price : $68.52QtyWater & ice dispenser diagram
Yoke,ice Dis
Part #63052-1Replaced by #WP63052-2

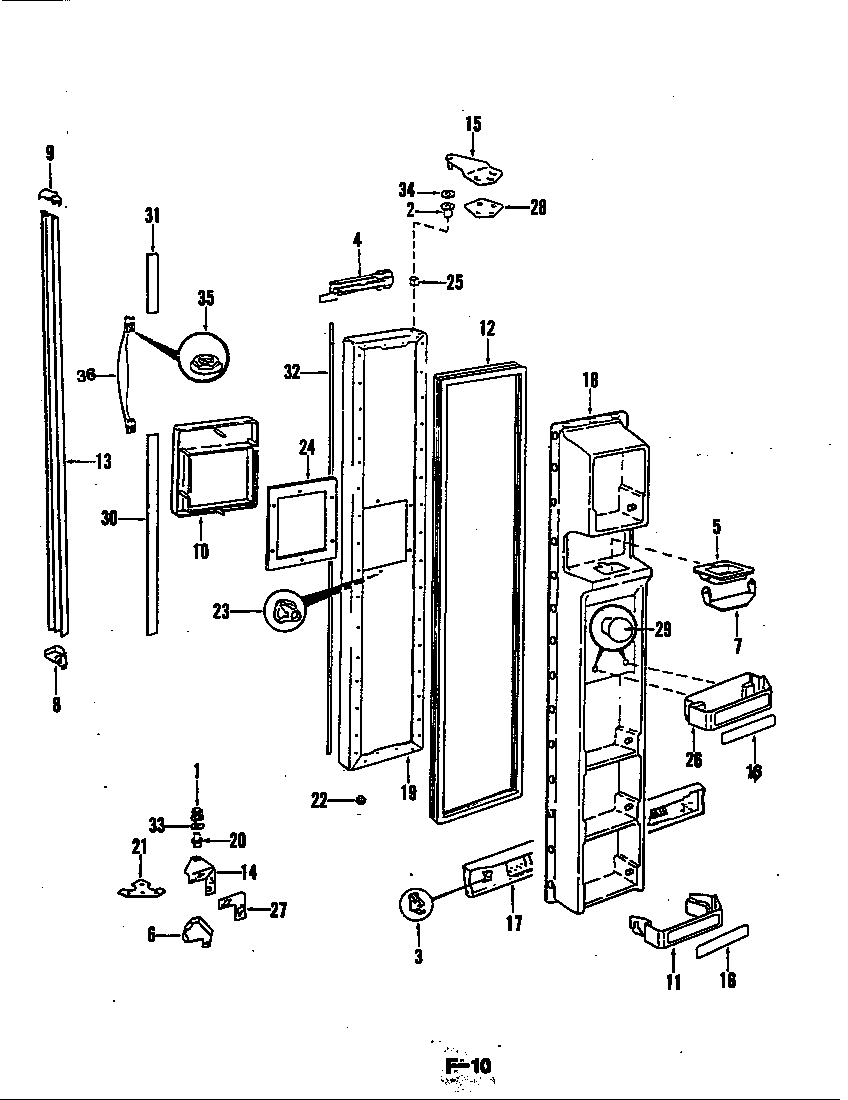

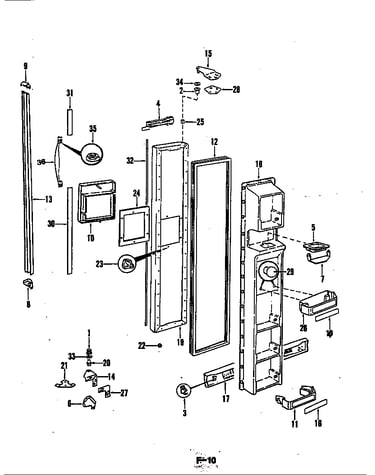

Manufacturer substitutionThis part replaces 63052-1. Substitute parts can look different from the original.In Stock$41.2513% OFF Phone Price : $47.25QtyFreezer door diagram
Refrigerator Screw
Part #400014-1Replaced by #WP90767
Manufacturer substitutionThis part replaces 400014-1. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyScrew
Part #400017-1Replaced by #WP489478

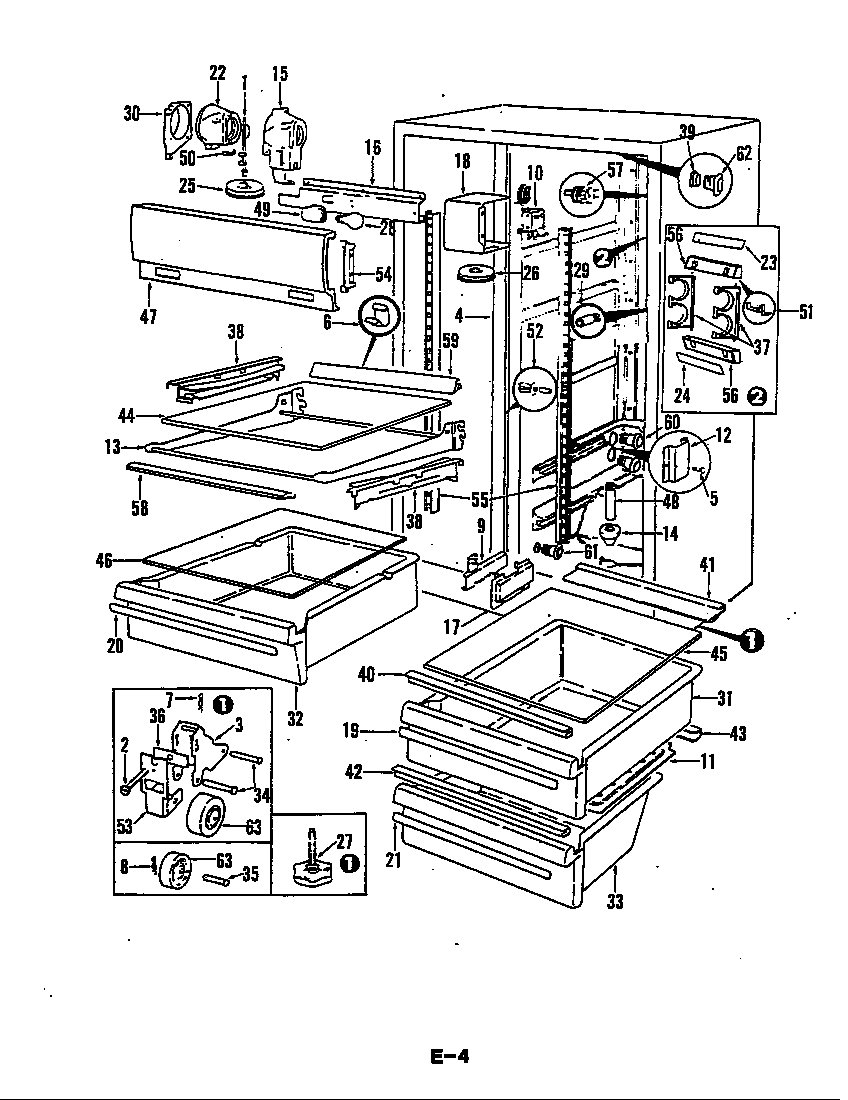

Manufacturer substitutionThis part replaces 400017-1. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06QtyFresh food compartment diagram
Refrigerator Light Bulb
Part #55771Replaced by #W10887190
Manufacturer substitutionThis part replaces 55771. Substitute parts can look different from the original.This item is not returnableIn Stock$14.6612% OFF Phone Price : $16.66QtyScrew
Part #400015-12Replaced by #W11233072

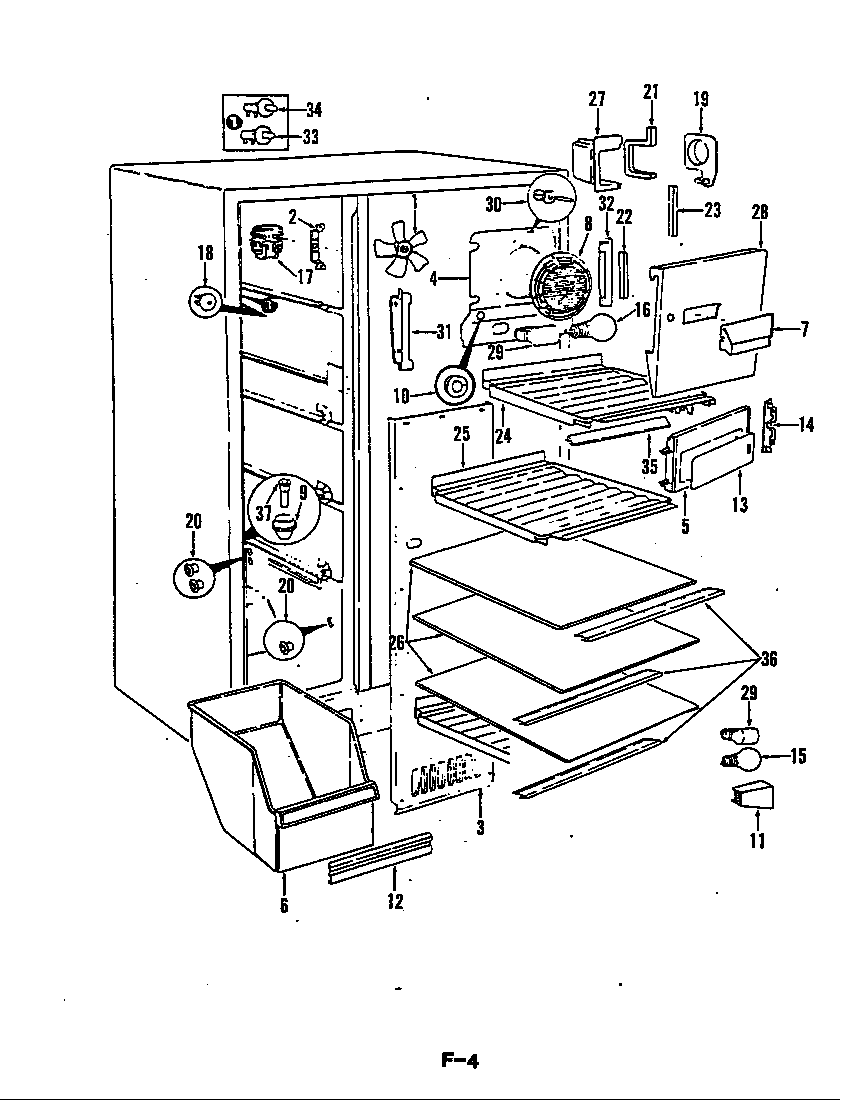

Manufacturer substitutionThis part replaces 400015-12. Substitute parts can look different from the original.In Stock$17.63QtyFreezer compartment diagram
Screw
Part #400022-1
The manufacturer no longer makes this part, and there's no substitute part
