Whirlpool LSQ8520JQ0 washer Parts

Whirlpool washer parts are only interchangeable when the replacement part is listed as compatible with your exact washer model. For the Whirlpool LSQ8520JQ0, we recommend matching parts by model number and part ID to ensure proper fit, safe operation, and correct performance.

How to confirm interchangeability for LSQ8520JQ0

Use these checks before ordering or installing any replacement part:

• Look up the part using the LSQ8520JQ0 model number in the parts list
• Match the part ID and part number (not just the part name)
• Compare the original part’s mounting style, electrical connectors, and hose sizes
• If the washer symptom is mechanical (no agitate, no spin), confirm the drive system parts are direct-drive compatible
• Follow the disassembly and installation steps in the LSQ8520JQ0 owner's manual

Common examples (what is usually safe vs risky)

Some parts are more likely to swap across similar Whirlpool-built top-load designs, but only when the model’s parts list shows compatibility.

Part type	Often interchangeable?	Why
Knobs, some switches	Sometimes	Fit depends on shaft style and wiring terminals
Fill valves, hoses	Sometimes	Port orientation and flow specs must match
Drive components	Rarely	Small design differences can cause noise, leaks, or no-spin

Model-matched part examples for LSQ8520JQ0

If you are repairing a common direct-drive issue, these are examples of model-specific parts we see used on this washer:

• Coupling 285753A (motor-to-transmission drive)

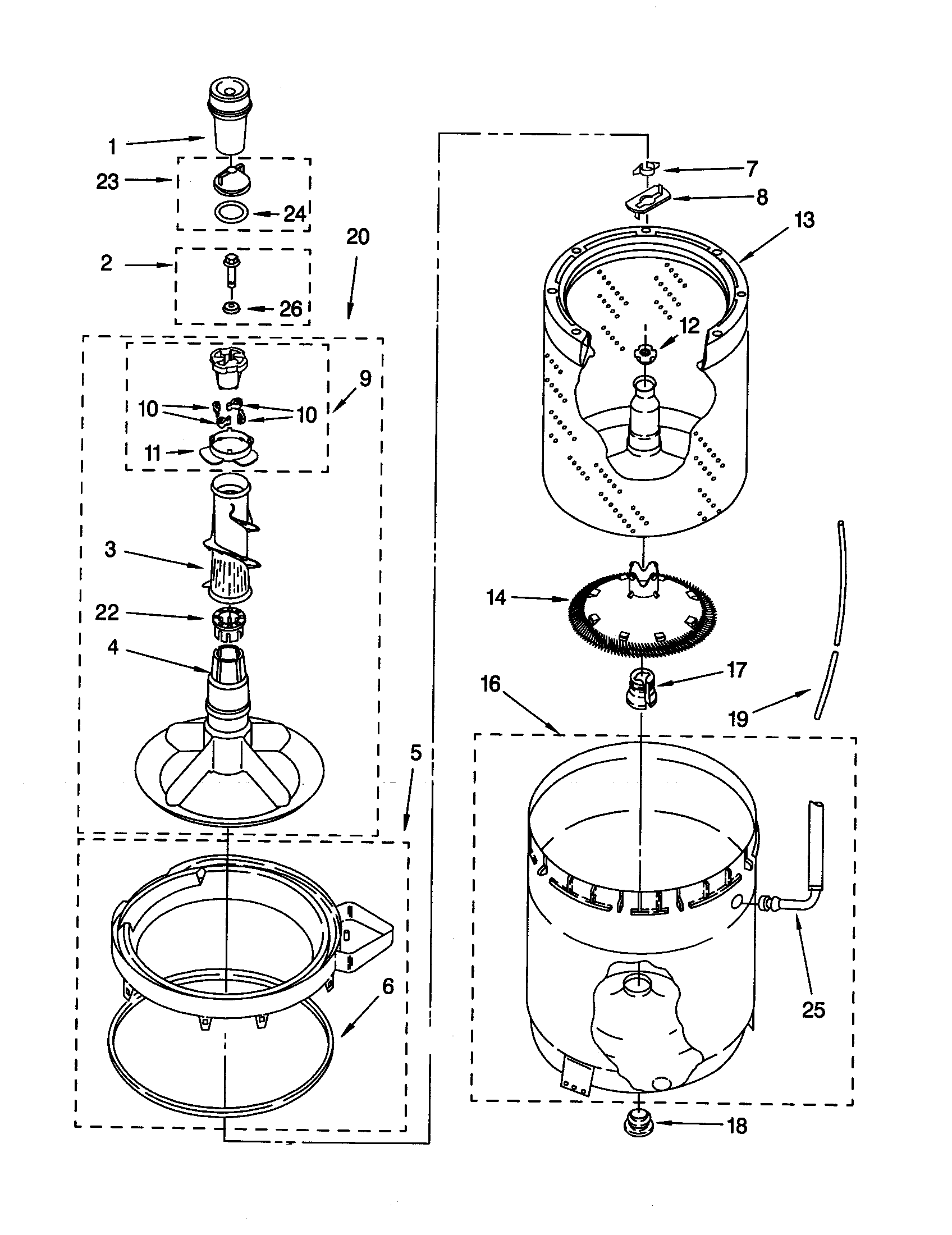

• Agitator dog 80040 (agitator cam/ratchet action)

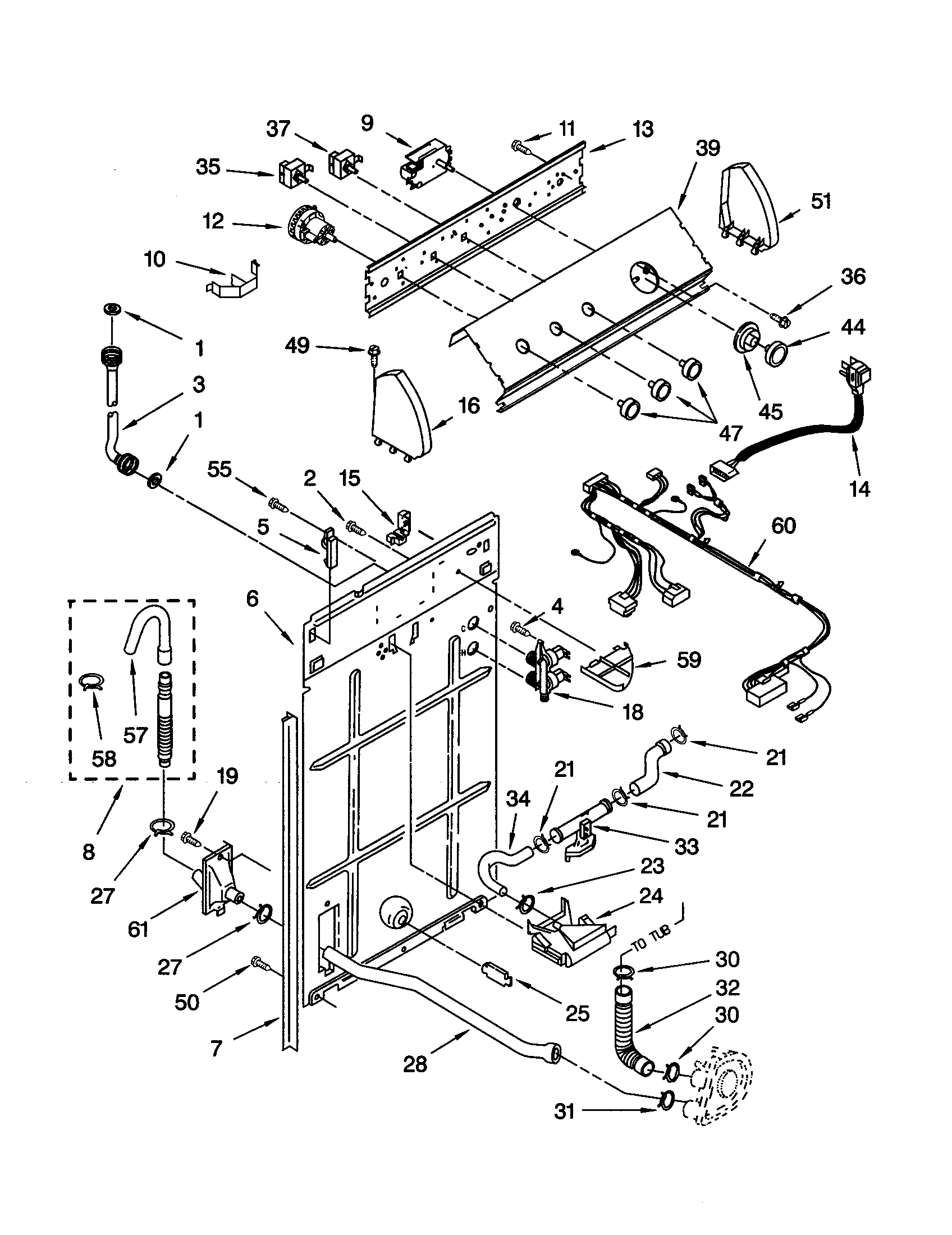

• Washer inlet valve 285805 (hot/cold water fill control)

Why it matters

Using the correct Whirlpool LSQ8520JQ0-COMPATIBLE part helps prevent repeat failures (like stripped couplers or poor agitation), reduces leaks and vibration, and keeps the washer operating as designed. It also helps ensure you are maintaining the washer according to the instructions in the product documentation.

Last updated: February 2026

On Whirlpool washers that use an electronic fault-code display (common on Duet-style front-load models), E01 and F09 are separate codes, not one combined message. F09 points to a drain problem (long drain/overflow-related drain fault), while E01 is typically a door lock or control communication issue depending on the platform. For your Whirlpool LSQ8520JQ0 top-load washer, confirm which indicators and diagnostics it uses in the LSQ8520JQ0 owner's manual.

What the codes usually mean (by Whirlpool platform)

• E01: door lock/door switch or control communication fault (platform-dependent)
• F09: drain system fault; the washer is not draining as expected or is detecting an abnormal water level change during draining
• Codes can appear together if more than one fault is present
• A top-load direct-drive model like LSQ8520JQ0 may use different diagnostics than Duet front-load models

Fast checks for an F09-type drain fault

1. Unplug the washer for 1 minute; then try a Drain/Spin.

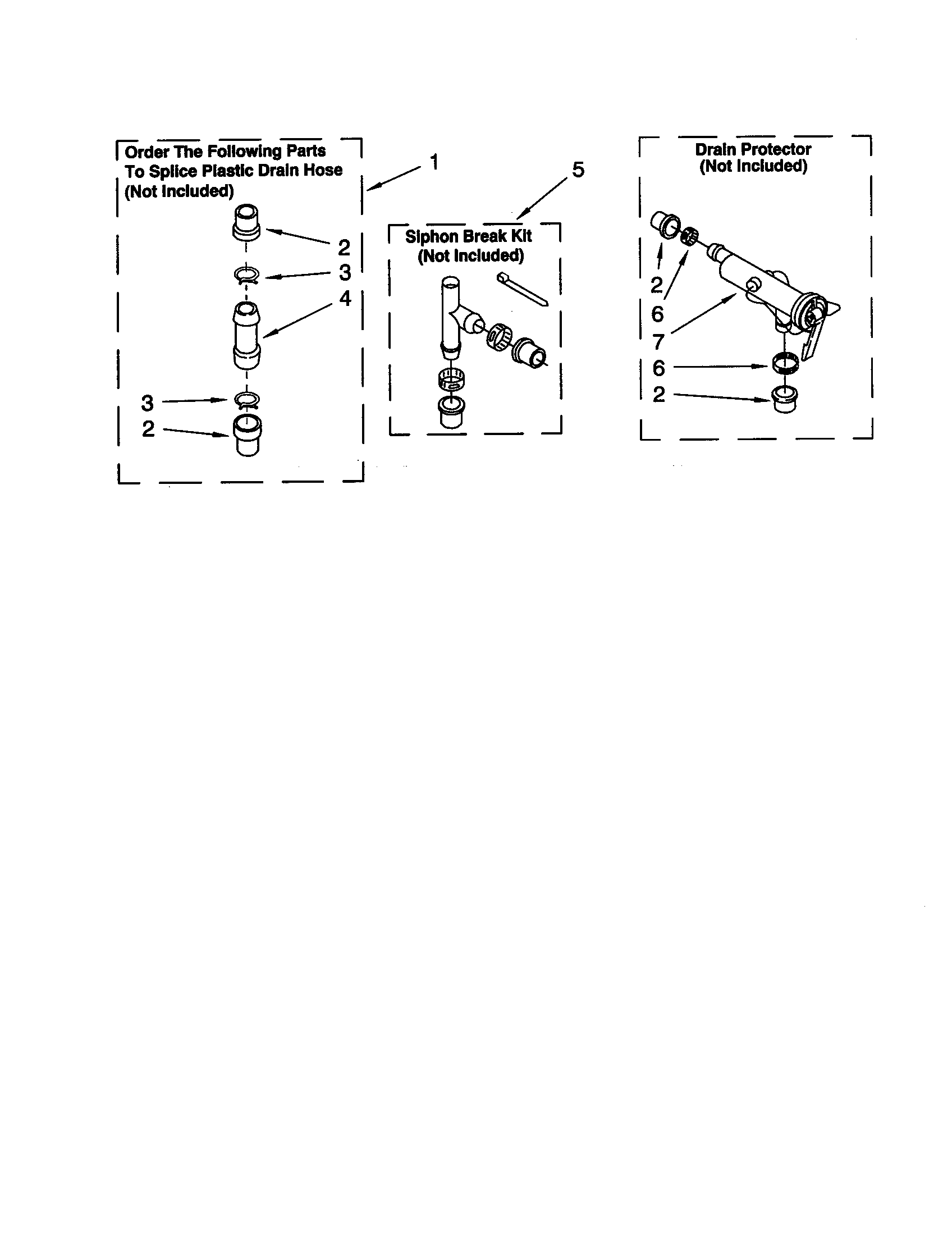

2. Check the drain hose for kinks, crushing, or being pushed too far into the standpipe.
3. Make sure the standpipe and household drain flow freely.
4. Reduce oversudsing; use the correct detergent amount.
5. If draining is weak, inspect for a blockage in the drain path (lint, coins, small socks).

Quick guide: symptom vs. likely cause

What you see	Most likely cause	What we do next
Tub stays full of water	Drain hose/house drain restriction	Clear restriction; verify strong drain flow
Pump runs but little water moves	Blockage in drain path	Remove obstruction; re-test drain
Intermittent drain errors	Partial clog or oversuds	Correct detergent use; recheck hose routing
Drain issue plus cycle stopping	Water-level sensing confusion	Fix drain flow first; then re-test cycles

Why it matters

Drain faults leave clothes soaking wet and can stop the cycle mid-wash. Correcting hose routing and drain flow early prevents repeat shutdowns and reduces strain on the washer’s drain system.

For installation-related drain hose routing and securement, use the LSQ8520JQ0 installation guide.

Last updated: February 2026

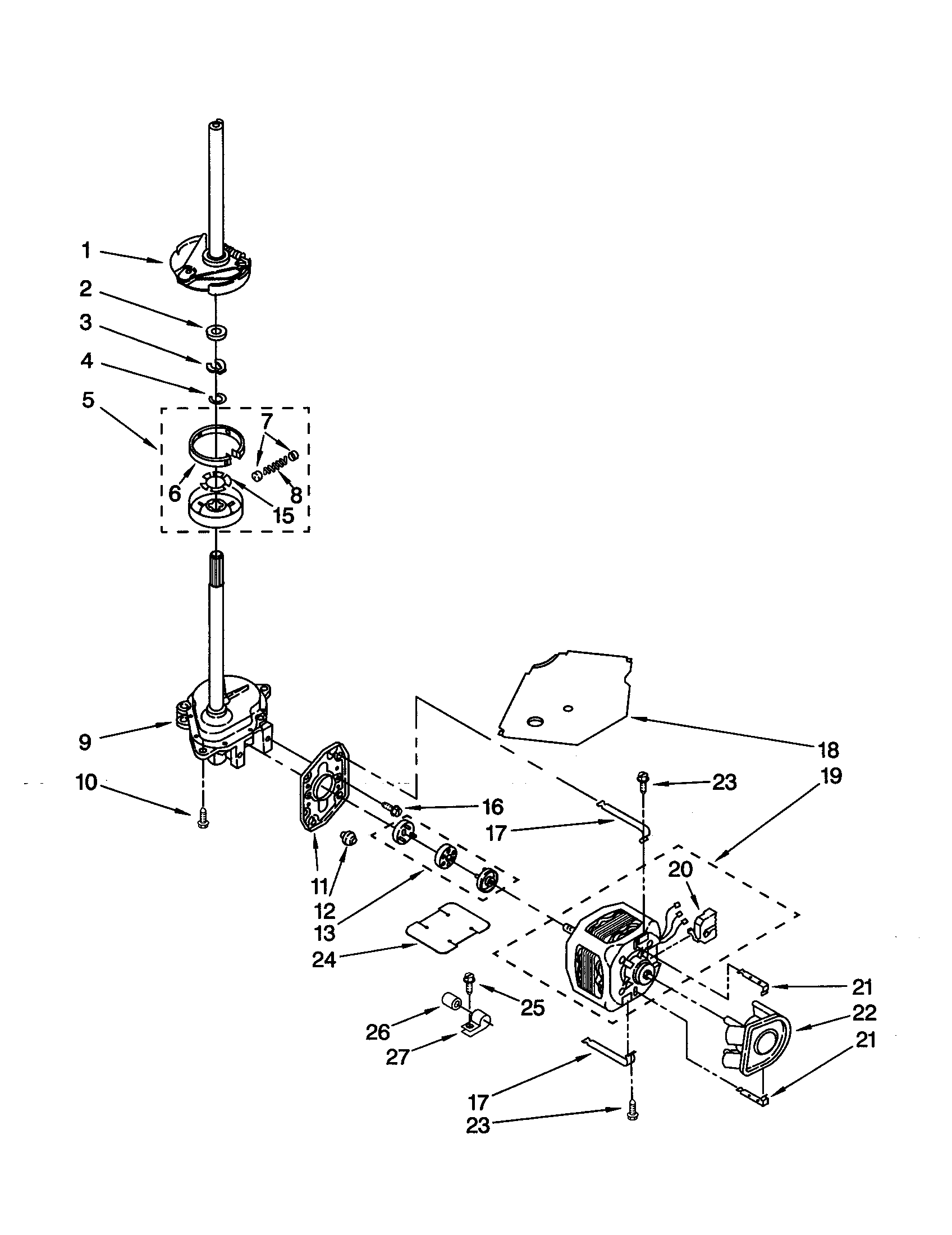

The most common Whirlpool washer problem is a no-spin or no-drain condition. On the Whirlpool LSQ8520JQ0 (a direct-drive top-load design), this is most often tied to a lid switch issue, a worn drive coupling, or a clutch/gearcase problem that prevents the basket from reaching spin speed.

Quick checks we recommend first

• Make sure the lid closes firmly; a failed lid switch can stop spin and drain.
• Redistribute the load; heavy items on one side can prevent a full-speed spin.
• Confirm the drain hose is not kinked or shoved too far down the standpipe.
• Listen during spin: a motor running with no basket movement often points to a drive coupling.
• If it drains but will not spin up, suspect clutch or gearcase wear.

Common symptoms and the parts that usually fix them

Symptom	What you typically notice	Common fix area on LSQ8520JQ0
Won’t spin and won’t drain	Stops at spin, water stays in tub	Lid switch circuit, drive system
Motor runs, tub does not move	Humming/running sound, no agitation/spin	Motor-to-transmission coupling
Spins weakly or slips	Slow spin, clothes wetter than normal	Clutch or gearcase
Agitates poorly	Top of agitator “ratchets” or won’t pull clothes down	Agitator dogs/agitator parts

Parts customers commonly replace for these issues

• Coupling 285753A (motor-to-gearcase drive coupling)
• Clutch 285785 (helps the basket ramp up to spin speed)
• Switch 3949247V (lid switch style component used to enable operation)
• Agitator dog 80040 (common cause of weak upper-agitator action)

Why it matters

A washer that cannot spin leaves clothes soaking wet and can strain the drive system. Catching a worn coupling or slipping clutch early often prevents bigger repairs, such as gearcase damage.

Where to confirm model-specific diagnostics

Use the LSQ8520JQ0 owner's manual for operating checks and safety guidance, and the LSQ8520JQ0 installation guide to verify drain standpipe and hose setup (a frequent cause of drain and spin complaints).

Last updated: February 2026
