GE DDT595SGJ4BB dishwasher Parts

On the GE DDT595SGJ4BB dishwasher, we clear many error states by canceling the current cycle: press and hold Start for 3 seconds, then close the door so the unit drains and resets cycle status. If the code returns, correct the underlying problem.

Quick reset steps (DDT595SGJ4BB)

• Cancel/Drain reset (most common): press and hold Start for 3 seconds, then close the door; the dishwasher drains and the cycle light turns off (often clears the displayed error state). See the DDT595SGJ4BB owner's manual.
• Resume after a pause: open the door to pause, then press Start and close the door within 4 seconds.
• Hard power reset: switch the dishwasher off at the breaker for about 5 minutes, restore power, then start a normal cycle.

If the error comes back: check these first

Most GE dishwasher error codes reappear until the condition is fixed.

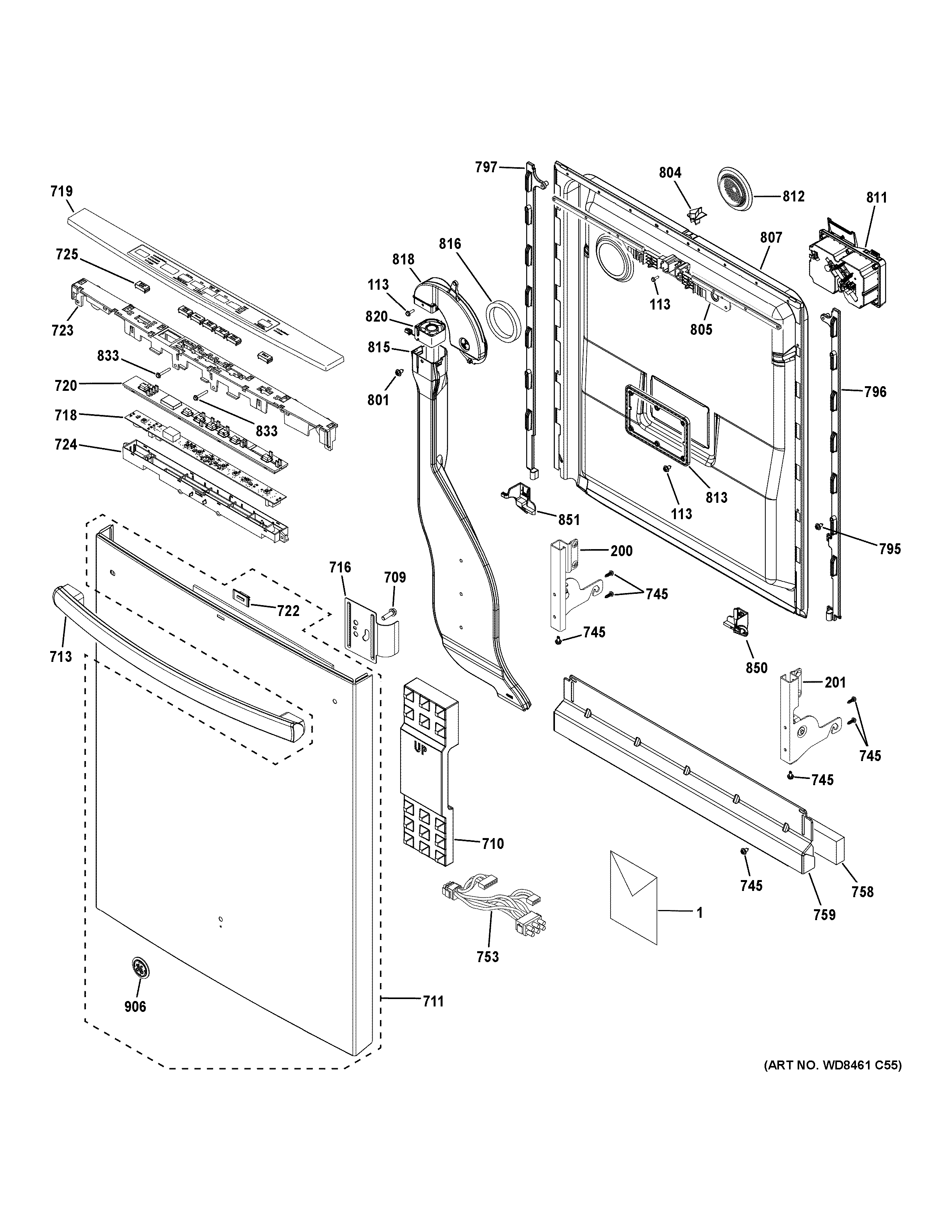

• Door not latching: close firmly; remove obstructions; inspect the latch. If needed, replace the GE dishwasher door latch lock WD21X10490.
• Not draining: check for standing water, a clogged sink/disposer connection, and kinks or clogs in the dishwasher drain hose WD24X10062.
• Not filling: confirm the shutoff valve under the sink is fully open.
• Suds/over-foaming: use only automatic dishwasher detergent; let suds dissipate, then do the Start (3 seconds) cancel/drain.

Match the symptom to the next step

Symptom you see	What it points to	What to do next
Won’t drain	Drain path restriction or pump issue	Inspect hose and drain path
Won’t fill	Water supply issue	Verify valve and supply
Door-related message	Latch/strike alignment	Inspect latch area

For code definitions and troubleshooting by code, use GE electronic dishwasher error codes.

Why it matters

Clearing the display without fixing the cause usually triggers the same error mid-cycle. Cancel/drain resets the cycle safely, then you can target the real issue (drain, fill, or door latch).

Last updated: February 2026

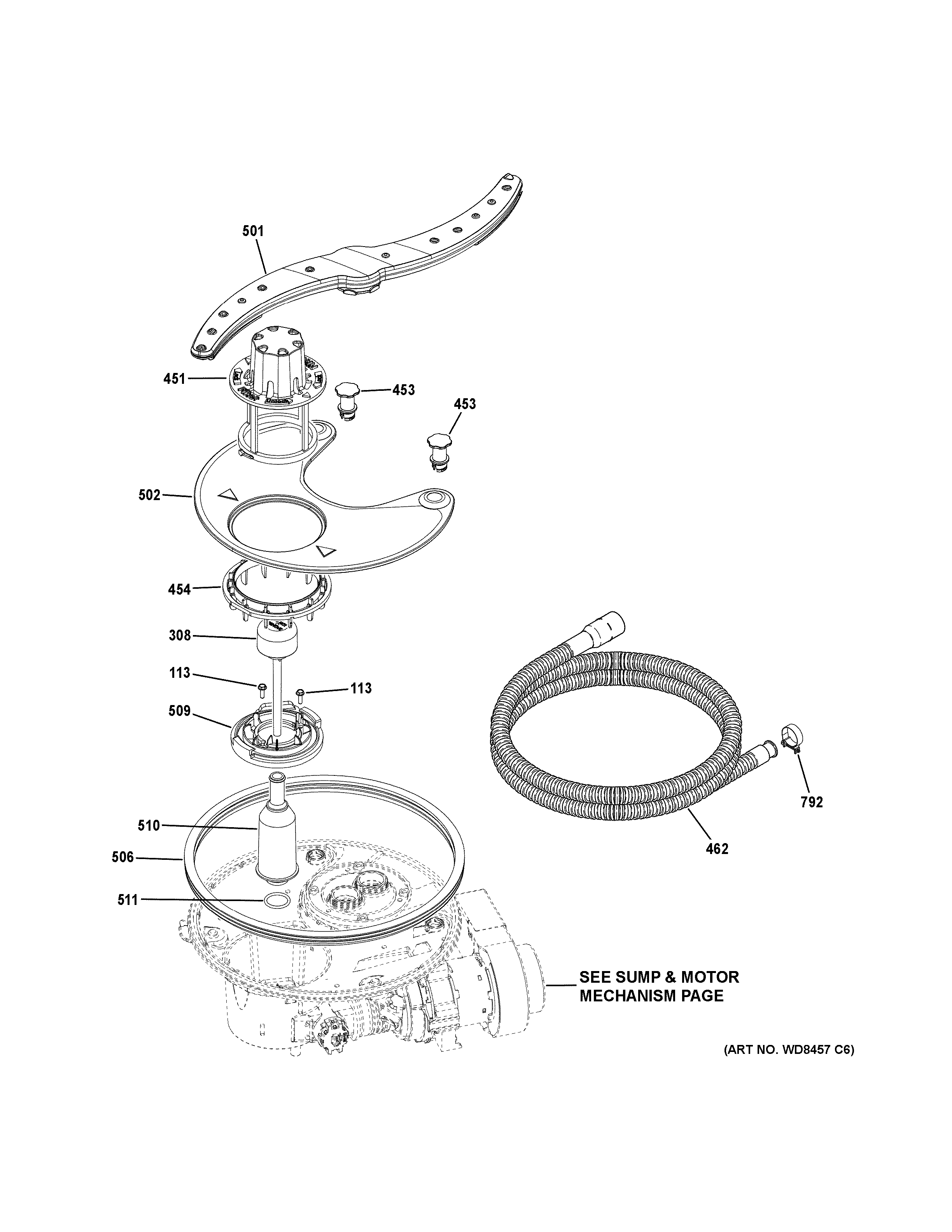

On the GE DDT595SGJ4BB dishwasher, we remove the filter by pulling out the bottom rack, twisting the Ultra-Fine Filter counterclockwise to lift it out, then unlocking the Fine Filter (mesh plate) by turning the two retaining posts counterclockwise. For the “spinner” (spray arm), we remove it after the filters are out so nothing drops into the sump.

Step-by-step: remove the filters

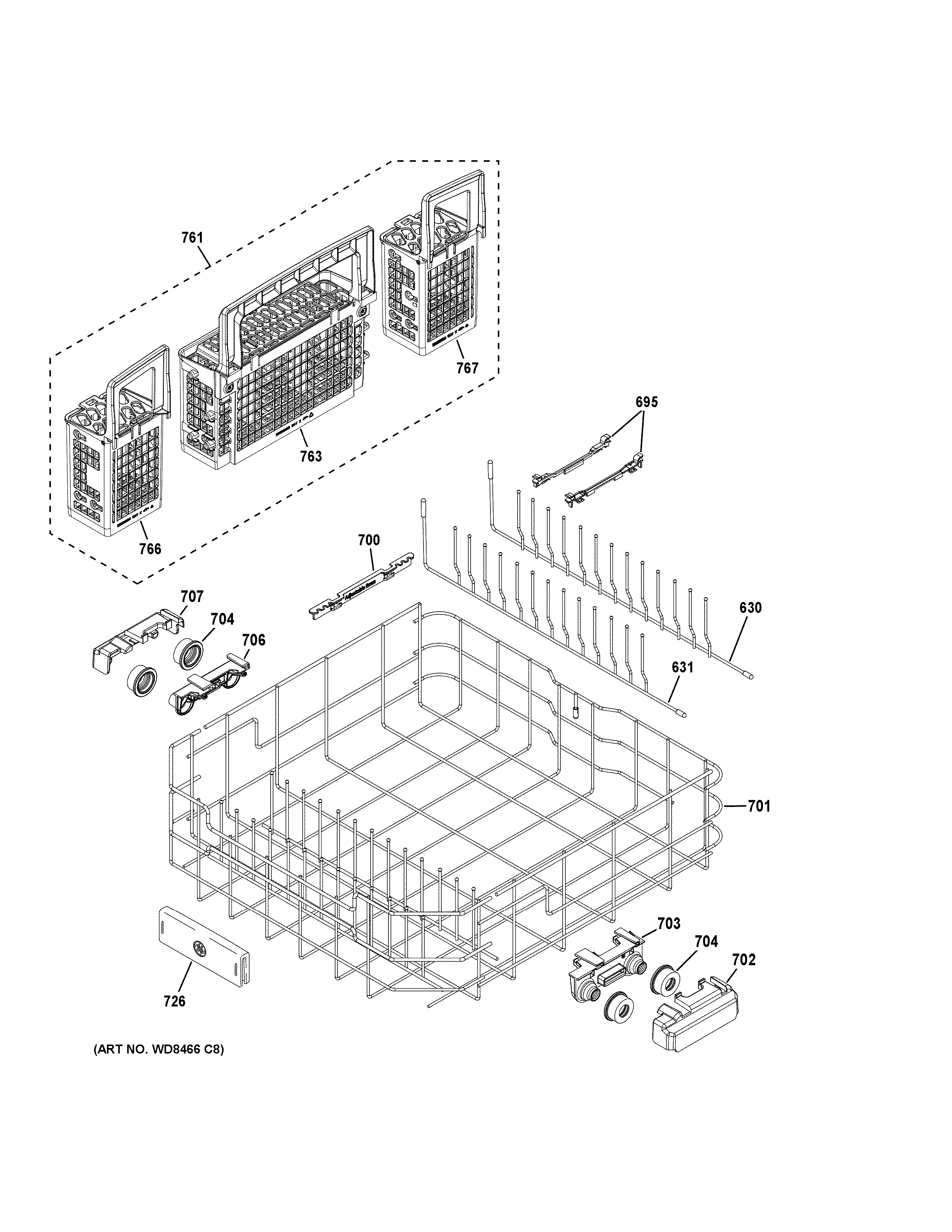

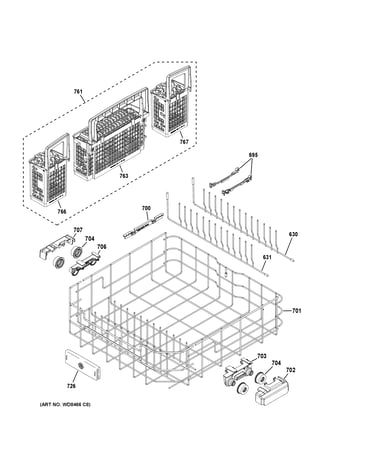

1. Pull the bottom rack all the way out and lift it off the rails.
2. Ultra-Fine Filter: twist counterclockwise, then lift straight up.
3. Fine Filter (mesh plate):
   • Remove the Ultra-Fine Filter first.
   • Twist the two retaining posts at the back bottom of the tub counterclockwise.
   • Lift out the Fine Filter.

• Rinse filters with warm, soapy water.
• Use a soft sponge or soft brush for stuck-on debris.
• Avoid scouring pads or stiff brushes; they can damage or scratch the filter.
• Reinstall by reversing the steps and twisting clockwise to lock.

Step-by-step: remove the “spinner” (spray arm)

GE uses a rotating spray arm under the lower rack. On many GE dishwashers, the lower spray arm lifts off after you release its center retainer or locking hub.

• Remove the bottom rack first.
• Look at the spray arm center for a cap, nut, or twist-lock retainer.
• Turn the retainer counterclockwise (or release the locking tabs) and lift the spray arm up.
• If the spray arm is damaged or clogged, replace it with the correct model-matched part.

If you need the exact retainer style for your DDT595SGJ4BB, follow the diagrams and instructions in the DDT595SGJ4BB owner’s manual.

Quick checks while you are in there

• Spin the spray arm by hand; it should rotate freely.
• Clear food bits from spray arm holes with a toothpick.
• Check the sump area for broken glass or labels.
• Make sure the retaining posts are locked back in place.

Common parts related to poor cleaning

Symptom	Often involved part	Example for this model
Lower rack not getting clean	Lower spray arm clogged or cracked	Dishwasher spray arm, lower WD22X33499

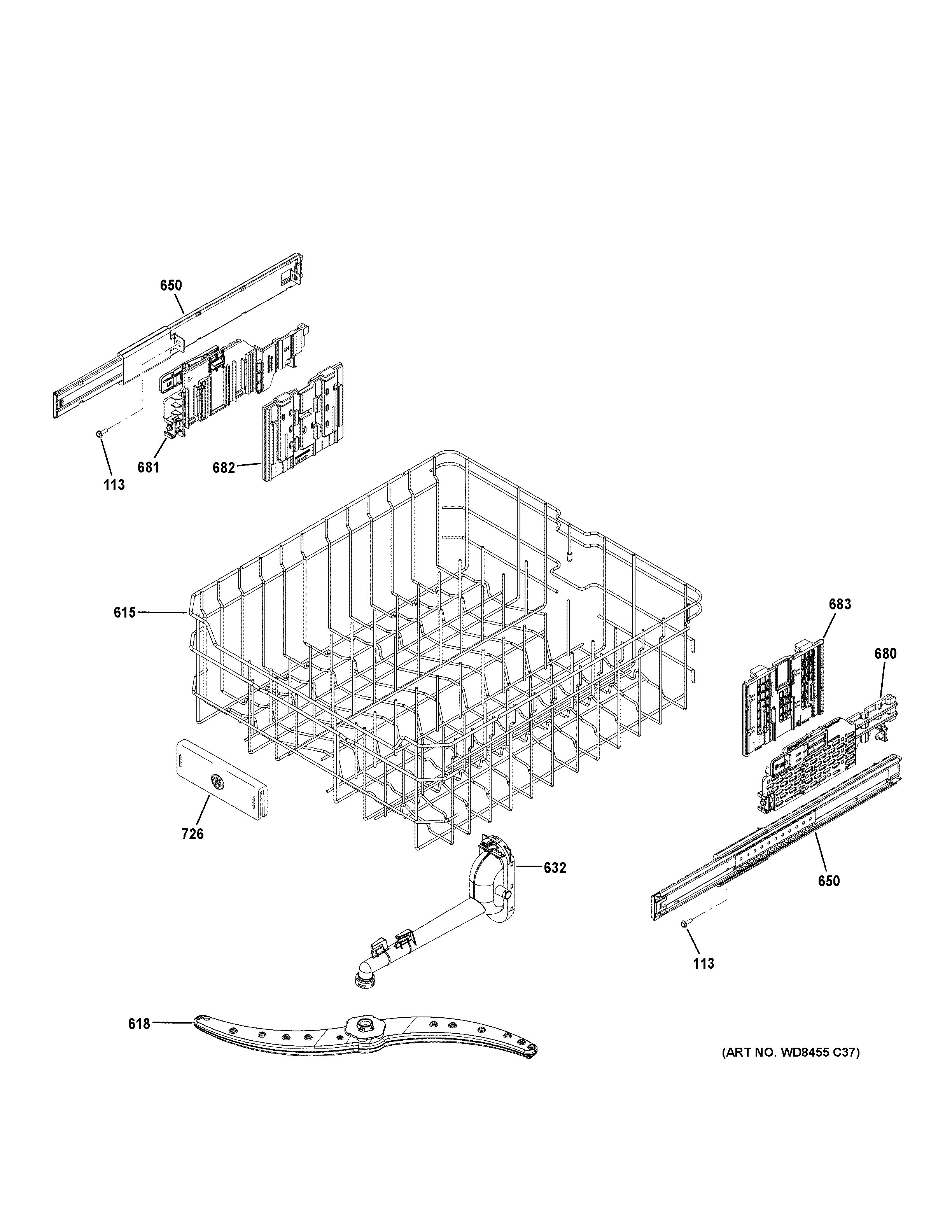

Upper rack weak spray	Middle spray arm issues	Dishwasher spray arm, middle WD22X33498

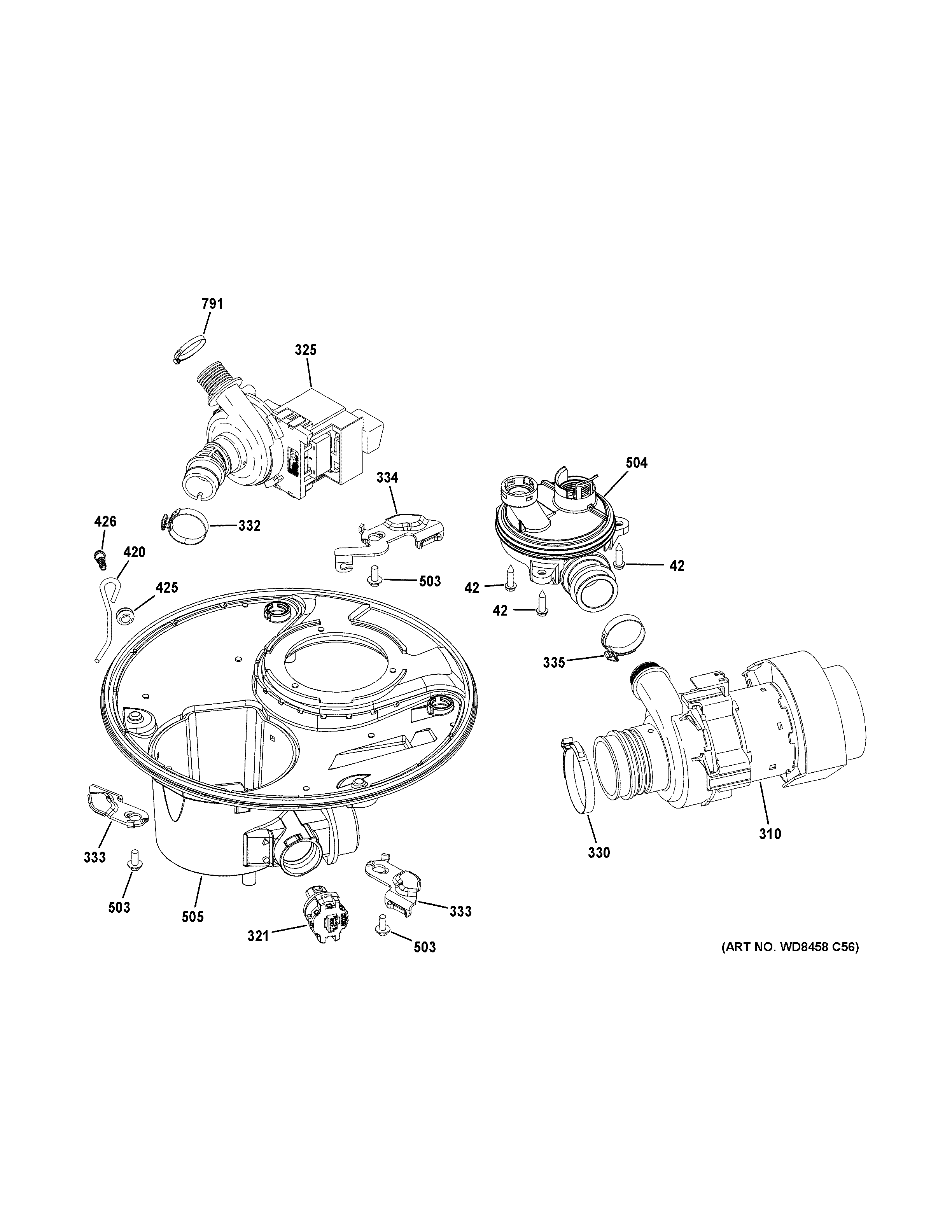

Still not washing well	Circulation problem	Dishwasher circulation pump assembly WD26X23258

Why it matters

A clogged Ultra-Fine Filter or Fine Filter restricts water flow and recirculation, which reduces spray pressure and cleaning performance. Keeping the filters and spray arm clear is one of the fastest ways to restore normal wash results.

Last updated: February 2026

The average lifespan of a GE dishwasher like model DDT595SGJ4BB is 10 years with normal use and basic maintenance. Keeping filters and spray arms clean, using the right detergent, and fixing small leaks early helps you reach that typical service life.

What affects lifespan most

• Water quality (hard water speeds up mineral buildup)
• How often you run cycles (daily use adds wear faster)
• Loading habits (blocked spray arms reduce cleaning and strain the pump)
• Heat and drying performance (a weak heater can leave moisture and odors)
• Small leaks or door sealing issues that go unaddressed

Maintenance that helps you get the full 10 years

Use the care and cleaning steps in the DDT595SGJ4BB owner's manual as your baseline. These habits make the biggest difference:

• Clean the dishwasher interior periodically to reduce film and odors
• Check and rinse spray arms if you see poor cleaning or grit on dishes
• Keep the door area clean so the door seals evenly
• Run hot water at the sink before starting a cycle when water is slow to heat
• Address draining issues quickly so the pump is not running against restrictions

Common “wear” parts and what they do

If performance drops, these parts are often involved:

Symptom	Common cause	Example part for this model
Dishes not clean	Clogged or damaged spray arm	Dishwasher spray arm, lower WD22X33499
Not drying well	Heater not heating properly	Dishwasher heating element WD05X30818
Won’t start or stops mid-cycle	Door not latching securely	Dishwasher door latch lock WD21X10490
Poor wash pressure or loud wash	Circulation system wear	Dishwasher circulation pump assembly WD26X23258

Why it matters

Knowing the typical 10-year lifespan helps you decide whether to maintain and repair your DDT595SGJ4BB (often cost-effective for cleaning, draining, or latch issues) or plan for replacement if multiple major components are failing.

Last updated: March 2026
