Craftsman 917292401 tiller Parts
Here are the diagrams and repair parts for Craftsman 917292401 tiller, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

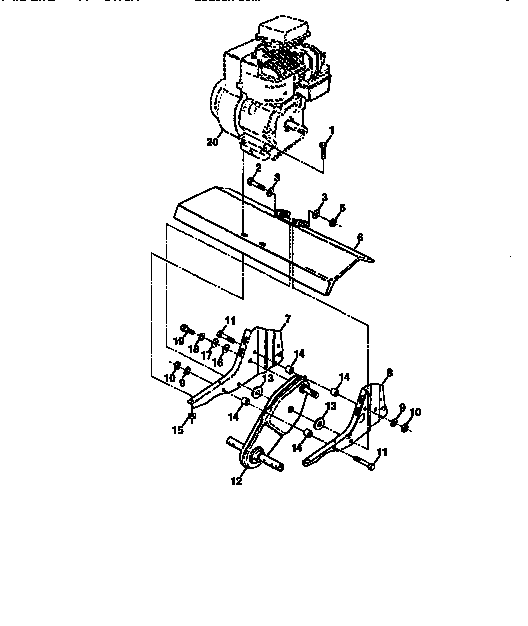

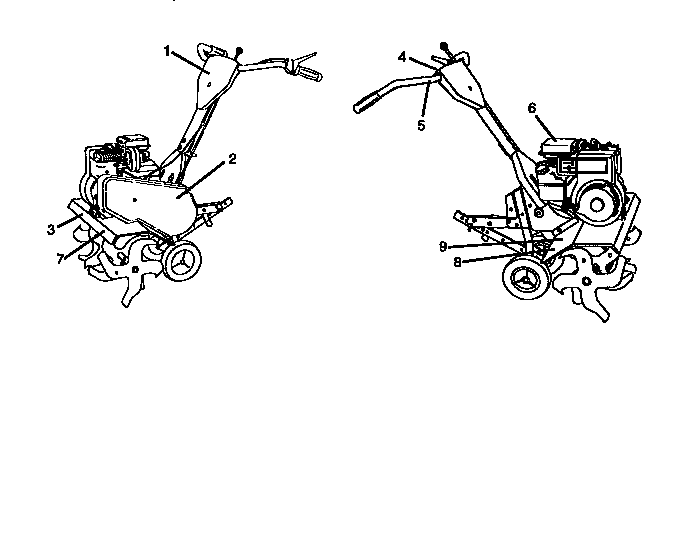

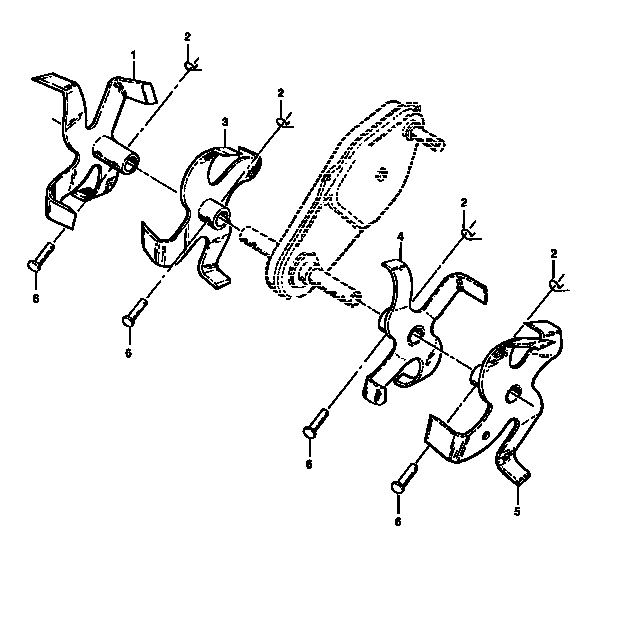

Browse Parts for 917292401 Tillers

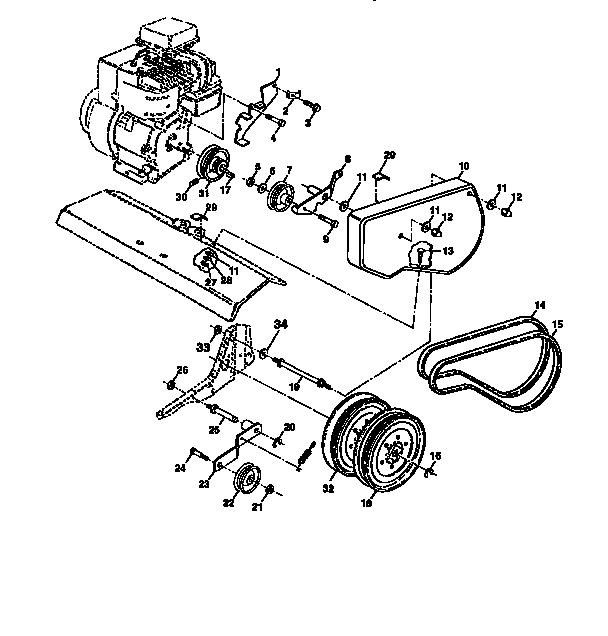

Belt guard and pulley assembly diagram
Washer
Part #19131316Replaced by #819131316
Manufacturer substitutionThis part replaces 19131316. Substitute parts can look different from the original.This item is not returnableIn Stock$27.3618% OFF Phone Price : $33.36
Qty

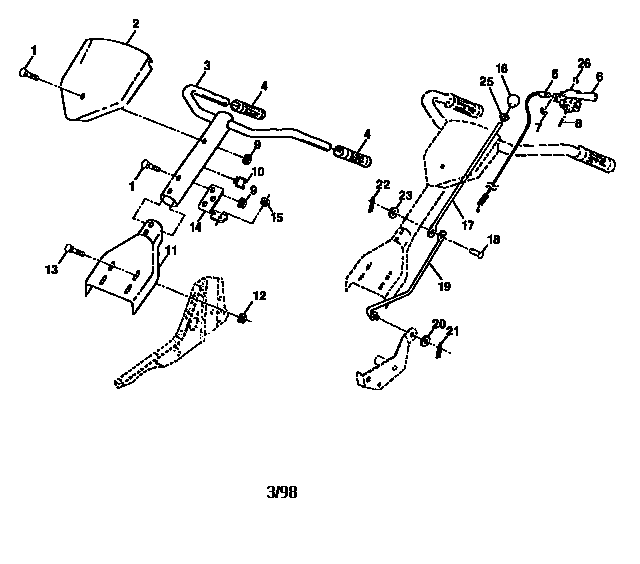

Handle assembly diagram
Washer
Part #19090814Replaced by #STD551025
Manufacturer substitutionThis part replaces 19090814. Substitute parts can look different from the original.In Stock$36.61QtyBelt guard and pulley assembly diagram
Key
Part #2649MReplaced by #532002649
Manufacturer substitutionThis part replaces 2649M. Substitute parts can look different from the original.In Stock$12.97QtyBelt guard and pulley assembly diagram
Sheave Transmission
Part #151223Replaced by #532151223
Manufacturer substitutionThis part replaces 151223. Substitute parts can look different from the original.This item is not returnableIn Stock$101.70QtyBelt guard and pulley assembly diagram
Idler Pad
Part #109227XReplaced by #532109227
Manufacturer substitutionThis part replaces 109227X. Substitute parts can look different from the original.In Stock$8.6310% OFF Phone Price : $9.63Qty#(NI)
All parts diagram
Sweep/hoe
Part #71-29088
The manufacturer no longer makes this part, and there's no substitute part
#(NI)
All parts diagram
Cultivating Shields
Part #71-29061
The manufacturer no longer makes this part, and there's no substitute part
#(NI)
All parts diagram
Open Furrow
Part #71-29087
The manufacturer no longer makes this part, and there's no substitute part
#(NI)
All parts diagram
Lawn Aerator
Part #71-29099
The manufacturer no longer makes this part, and there's no substitute part

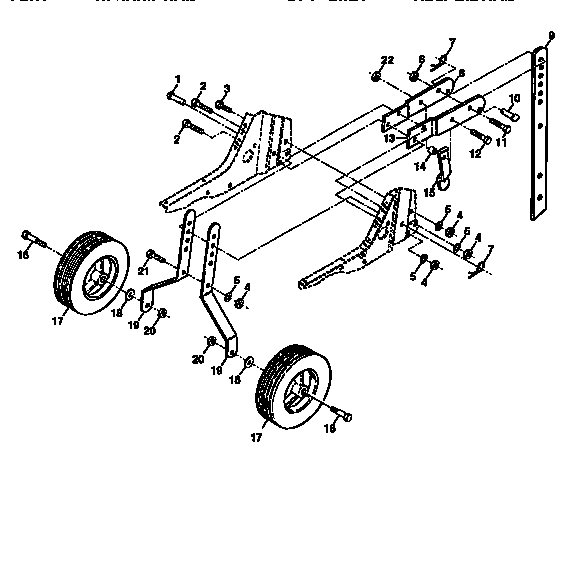

Wheel and depth stake assembly diagram
Washer
Part #120958X
The manufacturer no longer makes this part, and there's no substitute part
