Whirlpool WRT111SFDW03 refrigerator Parts

A fridge with the freezer on top is called a top-freezer refrigerator, also commonly called a top-mount refrigerator. Your Whirlpool WRT111SFDW03 is this style: the freezer compartment sits above the fresh-food compartment, with separate side-swing doors.

Common names you’ll see for this refrigerator style

• Top-freezer refrigerator
• Top-mount refrigerator
• Freezer-on-top refrigerator
• Traditional two-door top freezer
• Top-freezer, bottom-refrigerator layout

How it compares to other common refrigerator styles

Style name	Freezer location	Typical door layout	Common reason people choose it
Top-freezer (top-mount)	Top	Two side-swing doors	Simple design, efficient use of space
Bottom-freezer	Bottom	Fridge door(s) plus freezer drawer	Fresh food at eye level
Side-by-side	Left side	Two tall vertical doors	Easy access to freezer items
French door	Bottom	Two fridge doors plus freezer drawer	Wide fridge shelves, premium layout

Why it matters

Knowing the style name helps you match the right Whirlpool WRT111SFDW03 parts and troubleshooting steps (for example, door gasket fit, evaporator fan access, and defrost system layout) when you’re diagnosing cooling, frost, or door-seal issues.

Helpful next steps for owners

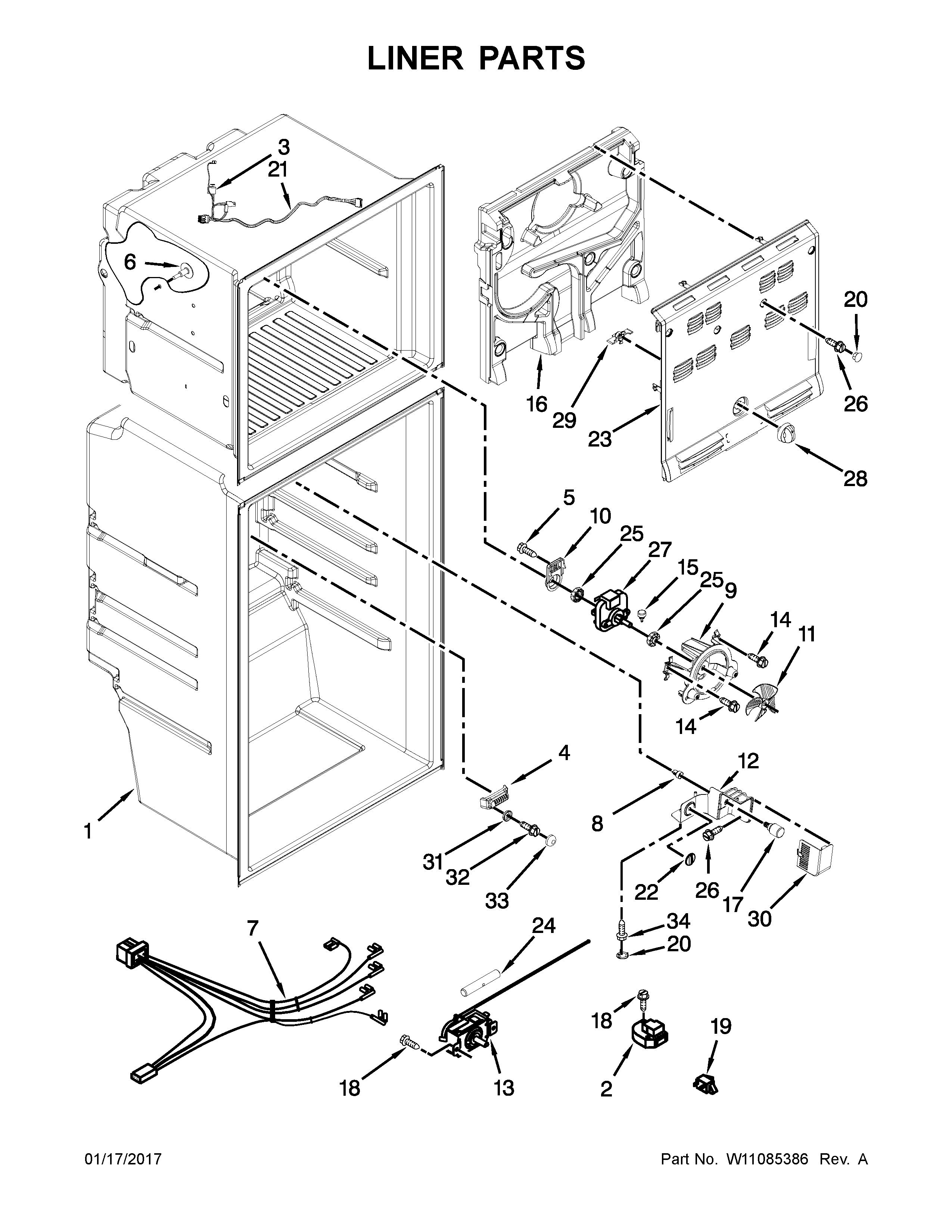

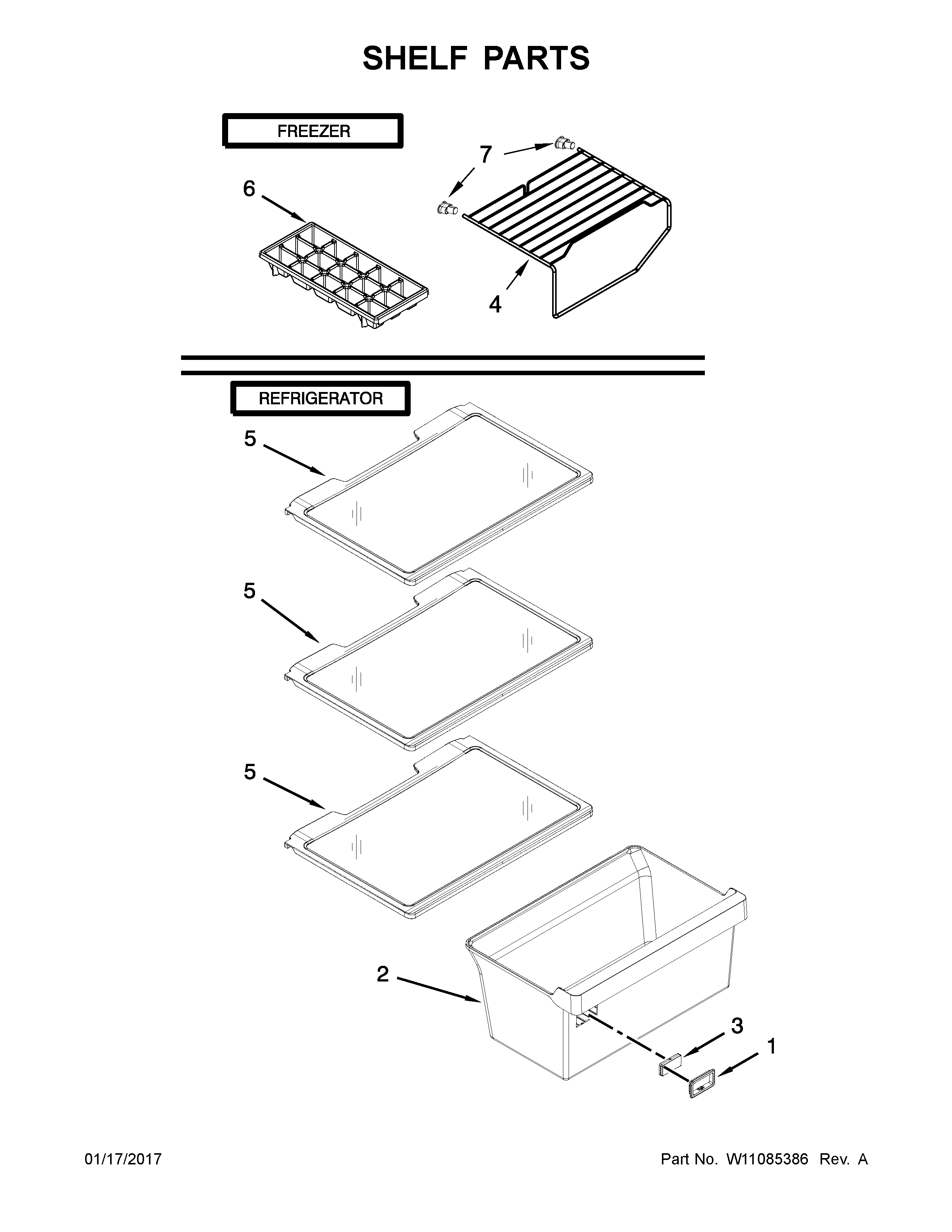

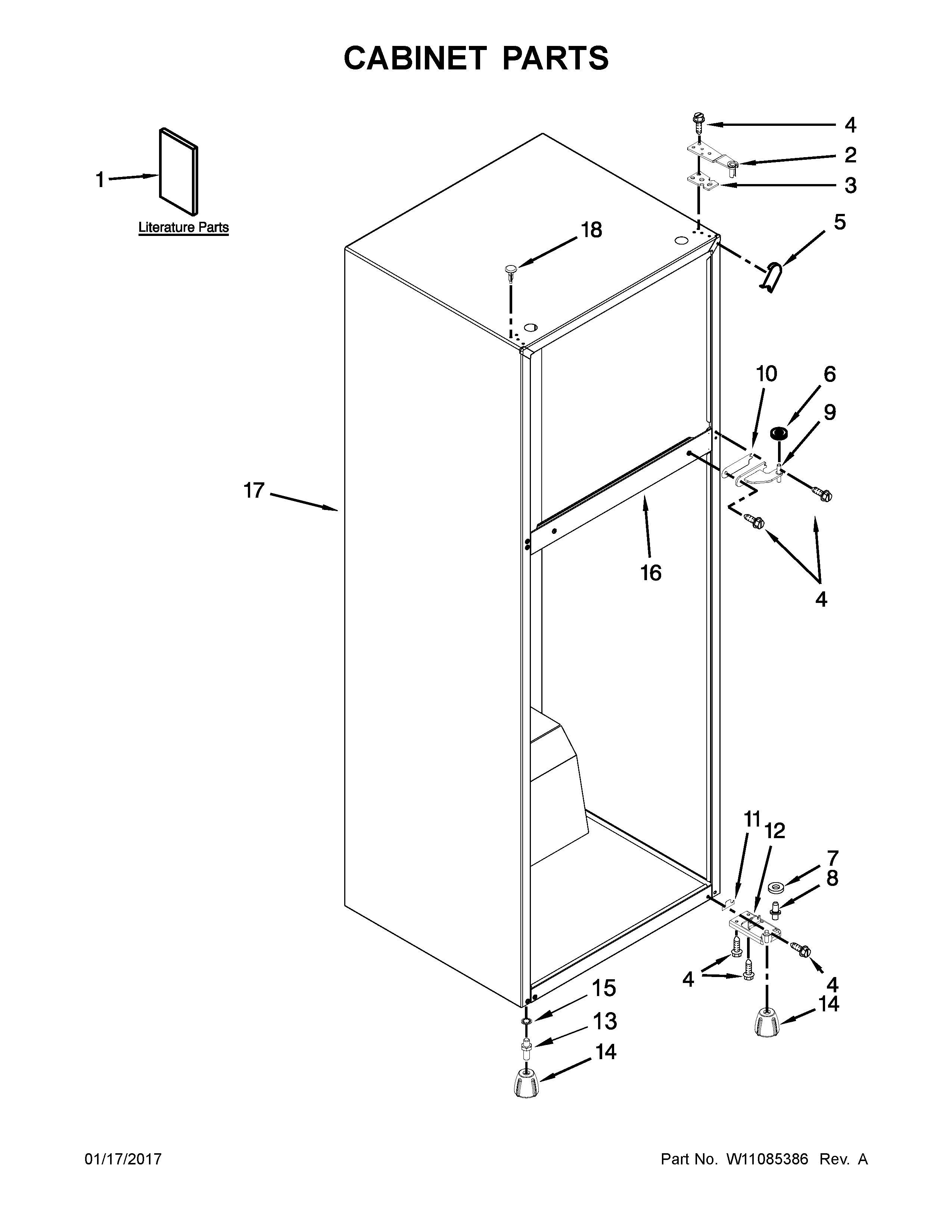

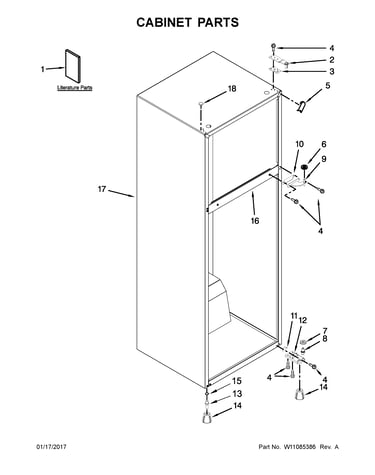

• Use the model’s diagrams and part lists to confirm fit before ordering.
• Check the temperature control and airflow vents if cooling seems uneven.
• If you’re seeing frost buildup, review defrost and door-seal basics.

For model-specific operation and care details, use the WRT111SFDW03 owner’s manual.

Last updated: January 2026

Most Whirlpool refrigerators last 10 to 20 years. For a Whirlpool WRT111SFDW03 top-mount refrigerator, we typically see 10 to 15 years as a common real-world range, with longer life when basic maintenance and good airflow around the cabinet are consistently maintained (see the WRT111SFDW03 owner's manual).

Typical lifespan ranges (what to expect)

Lifespan depends heavily on how hard the sealed system works (compressor run time), how clean the condenser area stays, and how well the doors seal.

Refrigerator type	Typical lifespan	Notes
Basic top-mount (like WRT111SFDW03)	10 to 20 years	Fewer features usually means fewer failure points
Feature-heavy models (ice/water in door)	8 to 15 years	More valves, heaters, and controls to maintain

What helps a Whirlpool refrigerator last longer

• Keep the condenser area clean and unobstructed so heat can dissipate efficiently.
• Make sure doors close fully and gaskets seal all the way around.
• Avoid overpacking; blocked vents cause warm spots and longer run times.
• Set stable temperatures (avoid frequent big adjustments).
• Level the refrigerator so doors self-close and don’t drift open.

Parts that commonly affect longevity

These parts do not define lifespan by themselves, but when they fail, they can shorten the usable life if not addressed quickly.

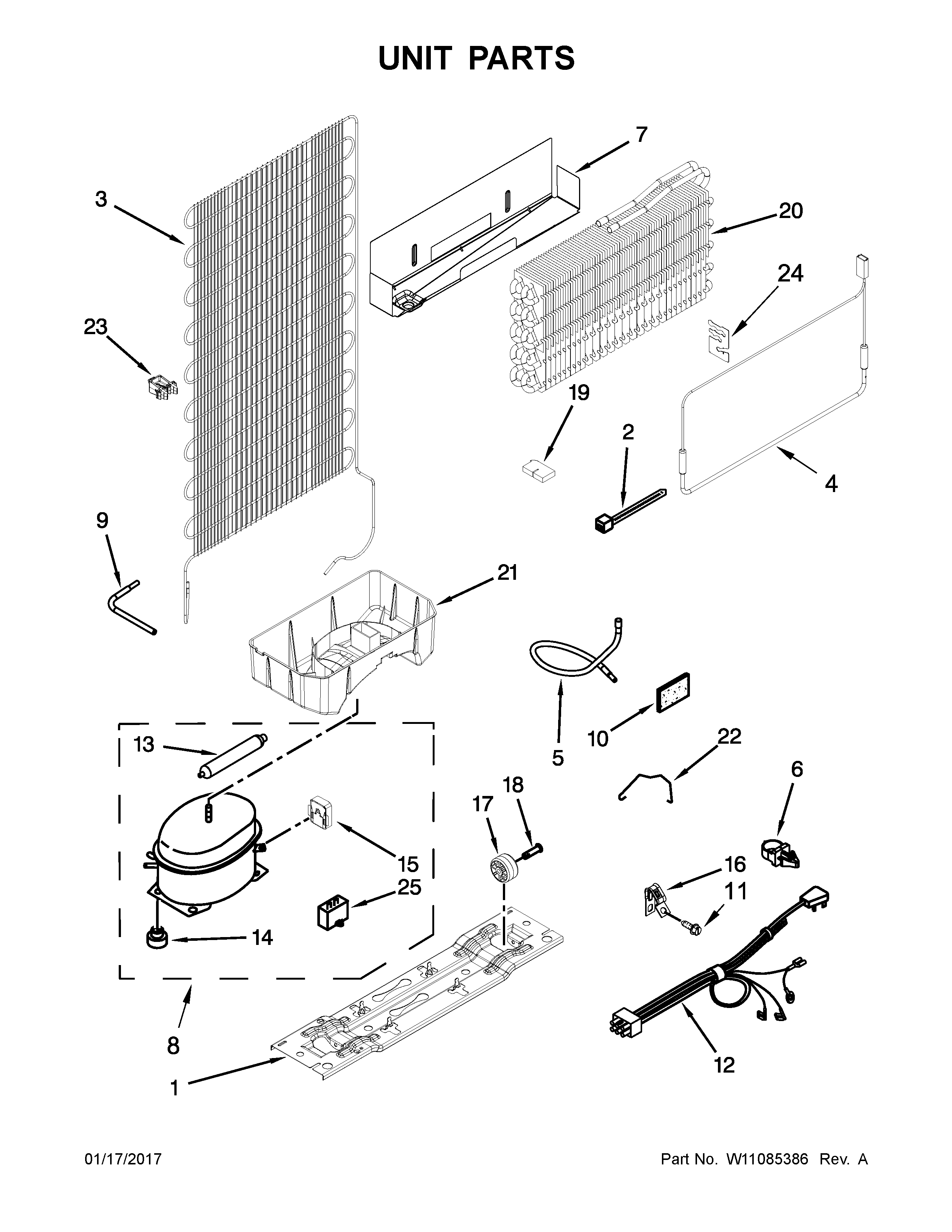

• Compressor start components: refrigerator start device WPW10448874 and refrigerator run capacitor WPW10662129

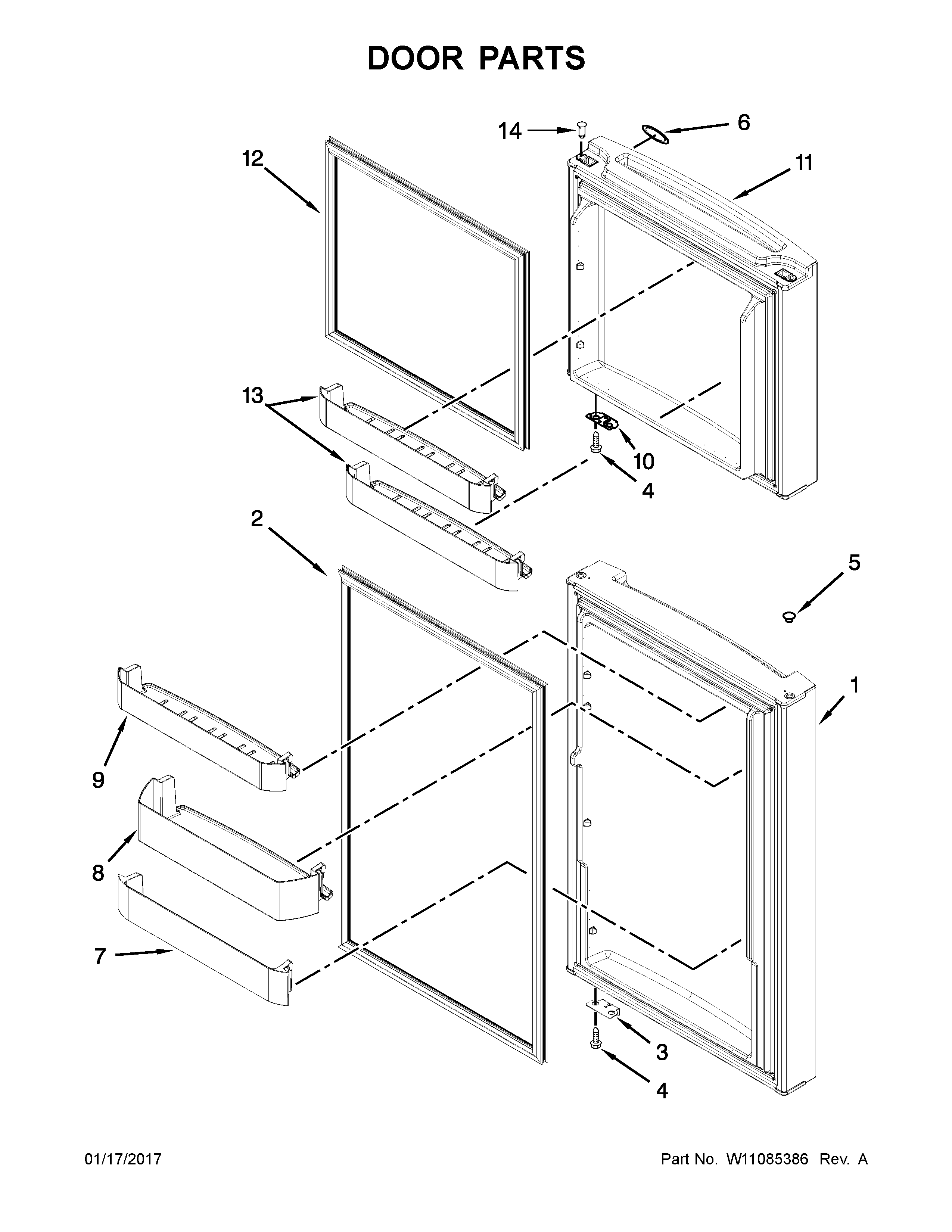

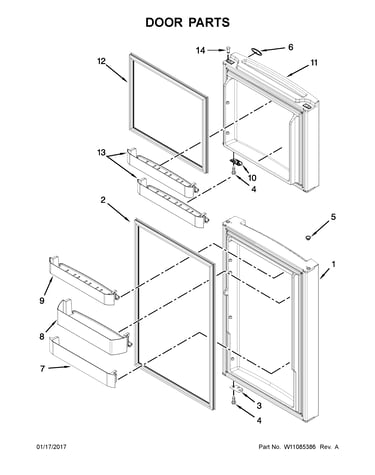

• Door sealing components (gaskets) and hinges (prevent warm air leaks)
• Air movement parts (fans and blades) that keep temperatures even

Why it matters

A refrigerator that runs hotter or longer than normal wears the compressor and electrical start components faster, increases energy use, and can lead to food spoilage. Simple maintenance and quick repairs usually add years of reliable service.

Last updated: January 2026

The most common Whirlpool refrigerator problem is a cooling complaint: the fridge is warm, the freezer is warm, or the unit runs almost constantly. On the Whirlpool WRT111SFDW03, the most frequent root causes are airflow issues (frost buildup or a stalled fan) and heat-release issues (dirty condenser area or a weak start circuit).

Most common symptoms and what they usually point to

• Fridge warm but freezer cold: restricted airflow from the freezer to fresh food section (often frost/ice blocking vents)
• Freezer warm and fridge warm: compressor not starting reliably, sealed-system issue, or no airflow
• Runs all the time: dirty condenser area, door not sealing, or temperature set too cold
• Clicking and then silence: compressor start components (start device or run capacitor)
• Noisy humming or rattling: fan blade contacting ice or a failing fan motor

Quick checks we recommend before replacing parts

1. Confirm controls are set to normal mid-range (not max cold).
2. Make sure vents inside the refrigerator and freezer are not blocked by food packages.
3. Look for heavy frost on the freezer back wall (a strong sign of a defrost/airflow problem).
4. Clean dust from the condenser area and verify the unit has breathing room.
5. If you hear repeated clicking near the compressor, unplug the refrigerator and inspect the start components.

Parts that commonly relate to cooling and “won’t start” complaints

Symptom	Likely area	Example part for WRT111SFDW03
Clicking, hard starting	Compressor start circuit	Refrigerator start device WPW10448874
Hums but struggles to start	Run capacitor	Refrigerator run capacitor WPW10662129
Poor airflow noise	Fan blade/air movement	Fan blade WP2163777

Why it matters

Cooling problems usually get worse over time. Catching an airflow restriction early can prevent food spoilage and reduce compressor run time, which helps protect major components like the compressor.

Helpful references

• Use the WRT111SFDW03 manual for temperature control guidance, cleaning recommendations, and operating checks.
• If your Whirlpool displays a fault code (on models that support it), our Whirlpool refrigerator error codes guide helps narrow the cause.

Last updated: January 2026
